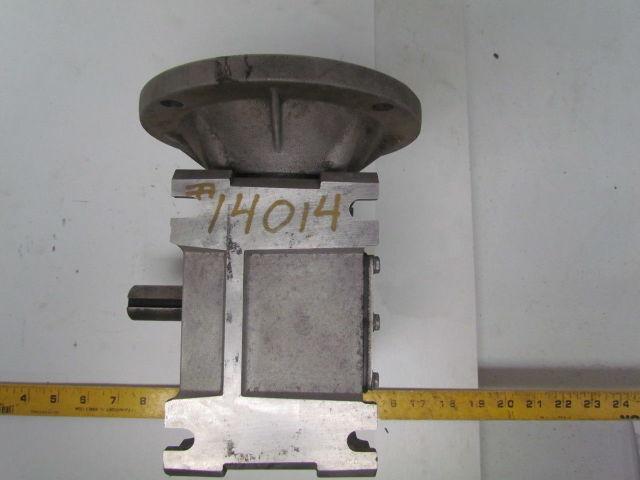

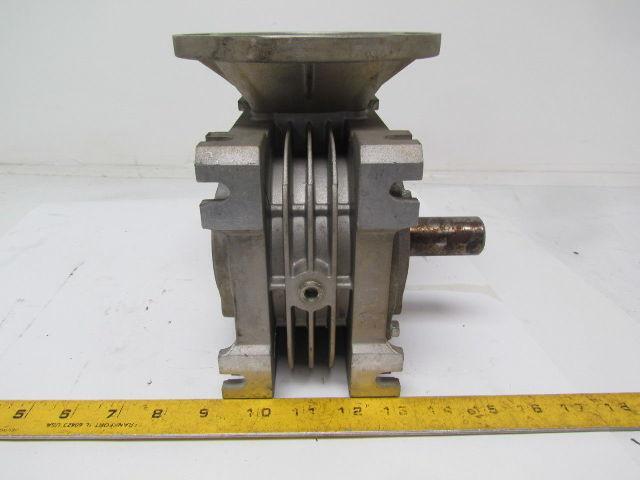

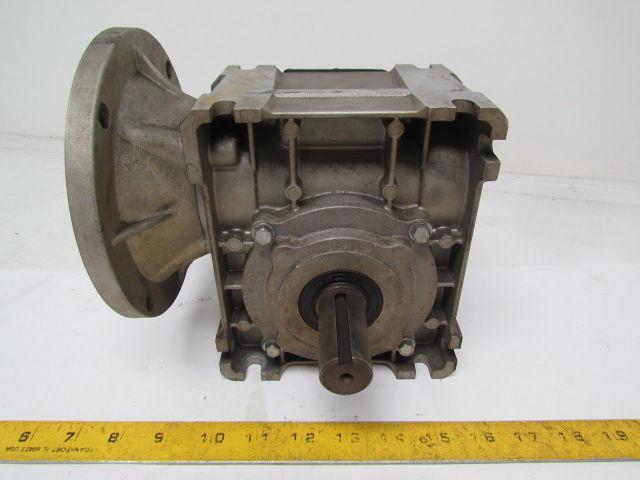

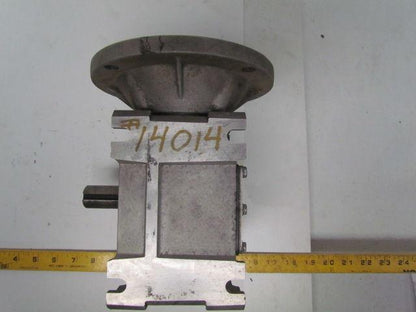

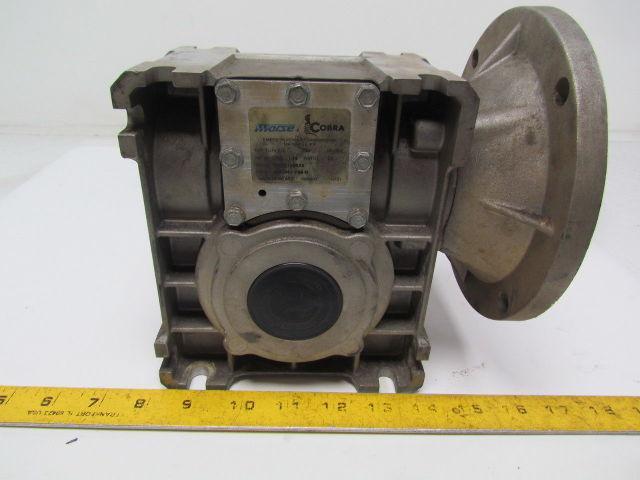

Emerson Morse C21Q140R20 Worm Gear Box Speed Reducer 20:1 Ratio 1.16HP 56C RH

Emerson Morse C21Q140R20 Worm Gear Box Speed Reducer 20:1 Ratio 1.16HP 56C RH

SKU #67540

Product Condition: Used

Your Price
$175.03
$334.99 $175.03
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Nema frame size: 56C
  • Ratio: 20:1
  • Input RPM: 1750
  • Input shaft diameter: 7/8"
  • Output shaft diameter: 1"
  • Vent Not included
  • Output Torque: 706 (in/lbs)
  • Approximate dimensions of main body not including bell shaped motor adaptor (If Included) Length: 6" Width: 4" Height: 7"
  • All gear reducers must have a breather vent. This allows for expansion and contraction of the air within the casing as a result of temperature changes. If a gearbox is used without a breather, oil leakage and seal failure may result. Gear boxes may or may not have oil or breather. Buyer is responsible to ensure gear box is properly vented and has proper oil and oil level prior to use.
.

Condition: Used
