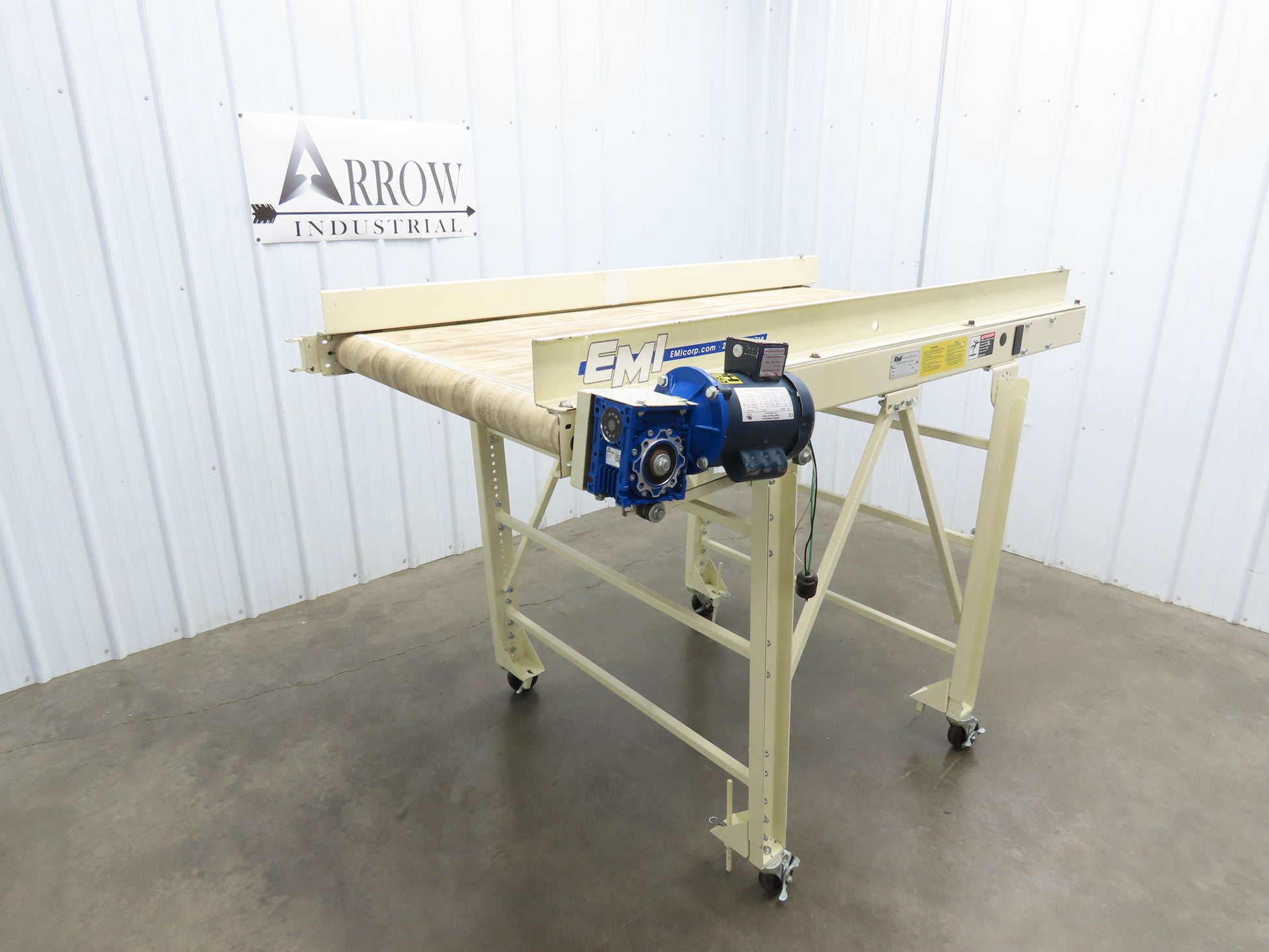

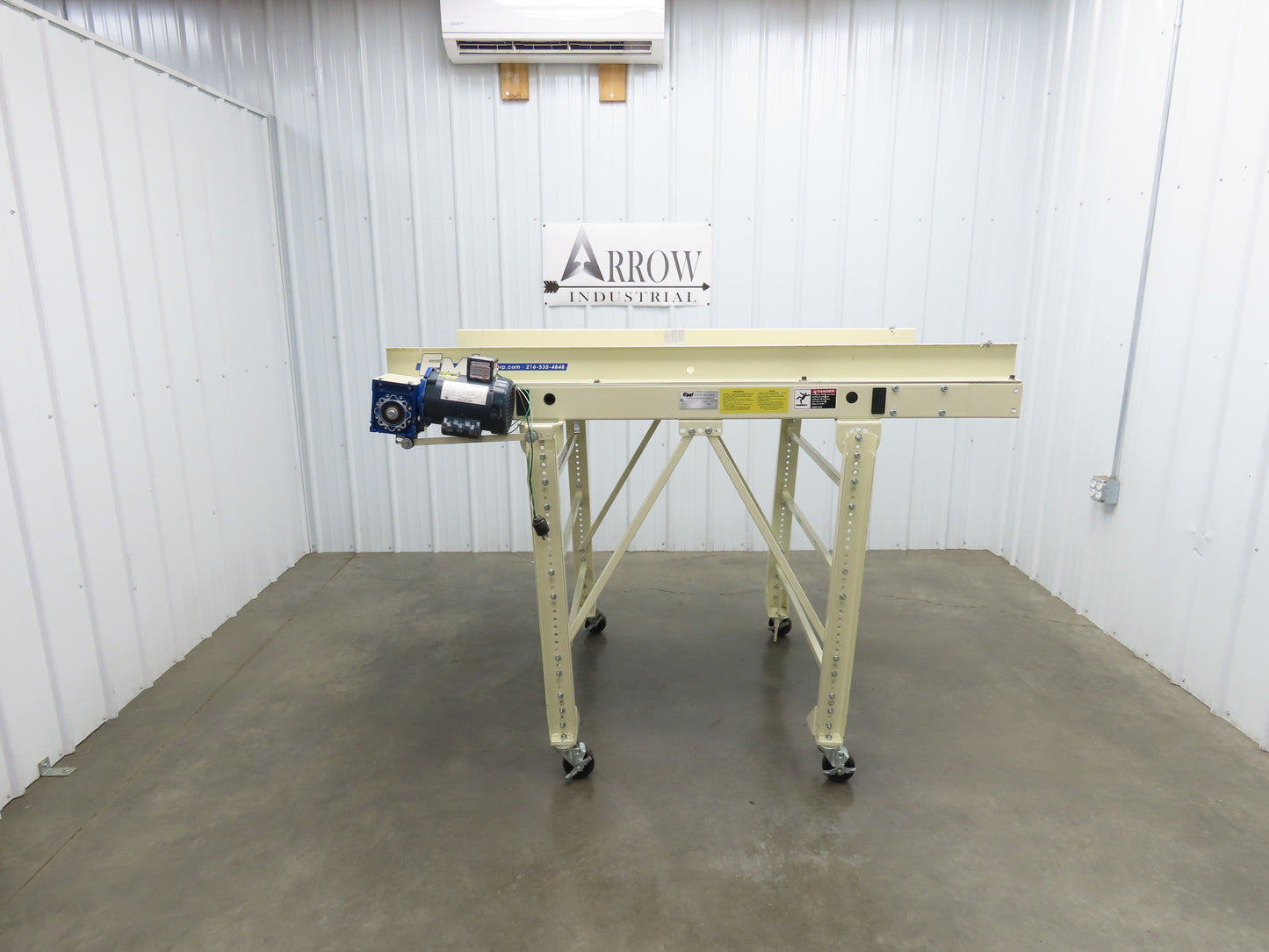

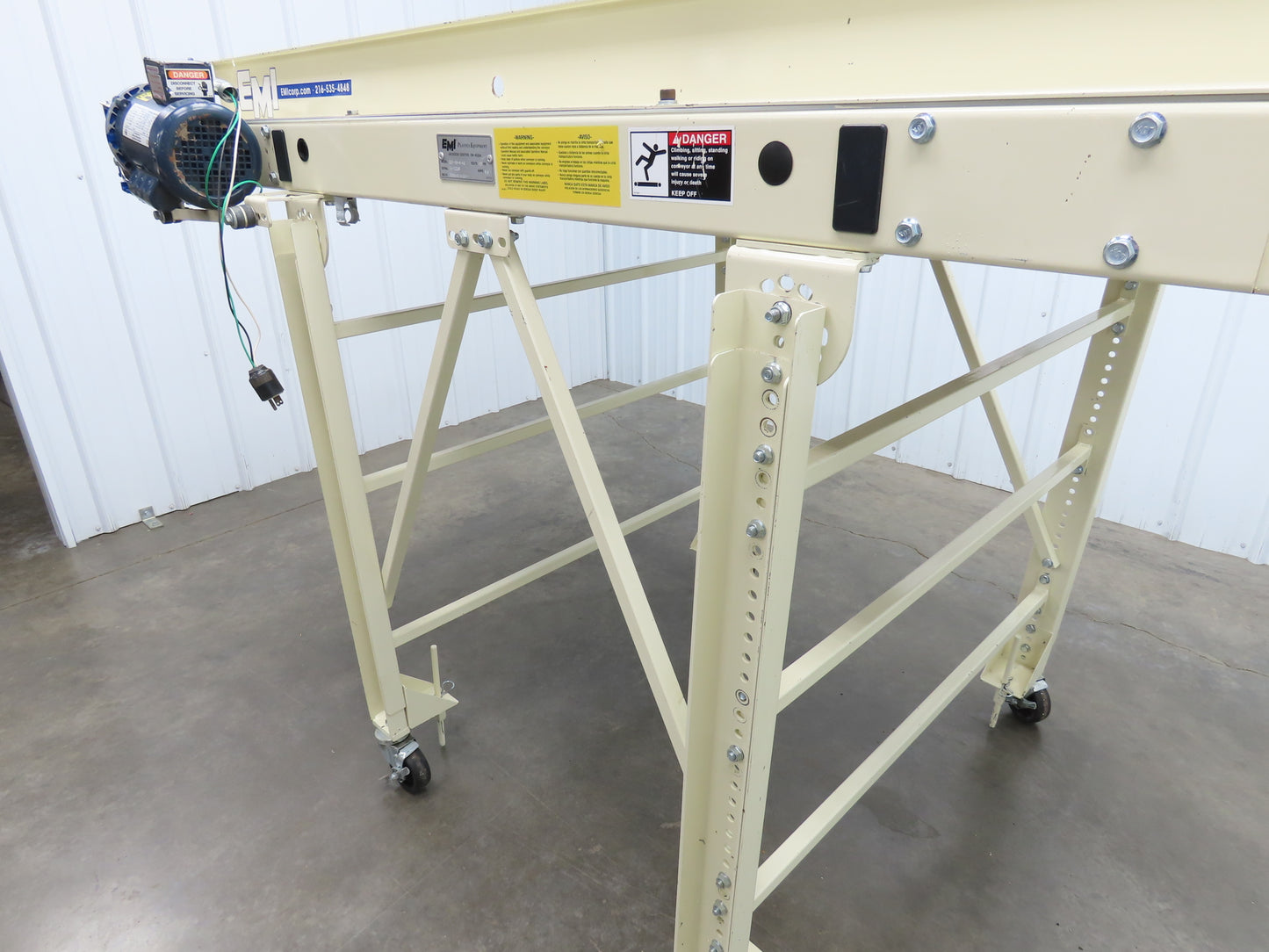

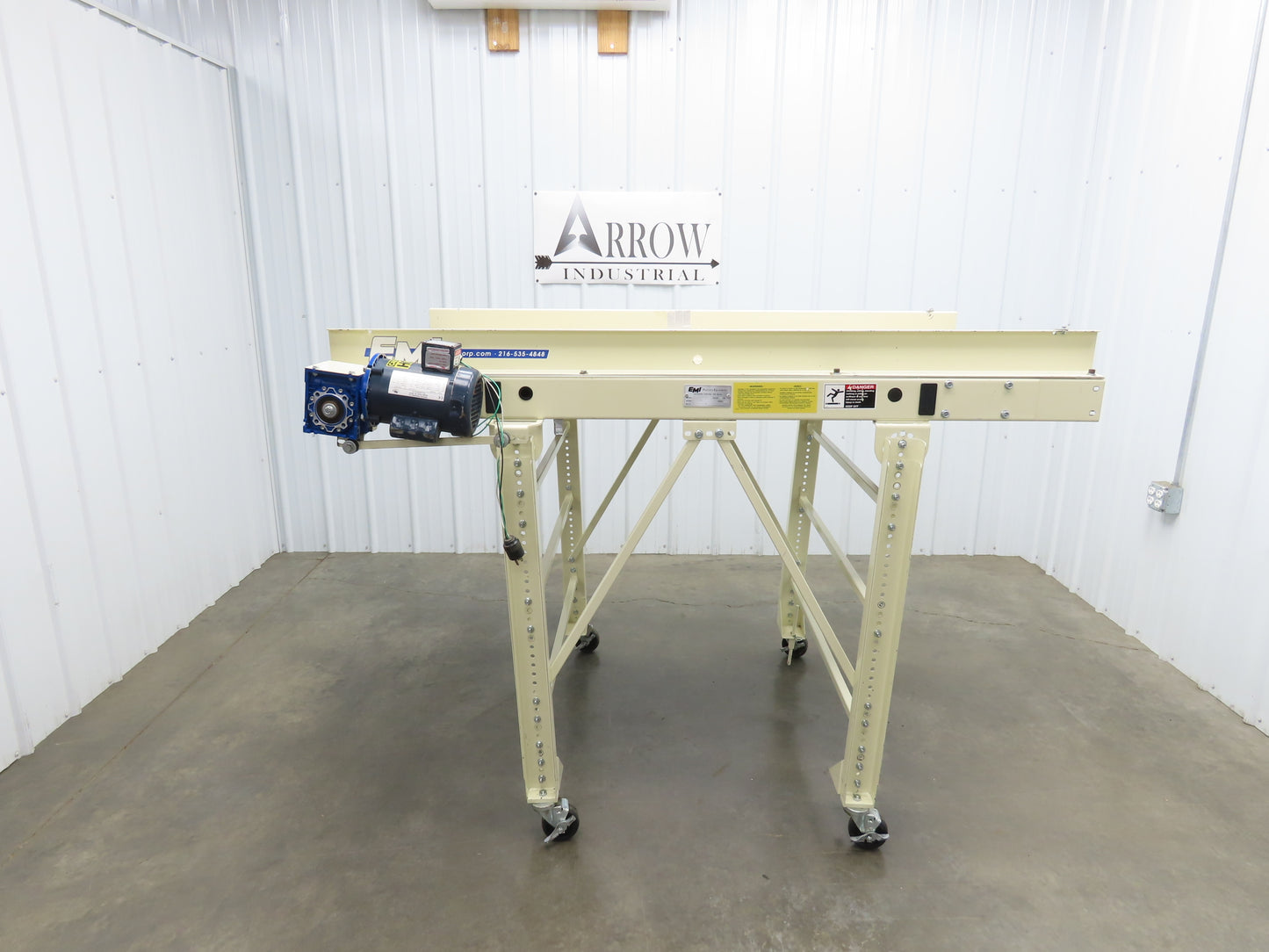

EMI Plastics 40"W x 72"L Portable Slider Bed Conveyor 35"Bed .33Hp 115V 40FPM

EMI Plastics 40"W x 72"L Portable Slider Bed Conveyor 35"Bed .33Hp 115V 40FPM

SKU #303255

Product Condition: Used

Your Price
$2,374.99
$2,499.99 $2,374.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
EMI Plastics
Model
DDF-36-6-40
MPN
B36A-6-A-00-1
Condition
Used
  • Condition & Set-Up: In good working condition. Tested. Portable steel frame. Adjustable height.
  • Drive Type: Direct Drive
  • Motor & Gearbox: 1/3Hp 1725 RPM 115/230V 1PH 40:1 Gearbox
  • Bed Length: 70"
  • Frame Width: 40-3/4"
  • Frame Height: 4" + 4" Removeable Sides
  • Bed Width: 35-1/4" With the sides on as pictured. 38" Between frame width with the sides removed.
  • Belt Width: 37-3/8"
  • Belt Speed: 40 FPM
  • Bed Height (From Floor): 47" Minimum Height. (Legs are 36"H)

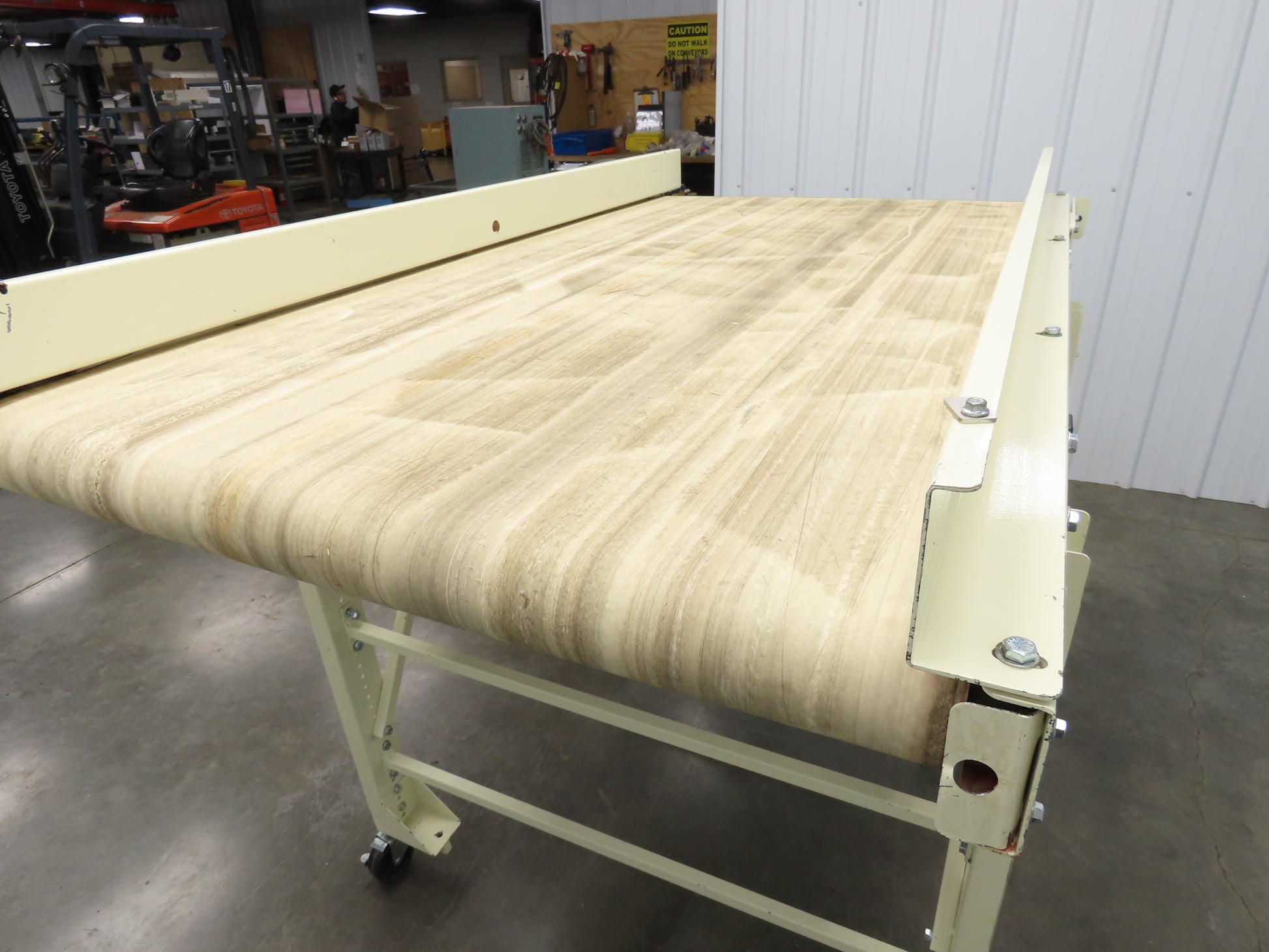

  • Belt Surface (Type) and Condition: Smooth top
  • Overall Length: 72"
  • Voltage tested and wired for:: 115V
  • Skirting, Guard Rail Height: 4" (4-1/2"H from conveyor bed)
  • EMI Plastics Model DDF-36-6-40.
