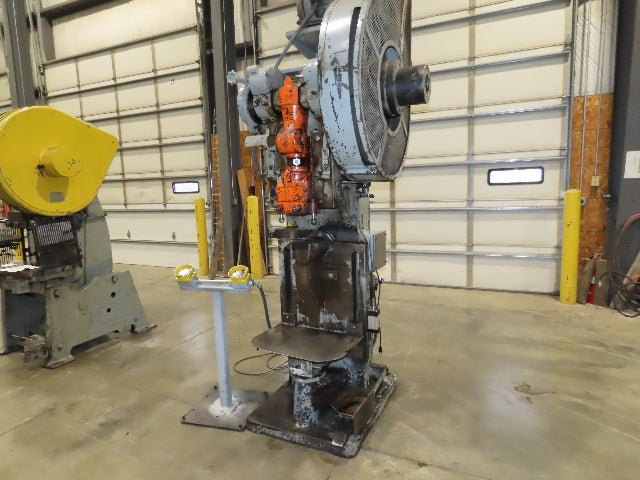

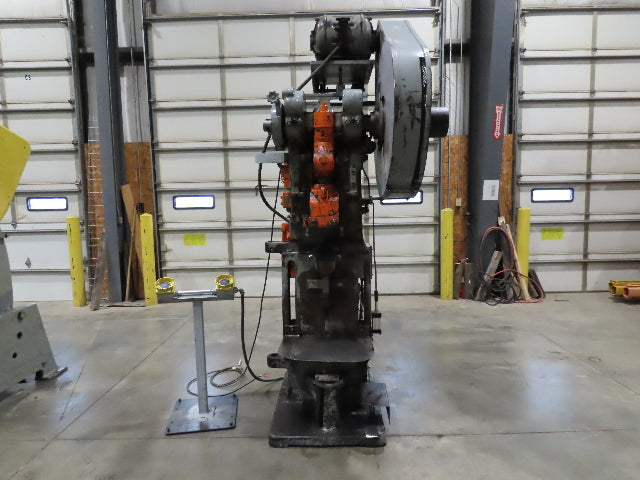

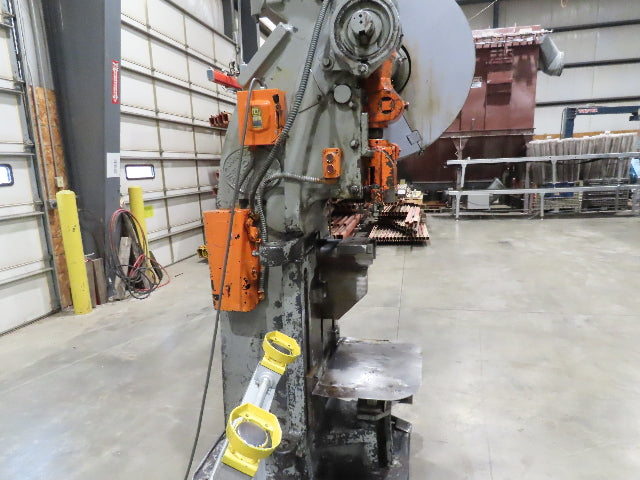

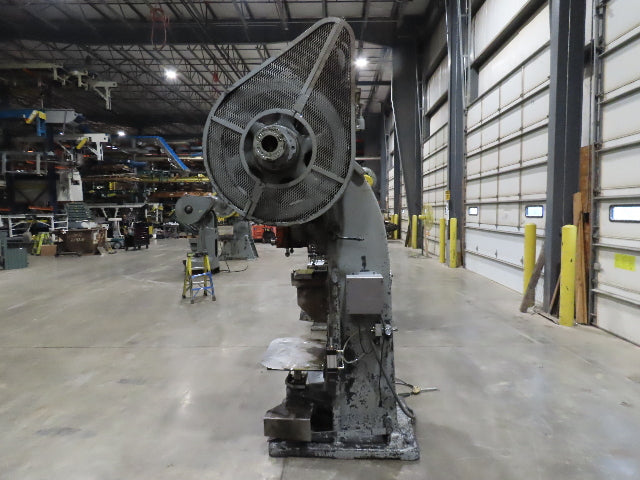

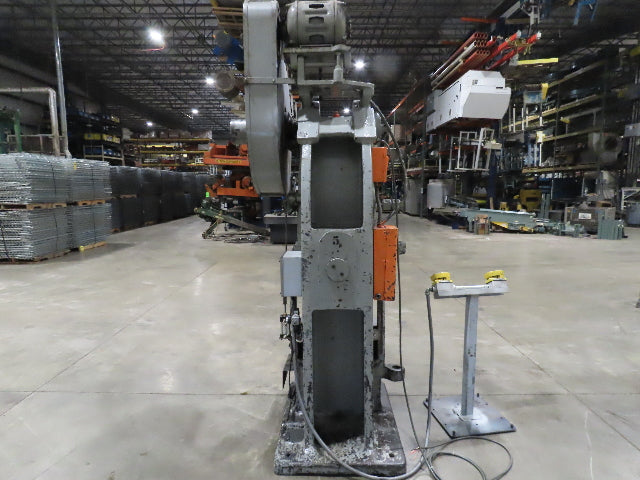

EW Bliss No 24 Mechanical Horn Punch Press 1-1/2" Stroke 9-3/4" Throat 220/440V

EW Bliss No 24 Mechanical Horn Punch Press 1-1/2" Stroke 9-3/4" Throat 220/440V

SKU #256506

Product Condition: Used

Your Price
$6,056.24
$7,499.99 $6,056.24
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
EW Bliss
Model
No 24
MPN
N/A
Condition
Used

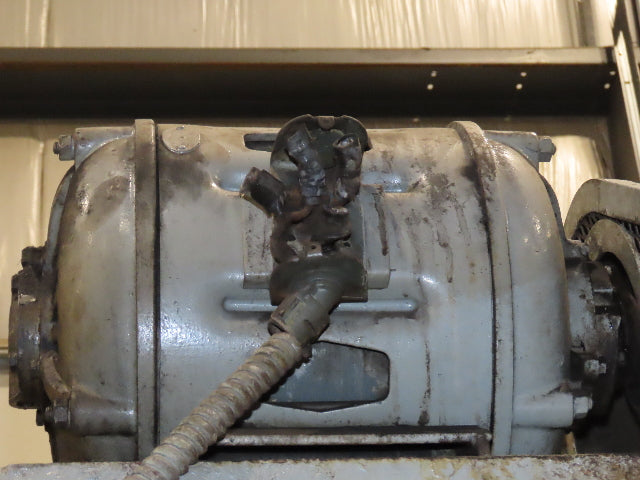

  • HP: 3
  • Voltage: 220/440 wired for 220
  • Press Rating Ton: 24 this is a guess
  • Stroke (inches): 1-1/2"
  • Ram Open Height w/adjustment up (Inches): 7
  • Ram Shut Height w/Adjustment up (Inches): 5
  • Ram Adjustment Length (Inches): 2

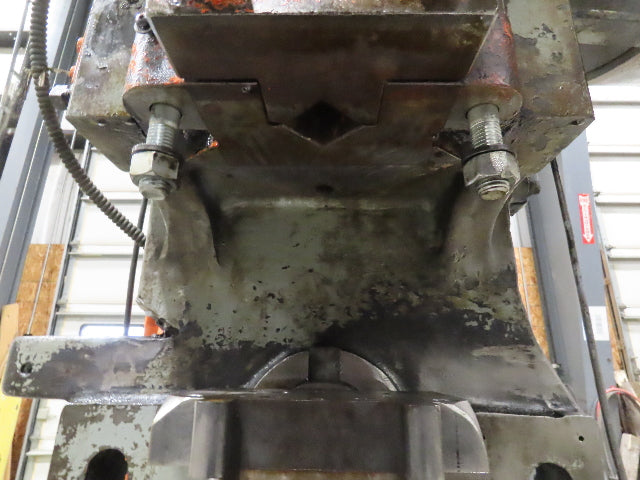

  • Ram Die Shank Size (Inches): 1-1/2 to 1-3/4"
  • Ram Die Shank Length (Inches): 2-1/2"
  • Ram Bolt Distance (Center to Center) (Inches): 8-1/4 side to side 6-1/4" to the back 3rd bolt
  • Throat Opening (Frame to Center of Ram) (Inches): 9-3/4" May have been 10" before they squared the shank hole.

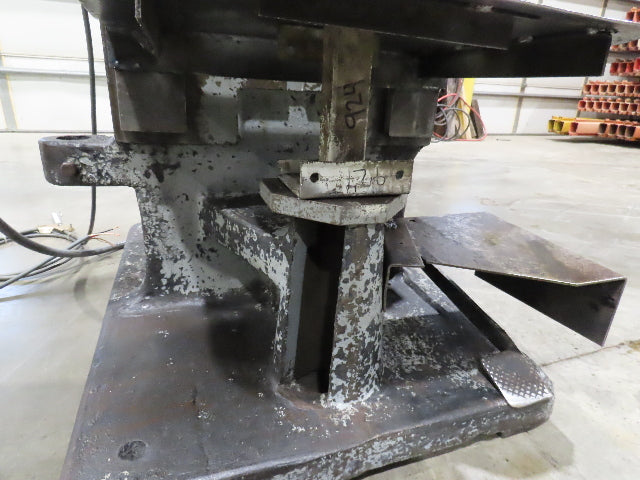

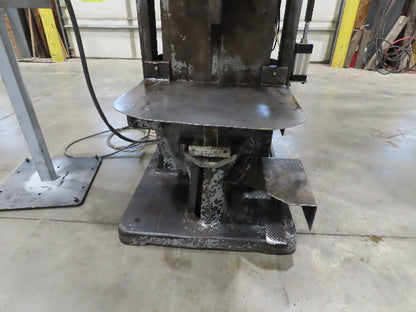

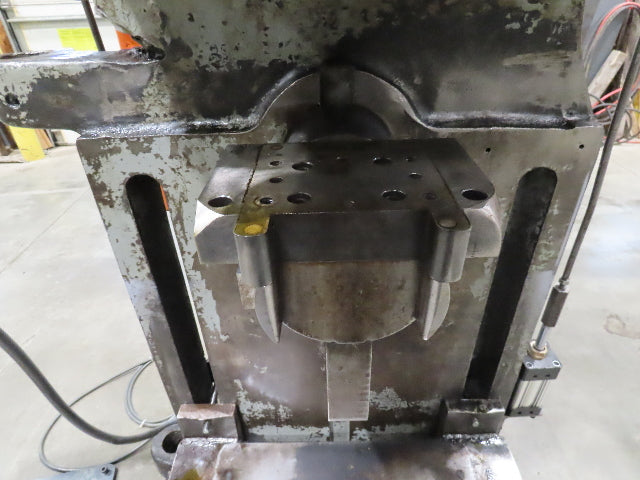

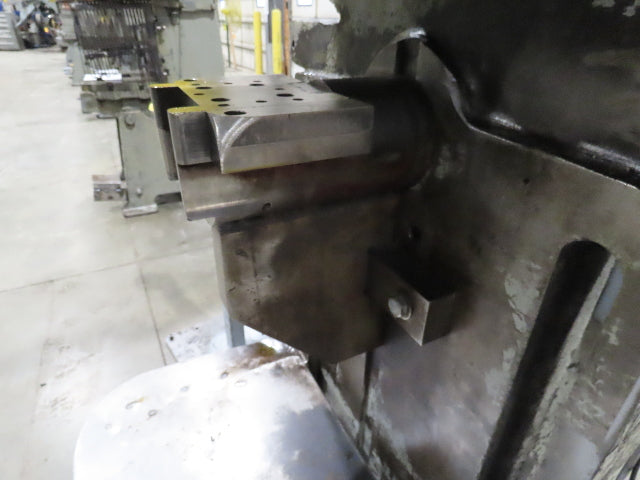

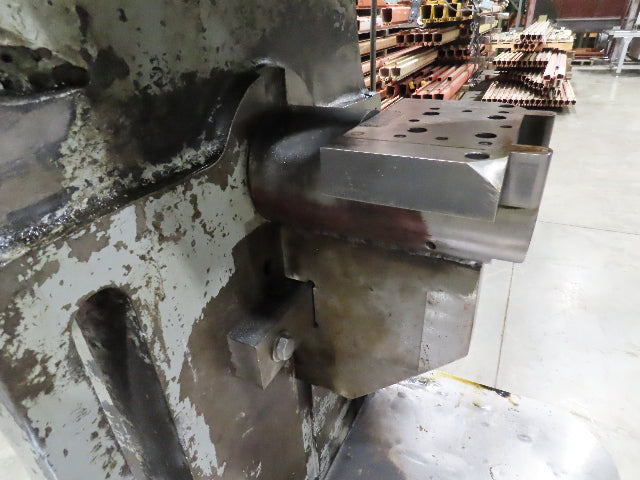

  • Bed Size (Inches): 5x8" This is mounted to a 5" shank. This is welded on the other bracket. At this time it is not adjustable. Main shank going into the base is only 4"

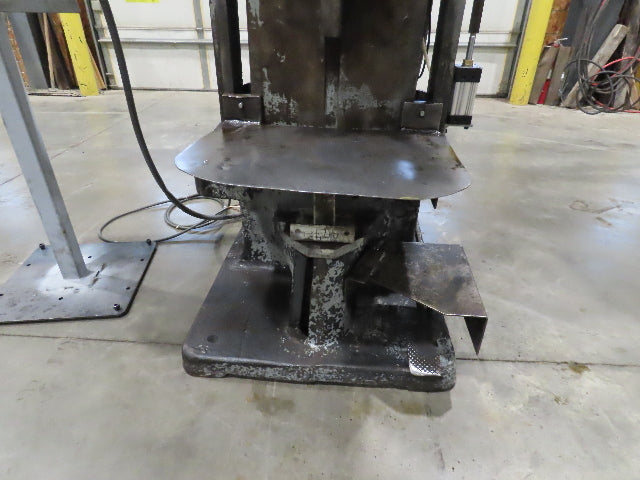

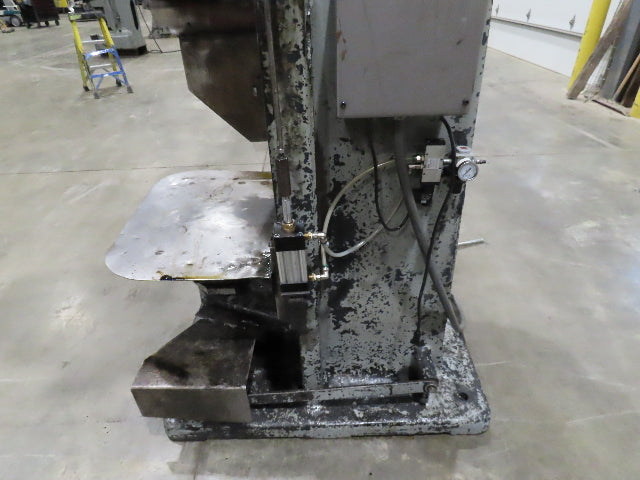

  • Bed Opening (Inches): Missing original bed. It has a thin bed to keep shavings out.
  • Used, in Good Working Condition, Tested OK.

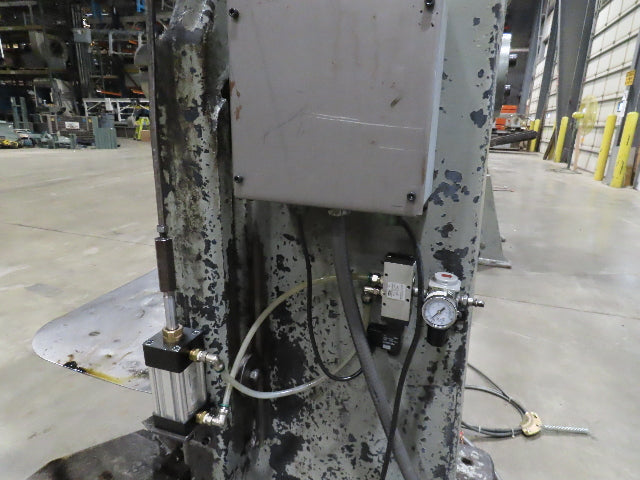

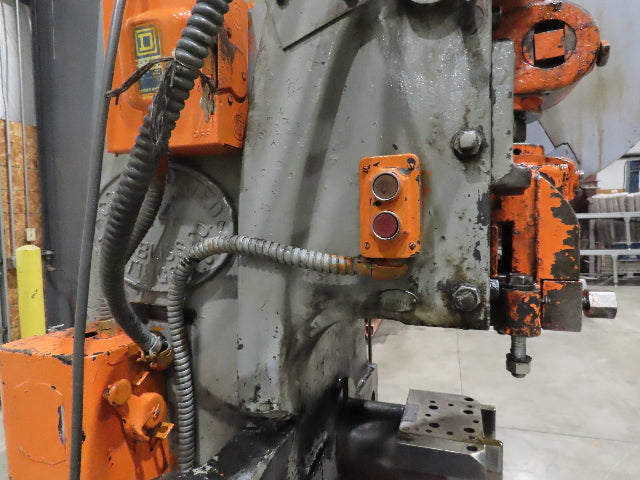

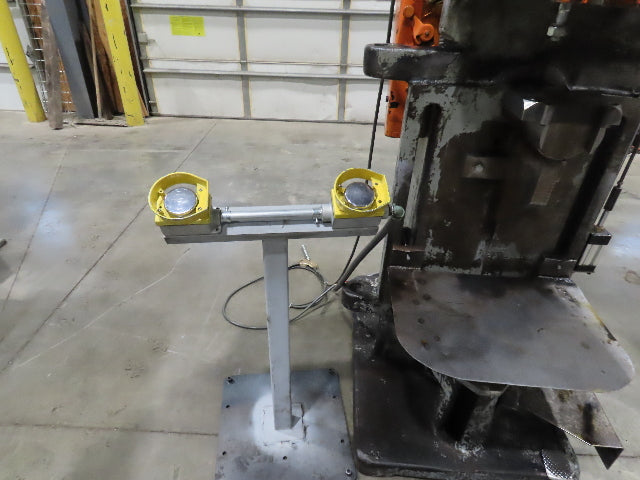

  • Machine is setup for hand control. Could be switched back with a few parts.

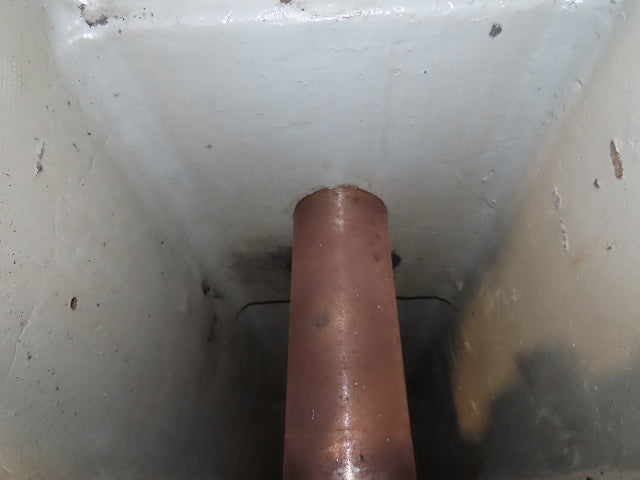

  • Has a 4" shank that goes to 5". This piece is welded to a support piece.
