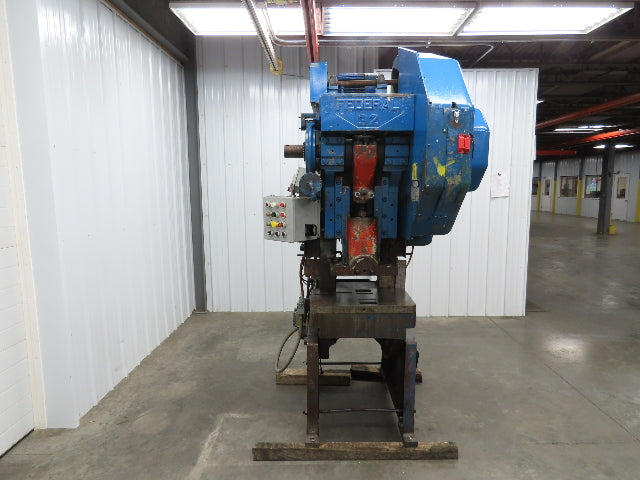

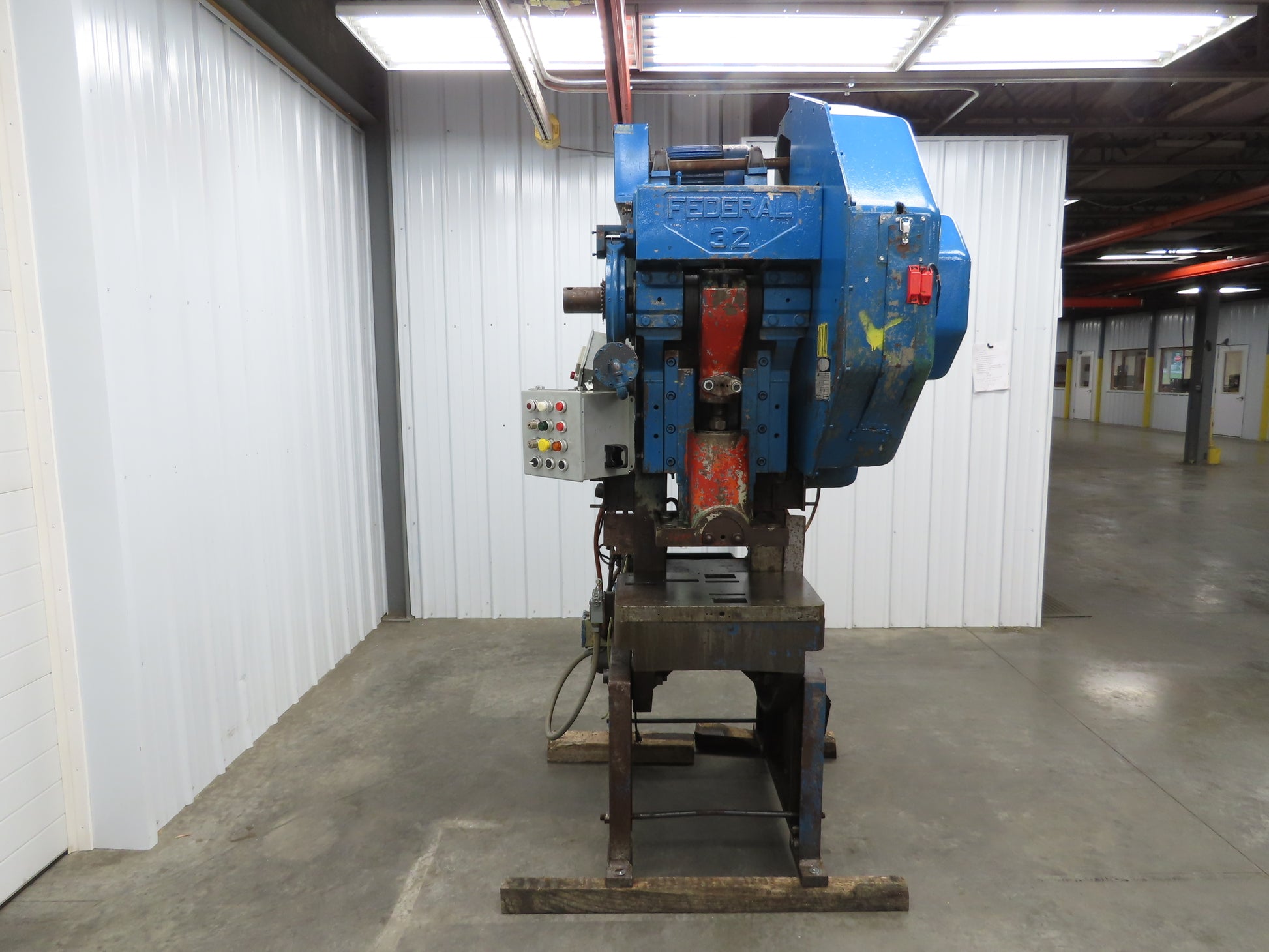

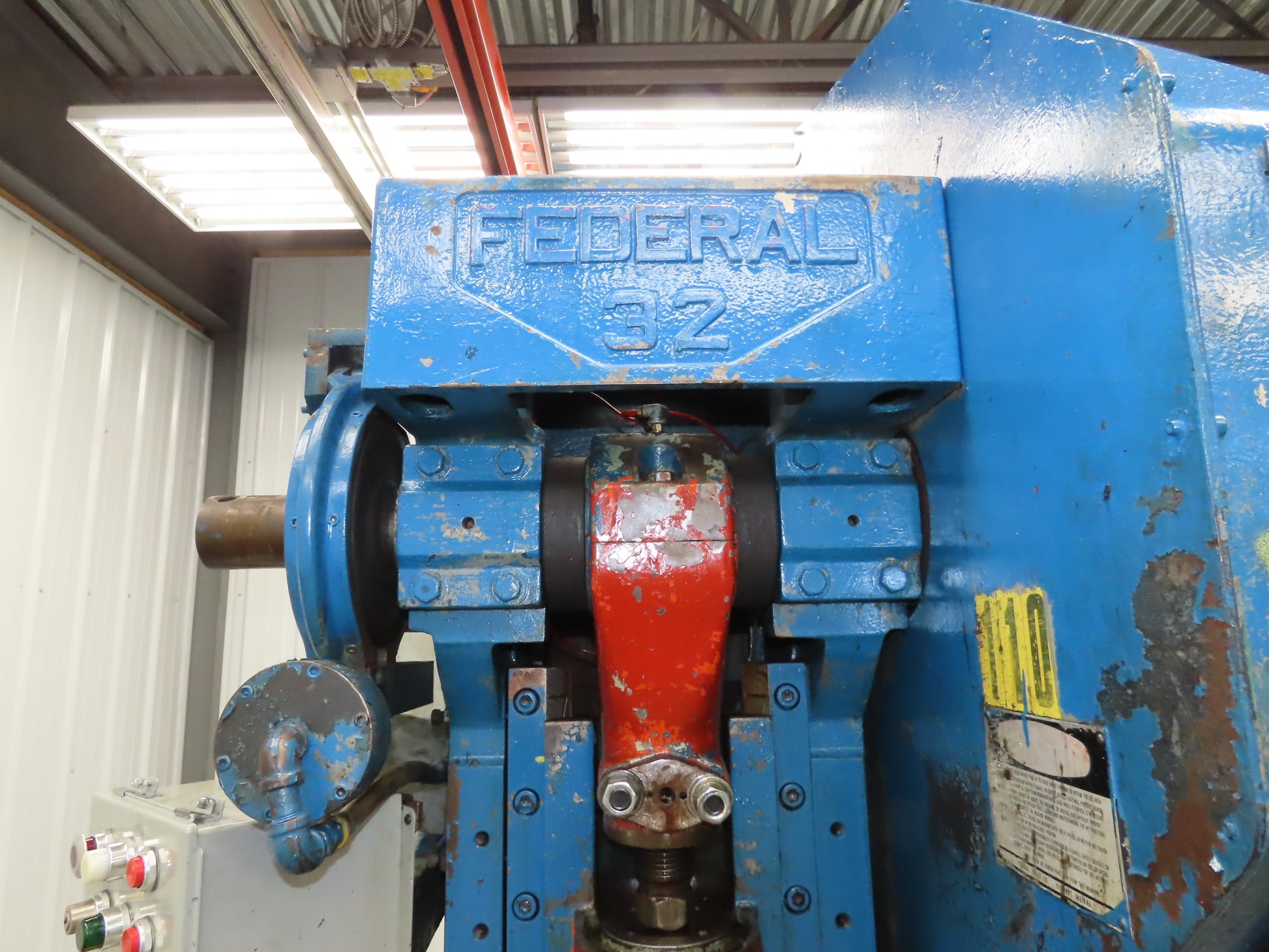

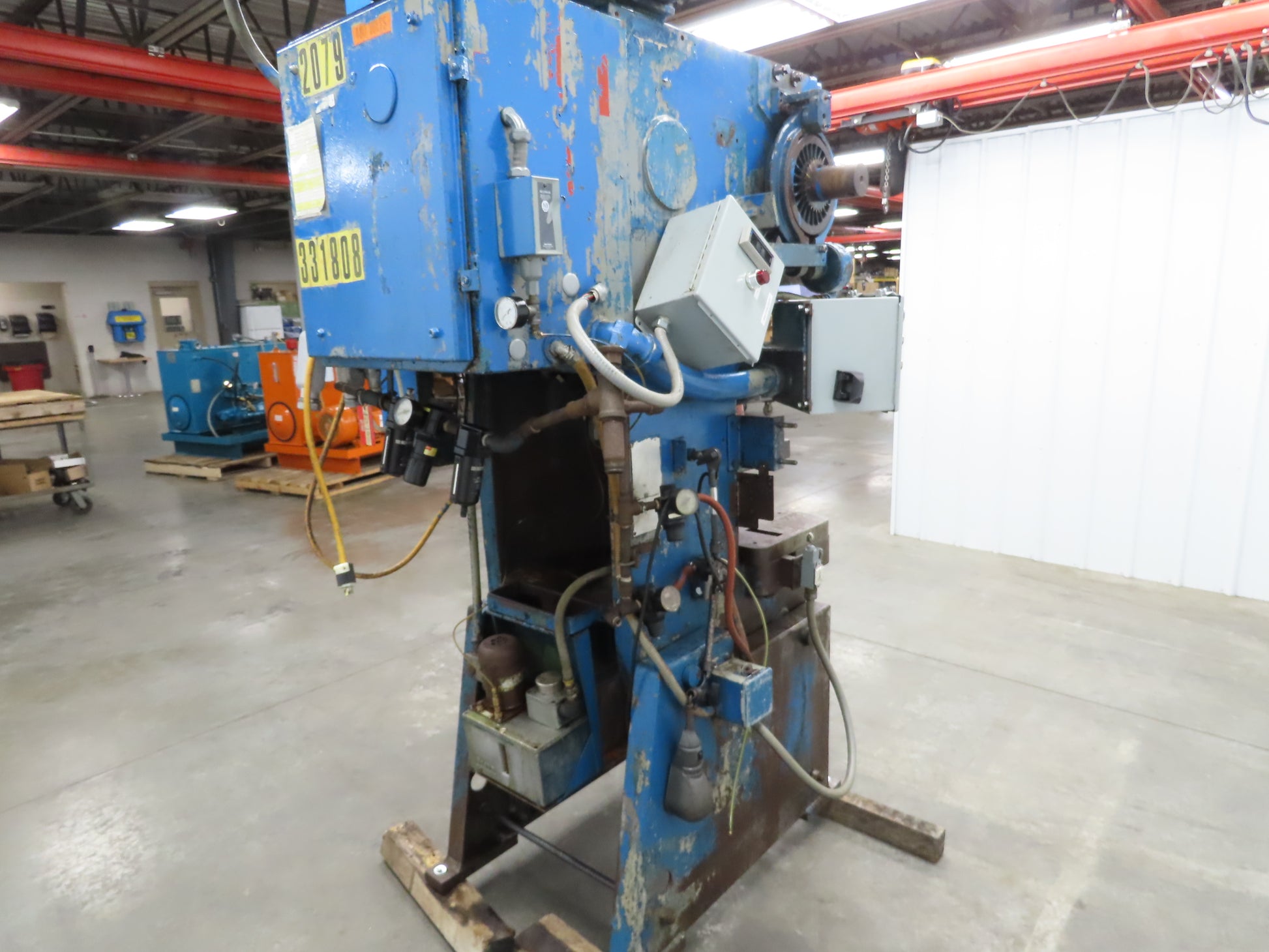

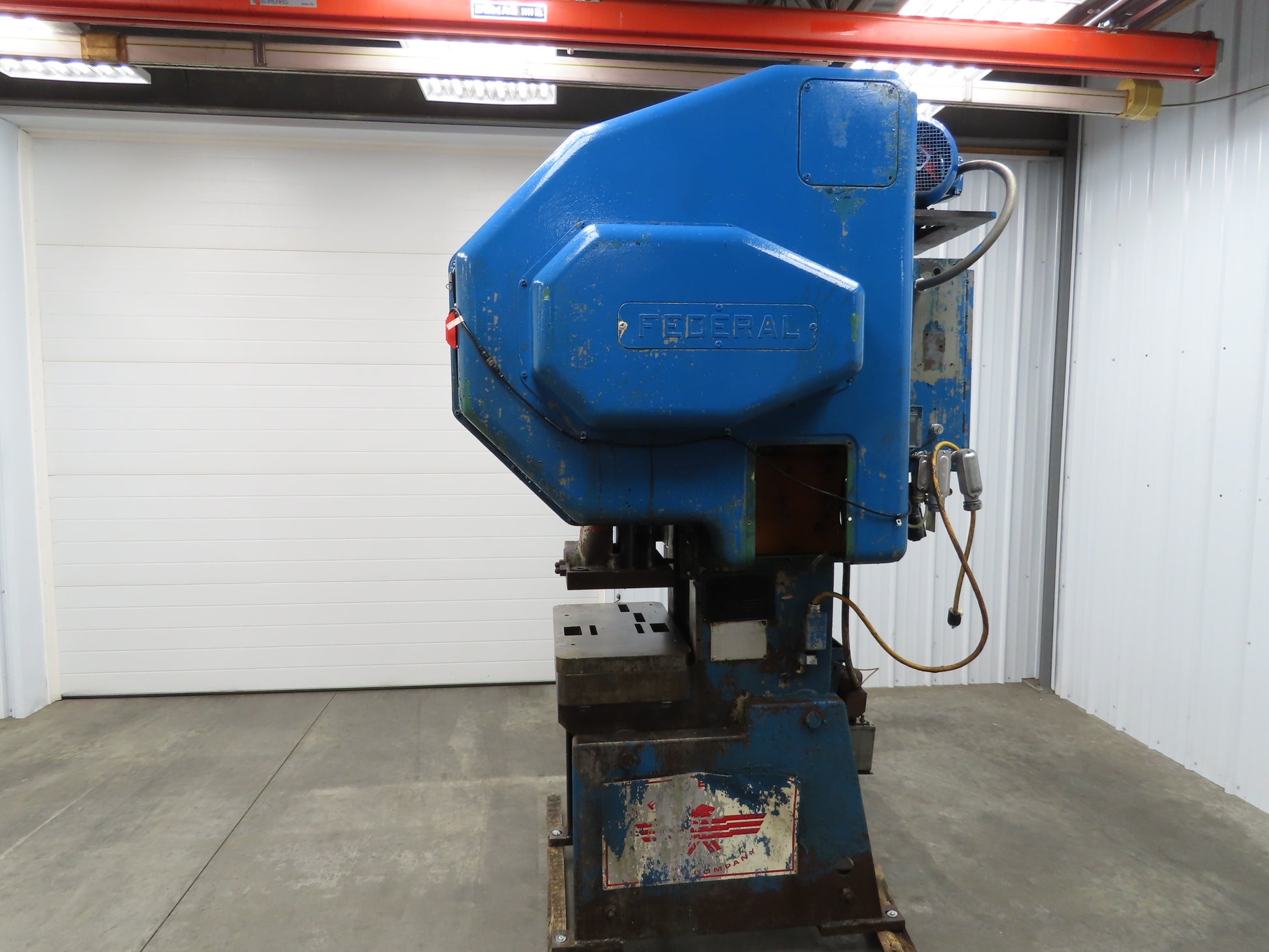

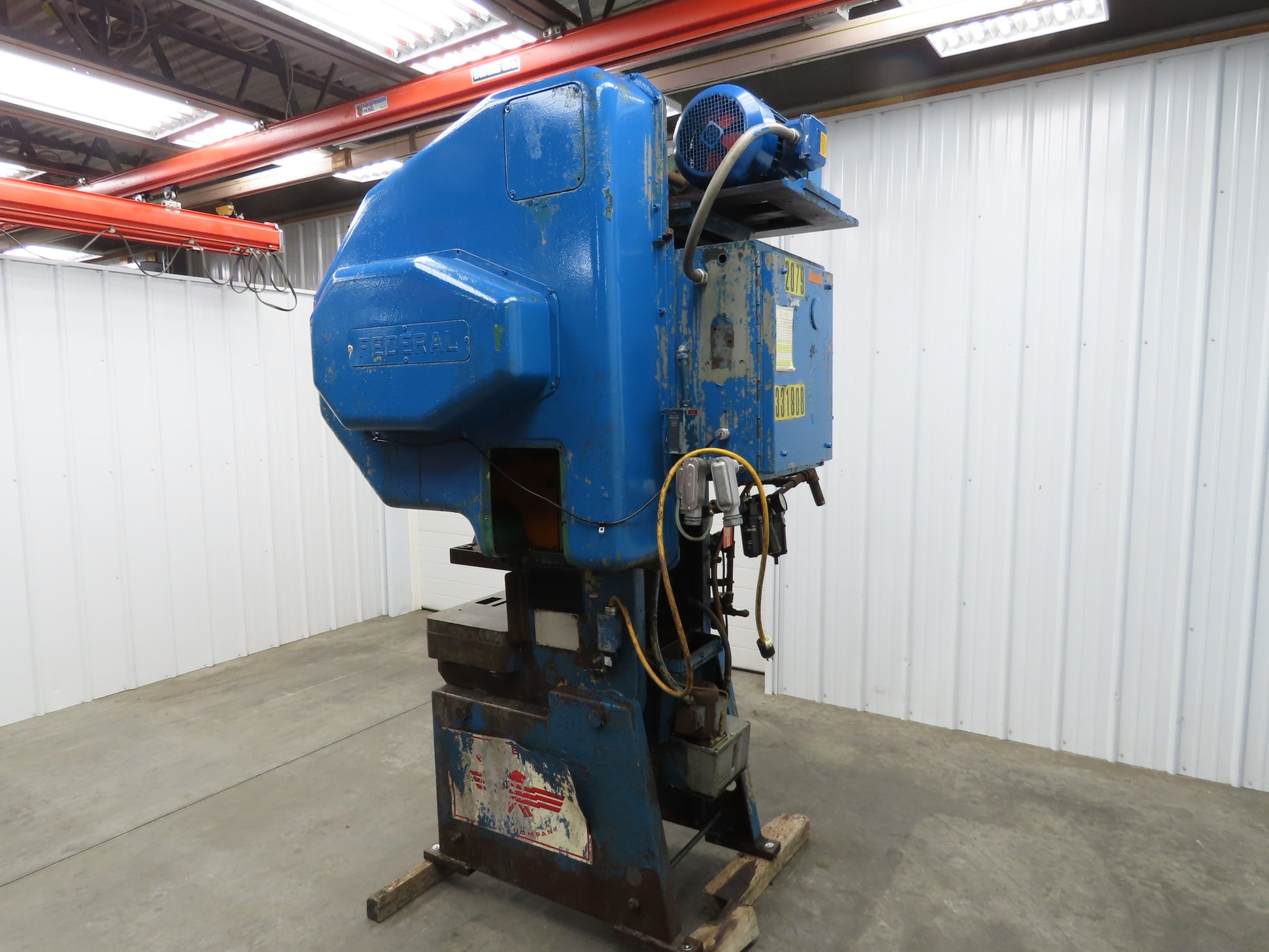

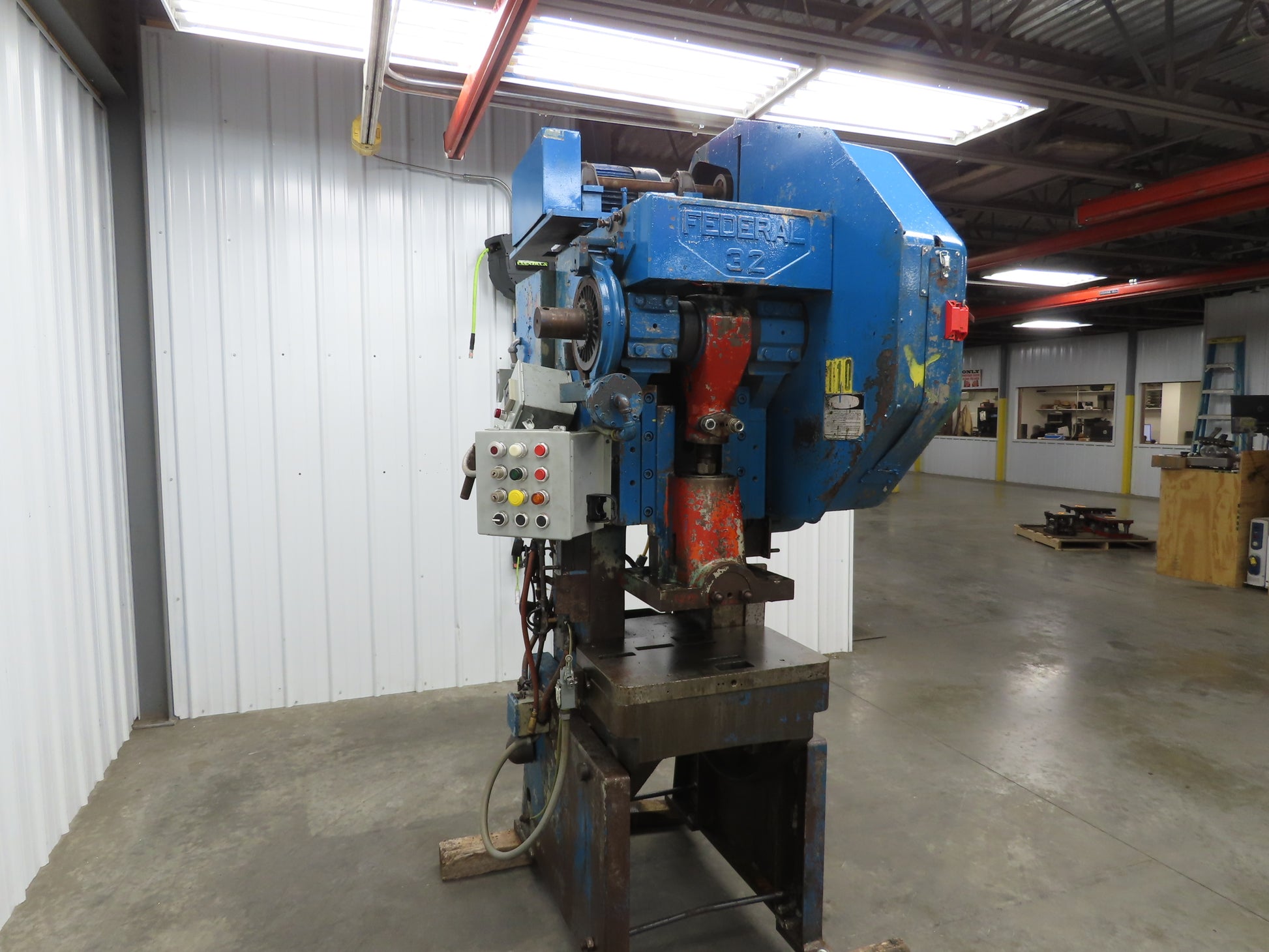

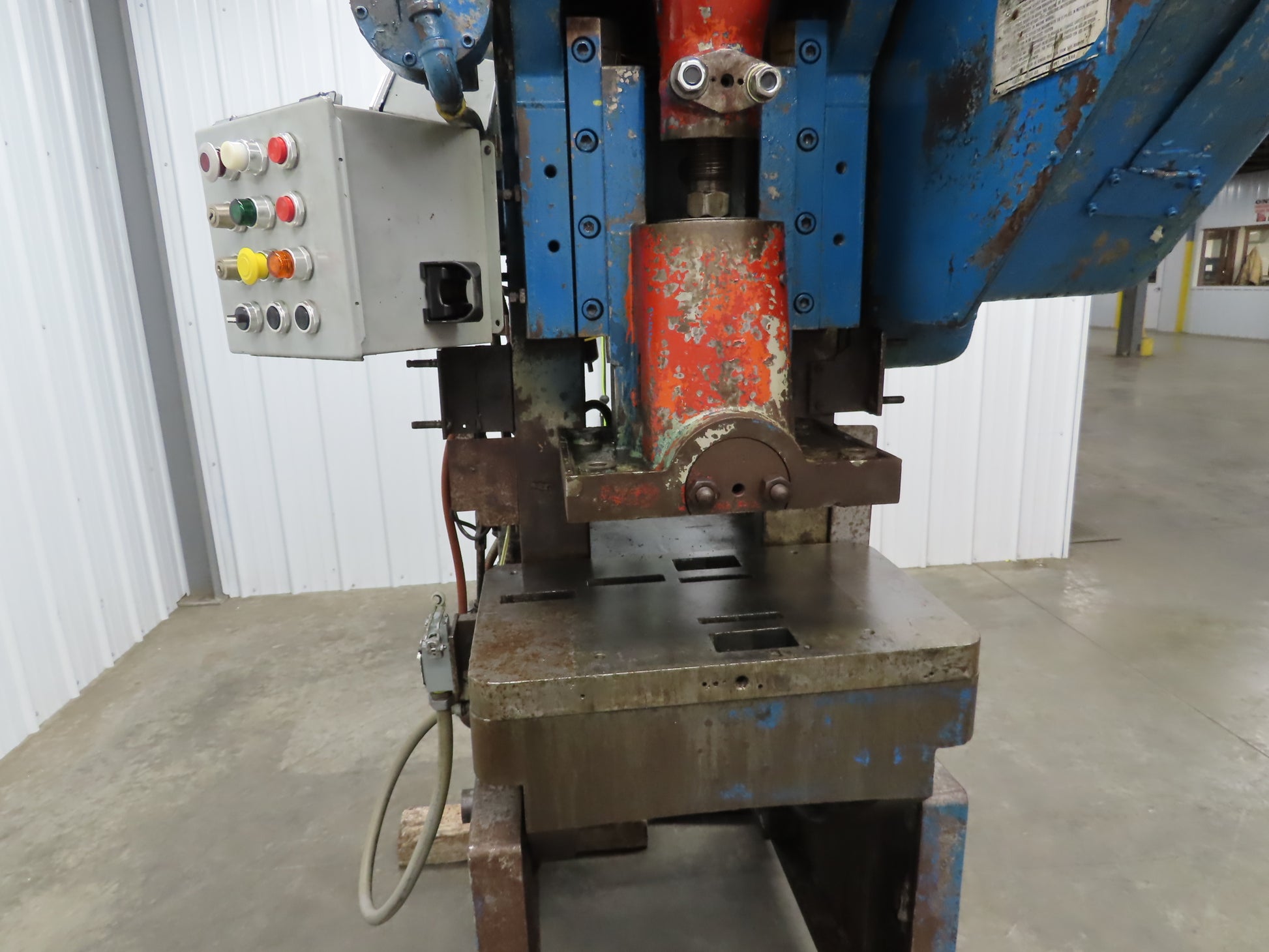

Federal Mechanical OBI Punch Press 32 Ton Air Brake Clutch 1-1/2" Stroke 7.5Hp

Federal Mechanical OBI Punch Press 32 Ton Air Brake Clutch 1-1/2" Stroke 7.5Hp

SKU #291975

Your Price
$2,849.99
$2,999.99 $2,849.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

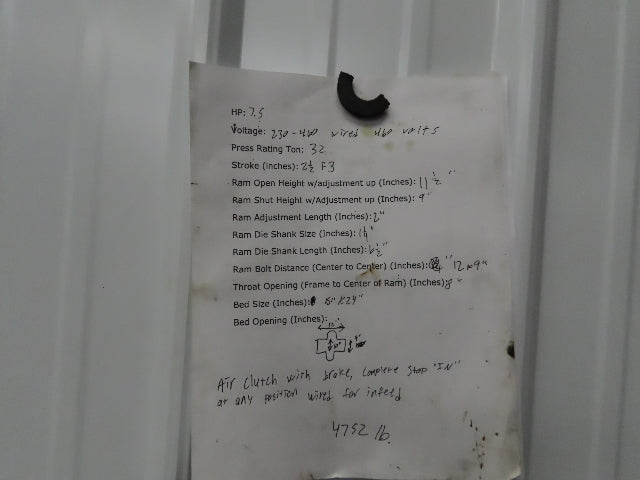

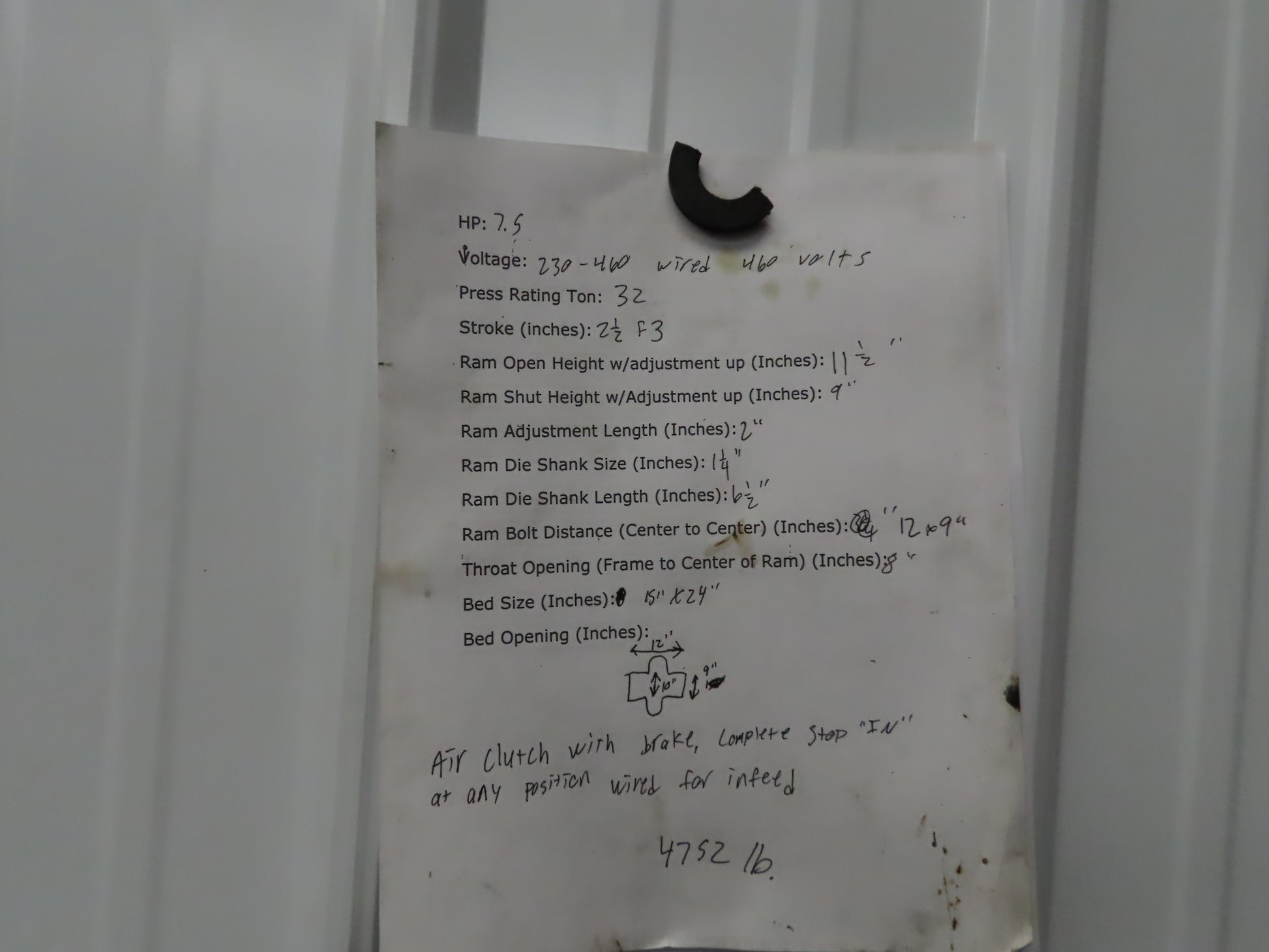

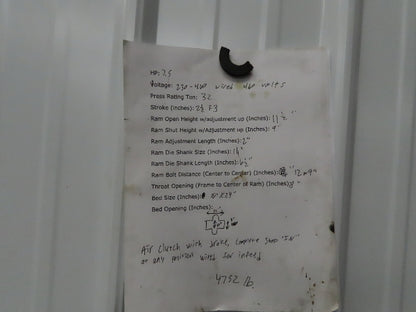

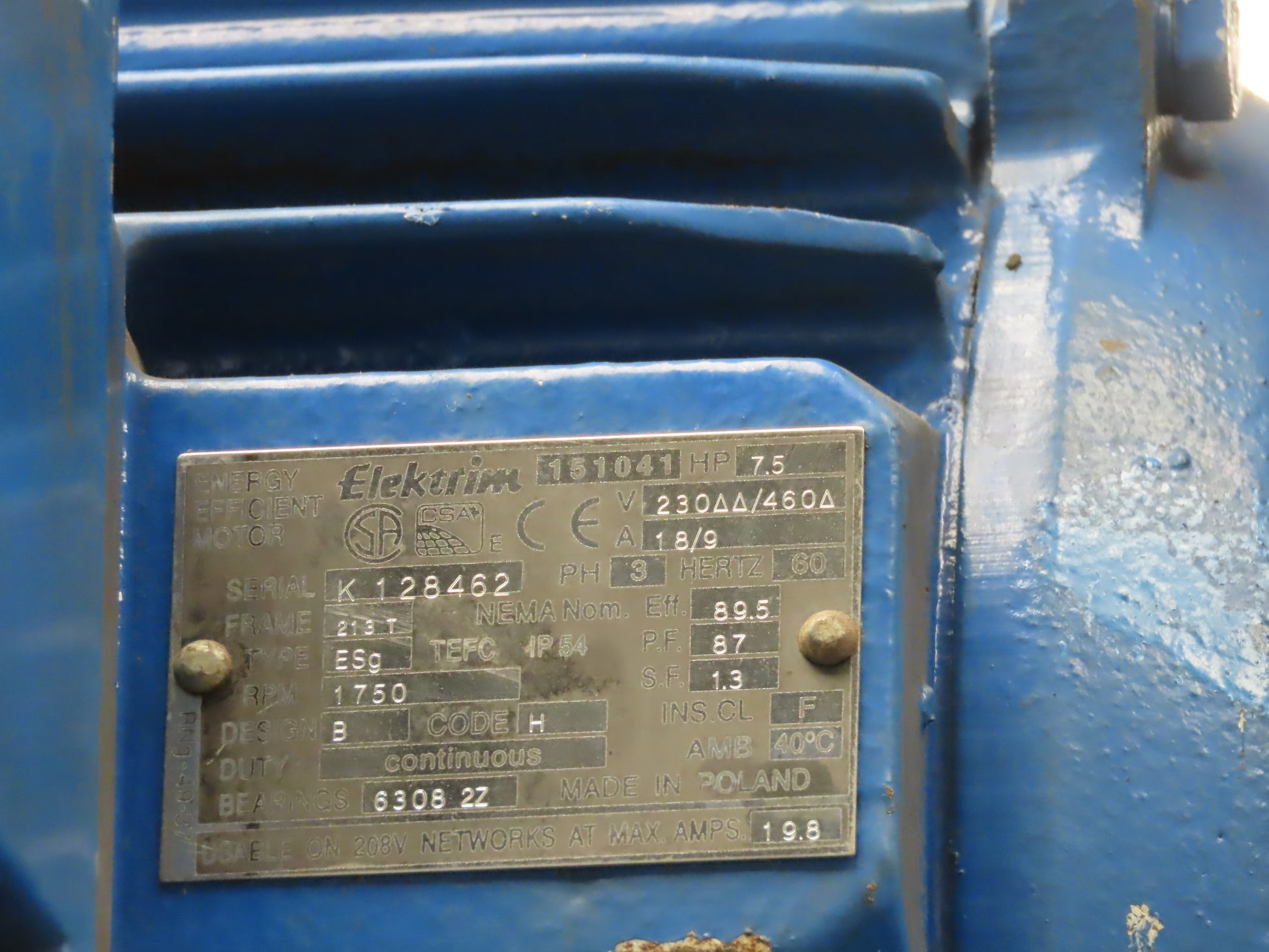

  • HP: 7.5
  • Voltage: 230/460V wired for 460
  • Press Rating Ton: 32
  • Stroke (inches): 2-1/2" Tested. Original factory specs is 3"
  • Ram Open Height w/adjustment up (Inches): 11-1/2"
  • Ram Shut Height w/Adjustment up (Inches): 9"
  • Ram Adjustment Length (Inches): 2"

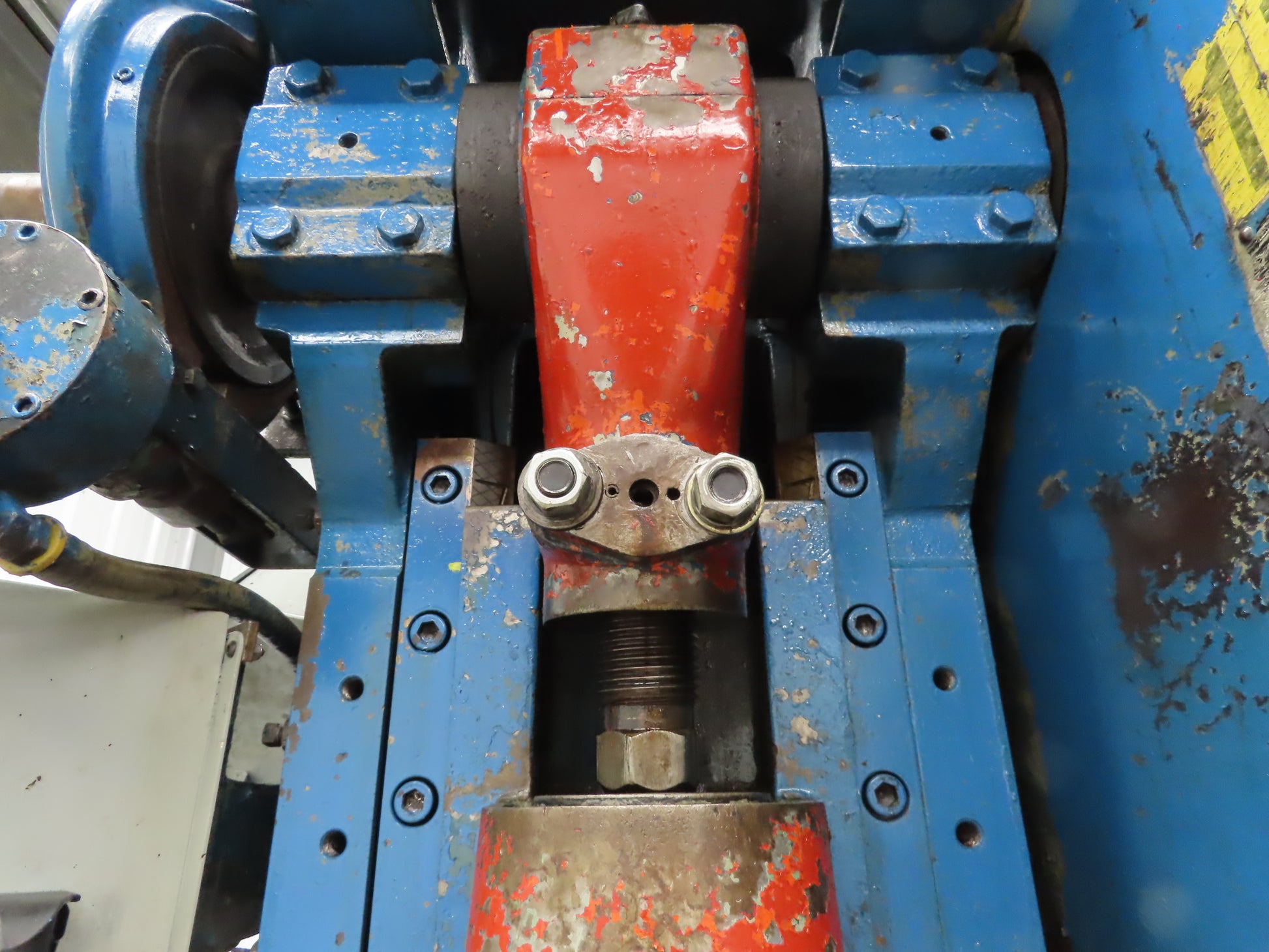

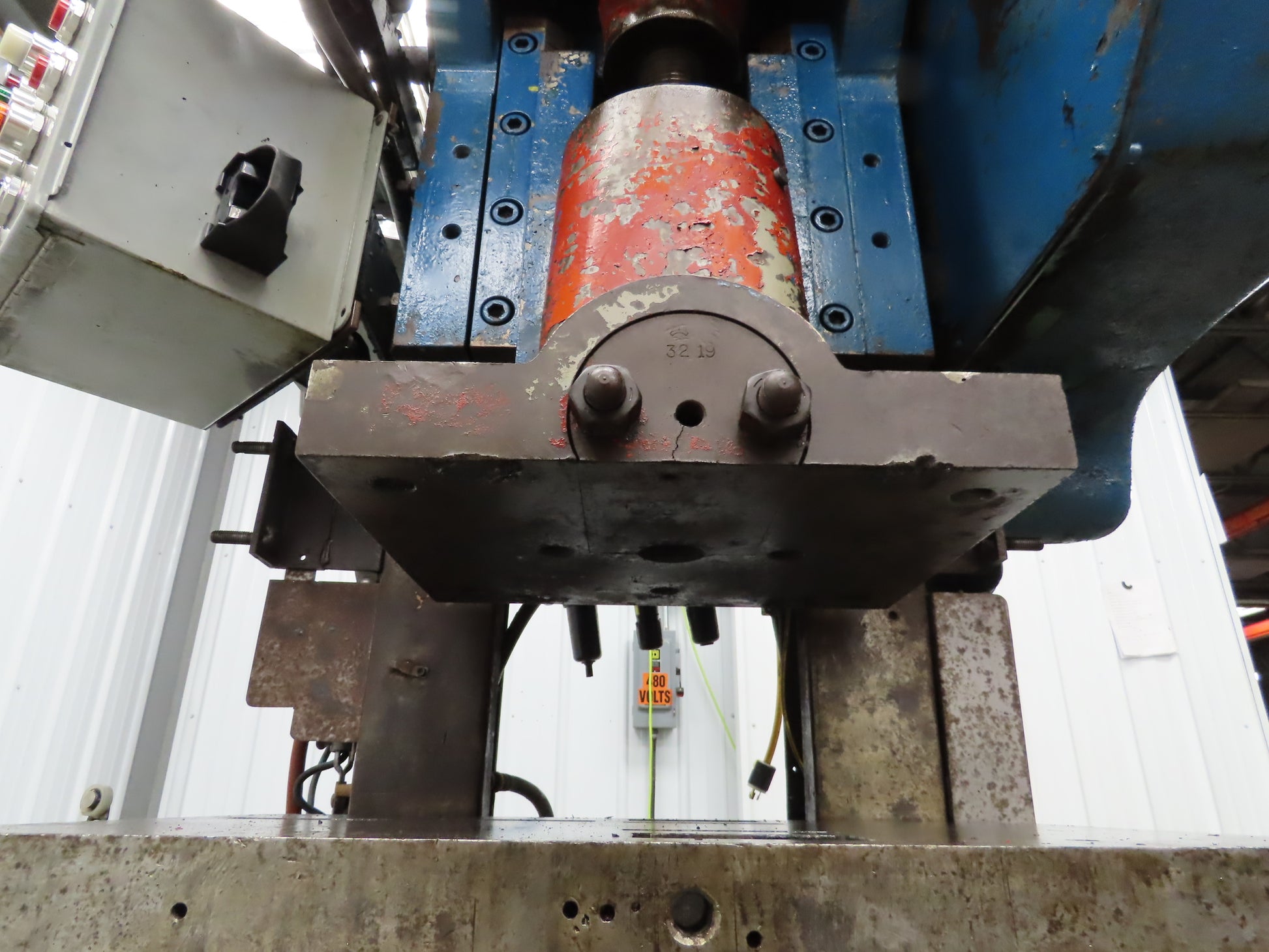

  • Ram Die Shank Size (Inches): 1-1/4
  • Ram Die Shank Length (Inches): 6-1/2"
  • Ram Bolt Distance (Center to Center) (Inches): 12x9" 4 bolt type

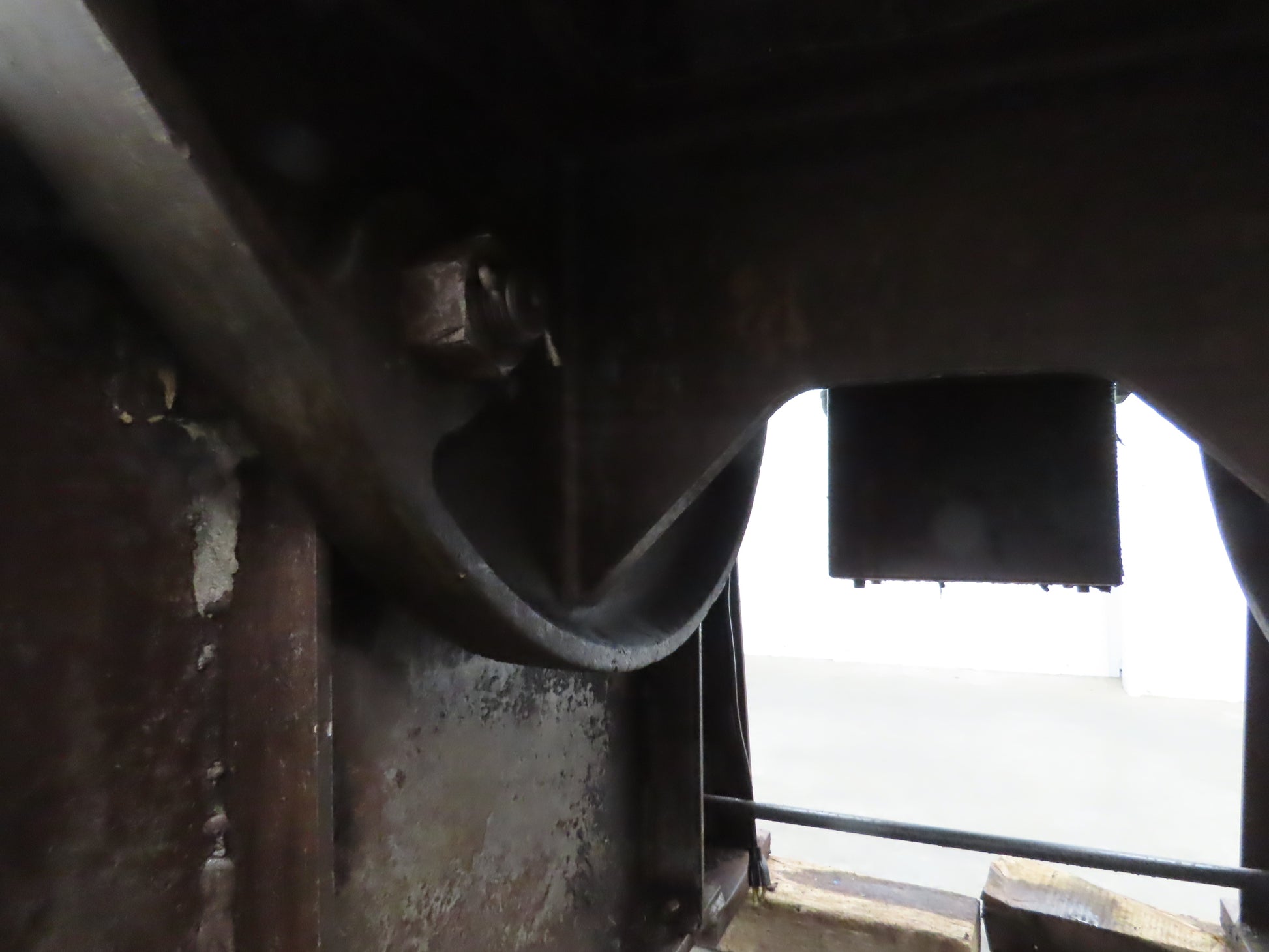

  • Throat Opening (Frame to Center of Ram) (Inches): 8"
  • Bed Size (Inches): 15x24"

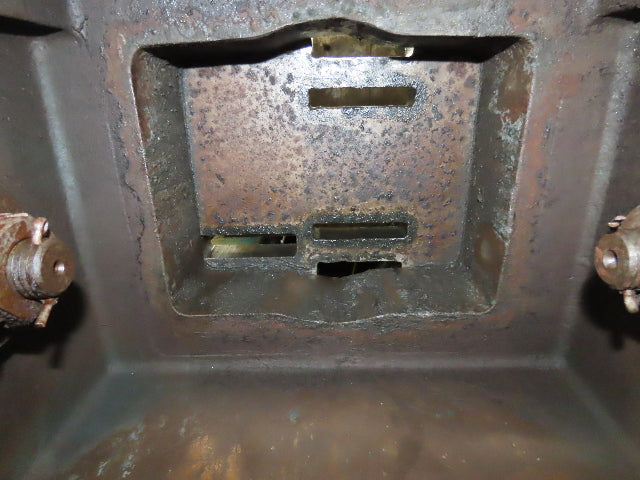

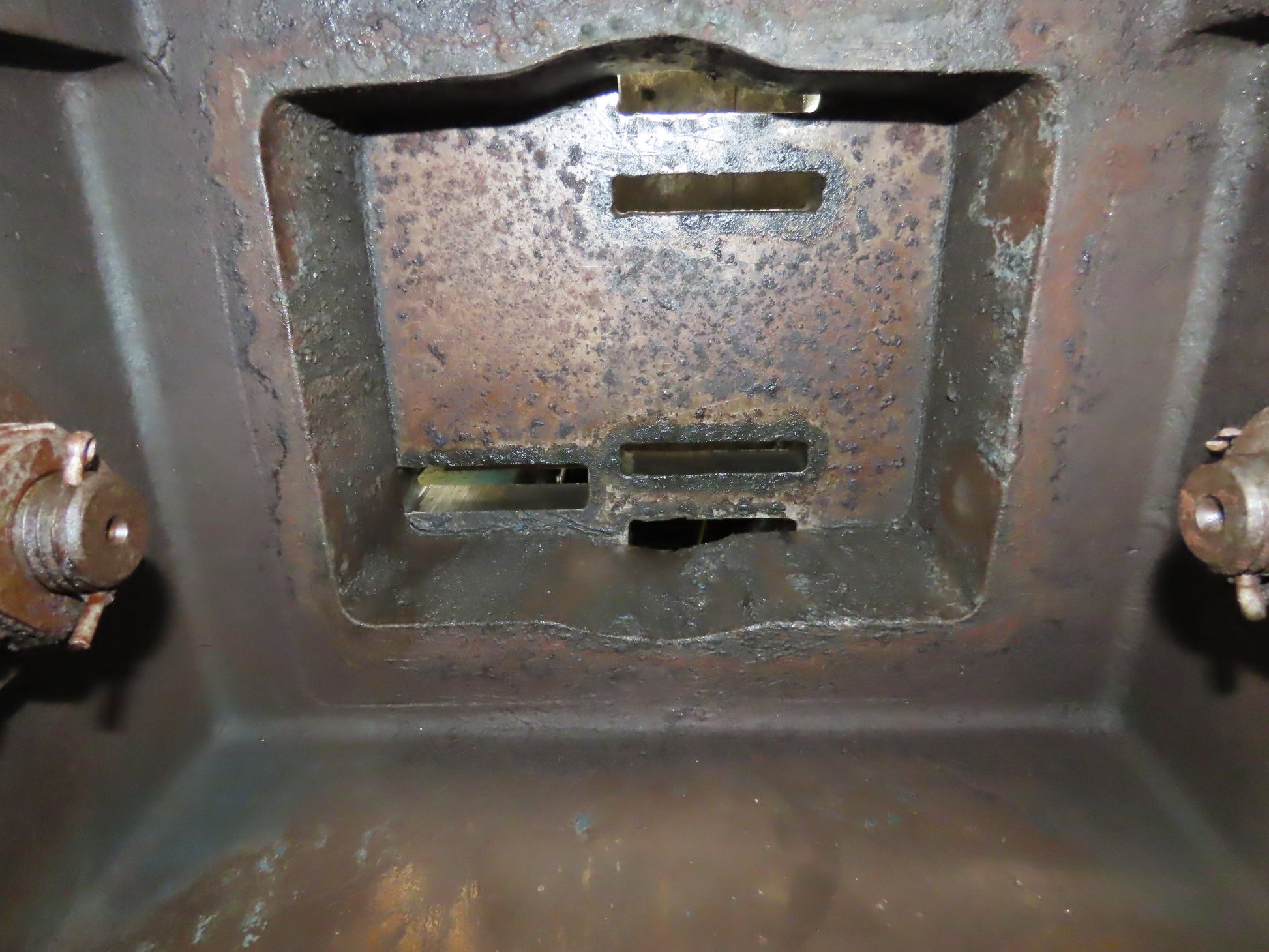

  • Bed Opening (Inches): 10x12"
  • Used, in Good Working Condition, Tested OK.

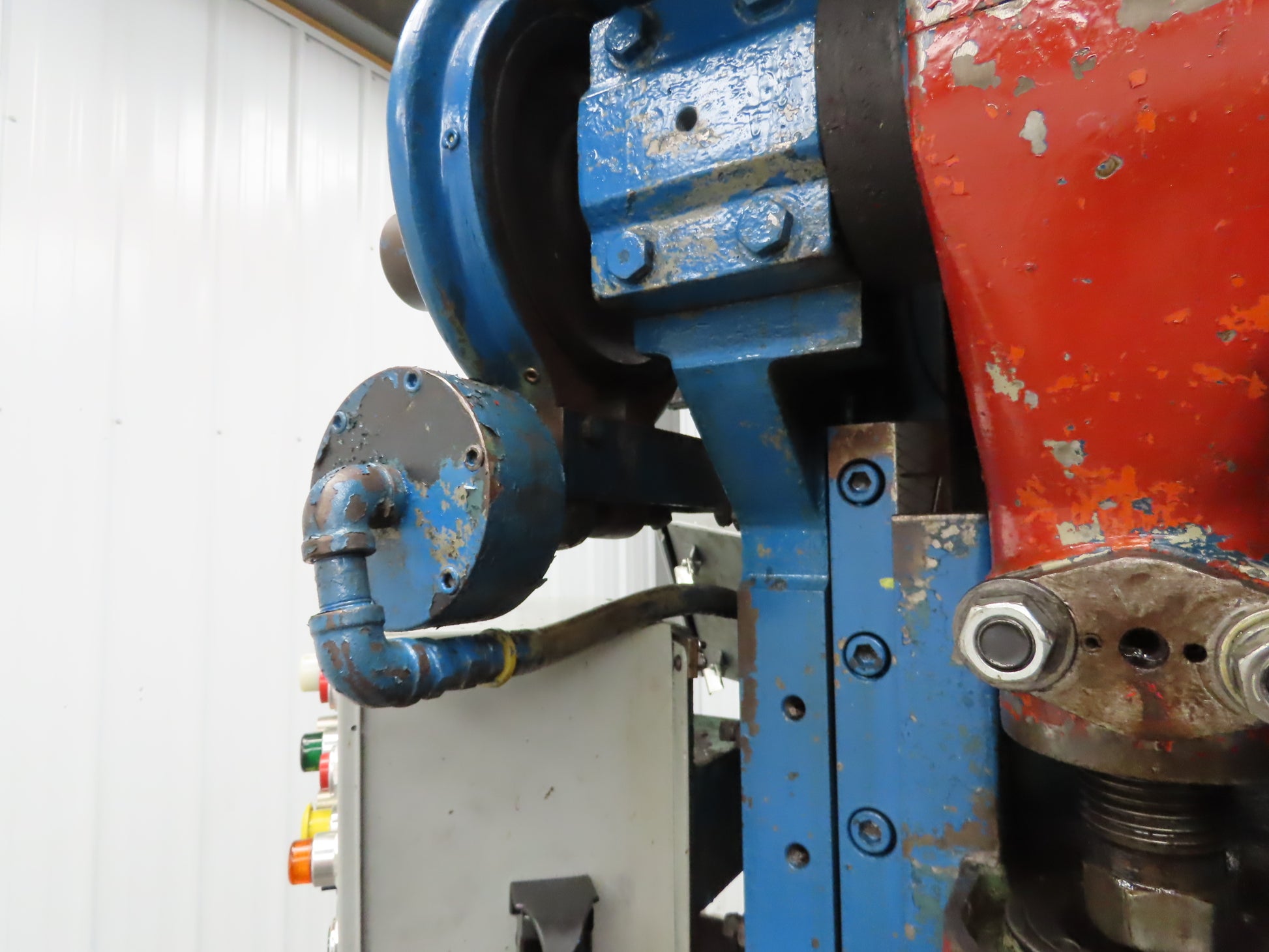

  • Air Brake Clutch This can be started and stopped in any position. It does not have to do a complete cycle. It could inch or it could do the full cycle.

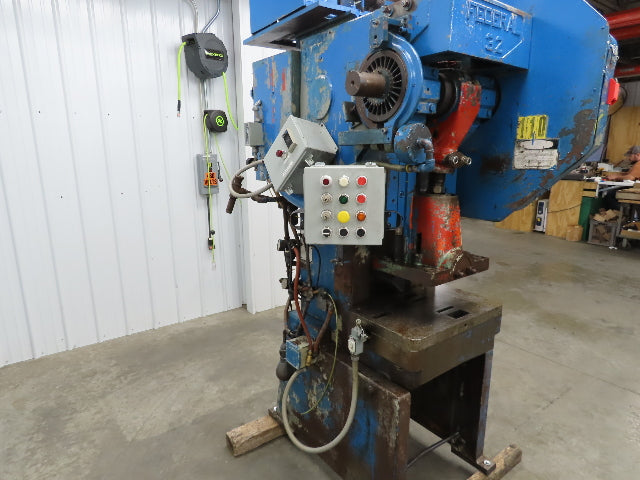

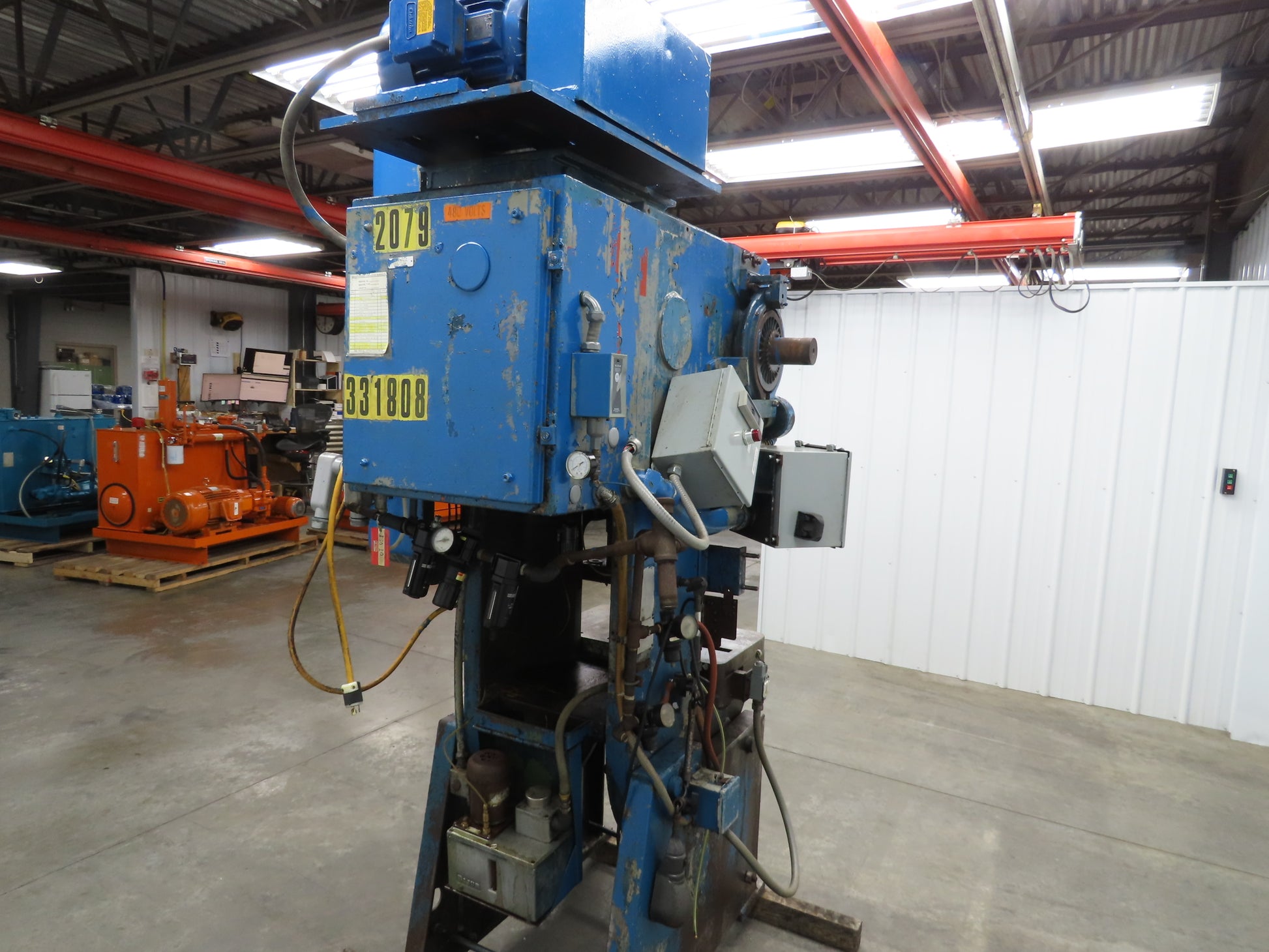

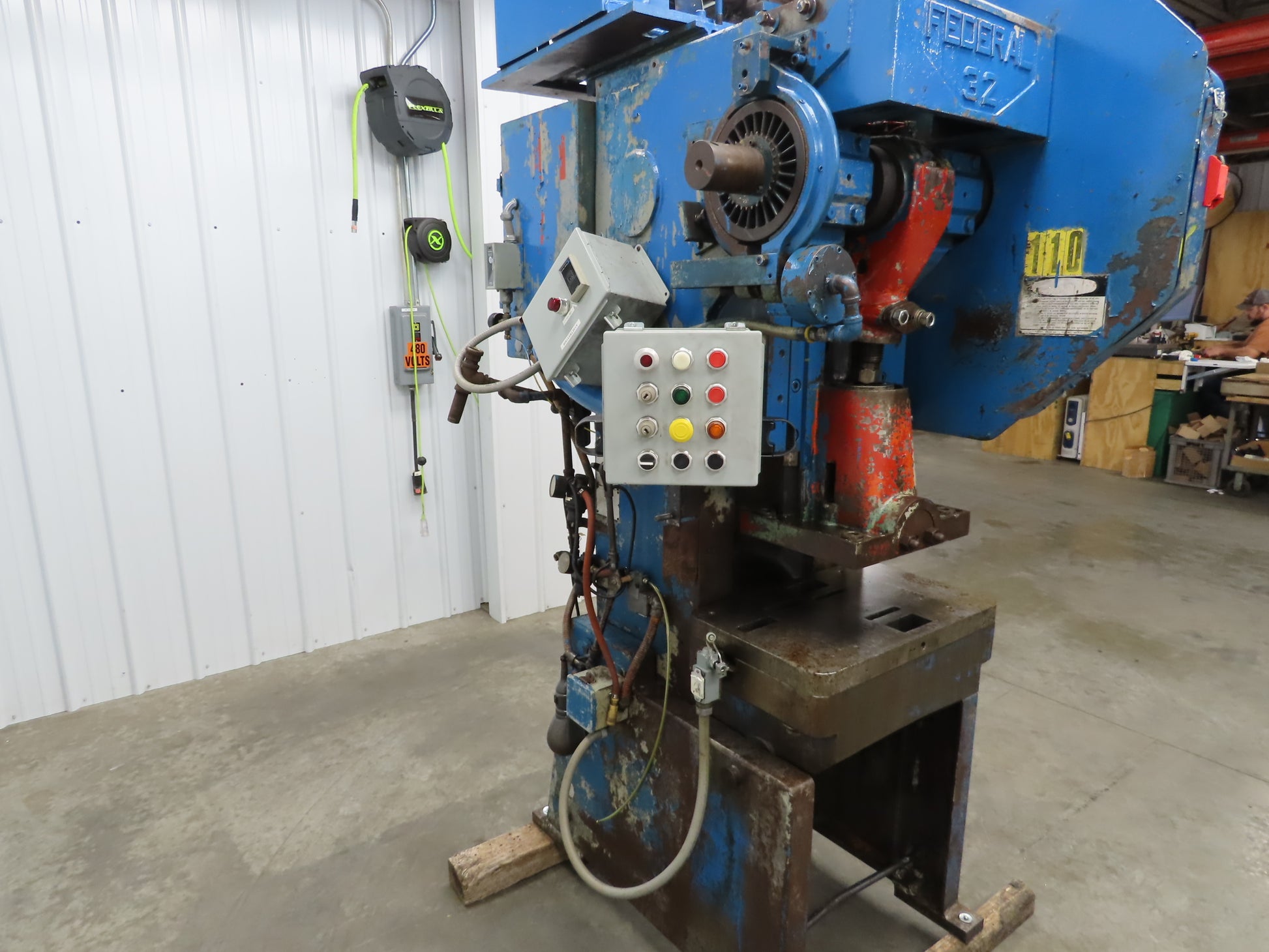

  • This will need new controls. We tested manually. Mechanical sound. Lots of older wiring that should be cleaned up and redone.

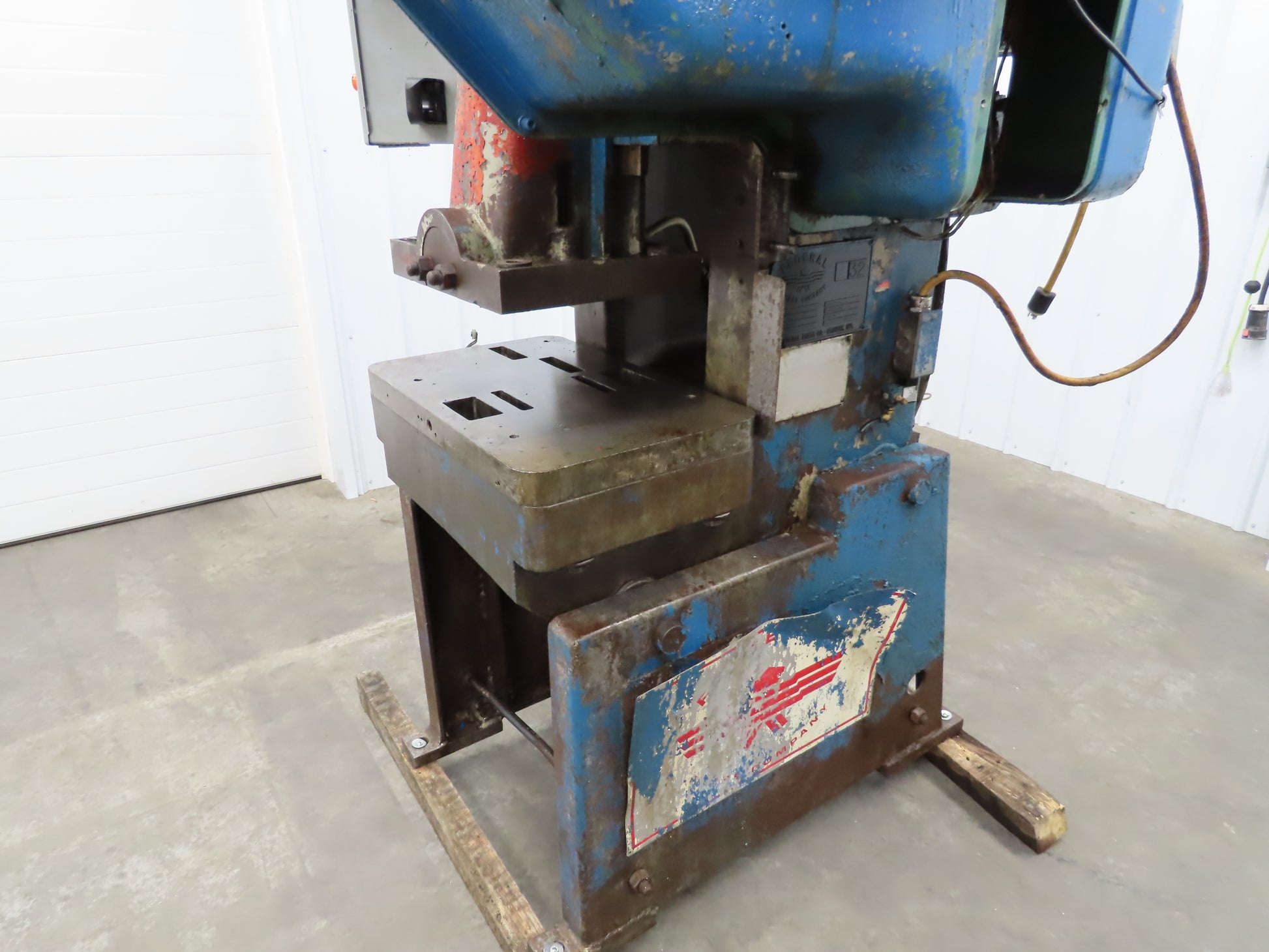

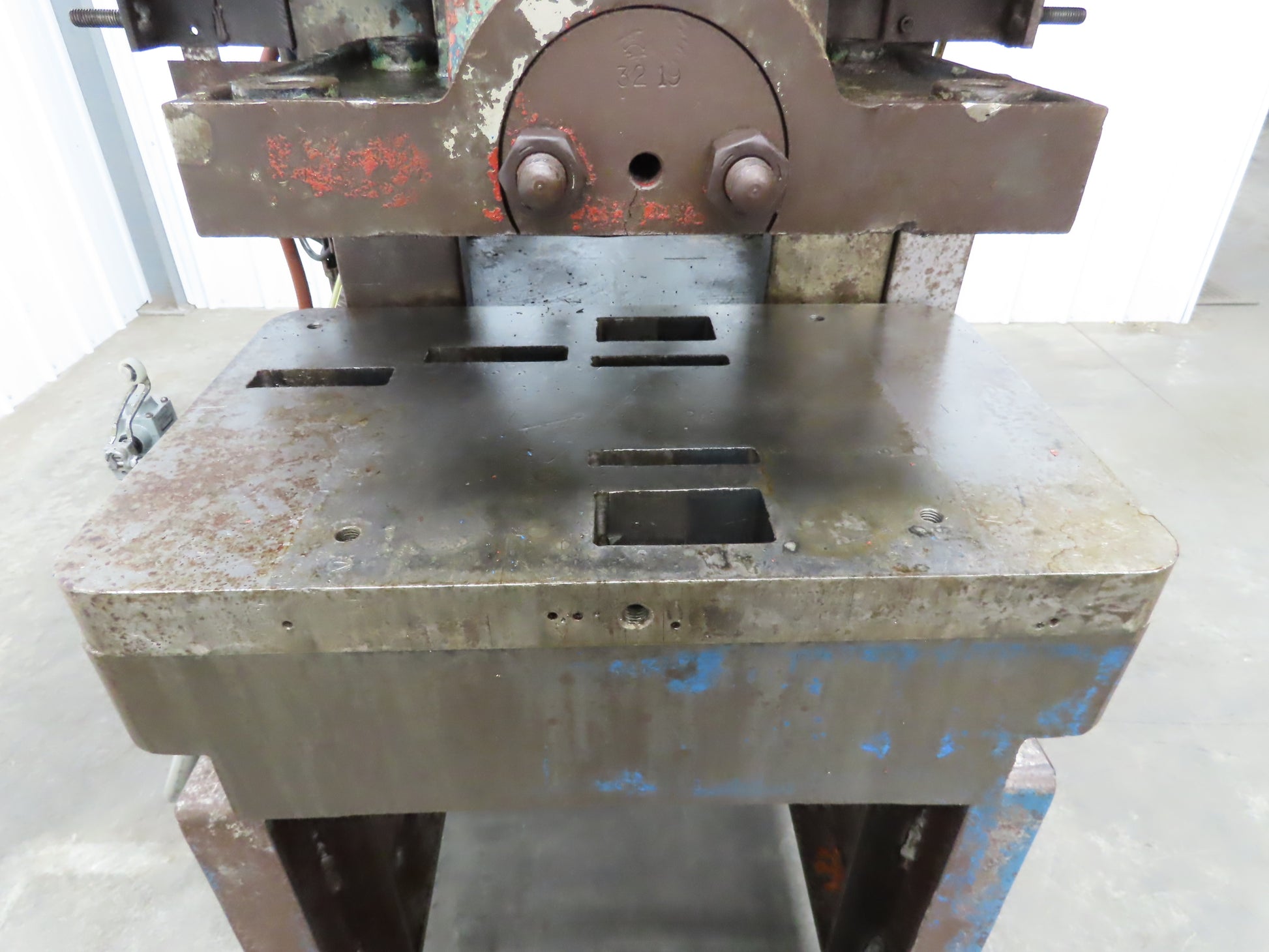

  • This has a bed plate. It is 1-3/4" thick.
