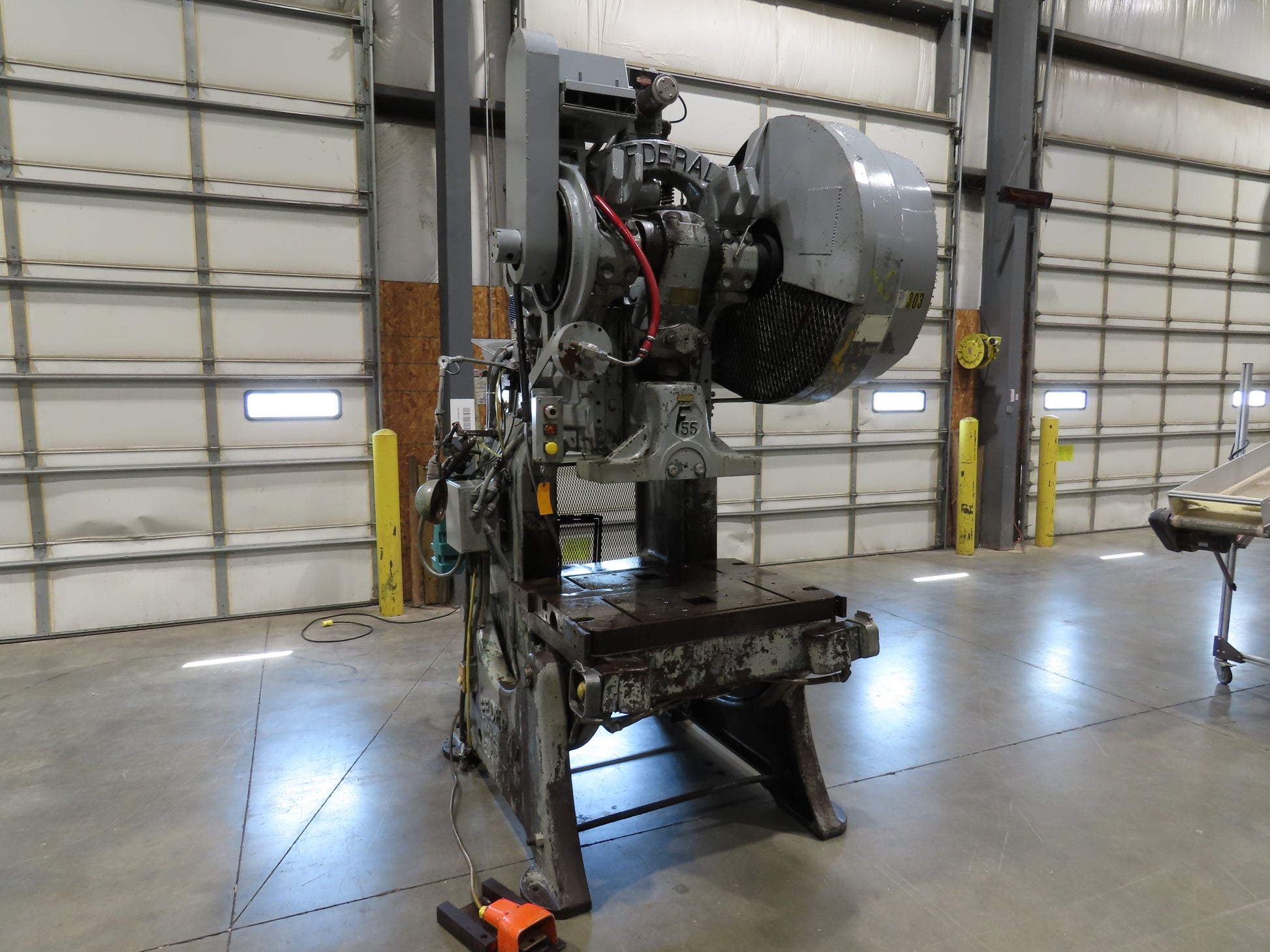

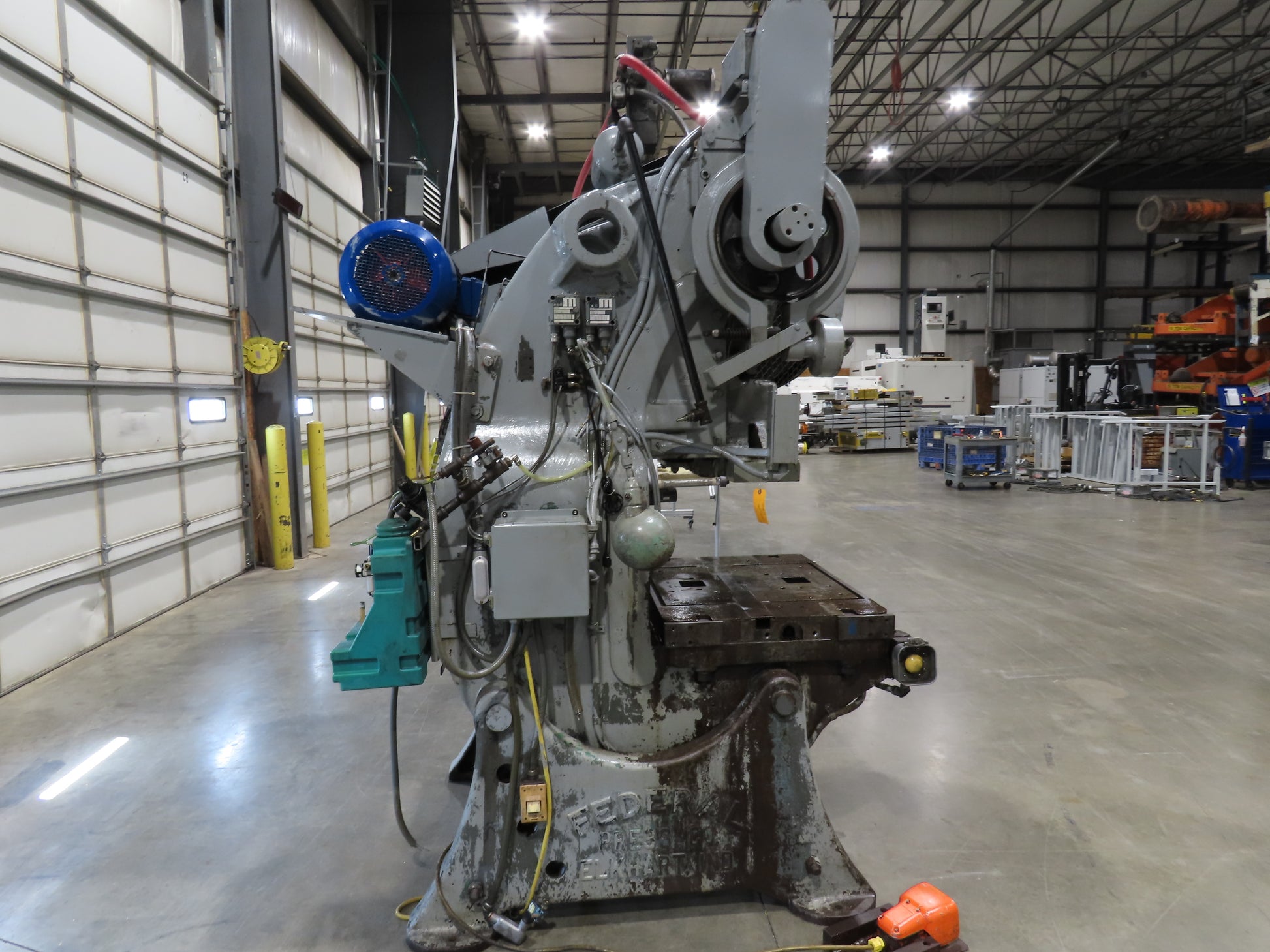

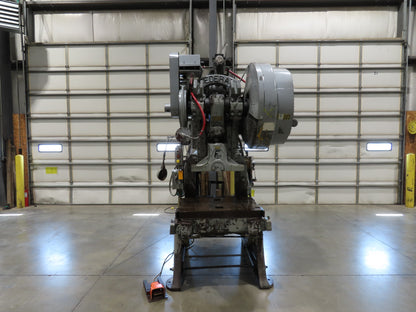

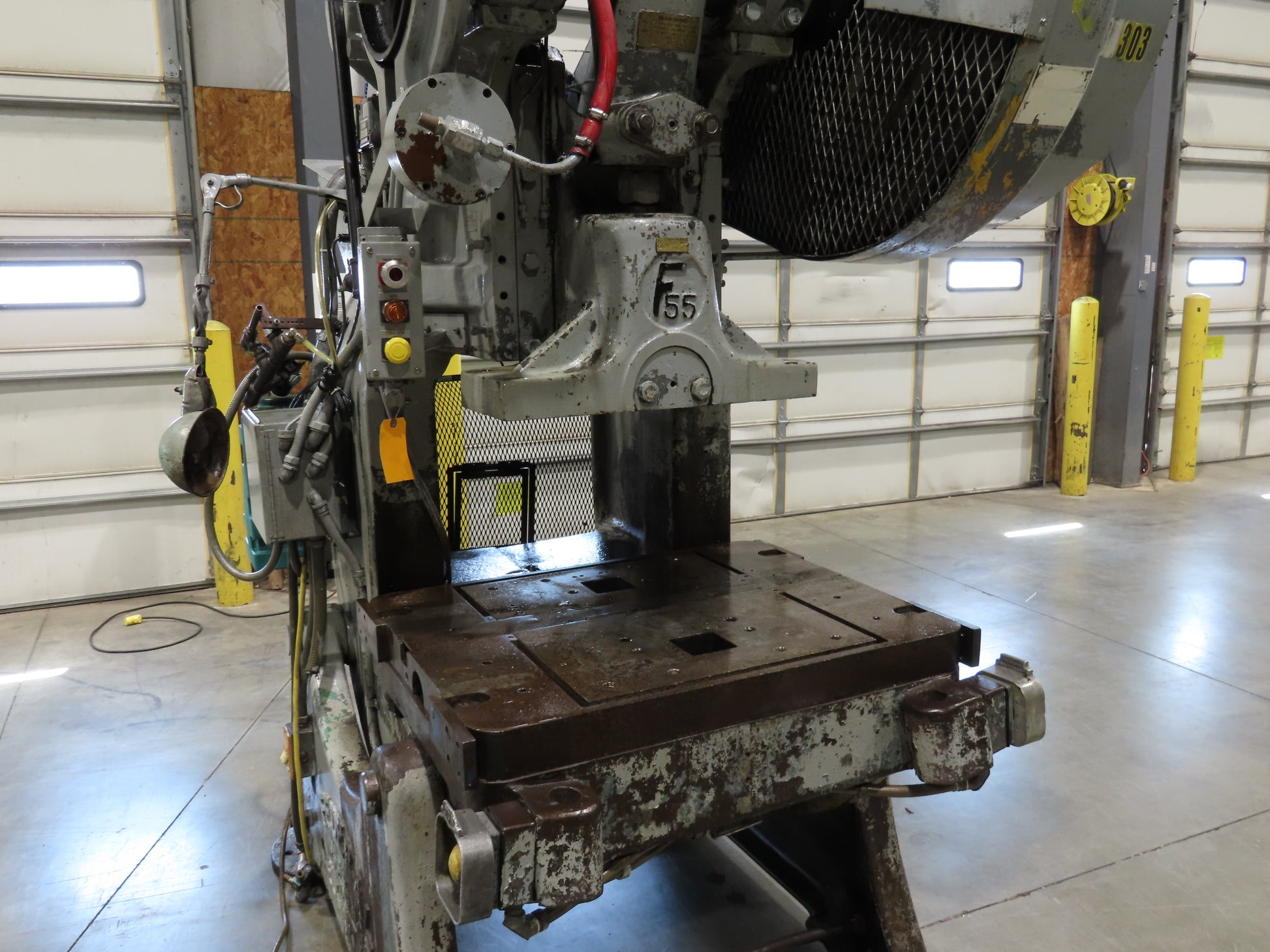

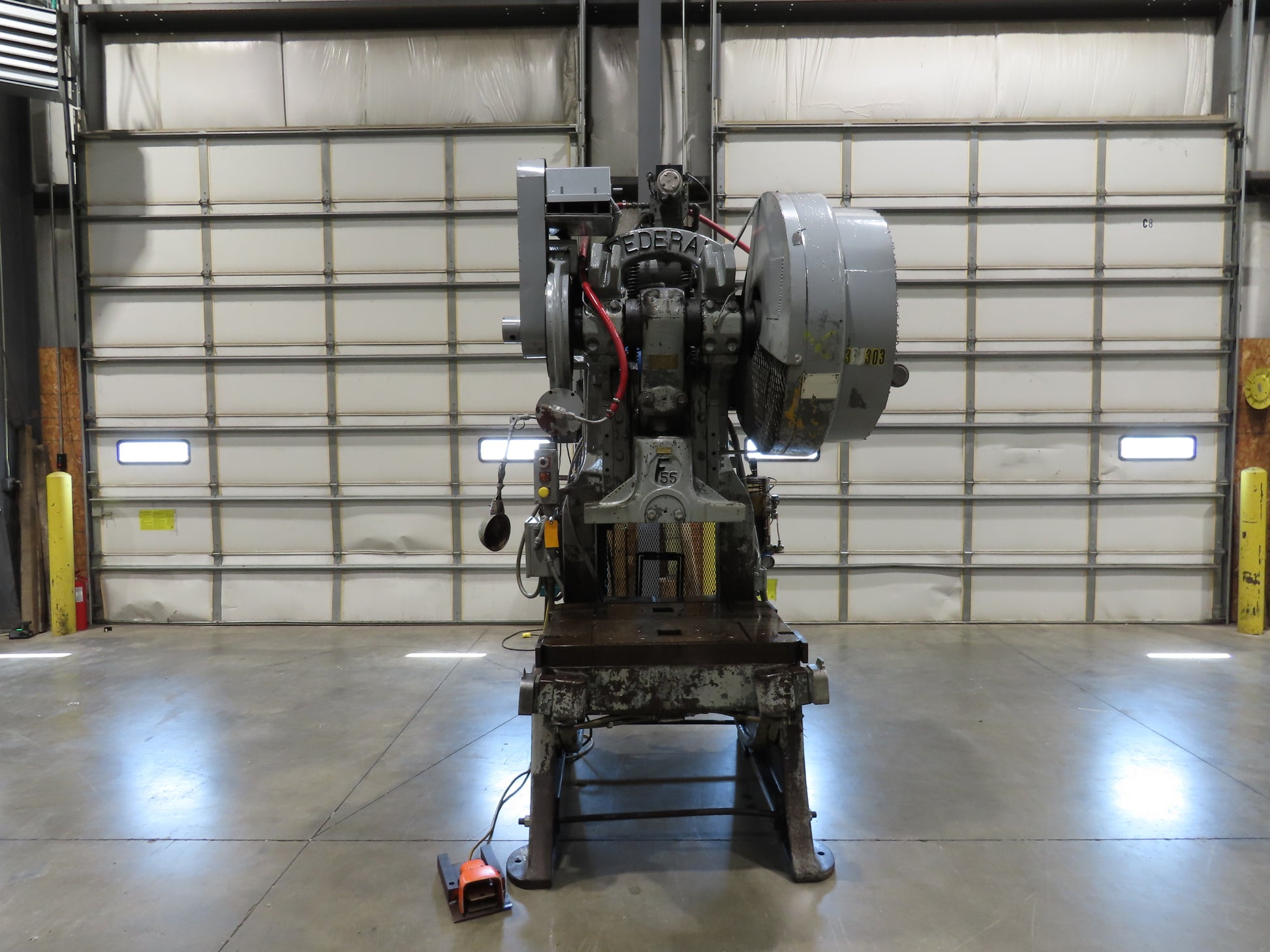

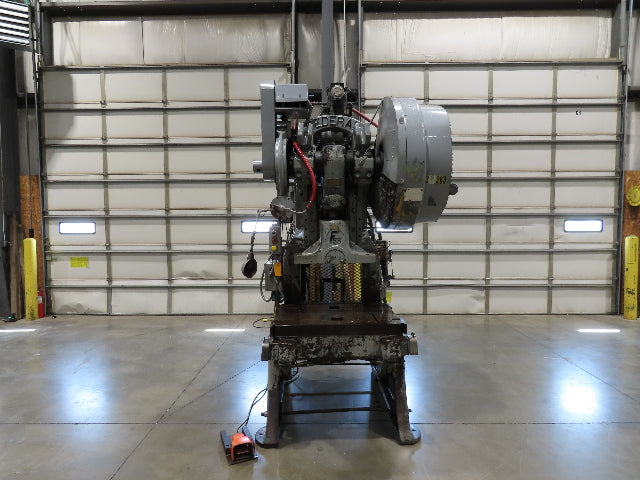

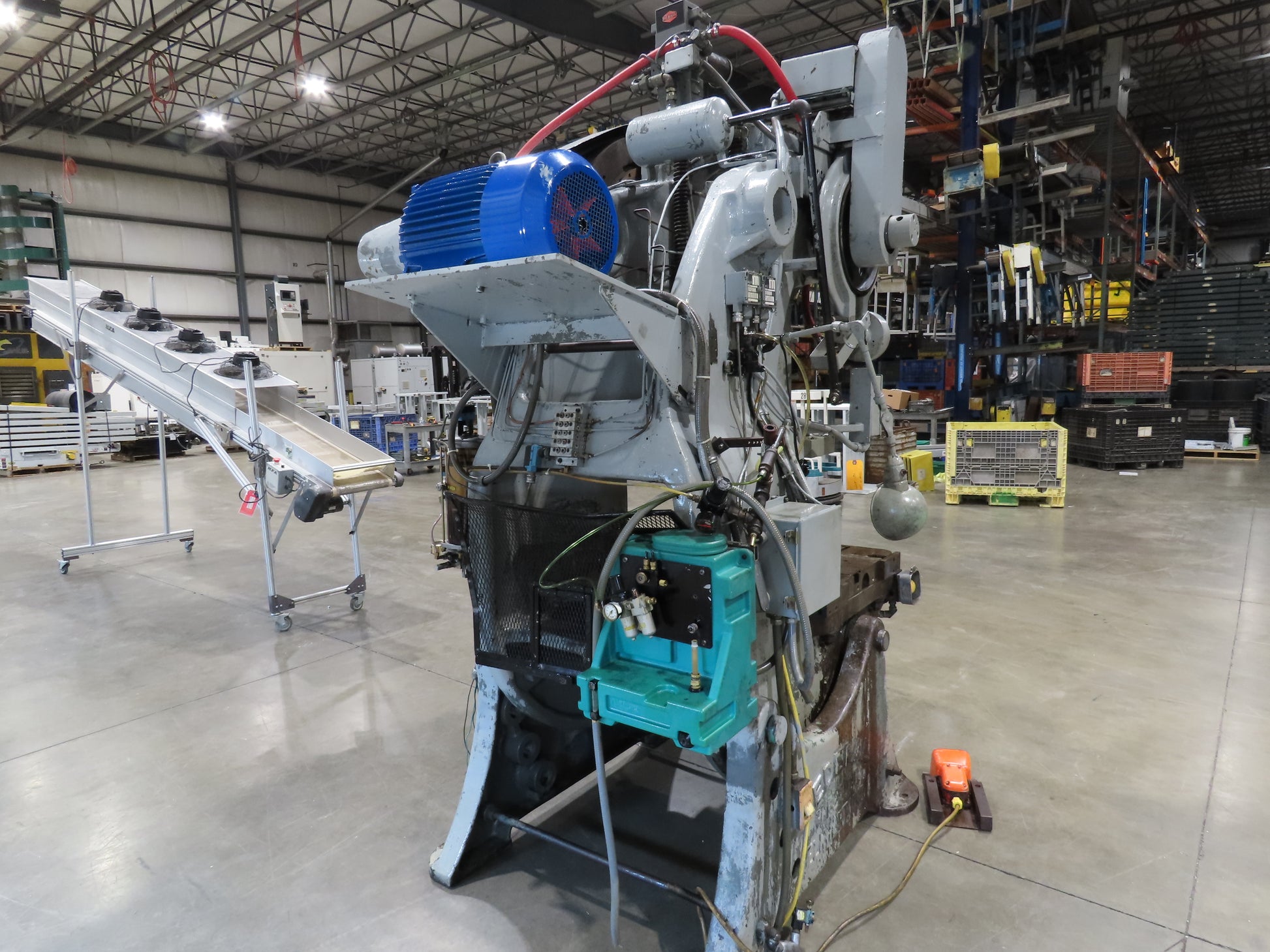

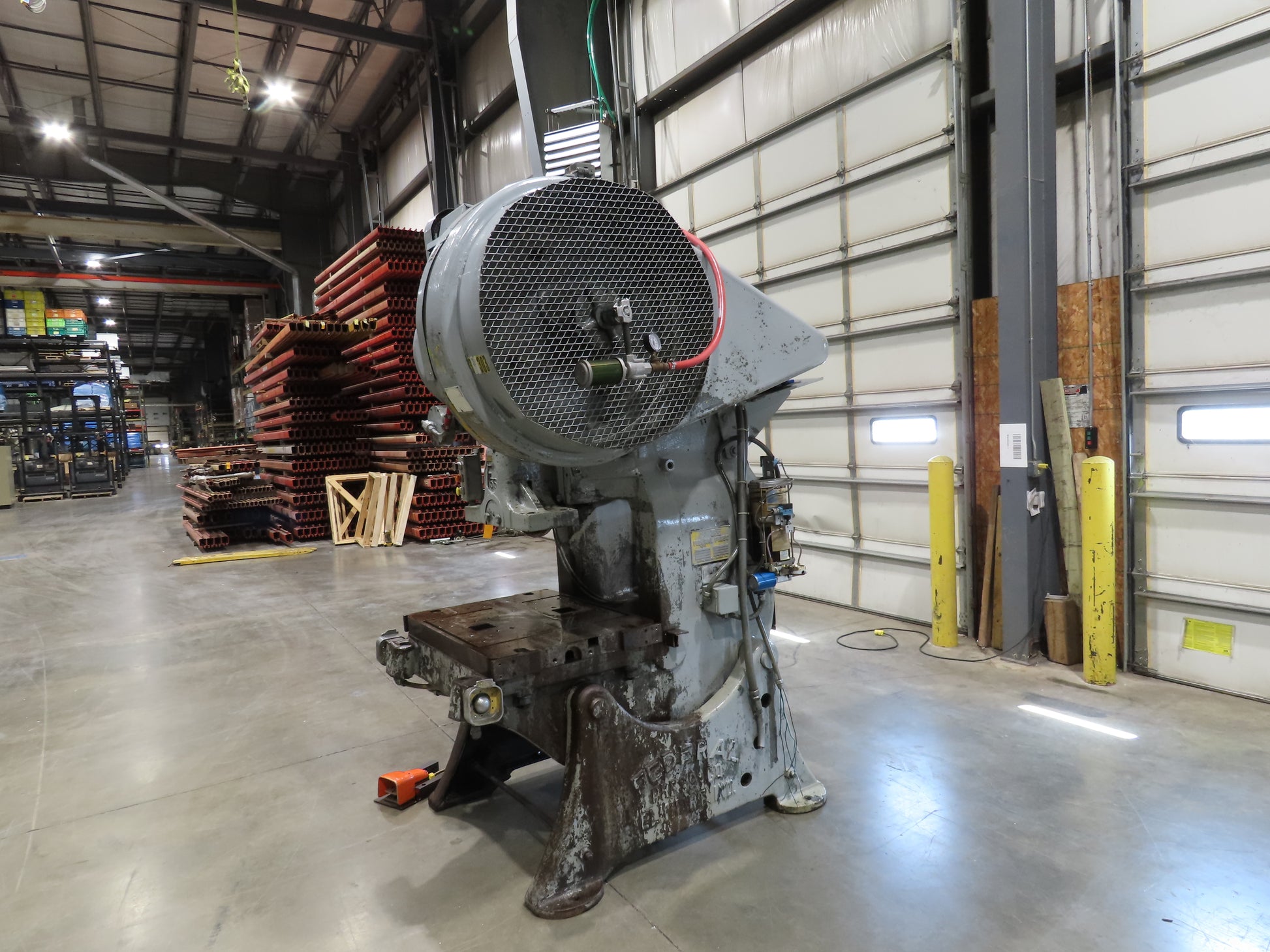

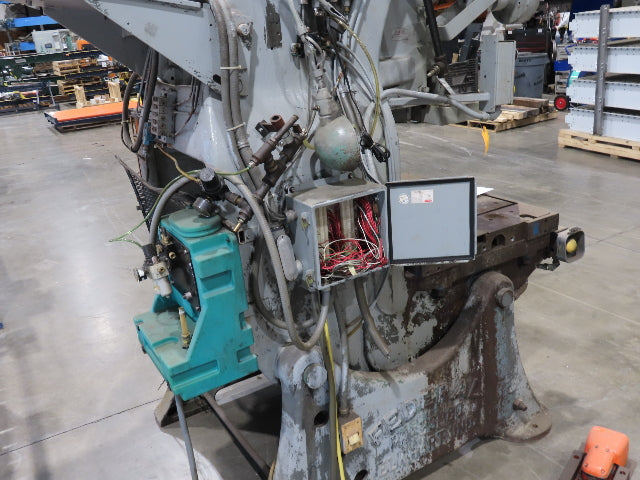

Federal No 55 Mechanical OBI Punch Press 60 Ton Air Brake Clutch 4" Stroke 10Hp

Federal No 55 Mechanical OBI Punch Press 60 Ton Air Brake Clutch 4" Stroke 10Hp

SKU #291965

Product Condition: Used

Your Price
$6,174.99
$6,499.99 $6,174.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Federal
Model
No 55
MPN
No 55
Condition
Used
  • Used, NO electrical controls. In Good Mechanical Condition, Manually Tested OK.

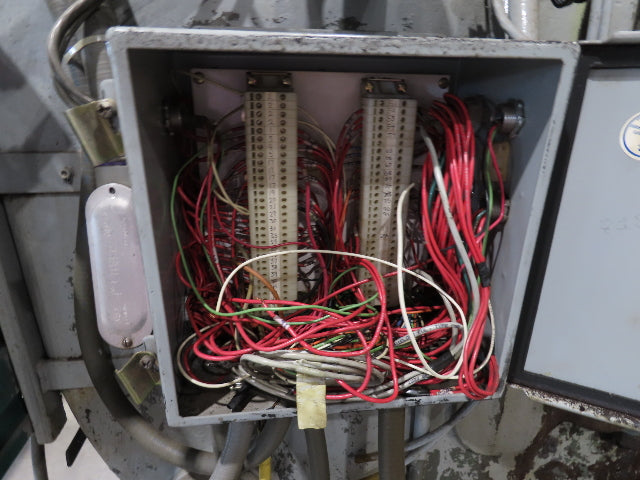

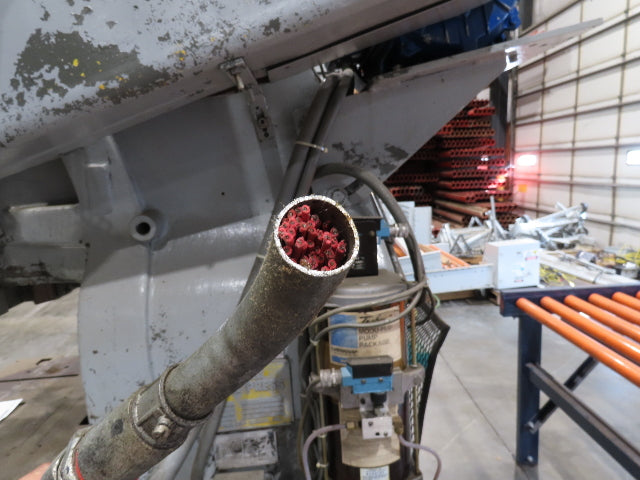

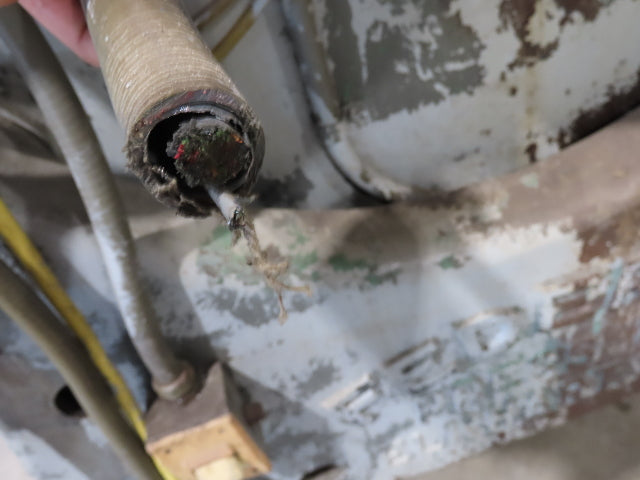

  • This unit will need new control panel. We do not have any operational control panel. This has a juction box and the control wires have been cut.

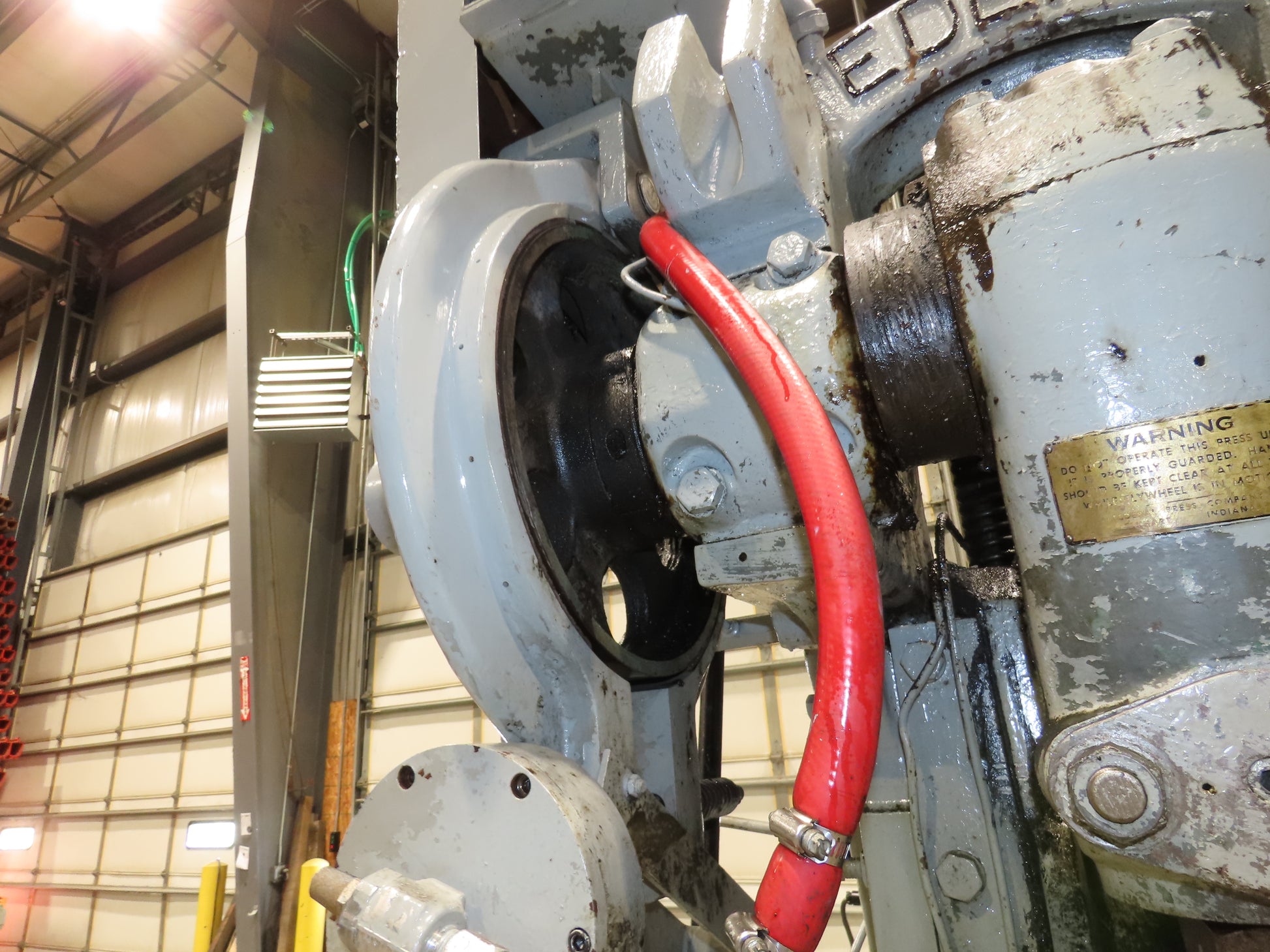

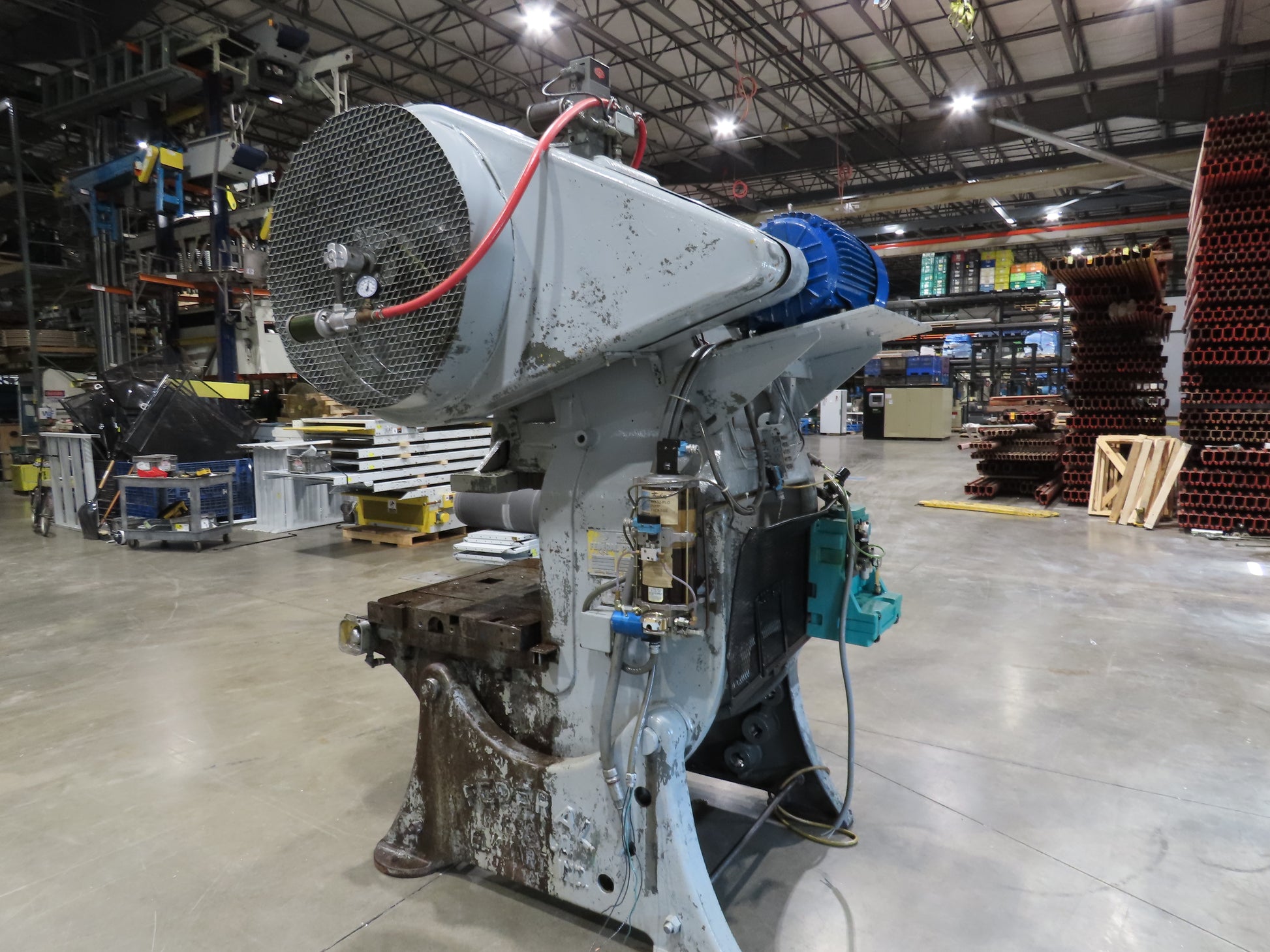

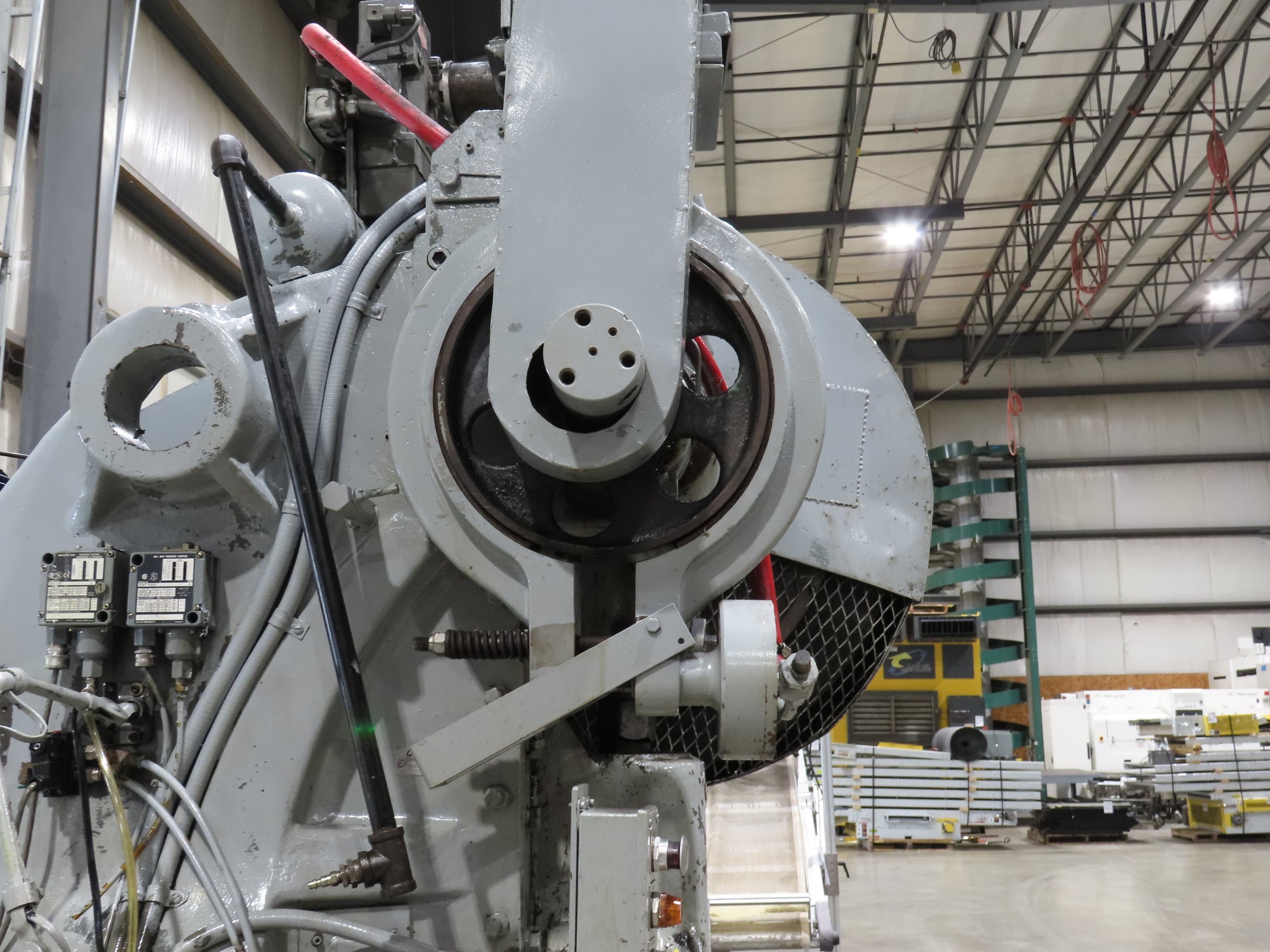

  • Air Brake Clutch This can be started and stopped in any position. It does not have to do a complete cycle. It could inch or it could do the full cycle.

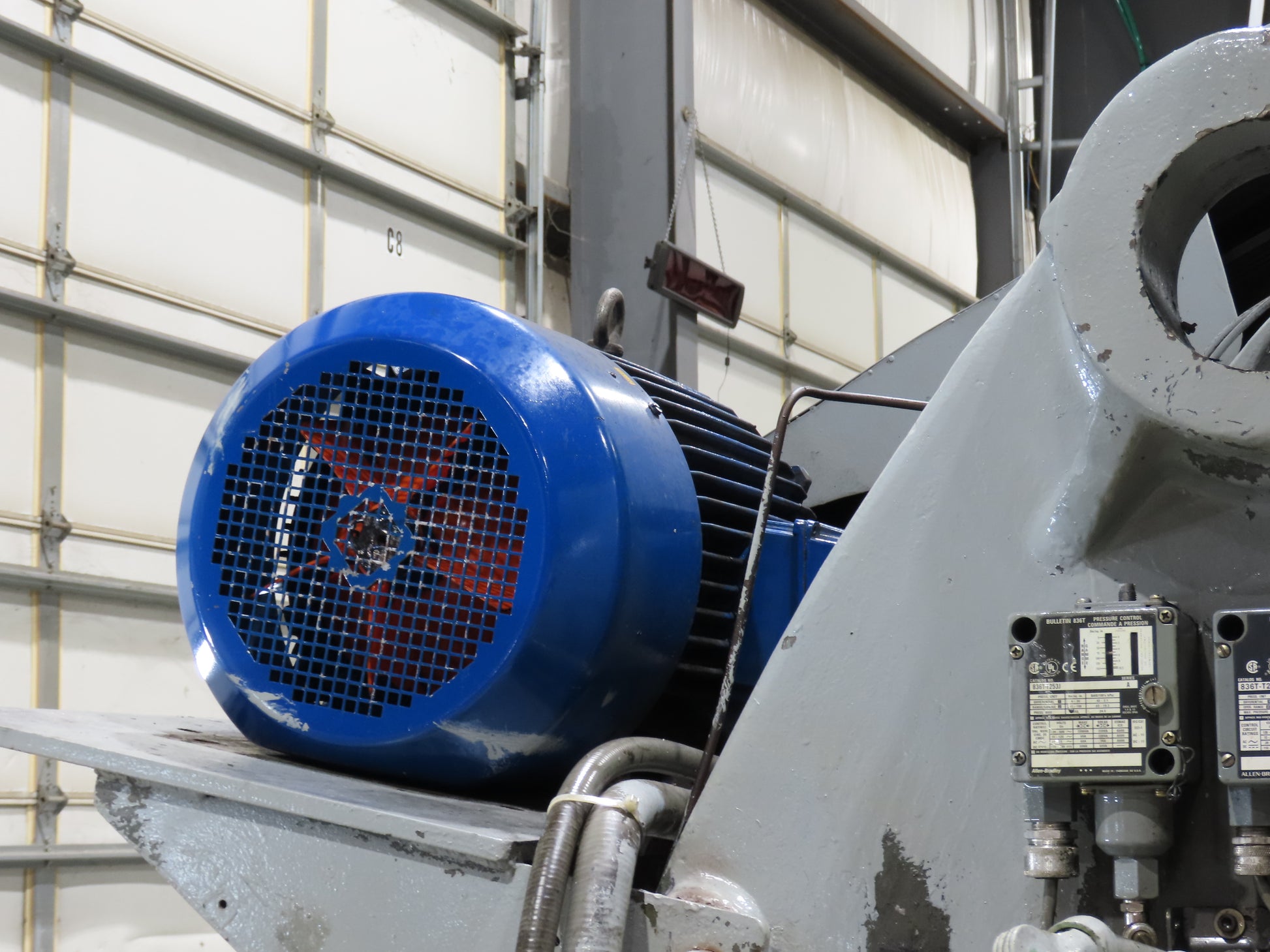

    • HP: 10
    • Voltage: 230/460V wired for 460

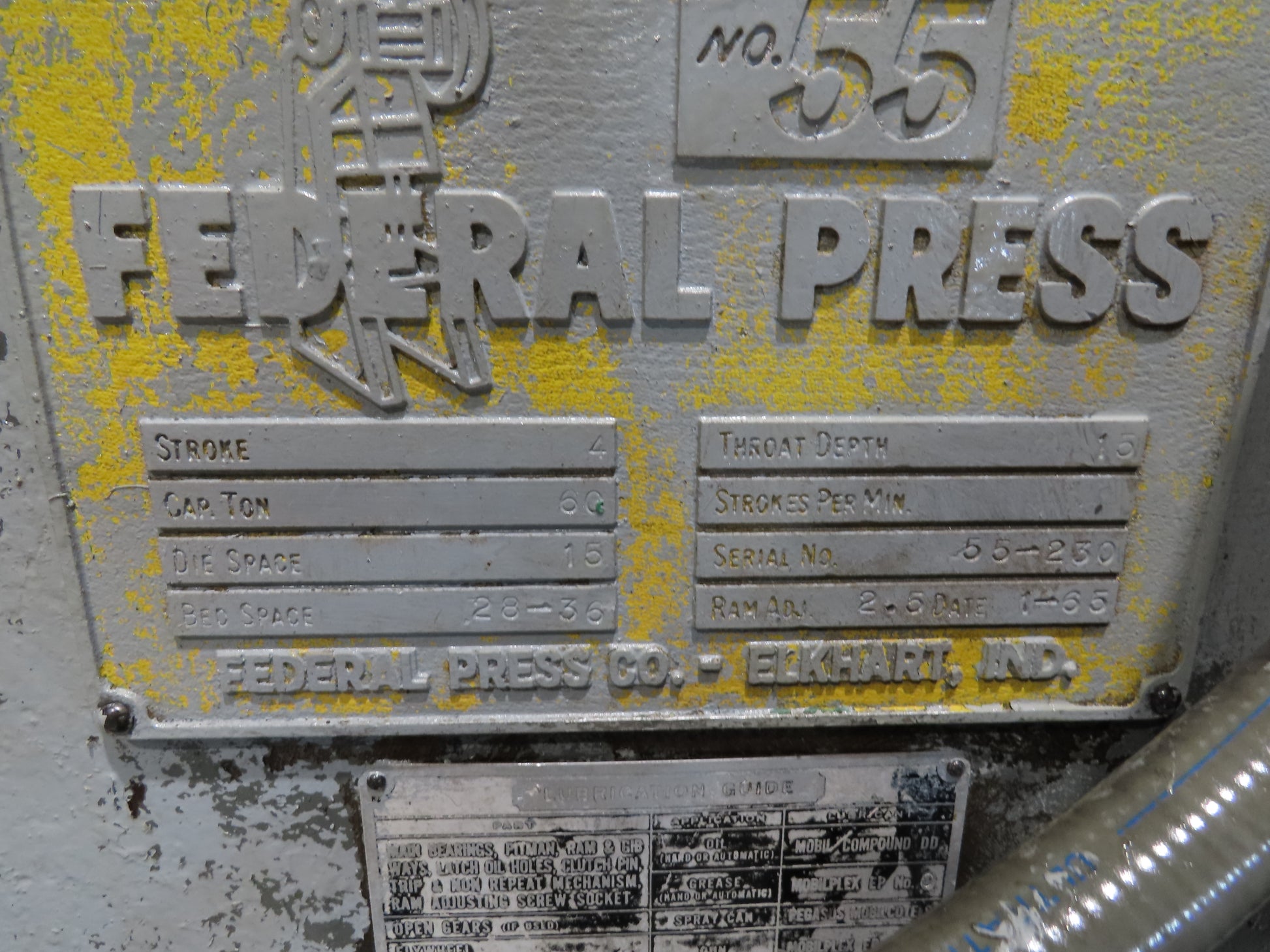

    • Press Rating Ton: 60
    • Stroke (inches): 4
    • Ram Open Height w/adjustment up (Inches): 18-1/2"
    • Ram Shut Height w/Adjustment up (Inches): 14-1/2"
    • Ram Adjustment Length (Inches): 4"
    • Ram Die Shank Size (Inches): 2-3/8
    • Ram Die Shank Length (Inches): 7"

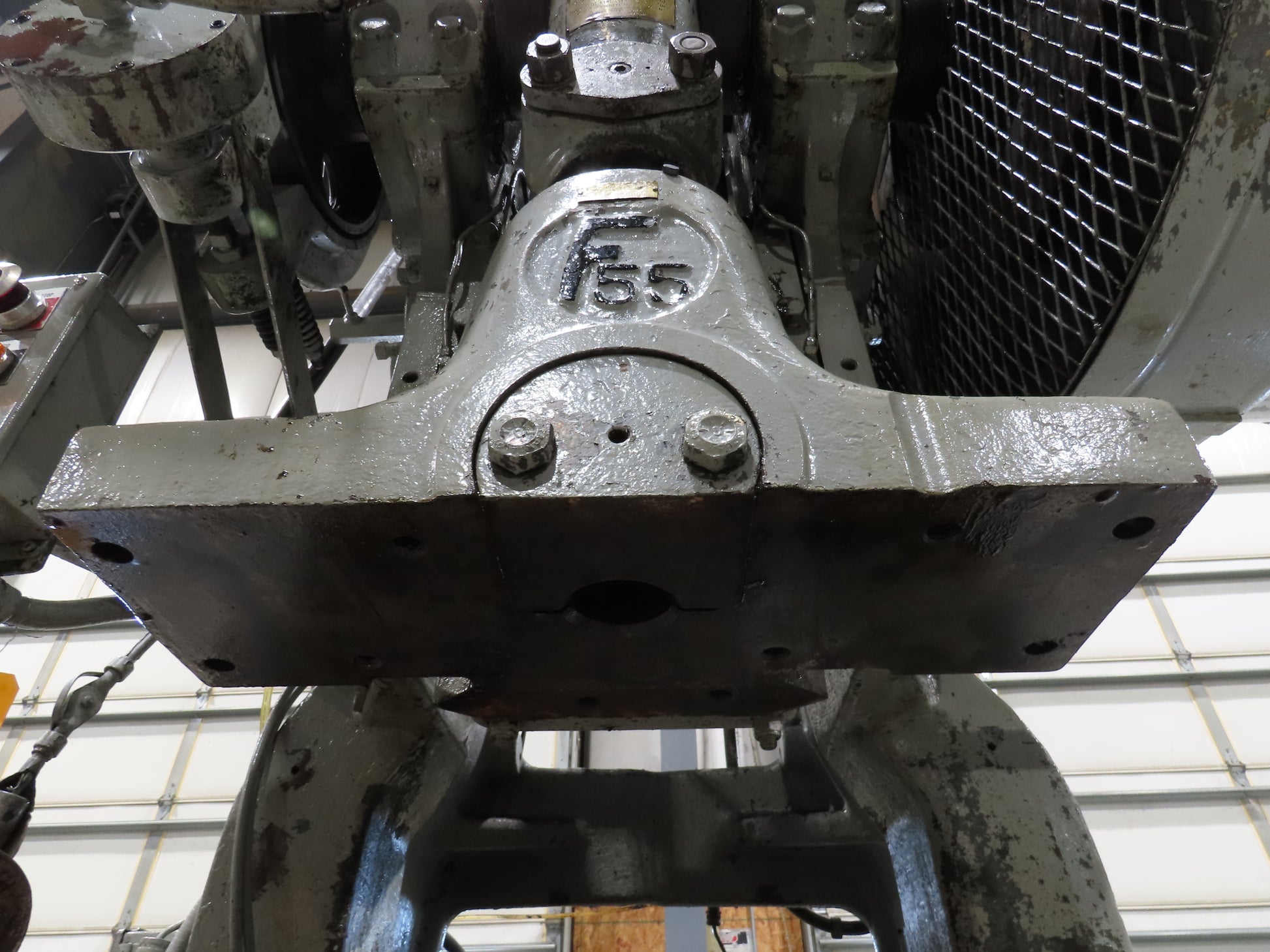

    • Ram Bolt Distance (Center to Center) (Inches): 22" 4 Bolt pattern
    • Throat Opening (Frame to Center of Ram) (Inches): 15"

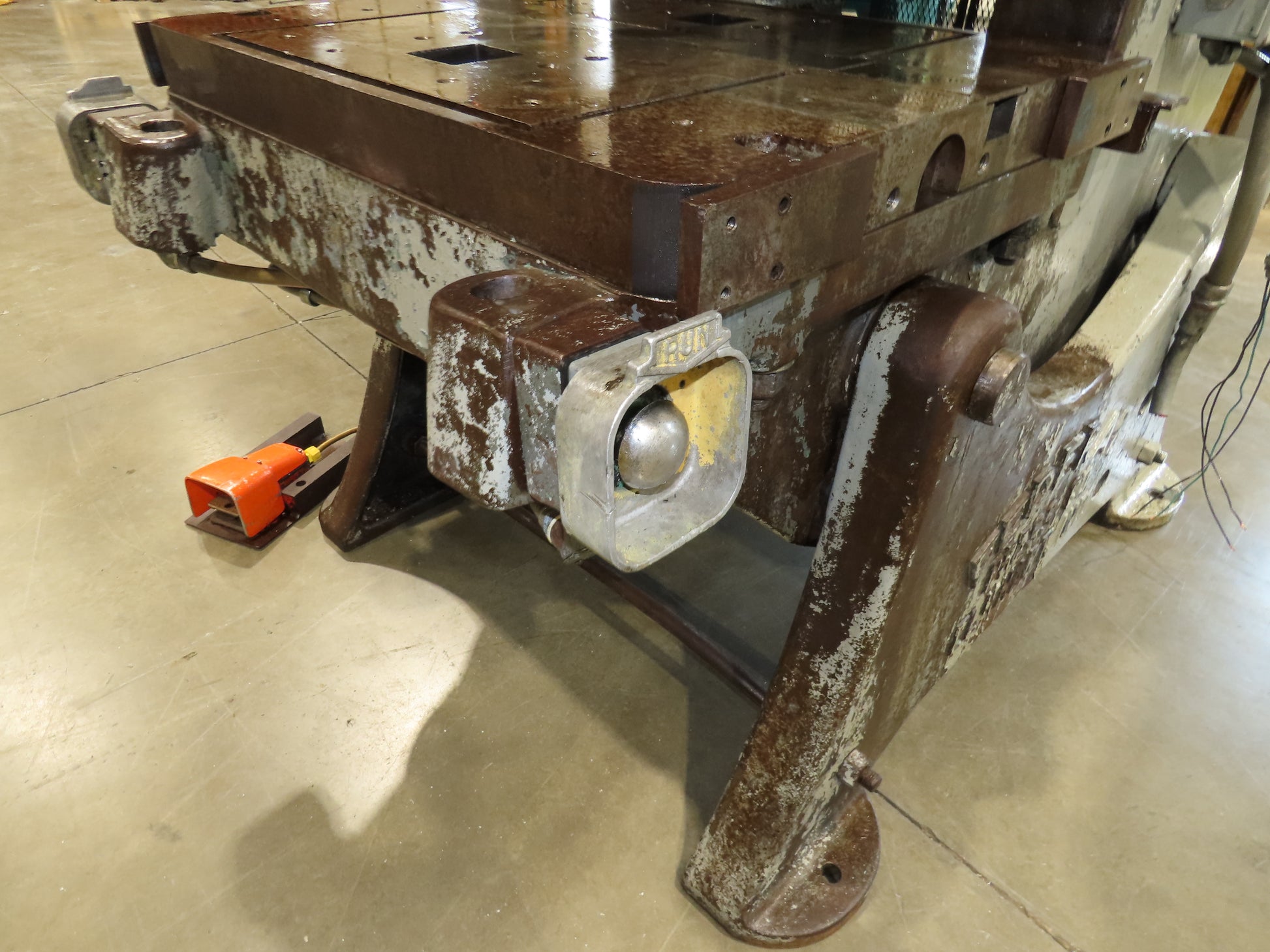

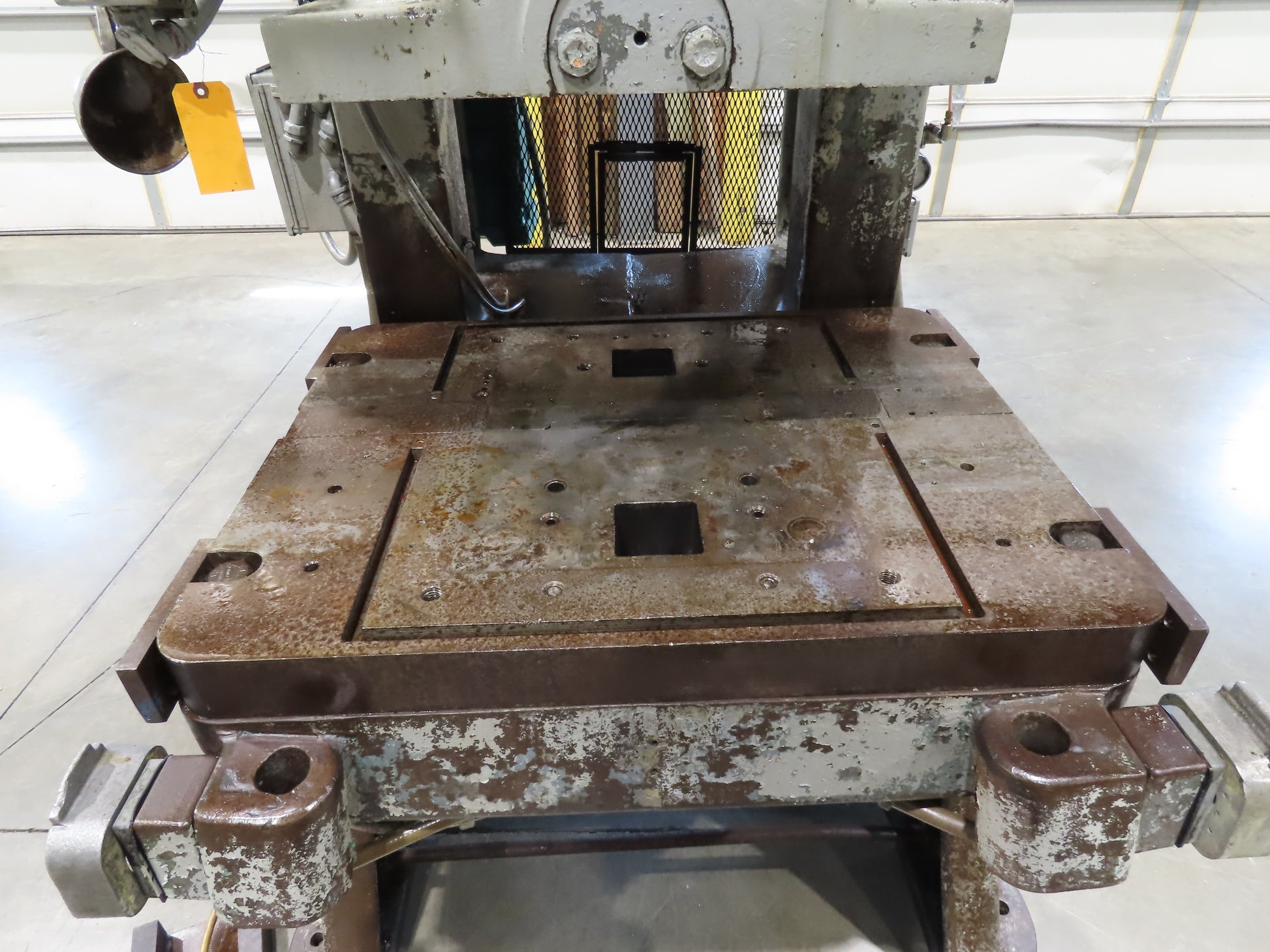

    • Bed Size (Inches): 28x36"

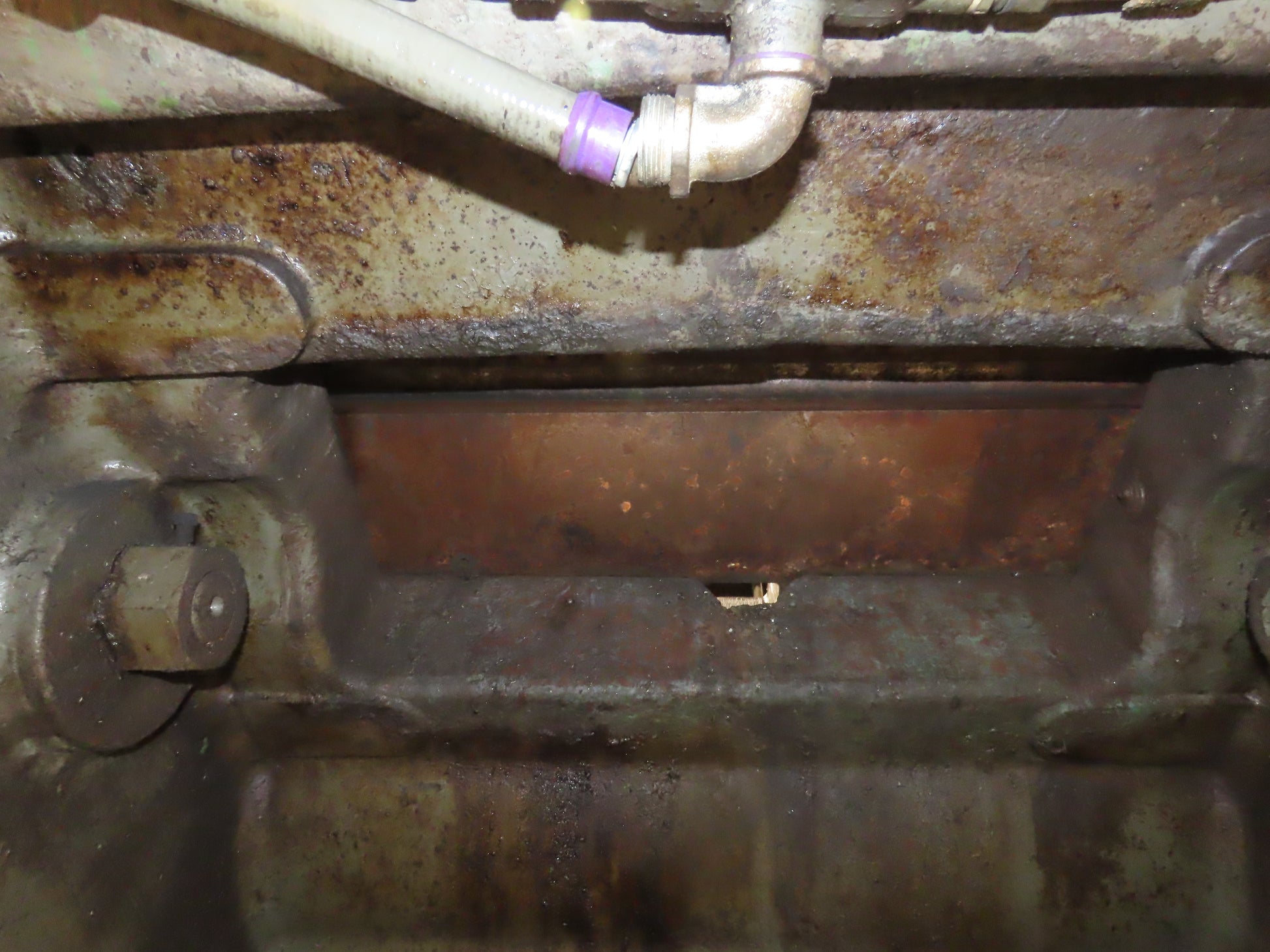

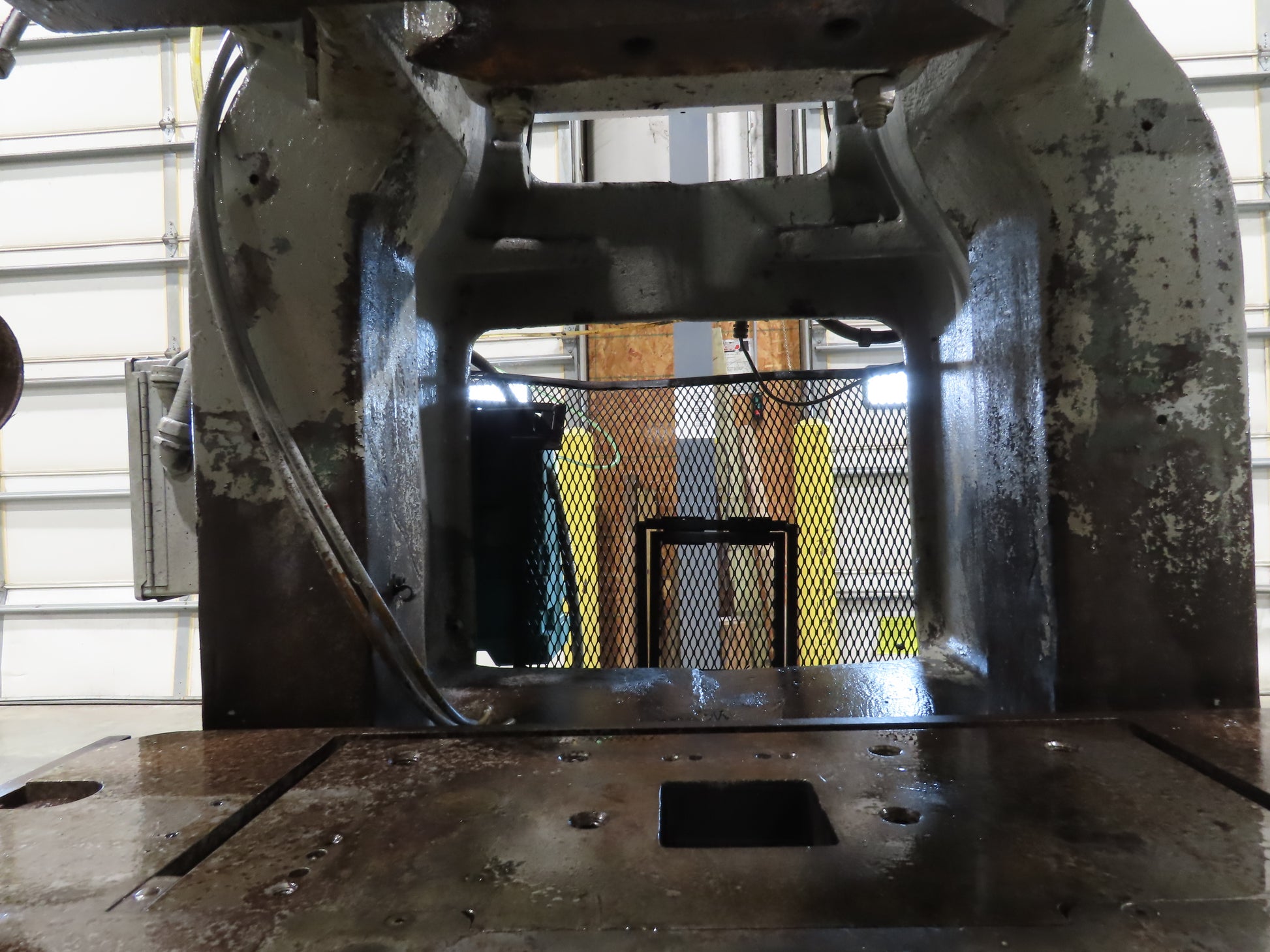

    • Bed Opening (Inches): 22x10"
    • This has a bed plate. It is 3" thick.
