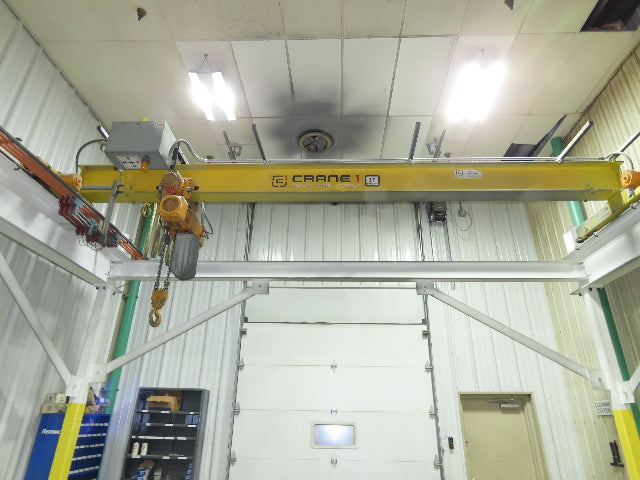

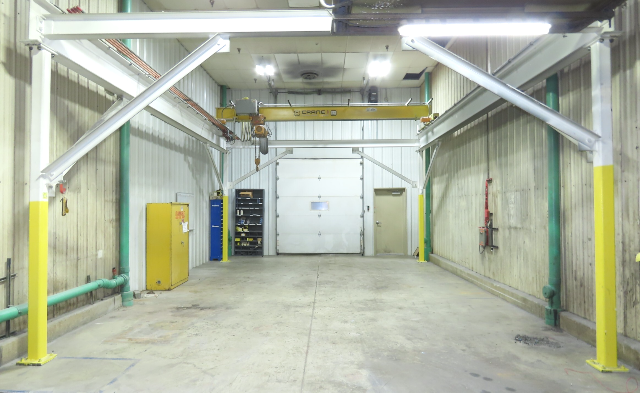

Harrington 3 Ton Top Running 4-Post Bridge Crane 16' Span 27' 4" Runway 12' 9"H

Harrington 3 Ton Top Running 4-Post Bridge Crane 16' Span 27' 4" Runway 12' 9"H

SKU #312998

Product Condition: Used

Your Price
$27,549.99
$27,549.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

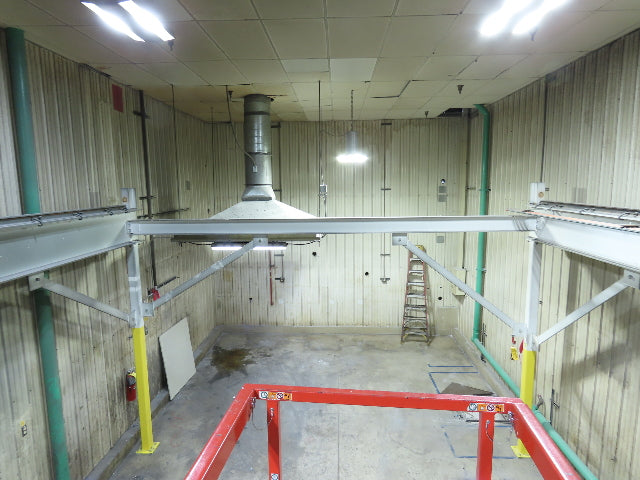

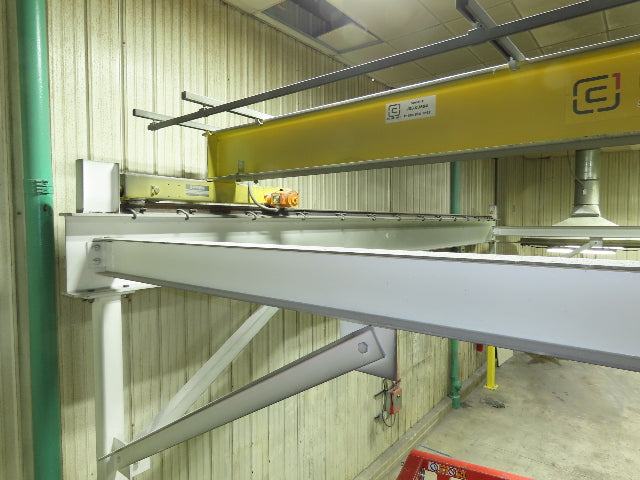

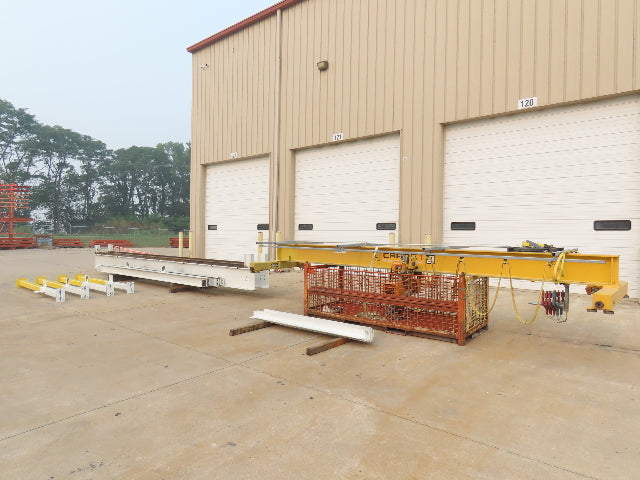

  • Bridge crane removed from a working environment.

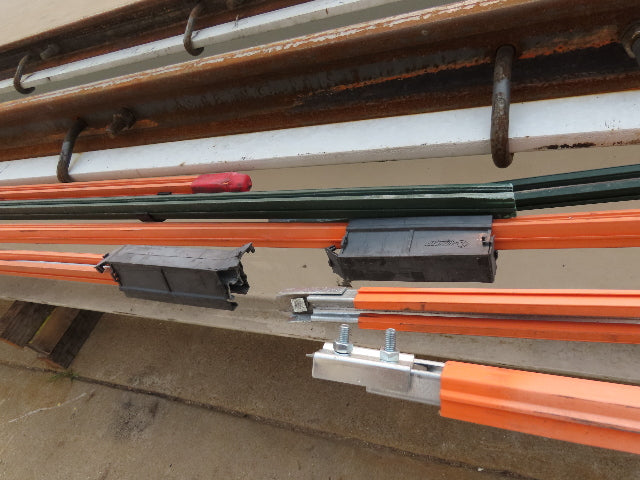

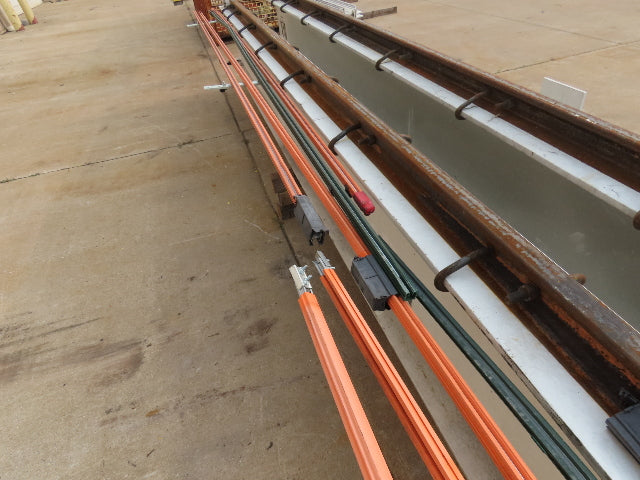

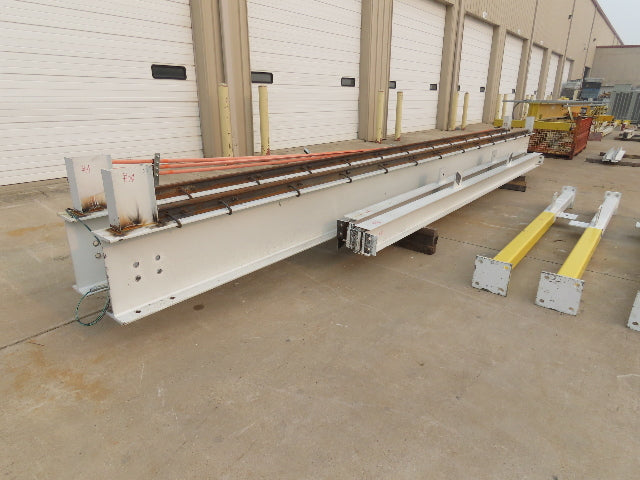

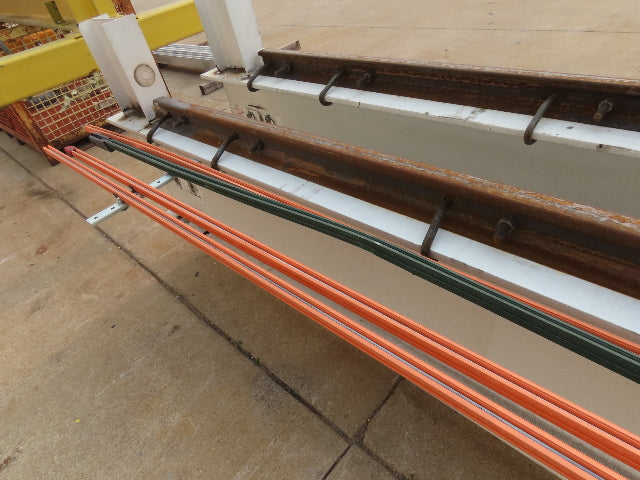

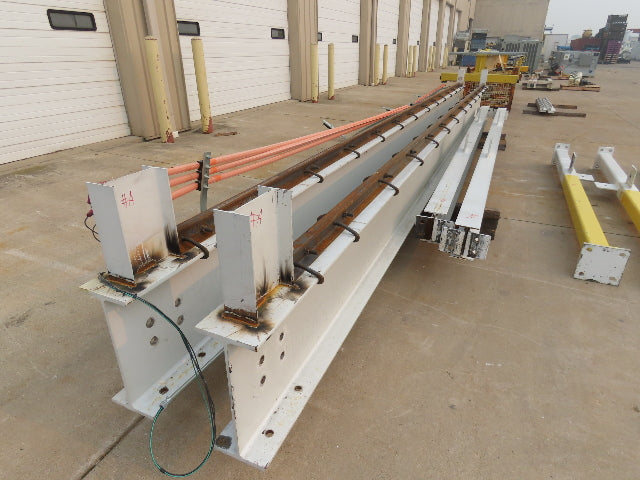

  •  NOTE: Some of the power rail was damaged from transport will need repaired or replaced, see photos.  Crane is in working condition otherwise.

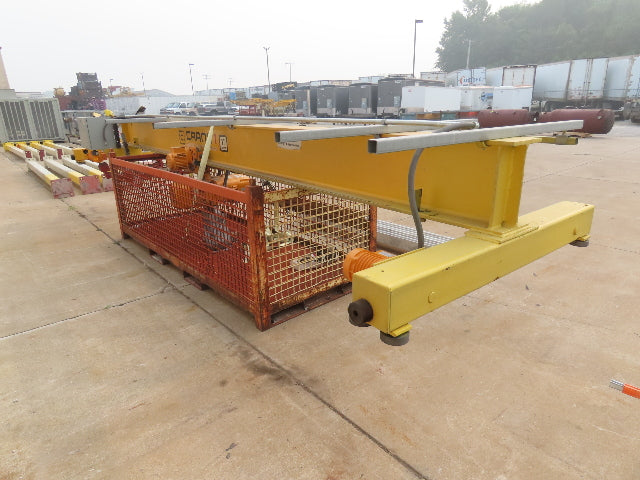

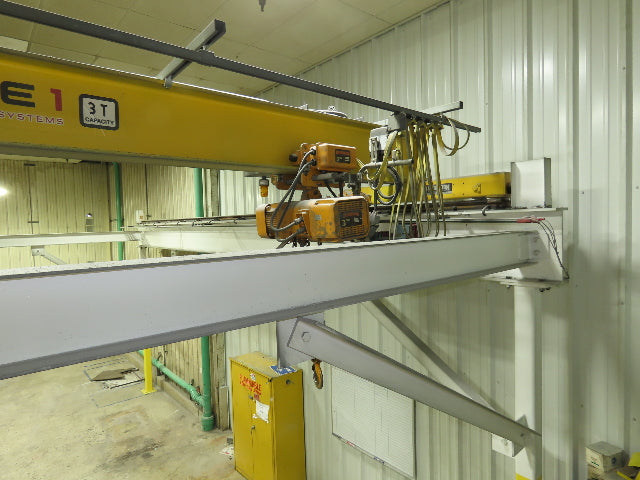

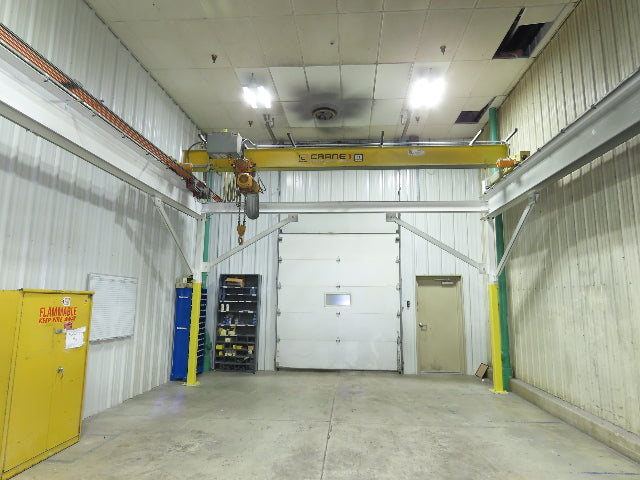

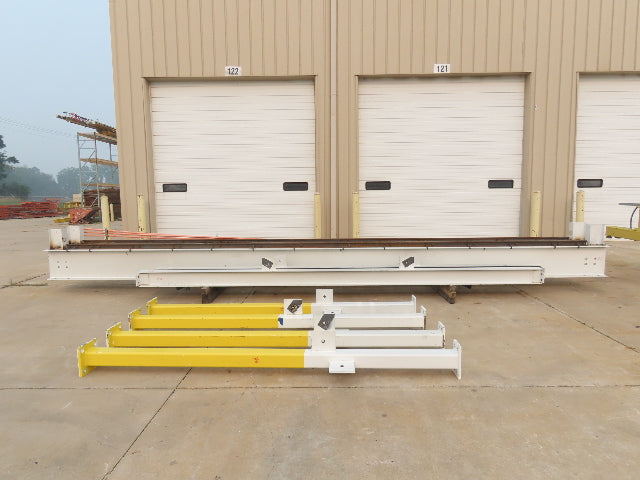

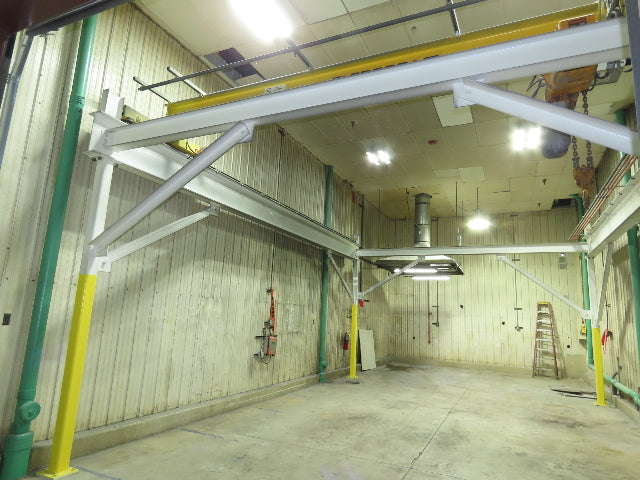

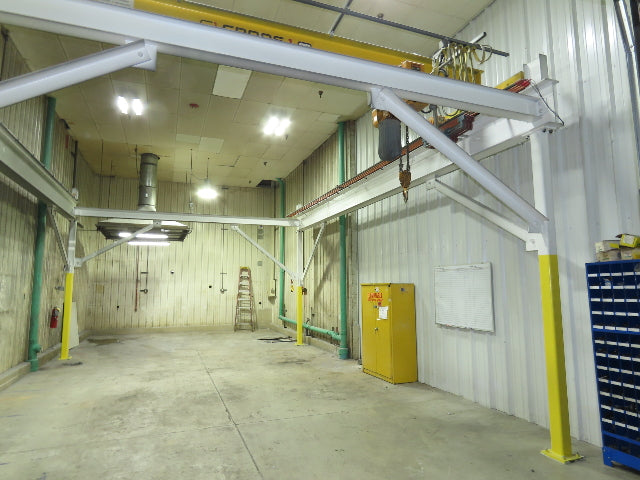

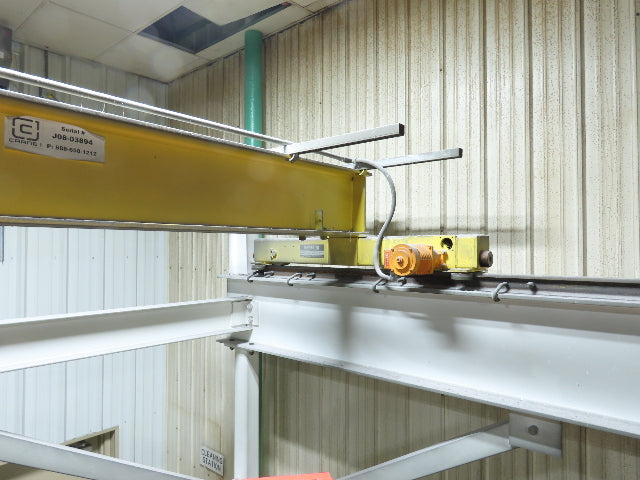

  • 4 Post crane system with Harrington hoist and end trucks.

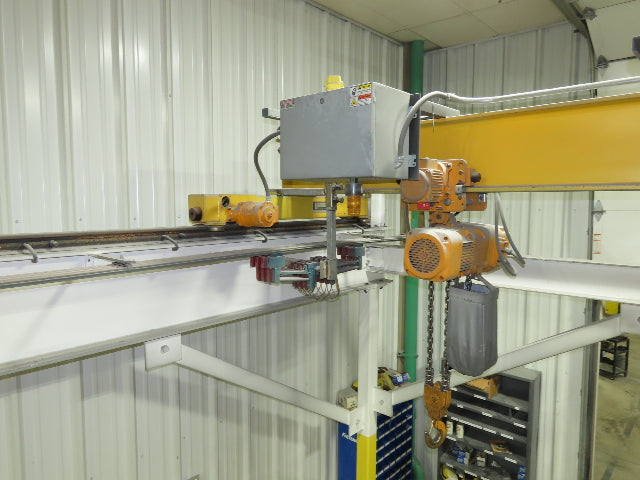

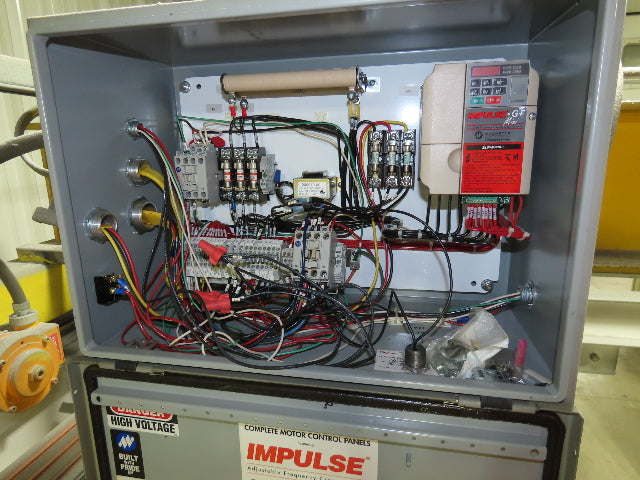

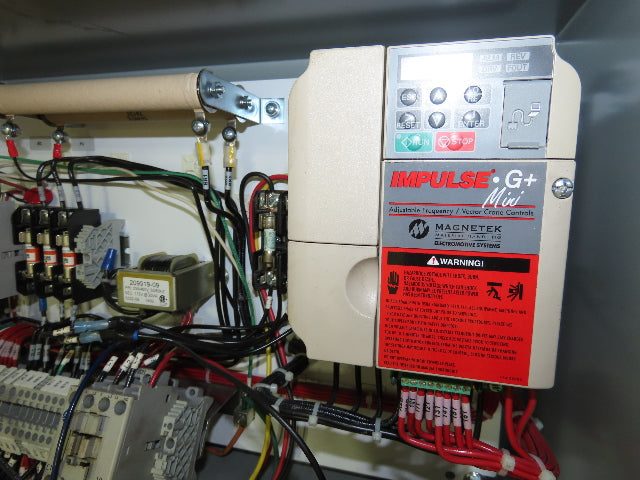

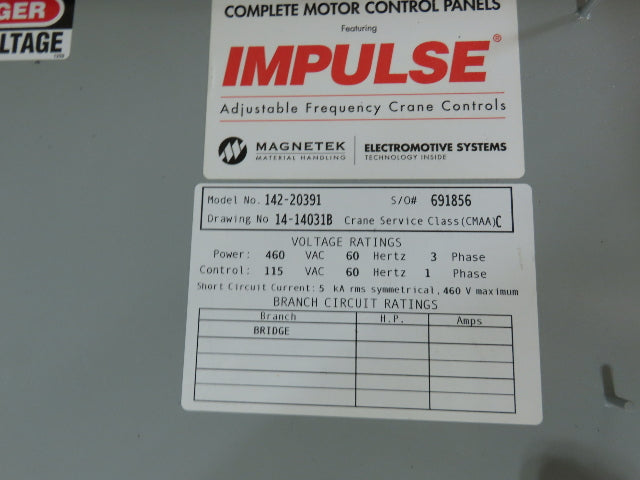

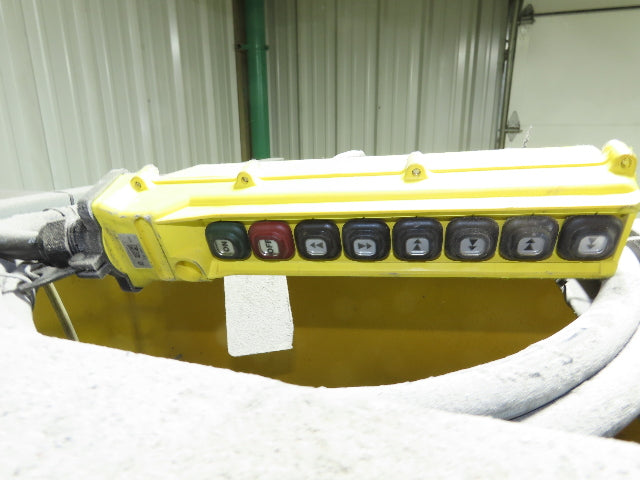

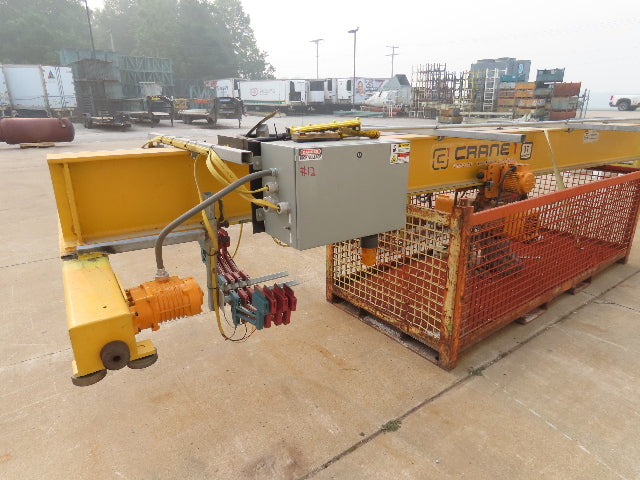

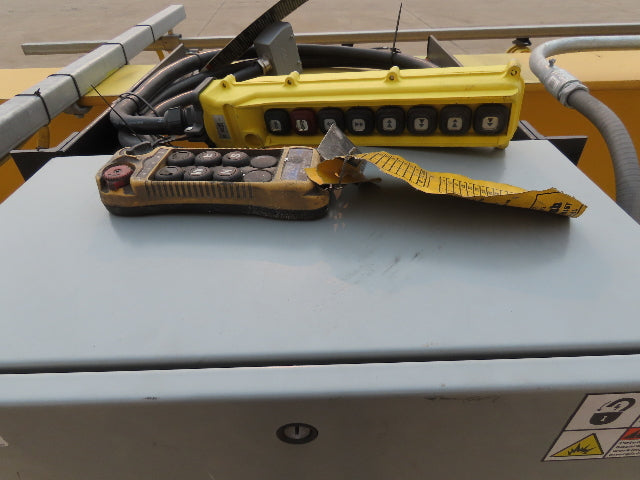

  • Controls:  Corded pendant and remote pendant with VFD in control panel 460V 3PH.

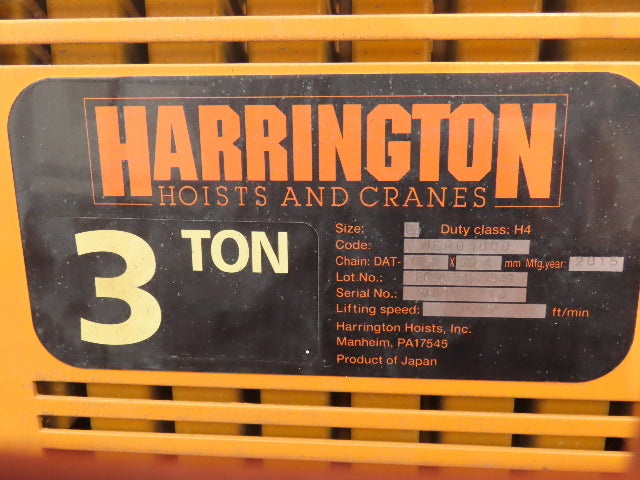

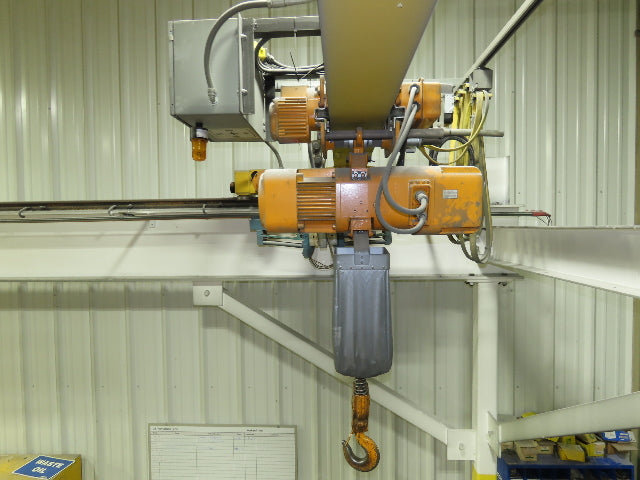

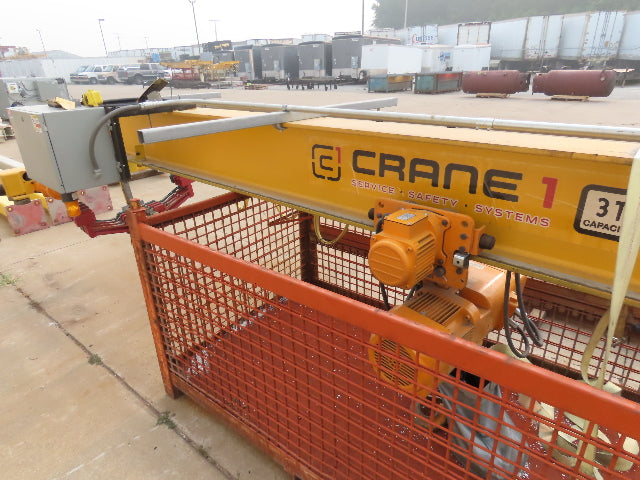

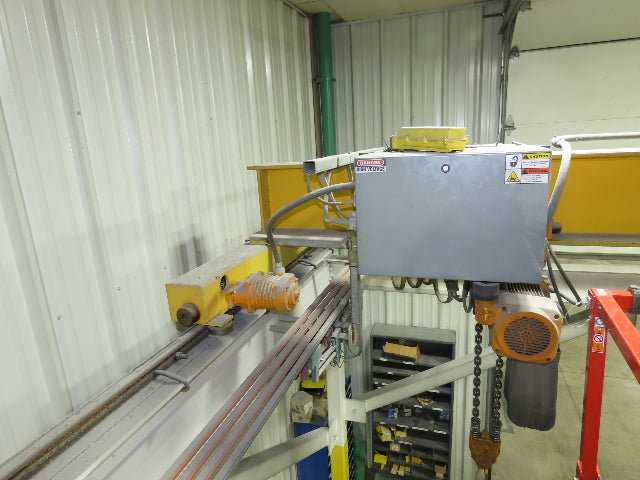

  • Hoist:  Harrington 3 Ton Model (NER030CD)  3/17 FPM 2-Speed.  460V 3PH.
  • Bridge Type:  Top Running Single Girder.
  • Bridge Capacity:  3 Ton
  • Bridge Span:  16'  (Center distance of runways)

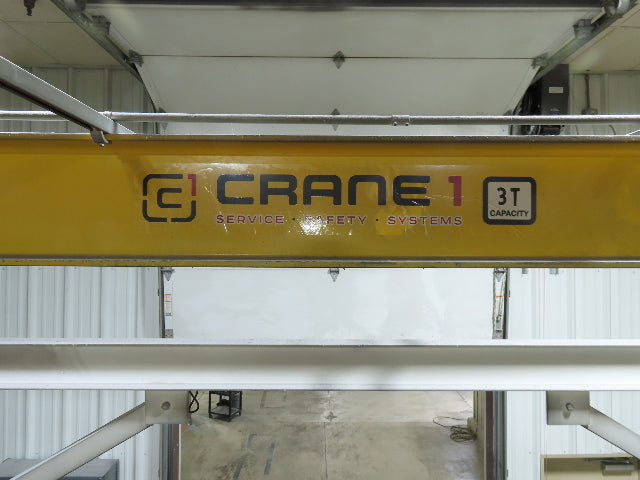

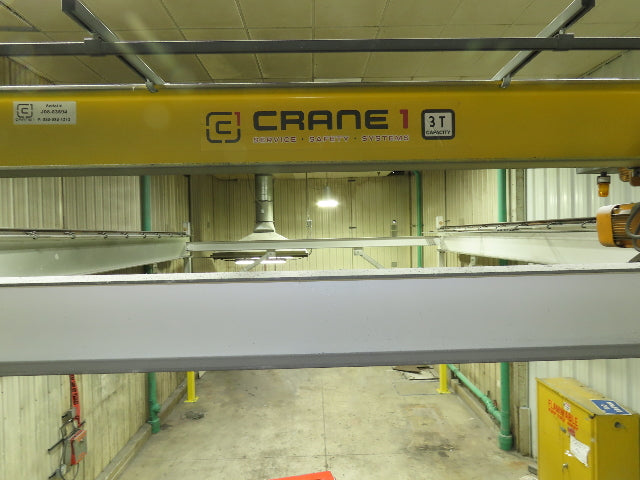

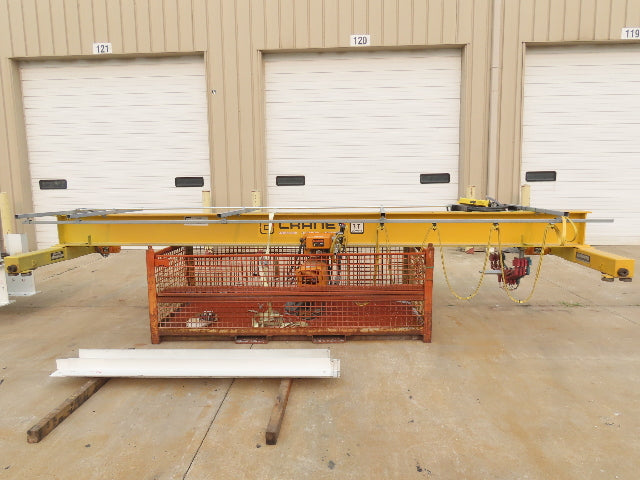

  • Bridge Beam:  18' 10" Length.  8"W x 14"H

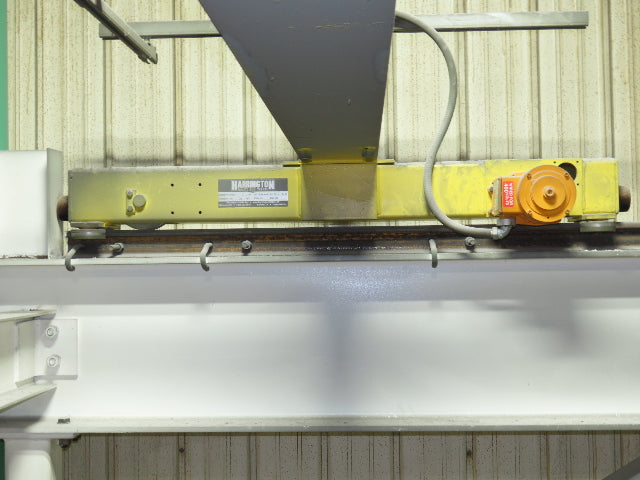

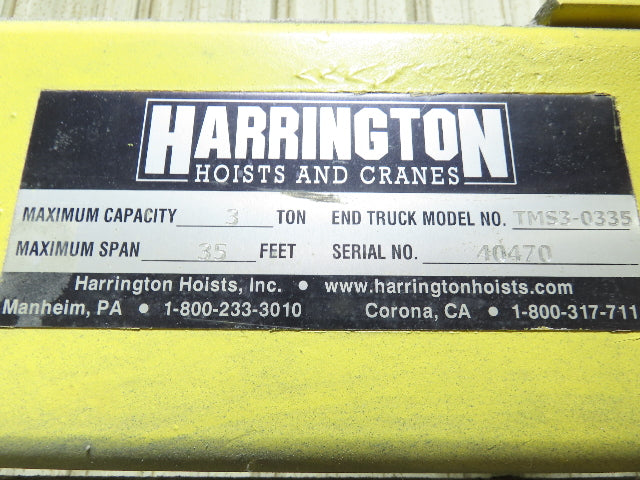

  • End Trucks:  59" Length.  Model TMS3-0335

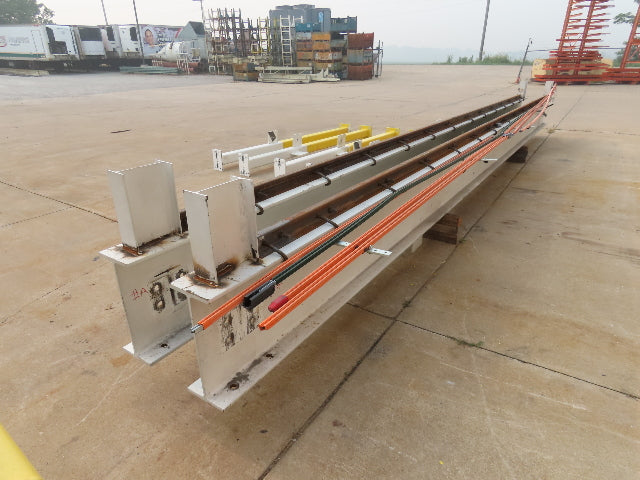

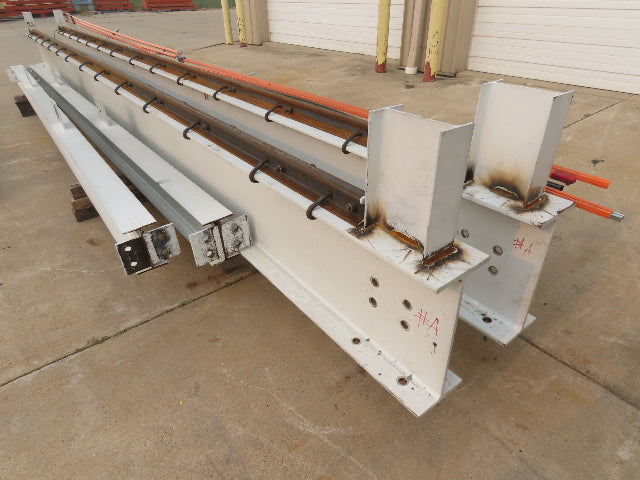

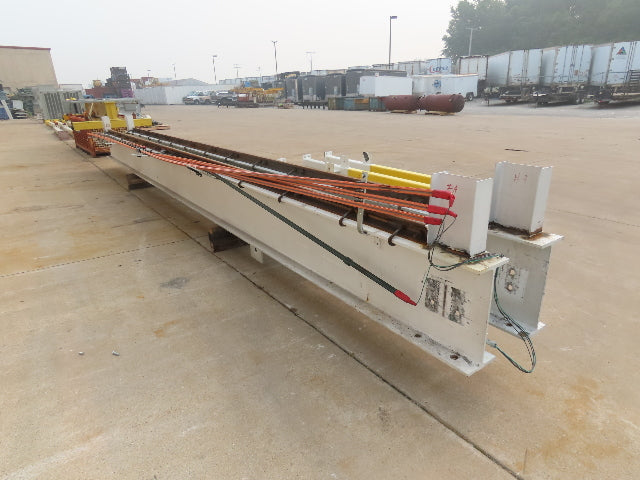

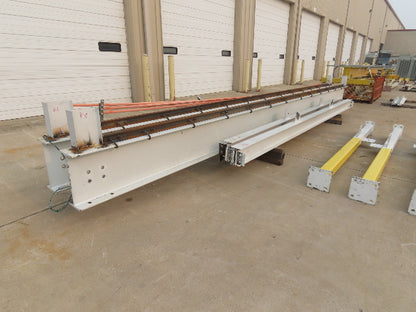

  • Runway Beams:  27' 4" Length.   7.5W  18"H
  • Runway Top Rail Length:  25' 4"

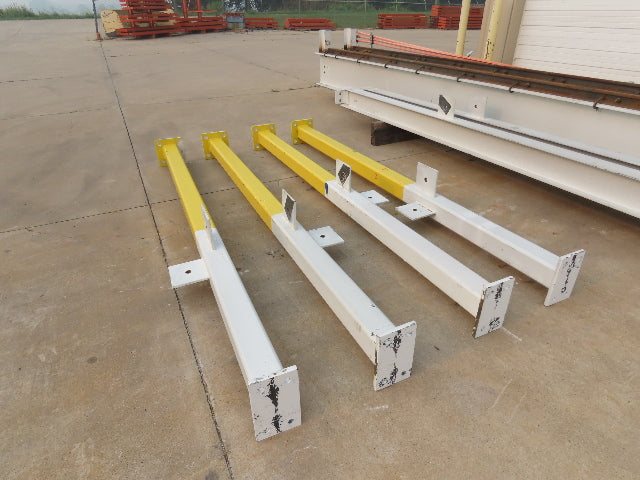

  • Upright Post Height :  10' 4.5"
  • Upright Post Width:  5"x 5" Square with a 10" base.
  • Cross Beams:  18' 3" Length.  5.5"W x 8"H
  • Clearance Heights:
  • Height Under Bridge Beam:  12' 9"
  • Height Under Hoist Hook:   9' 10"  (This is with hook fully retracted, hook may be currently set at a lower height than this)
  • Height Under Hoist Chain Bucket:  9' 9"
  • Height Under Runway Beams:  10' 5"
  • Top of Runway Rail:  12' 2"
  • Top Clearance Height:  14' 2"
  • Overall Footprint:  19' 3" Width.  26' 10" Length.
  • Incudes the bolts for install.
  • Ship weight is approximate.

Condition: Used
