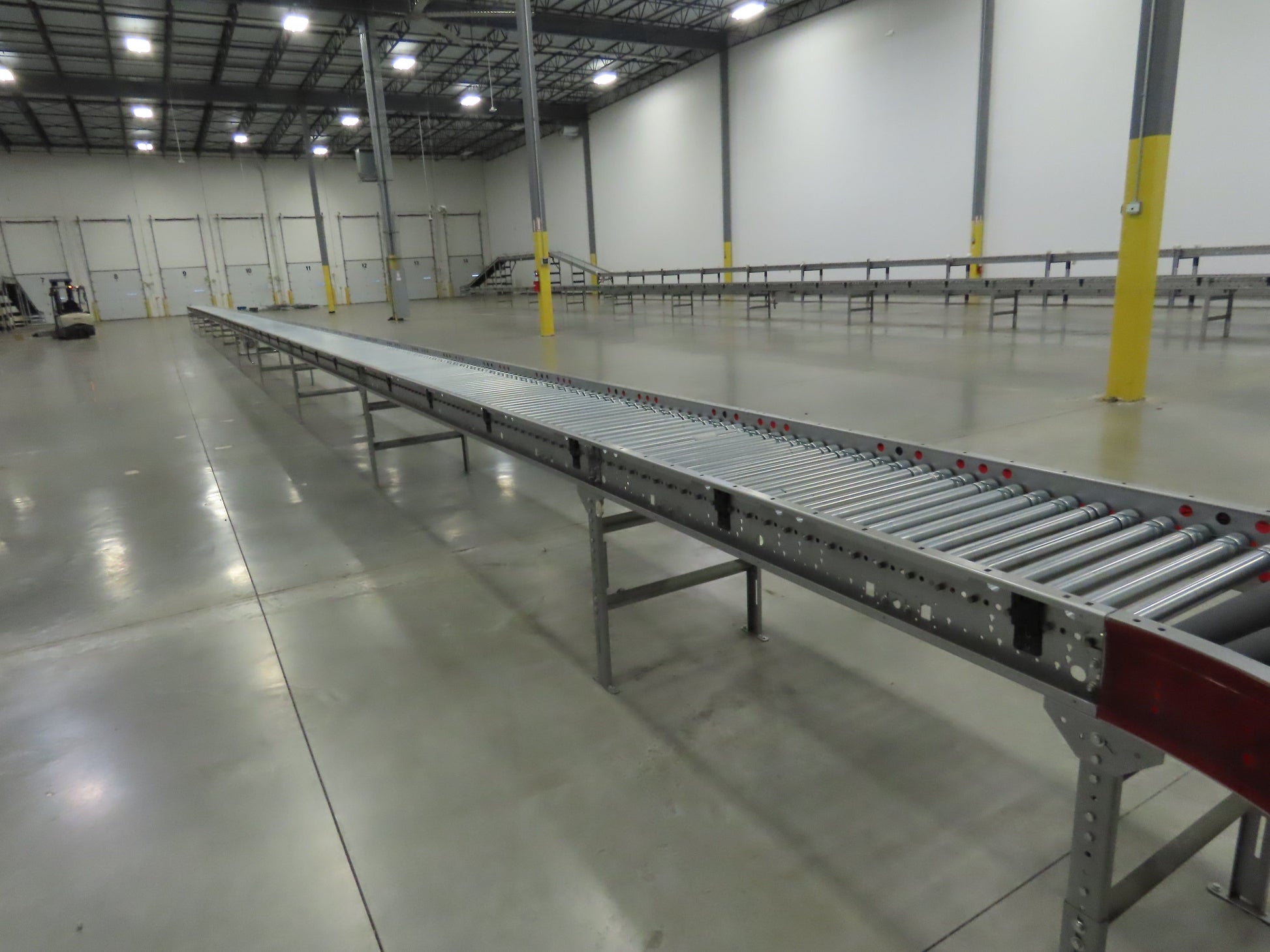

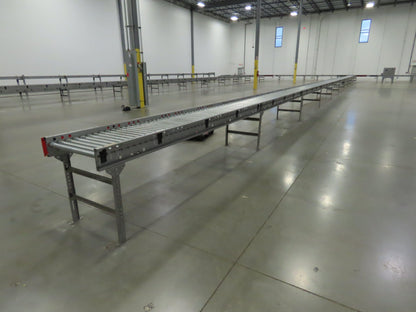

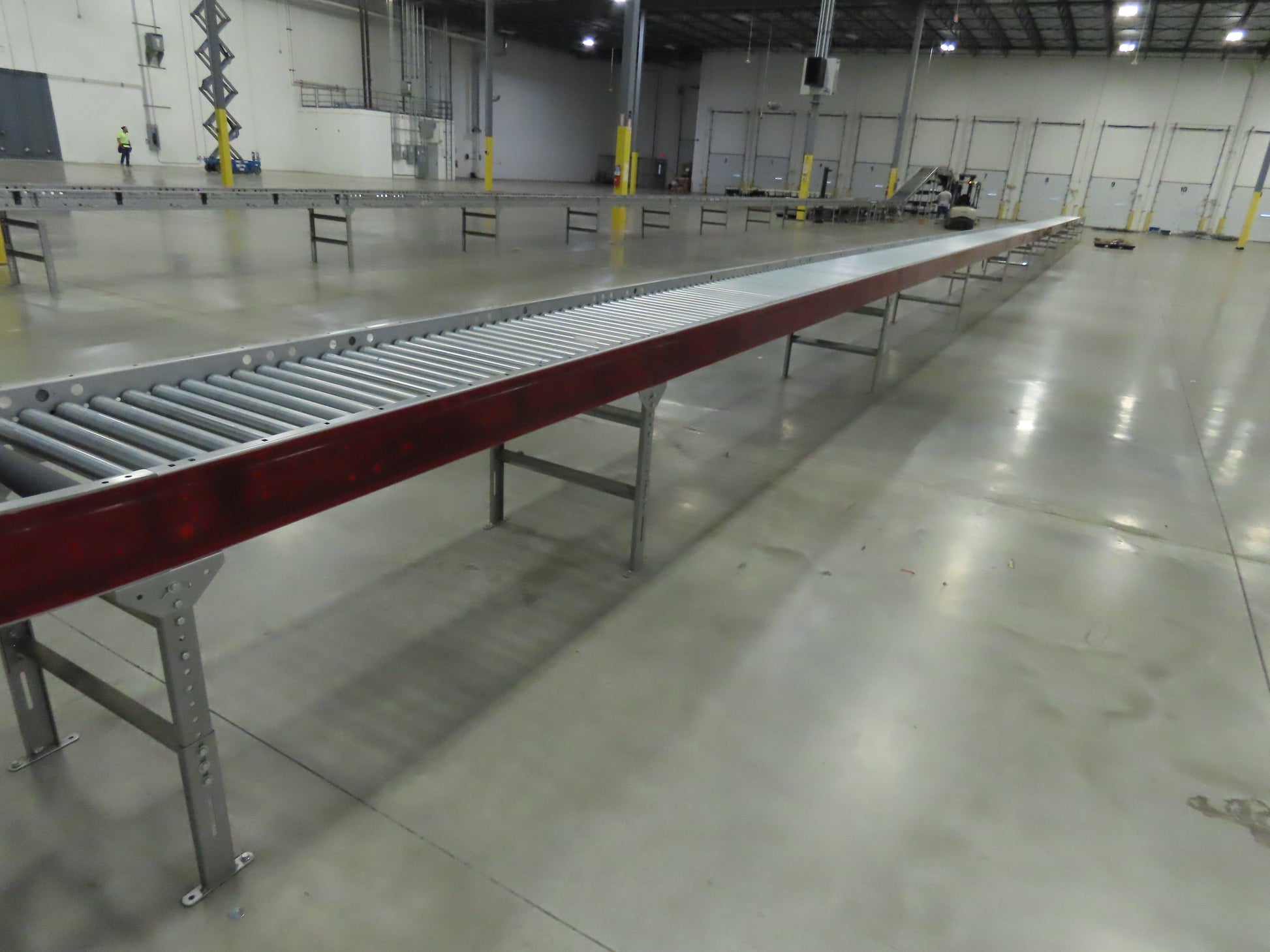

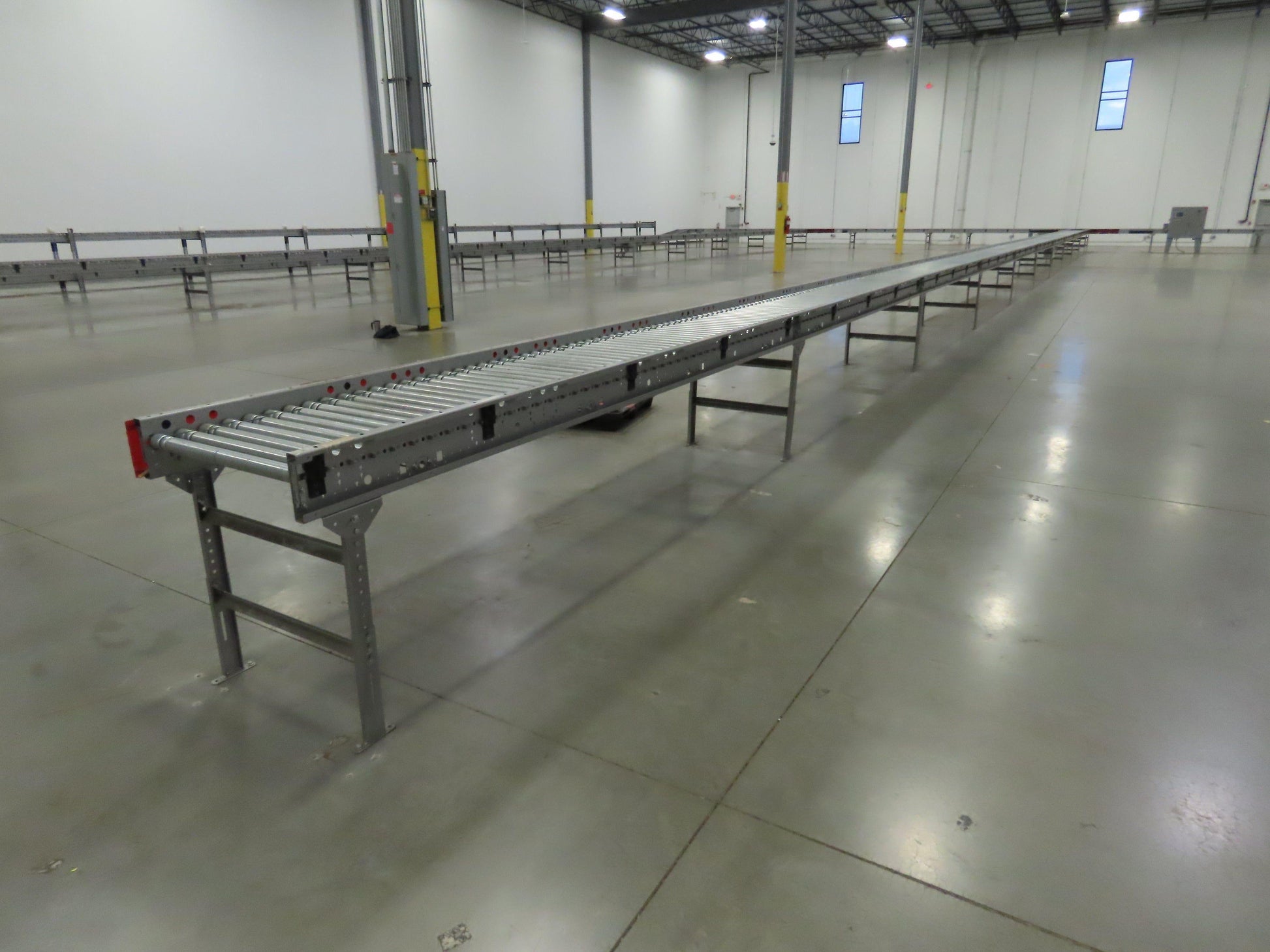

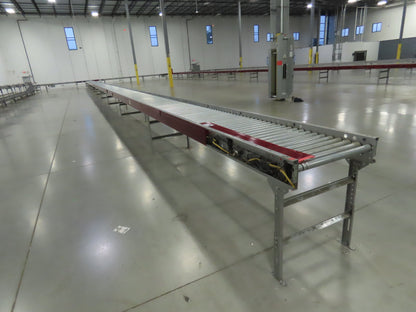

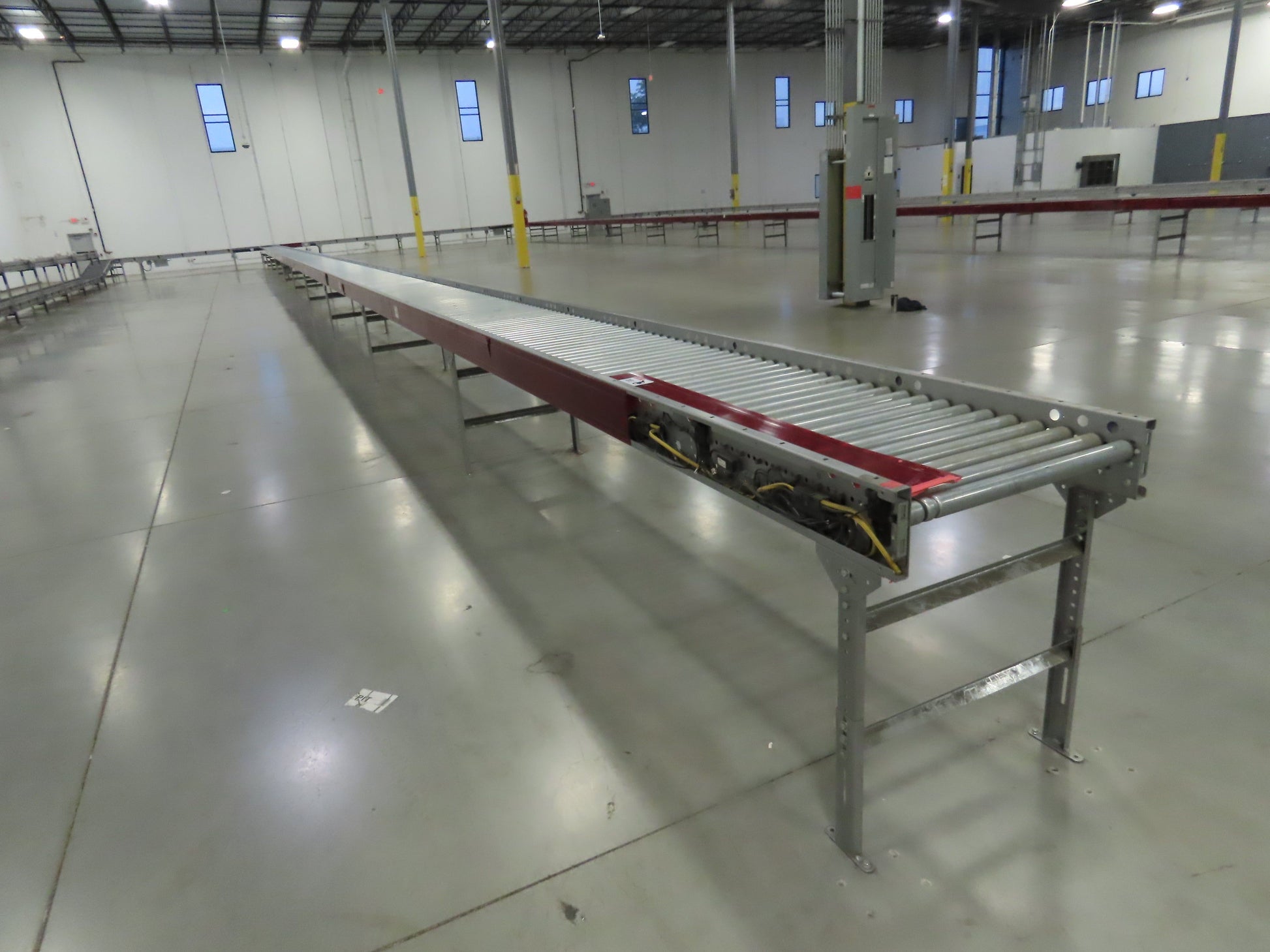

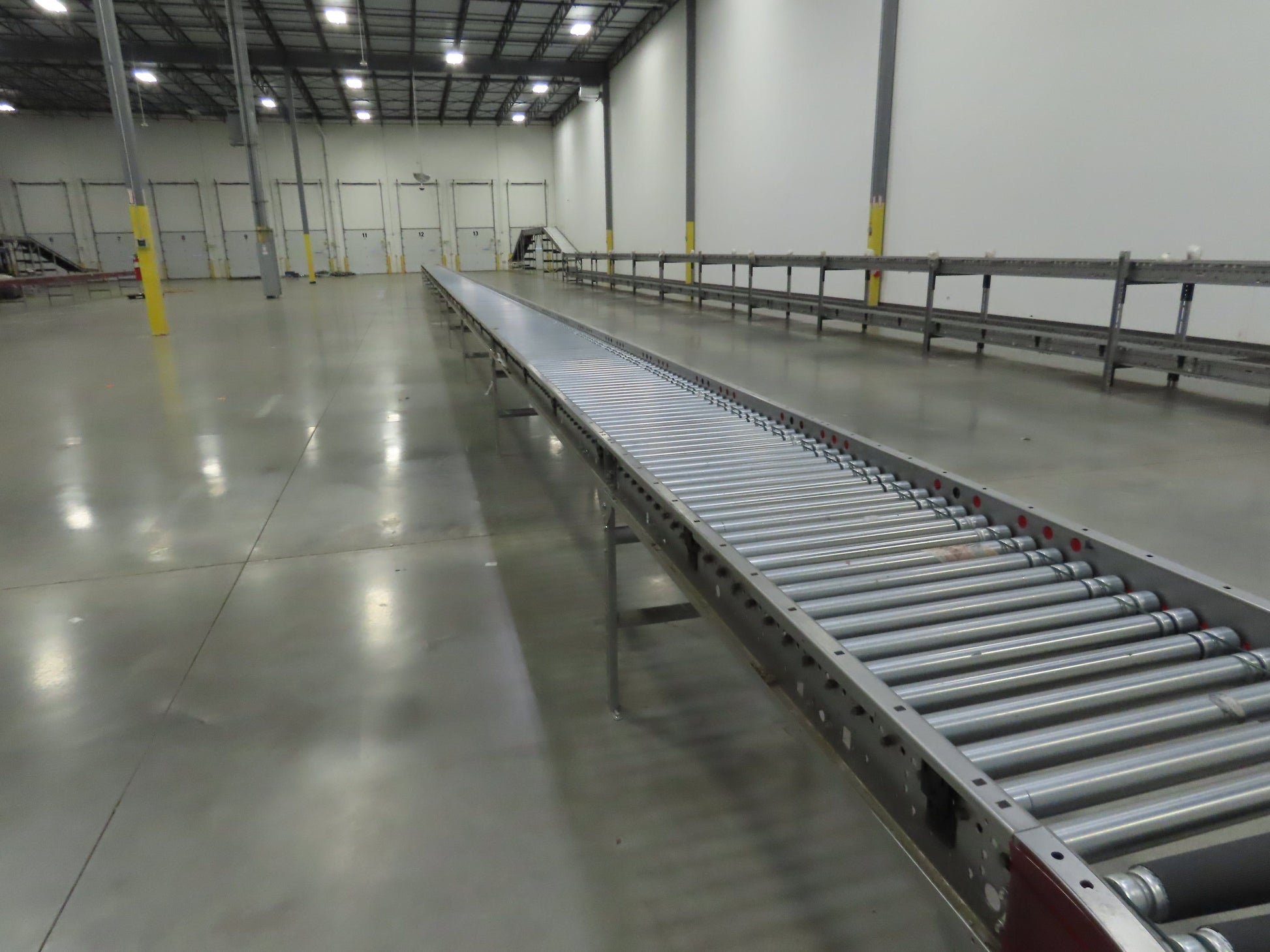

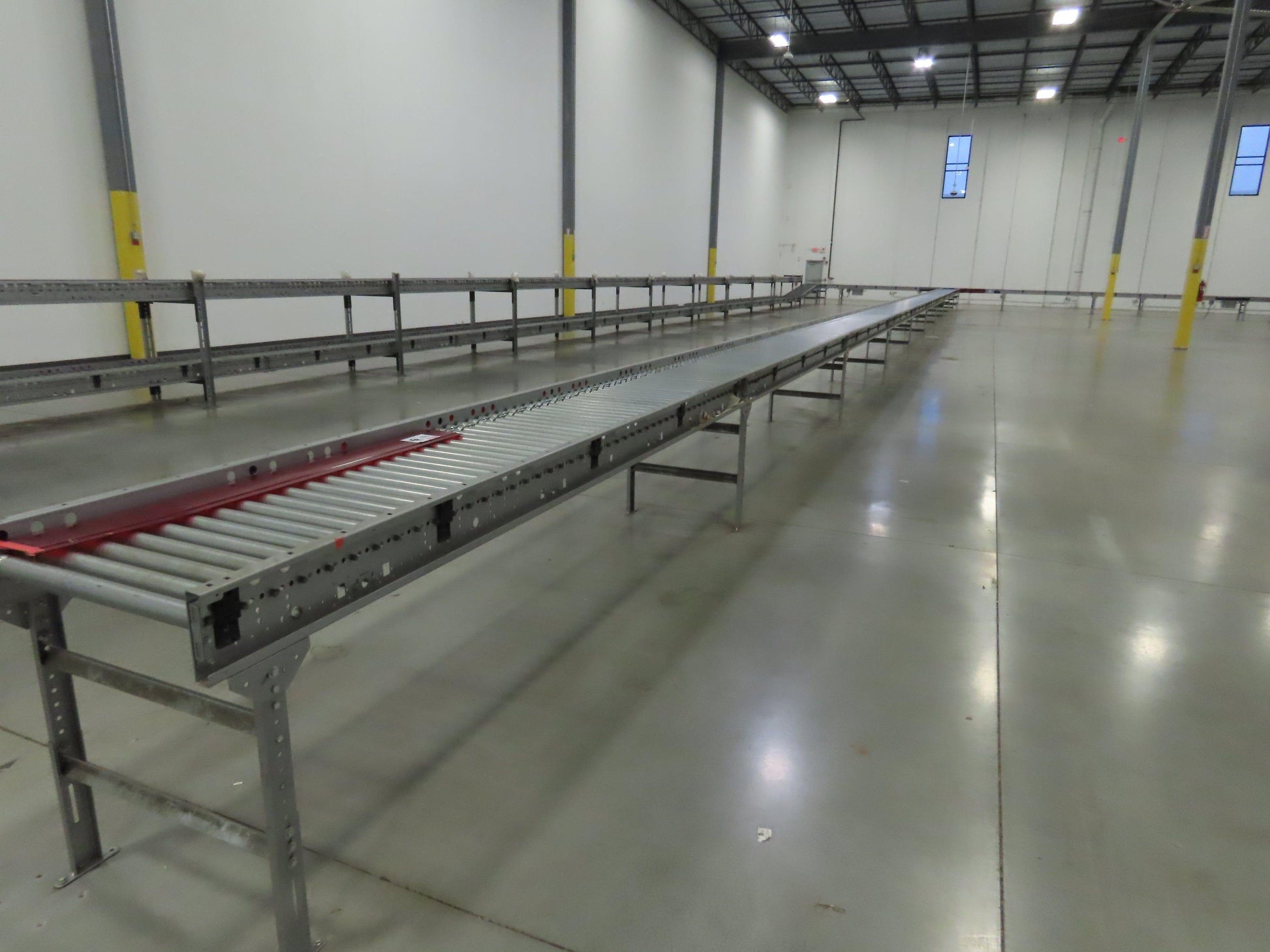

Hilmot 30"x 126' MDR 24VDC Motorized Roller Conveyor 27"BF Variable Speed Zones

Hilmot 30"x 126' MDR 24VDC Motorized Roller Conveyor 27"BF Variable Speed Zones

SKU #264042

Your Price
$12,824.99
$14,999.99 $12,824.99
Sale Sold out
Shipping calculated at checkout.

2 in stock
  • Conveyor System in Good Used Condition.  Removed From a Working Environment.

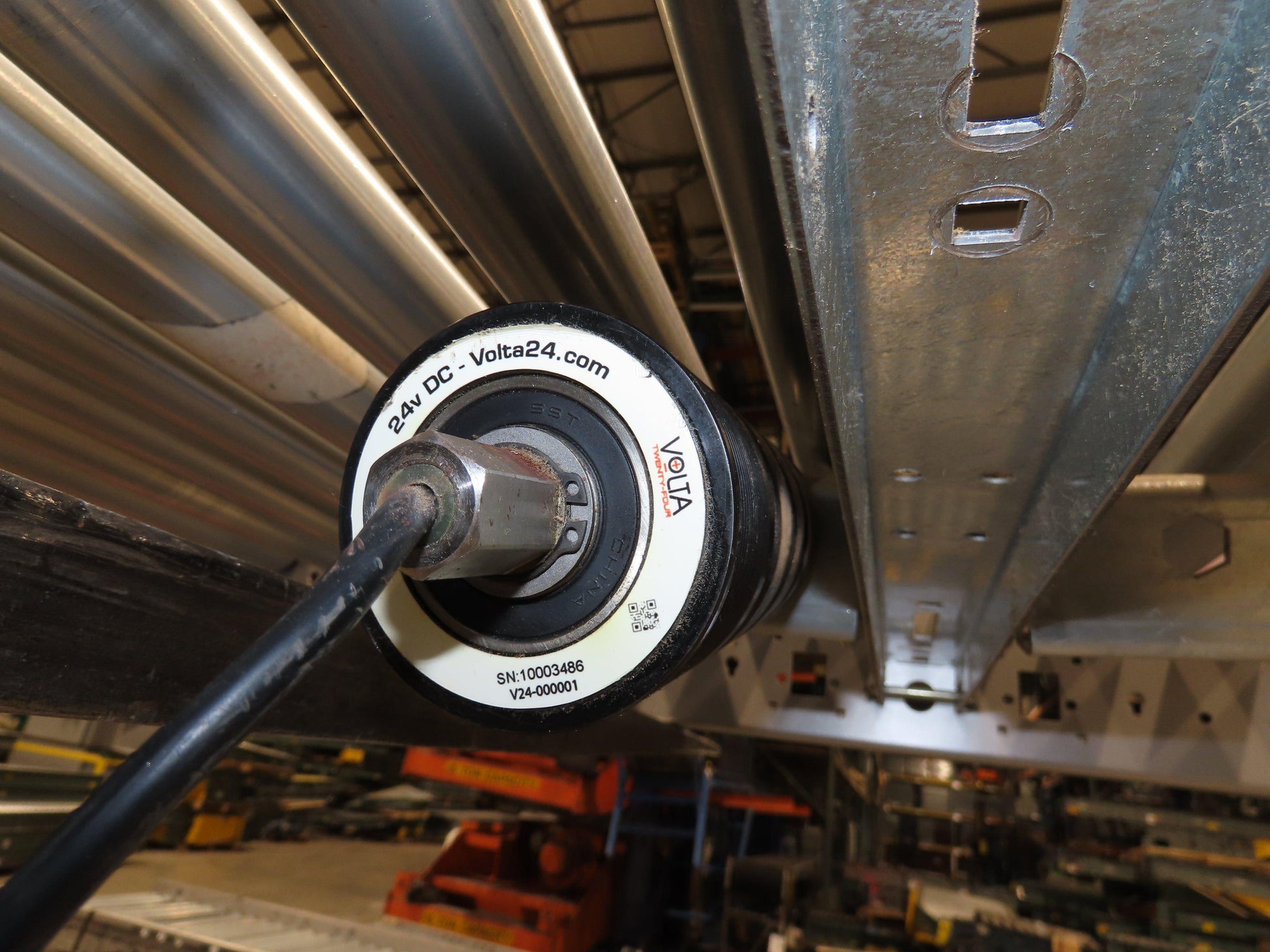

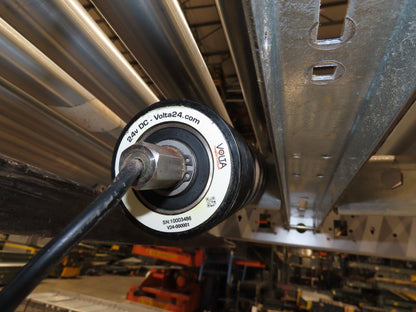

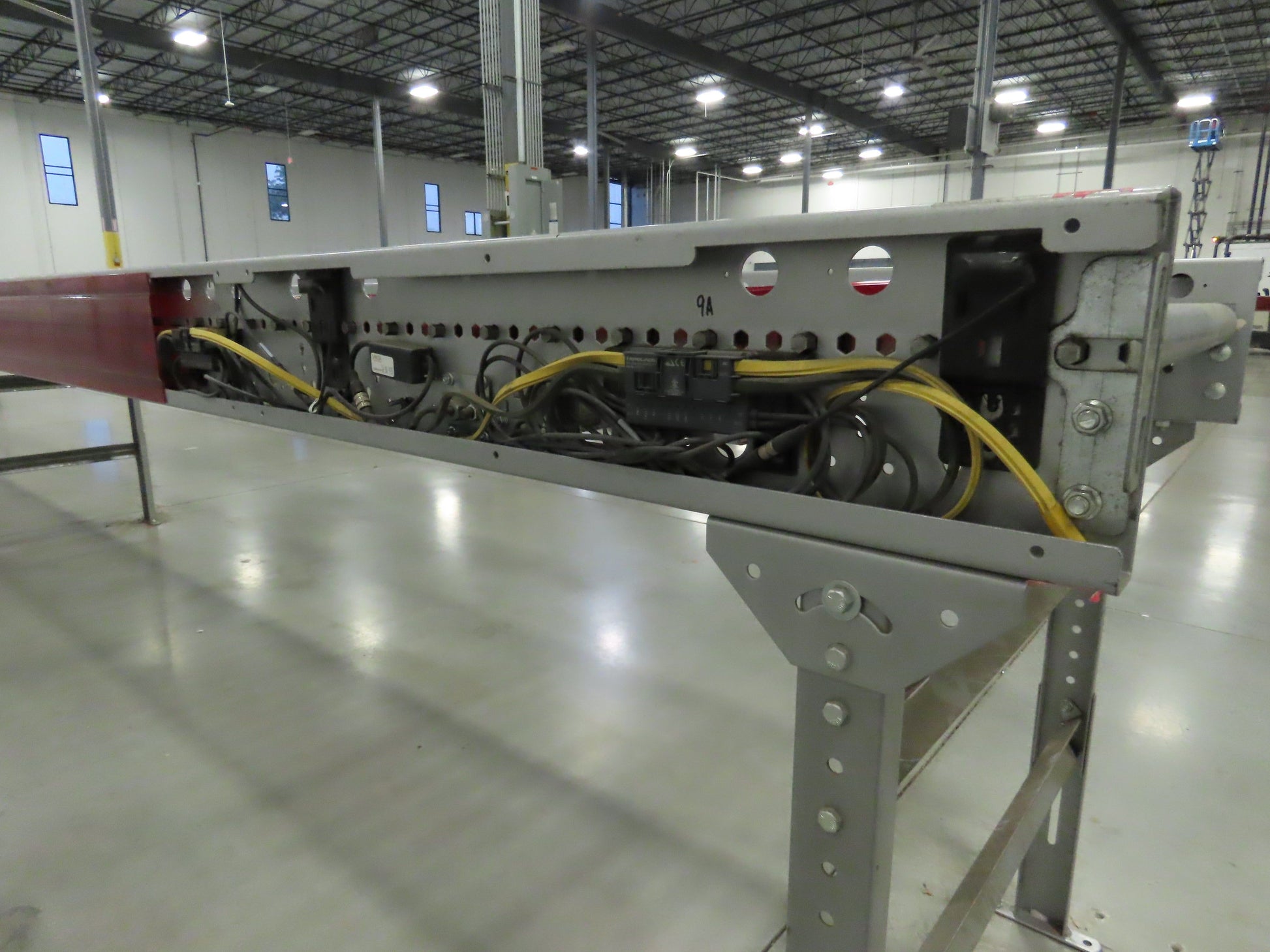

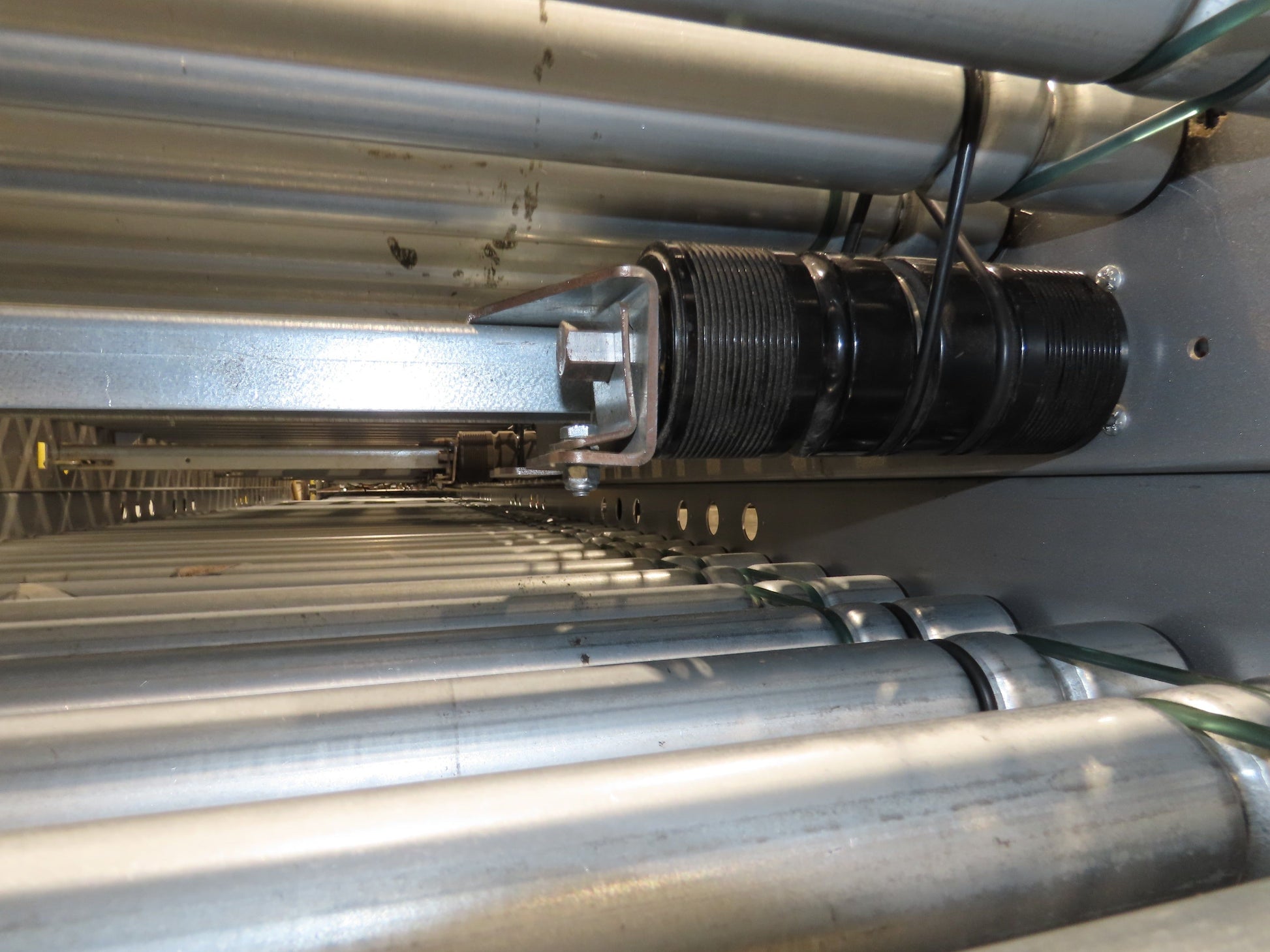

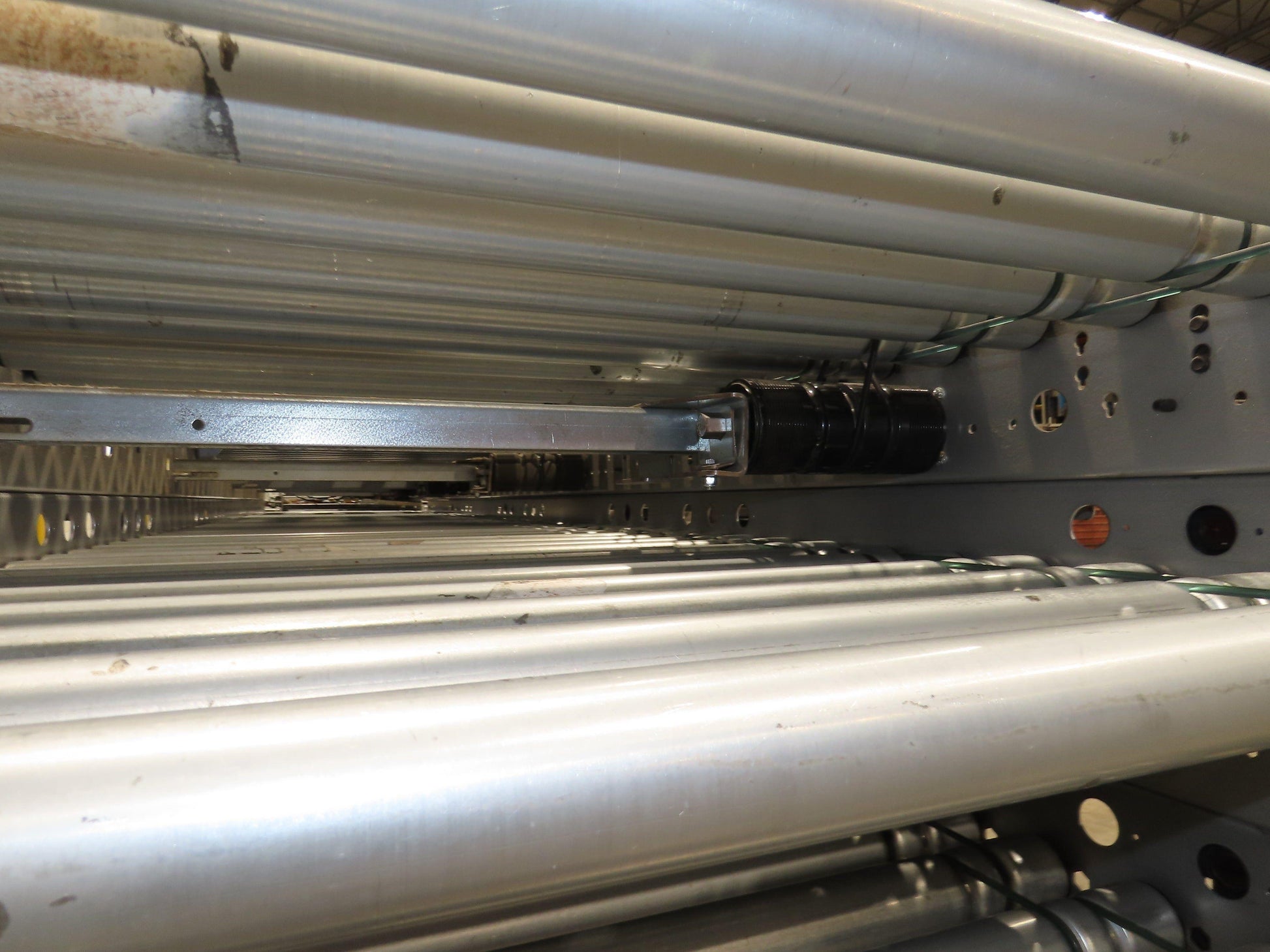

  • 24VDC Motorized Roller Drives with Control modules VBA-4E3A-G20-ZEL/M1L-P2.
  • This section was connected to a bigger conveyor system all run off one control panel you will need to have and program an AS-Interface gateway for the ethernet connection for the drive control modules.

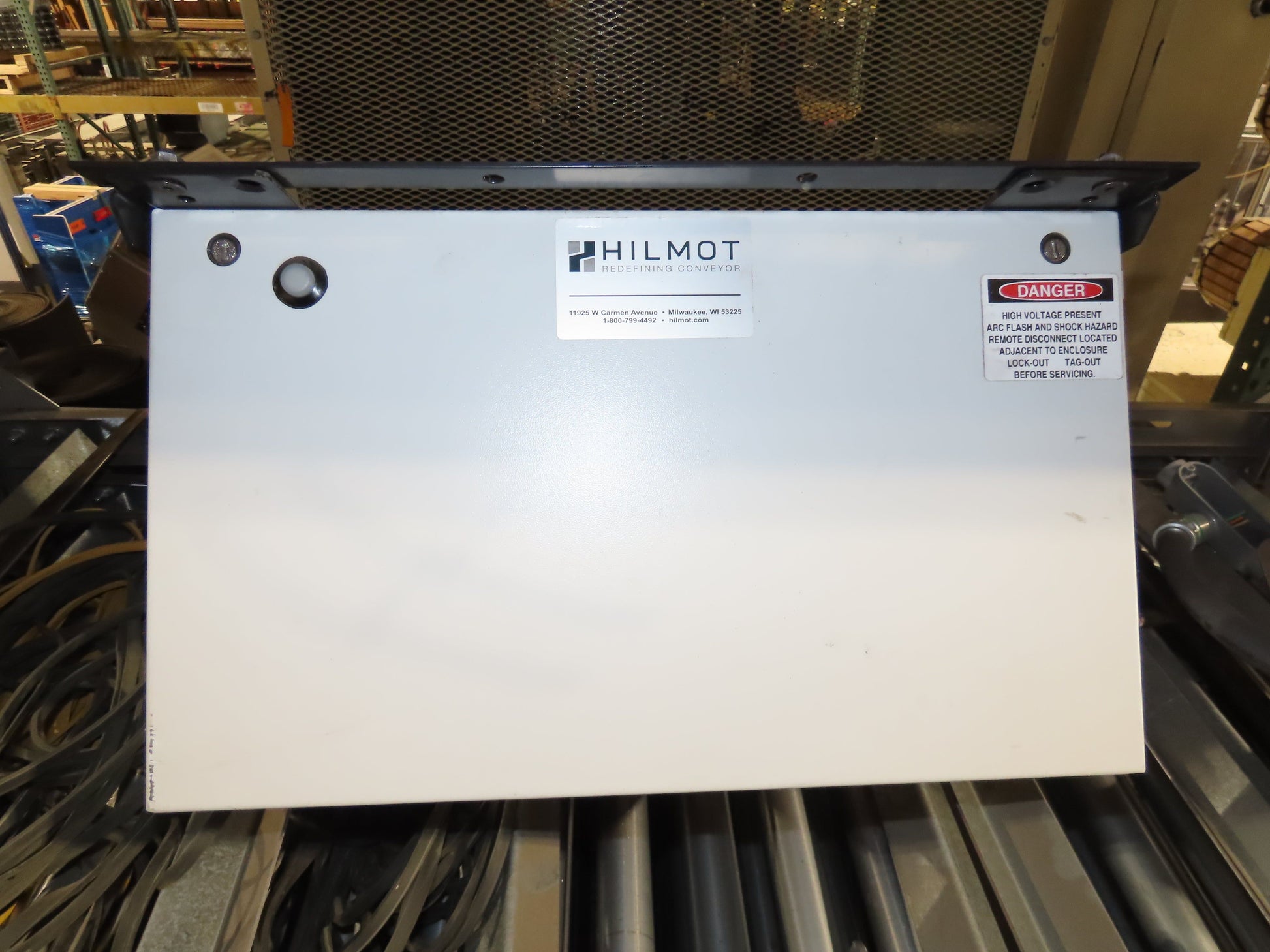

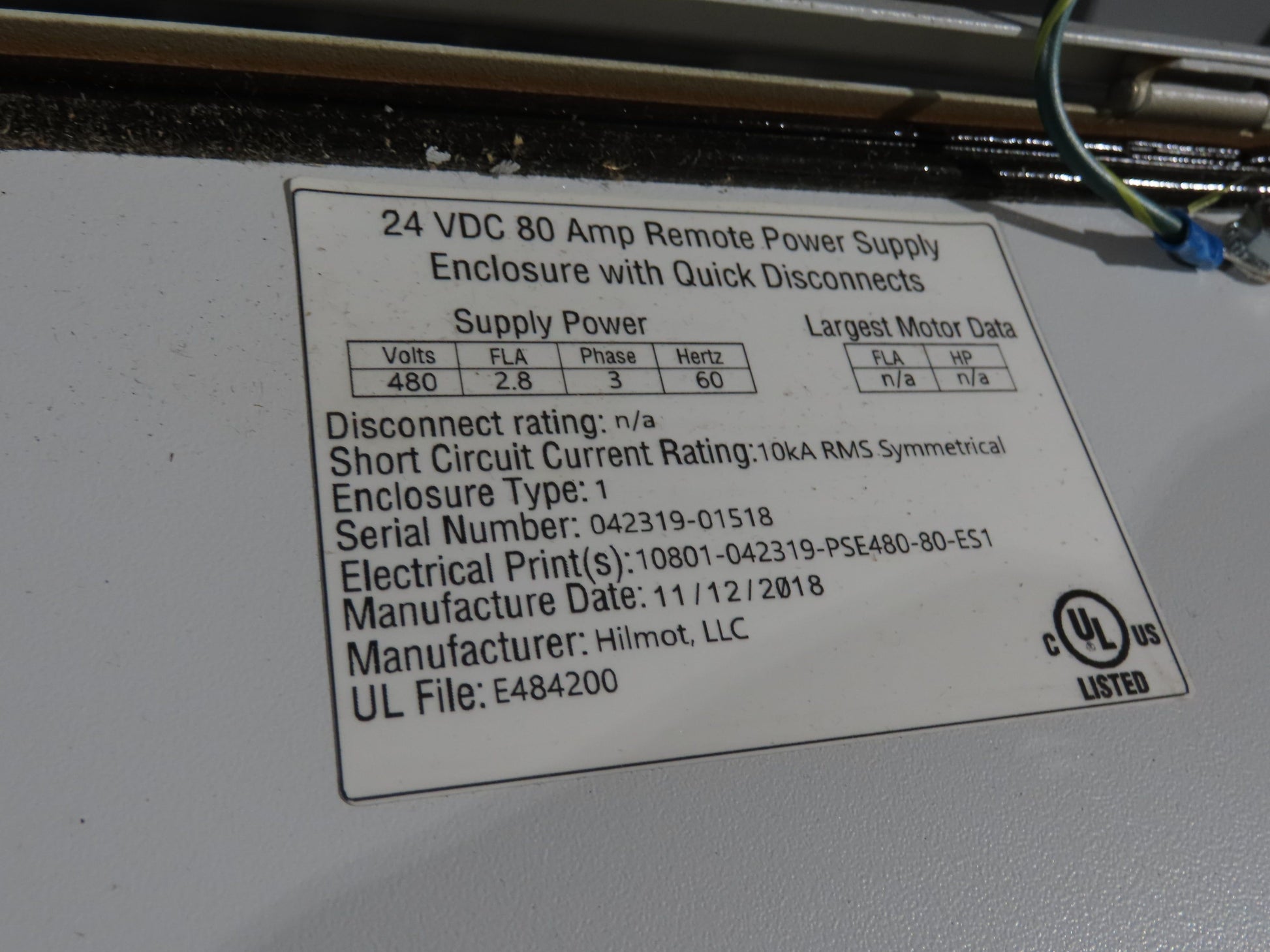

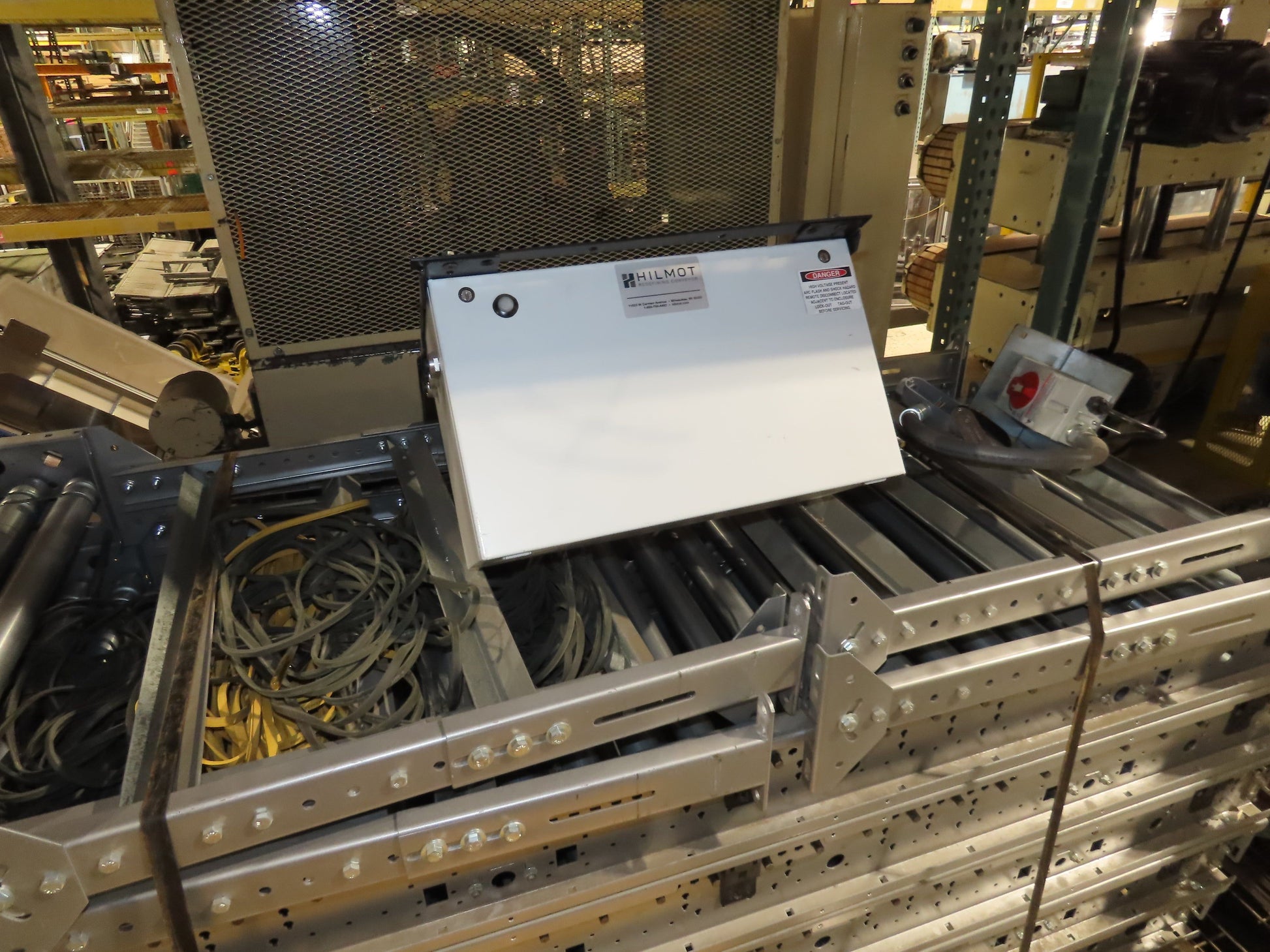

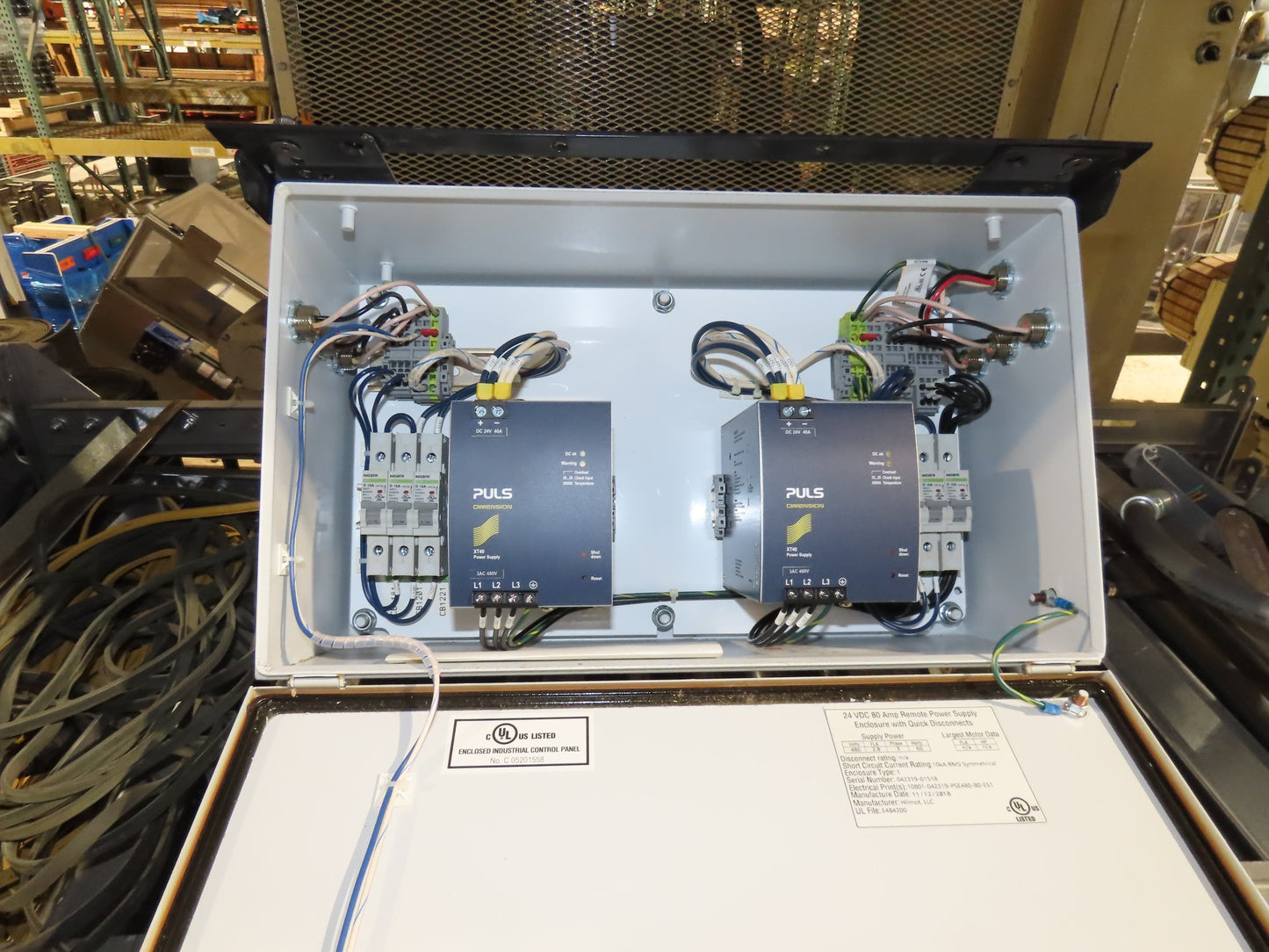

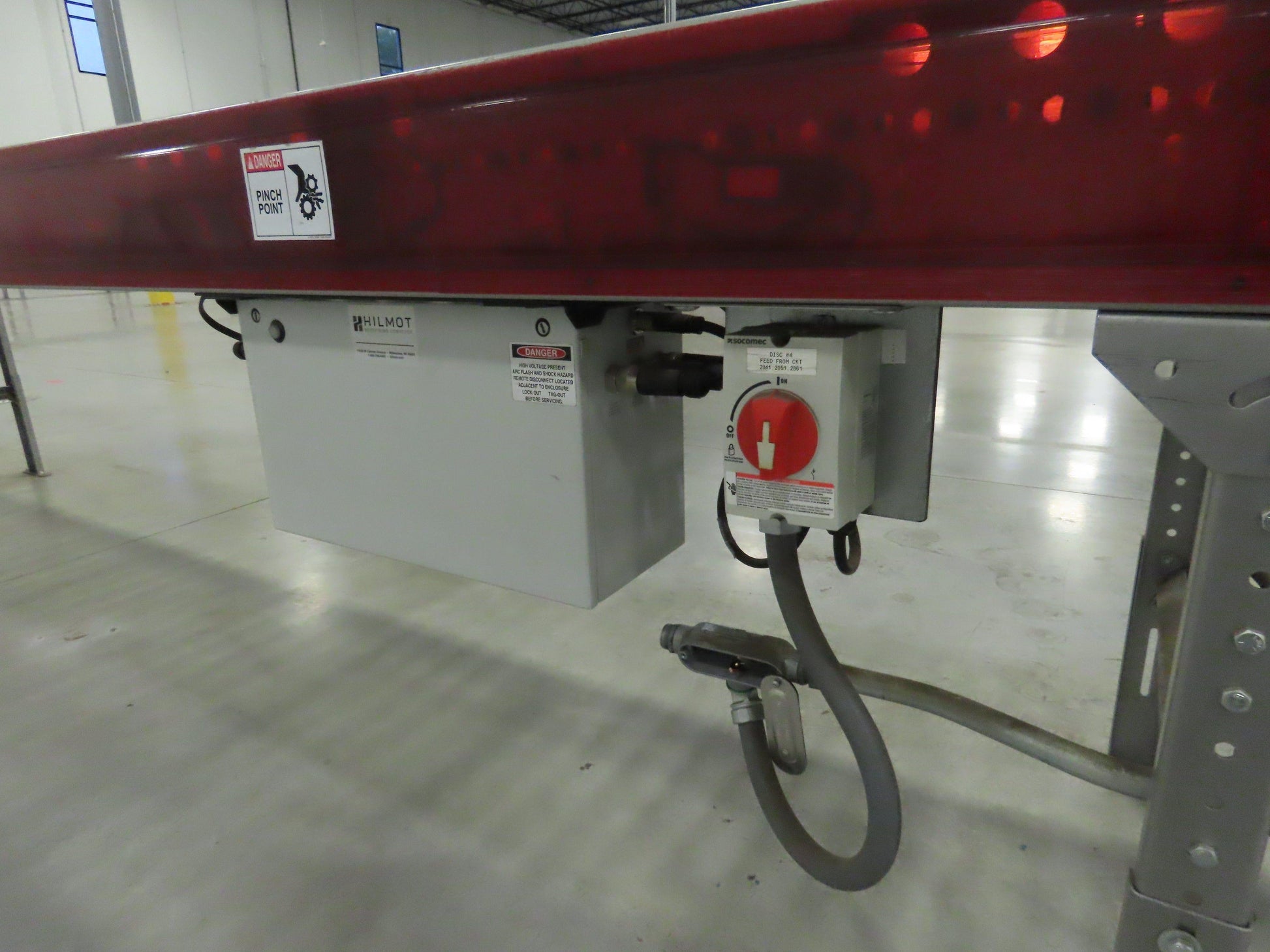

  • Includes 24VDC power supply control panel and cables. Requires 480V input power.

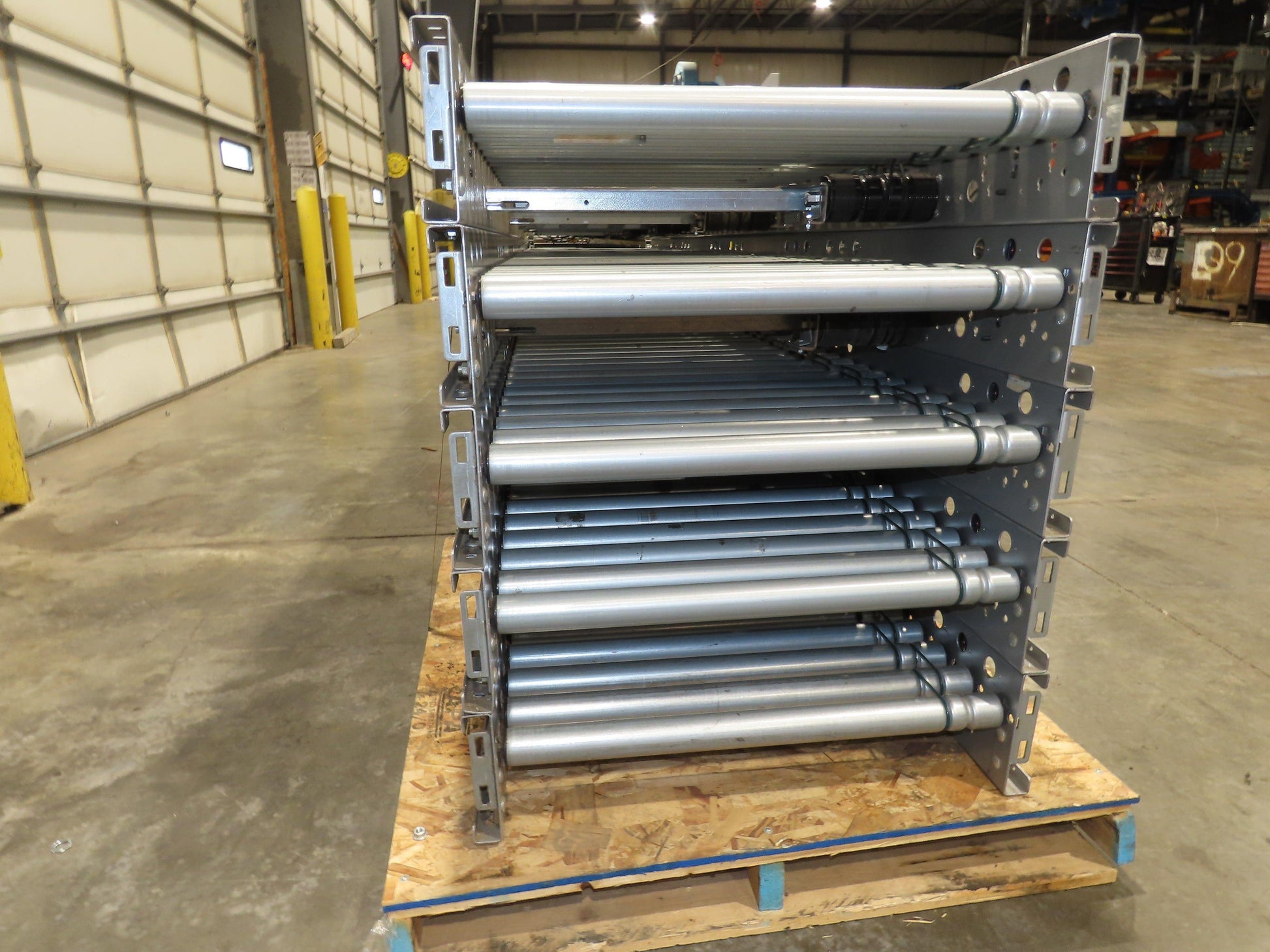

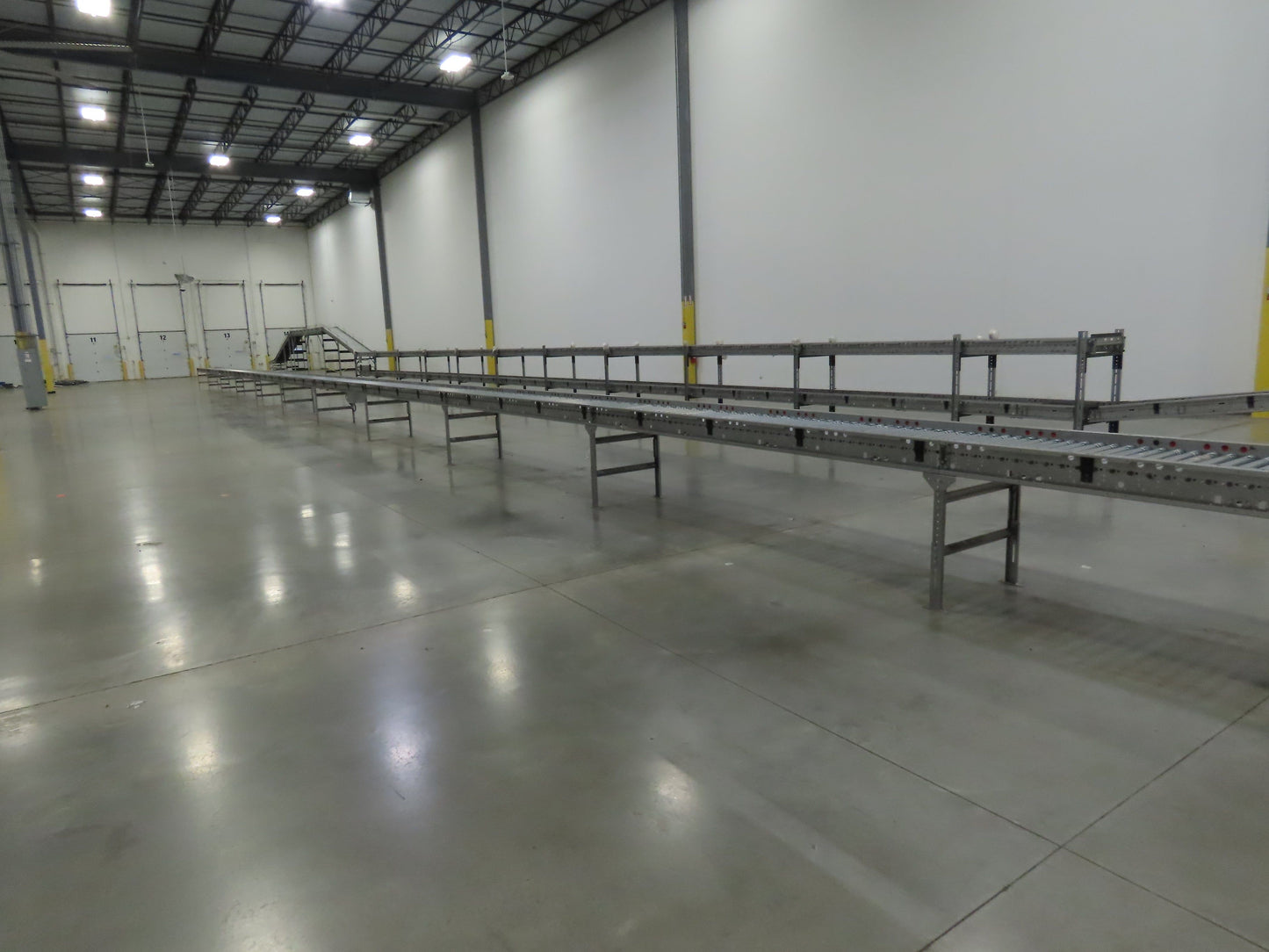

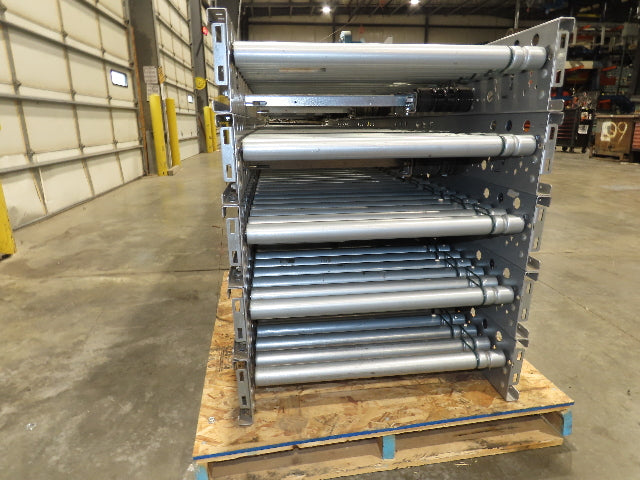

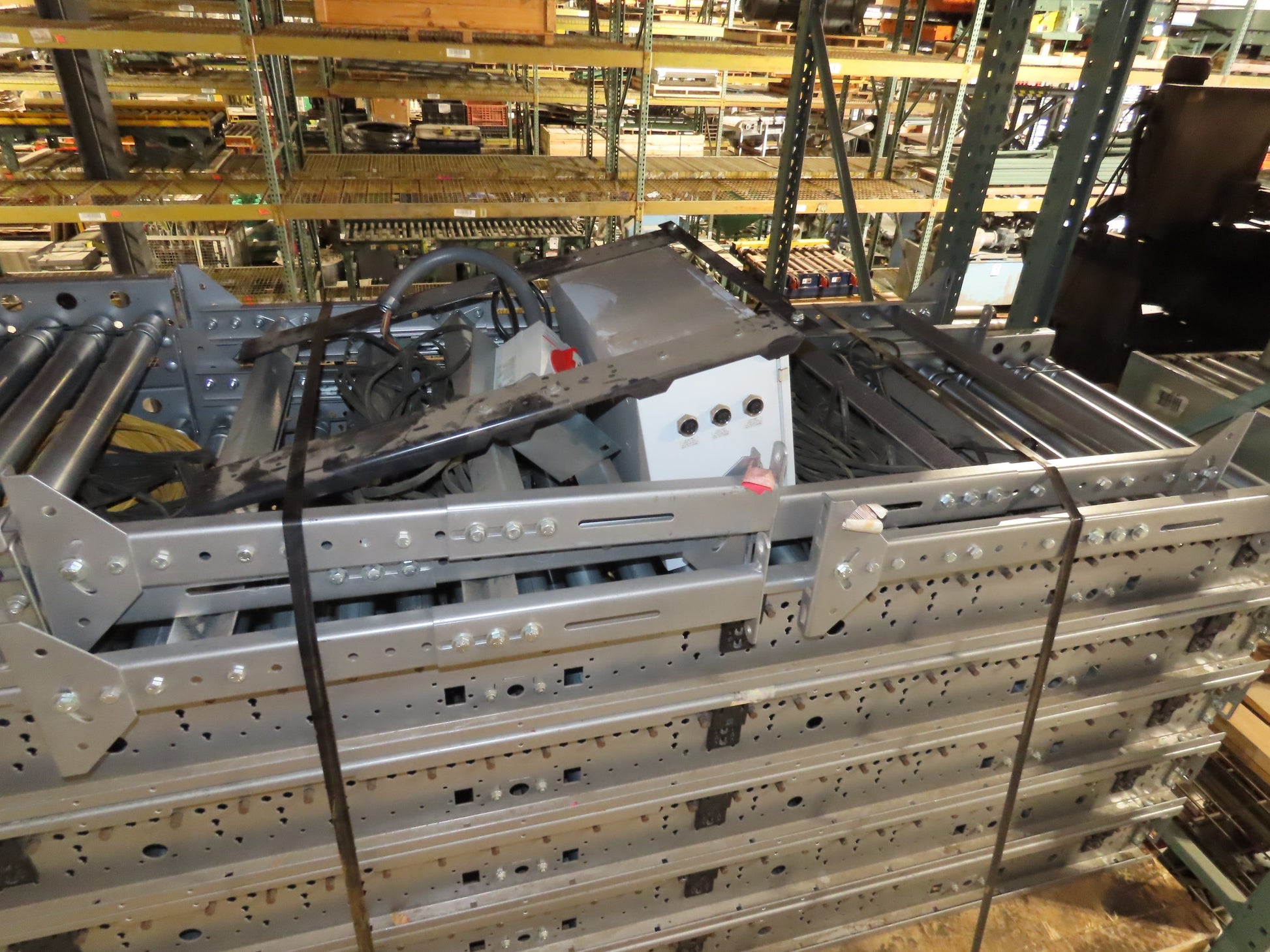

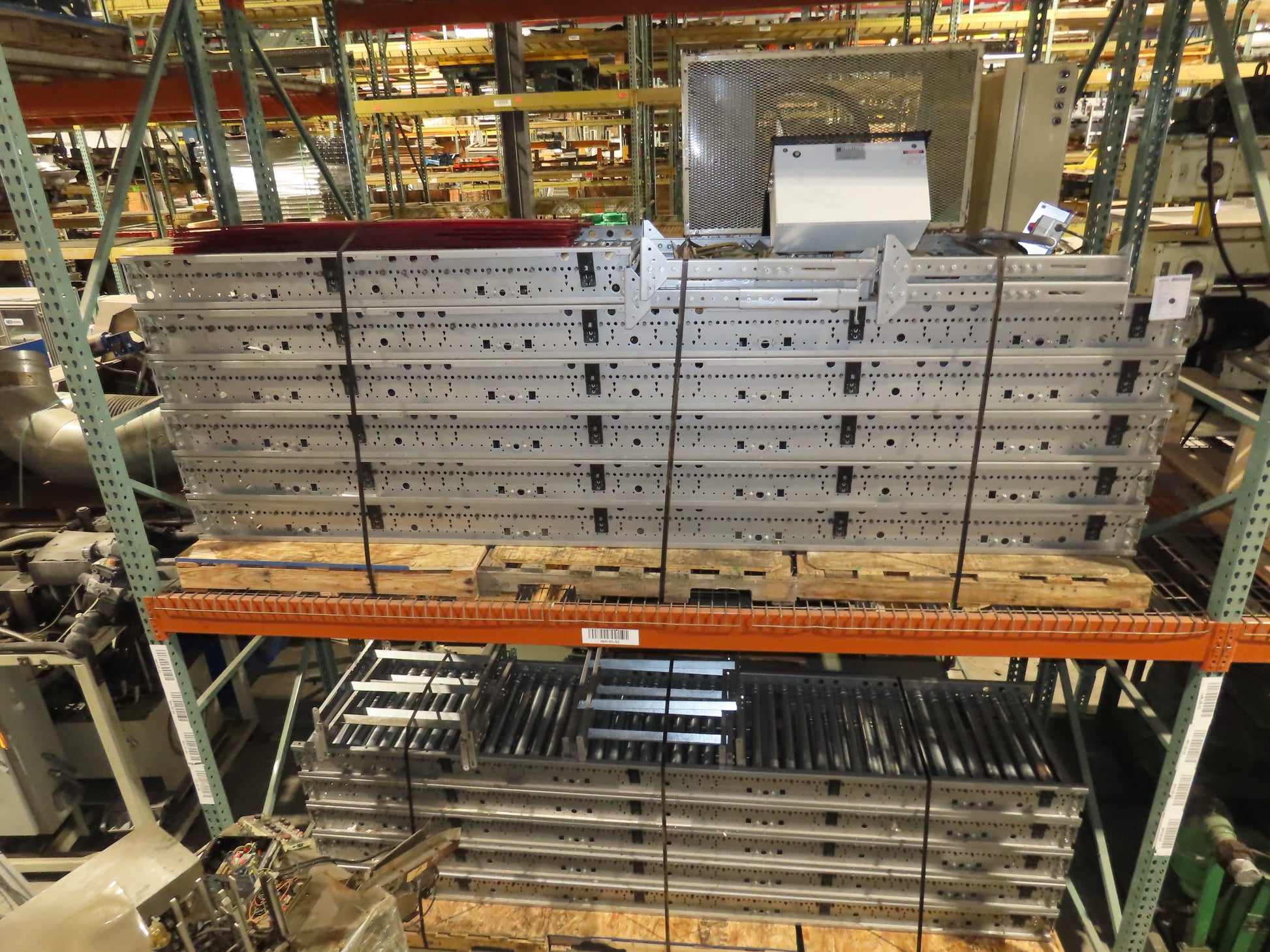

  • Total of 11 sections.  126' length.
  • Section length: 12' (Qty 10)  6' (Qty 1)
  • Frame width: 30"
  • Between frame width: 27"
  • Roller speed: 120 FPM

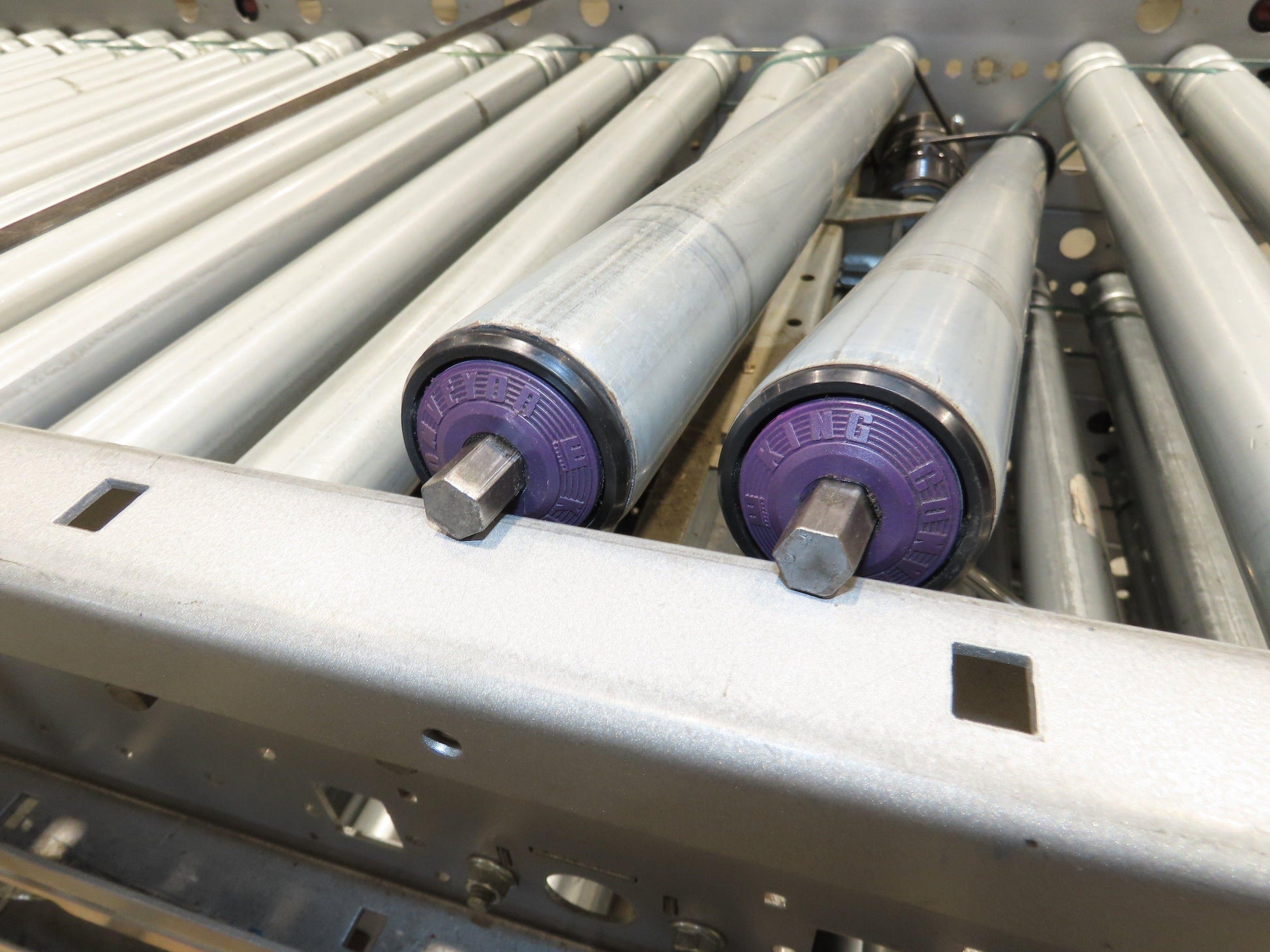

  • Roller dia: 1.9" on 3" Centers 7/16" Hex Axle.
  • Rollers set low on frame.  2" below frame.
  • Adjustable conveyor height:  29" to 36" (Roller height from floor)
  • Frame height:  7.5"
  • Overall Length: 126'
