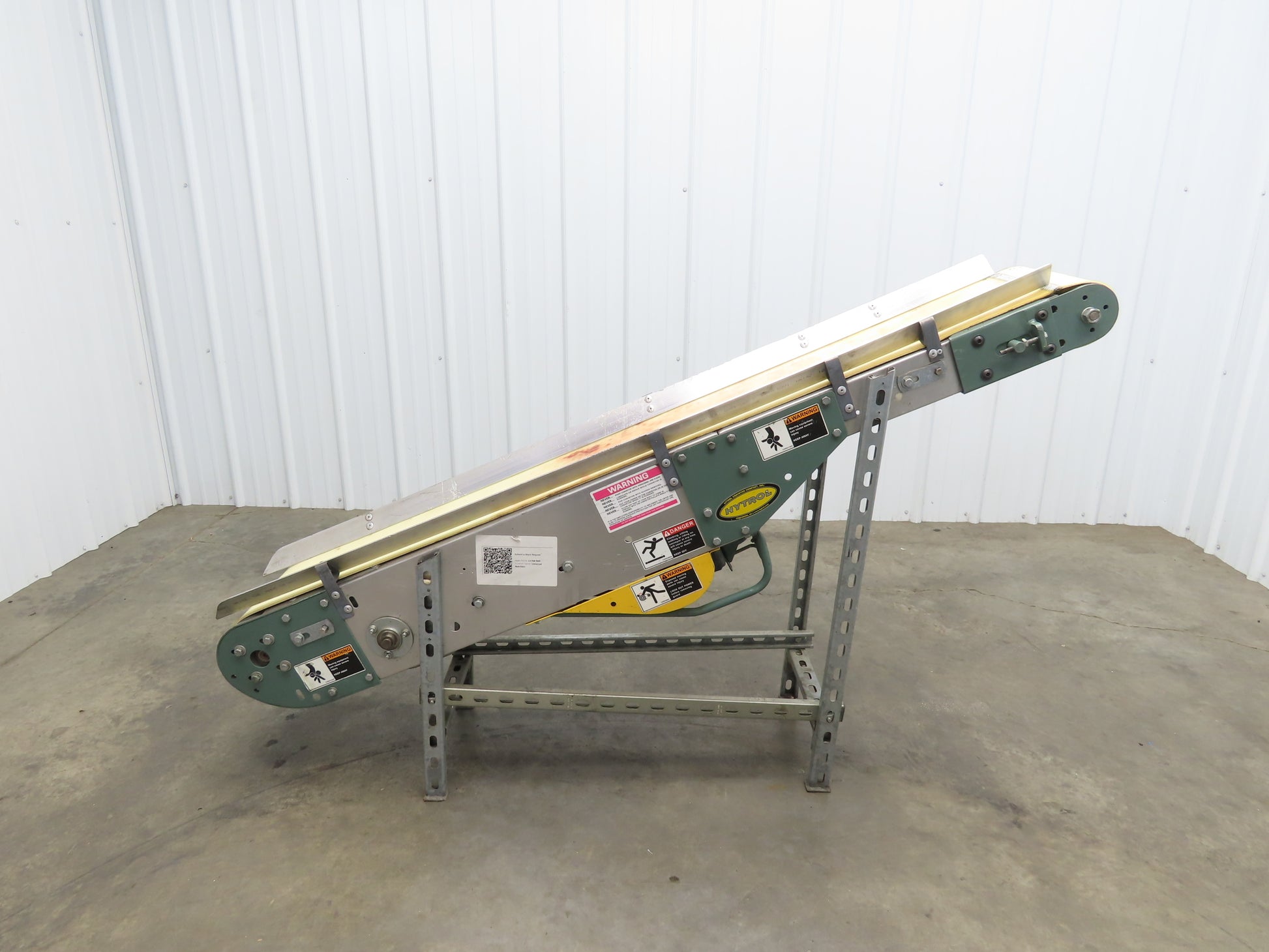

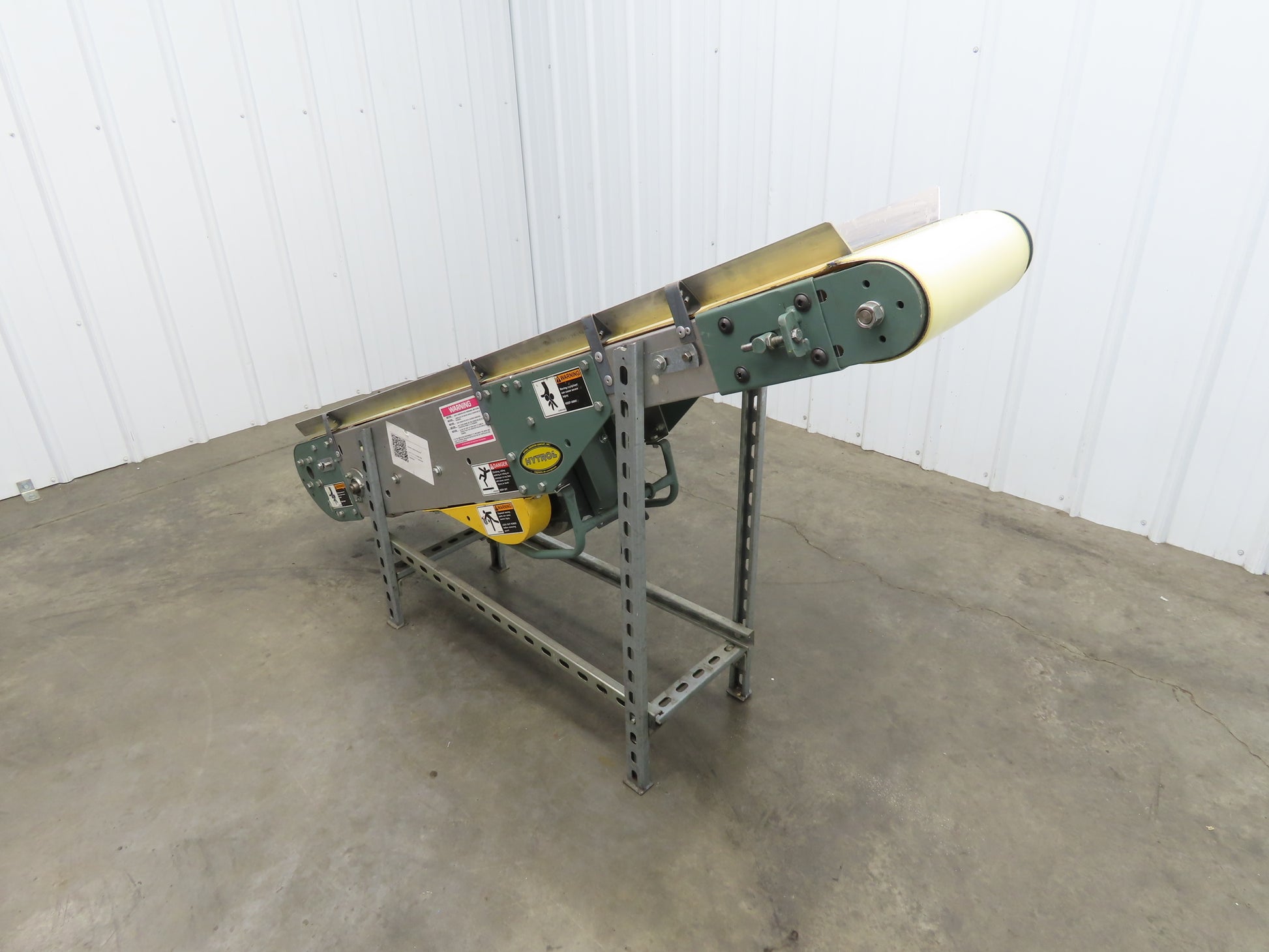

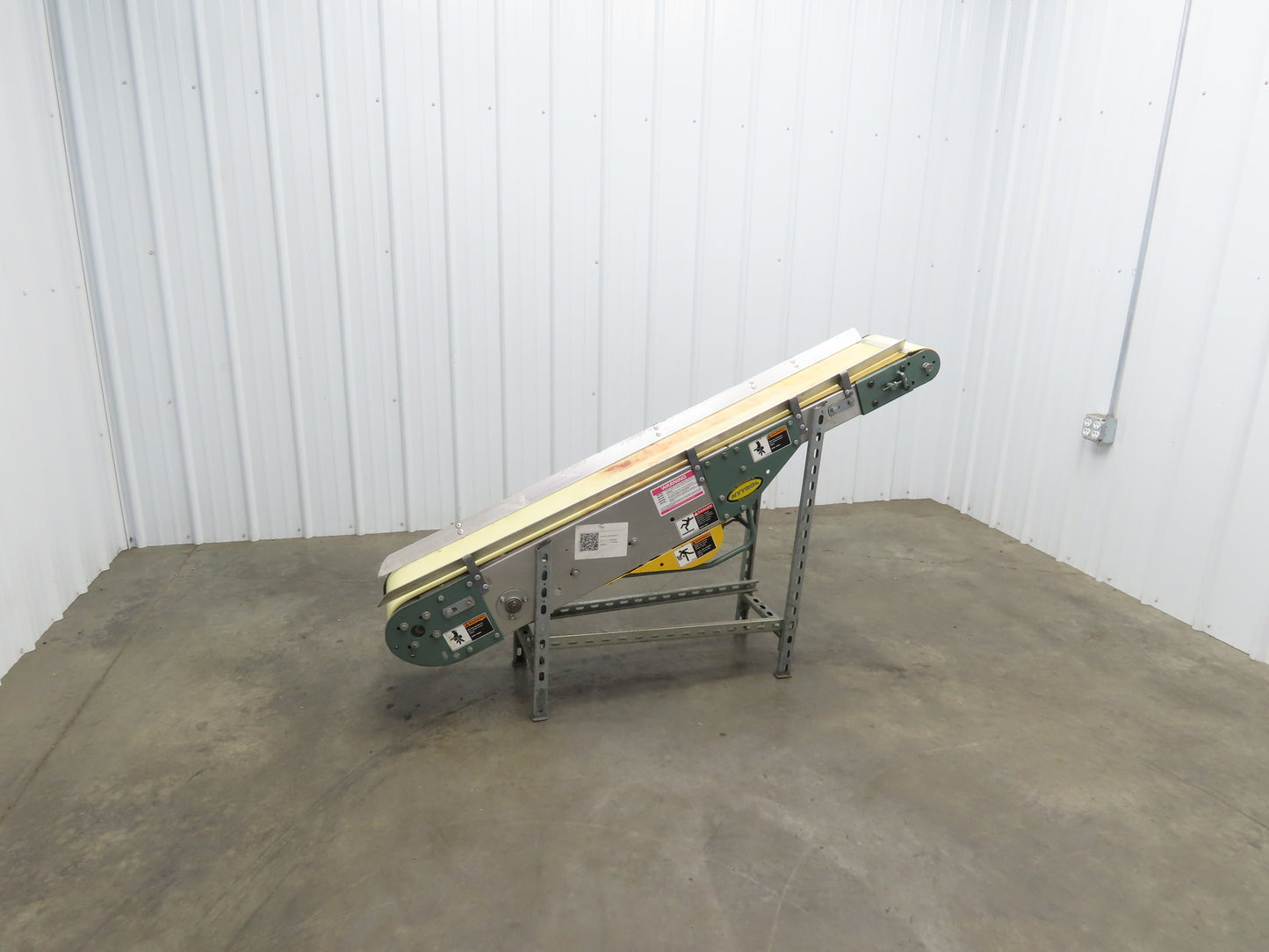

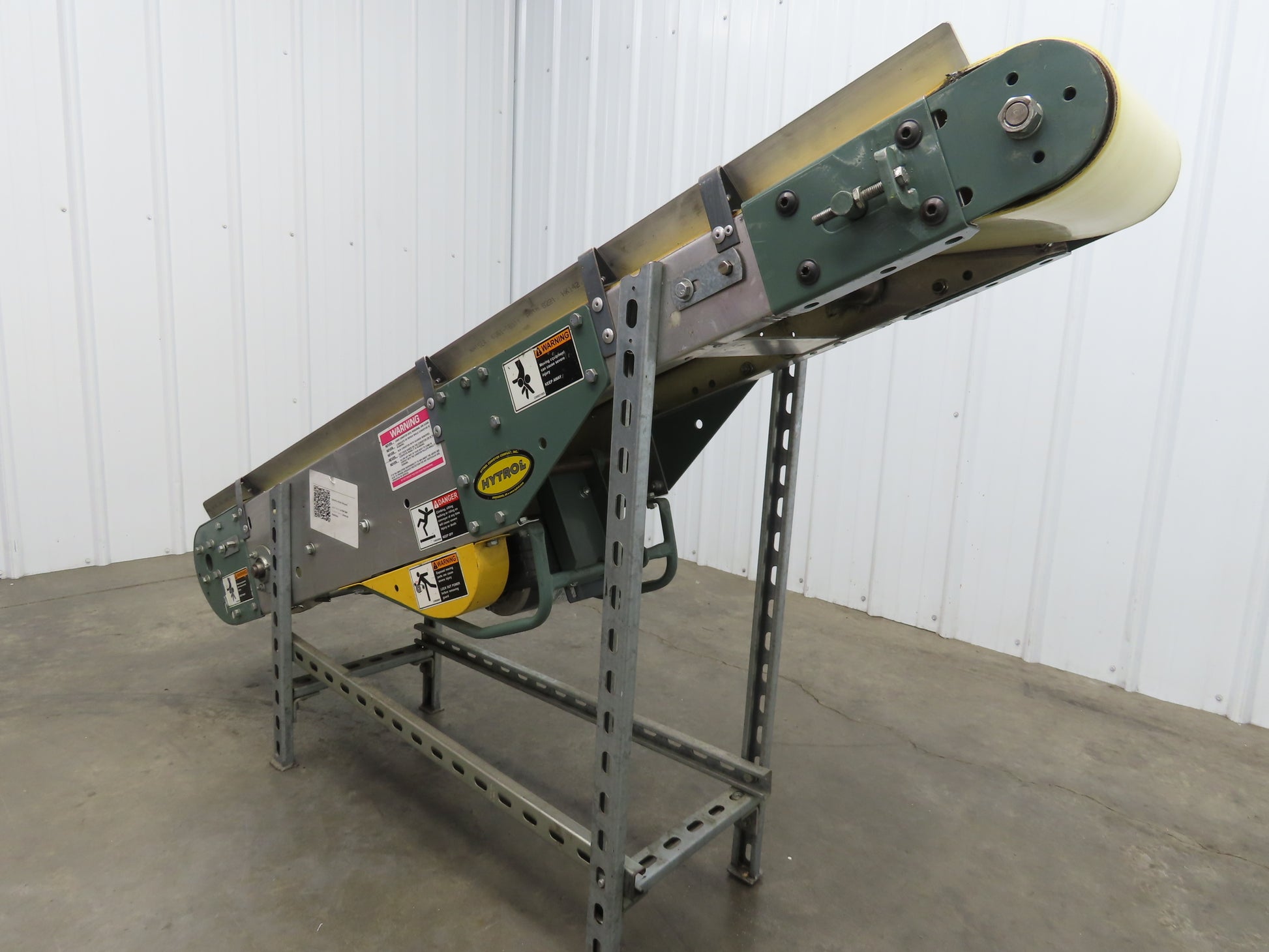

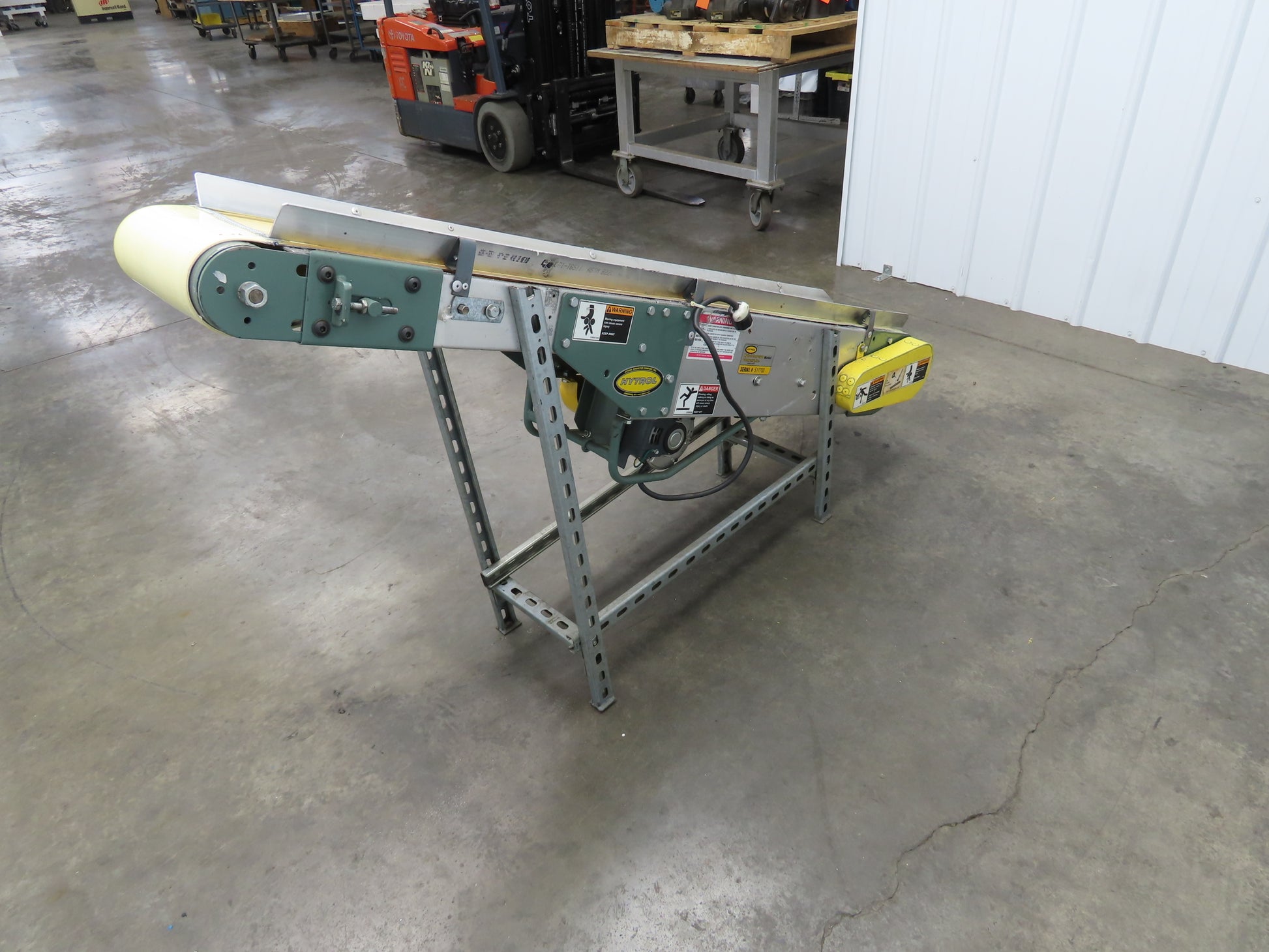

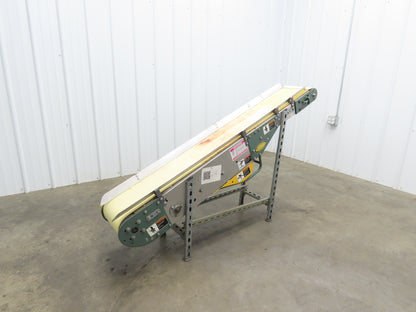

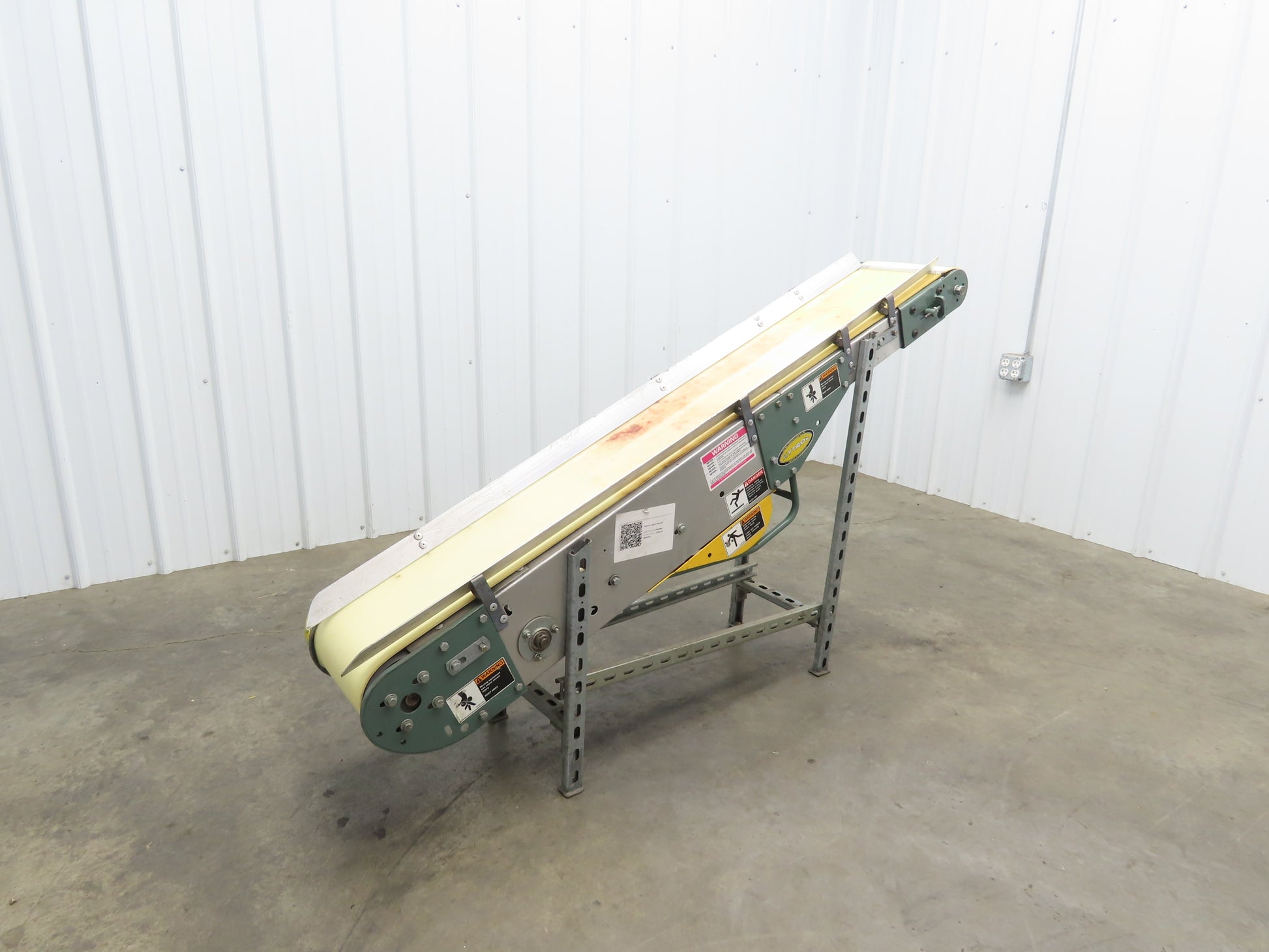

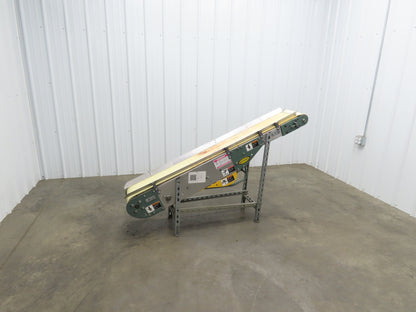

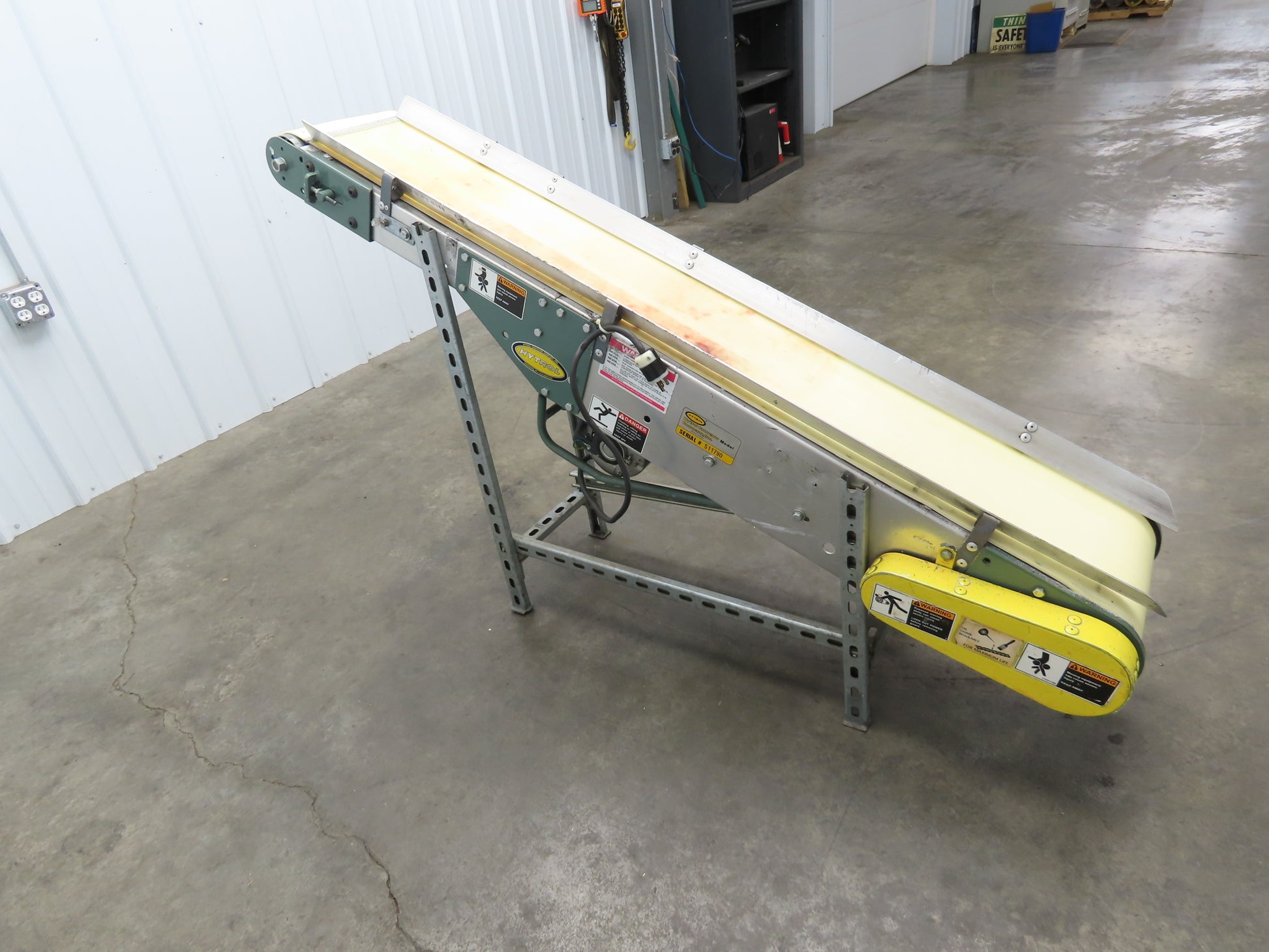

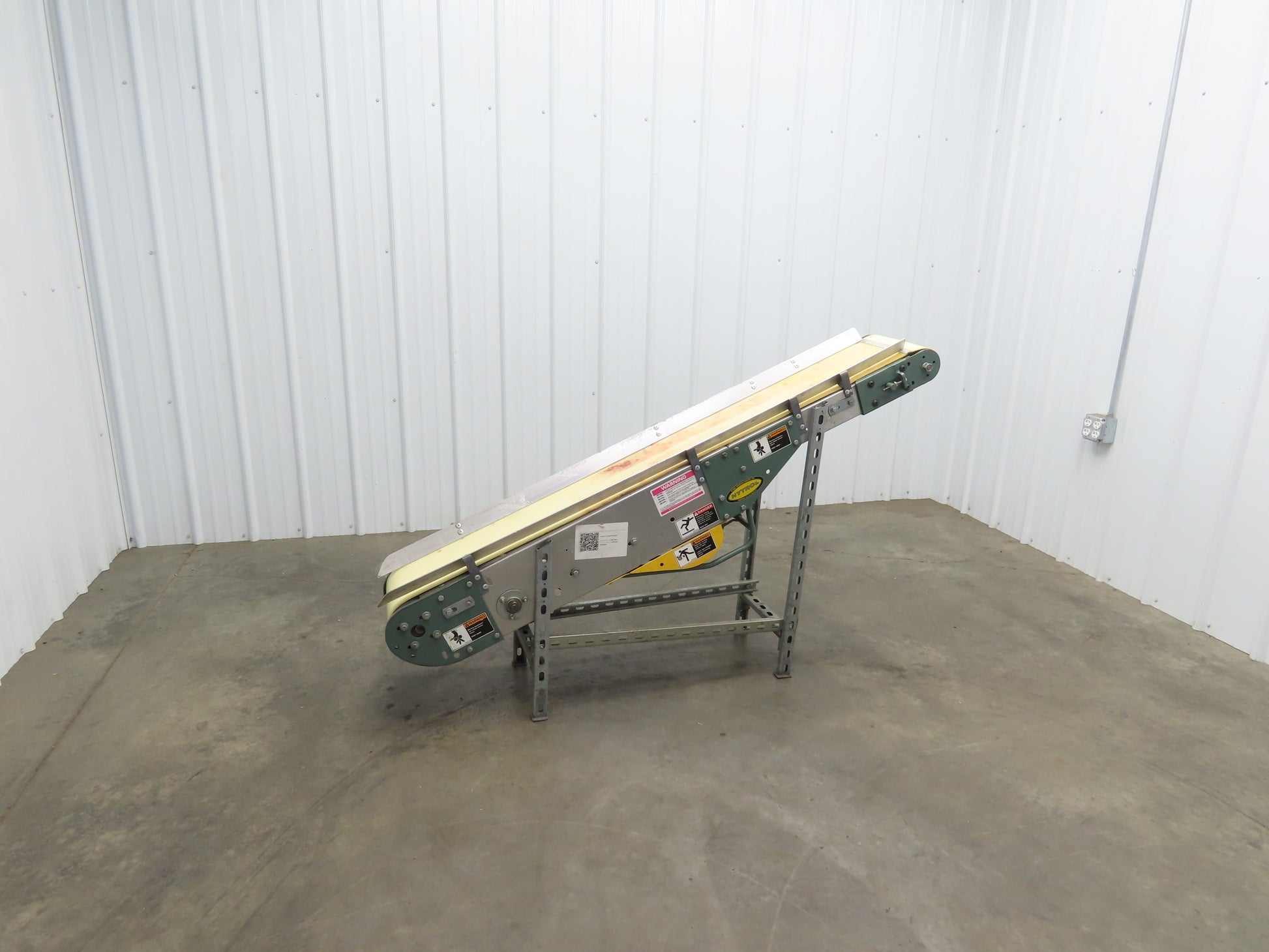

Hytrol 12"x 5' 11" Slider Bed Incline Belt Conveyor .5Hp 115V 1PH End Drive

Hytrol 12"x 5' 11" Slider Bed Incline Belt Conveyor .5Hp 115V 1PH End Drive

SKU #292122

Product Condition: Used

Your Price
$1,649.99
$1,199.99 $1,649.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Hytrol
Model
N/A
MPN
N/A
Condition
Used
  • Condition & Set-Up: In working condition. Tested.

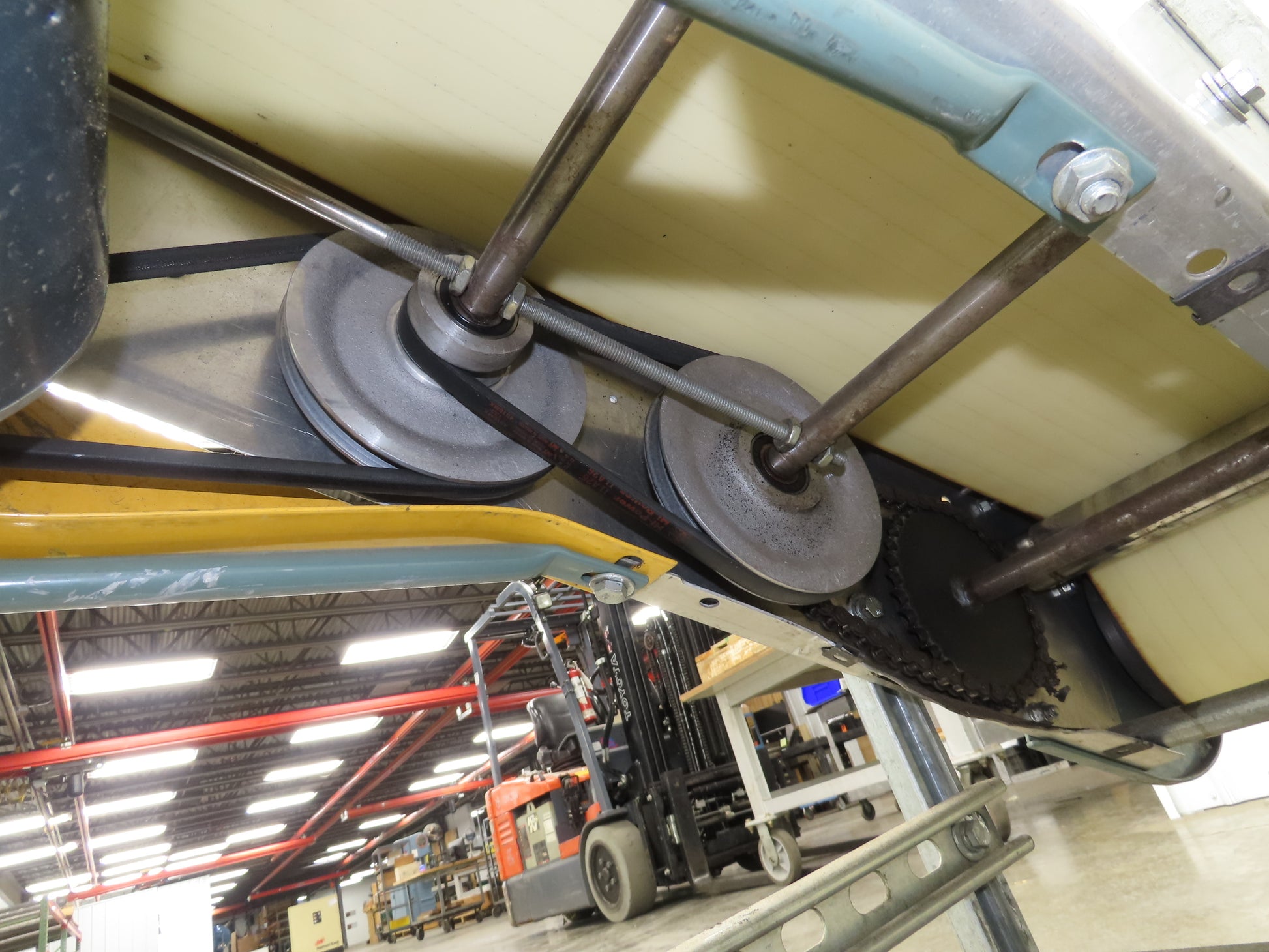

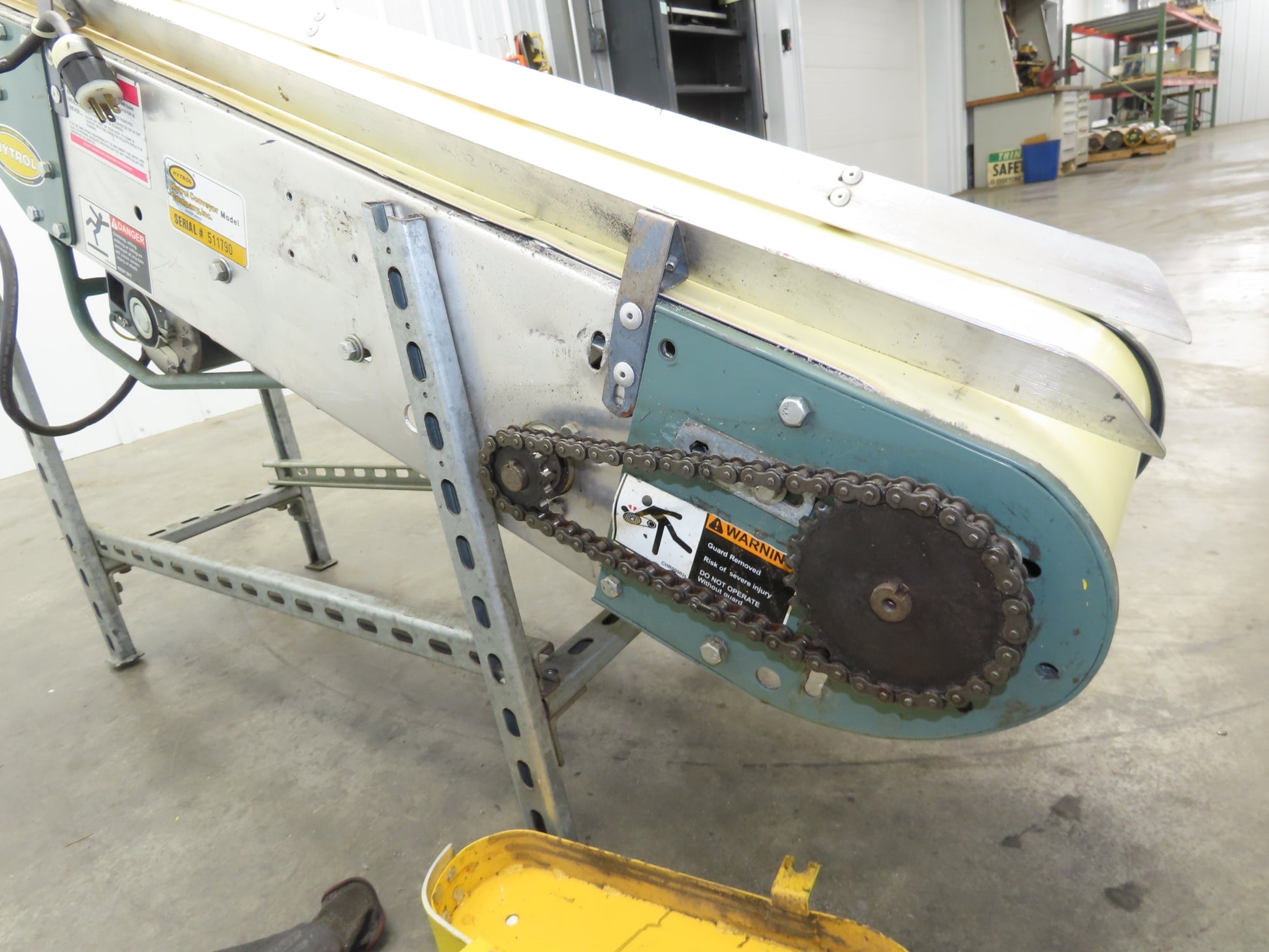

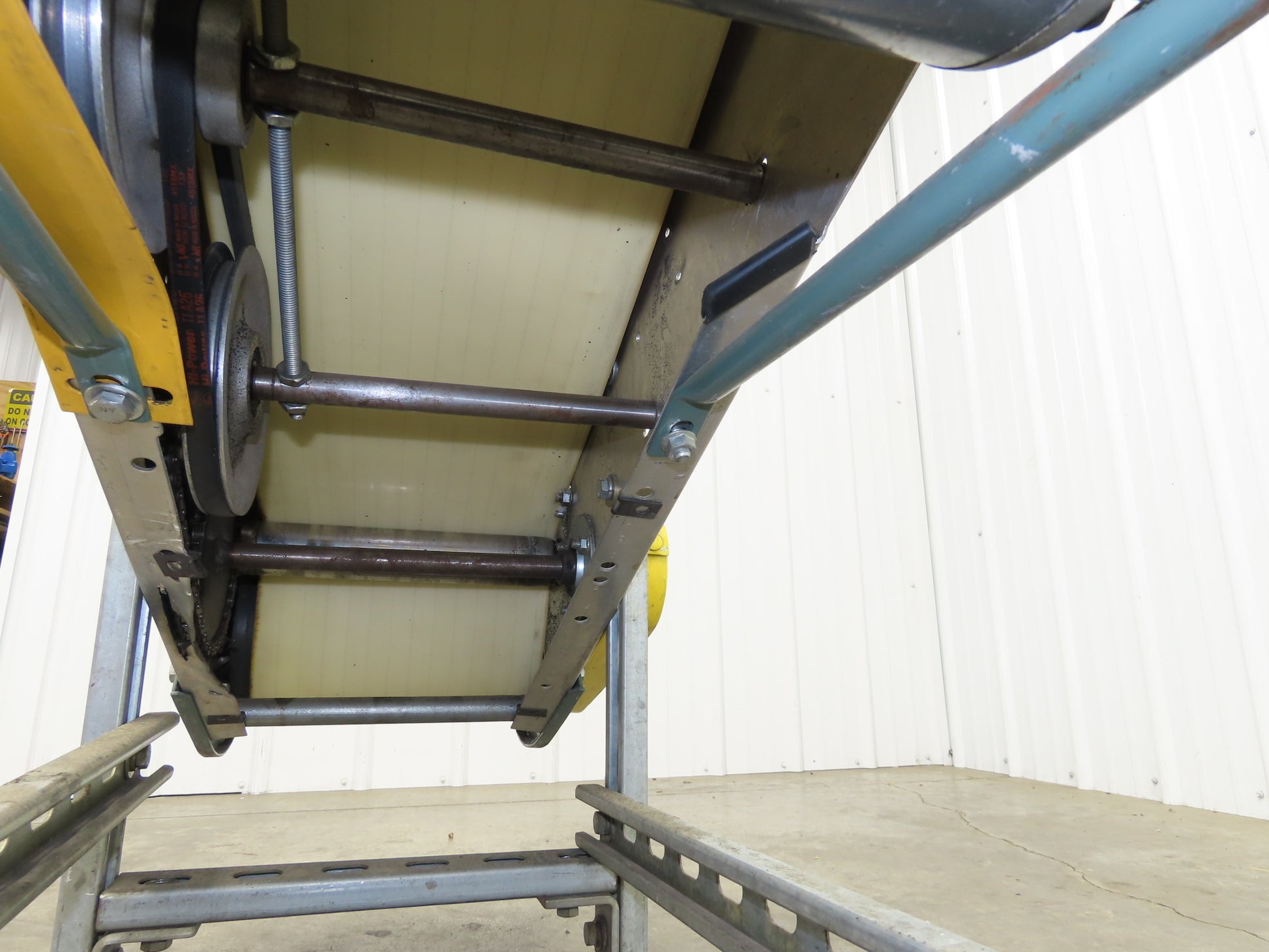

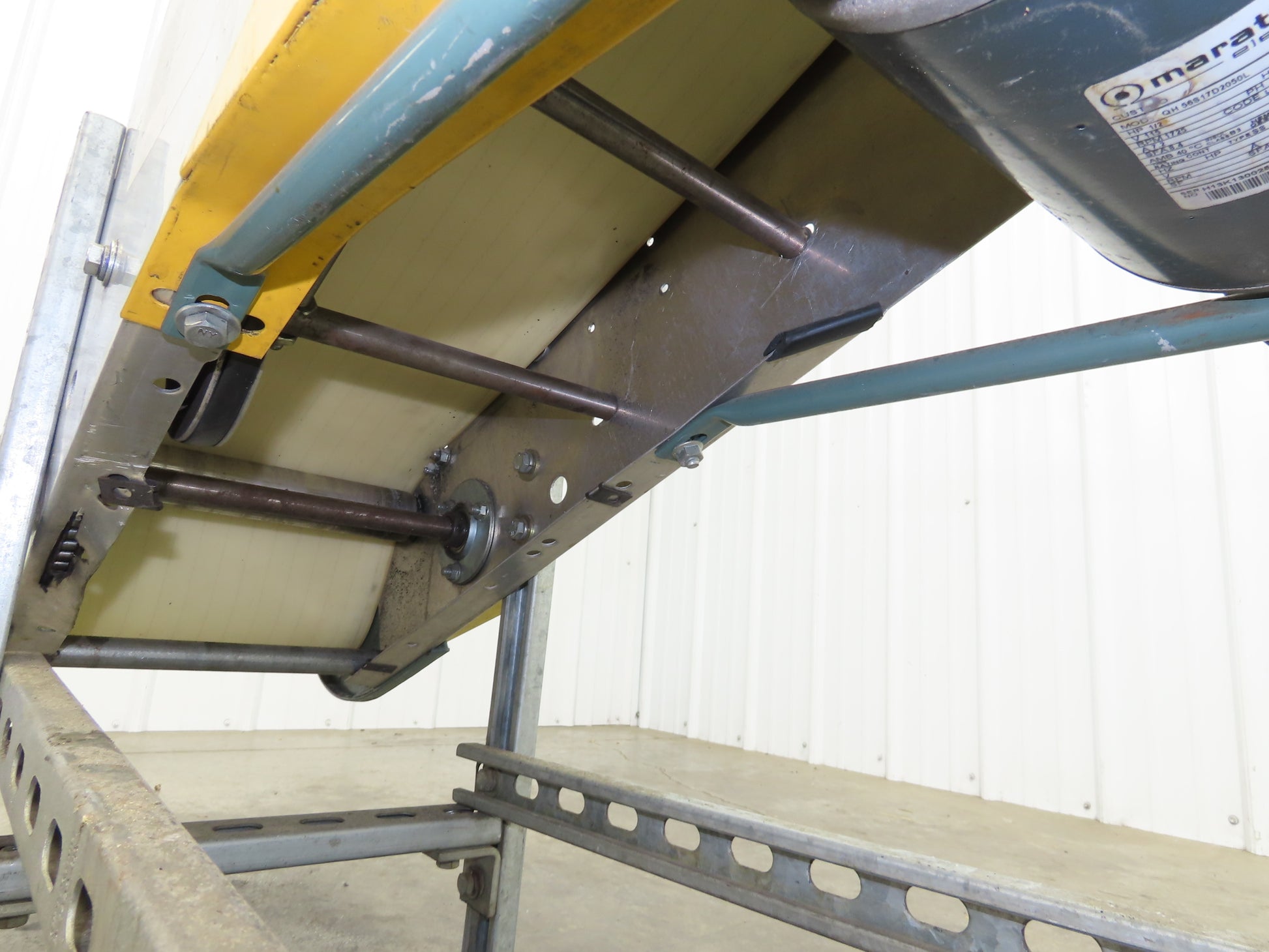

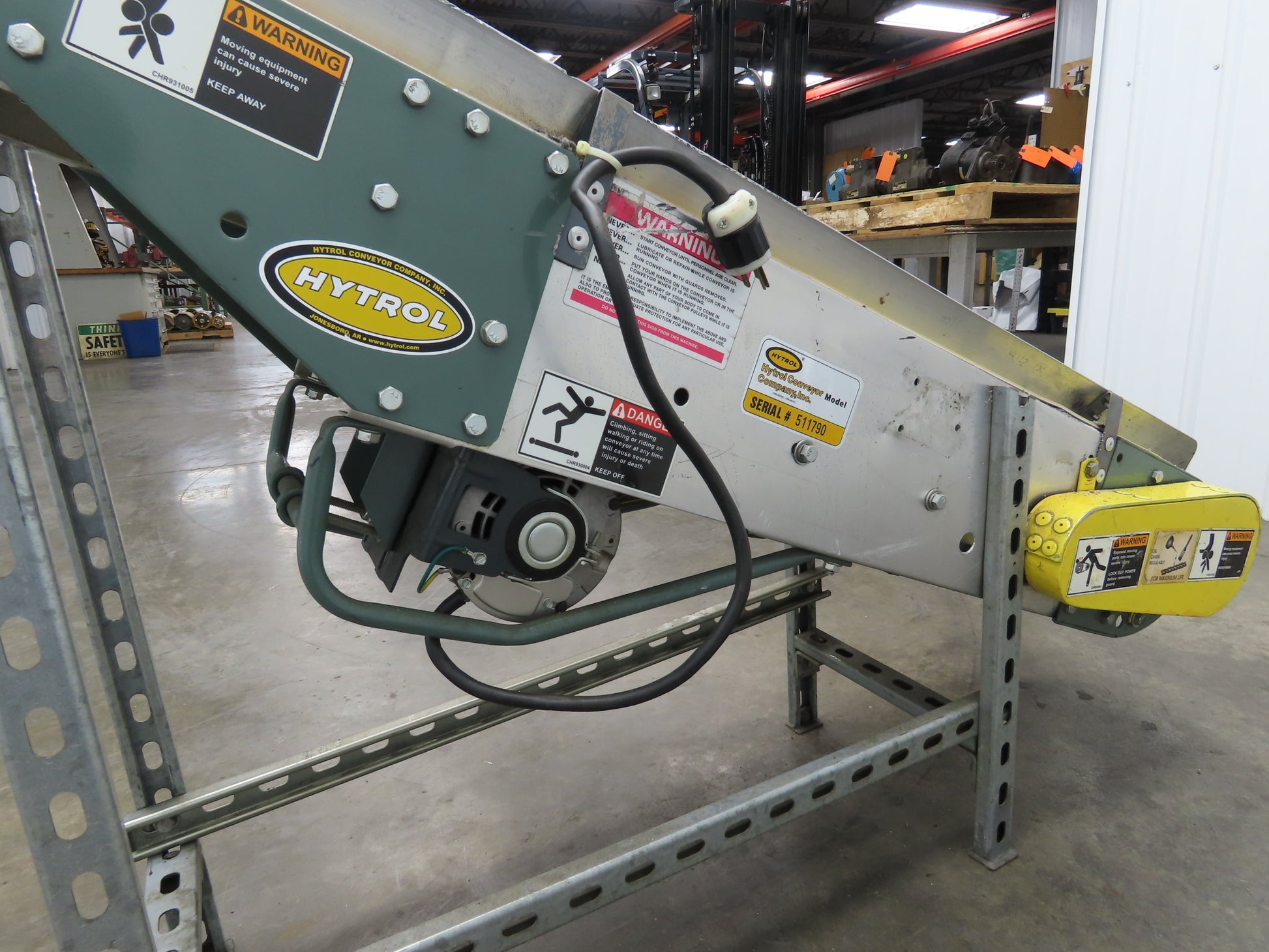

  • Drive Type: Motor is center mounted with a direct belt drive to chain and sprocket end pulley drive. 6" drive pulley dia.

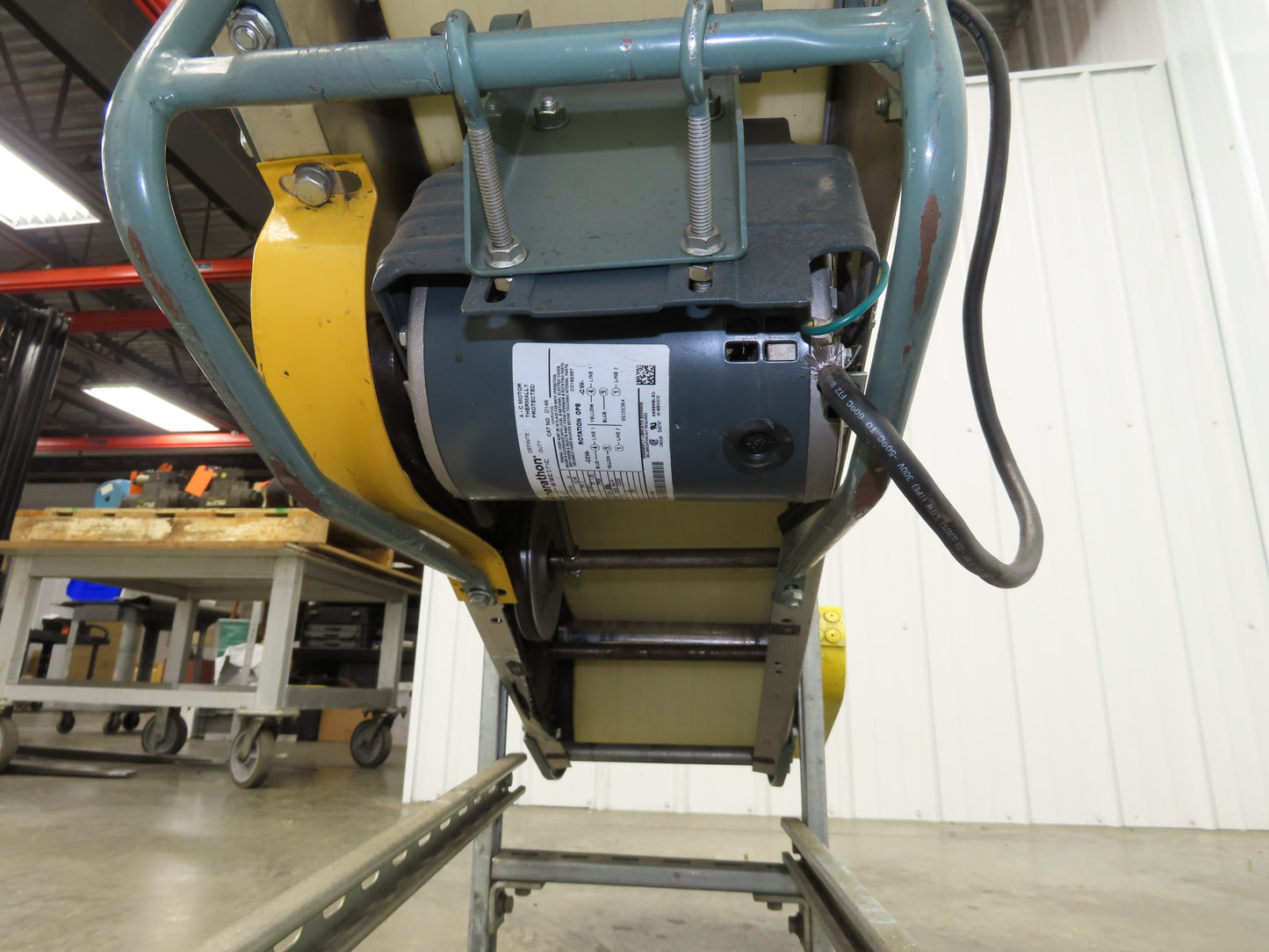

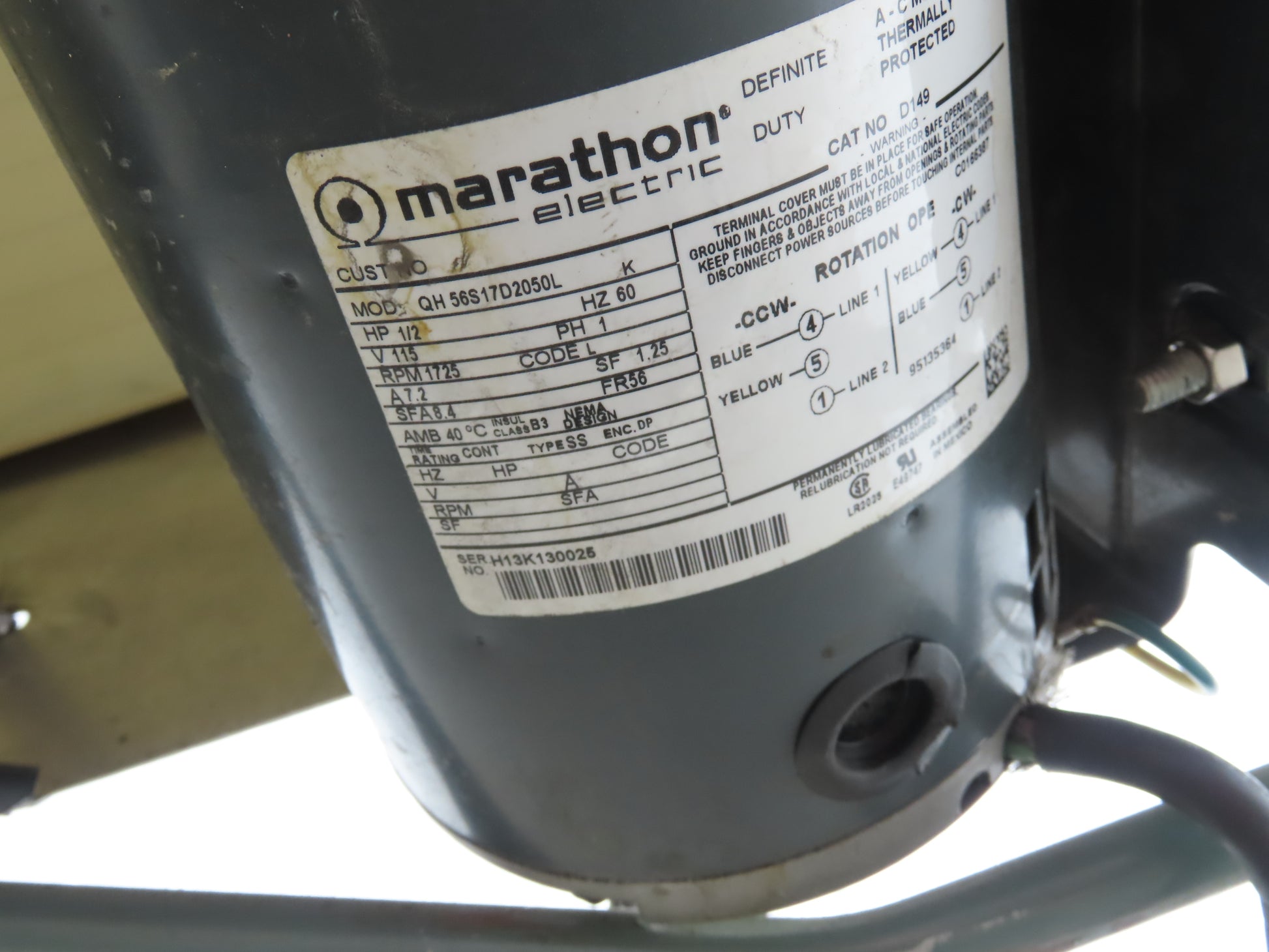

  • Motor & Gearbox: Marathon motor 1/2Hp 1725 RPM 115V No Gearbox.
  • Bed Length: 5' 10"
  • Frame Width: 12"
  • Bed Width: 11" (8-1/2"-9" Conveying width between side rails)
  • Belt Width: 10-3/4"
  • Frame Height: 8-1/2" to 4" at the top
  • Belt Speed: 79 FPM
  • Bed Height (From Floor): 15" At infeed 41-1/2" Max height at the top. Conveyor is set up on strut rails. Height is adjustable.

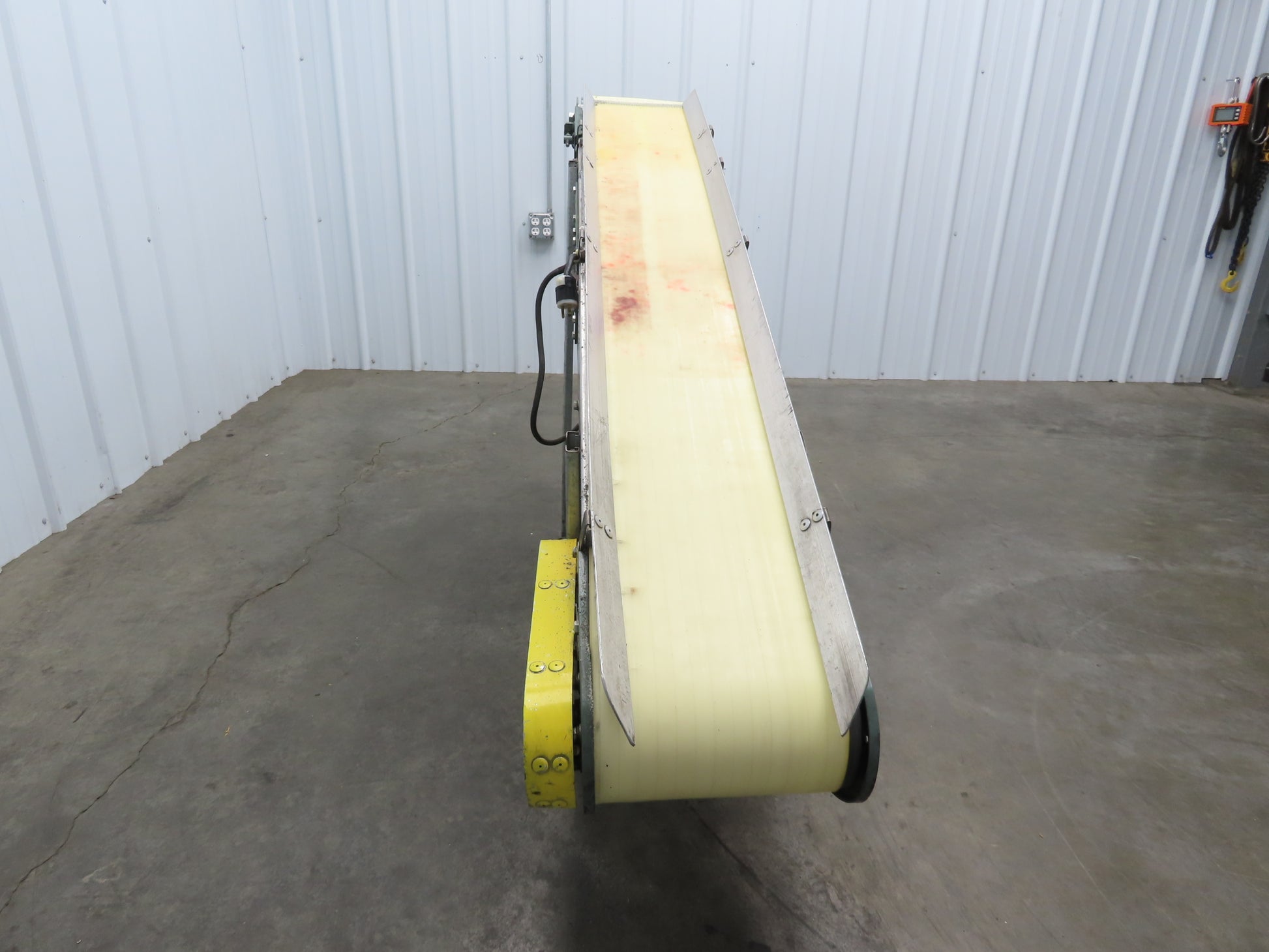

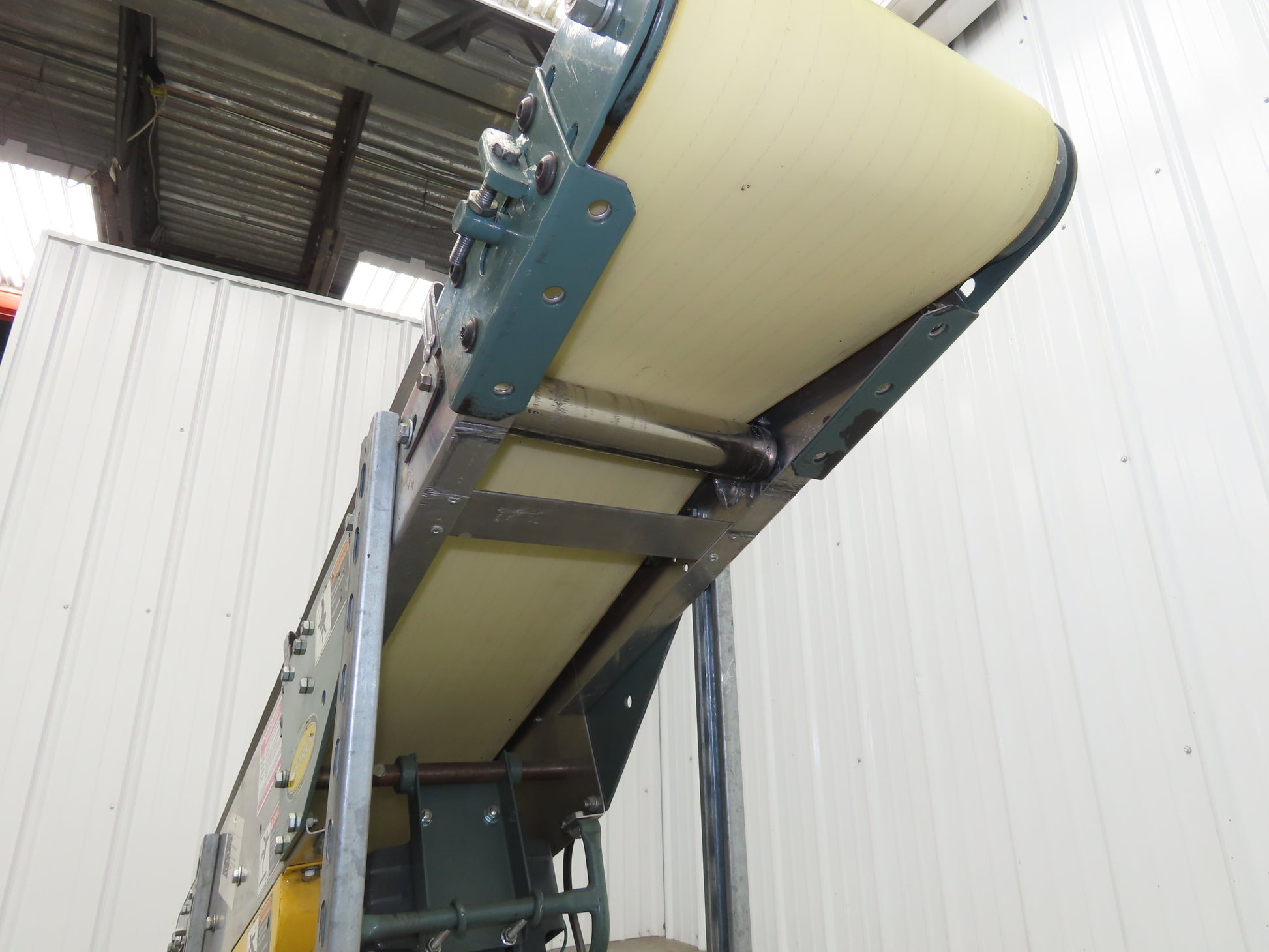

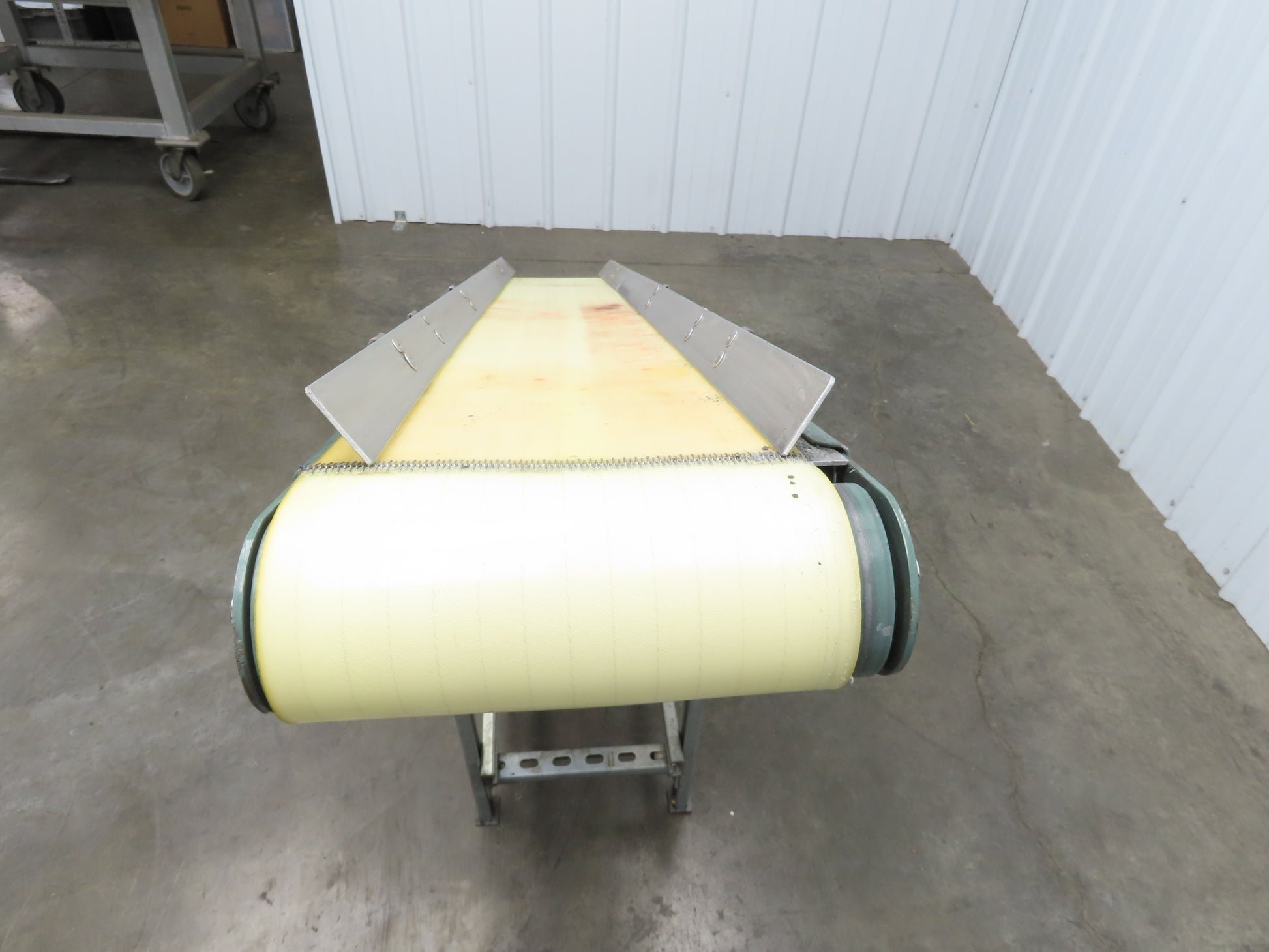

  • Belt Surface (Type) and Condition: Polyurethane smooth top belt. Belt is new. This is the only belt we have available.
  • Voltage tested and wired for:: 115V
  • Overall Length: 5' 11"

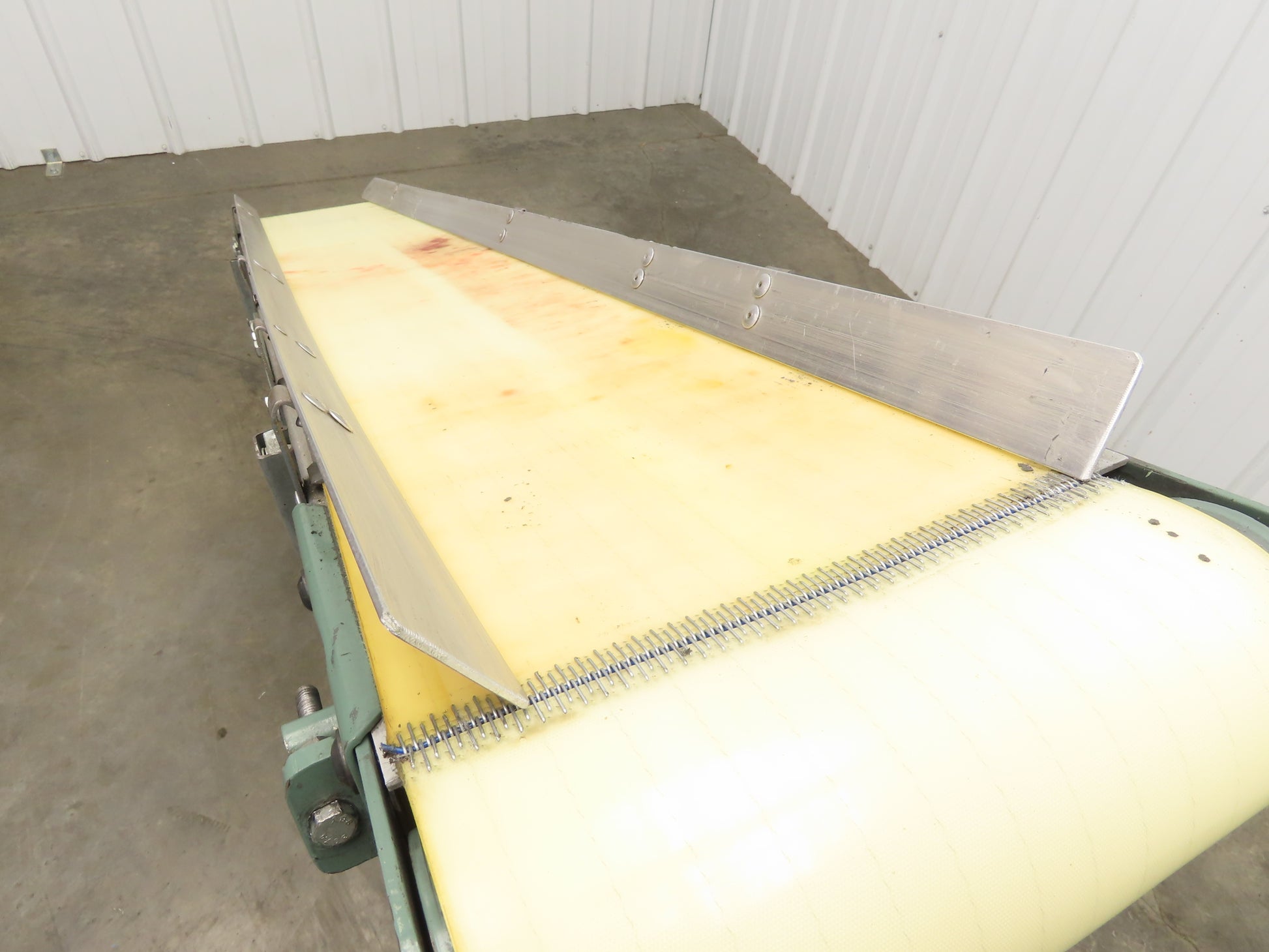

  • Skirting, Guard Rail Height: 2"
