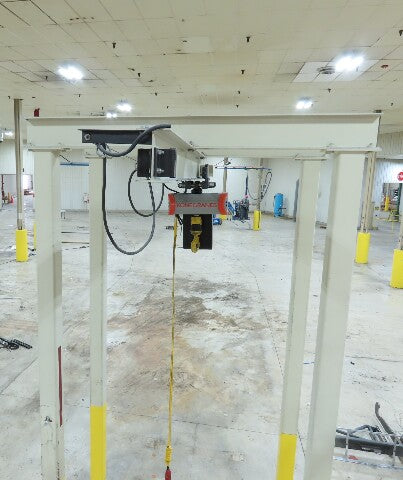

Kone Cranes 2 Ton Free Standing Bridge Crane 4'-7' Span 12' 9"HUB 2-Speed Hoist

Kone Cranes 2 Ton Free Standing Bridge Crane 4'-7' Span 12' 9"HUB 2-Speed Hoist

SKU #313012

Product Condition: Used

Your Price
$7,124.99
$7,499.99 $7,124.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Kone Cranes
Model
CLX16 04 2 320 5
MPN
CLX160423205
Condition
Used
  • Bridge crane in working condition, removed from a working environment.

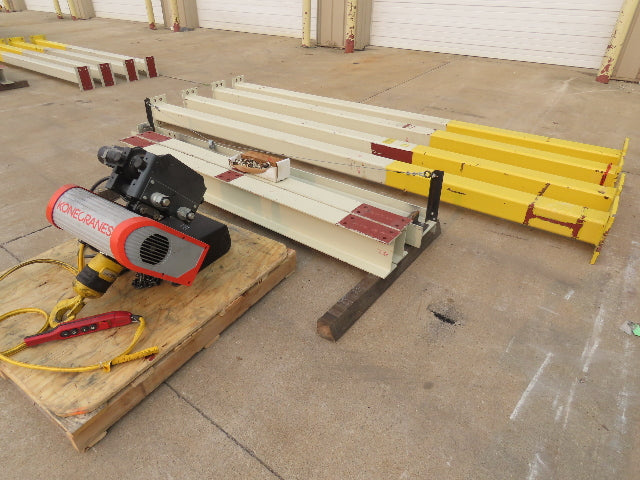

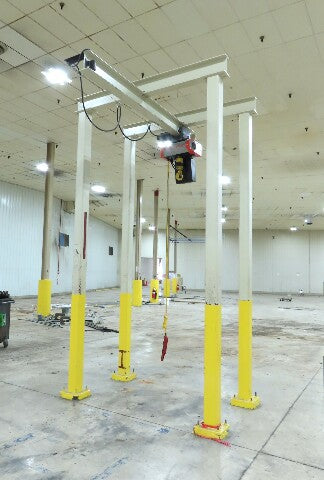

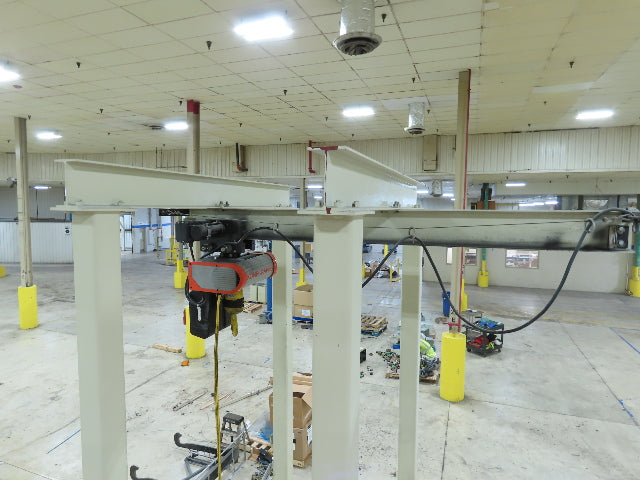

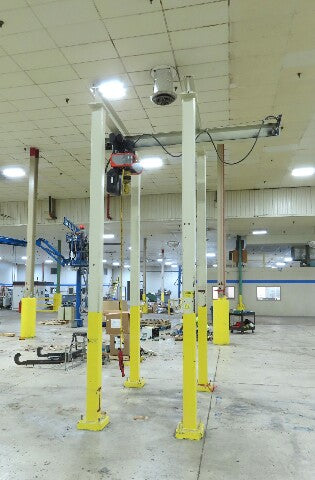

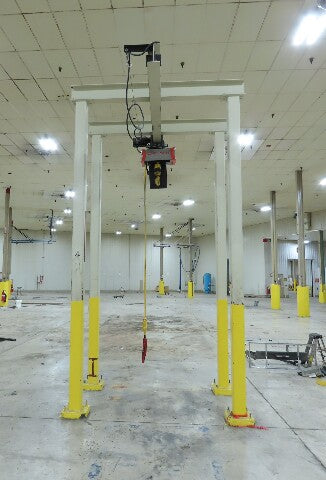

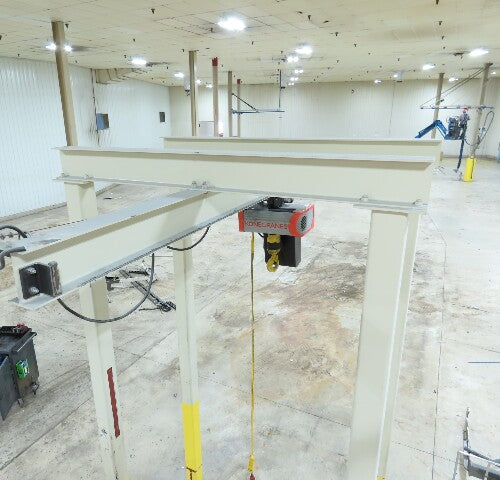

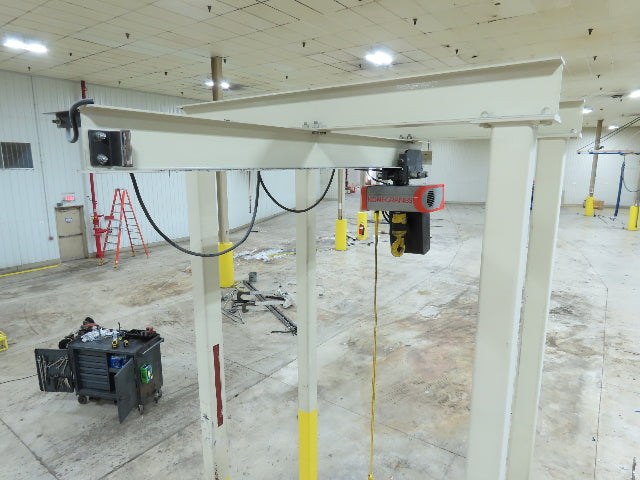

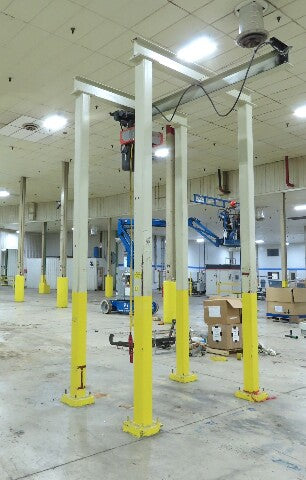

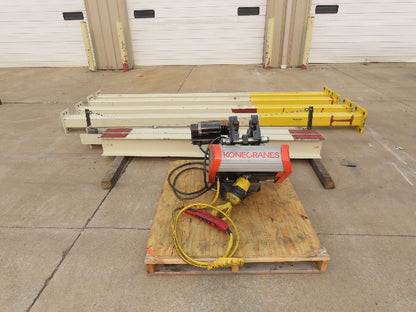

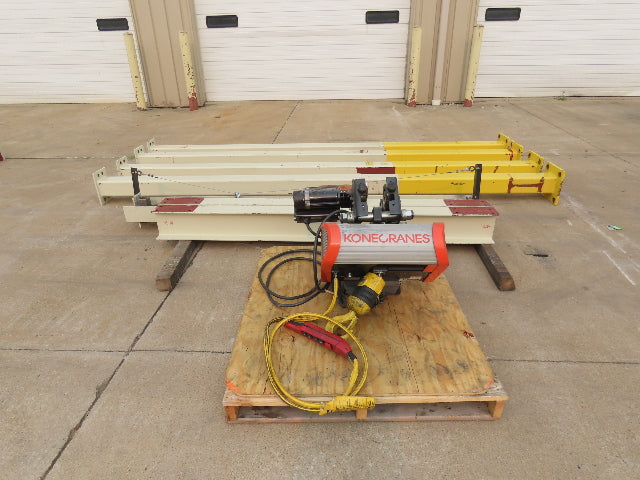

  • 4 Post crane system with Kone Cranes 2-speed hoist, fixed bridge.

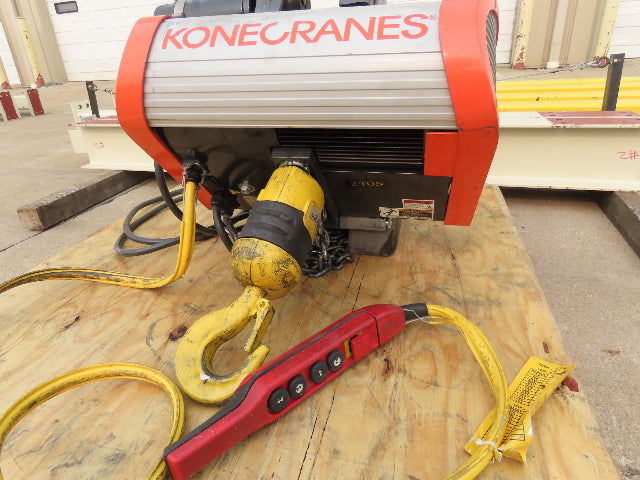

  • Controls:  Corded pendant 2-speed hoist.

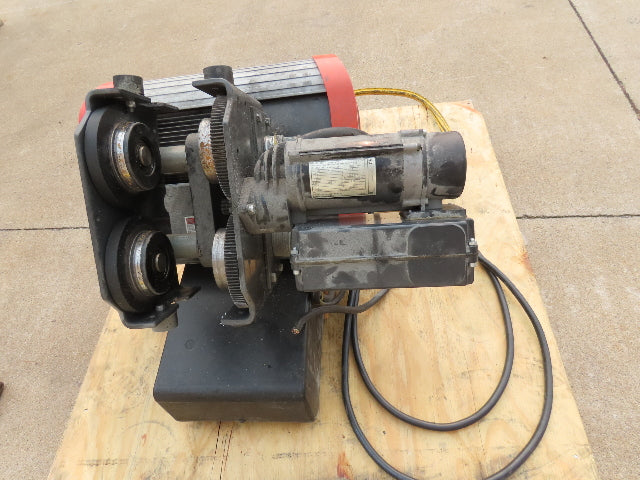

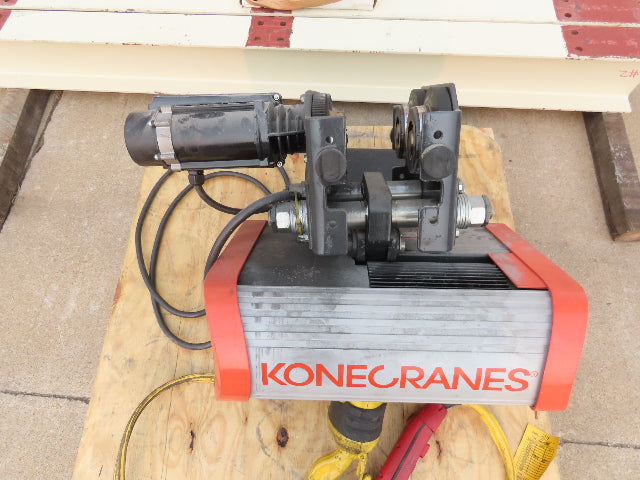

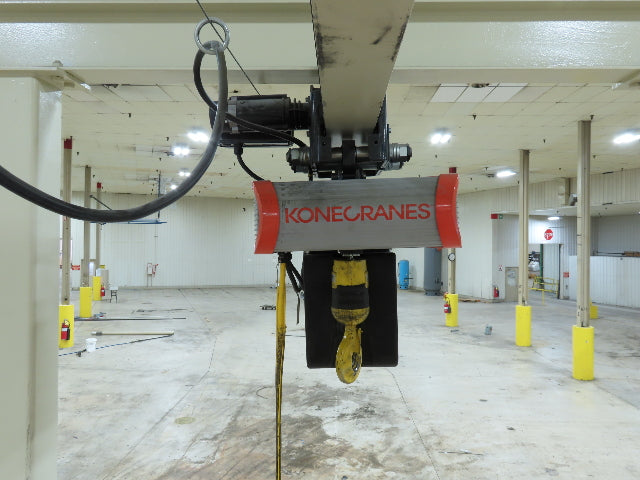

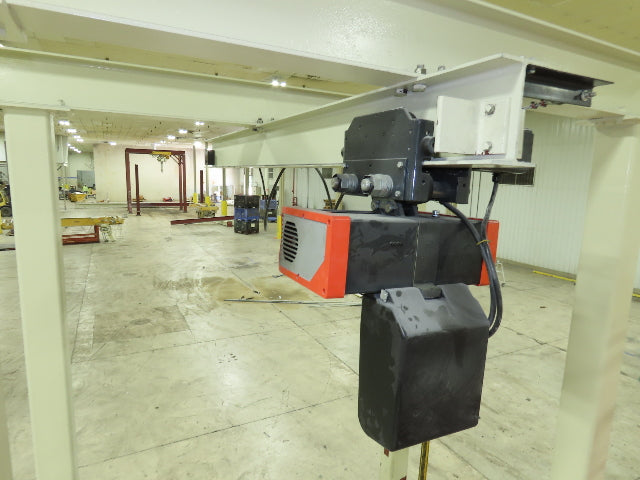

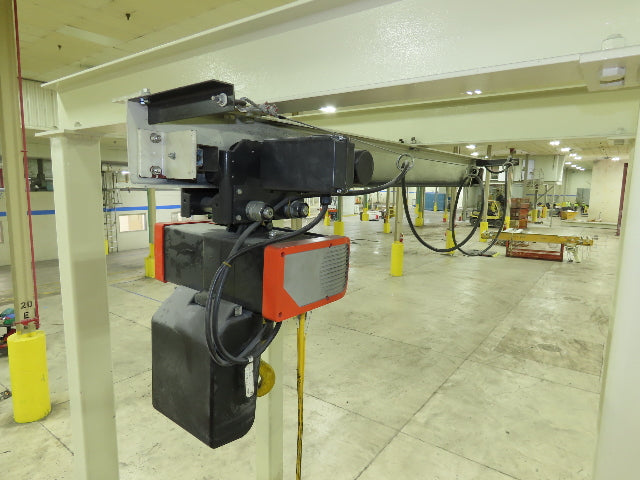

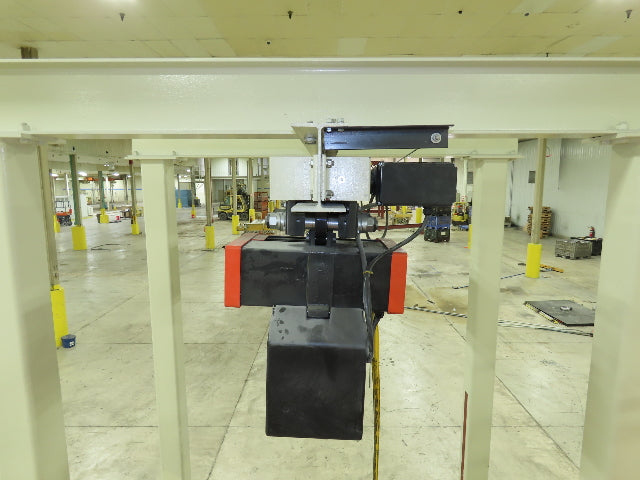

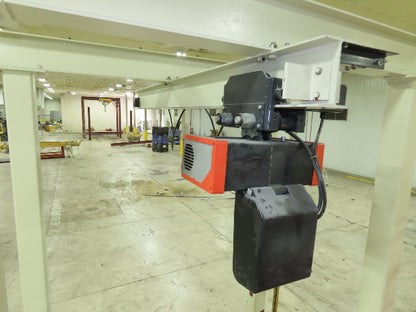

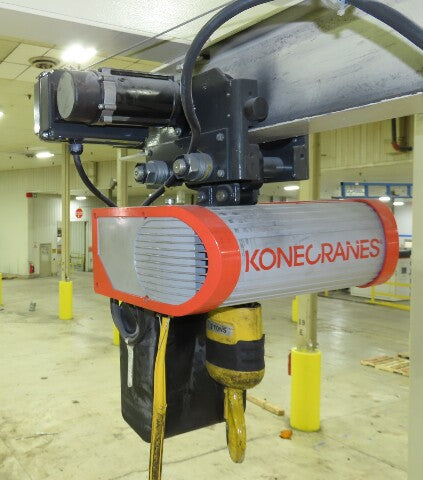

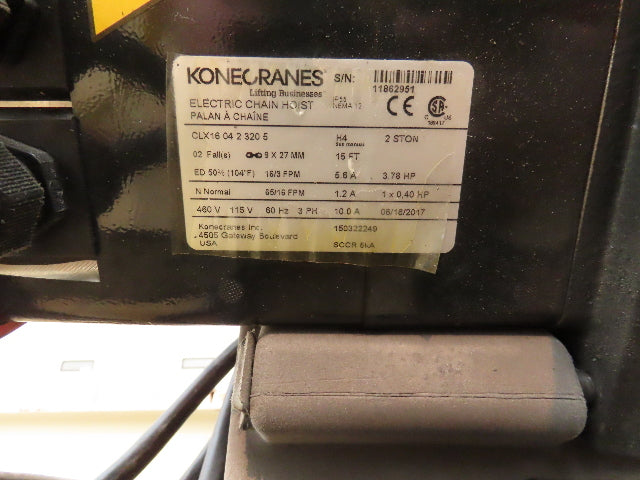

  • Hoist:  Kone Cranes 2 Ton Model CLX160423205 2-Speed 65/16 FPM 15' Lift Powered Trolley 460V 3PH.
  • Bridge Type:  Fixed bridge no runway.
  • Bridge Capacity:  2 Ton
  • Bridge Span:  Set at 4' but could be up to 7' width with new holes drilled.

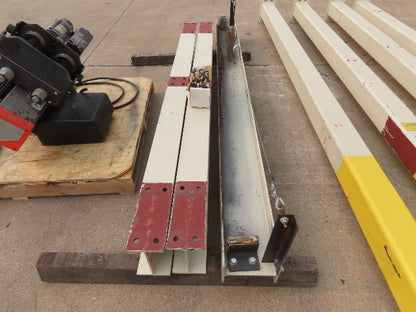

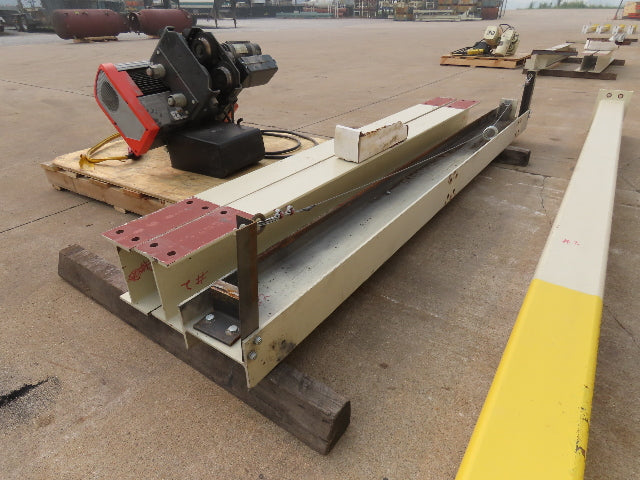

  • Bridge Beam:  9' Length.  5-1/4"W x  8-1/4"

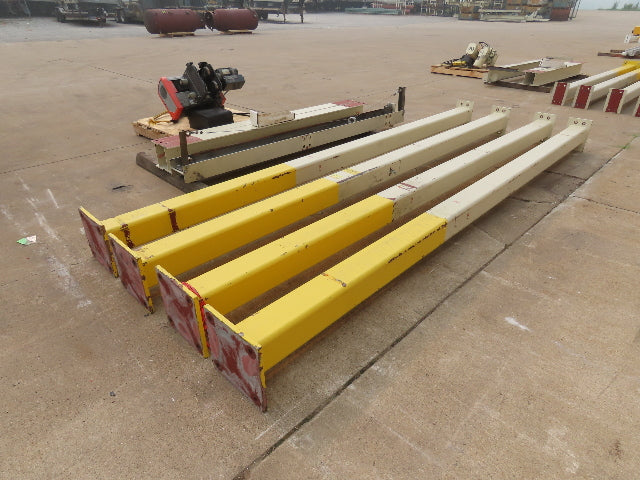

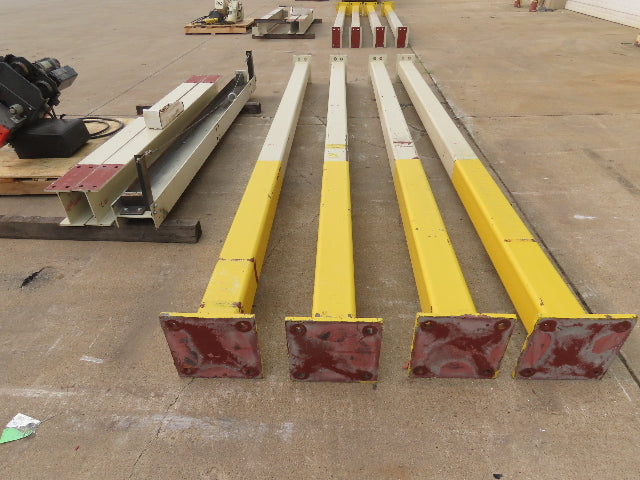

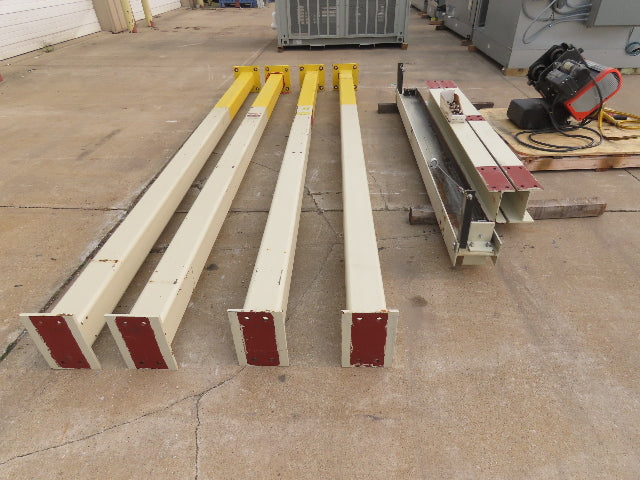

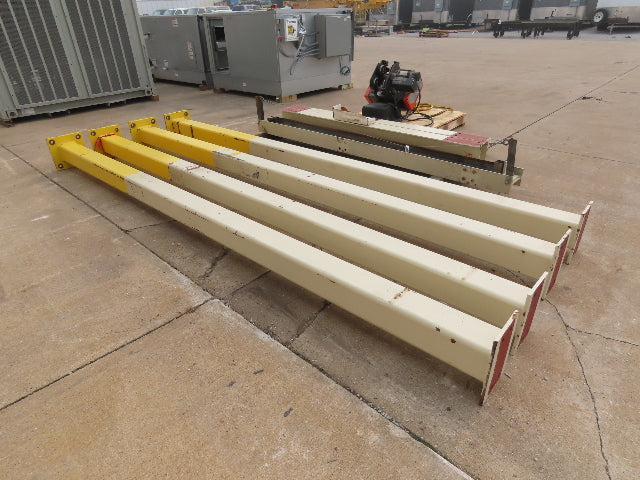

  • Upright Post Height :  13' 5"
  • Upright Post Width:  6"x 6" with a 12" base.

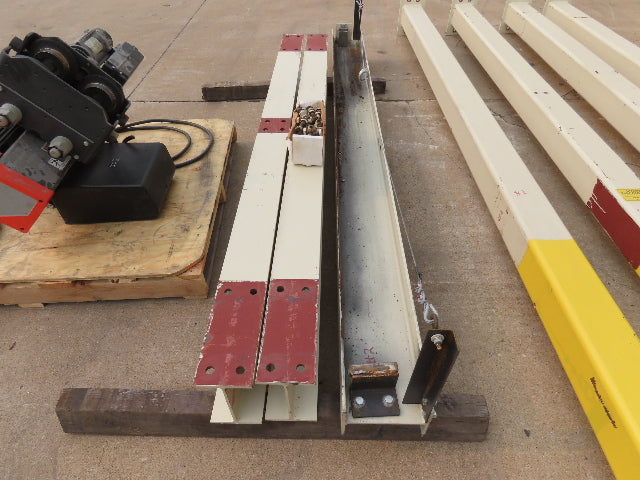

  • Cross Beams:  92" Length.  5-1/4"x 8-1/4"
  • Clearance Heights:
  • Height Under Bridge Beam:  12' 9"
  • Height Under Hoist Hook:  10' 5"  (This is with hook fully retracted, hook may be currently set at a lower height than this)
  • Height Under Hoist Chain Bucket:  10' 6"
  • Height Under Cross Beams:  13' 5"
  • Top Clearance Height:  14' 1"
  • Overall Footprint:  60" Width.  7' 8" Length.
  • Ship weight is approximate.
