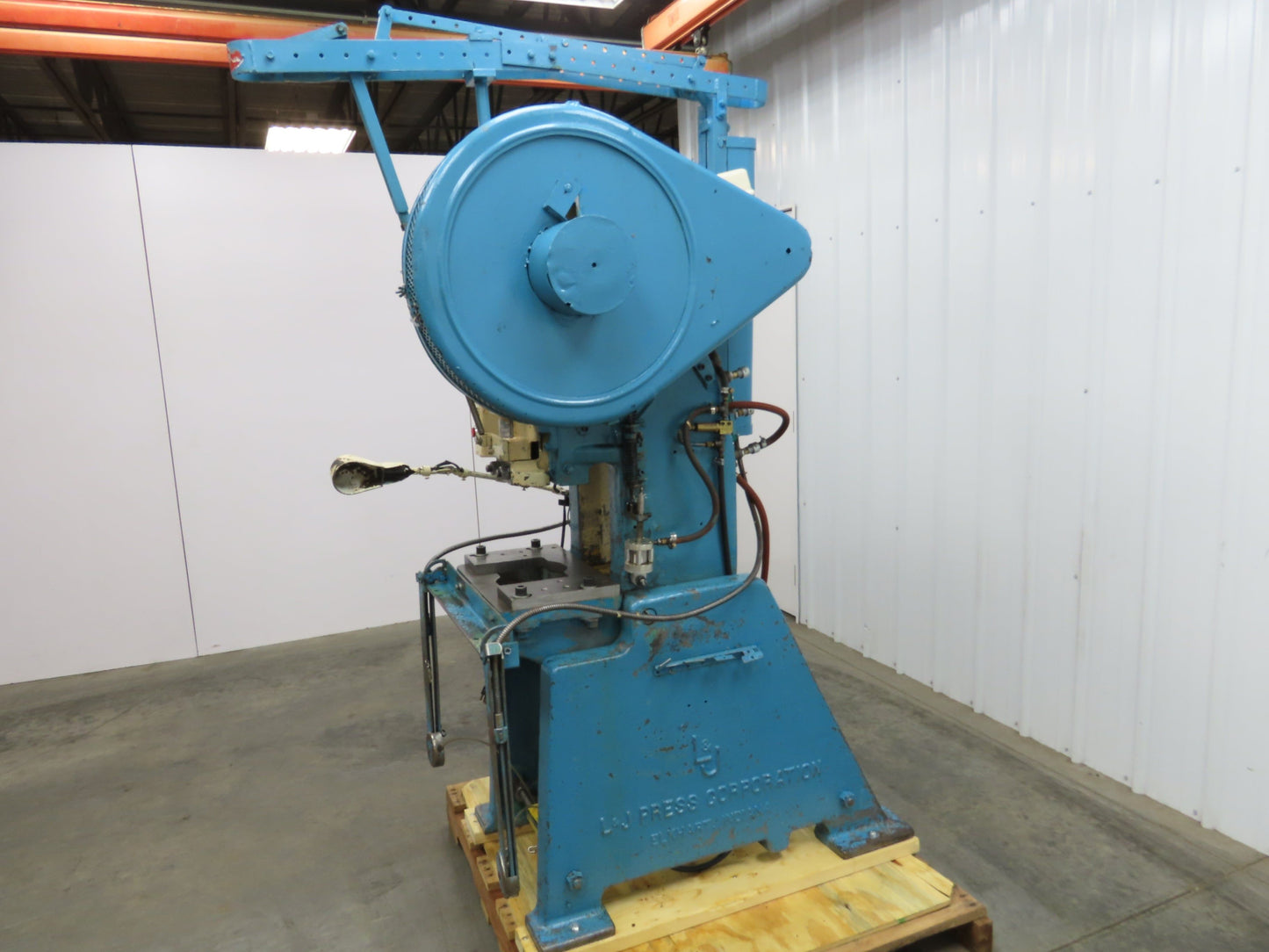

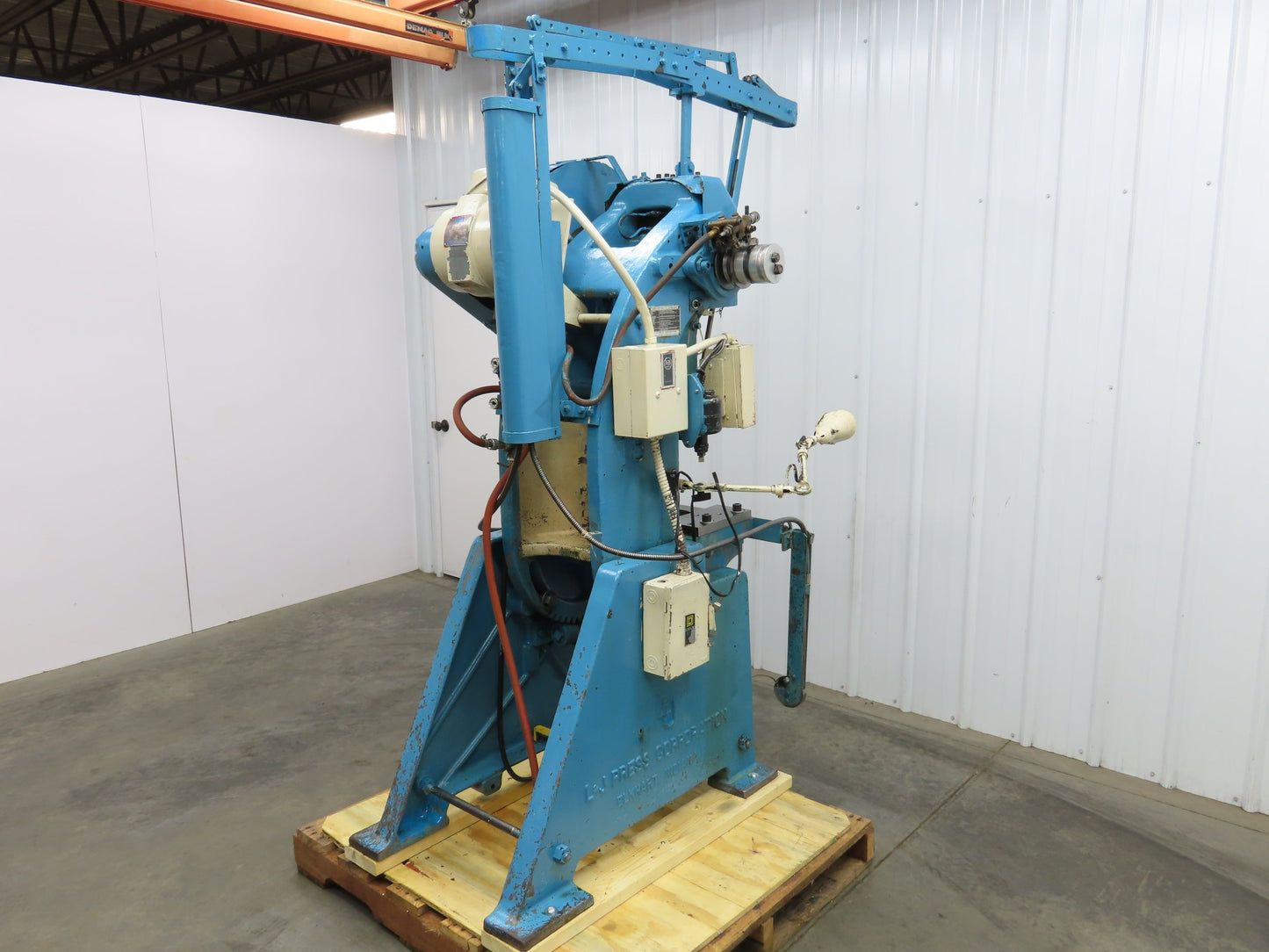

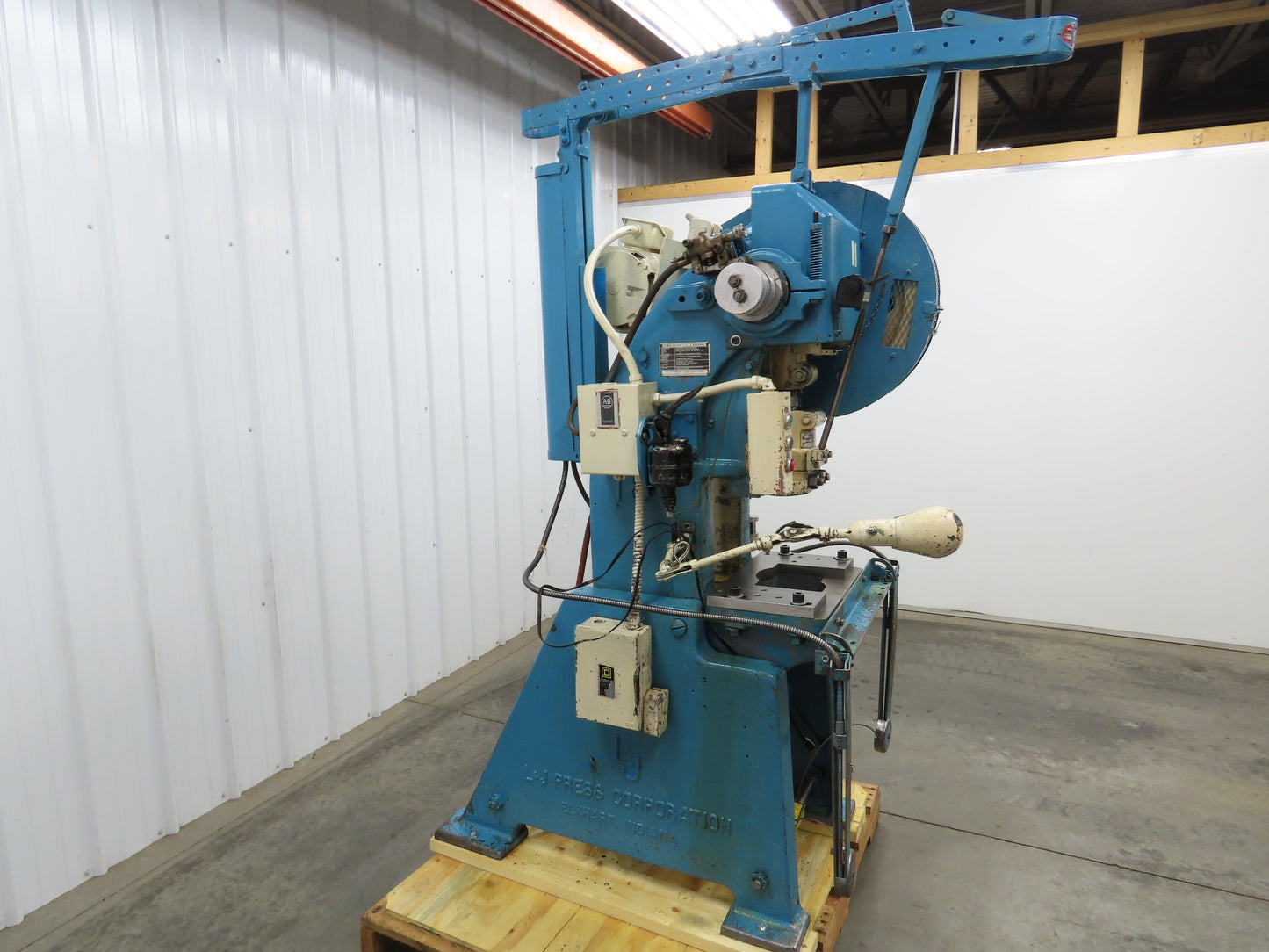

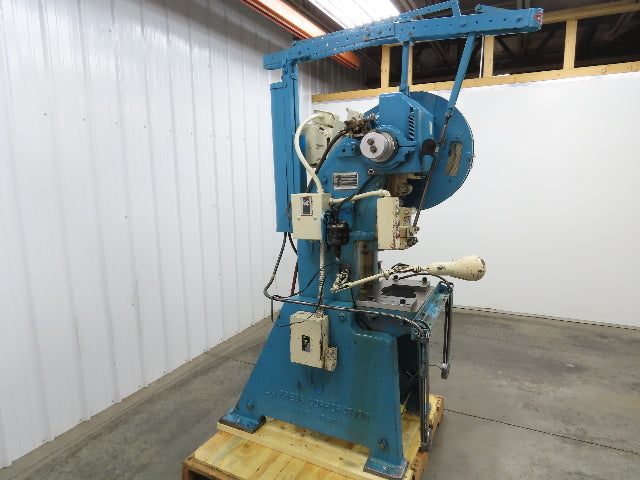

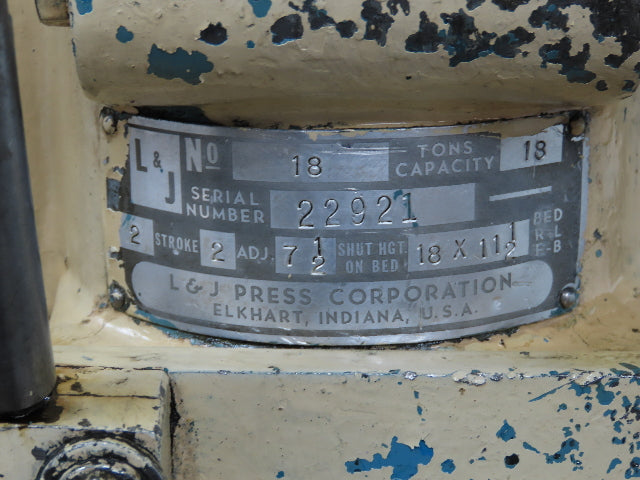

L&J No 18 Mechanical OBI Punch Press 18 Ton 2" Stroke 6" Throat 1.5Hp 3Ph

L&J No 18 Mechanical OBI Punch Press 18 Ton 2" Stroke 6" Throat 1.5Hp 3Ph

SKU #268258

Your Price
$2,580.19
$2,580.19
Sale Sold out
Shipping calculated at checkout.

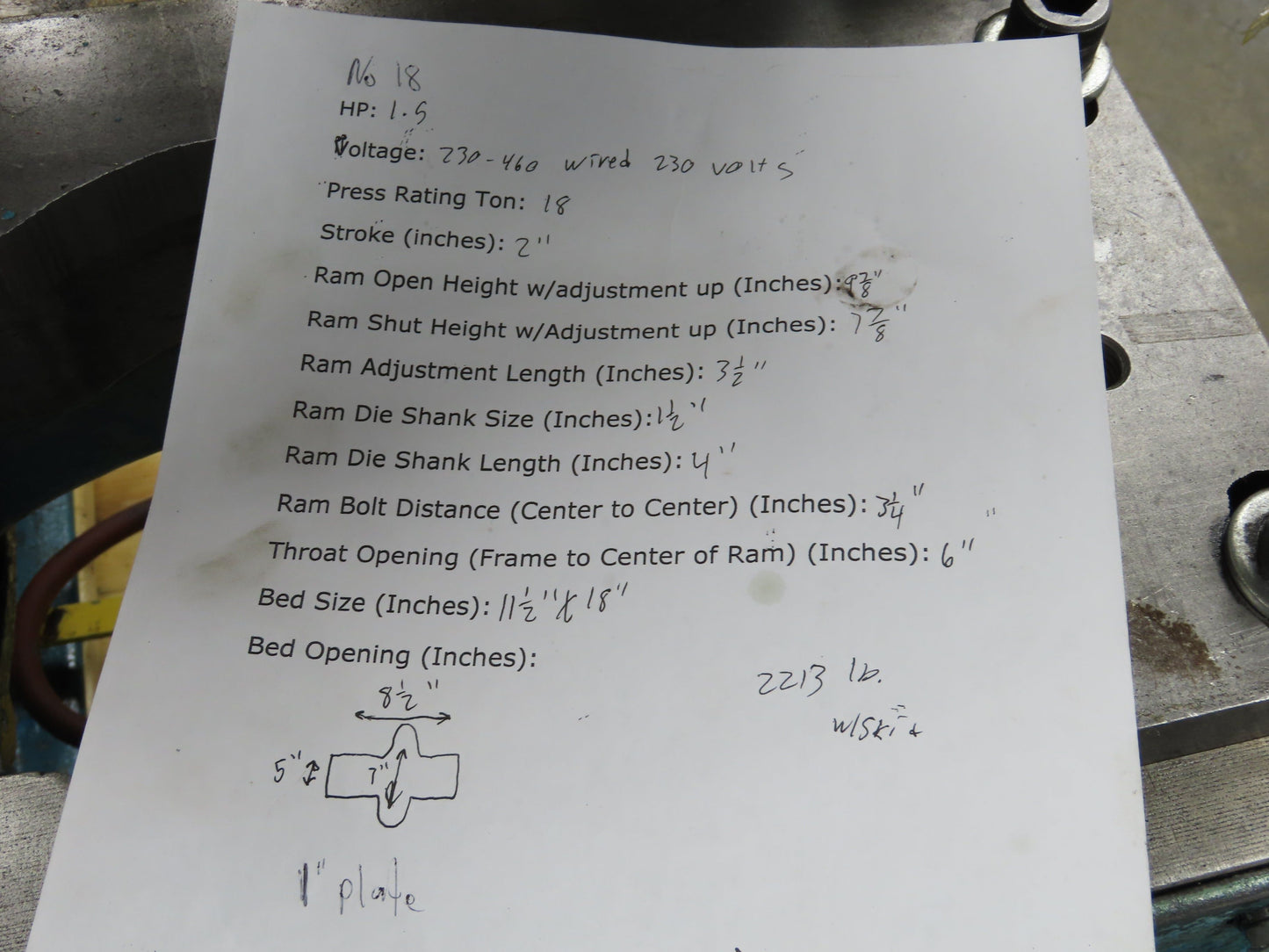

  • HP: 1.5
  • Voltage: 230/460V 3 phase
  • Press Rating Ton: 18
  • Stroke (inches): 2
  • Ram Open Height w/adjustment up (Inches): 9-7/8
  • Ram Shut Height w/Adjustment up (Inches): 7-7/8
  • Ram Adjustment Length (Inches): 3-1/2
  • Ram Die Shank Size (Inches): 1-1/2
  • Ram Die Shank Length (Inches): 4
  • Ram Bolt Distance (Center to Center) (Inches): 3-1/4
  • Throat Opening (Frame to Center of Ram) (Inches): 6
  • Bed Size (Inches): 11-1/2x18

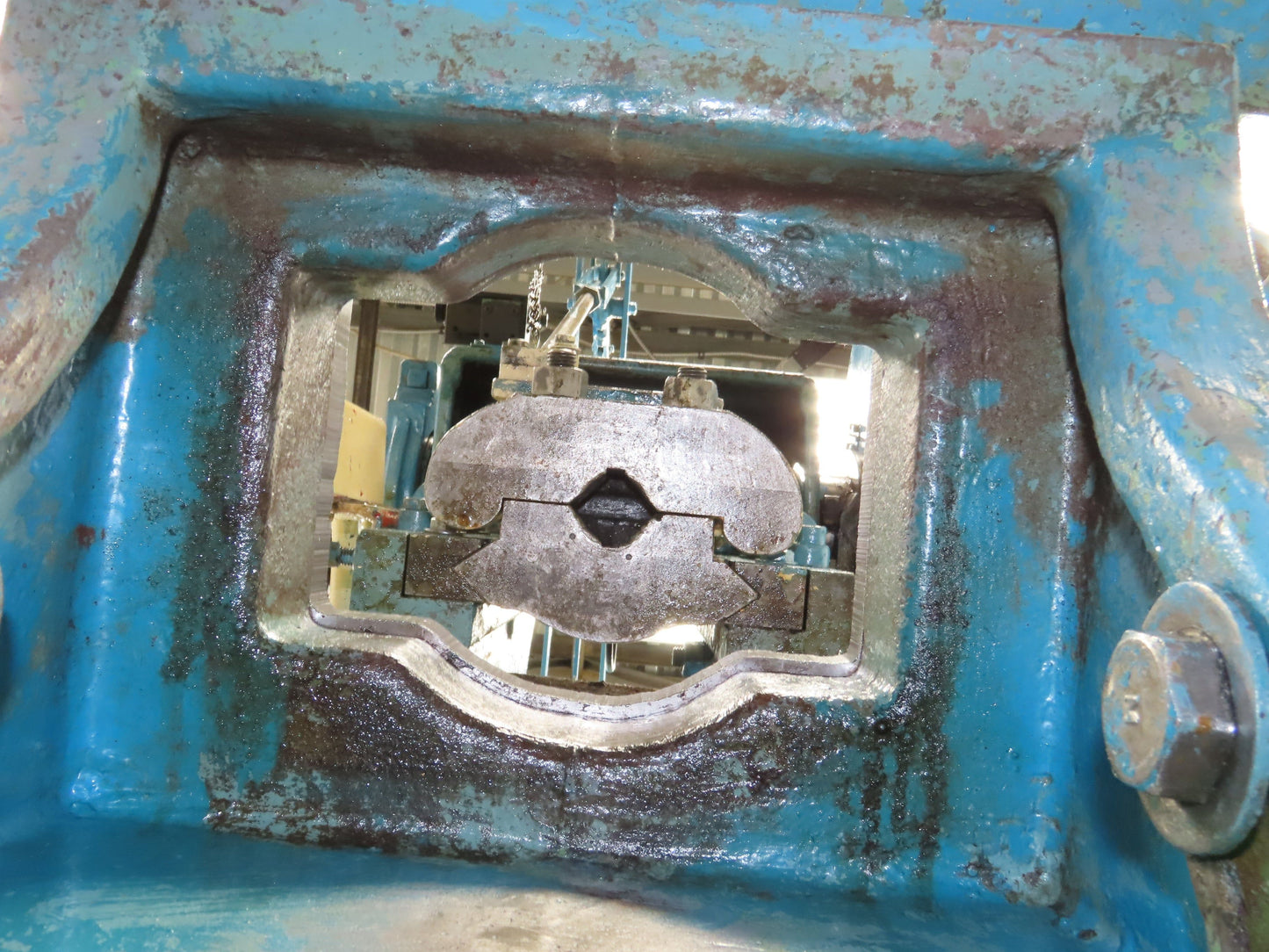

  • Bed Opening (Inches): 7x8-1/2
  • Used, in Good Working Condition, Tested OK.
  • Tested in our shop.
  • Wired for 208V 3 phase
  • Has aftermarket plate 1" thick.

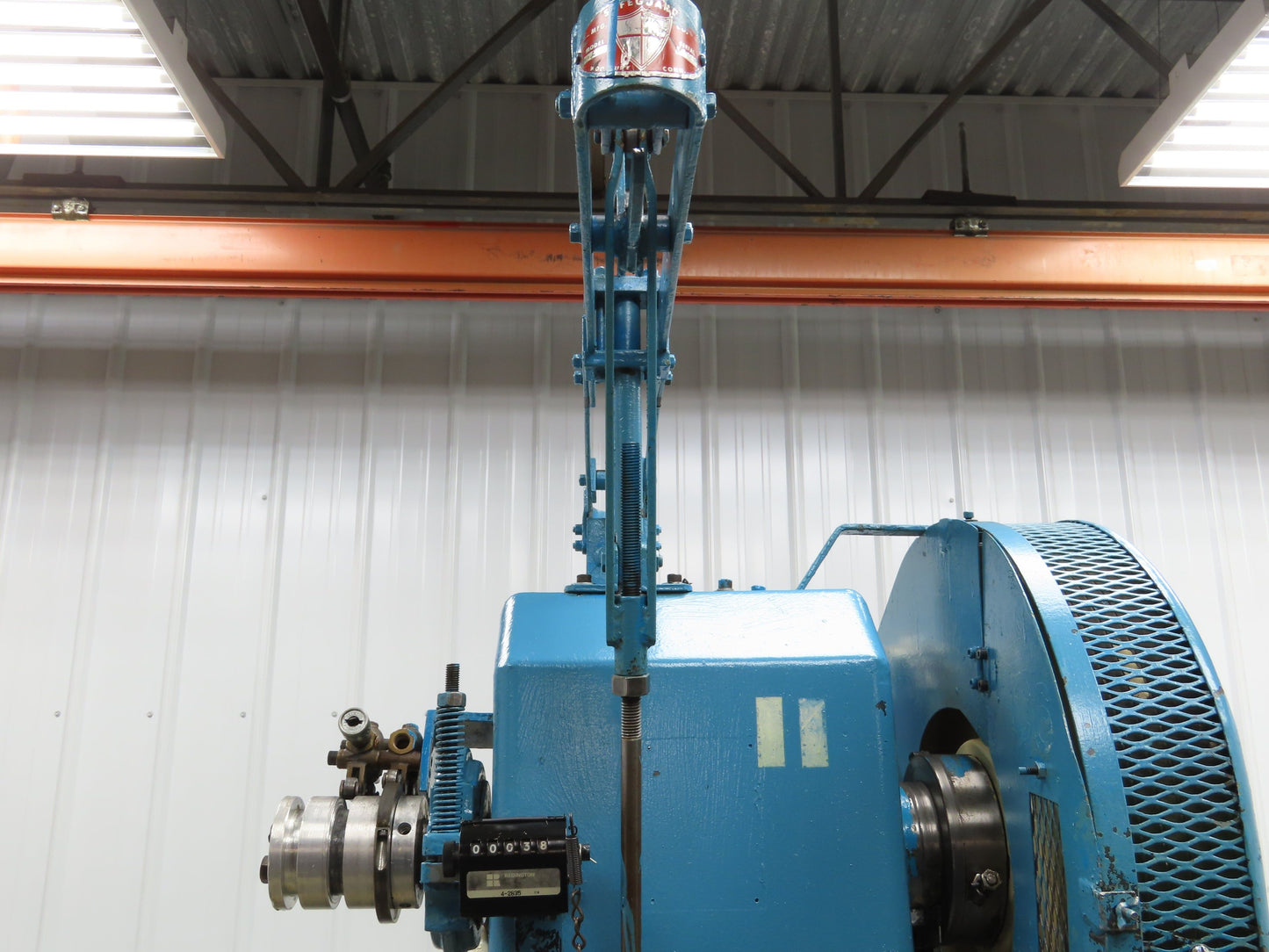

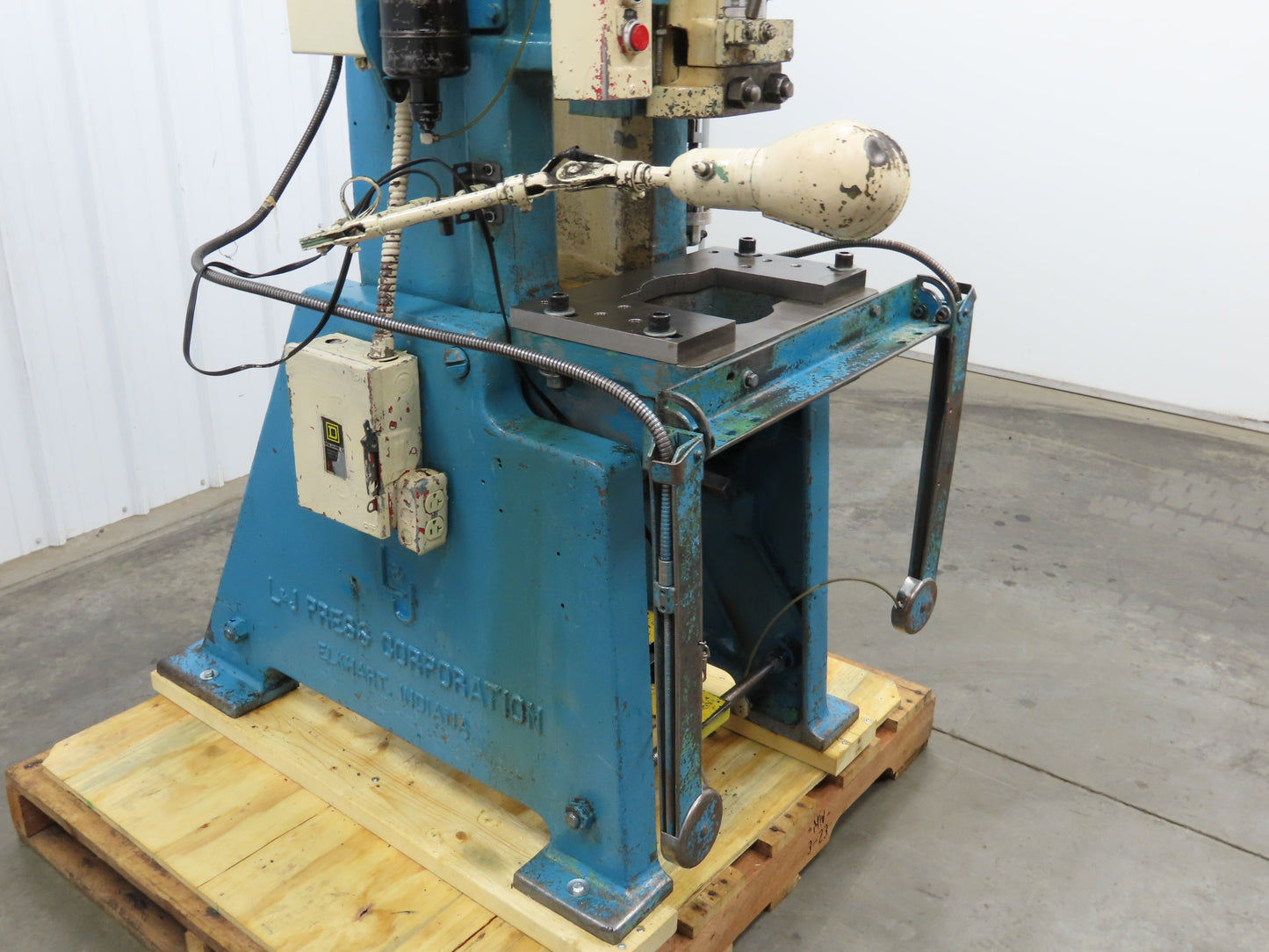

  • Has Safeguard safety controls. Pulls operator's hands out of the way.

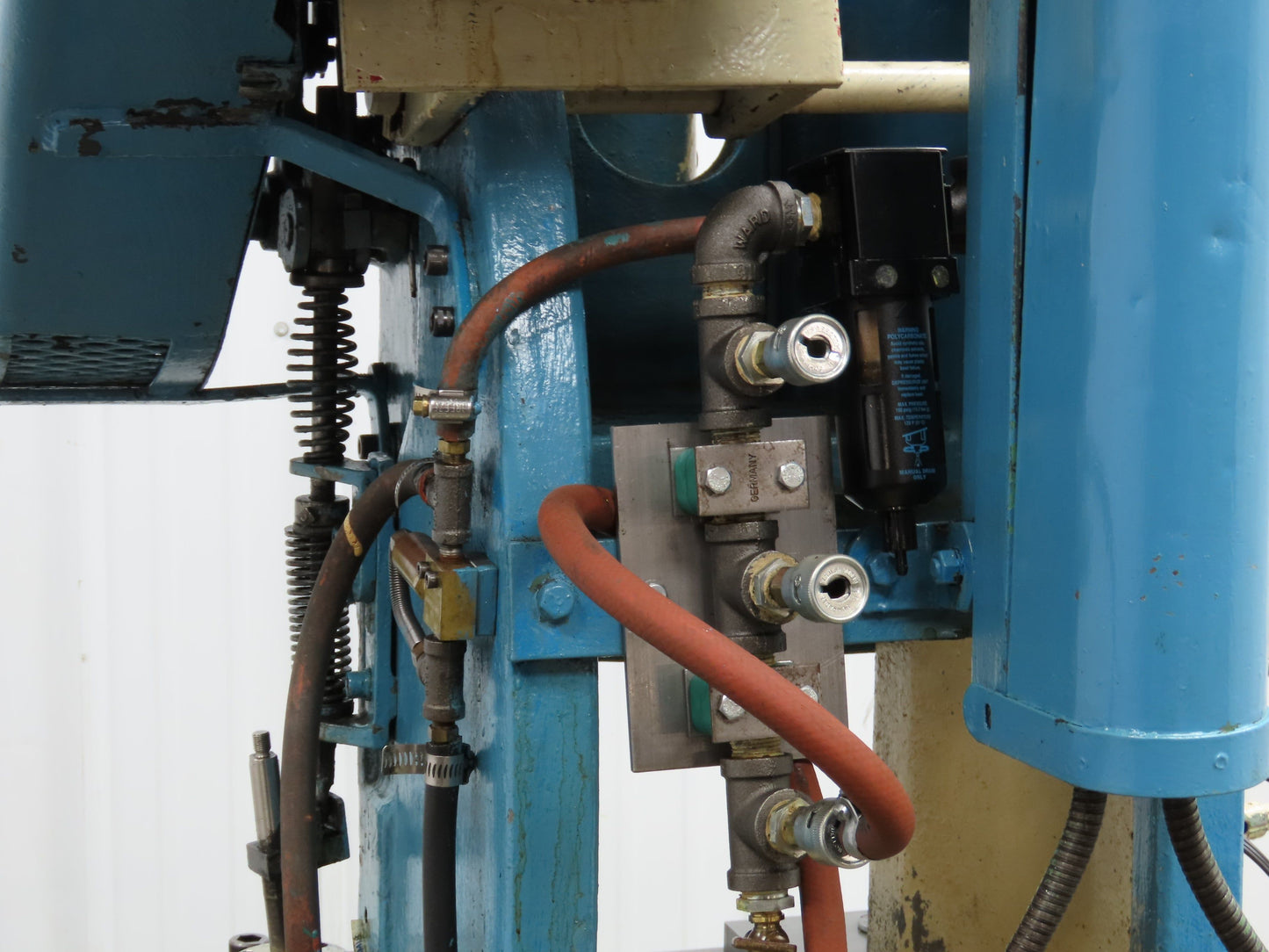

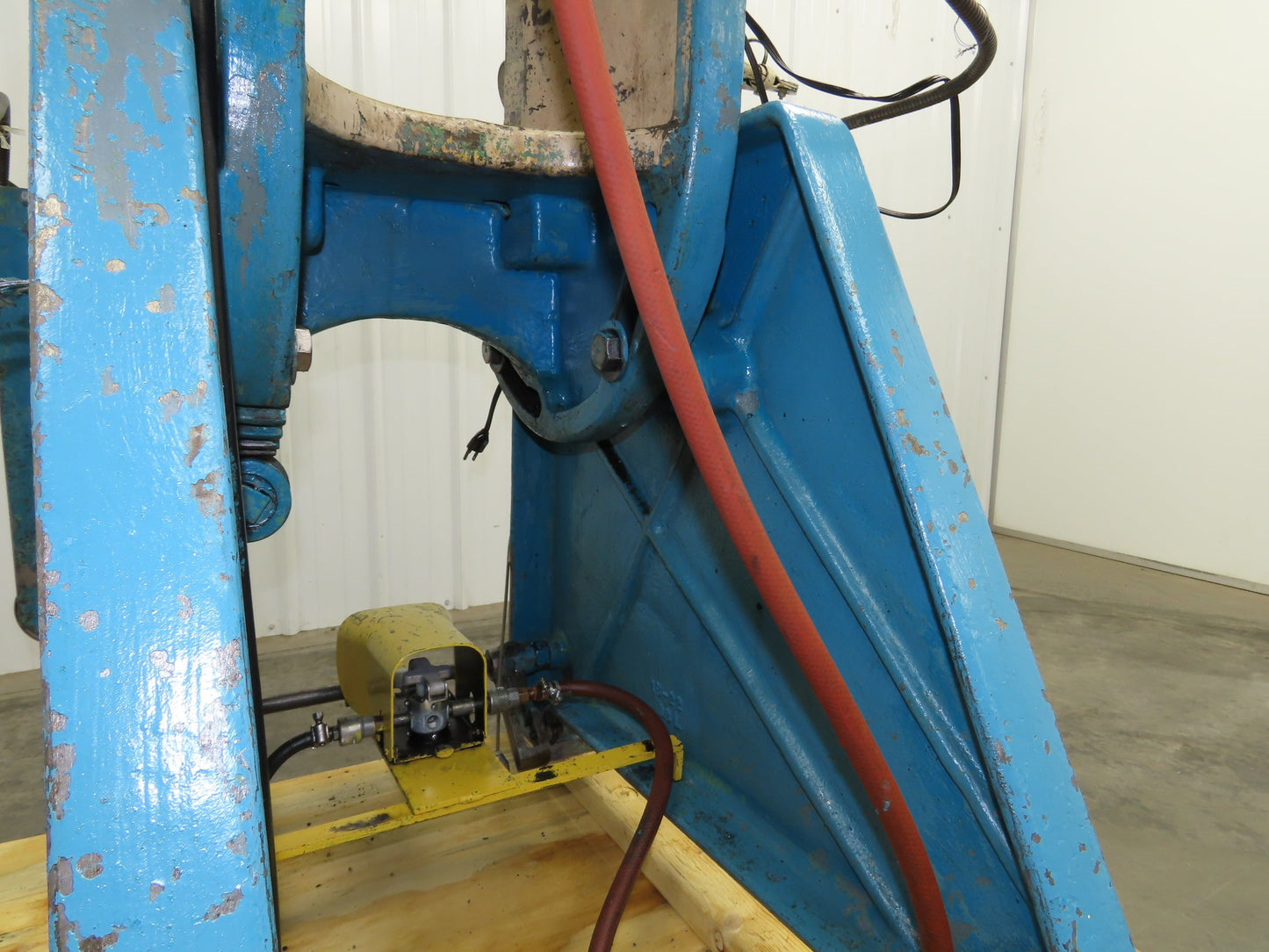

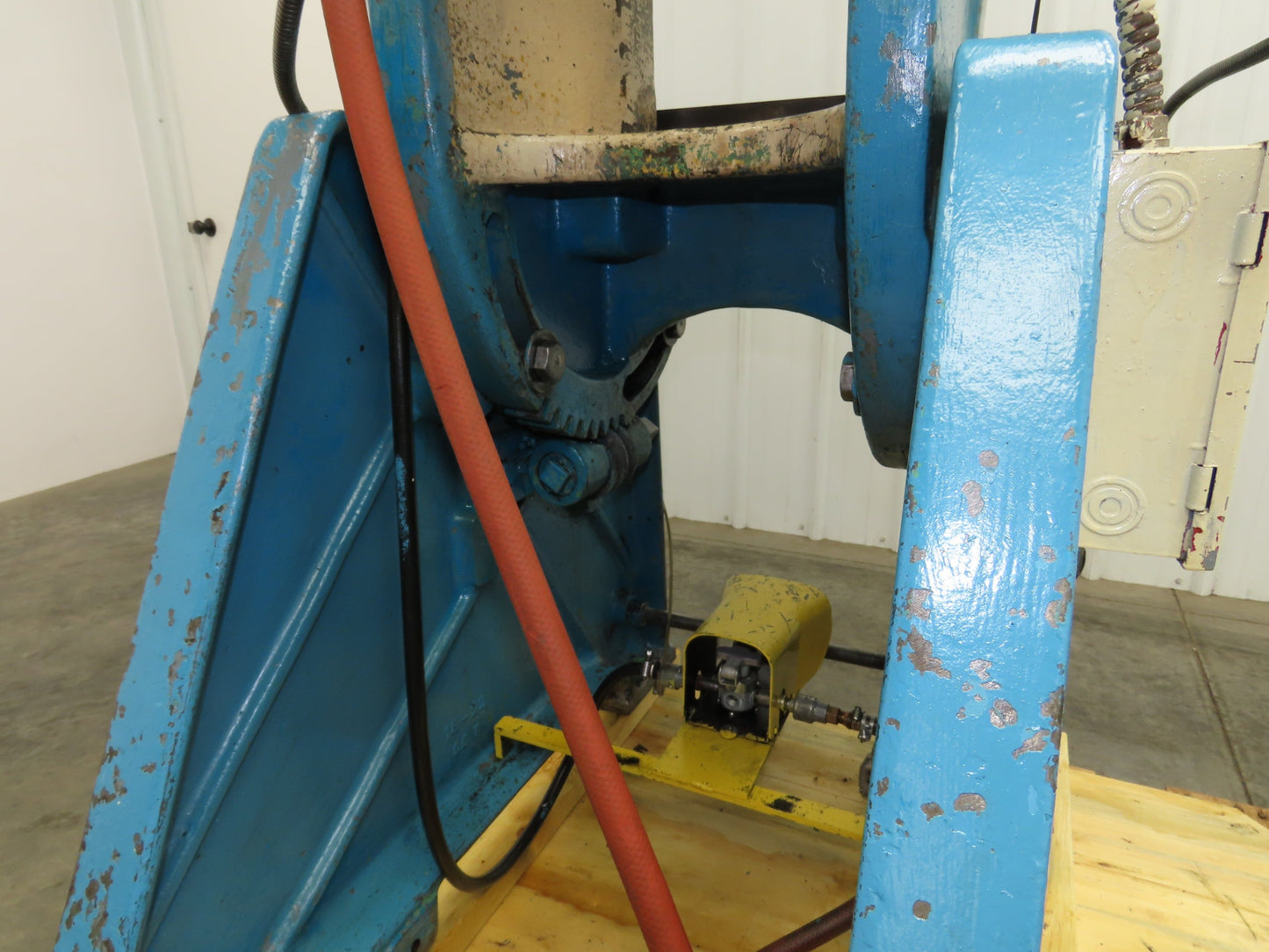

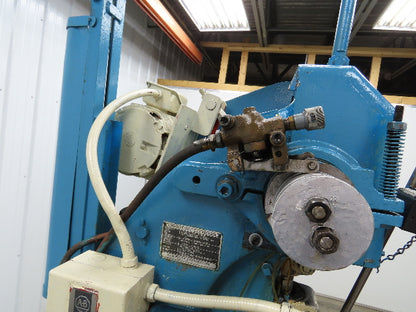

  • Pneumatic foot control.
