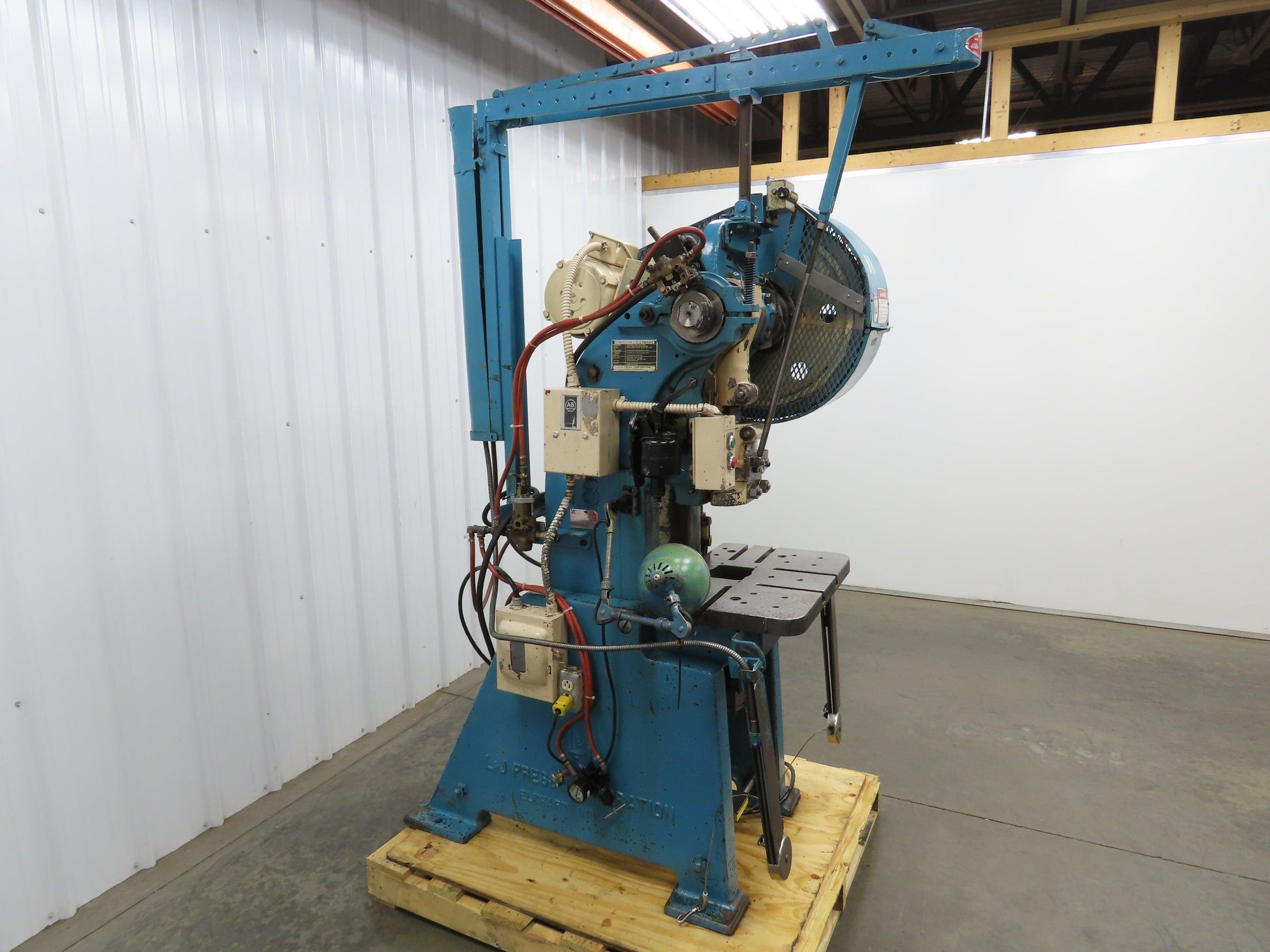

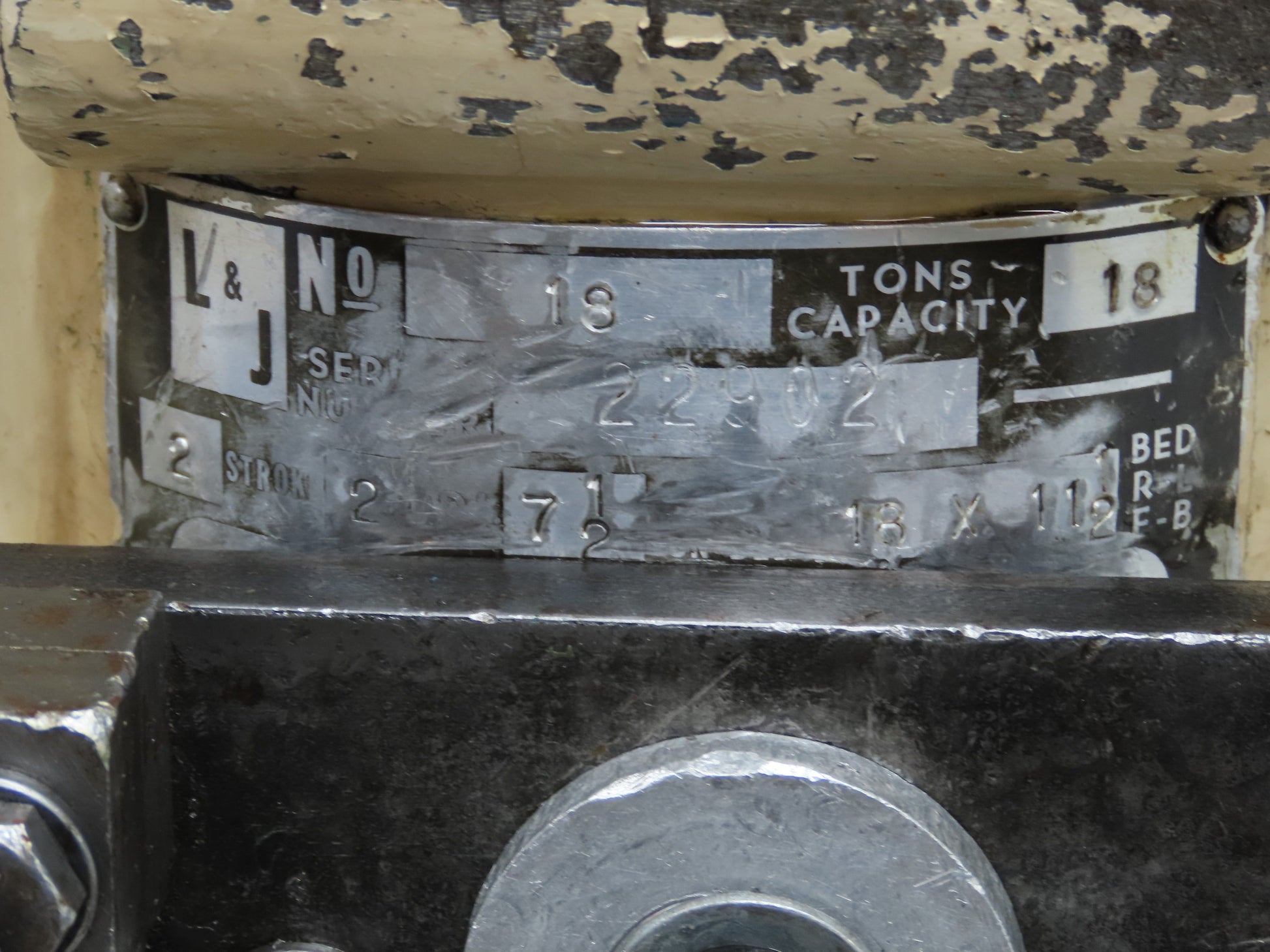

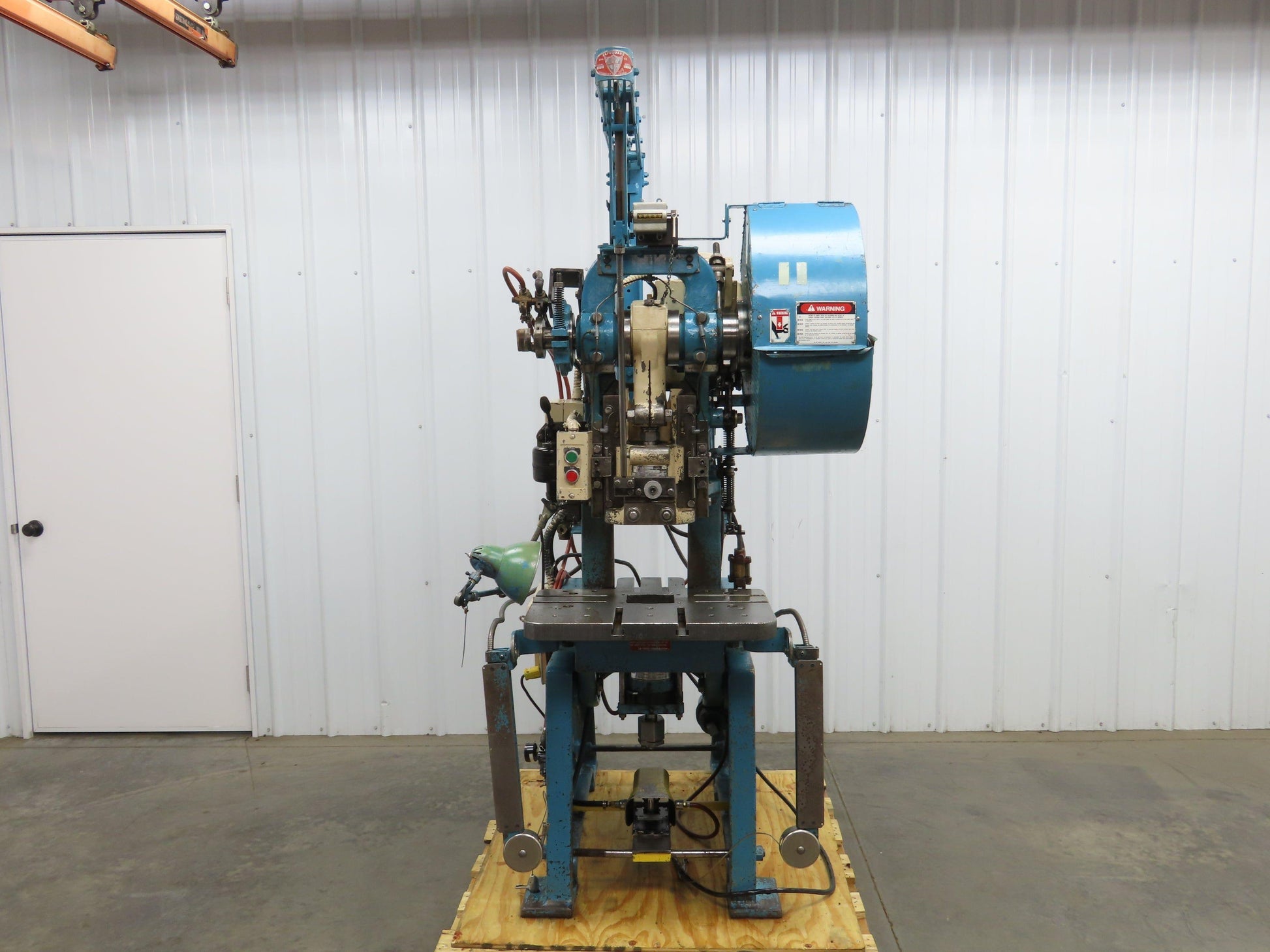

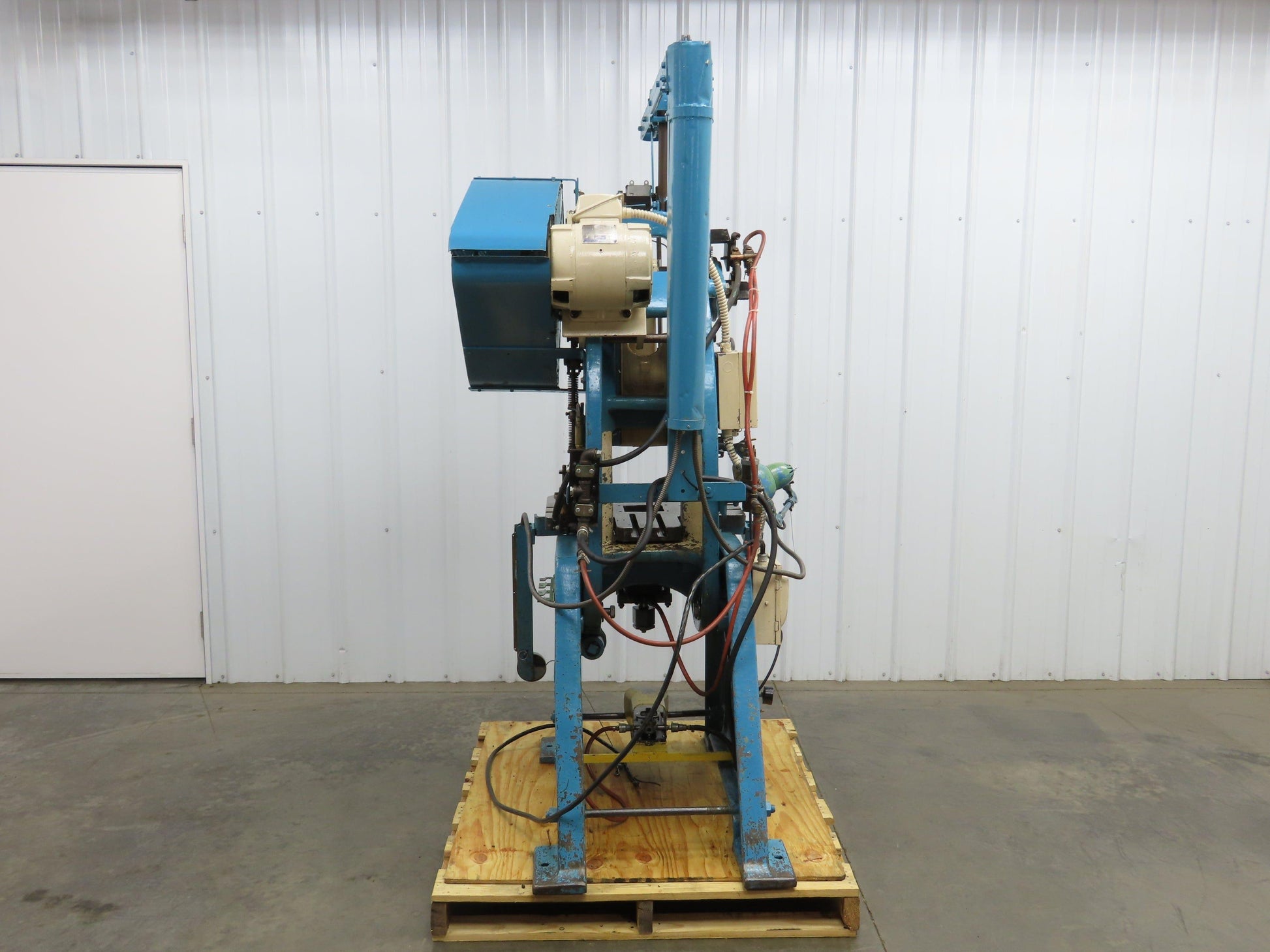

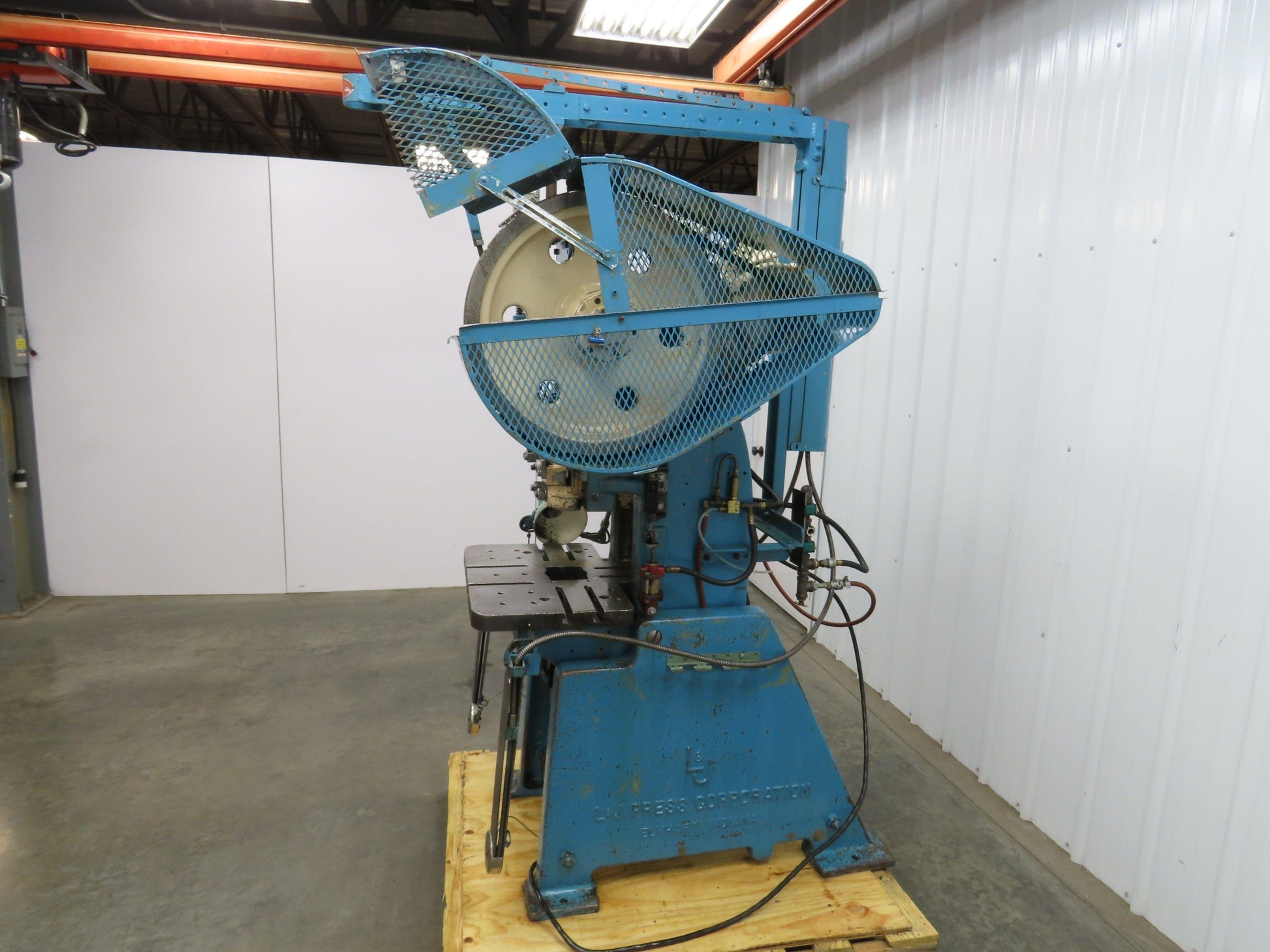

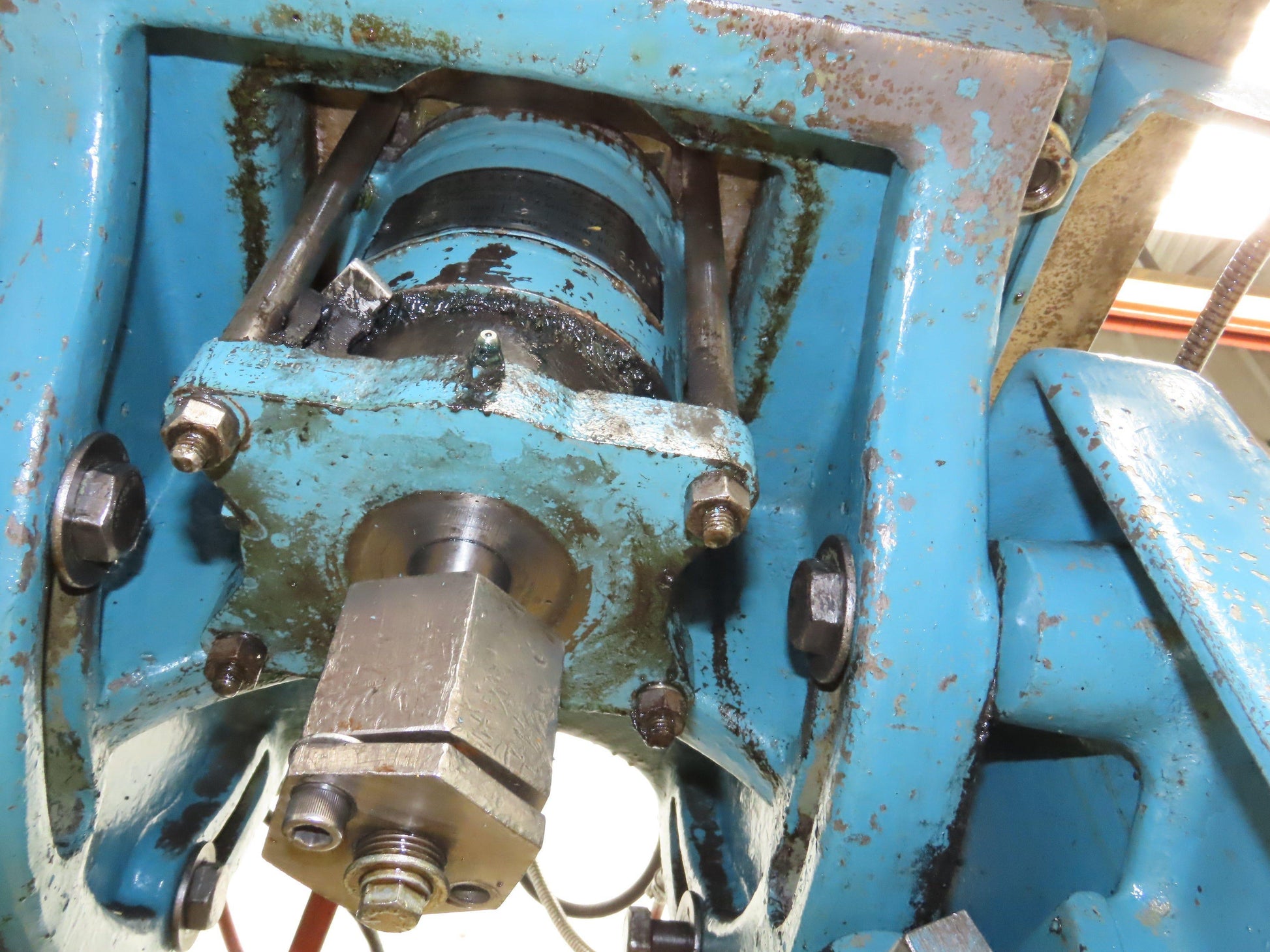

L&J No 18 Mechanical OBI Punch Press 18 Ton 2" Stroke 6" Throat 1.5Hp 3Ph

L&J No 18 Mechanical OBI Punch Press 18 Ton 2" Stroke 6" Throat 1.5Hp 3Ph

SKU #267979

Your Price
$2,842.87
$3,324.99 $2,842.87
Sale Sold out
Shipping calculated at checkout.

1 in stock

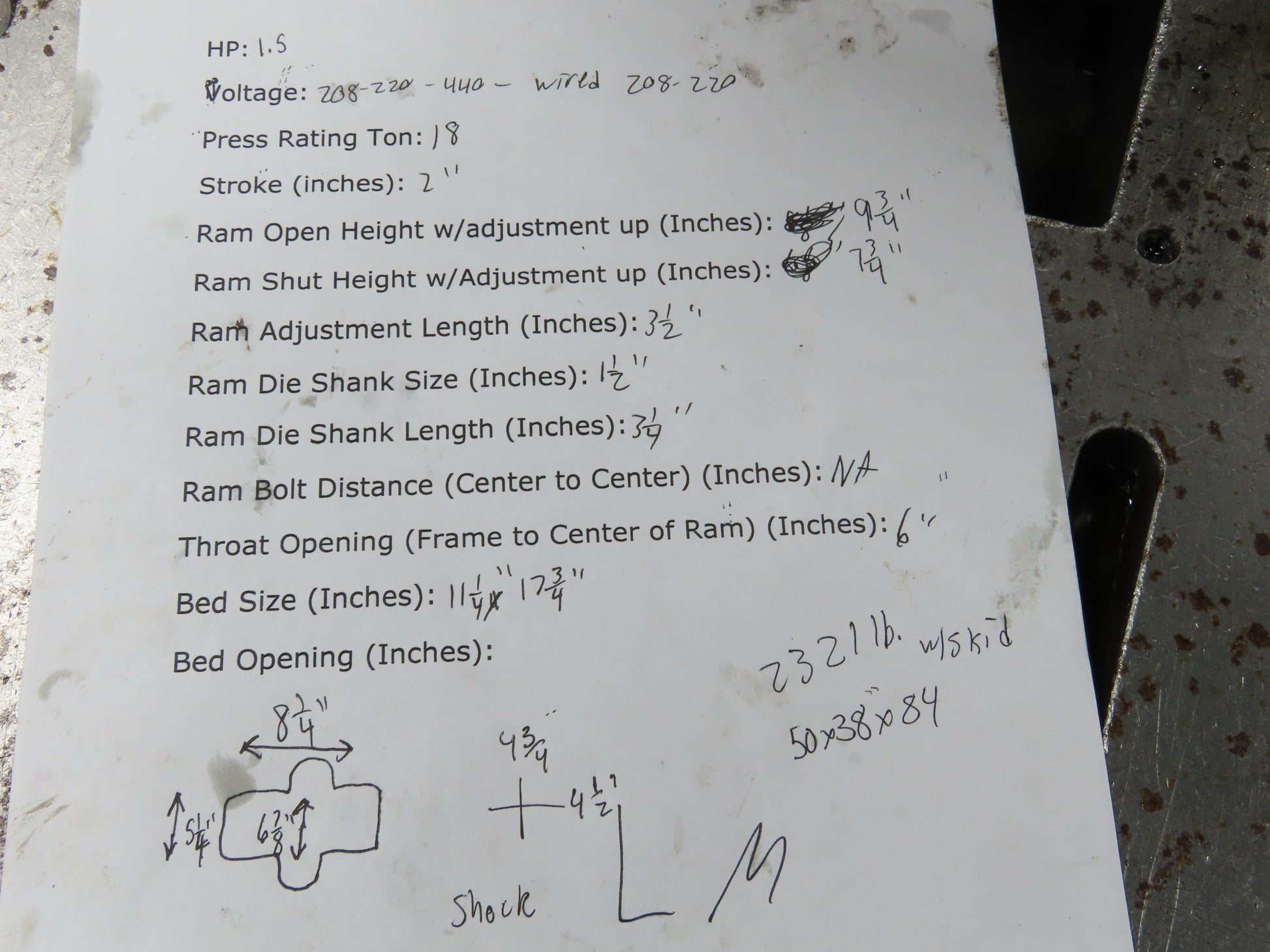

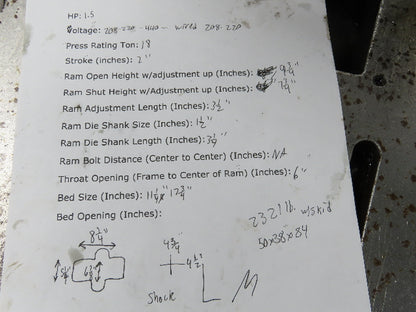

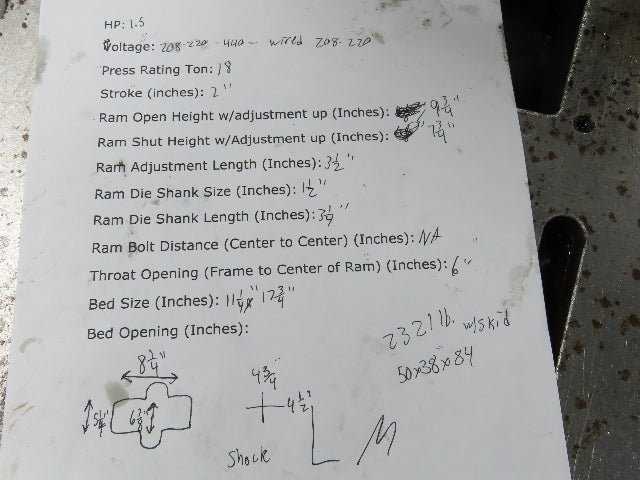

  • HP: 1.5
  • Voltage: 208-220/440V Wired for 208
  • Press Rating Ton: 18
  • Stroke (inches): 2"
  • Ram Open Height w/adjustment up (Inches): 9-3/4"
  • Ram Shut Height w/Adjustment up (Inches): 7-3/4"

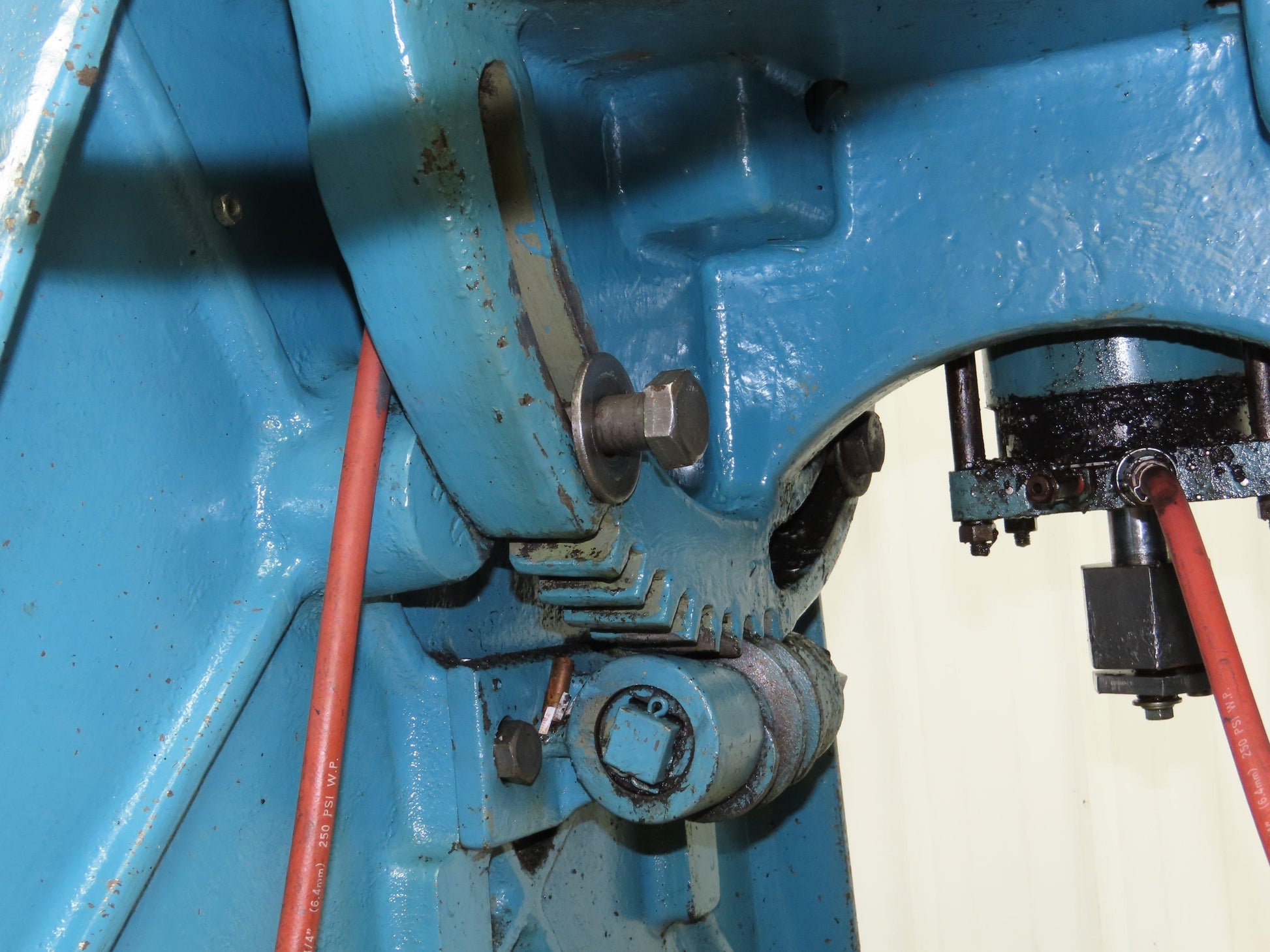

  • Ram Adjustment Length (Inches): 3-1/2"

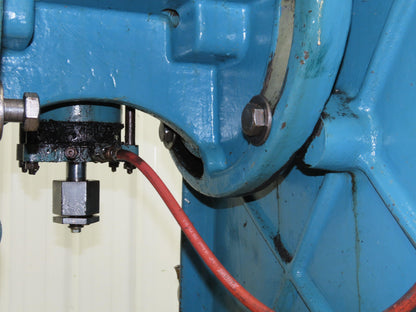

  • Ram Die Shank Size (Inches): 1-1/2"
  • Ram Die Shank Length (Inches): 3-1/4"
  • Ram Bolt Distance (Center to Center) (Inches): 3-1/4"
  • Throat Opening (Frame to Center of Ram) (Inches): 6
  • Bed Size (Inches): 11-1/4x17-3/4"

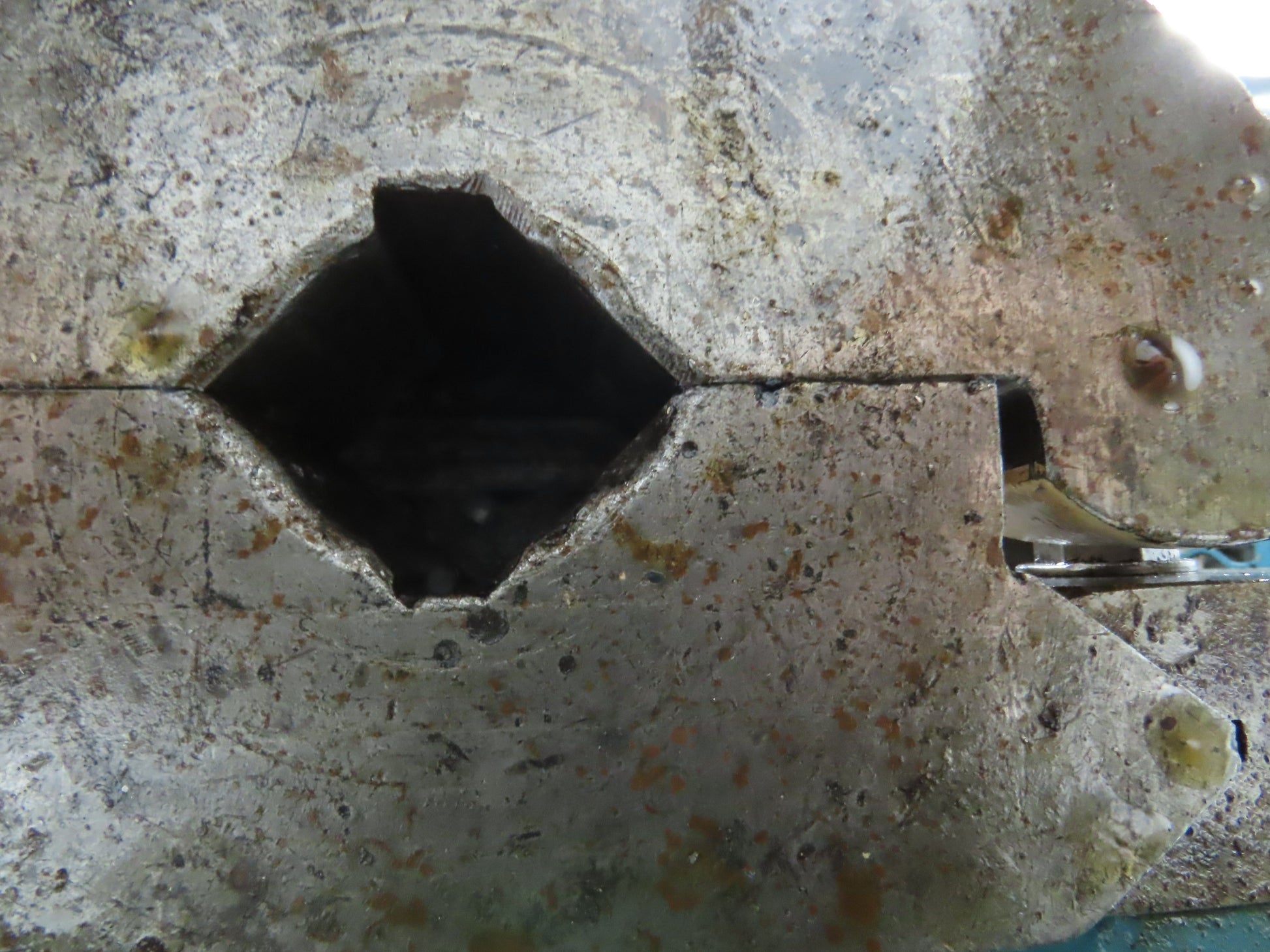

  • Bed Opening (Inches): 8-1/4"x6-7/8"
  • Used, in Good Working Condition, Tested OK.
  • Tested in our shop.
  • Wired for 208V 3 phase

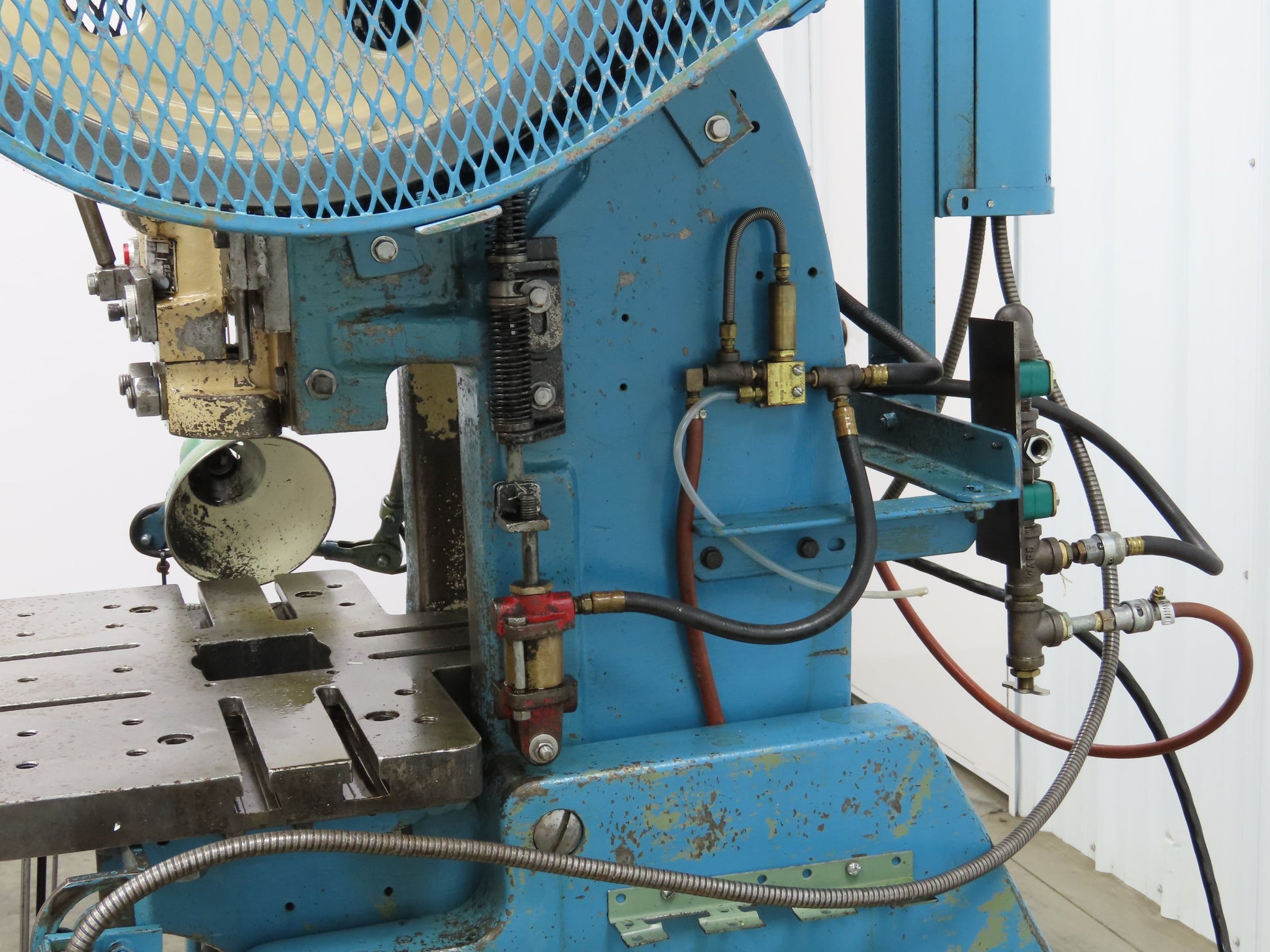

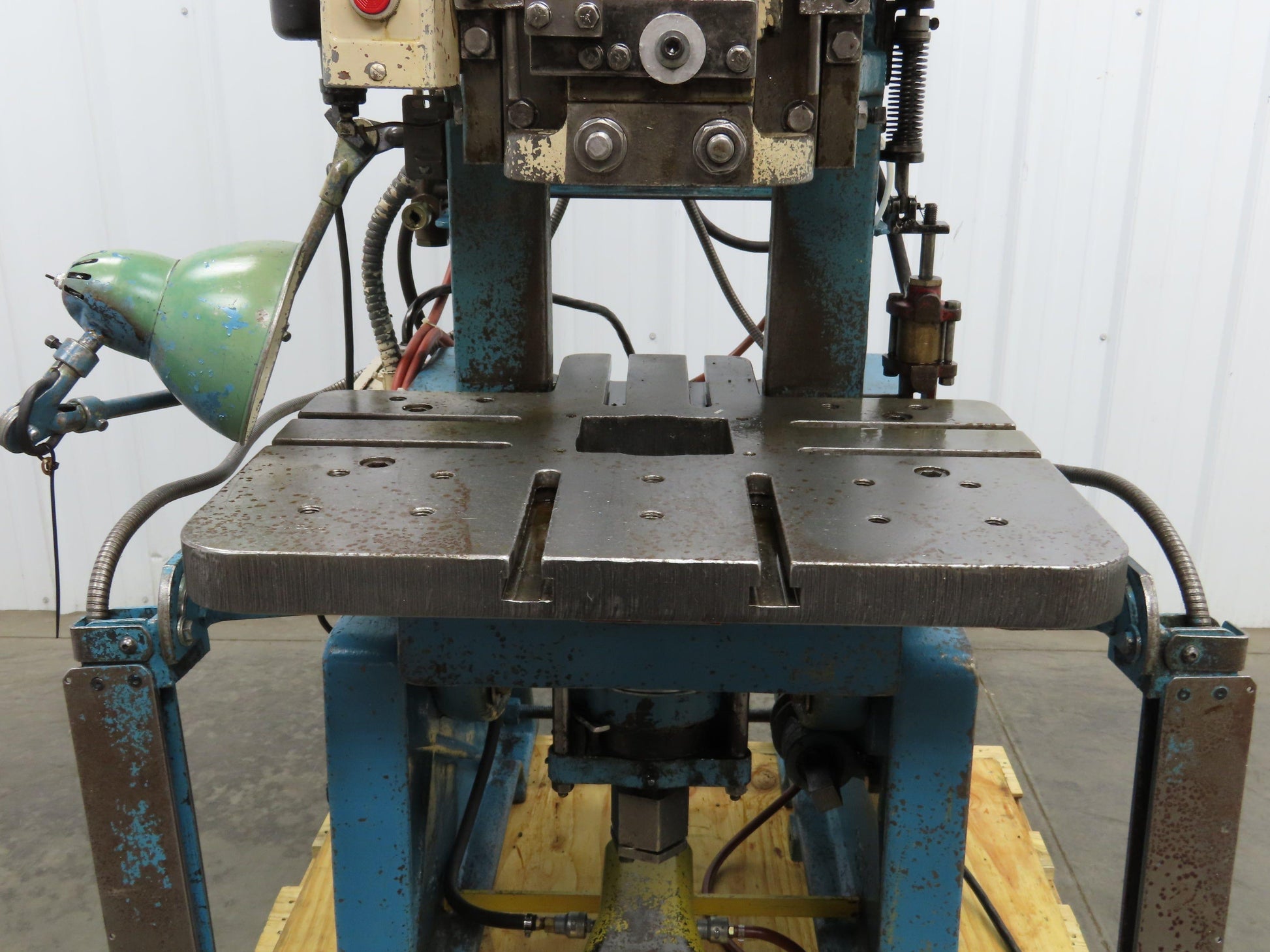

  • Has aftermarket plate 1-5/8" thick with T slot. Center hole is 4-3/4"x4-1/2".

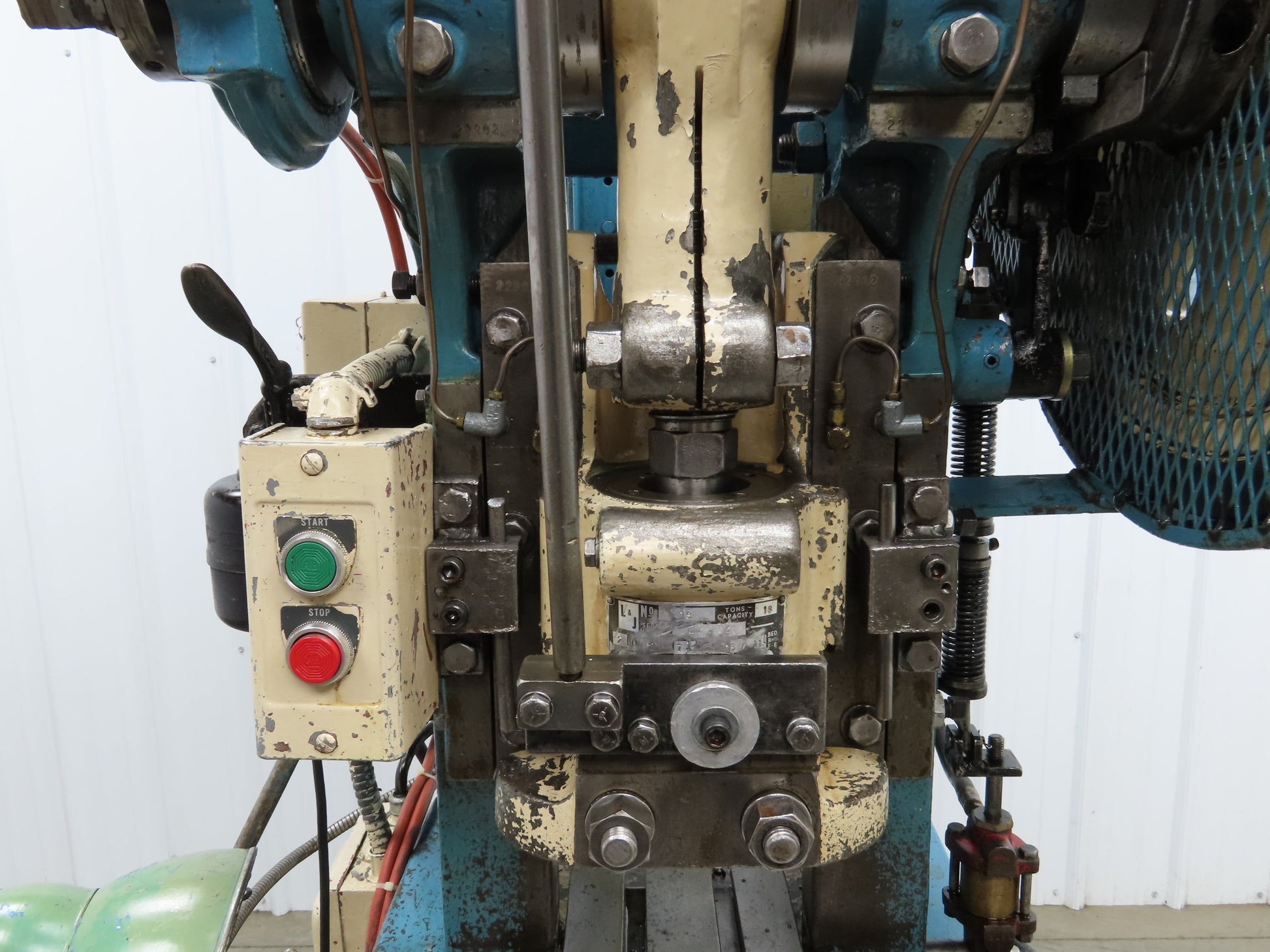

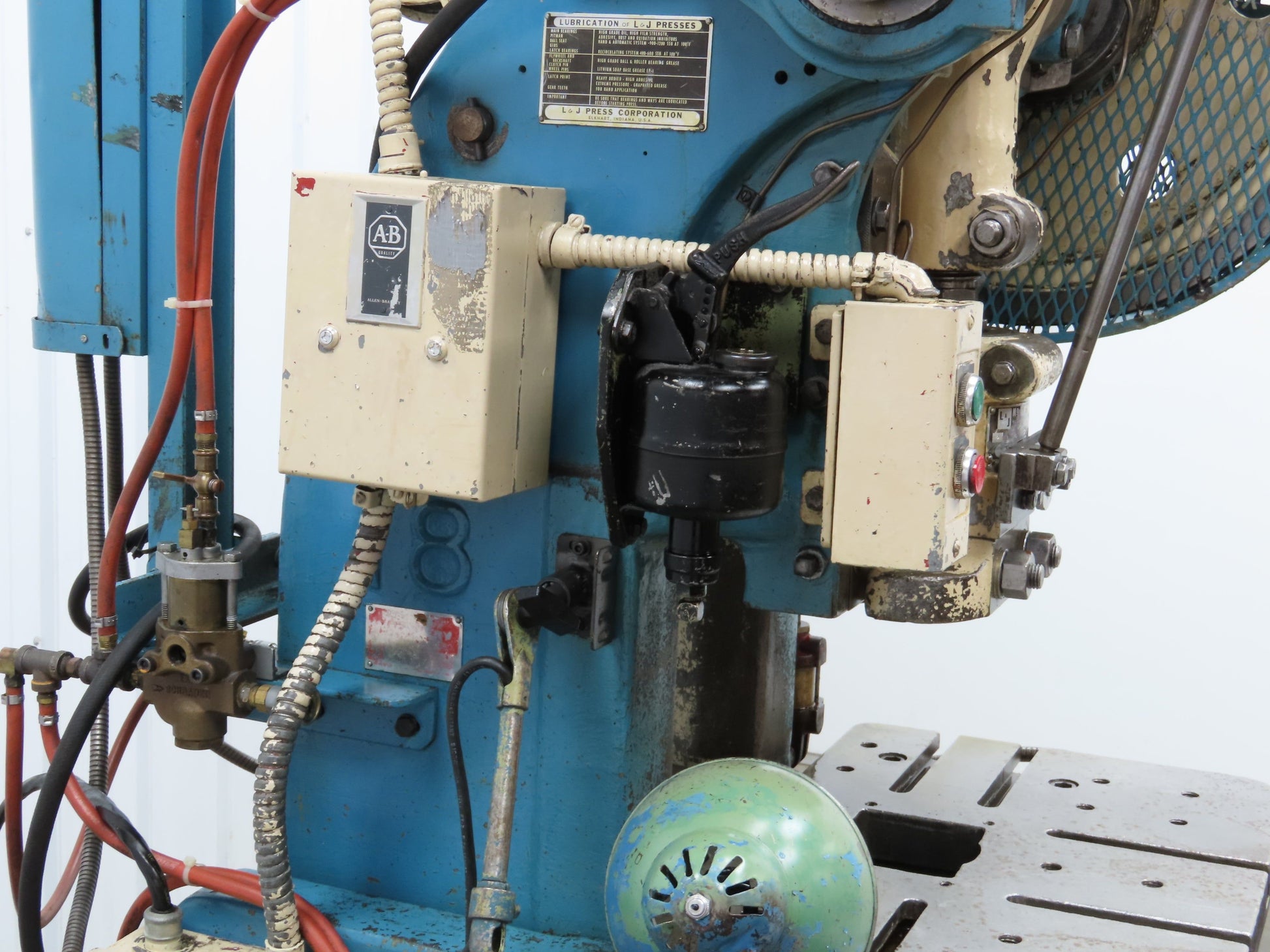

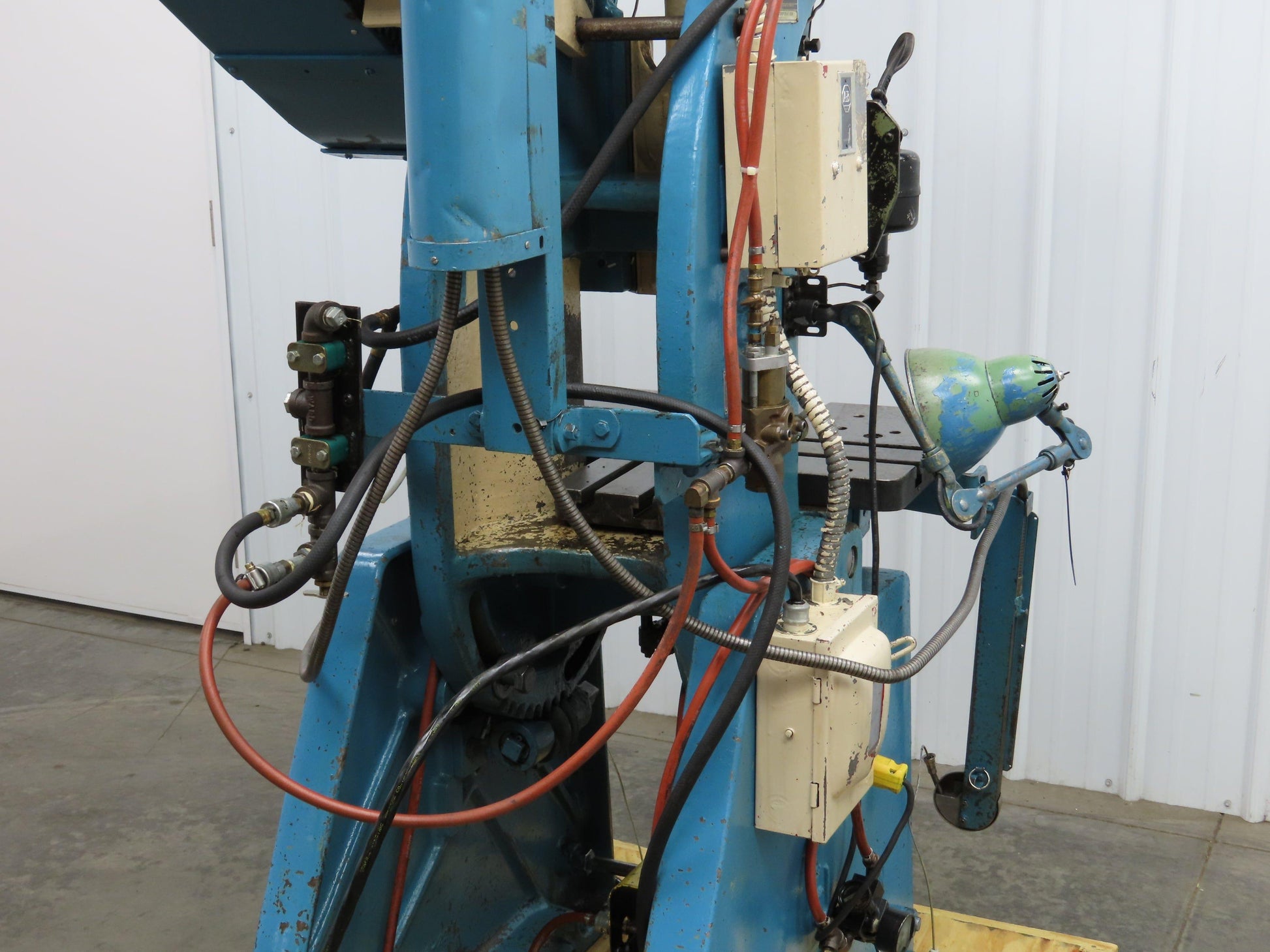

  • Has Safeguard safety controls. Pulls operator's hands out of the way.

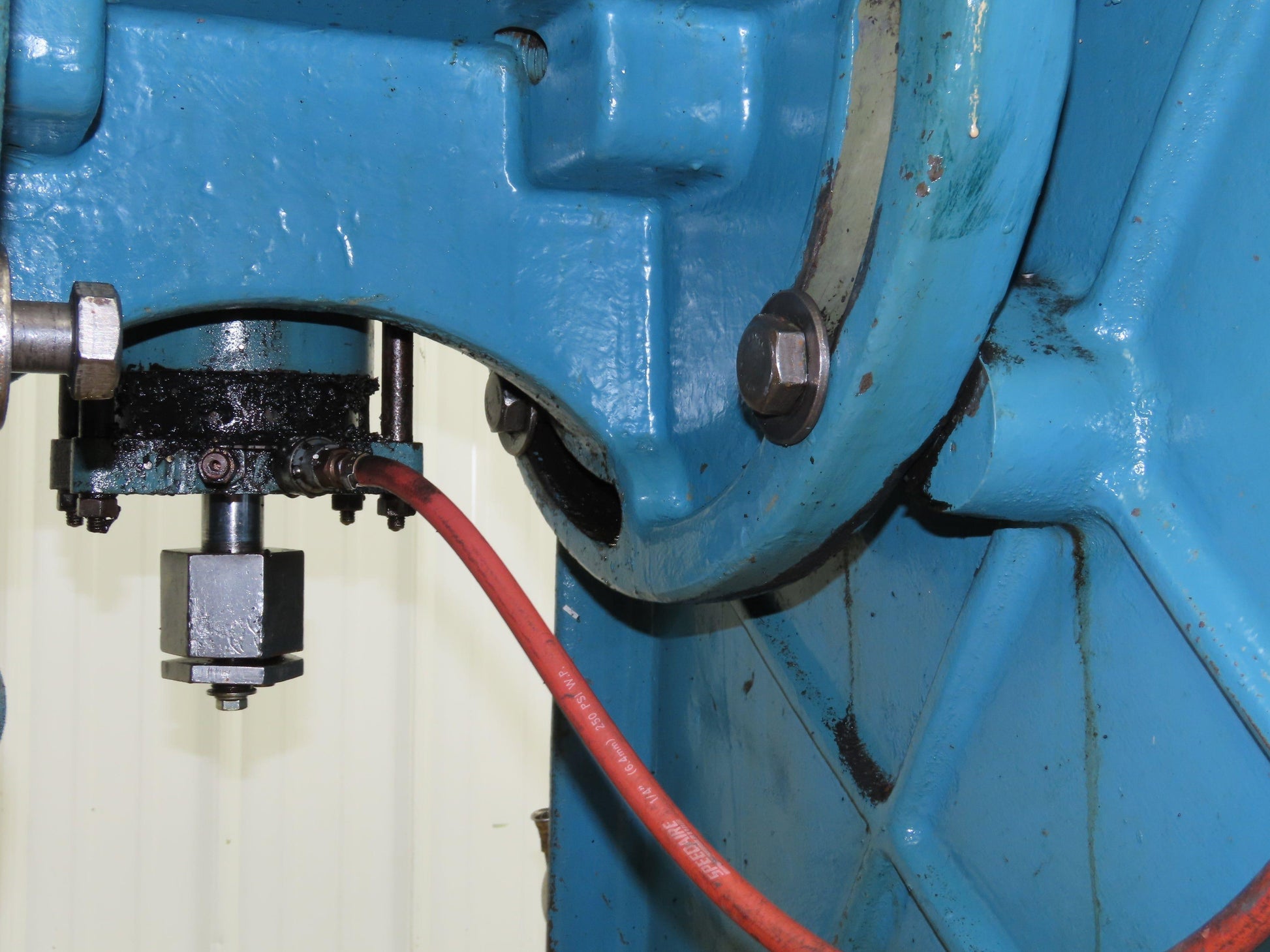

  • This unit has die cushion. Not sure what it does other than absorb the shock.
