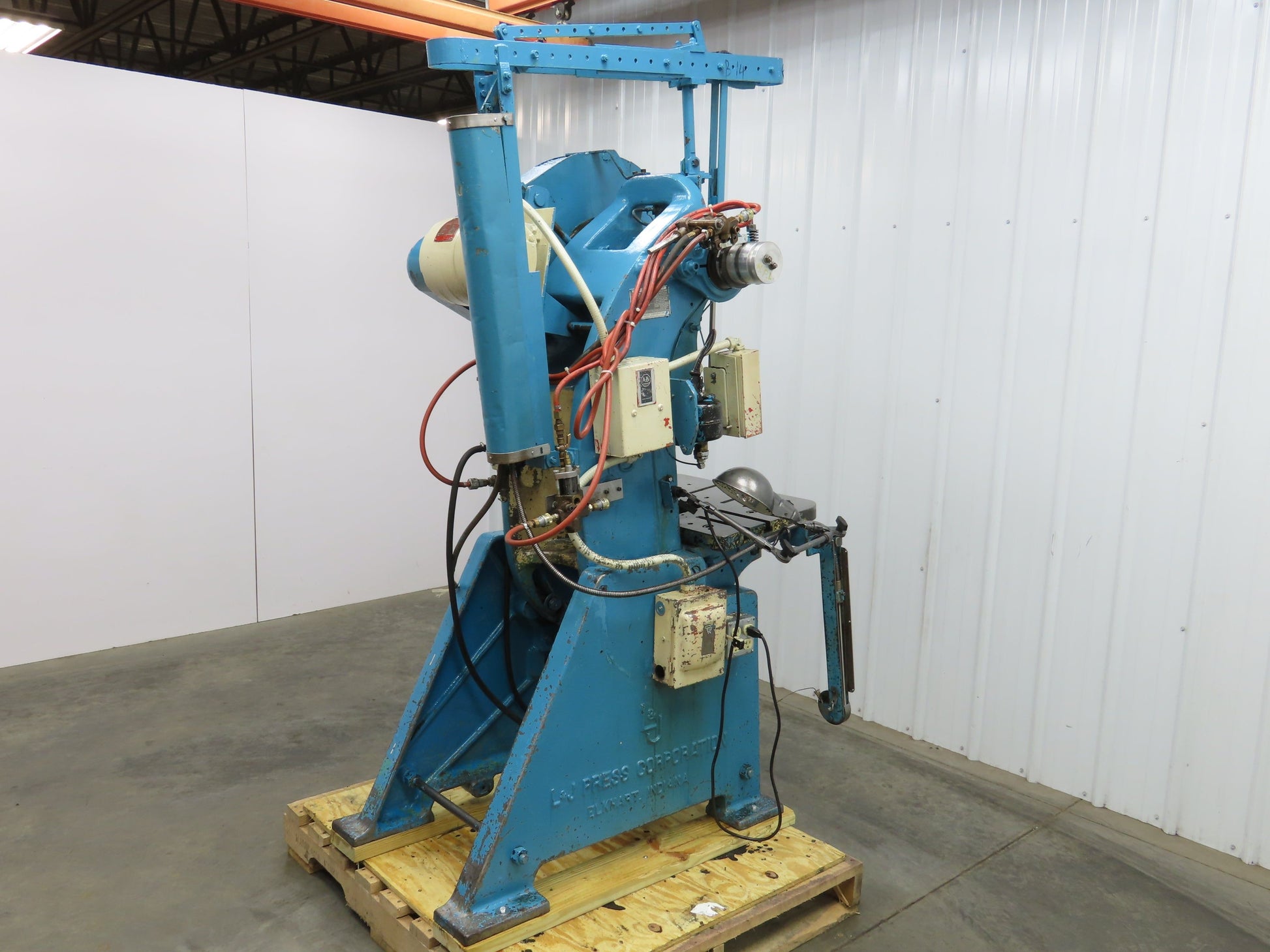

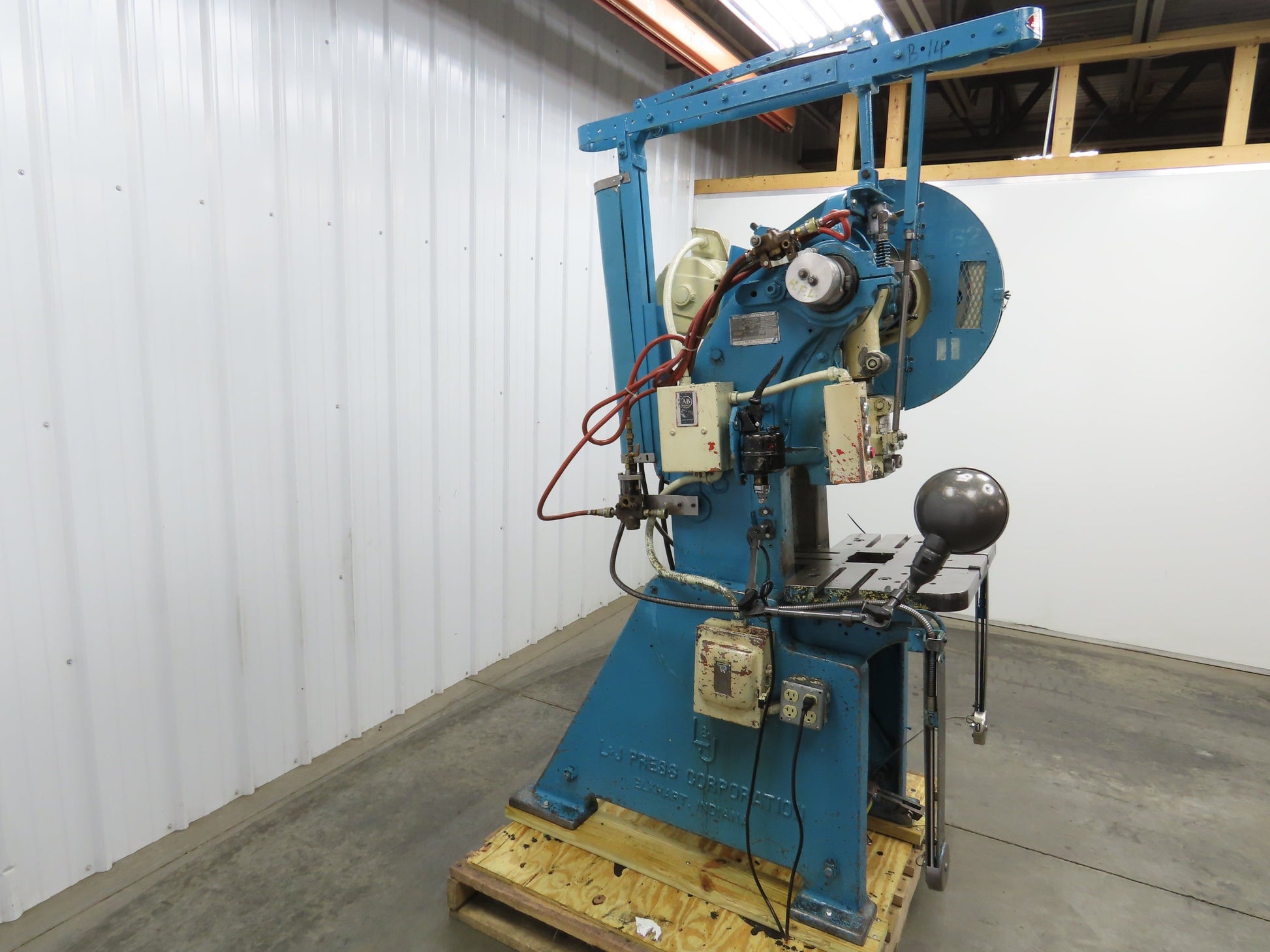

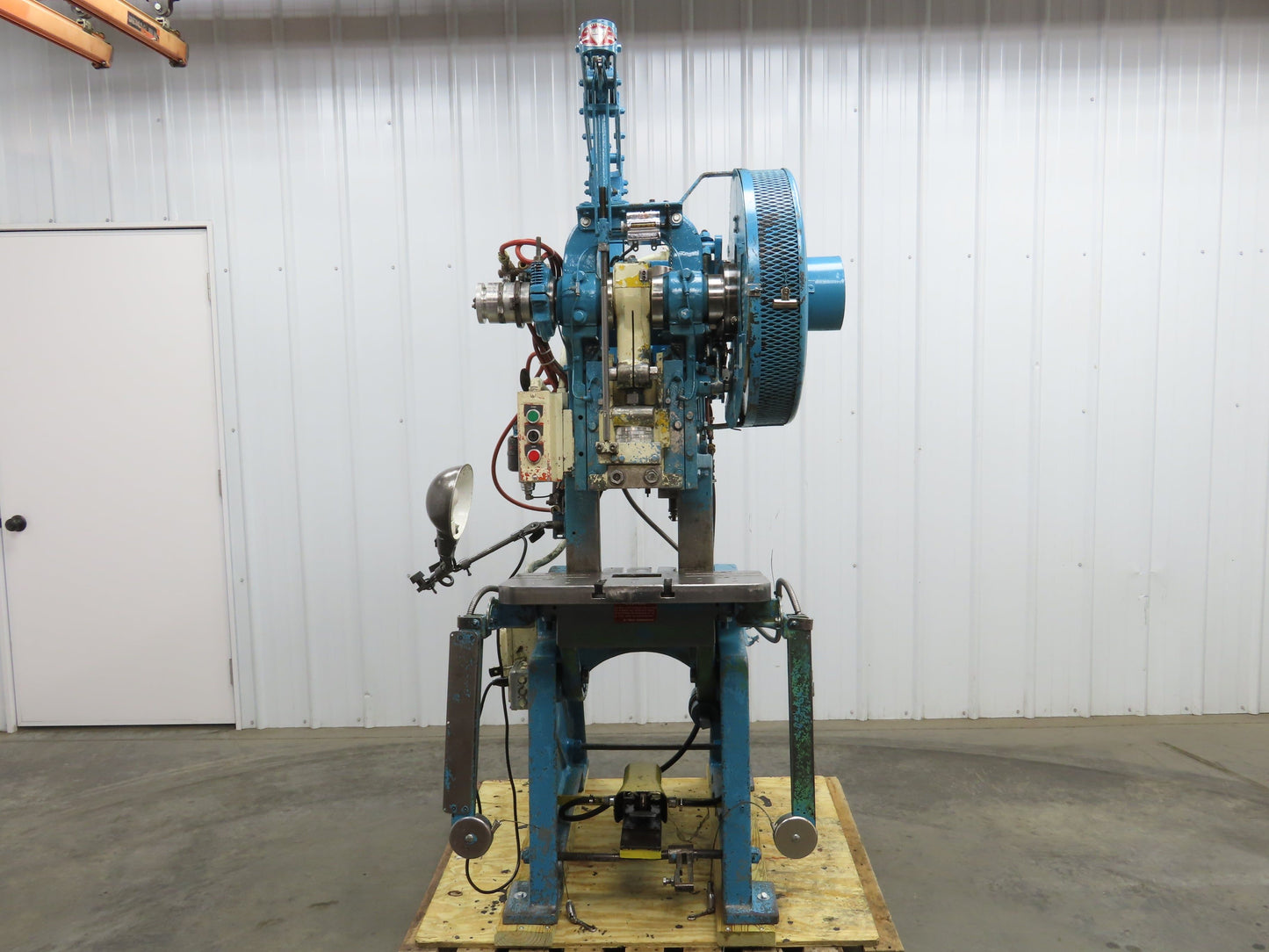

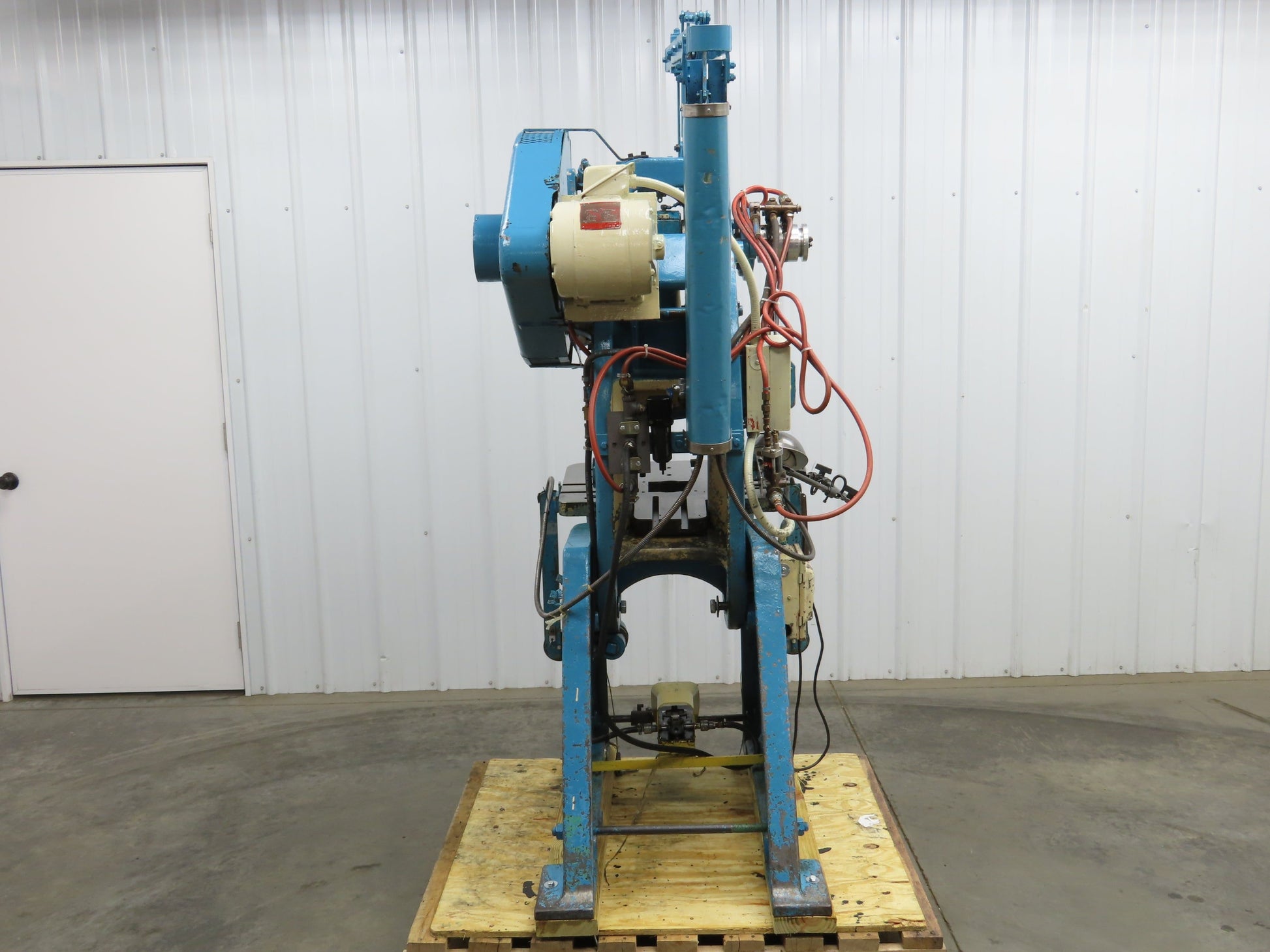

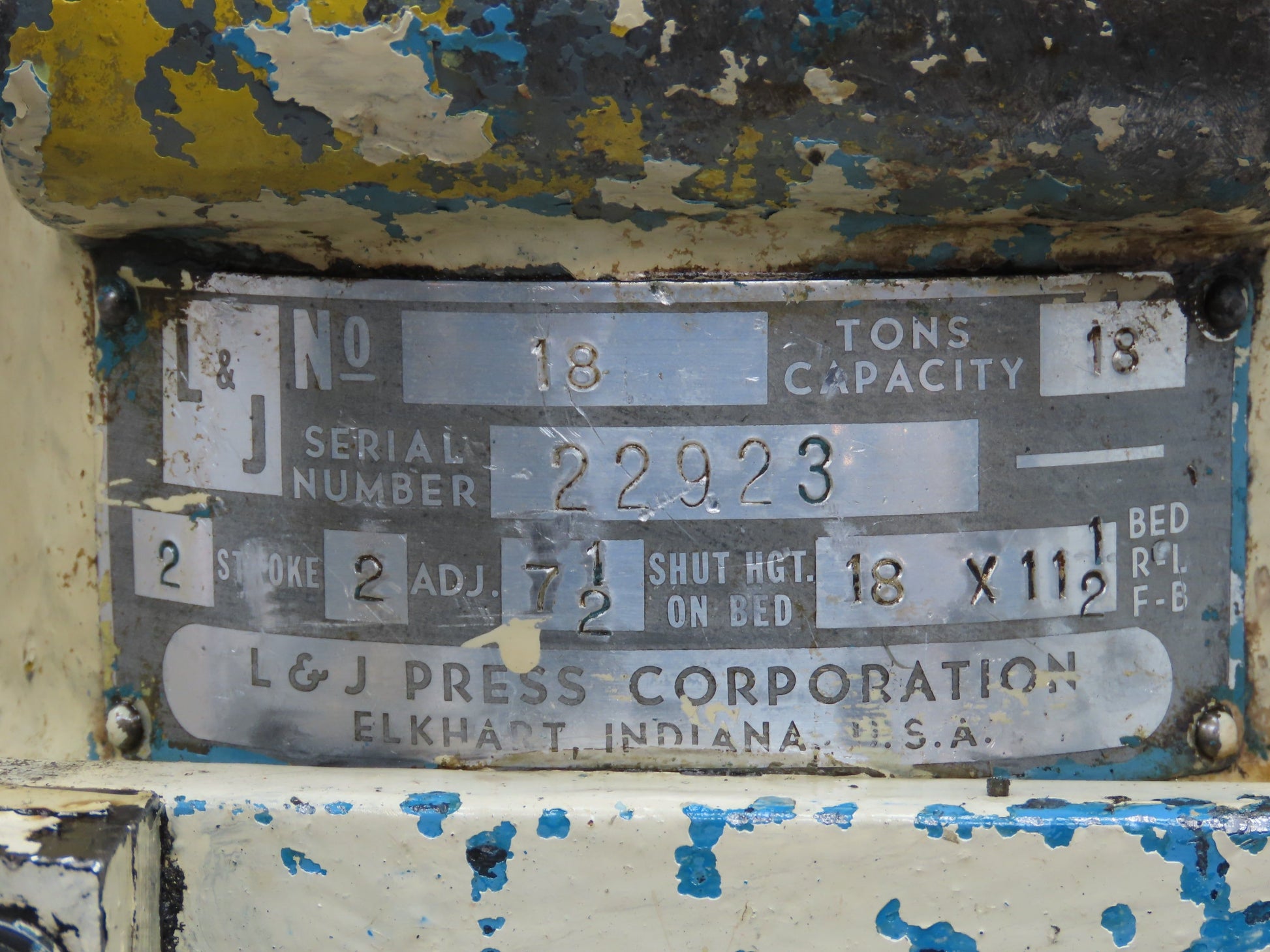

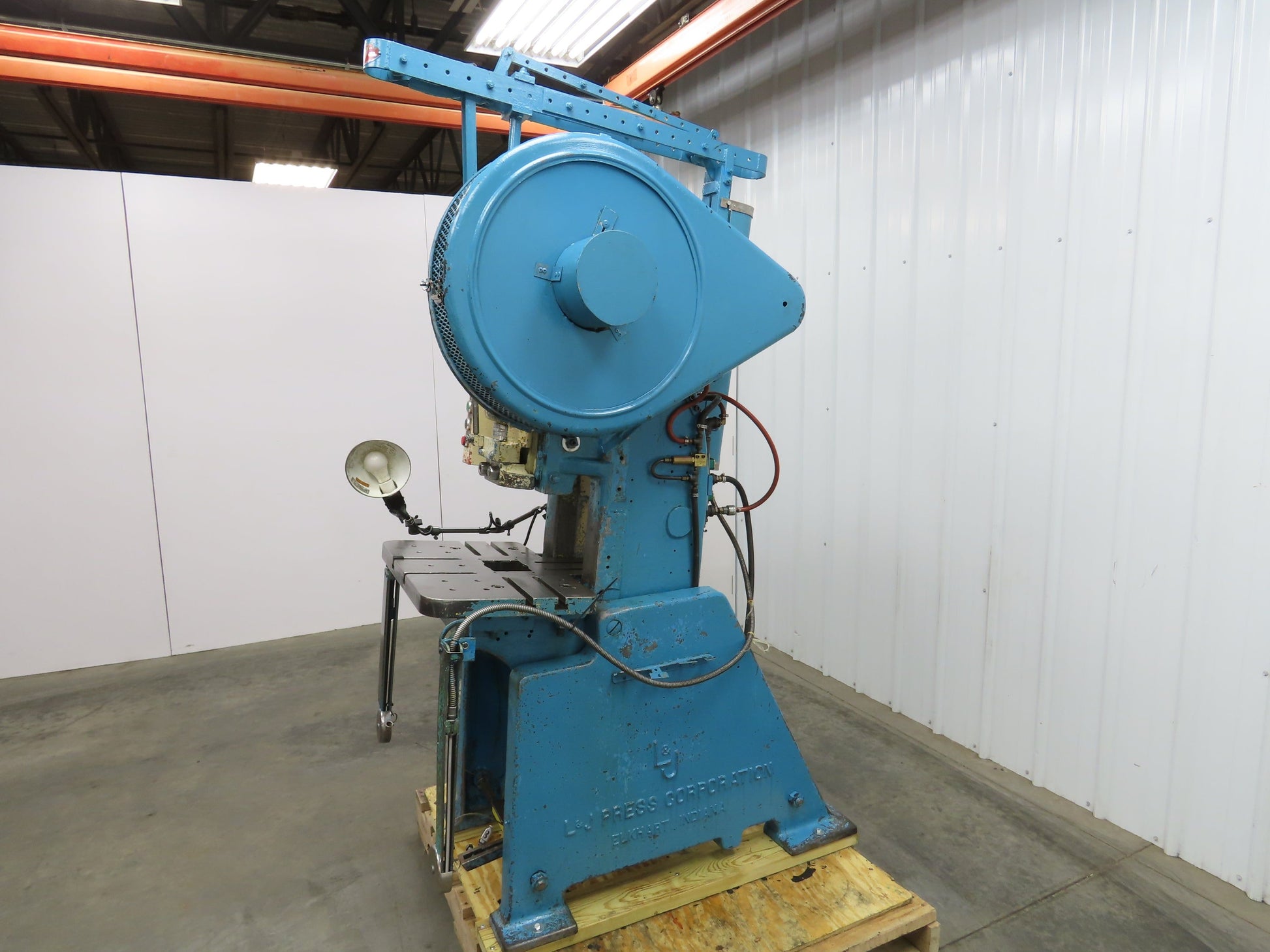

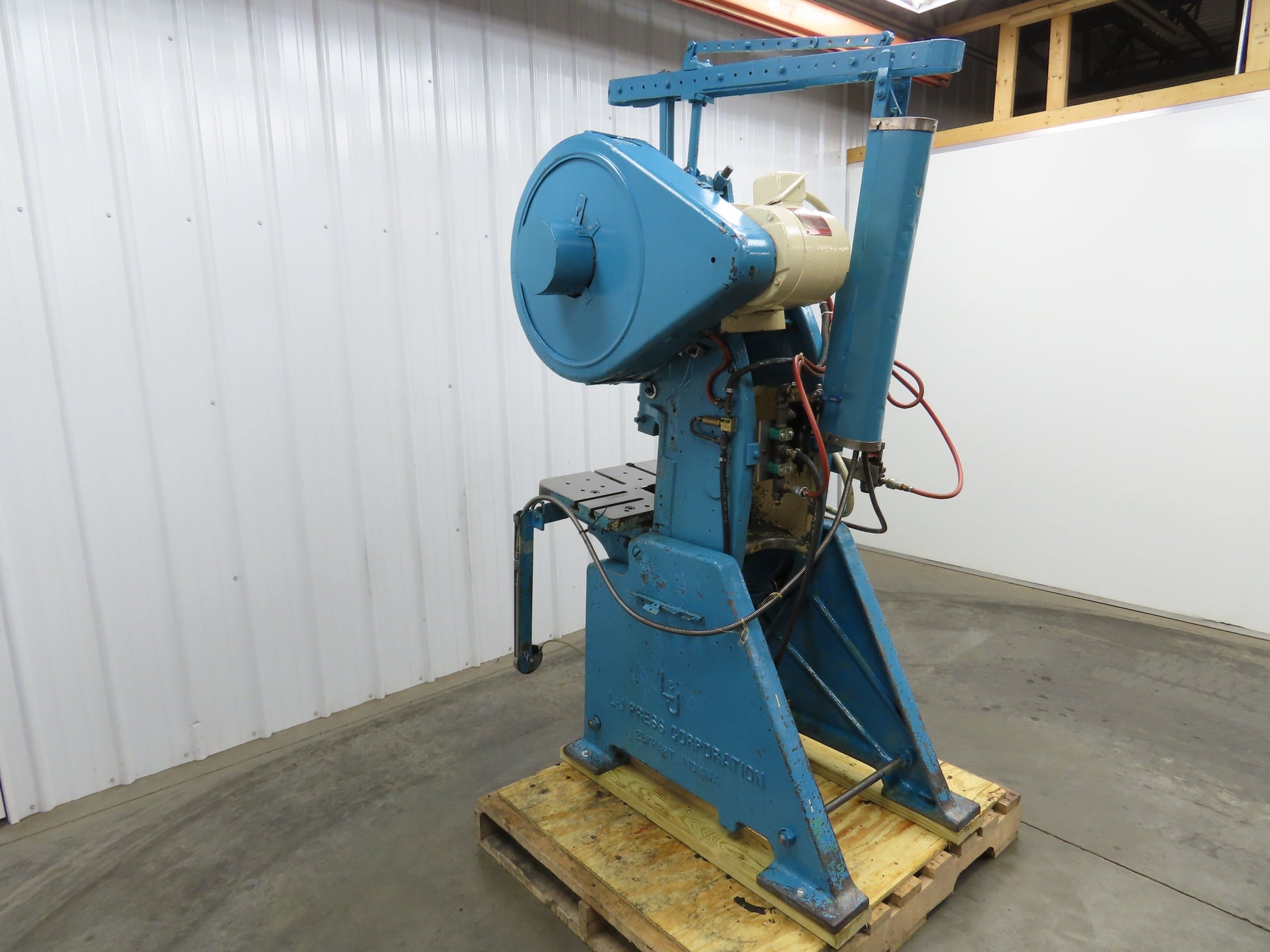

L&J No 18 Mechanical OBI Punch Press 18 Ton 2" Stroke 6" Throat 1.5Hp 3Ph

L&J No 18 Mechanical OBI Punch Press 18 Ton 2" Stroke 6" Throat 1.5Hp 3Ph

SKU #268254

Product Condition: Used

Your Price
$2,304.22
$2,694.99 $2,304.22
Sale Sold out
Shipping calculated at checkout.

1 in stock

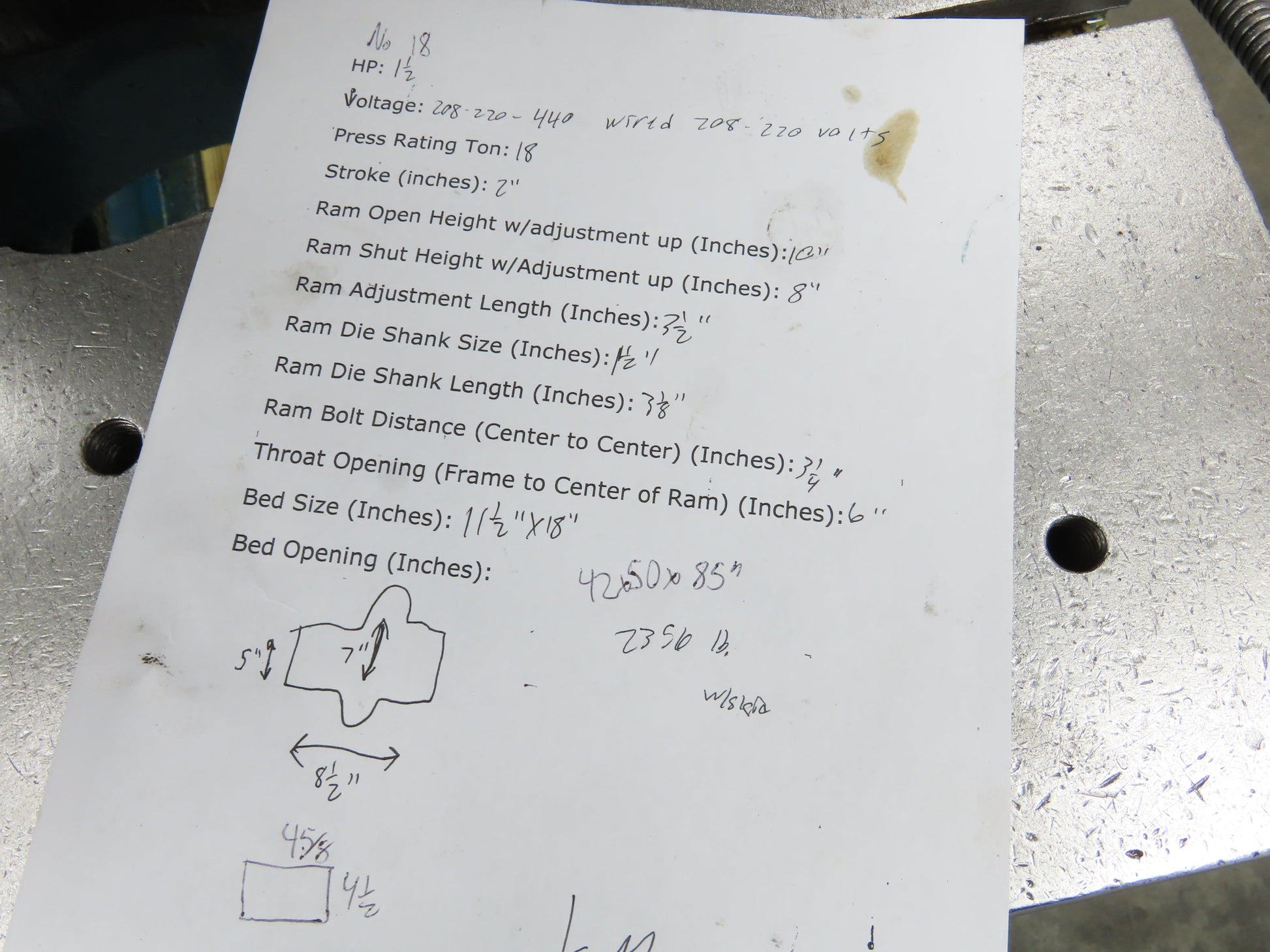

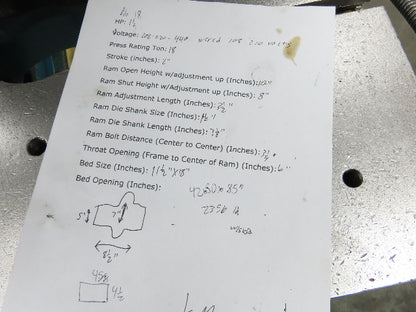

  • HP: 1-1/2
  • Voltage: 208-220/440V 3Ph
  • Press Rating Ton: 18
  • Stroke (inches): 2
  • Ram Open Height w/adjustment up (Inches): 10
  • Ram Shut Height w/Adjustment up (Inches): 8
  • Ram Adjustment Length (Inches): 3-1/2
  • Ram Die Shank Size (Inches): 1-1/2
  • Ram Die Shank Length (Inches): 3-1/8
  • Ram Bolt Distance (Center to Center) (Inches): 3-1/4
  • Throat Opening (Frame to Center of Ram) (Inches): 6
  • Bed Size (Inches): 11-1/2x18
  • Bed Opening (Inches): 7x8-1/2
  • Used, in Good Working Condition, Tested OK.
  • Tested in our shop.
  • Wired for 208V 3 phase

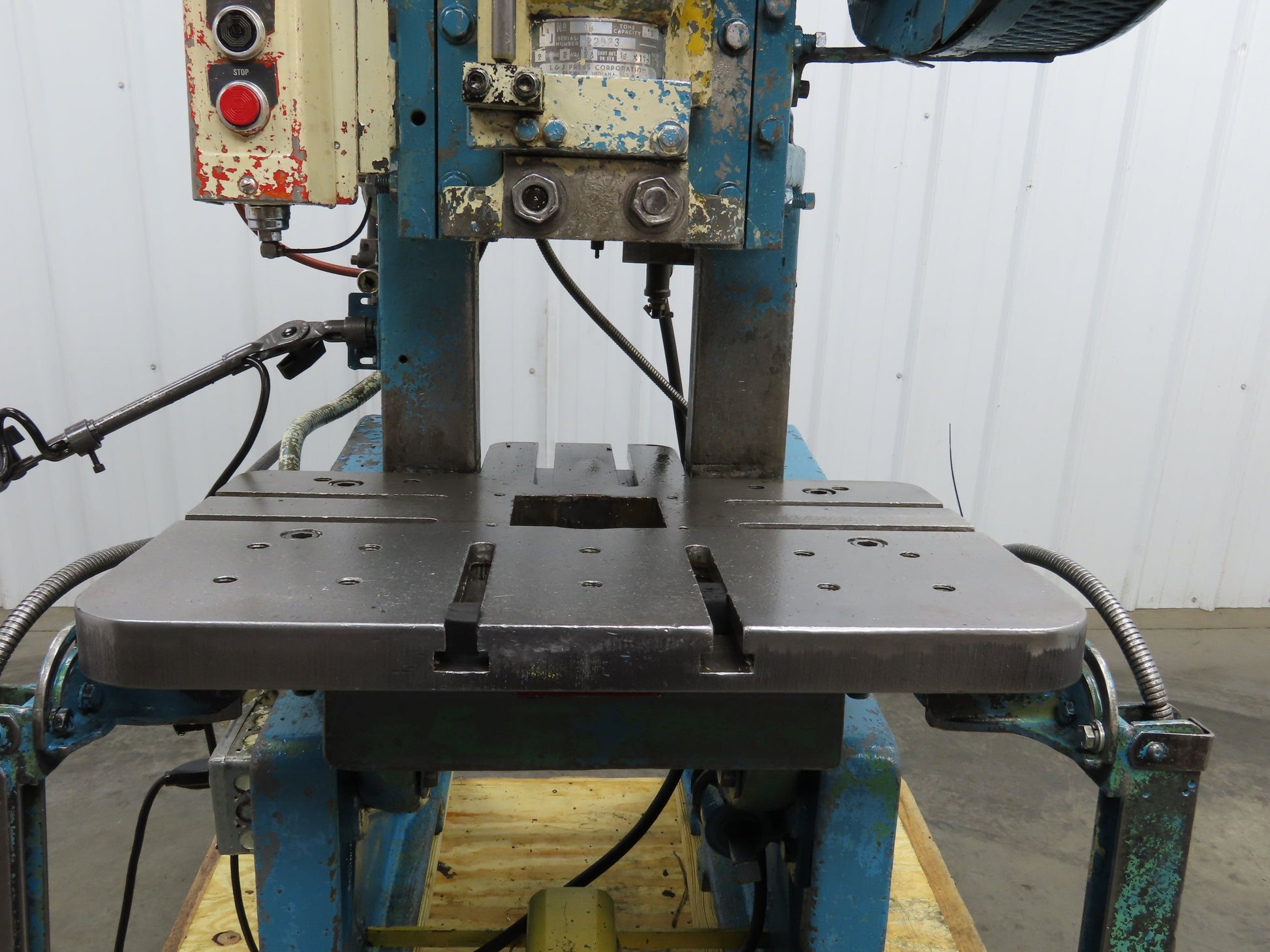

  • Has aftermarket plate 1-5/8" thick with T slot. Center hole is 4-1/2"x4-5/8".

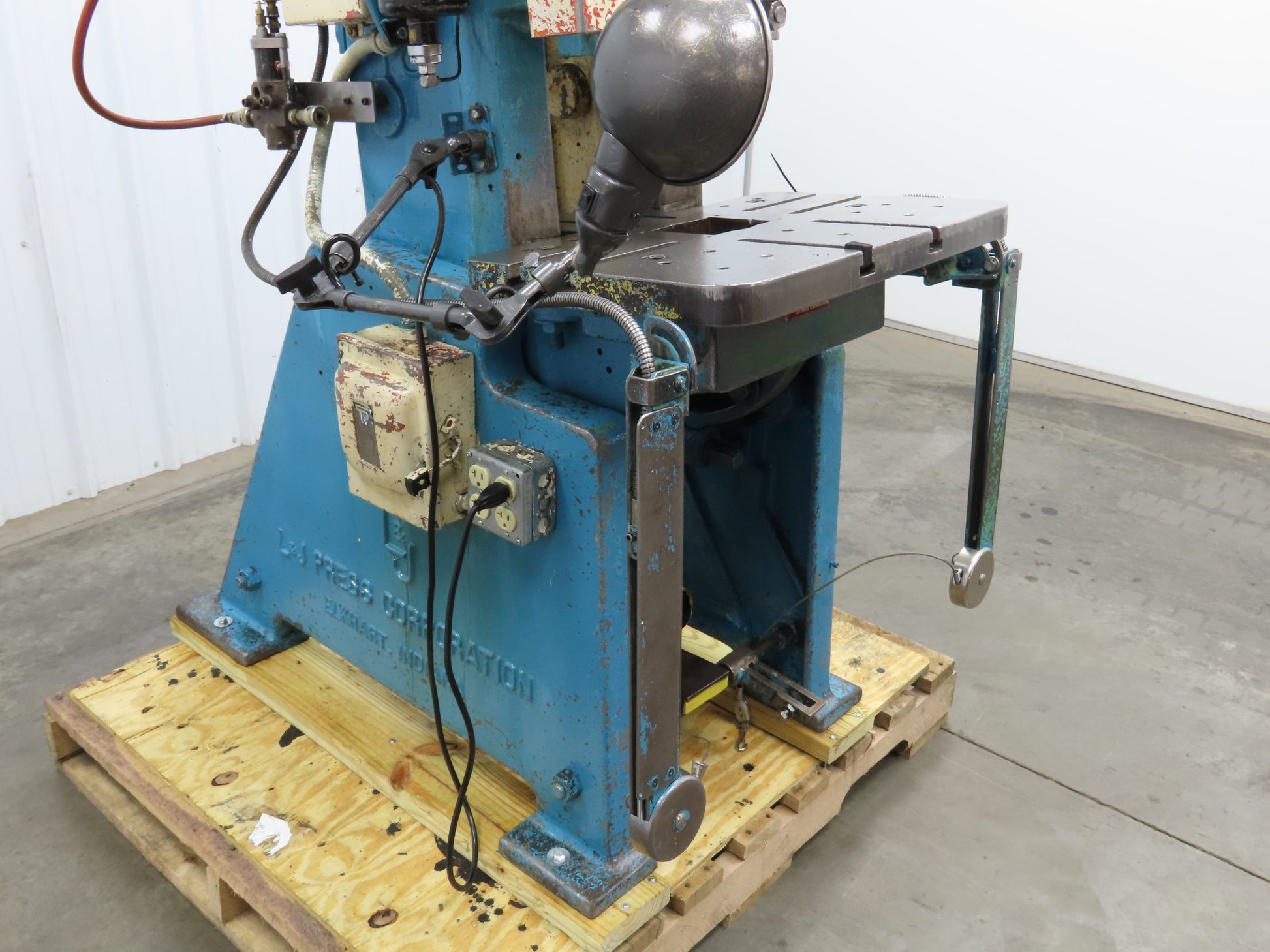

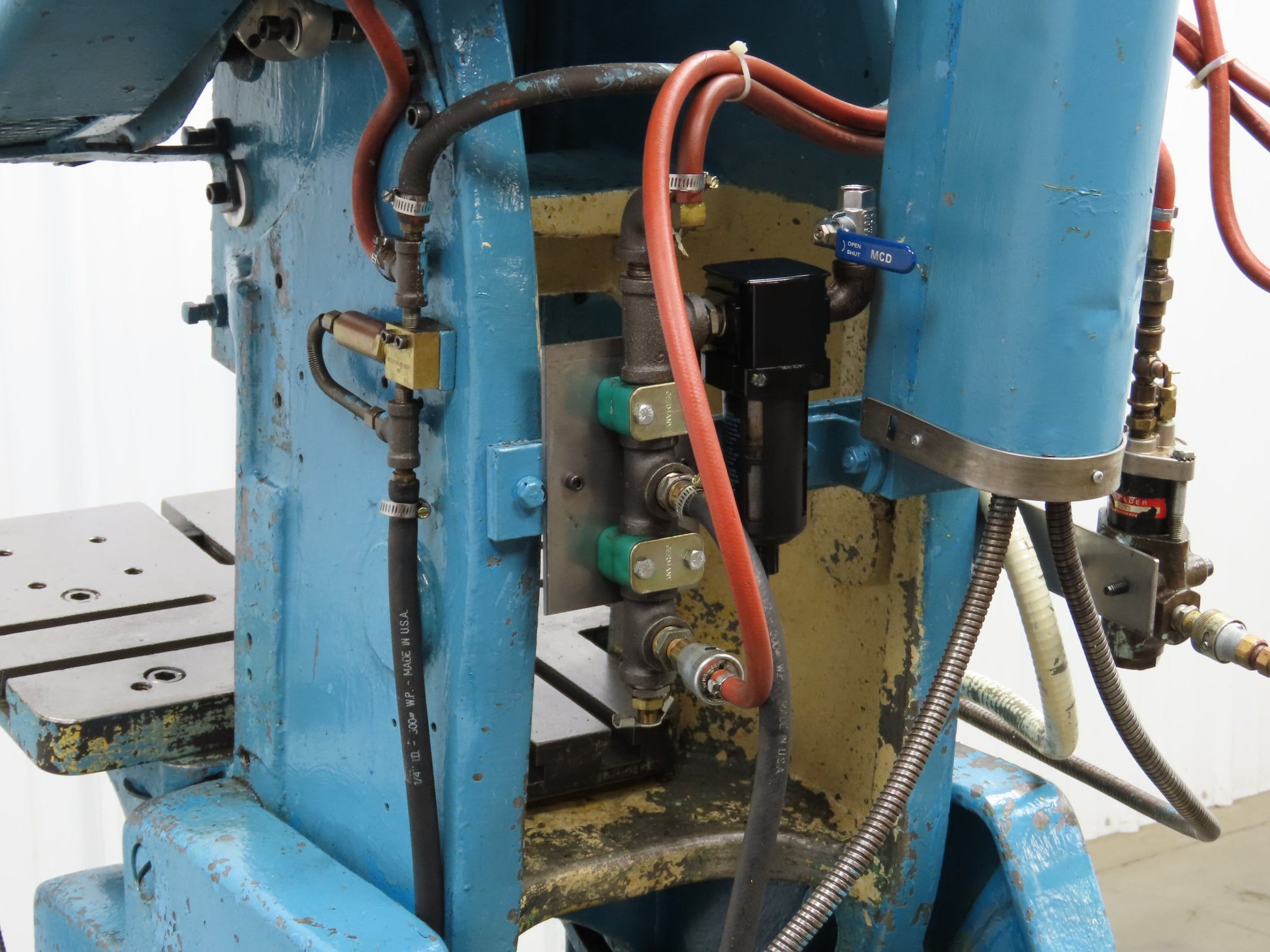

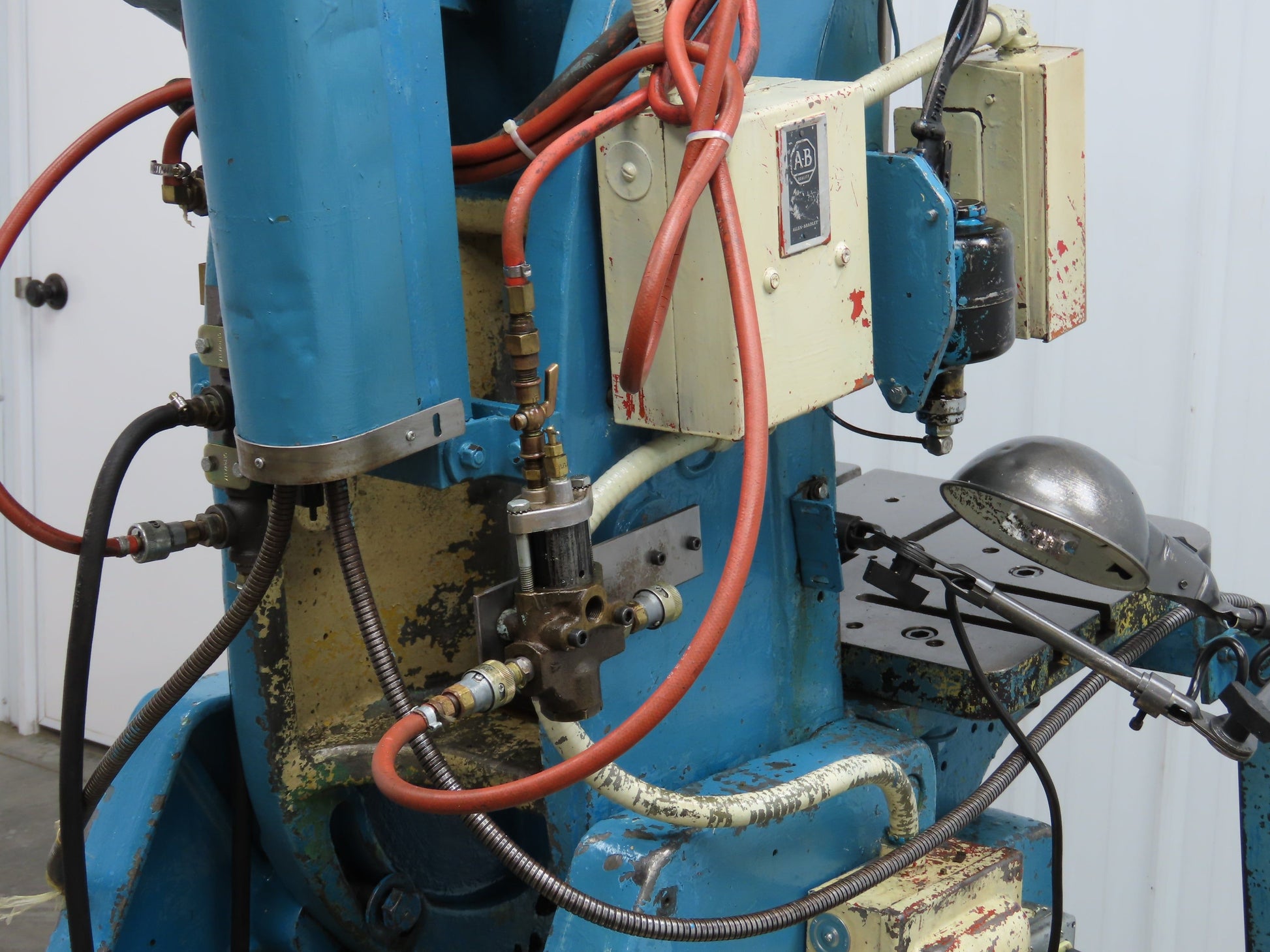

  • Has Safeguard safety controls. Pulls operator's hands out of the way.


Condition: Used
