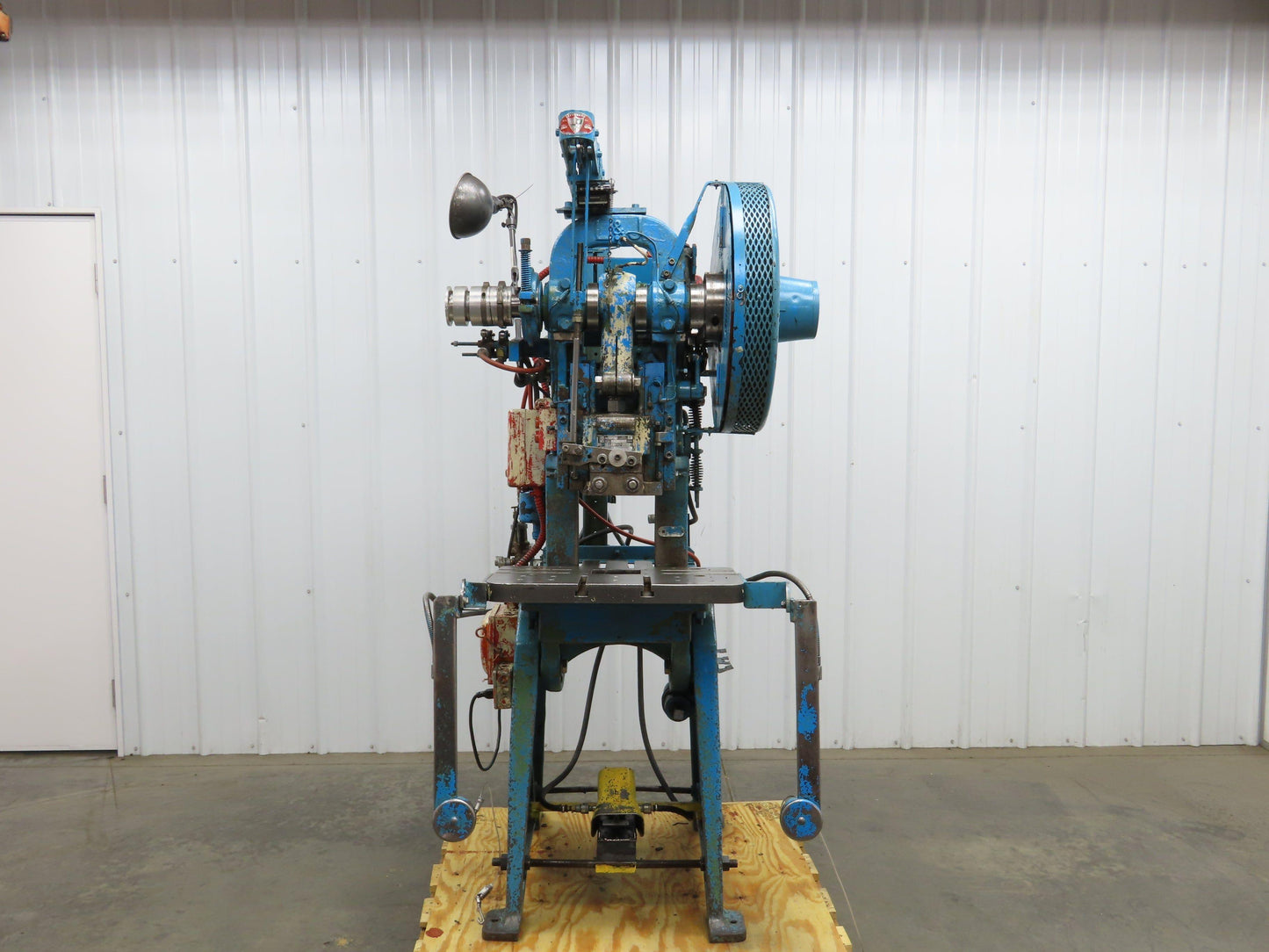

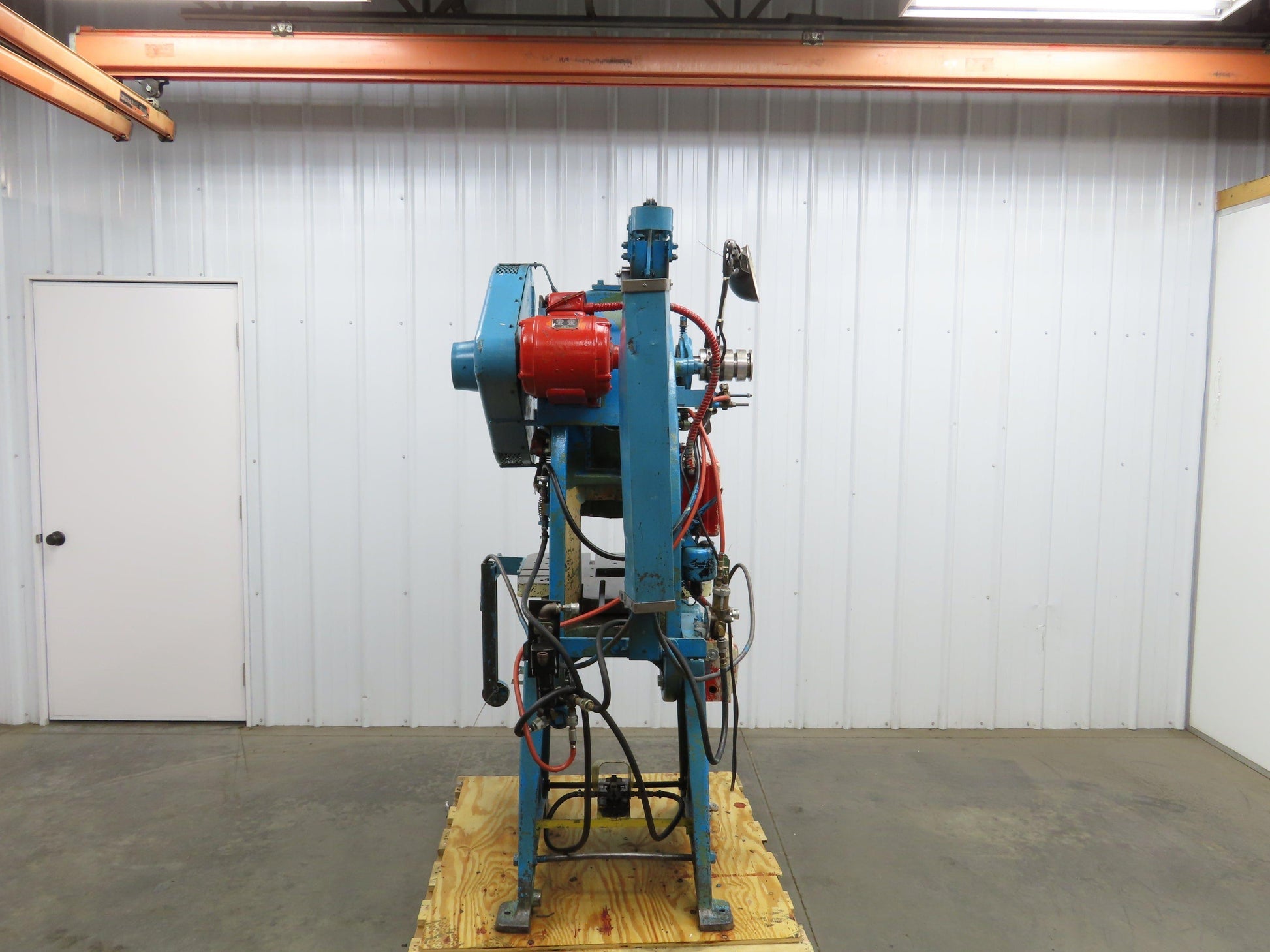

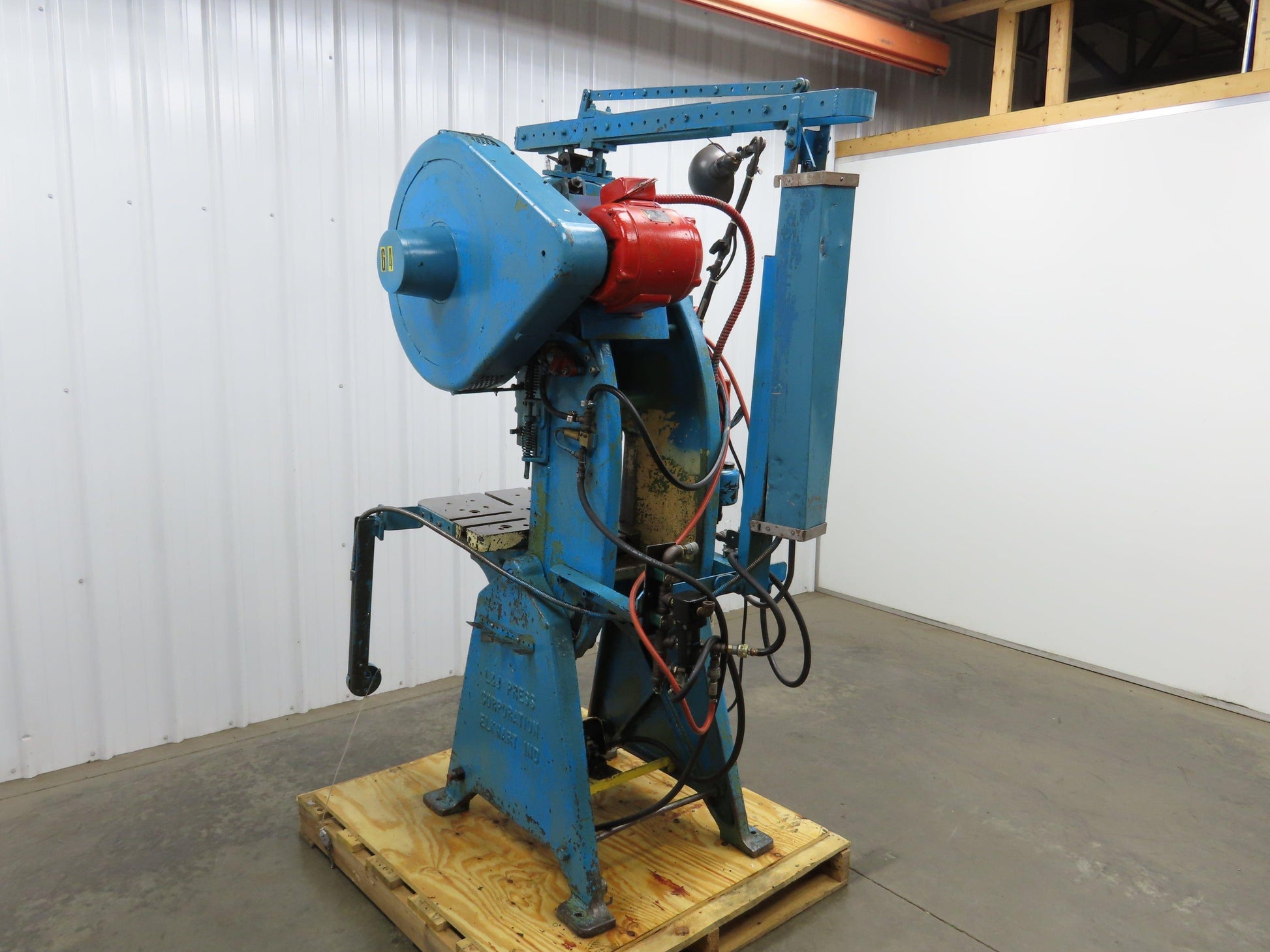

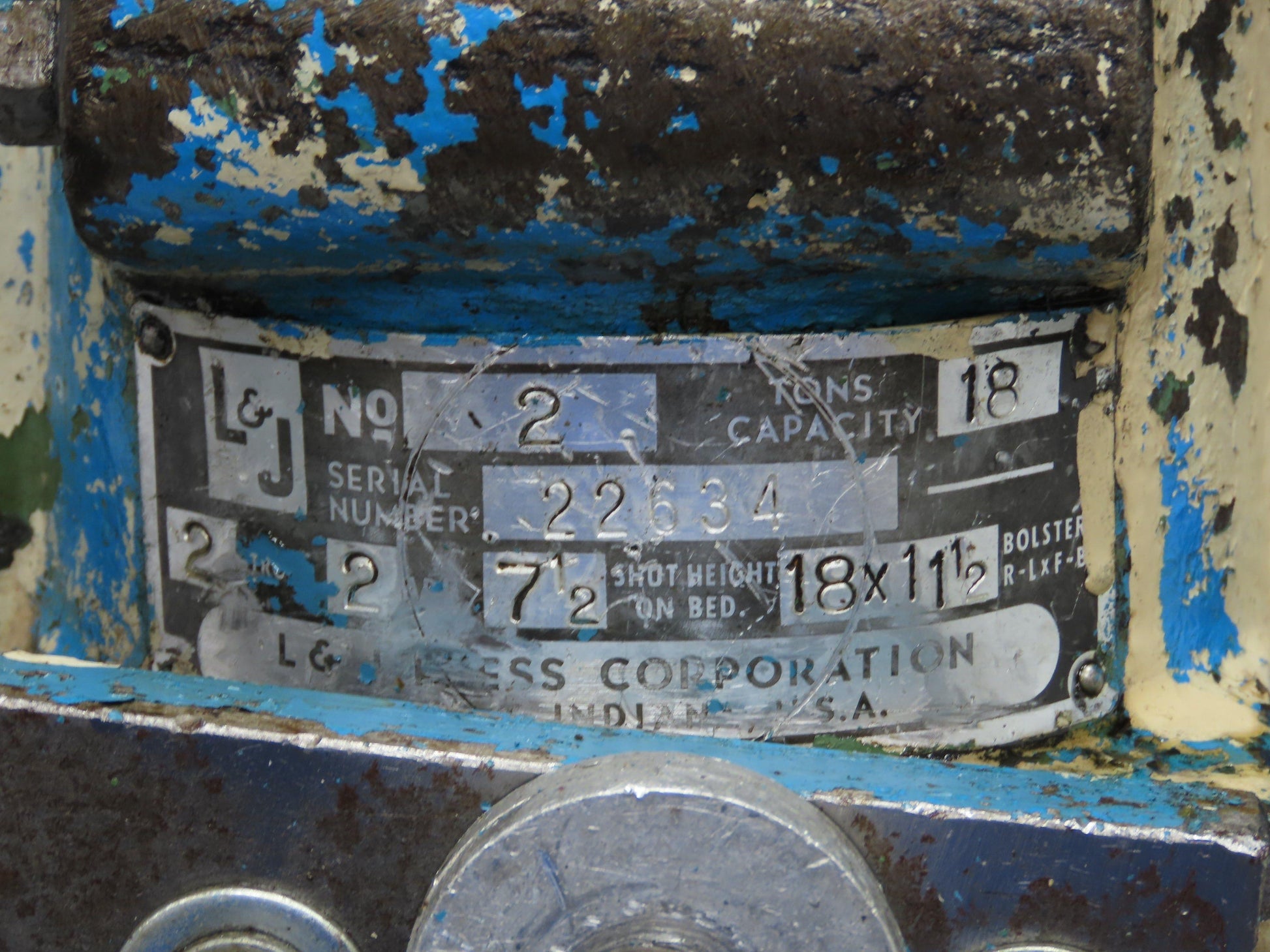

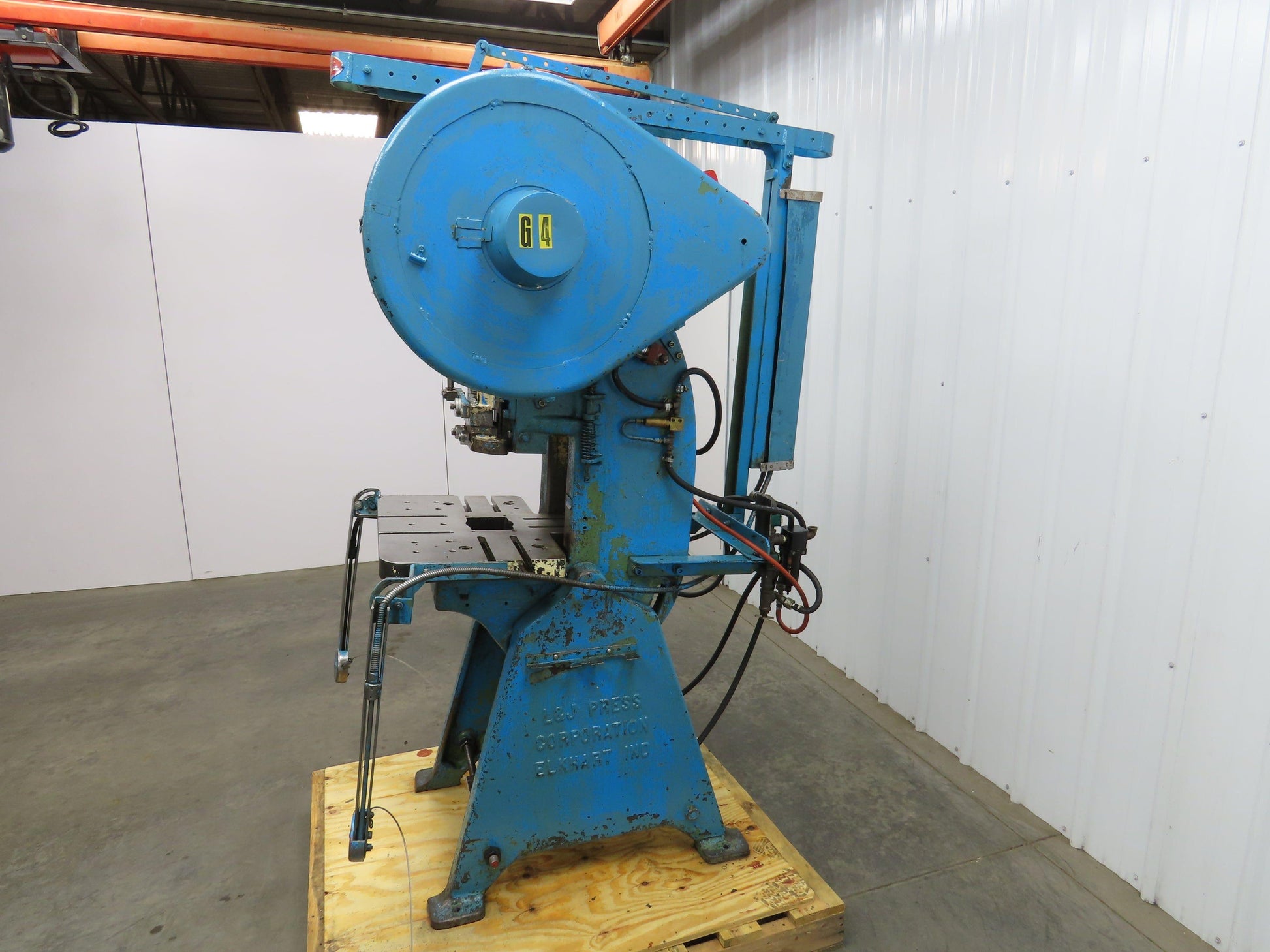

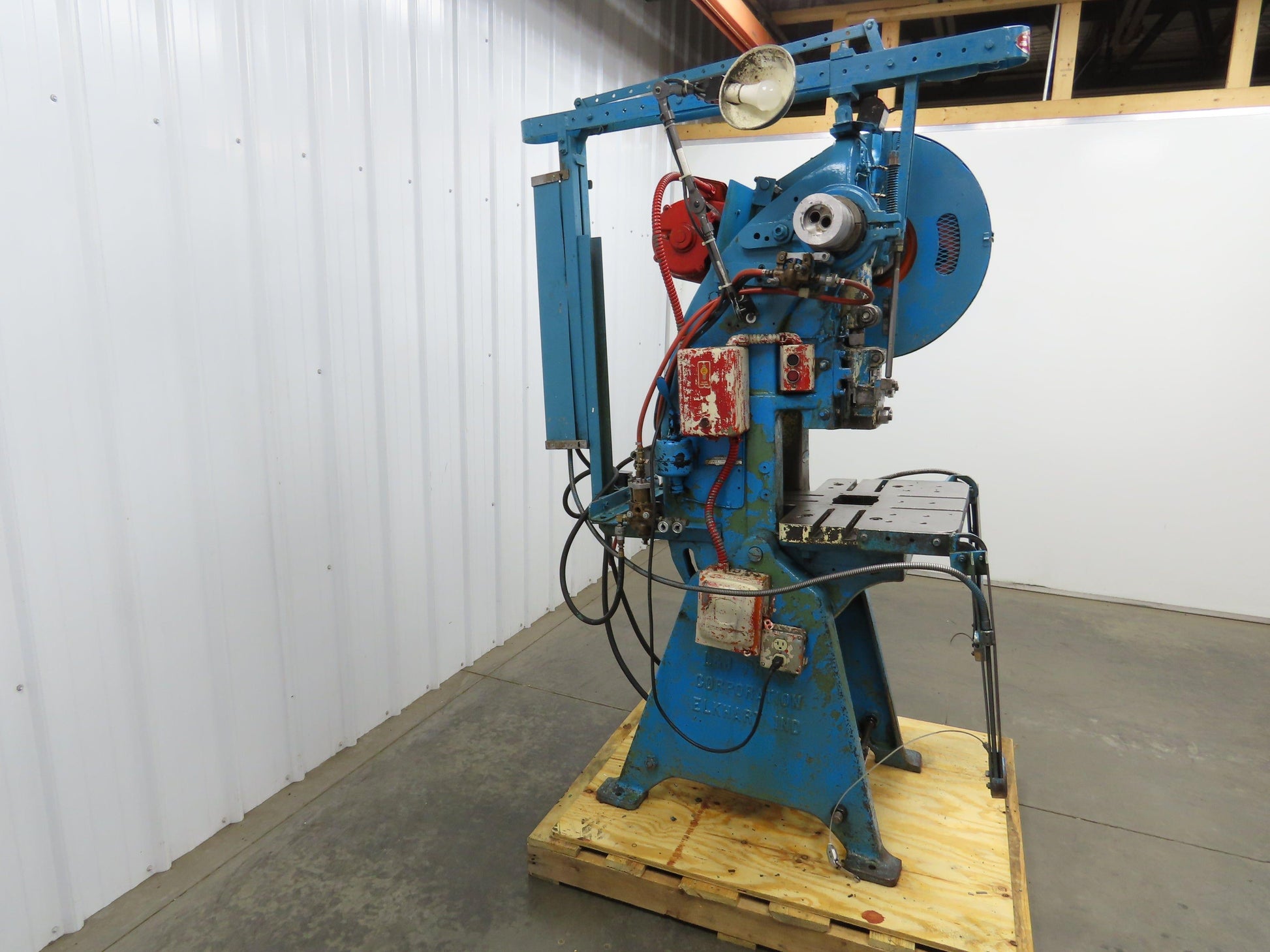

L&J No 2 Mechanical OBI Punch Press 18 Ton 2" Stroke 6-1/2" Throat 230/460V 3Ph

L&J No 2 Mechanical OBI Punch Press 18 Ton 2" Stroke 6-1/2" Throat 230/460V 3Ph

SKU #268130

Your Price
$3,419.99
$3,999.99 $3,419.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

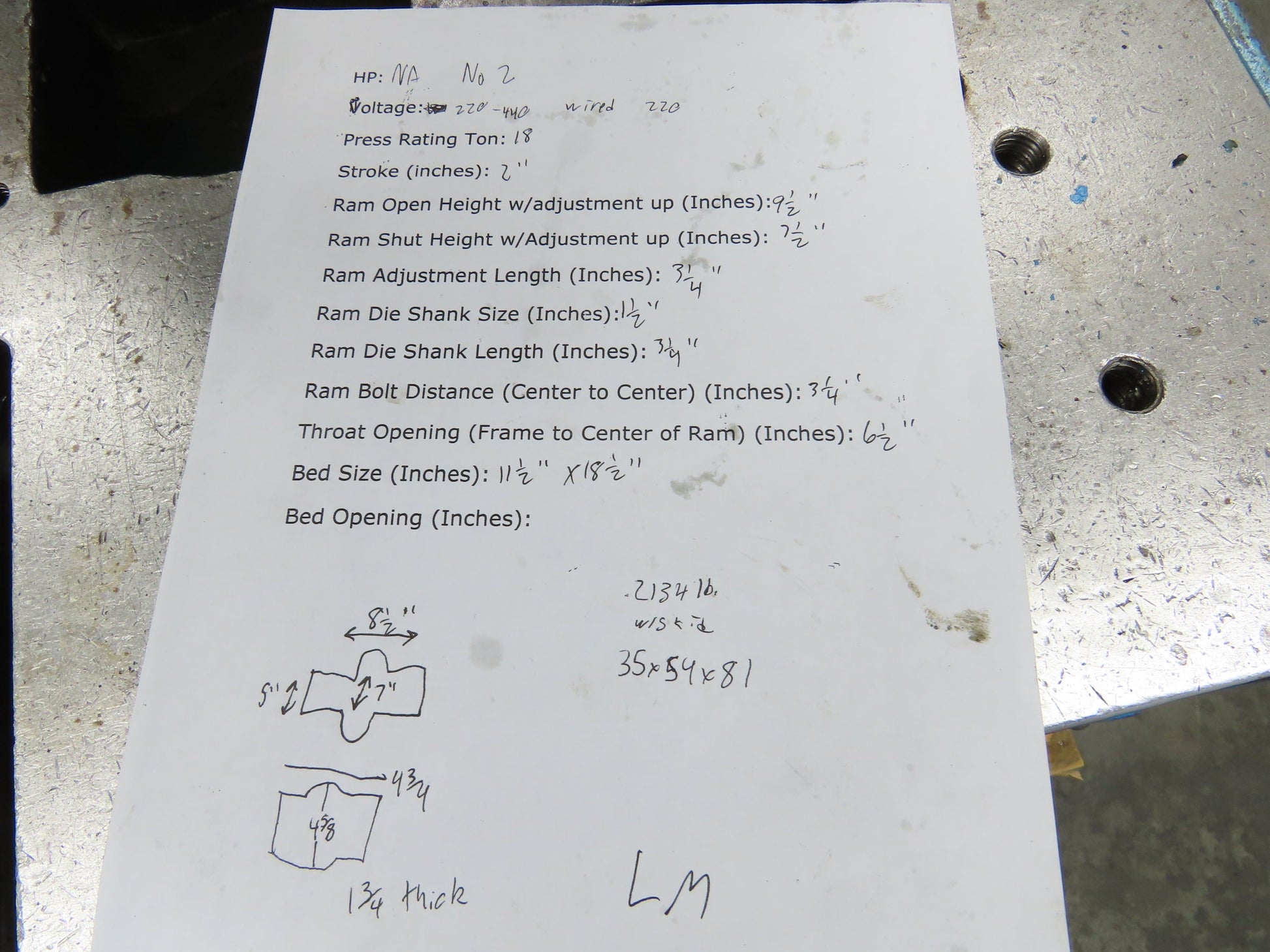

  • HP: Motor tag missing. Wire diagram is there. Should be around 1.5 hp
  • Voltage: 230/460V
  • Press Rating Ton: 18
  • Stroke (inches): 2
  • Ram Open Height w/adjustment up (Inches): 9-1/2
  • Ram Shut Height w/Adjustment up (Inches): 7-1/2
  • Ram Adjustment Length (Inches): 3-1/4

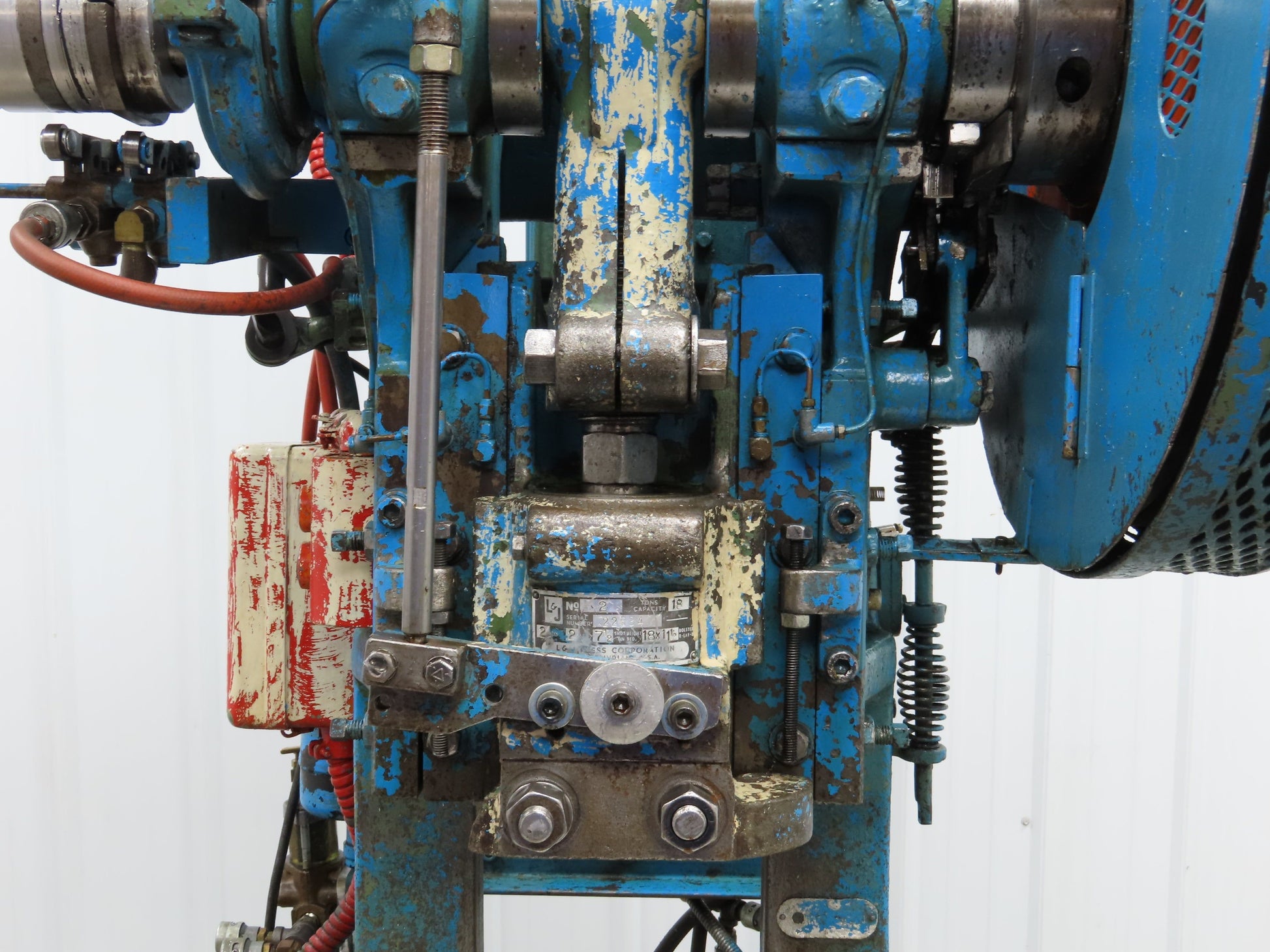

  • Ram Die Shank Size (Inches): 1-1/2
  • Ram Die Shank Length (Inches): 3-1/4
  • Ram Bolt Distance (Center to Center) (Inches): 3-1/4
  • Throat Opening (Frame to Center of Ram) (Inches): 6-1/2
  • Bed Size (Inches): 11-1/2x18-1/2

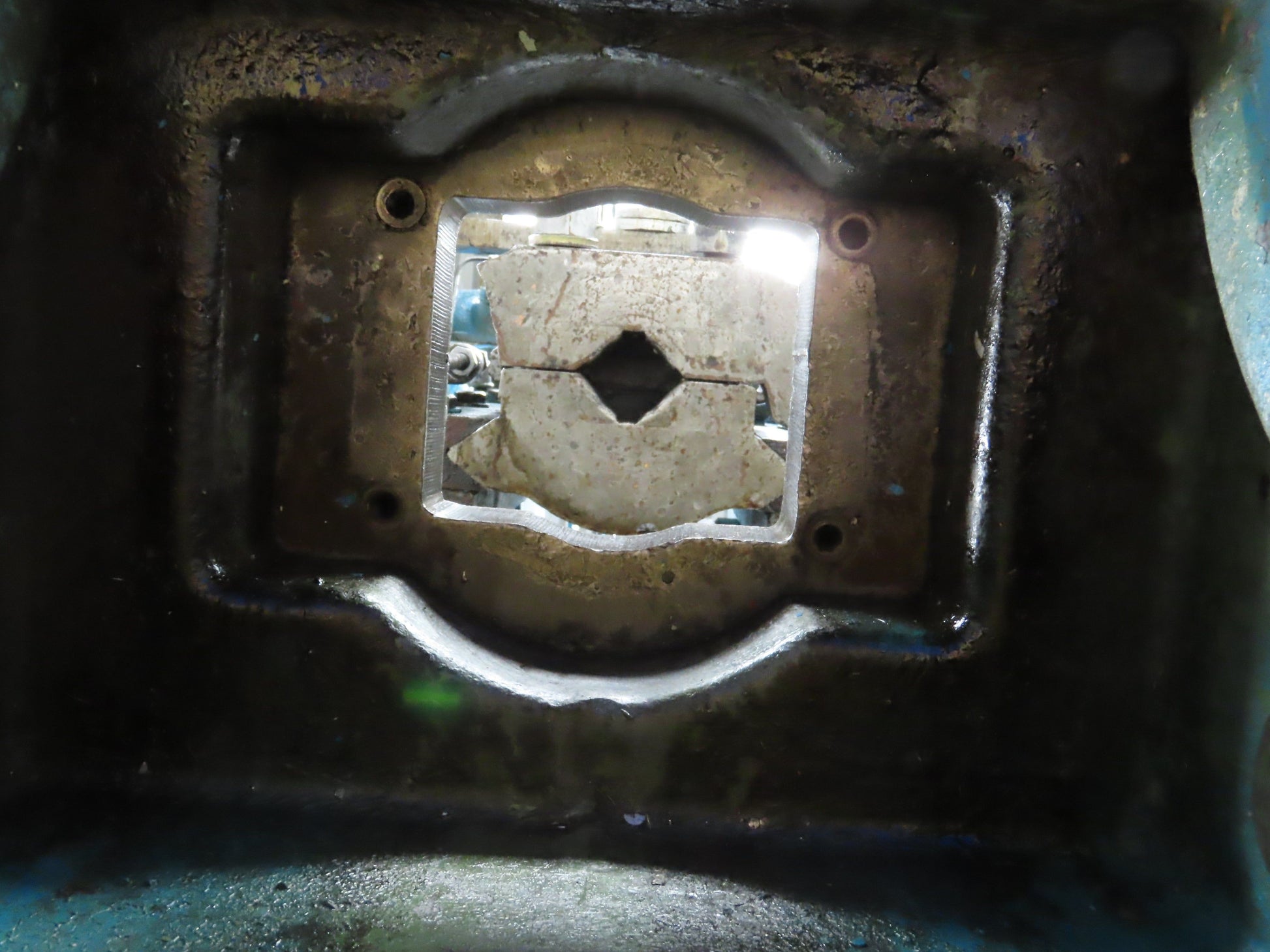

  • Bed Opening (Inches): 7x8-1/2
  • Used, in Good Working Condition, Tested OK.
  • Tested and cycled in our shop.
  • Wired for 230V.

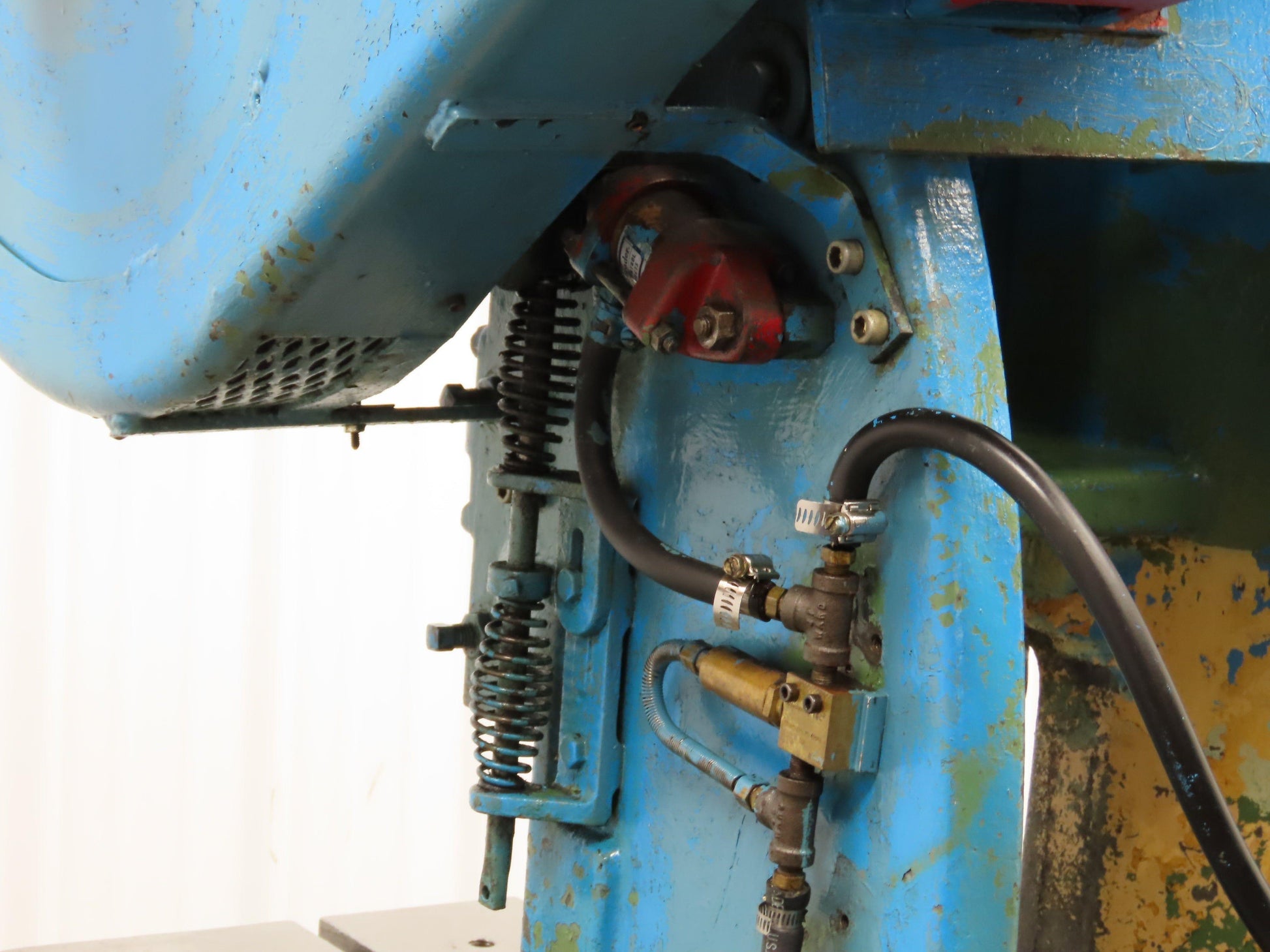

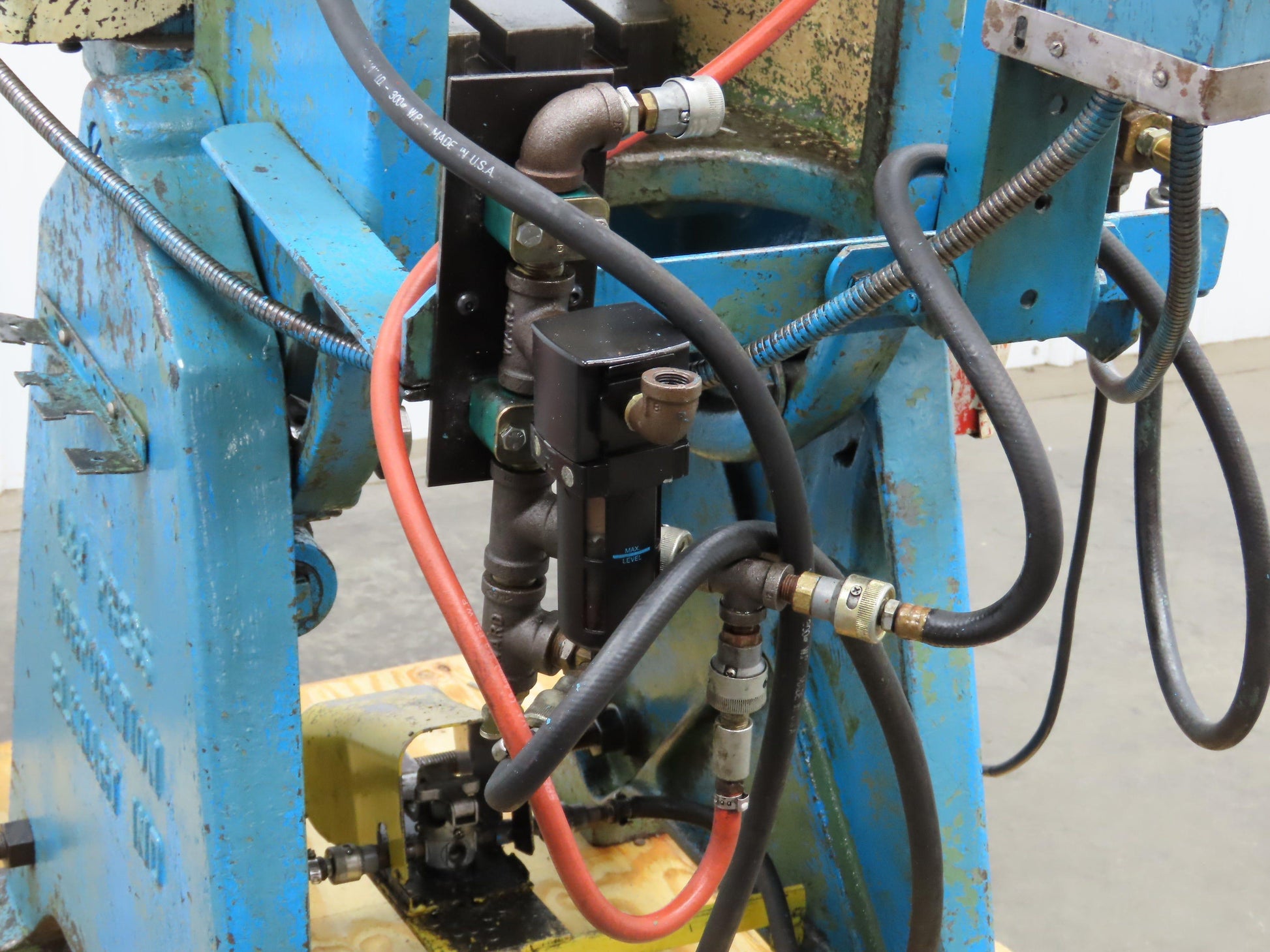

  • Pneumatic foot pedal control.

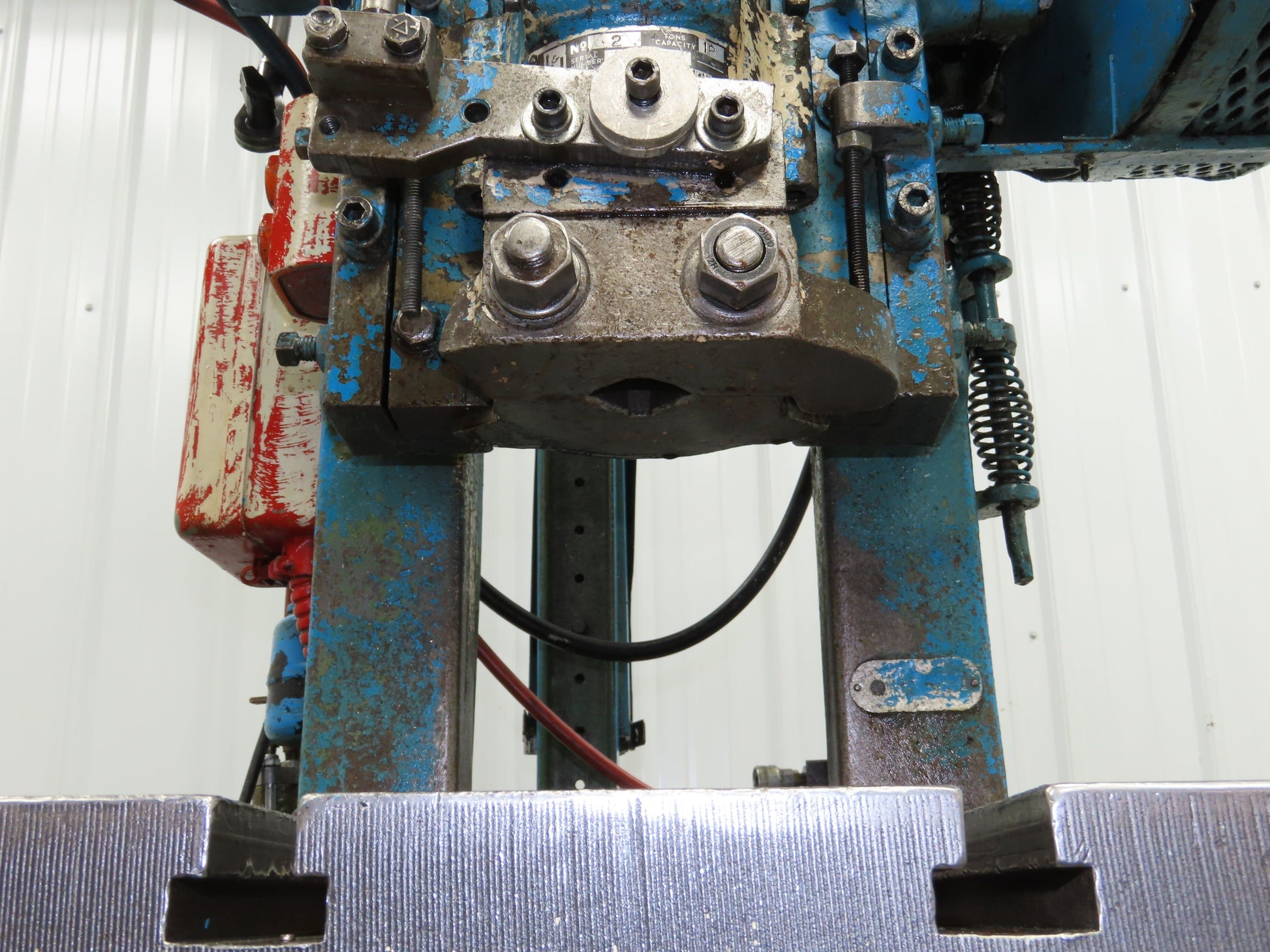

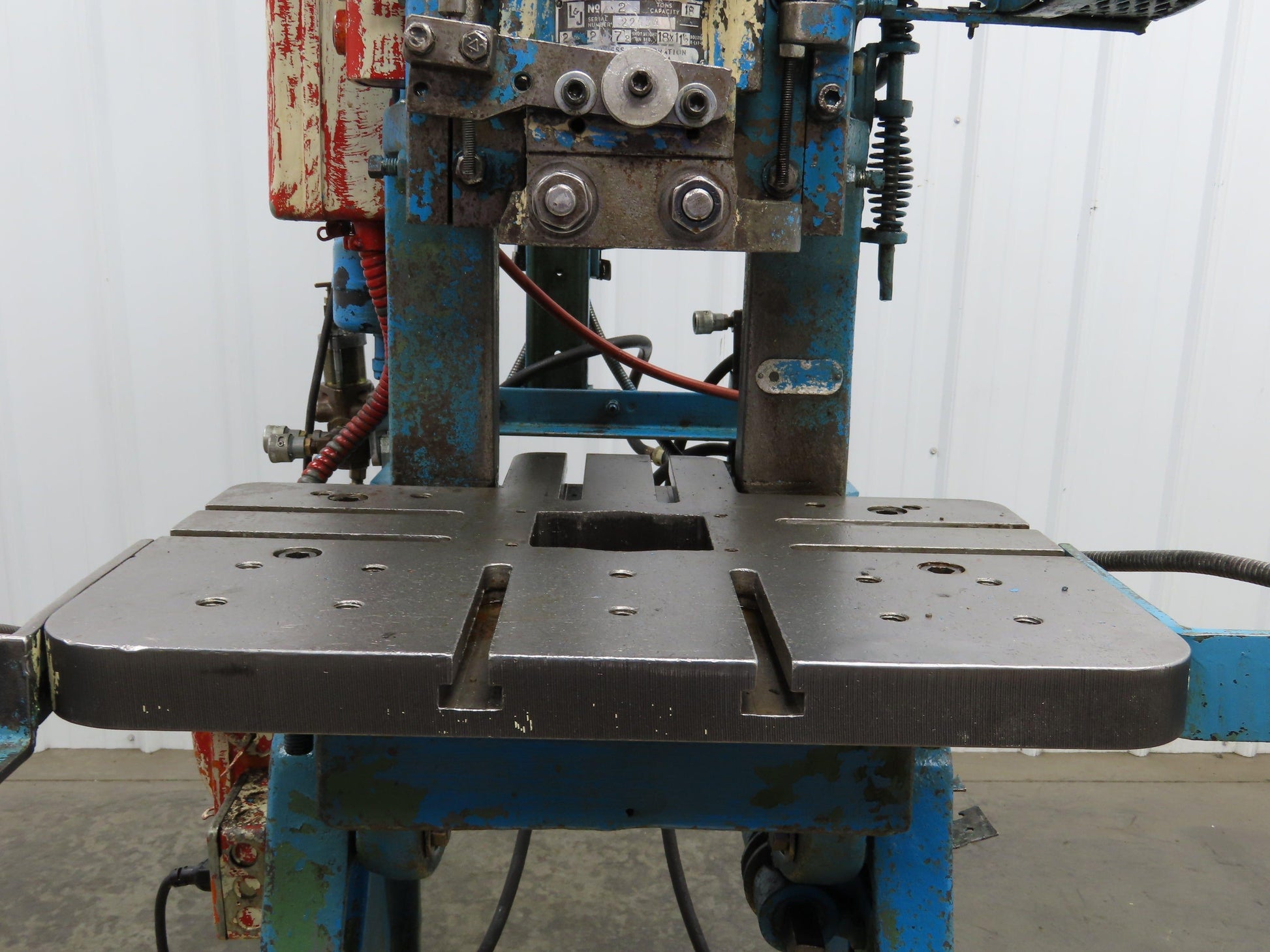

  • Has aftermarket plate 1-3/4" thick with T slot. Center hole is 4-3/4"x4-5/8".

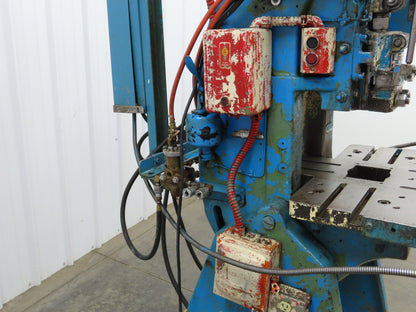

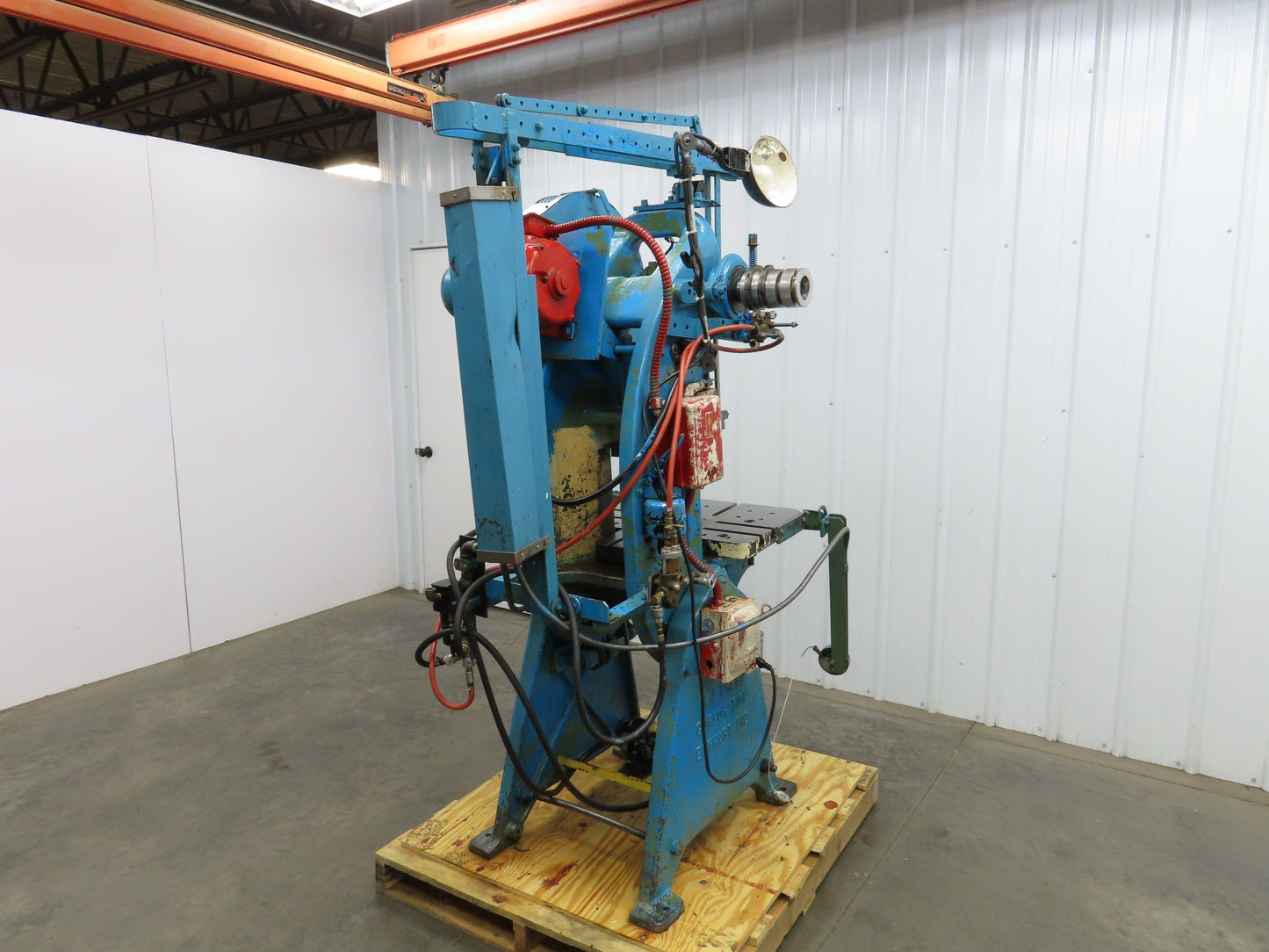

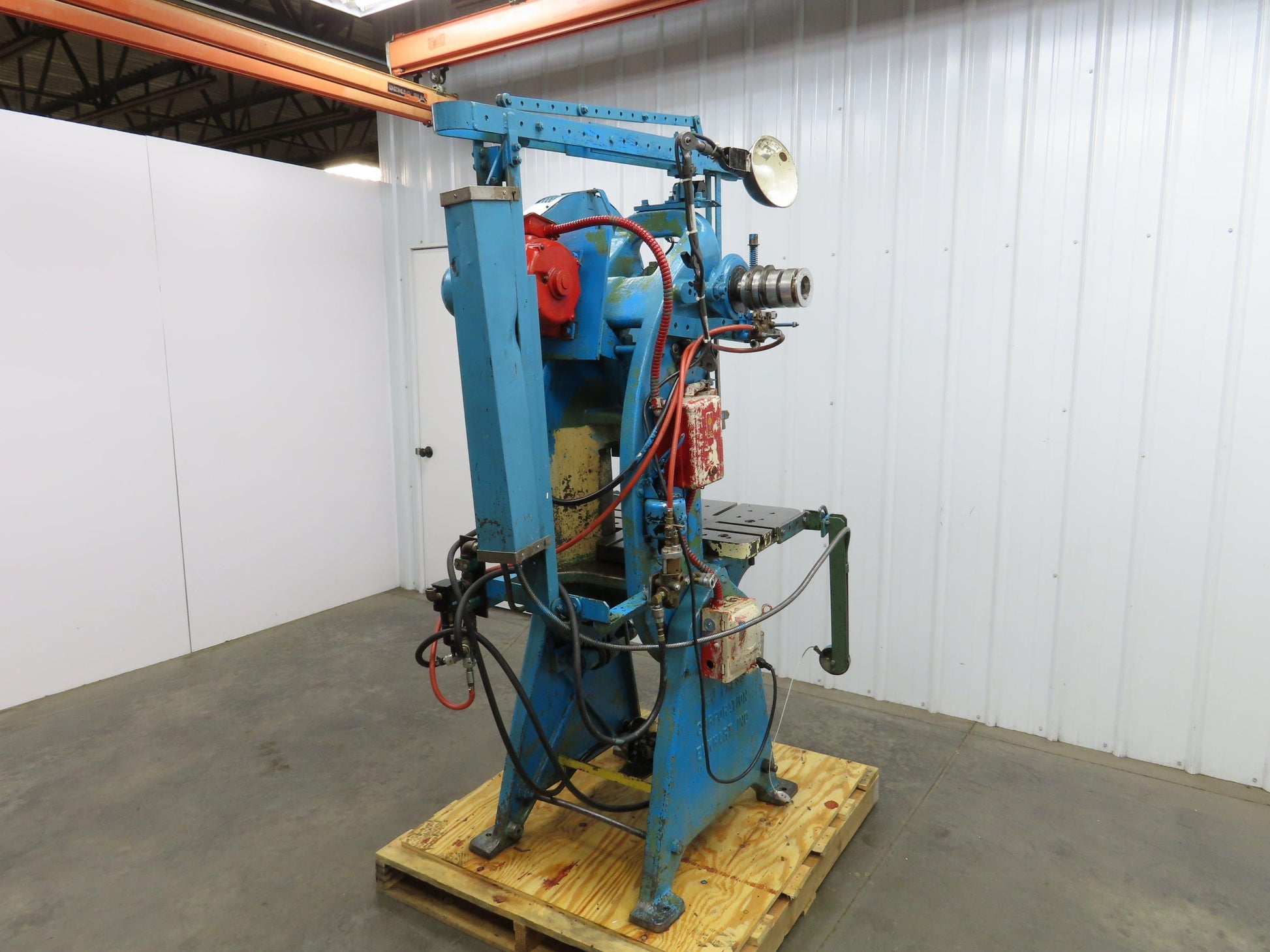

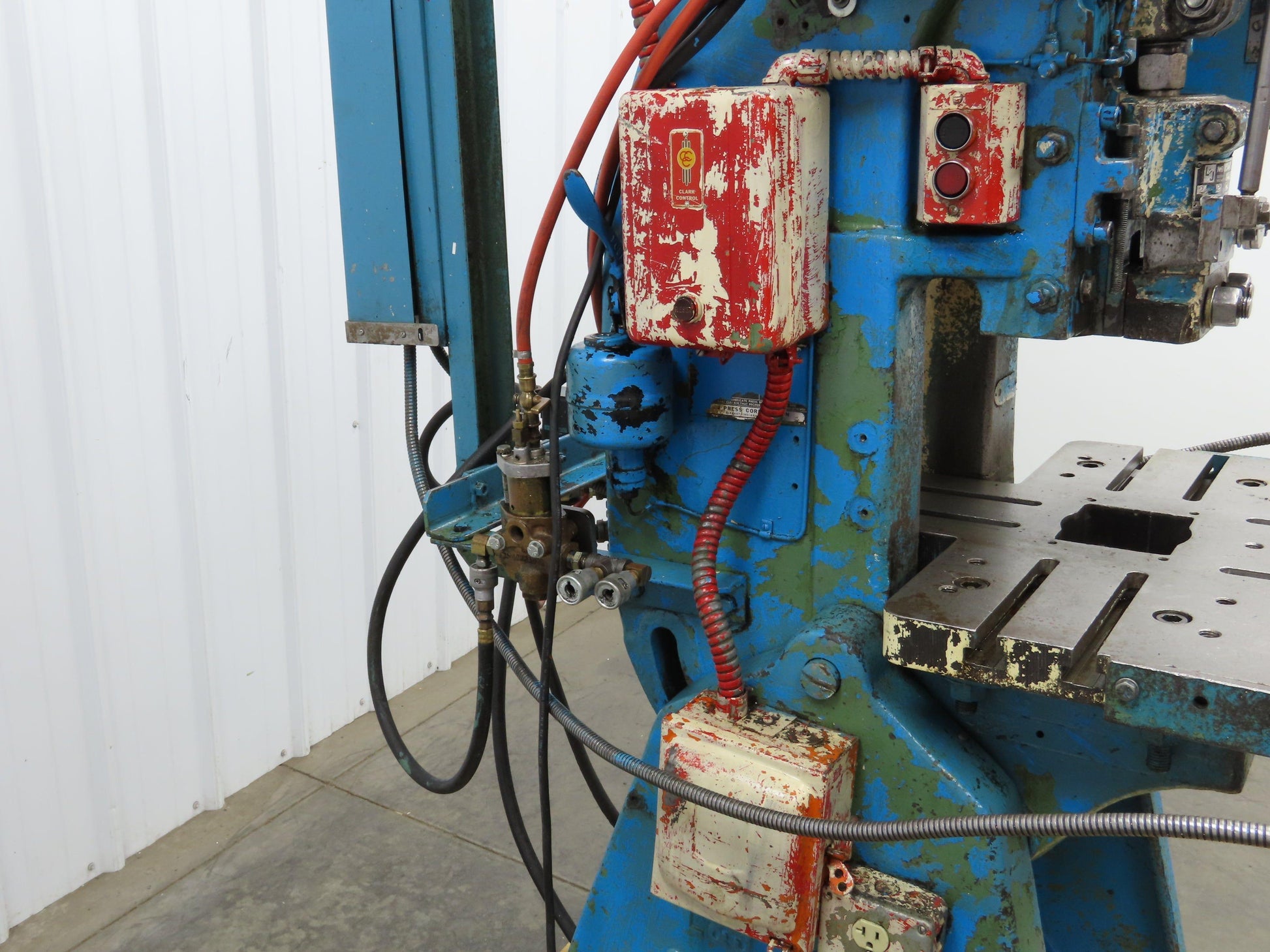

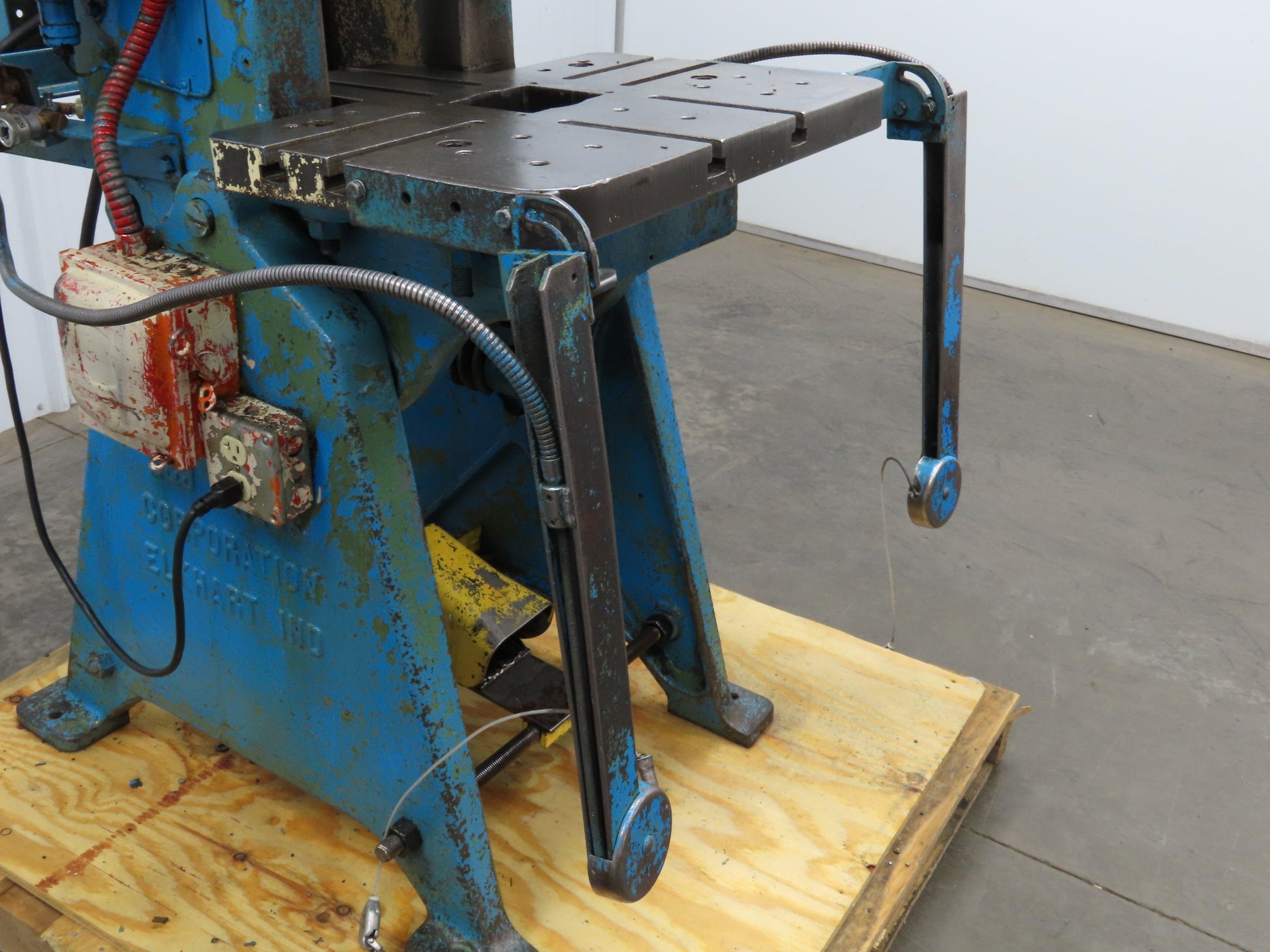

  • Has Safeguard safety controls. Pulls operator's hands out of the way.
