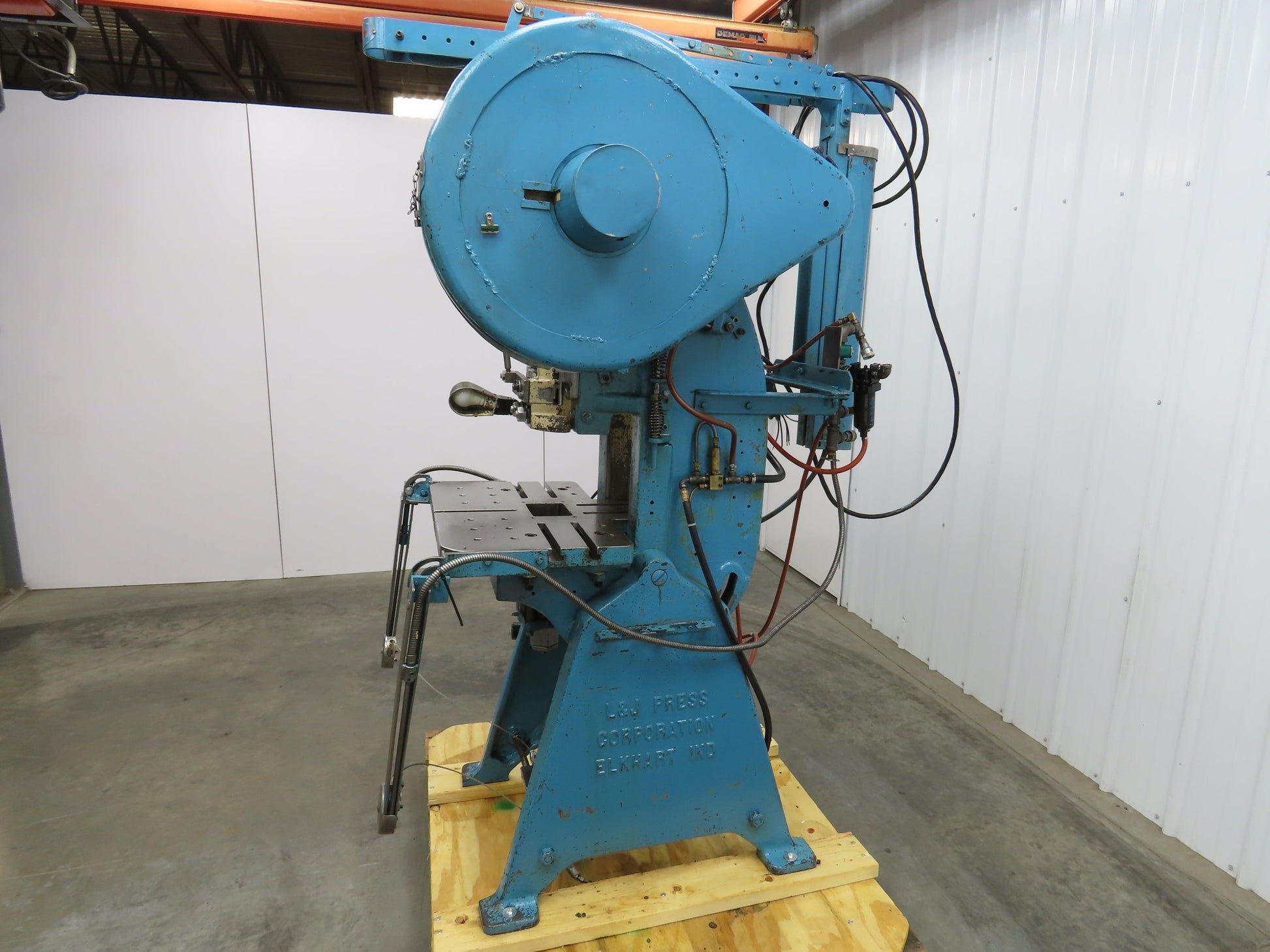

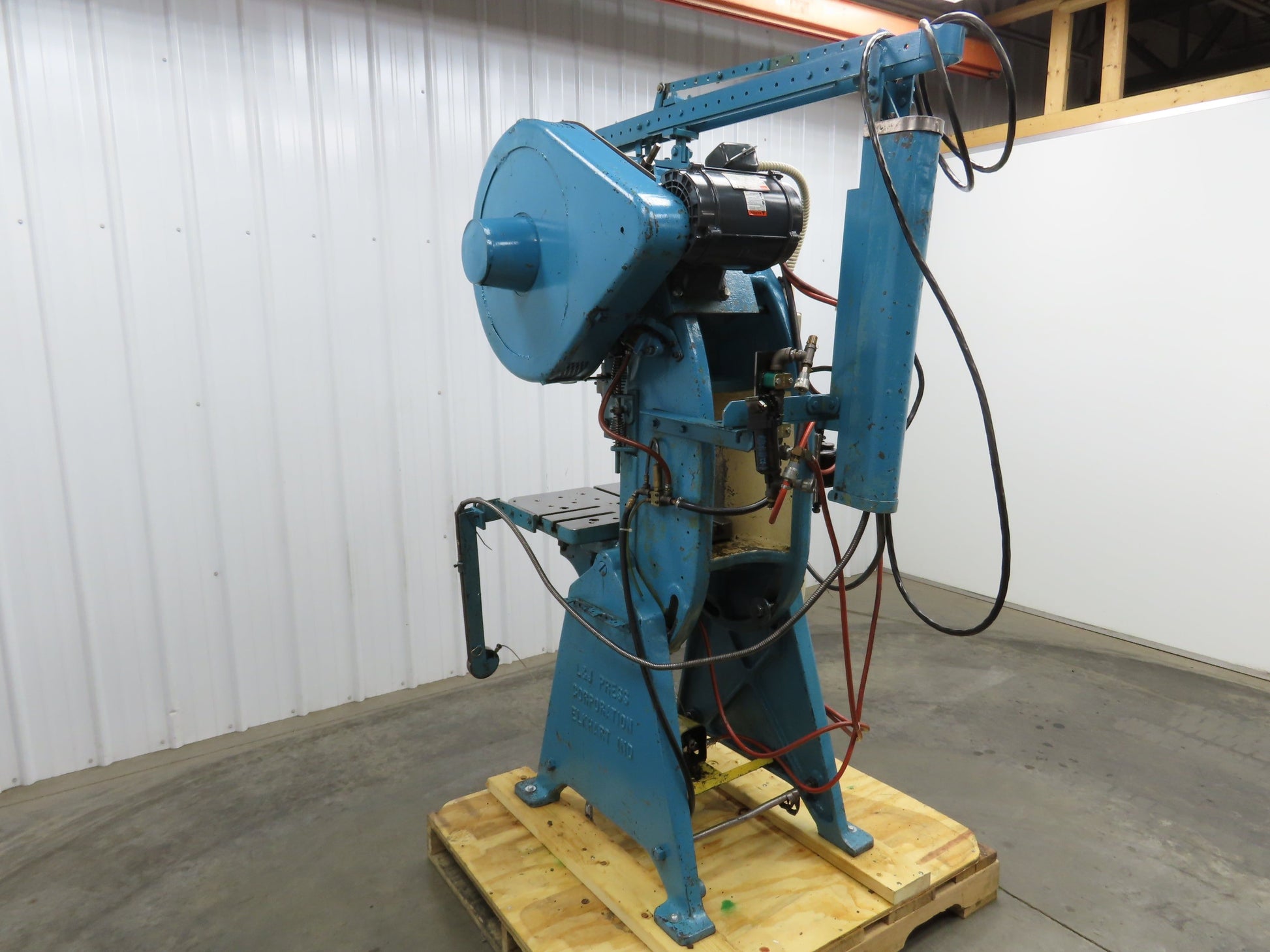

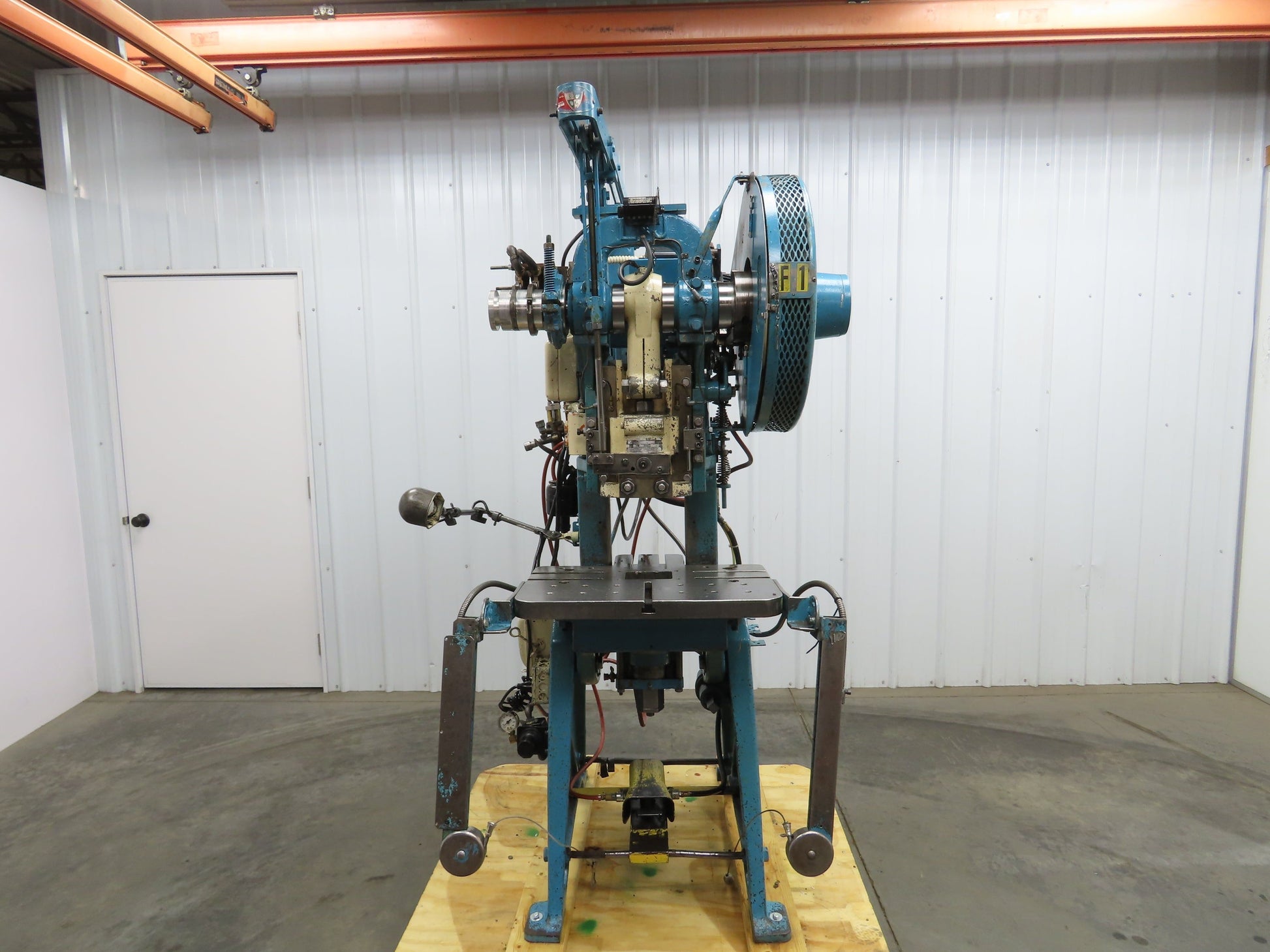

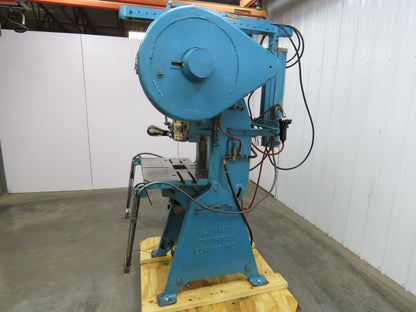

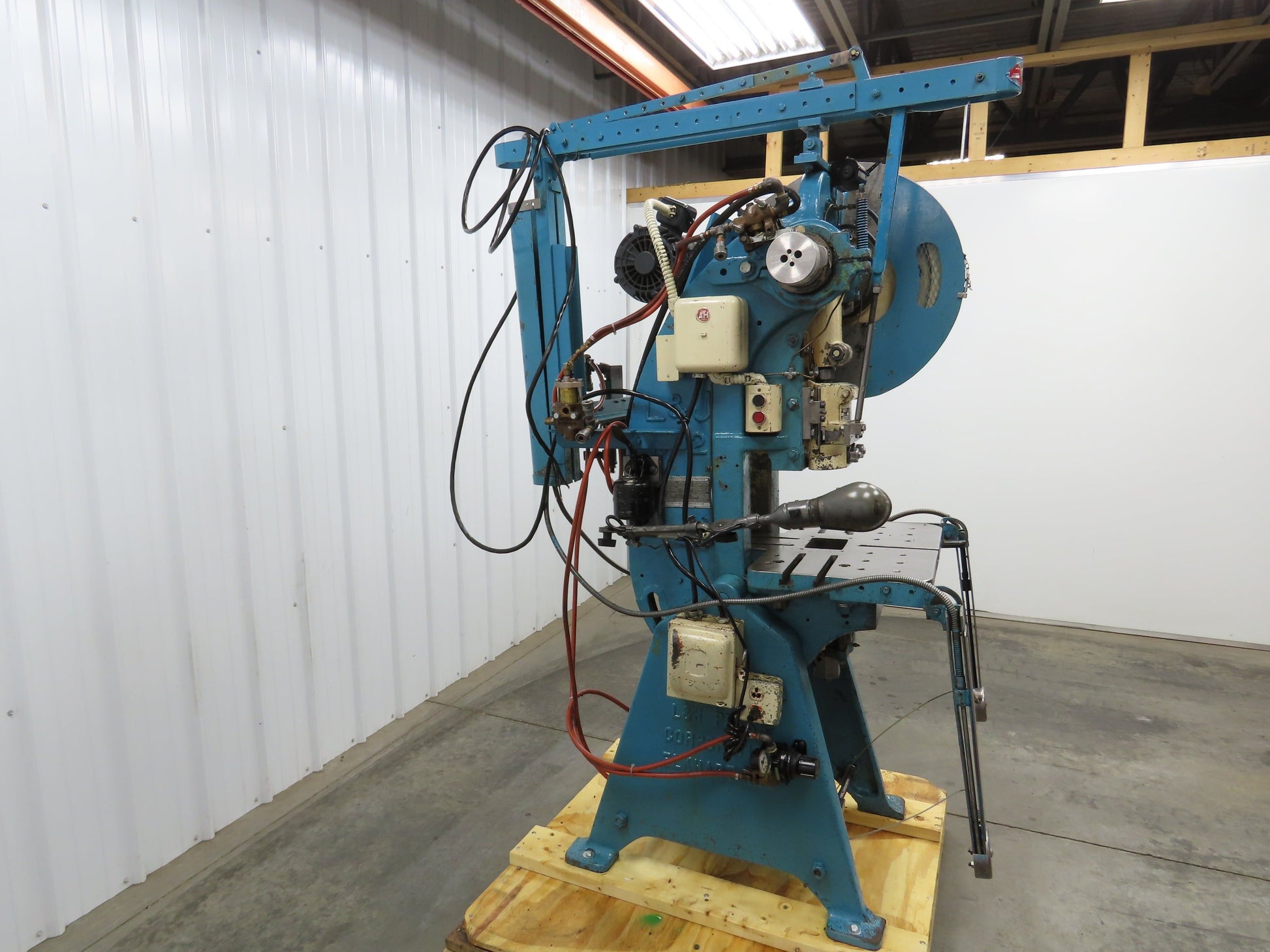

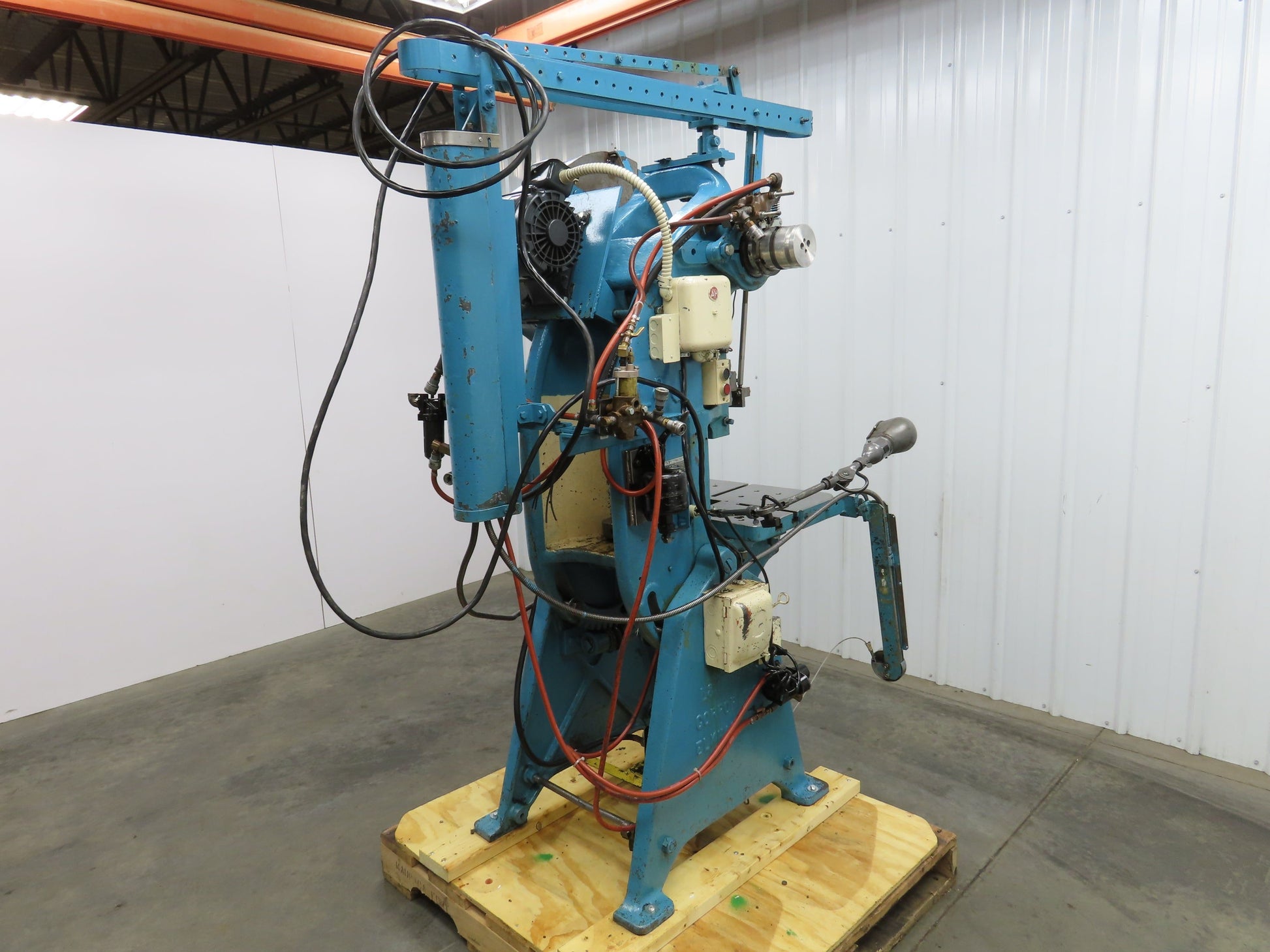

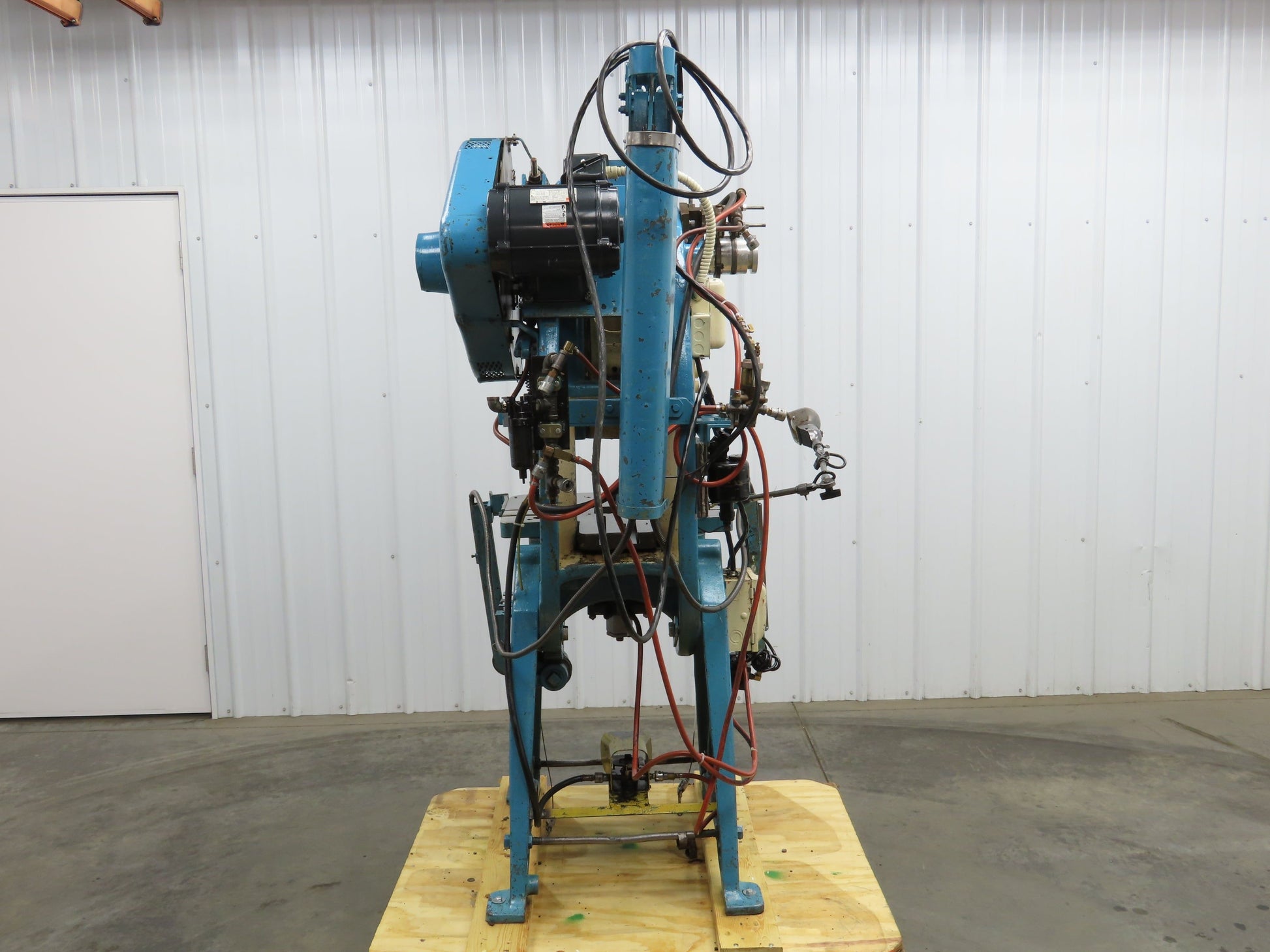

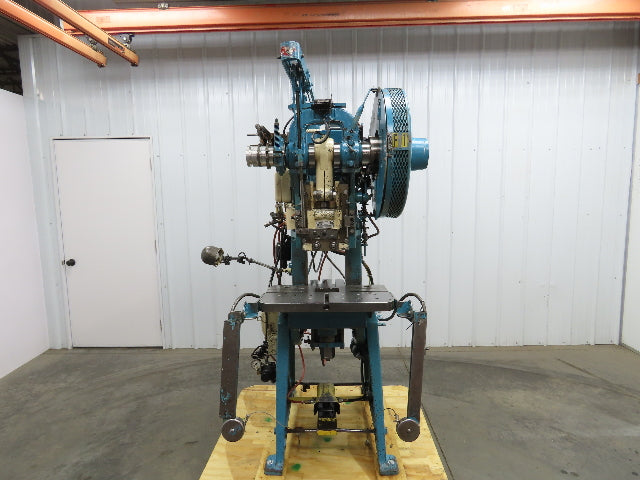

L&J No 2 Mechanical OBI Punch Press 18 Ton 2" Stroke 6" Throat 2Hp 3Ph

L&J No 2 Mechanical OBI Punch Press 18 Ton 2" Stroke 6" Throat 2Hp 3Ph

SKU #268253

Product Condition: Used

Your Price
$2,423.92
$2,834.99 $2,423.92
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
L&J
Model
No 2
MPN
N/A
Condition
Used

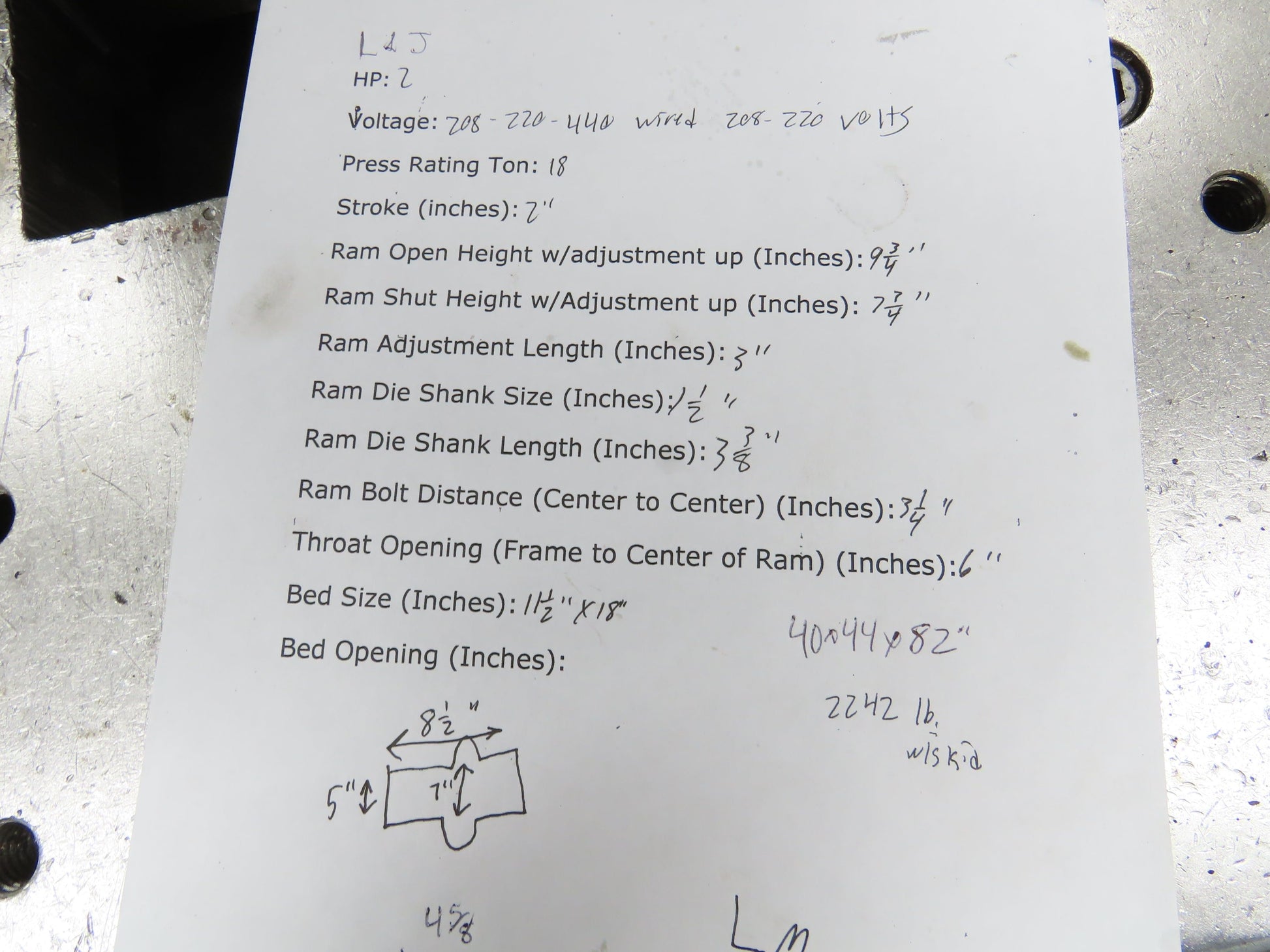

  • HP: 2
  • Voltage: 220/440V 3Ph
  • Press Rating Ton: 18
  • Stroke (inches): 2

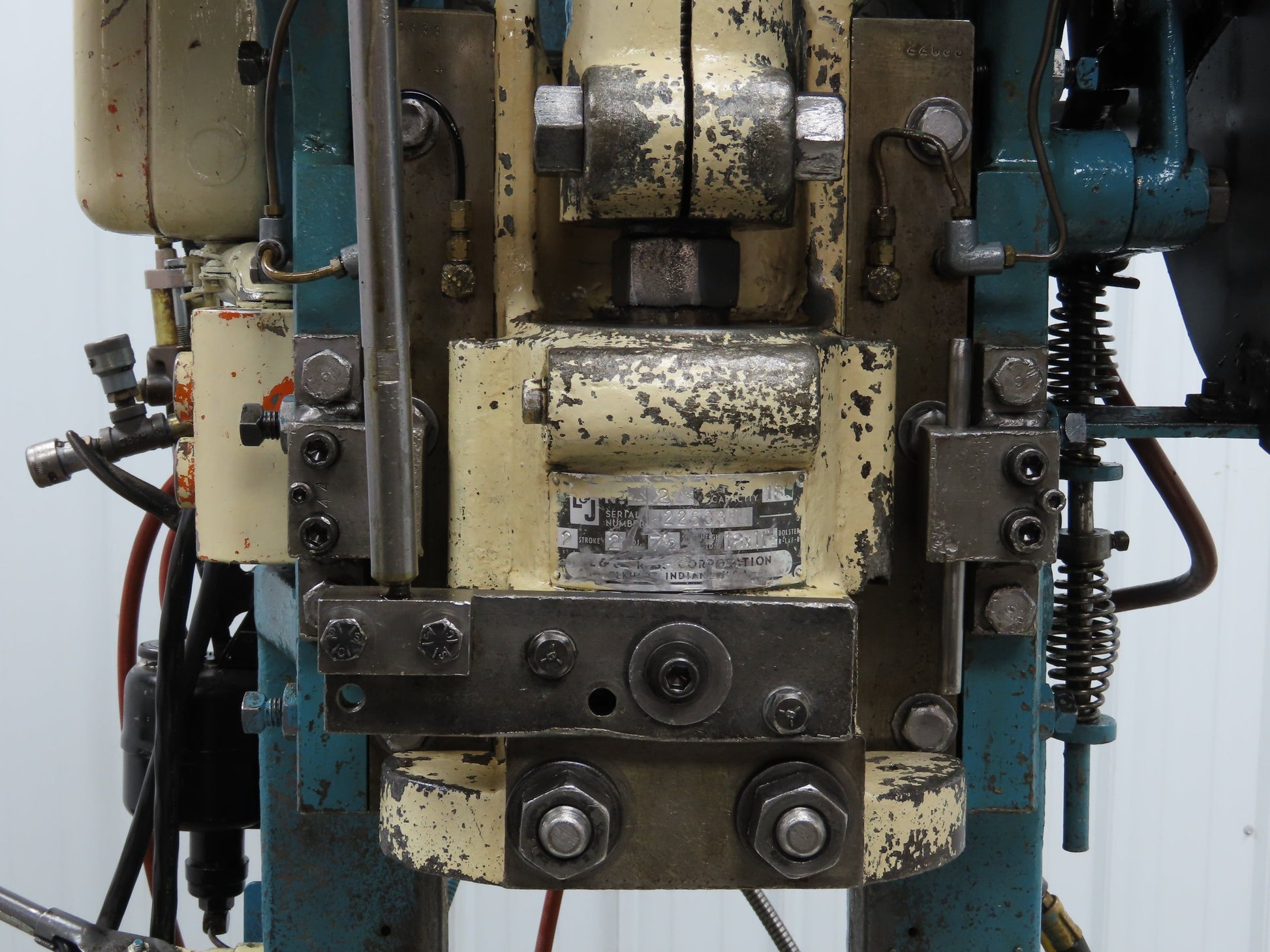

  • Ram Open Height w/adjustment up (Inches): 9-3/4
  • Ram Shut Height w/Adjustment up (Inches): 7-3/4
  • Ram Adjustment Length (Inches): 3

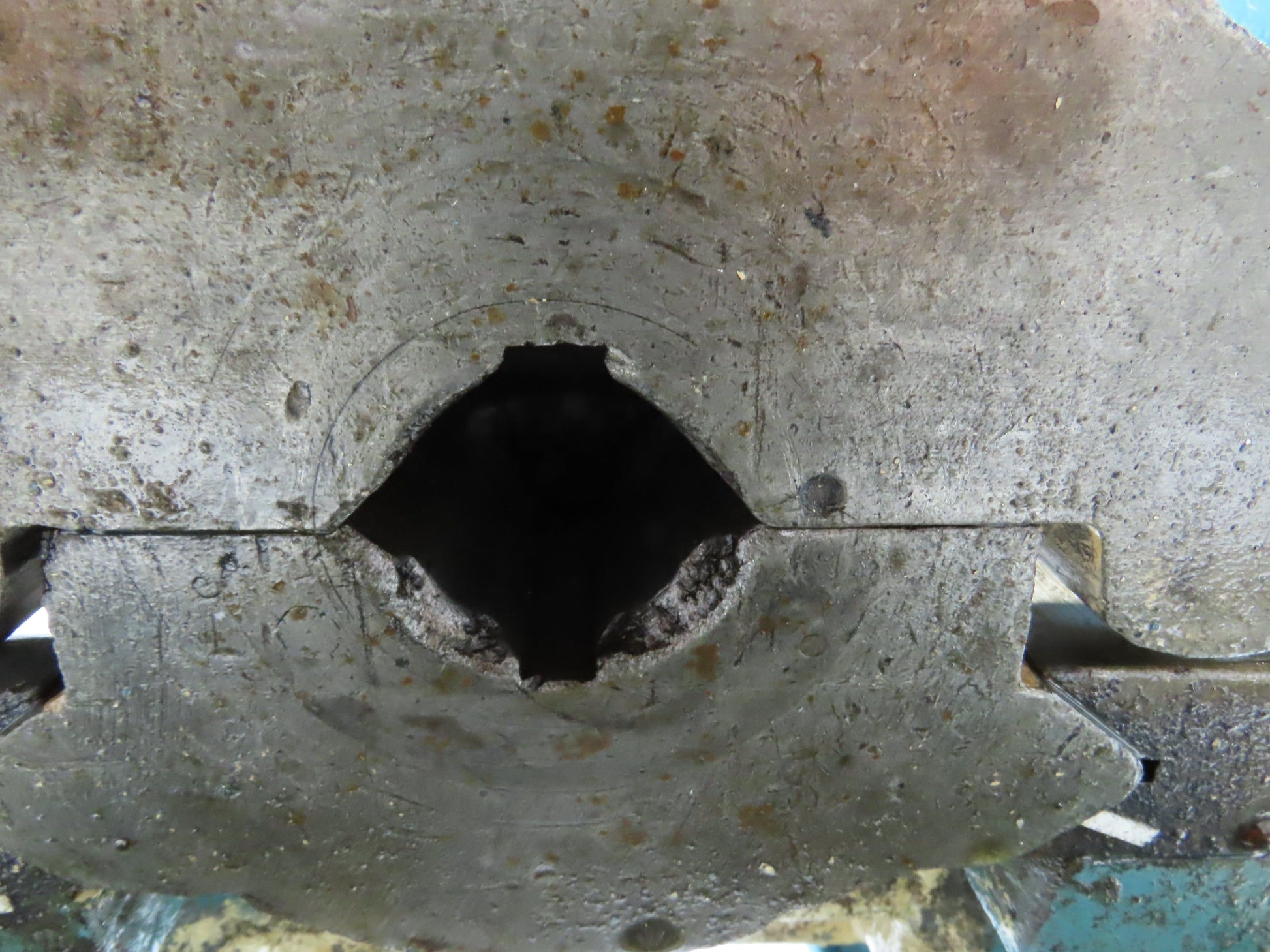

  • Ram Die Shank Size (Inches): 1-1/2
  • Ram Die Shank Length (Inches): 3-3/8
  • Ram Bolt Distance (Center to Center) (Inches): 3-3/8
  • Throat Opening (Frame to Center of Ram) (Inches): 6
  • Bed Size (Inches): 11-1/2x18
  • Bed Opening (Inches): 7x8-1/2
  • Used, in Good Working Condition, Tested OK.
  • Tested in our shop.
  • Wired for 208V 3 phase
  • Has aftermarket plate 1-5/8" thick with T slot. Center hole is 3-5/8"x4-5/8".

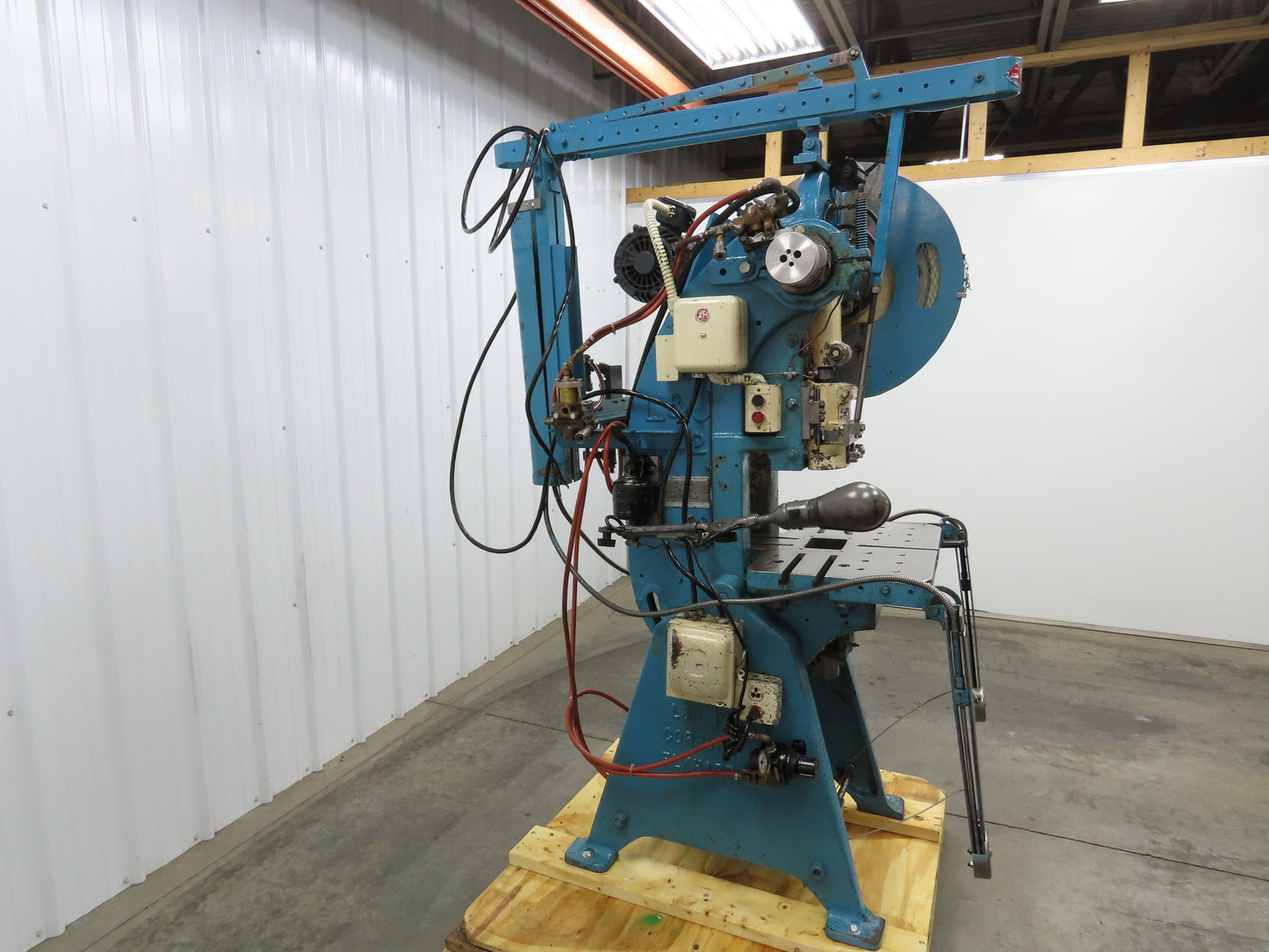

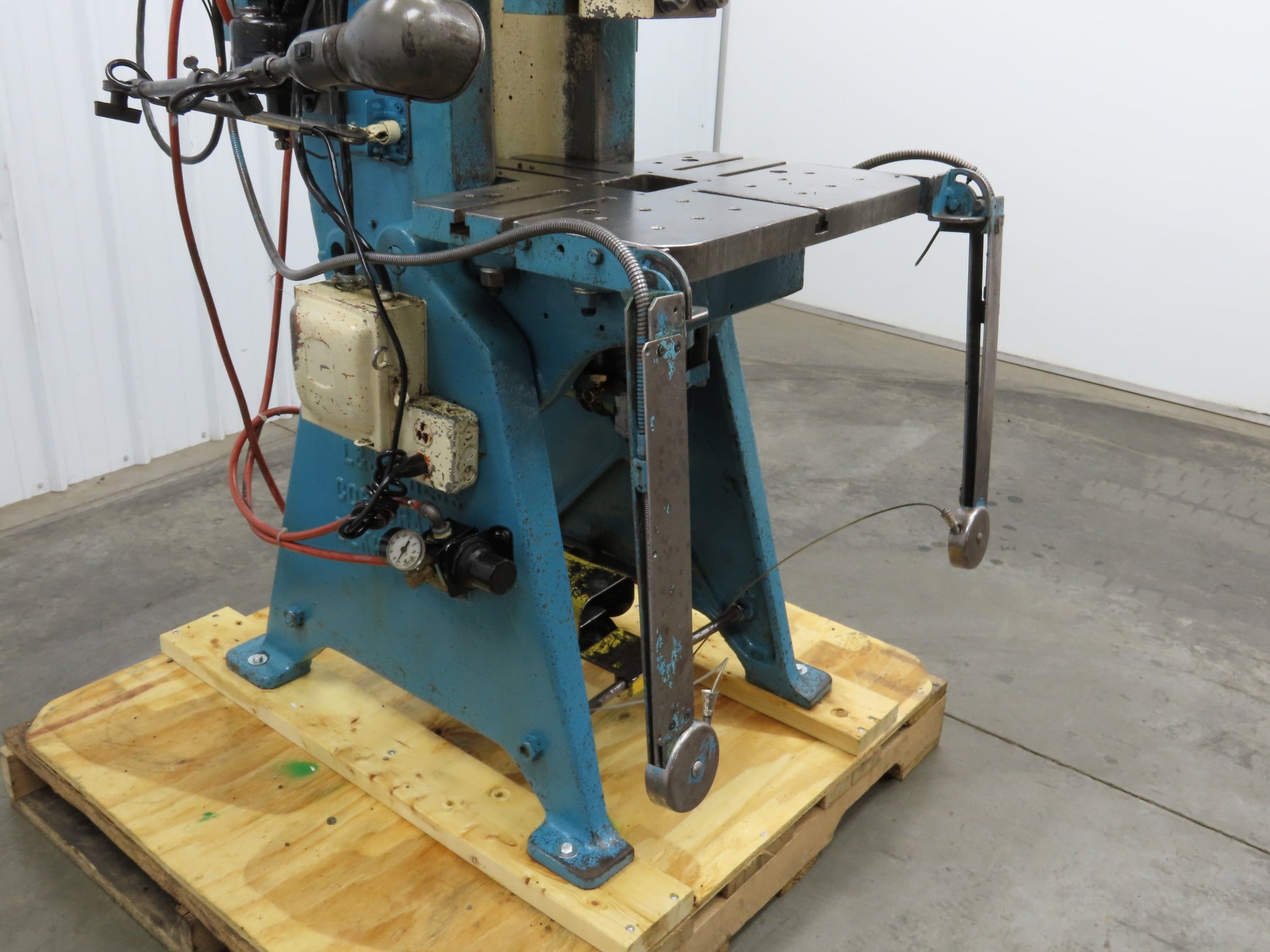

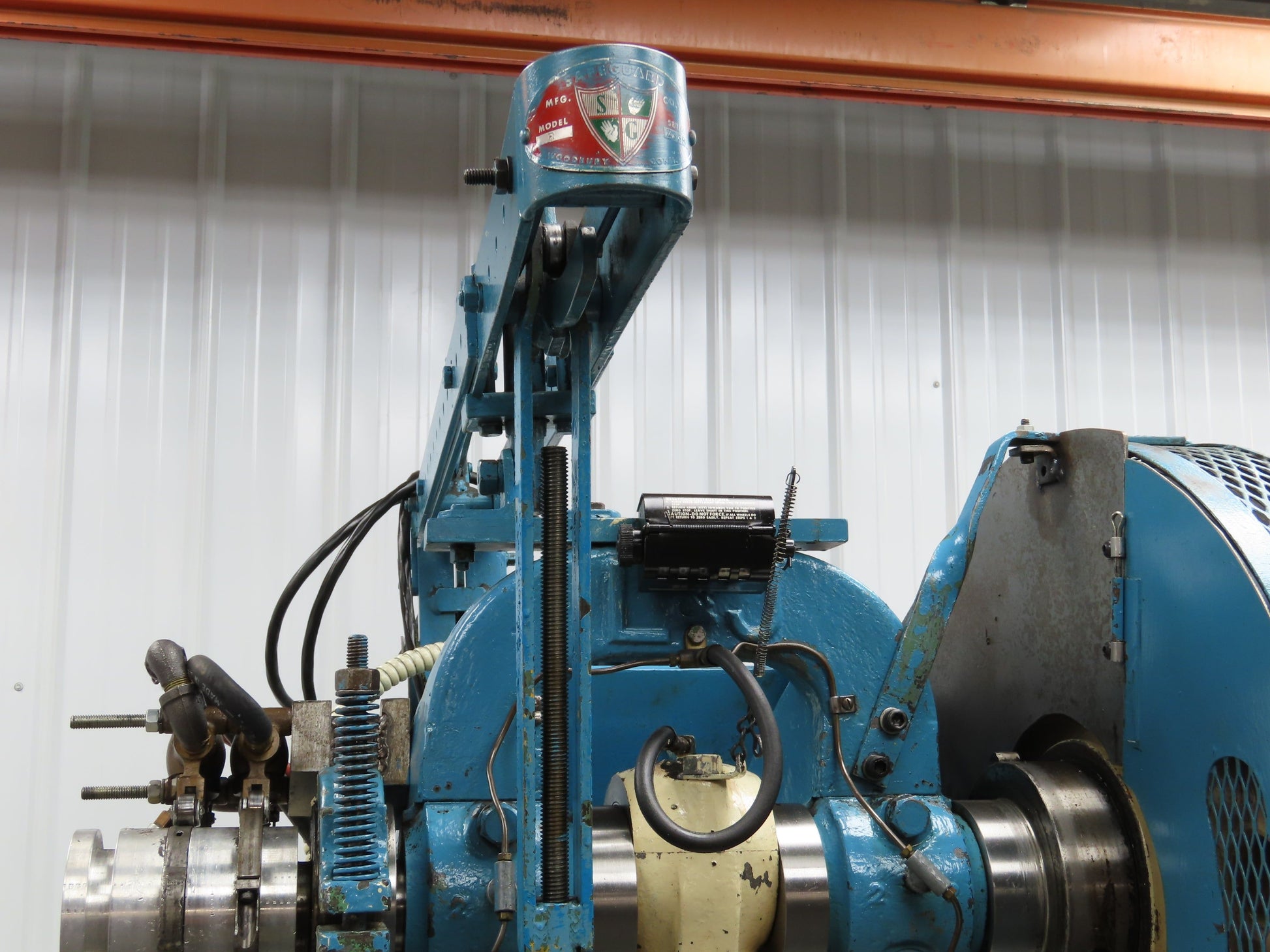

  • Has Safeguard safety controls. Pulls operator's hands out of the way.

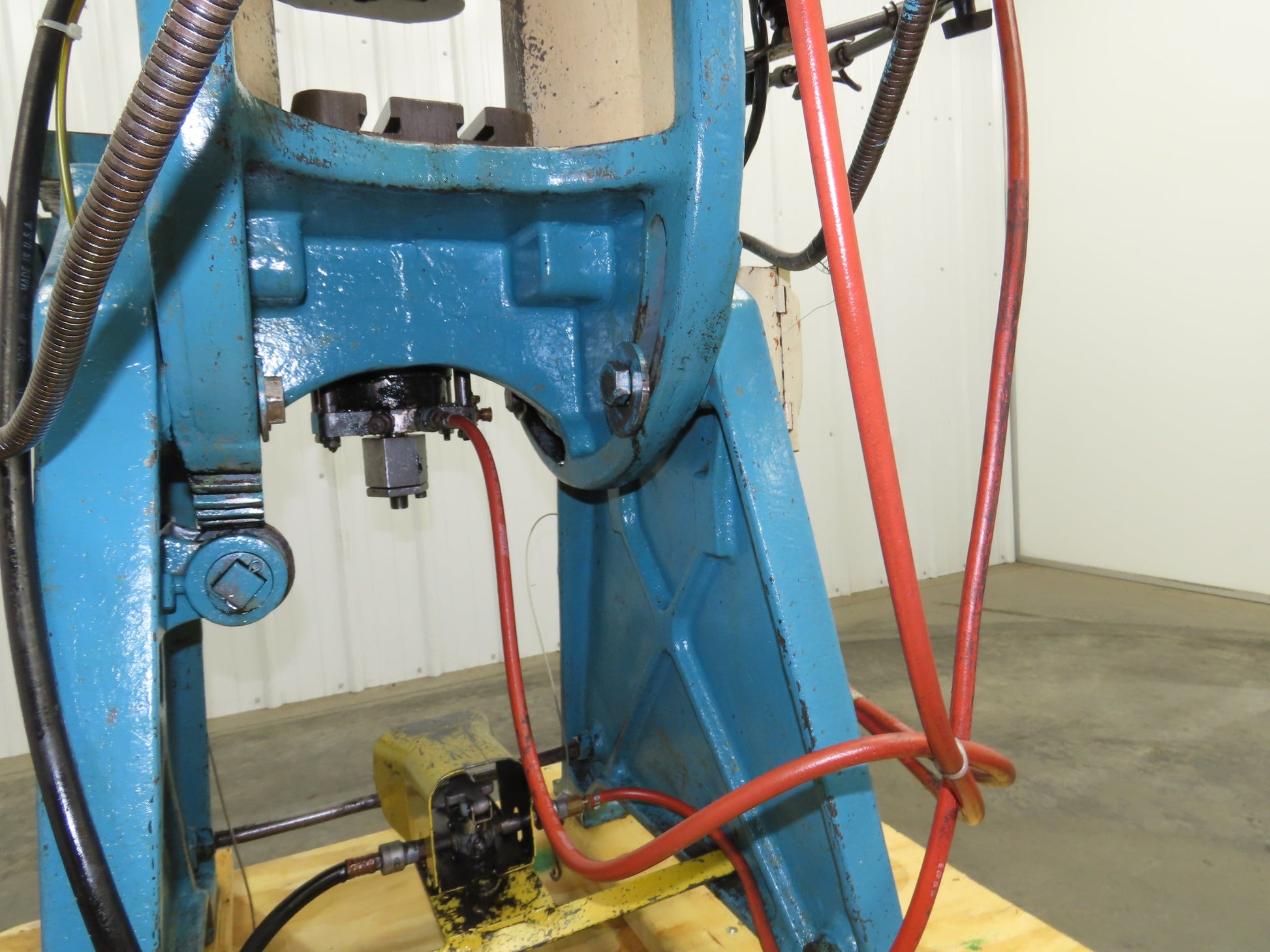

  • This unit has die cushion. Not sure what it does other than absorb the shock.
