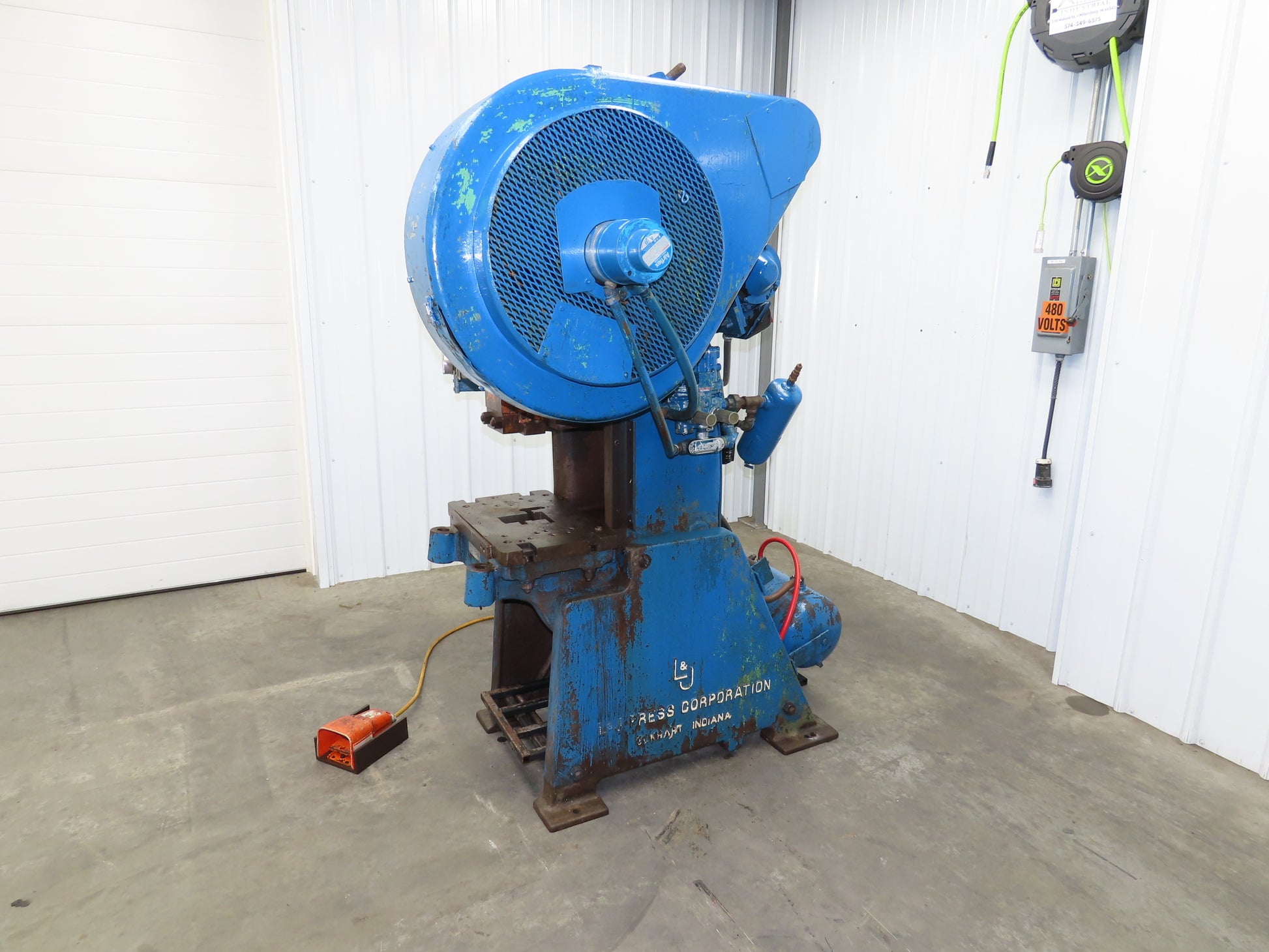

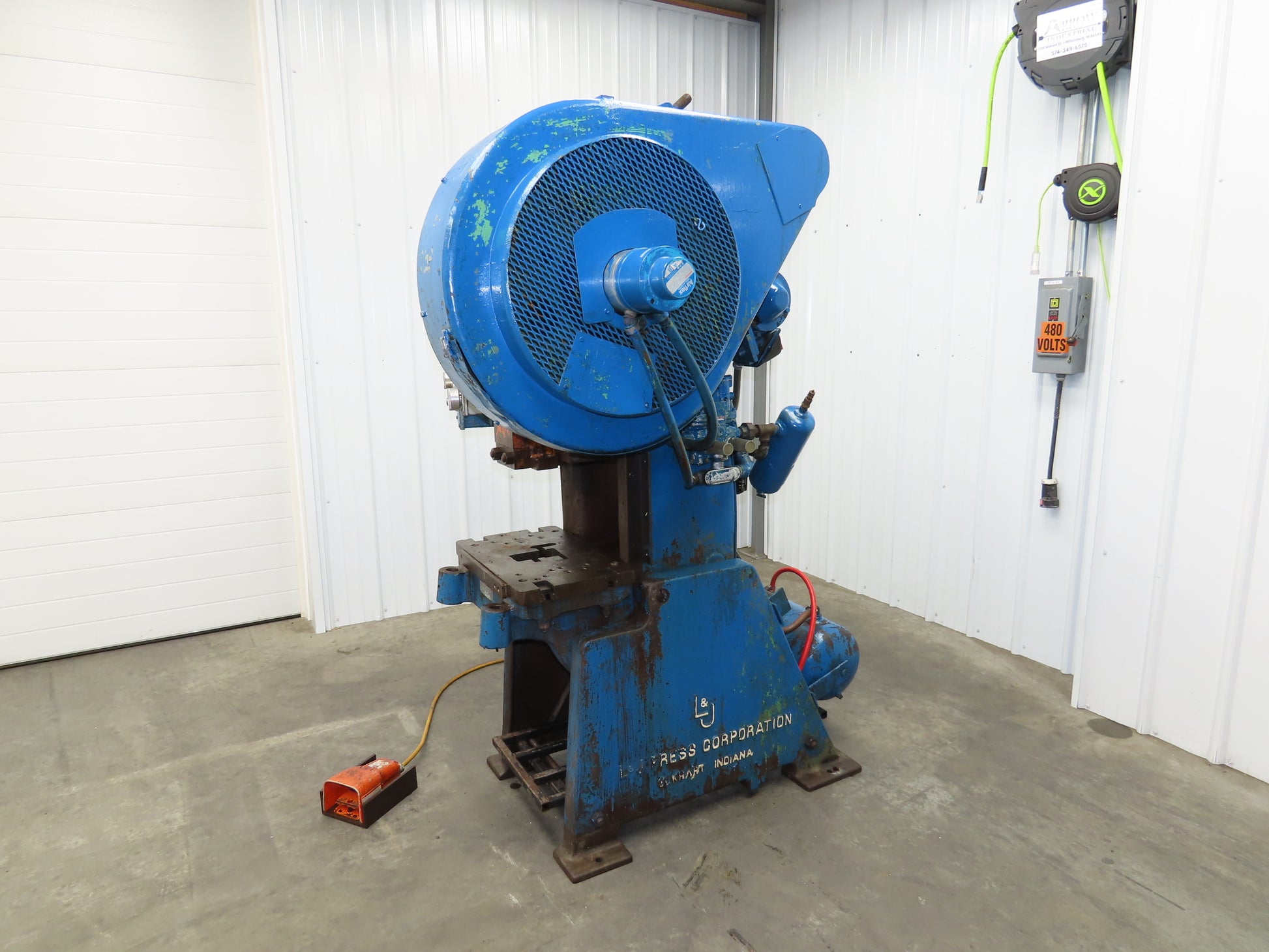

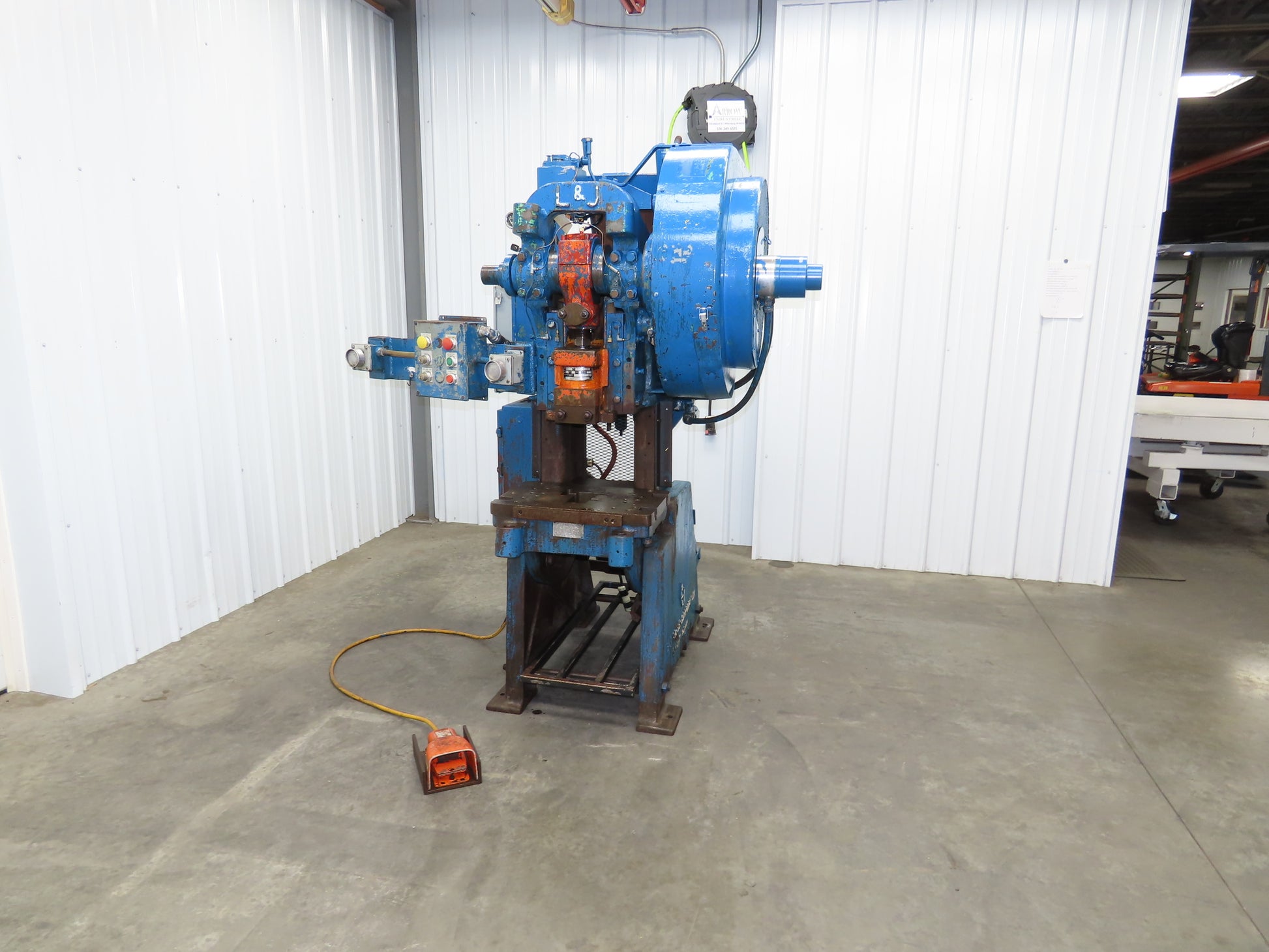

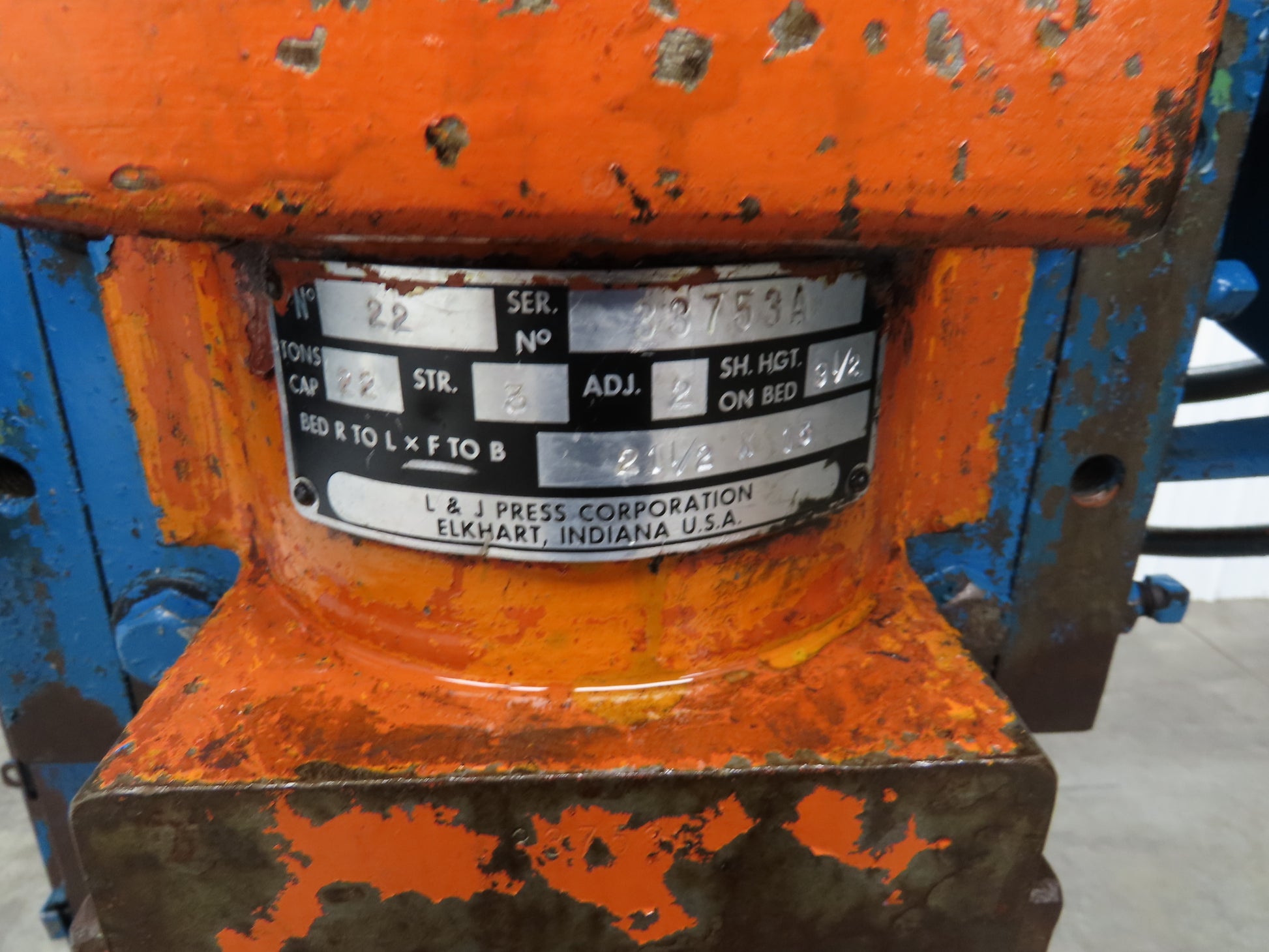

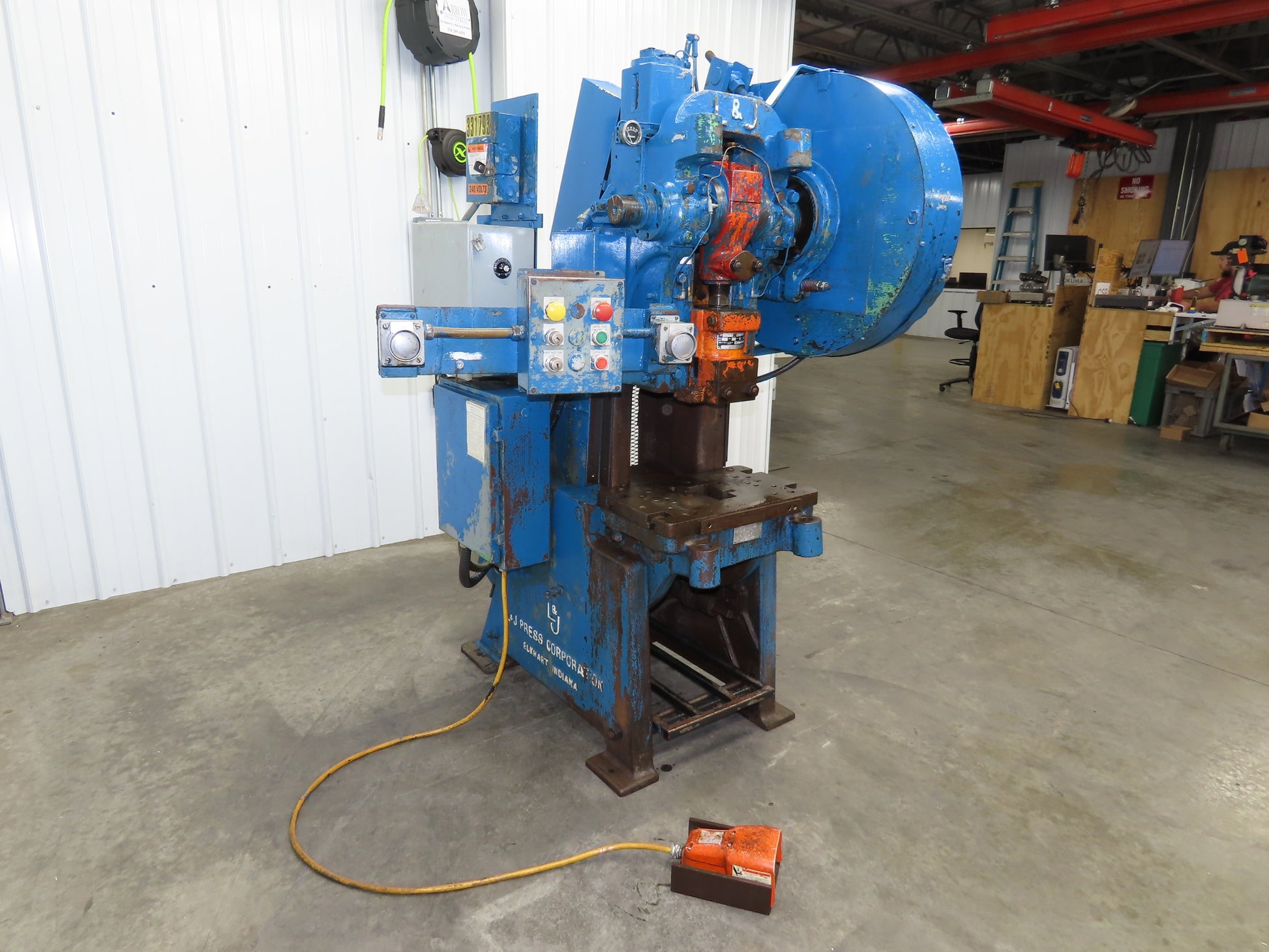

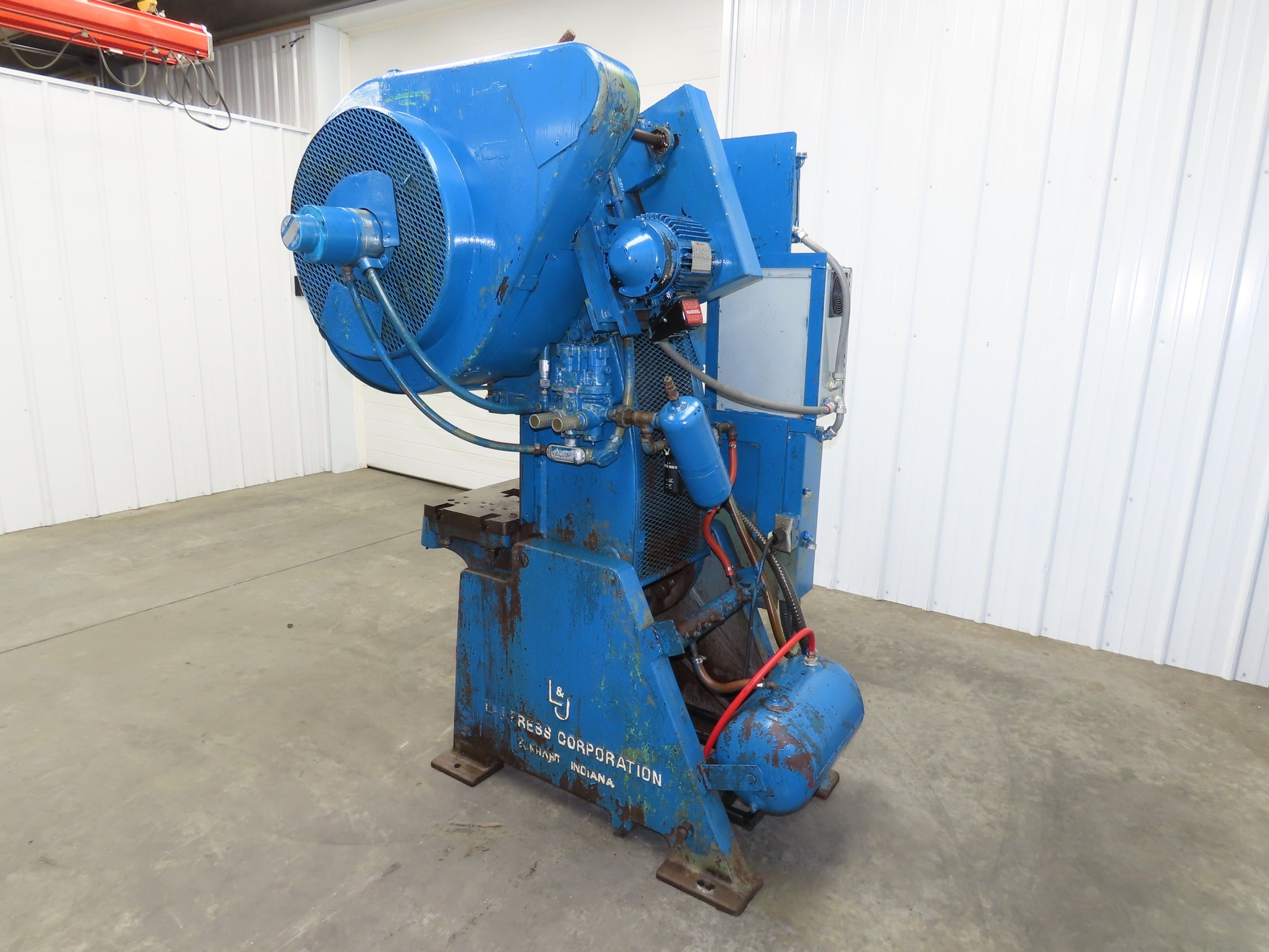

L&J No 22 Mechanical OBI Punch Press 22 Ton 3" Stroke 2Hp 3Ph Air Clutch Brake

L&J No 22 Mechanical OBI Punch Press 22 Ton 3" Stroke 2Hp 3Ph Air Clutch Brake

SKU #292518

Your Price
$3,799.99
$3,999.99 $3,799.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

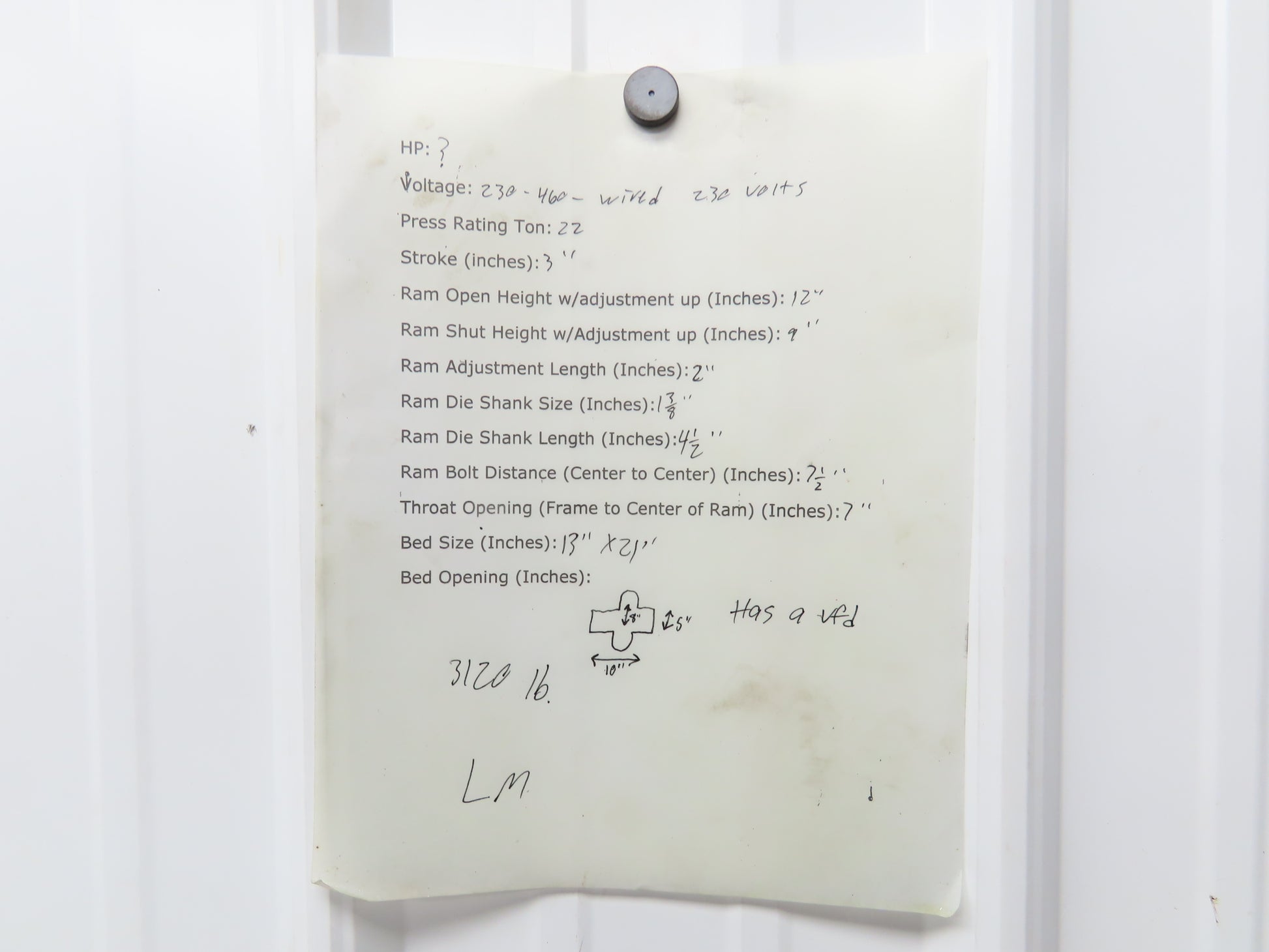

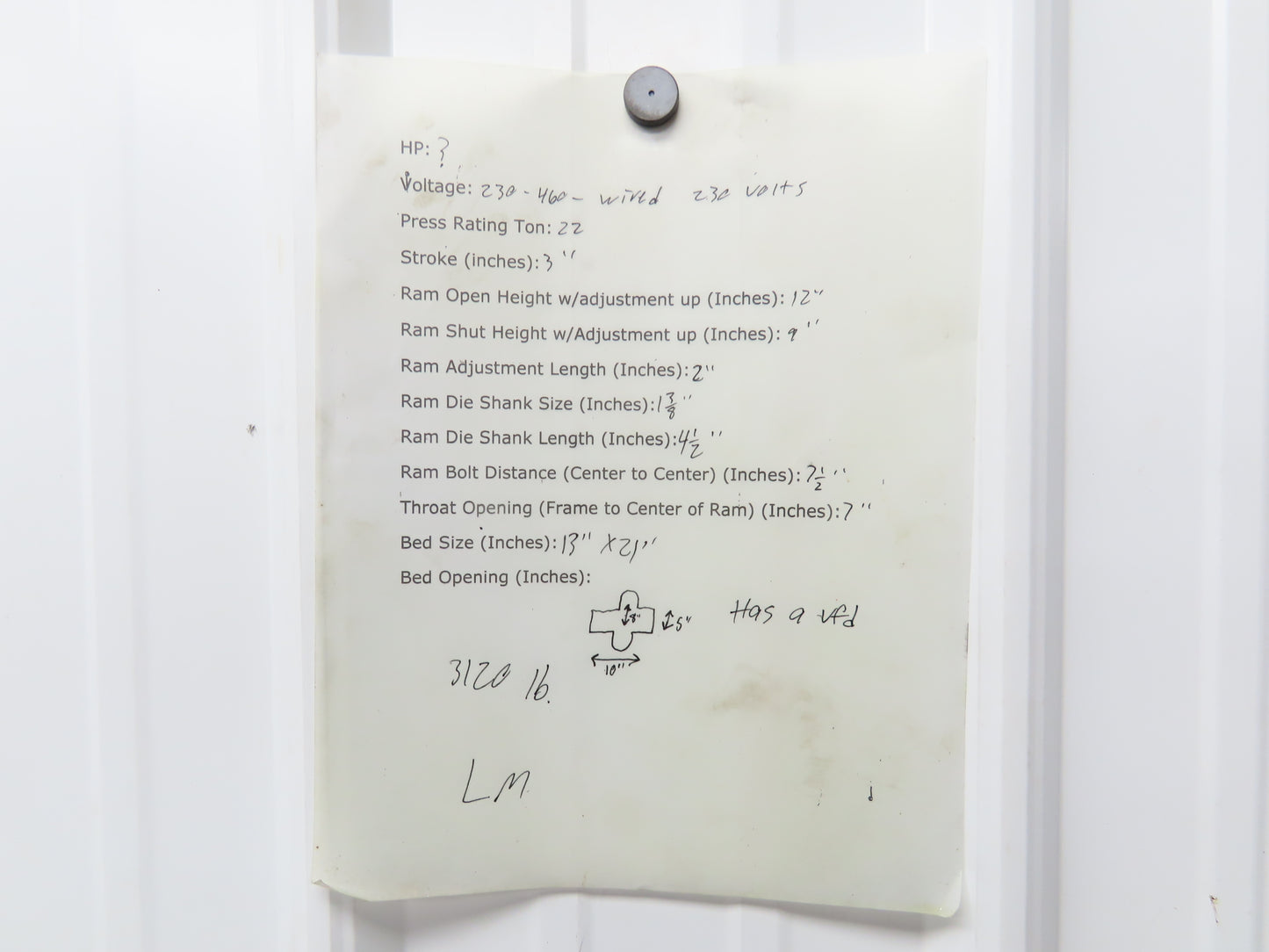

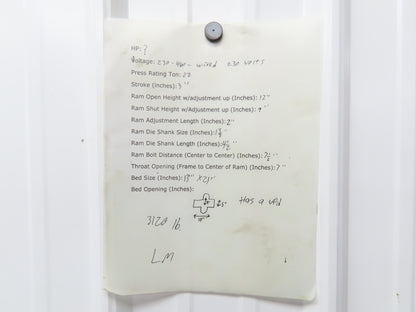

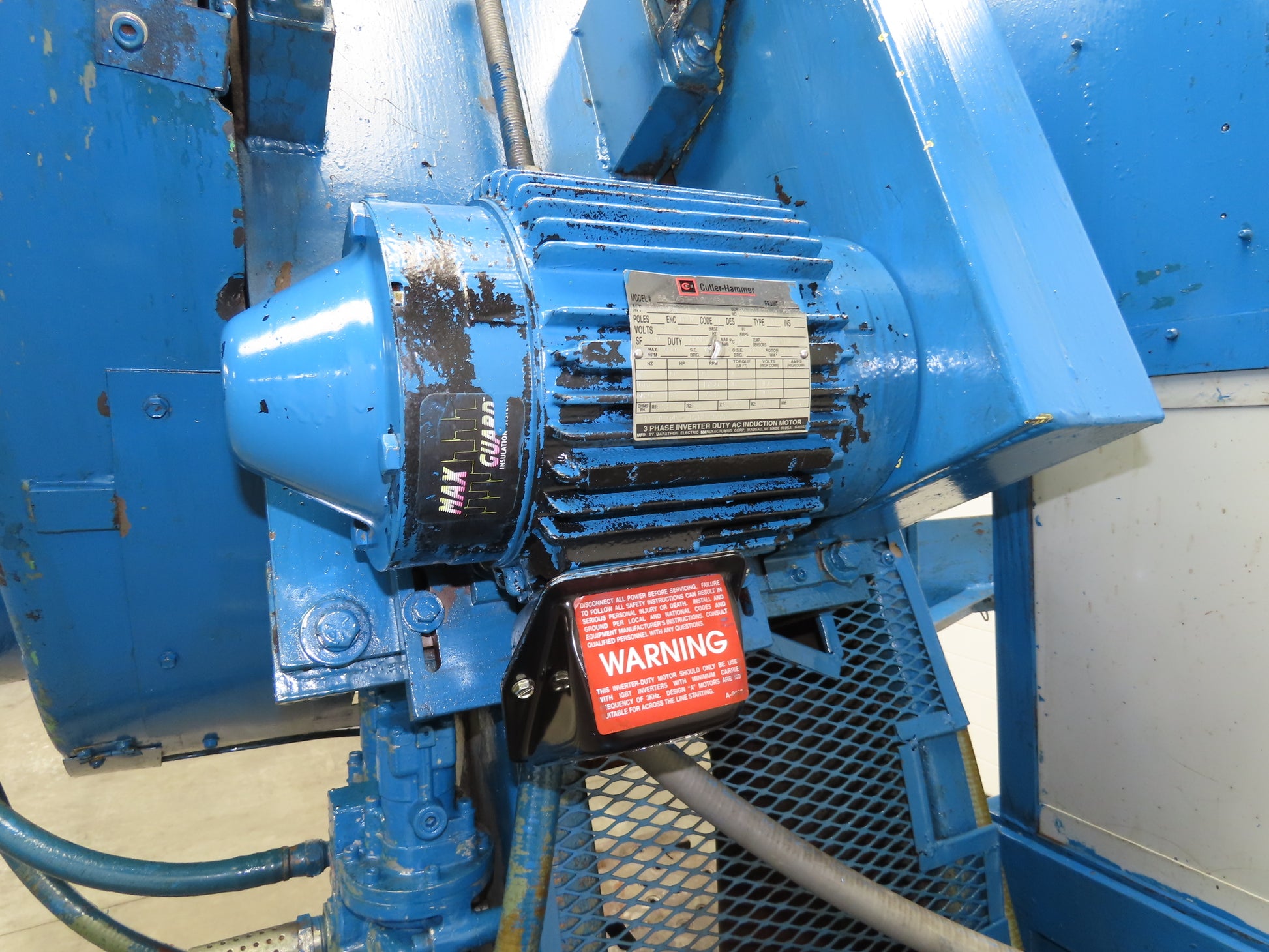

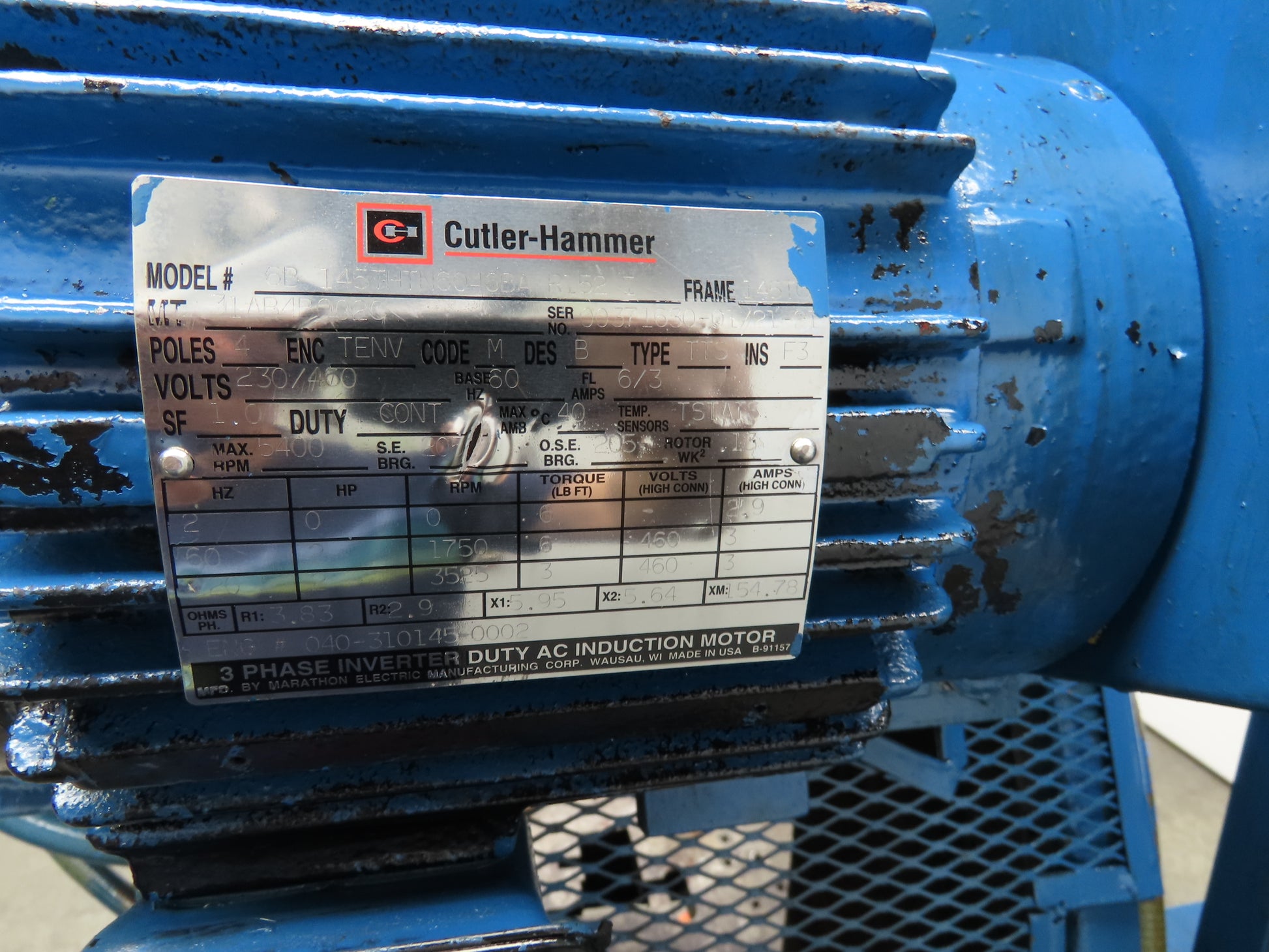

  • HP: 2 Cutler hammer
  • Voltage: 230/460V 3 phase
  • Press Rating Ton: 22
  • Stroke (inches): 3

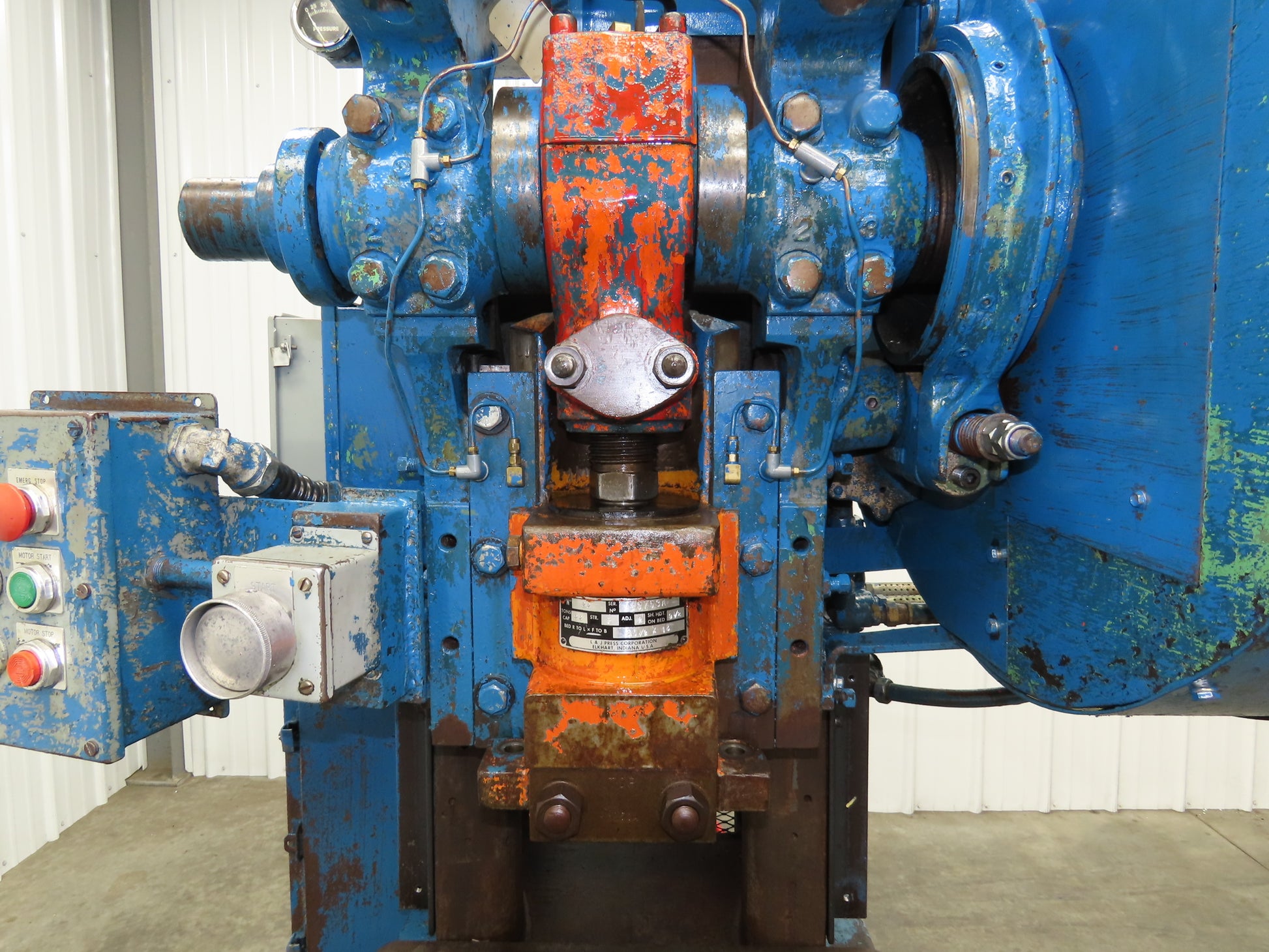

  • Ram Open Height w/adjustment up (Inches): 12
  • Ram Shut Height w/Adjustment up (Inches): 9
  • Ram Adjustment Length (Inches): 2
  • Ram Die Shank Size (Inches): 1-3/8
  • Ram Die Shank Length (Inches): 4-1/2
  • Ram Bolt Distance (Center to Center) (Inches): 7-1/2

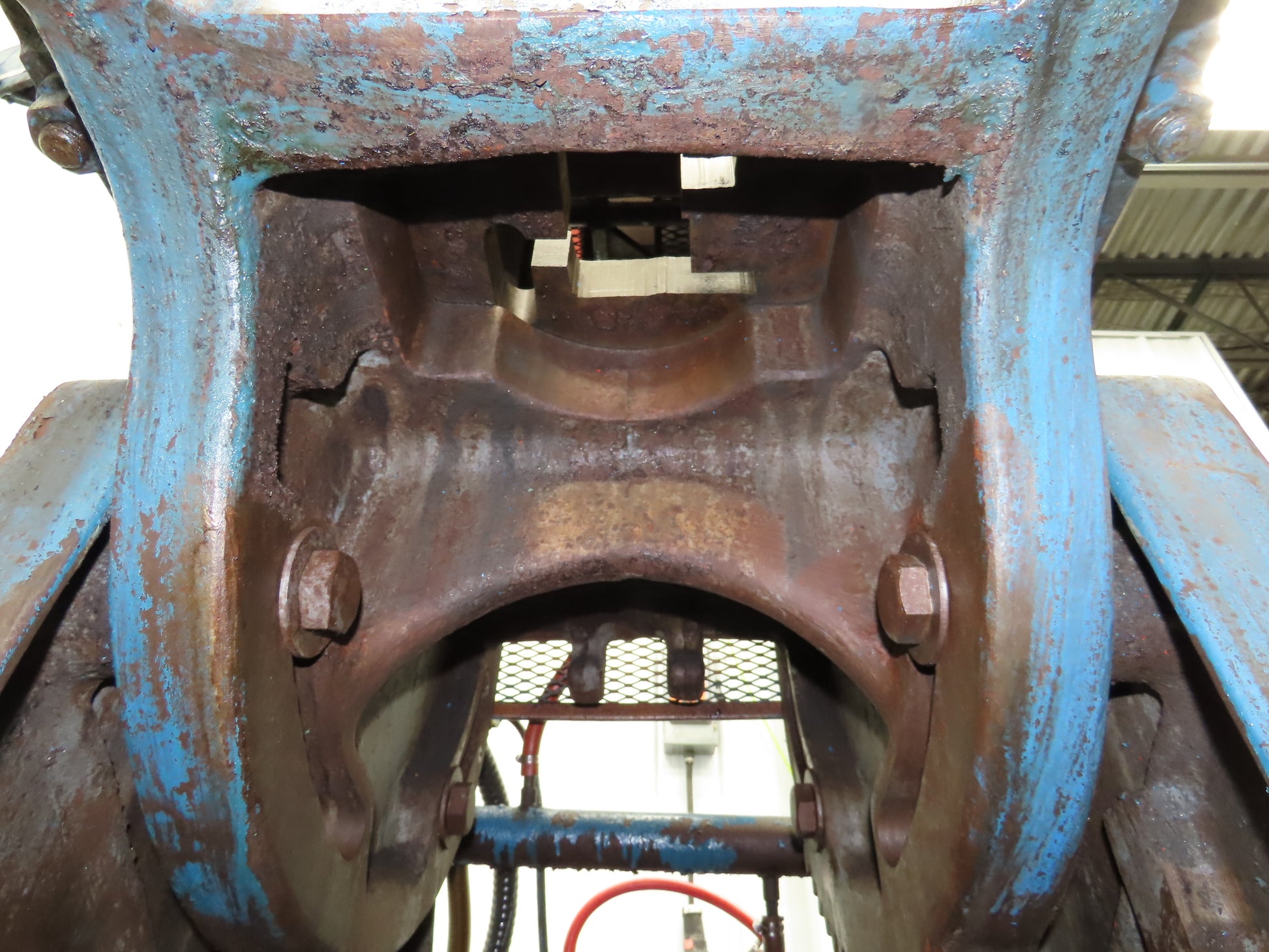

  • Throat Opening (Frame to Center of Ram) (Inches): 7
  • Bed Size (Inches): 13 x21
  • Bed Opening (Inches): 8 x 12
  • Used, in Good Working Condition, Tested OK.
  • Tested in our shop.

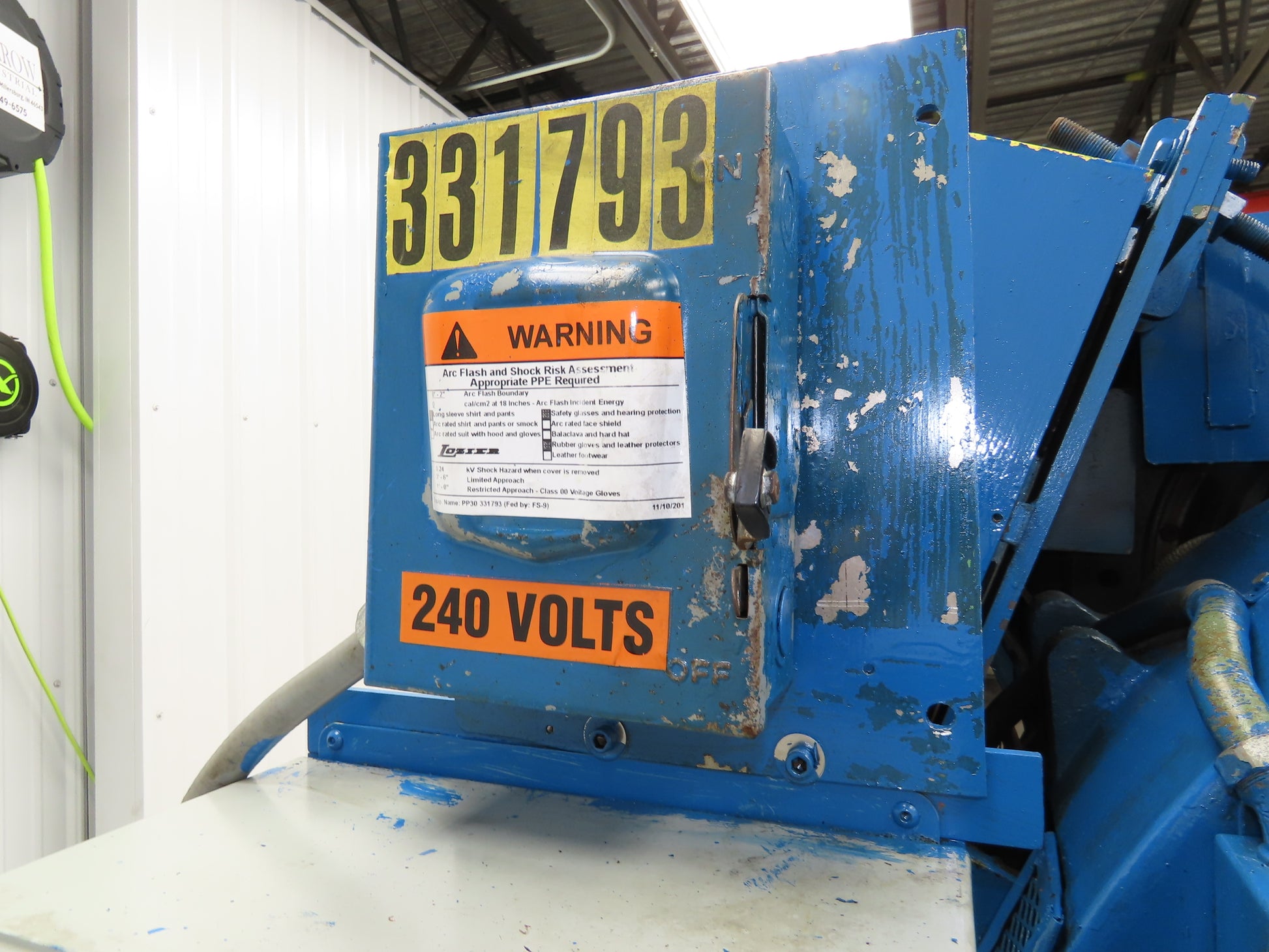

  • Wired for 230V 3 phase

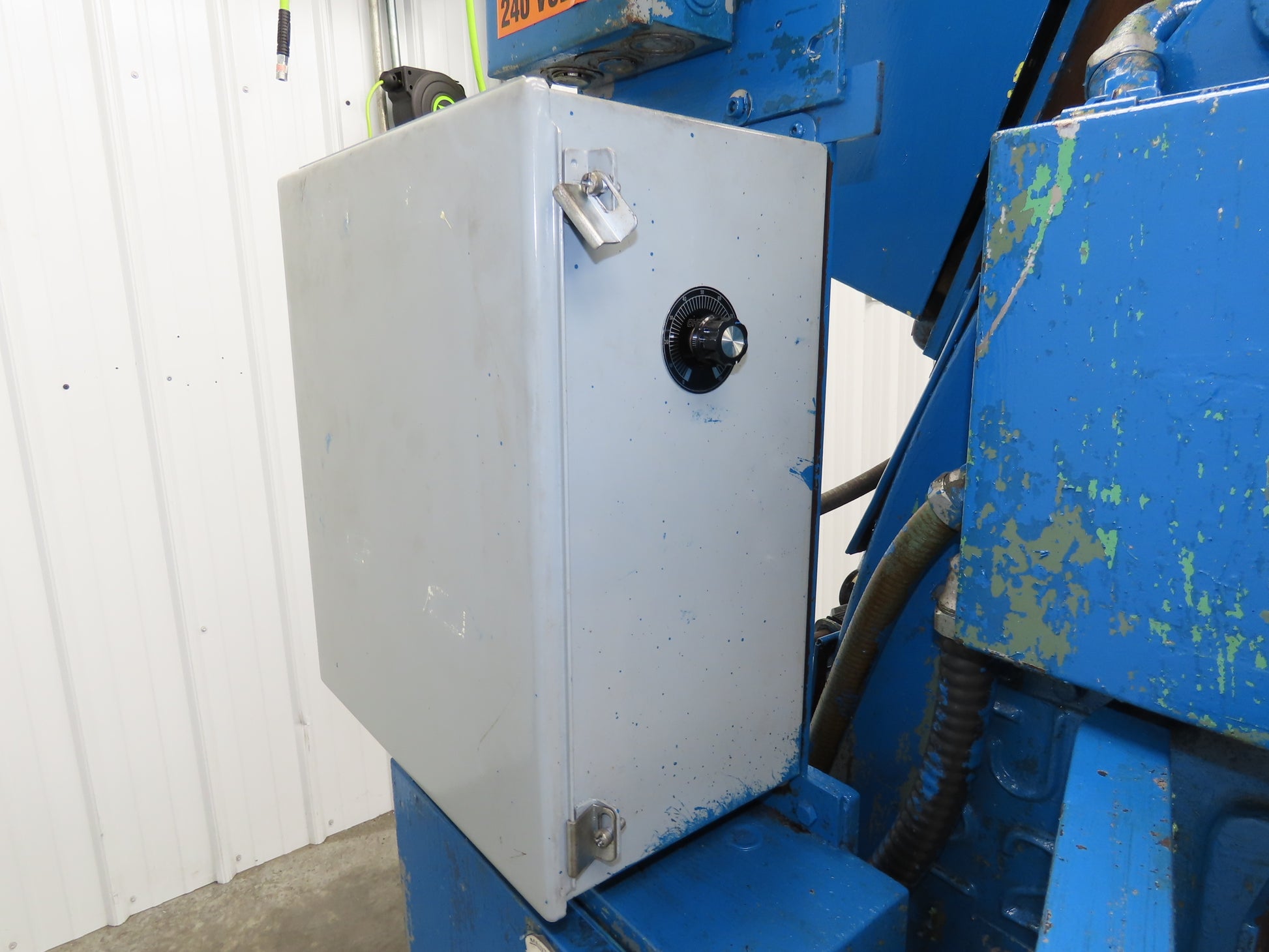

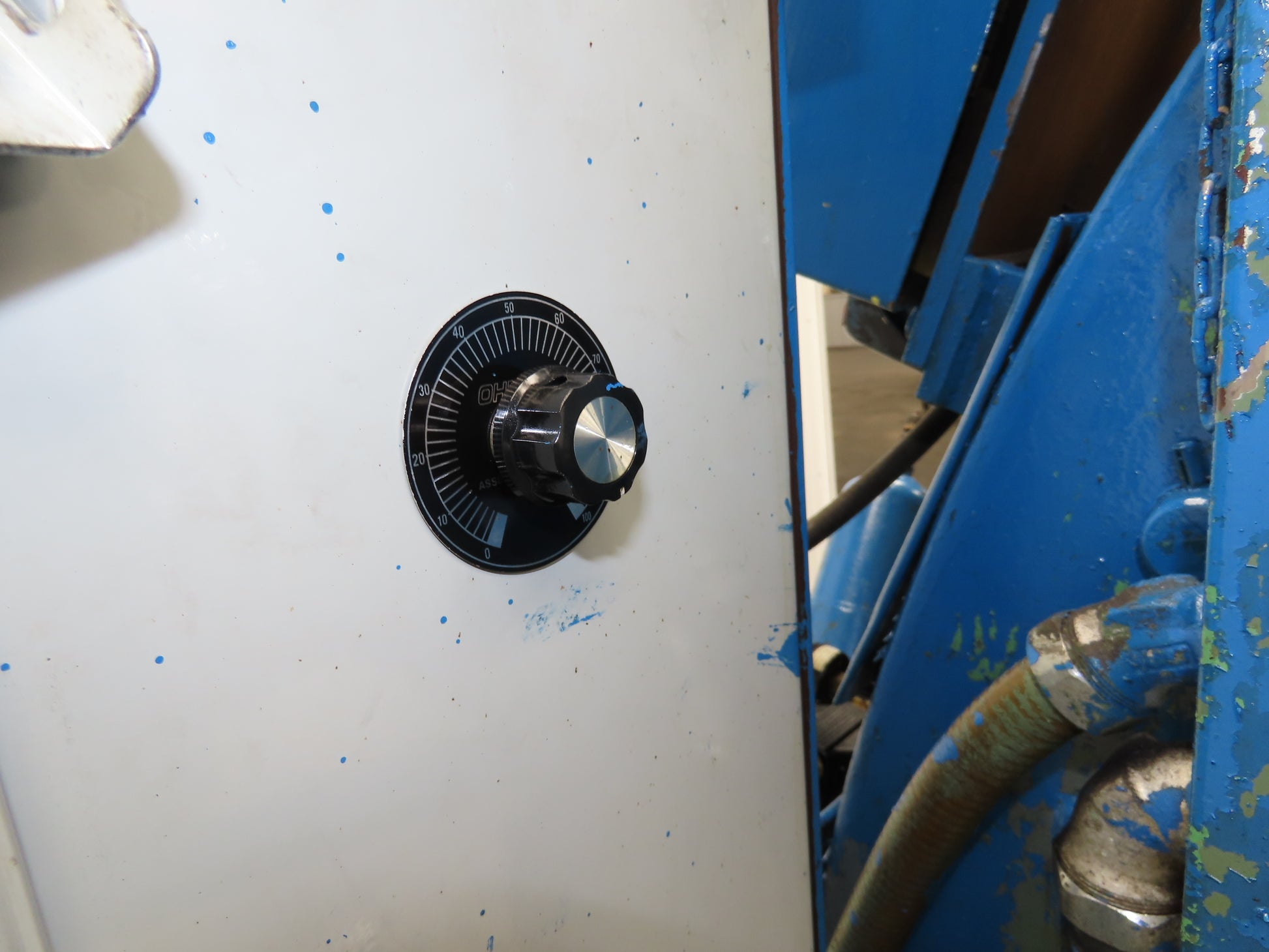

  • This has an Allen Bradley Powerflex drive. This allows for motor speed adjustment. Slow down your stroke of whatever product your are punching.

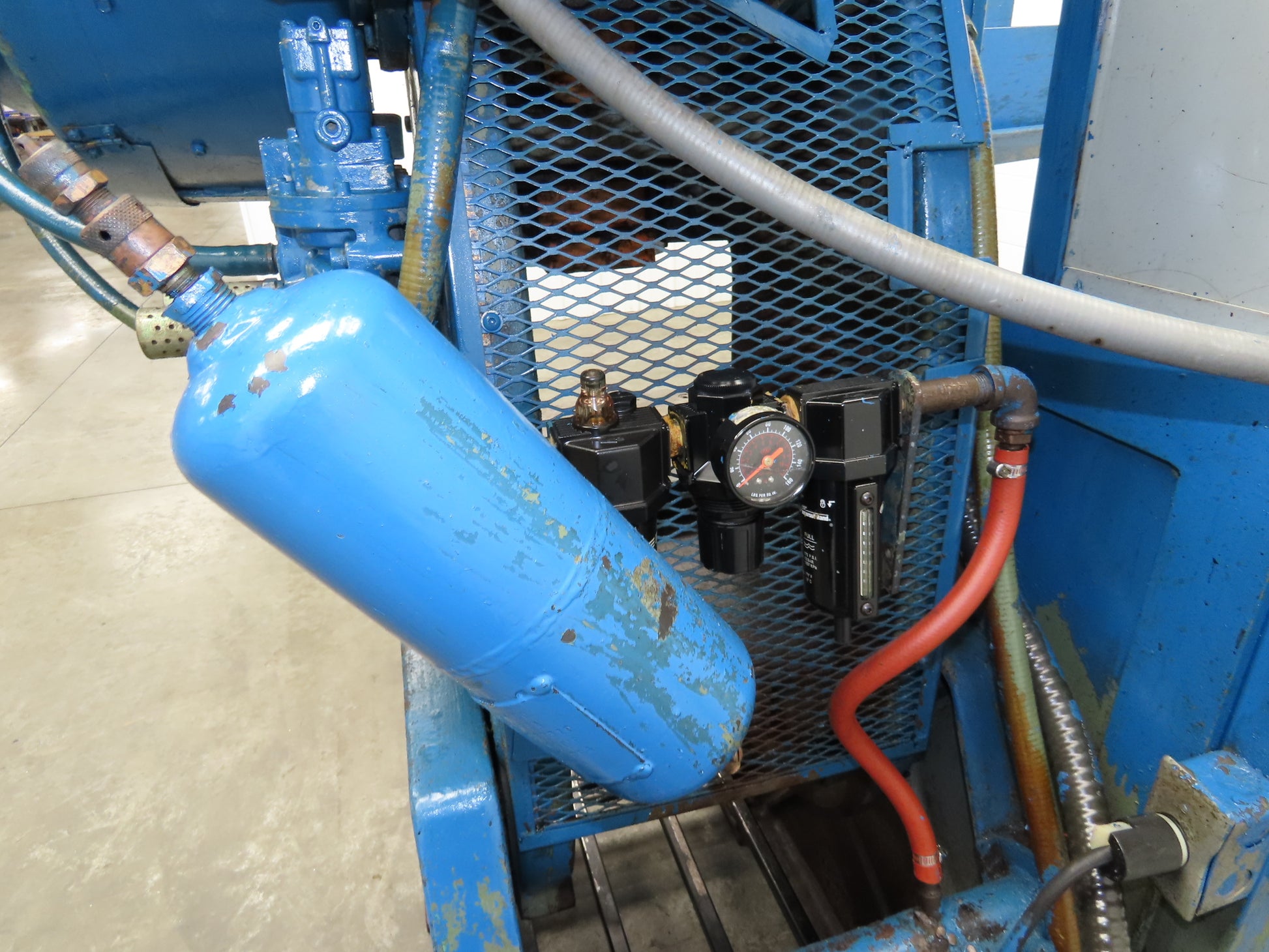

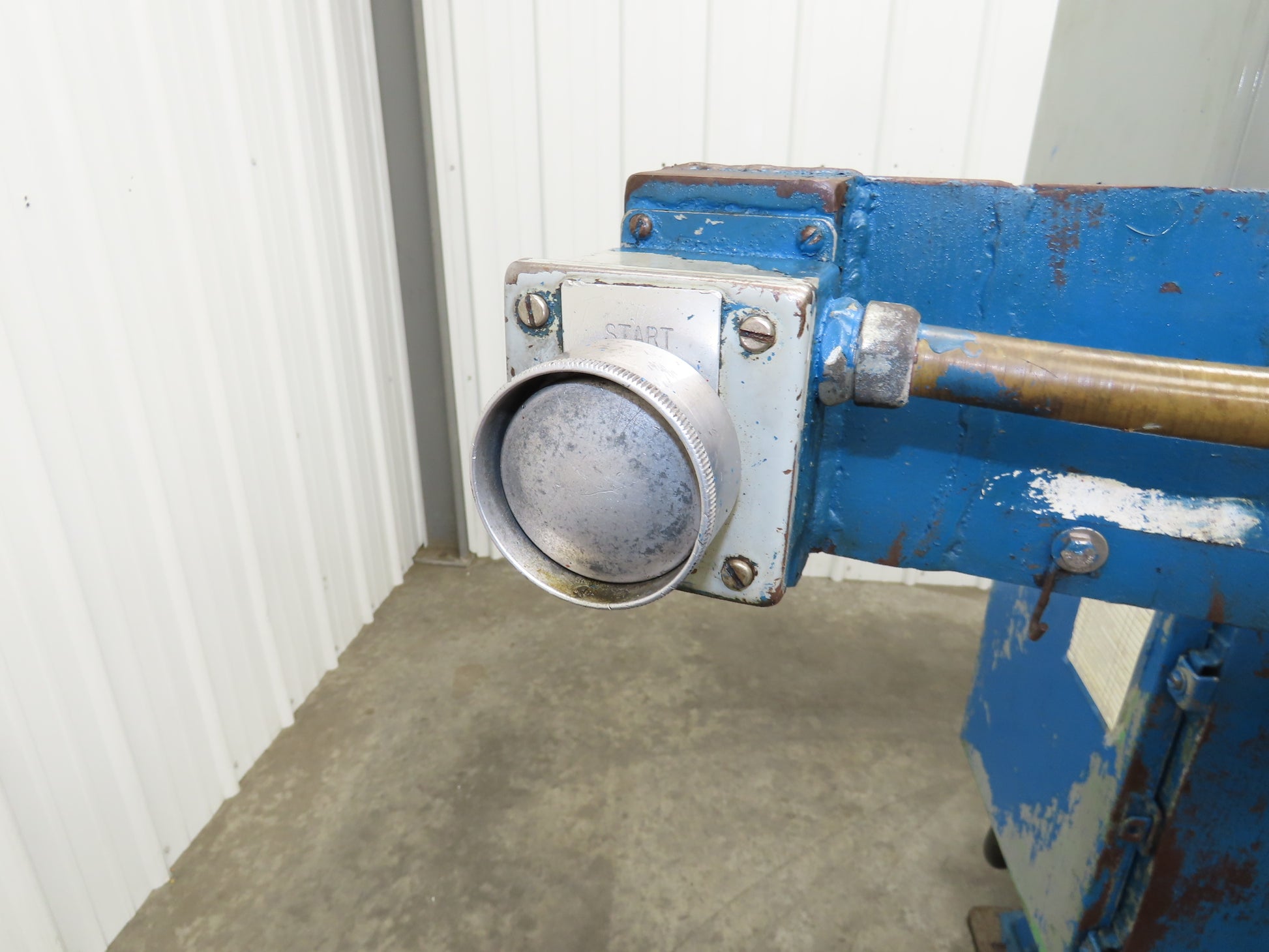

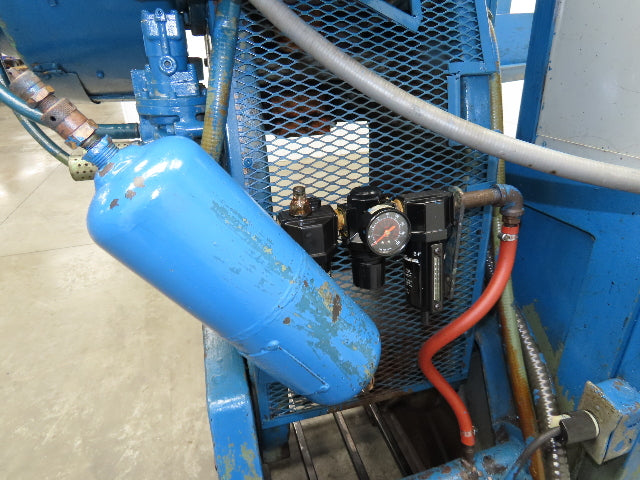

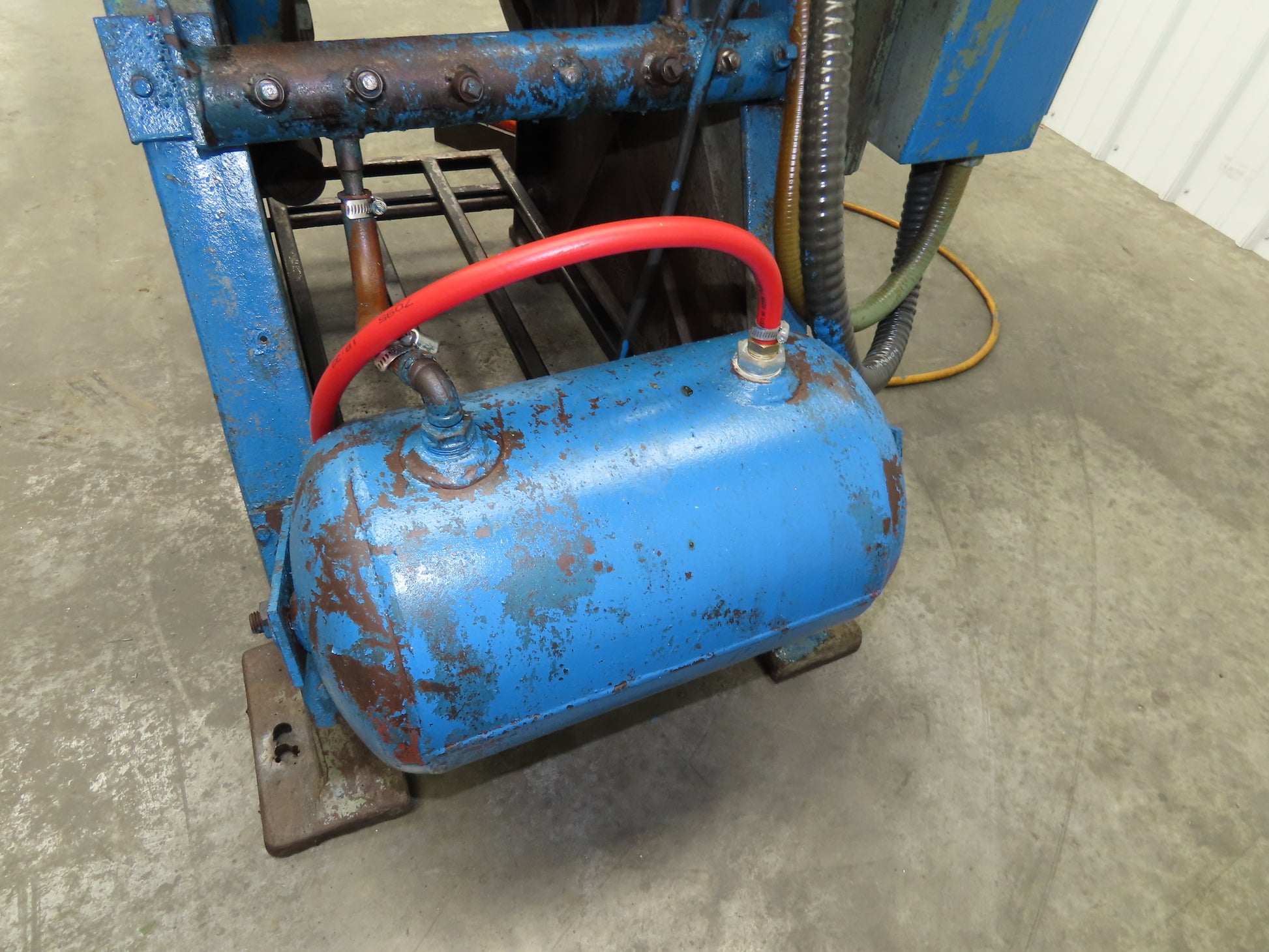

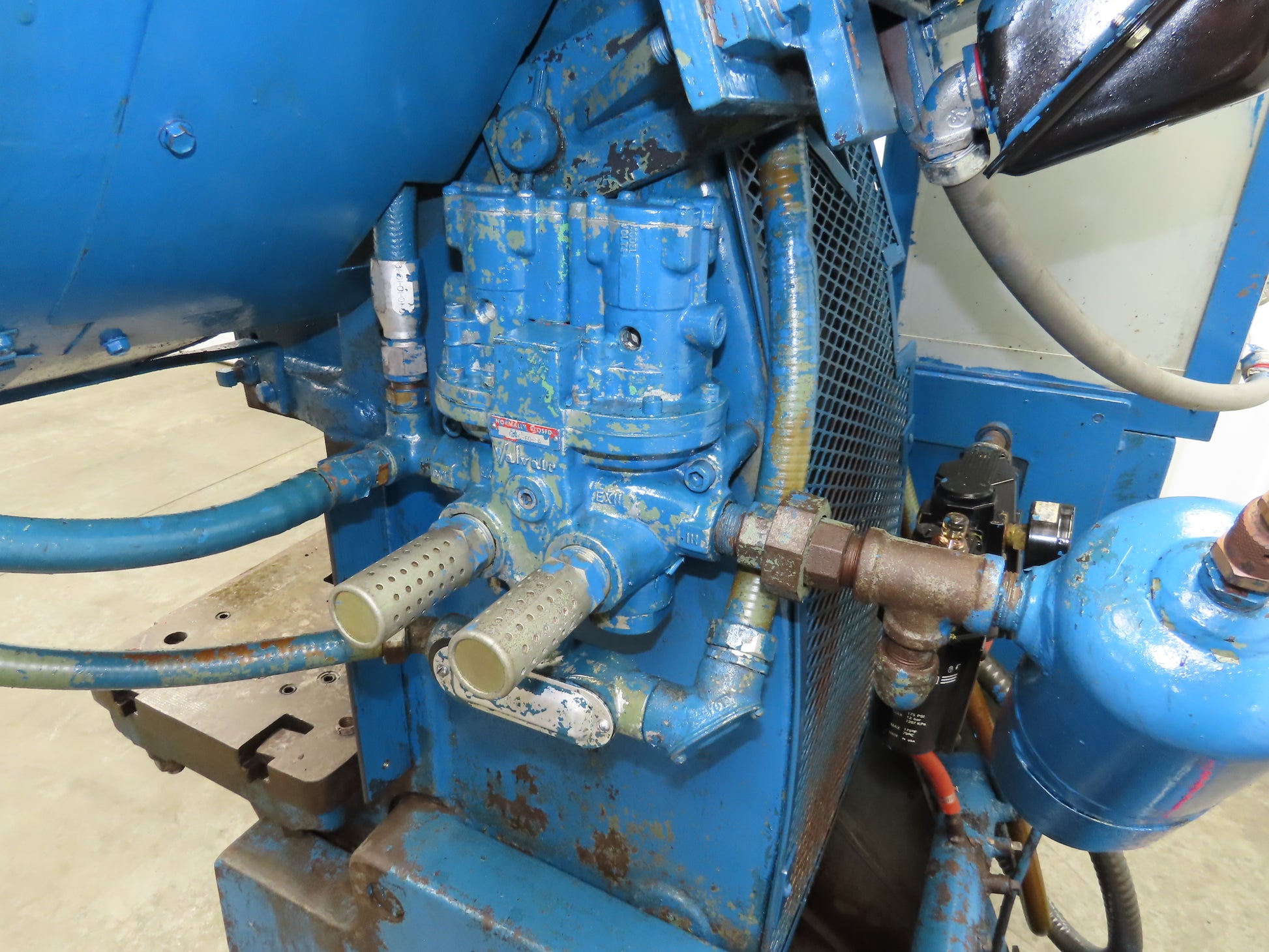

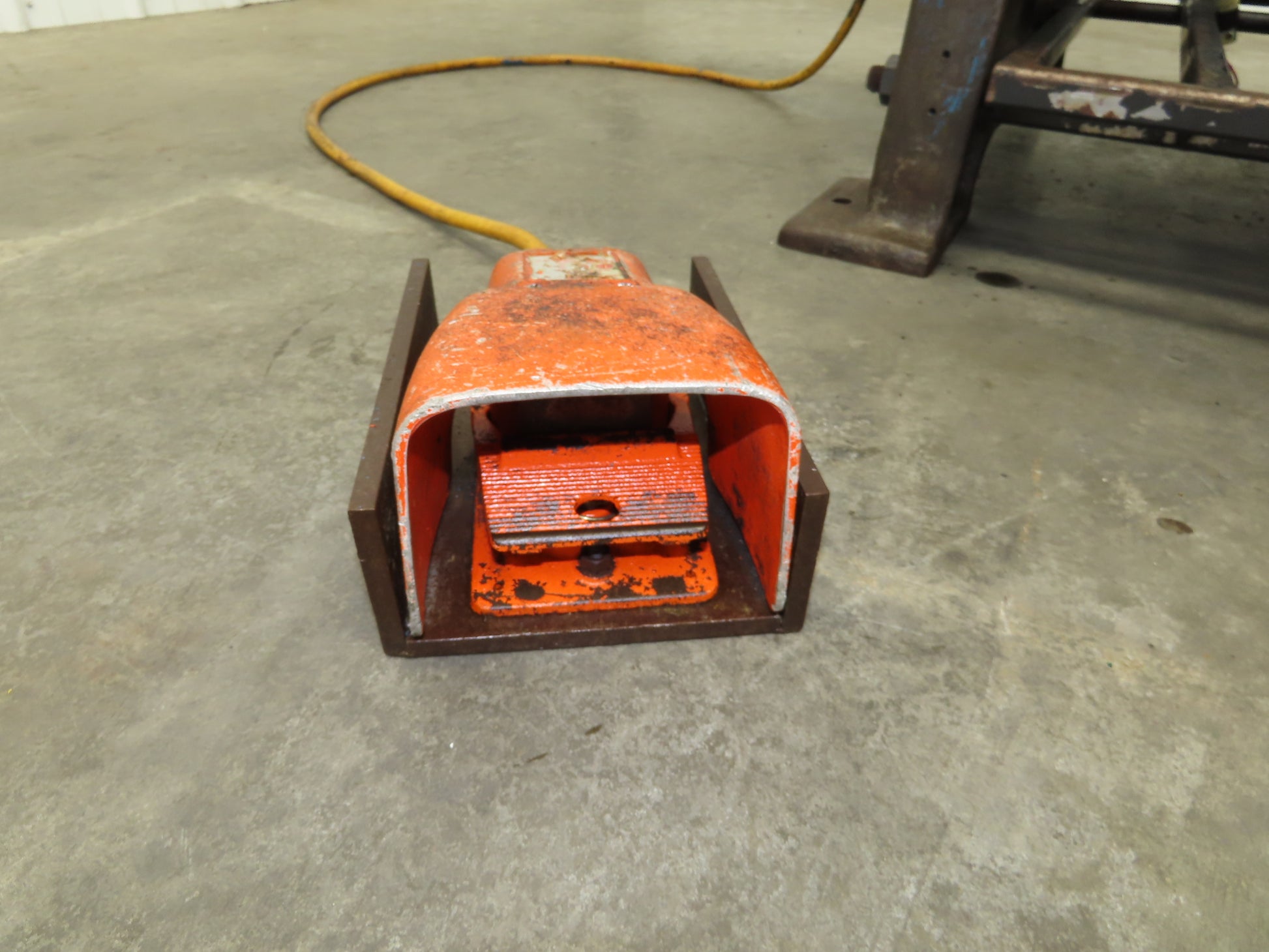

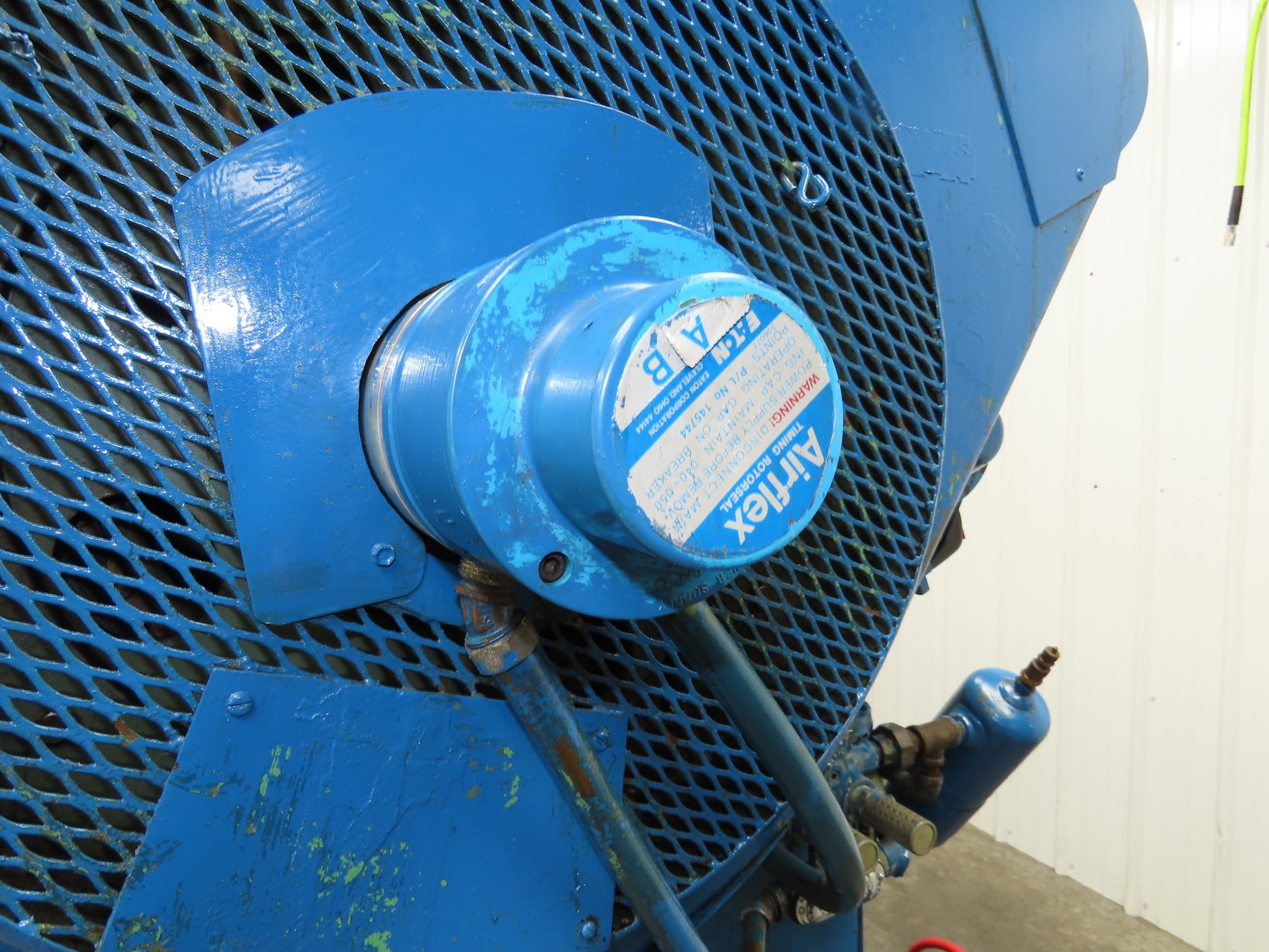

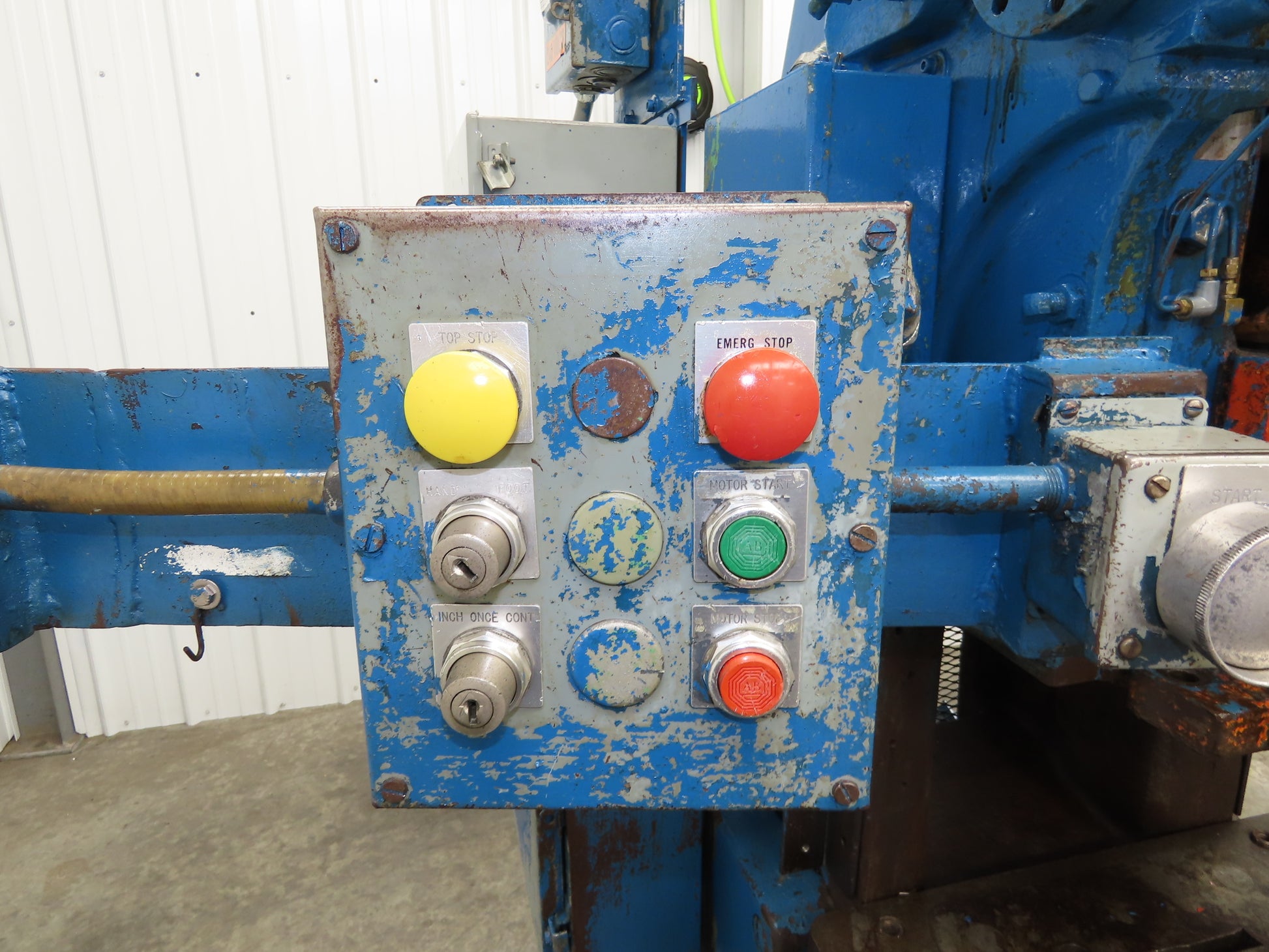

  • Foot control or hand control. Pneumatic clutch brake. This unit could be stopped in any position.

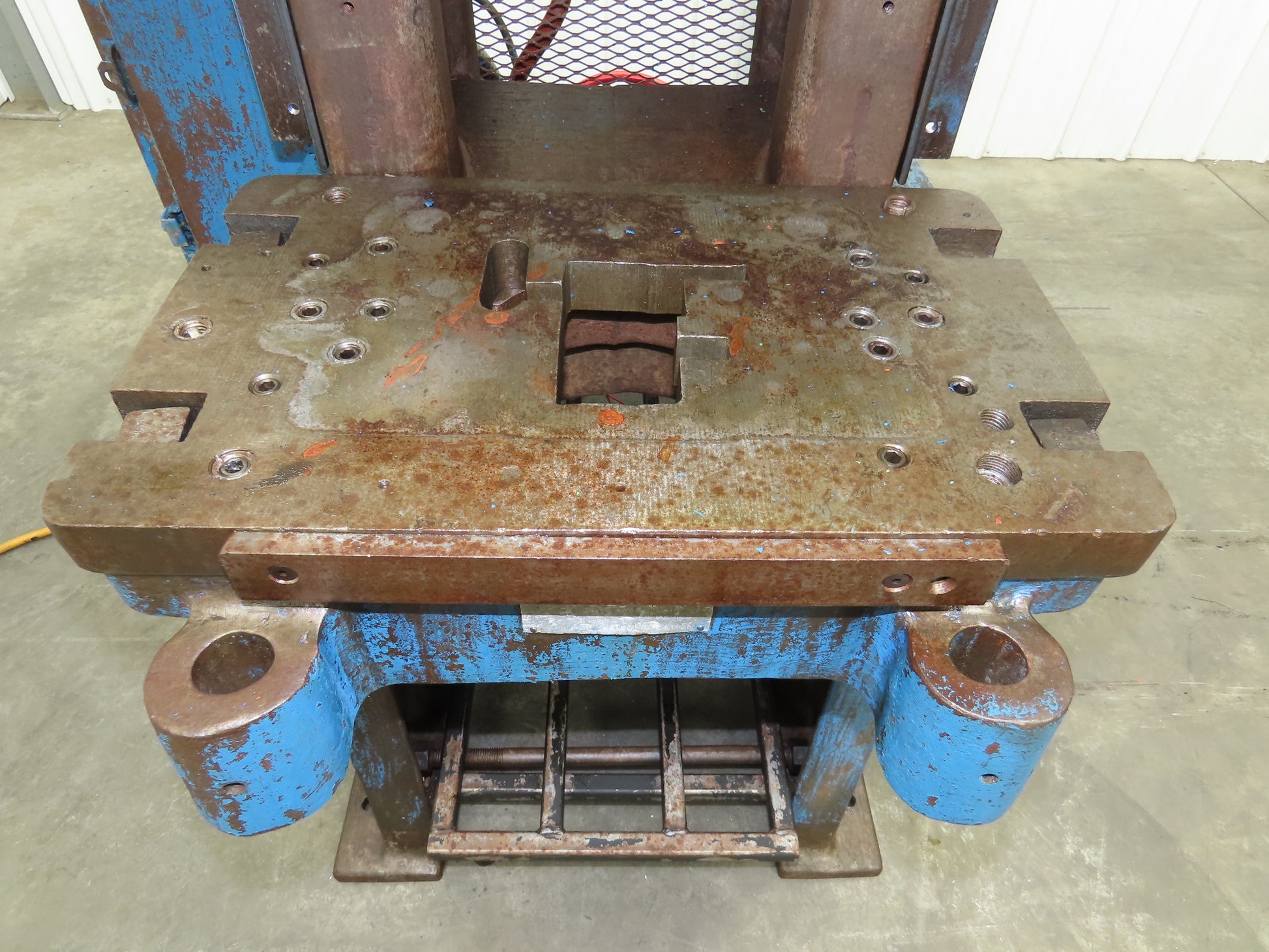

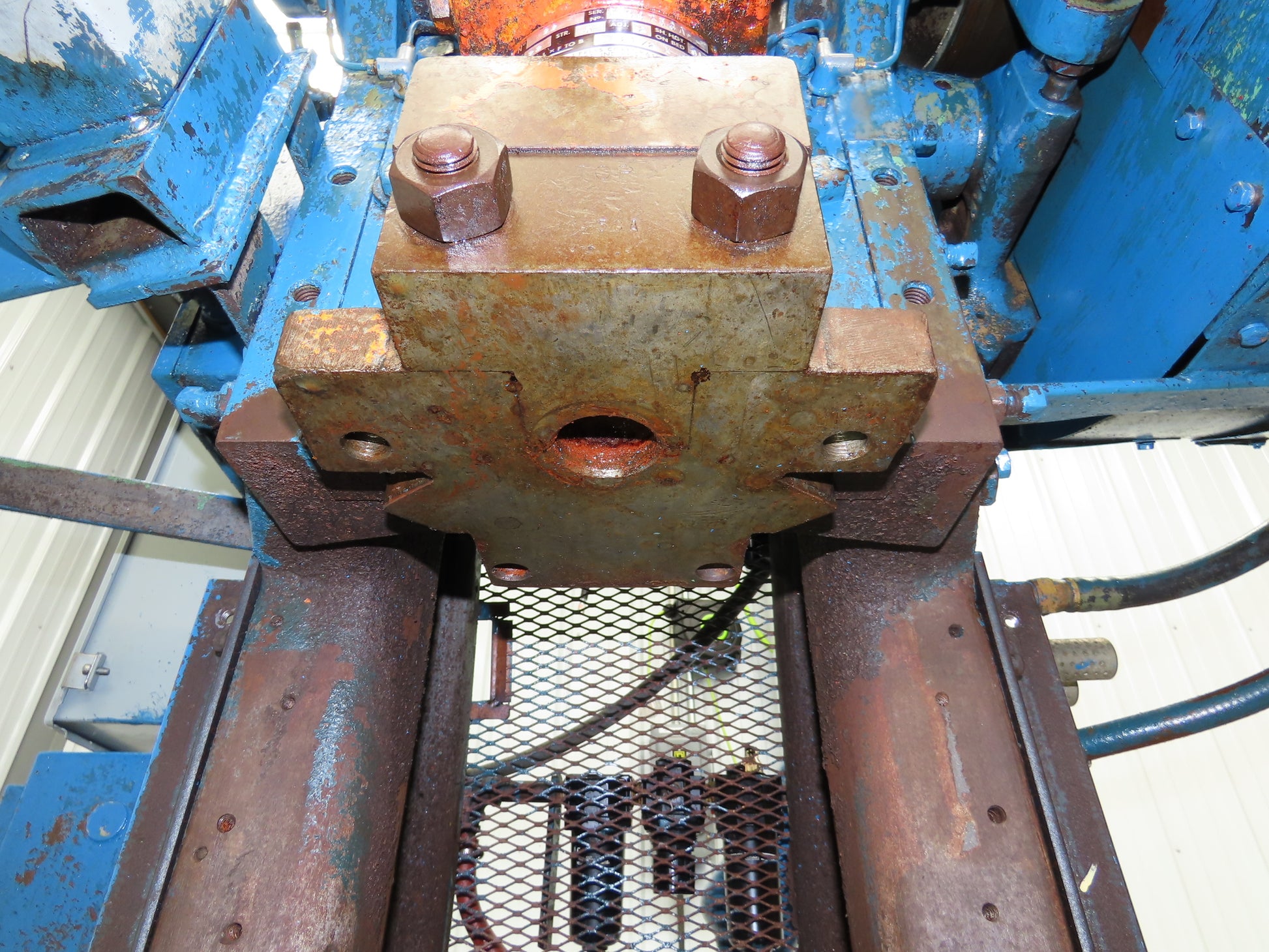

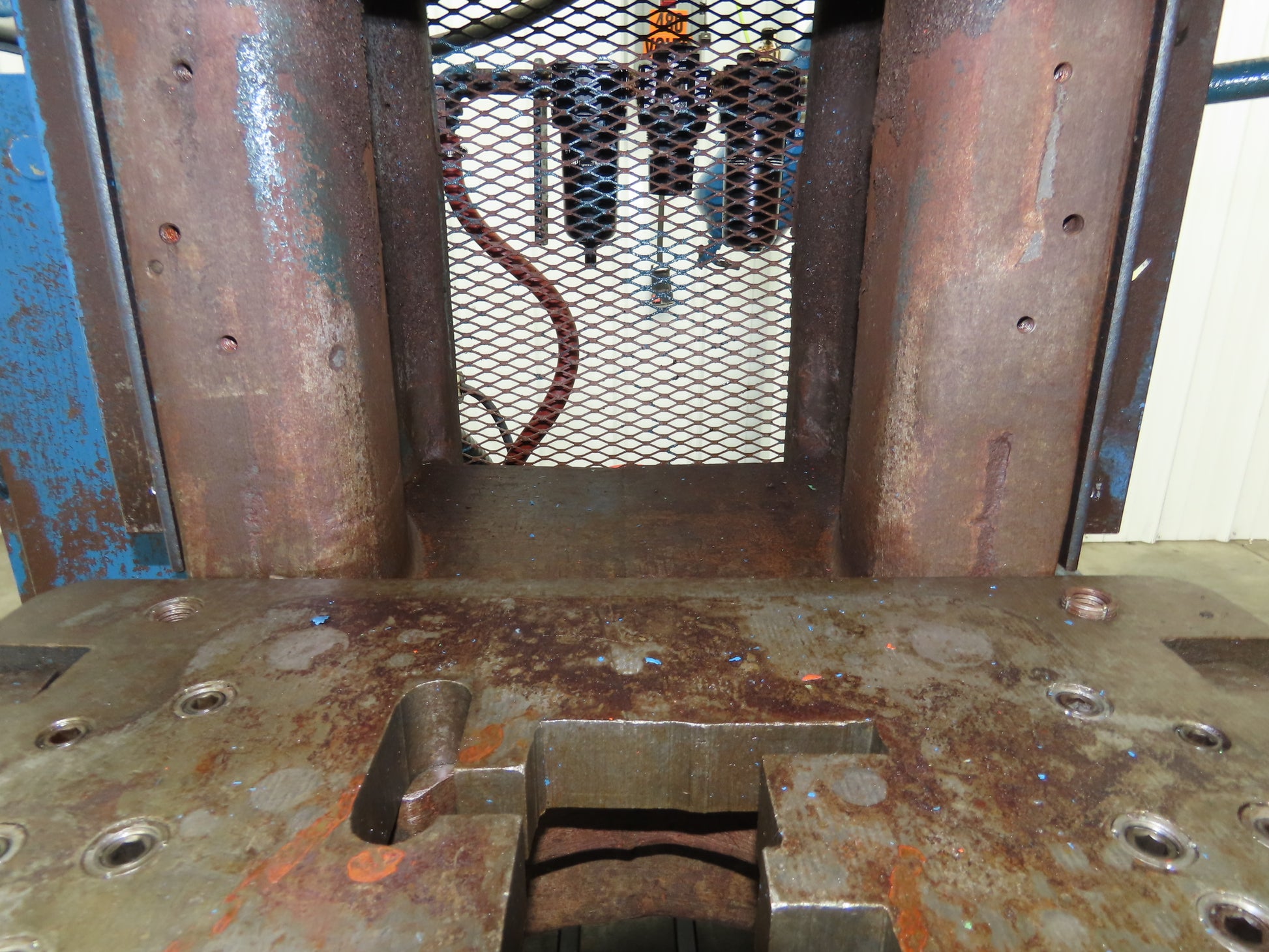

  • 1-1/2" bed plate with a 2-1/2x5" opening.
