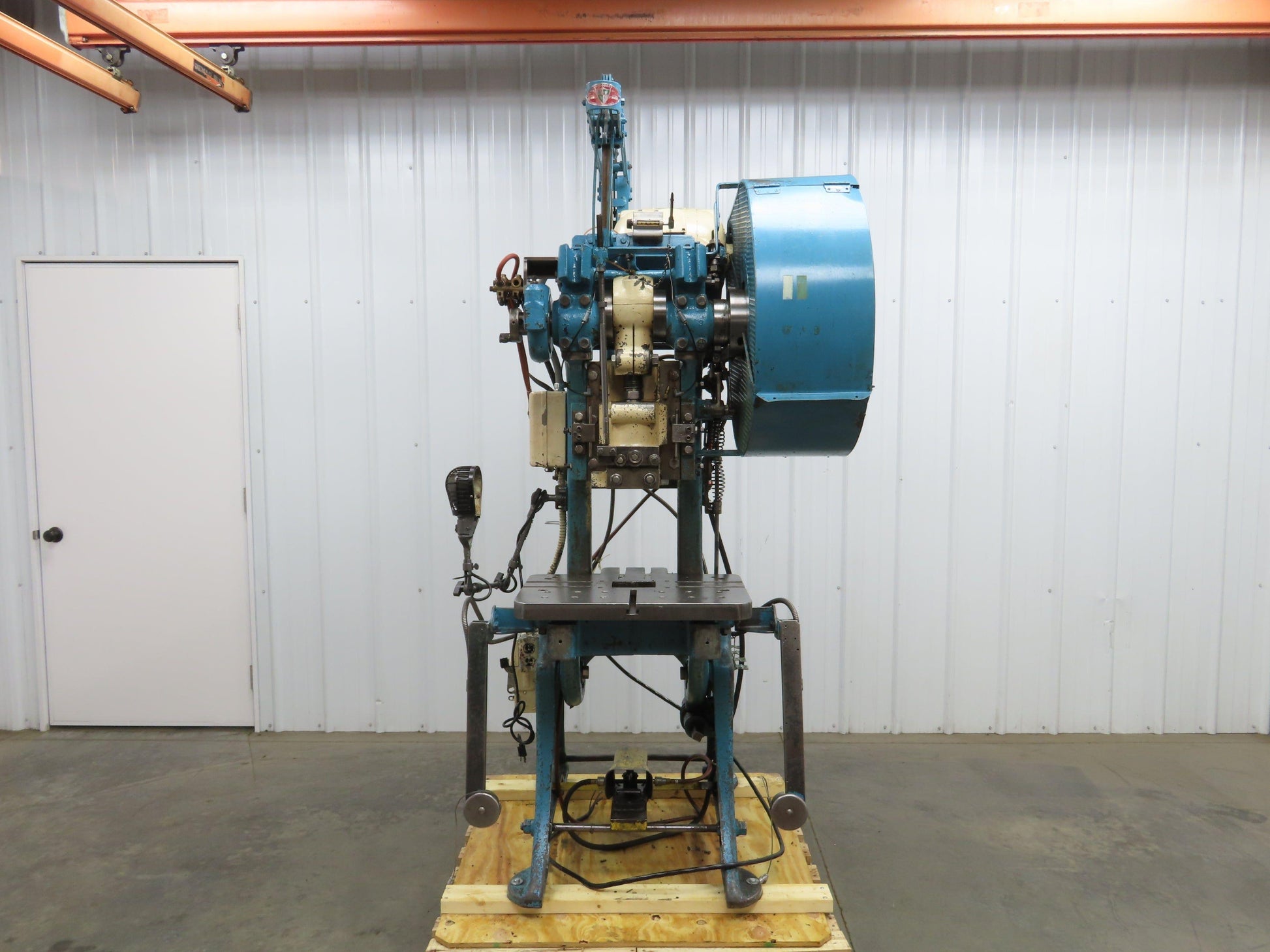

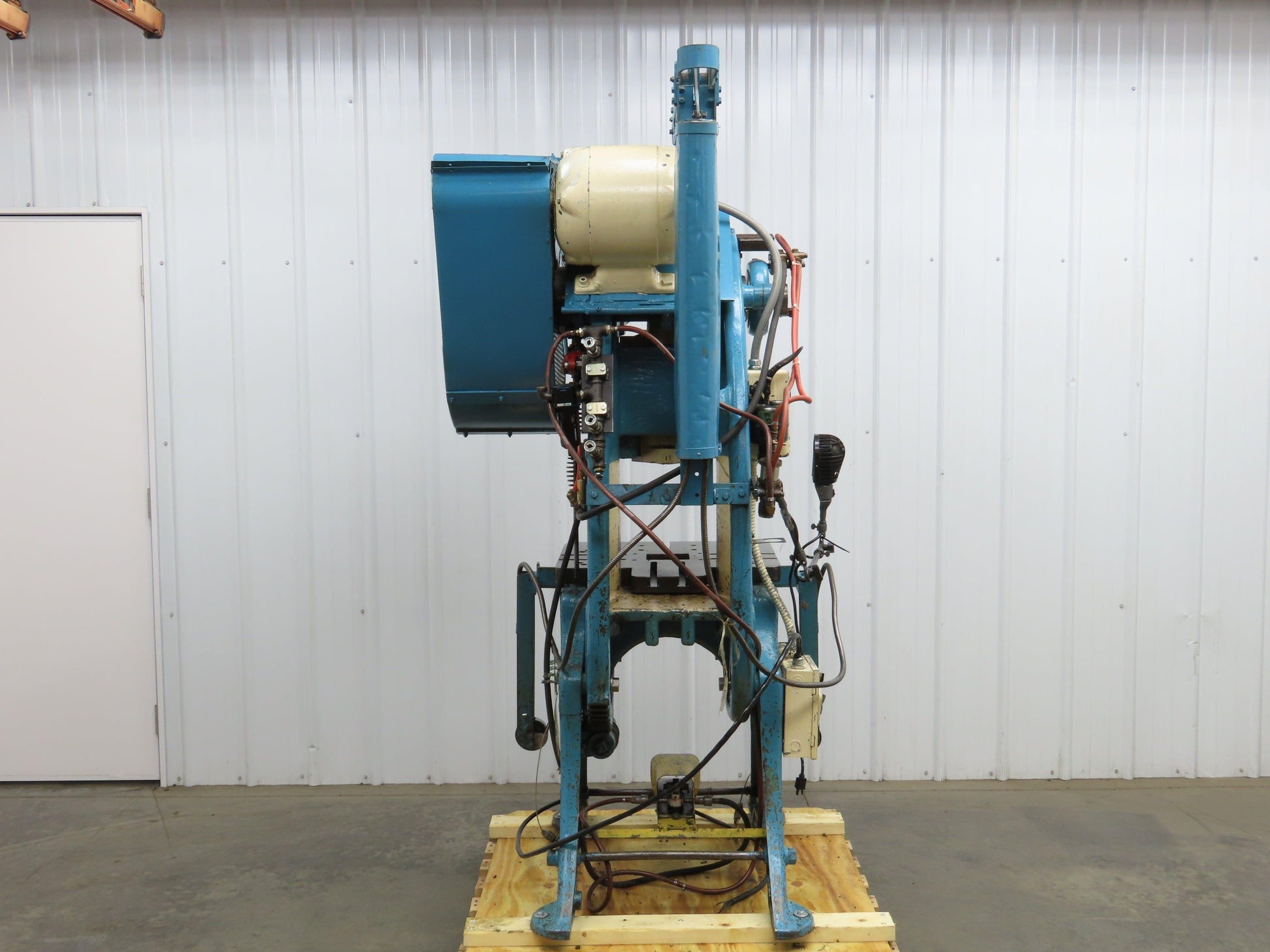

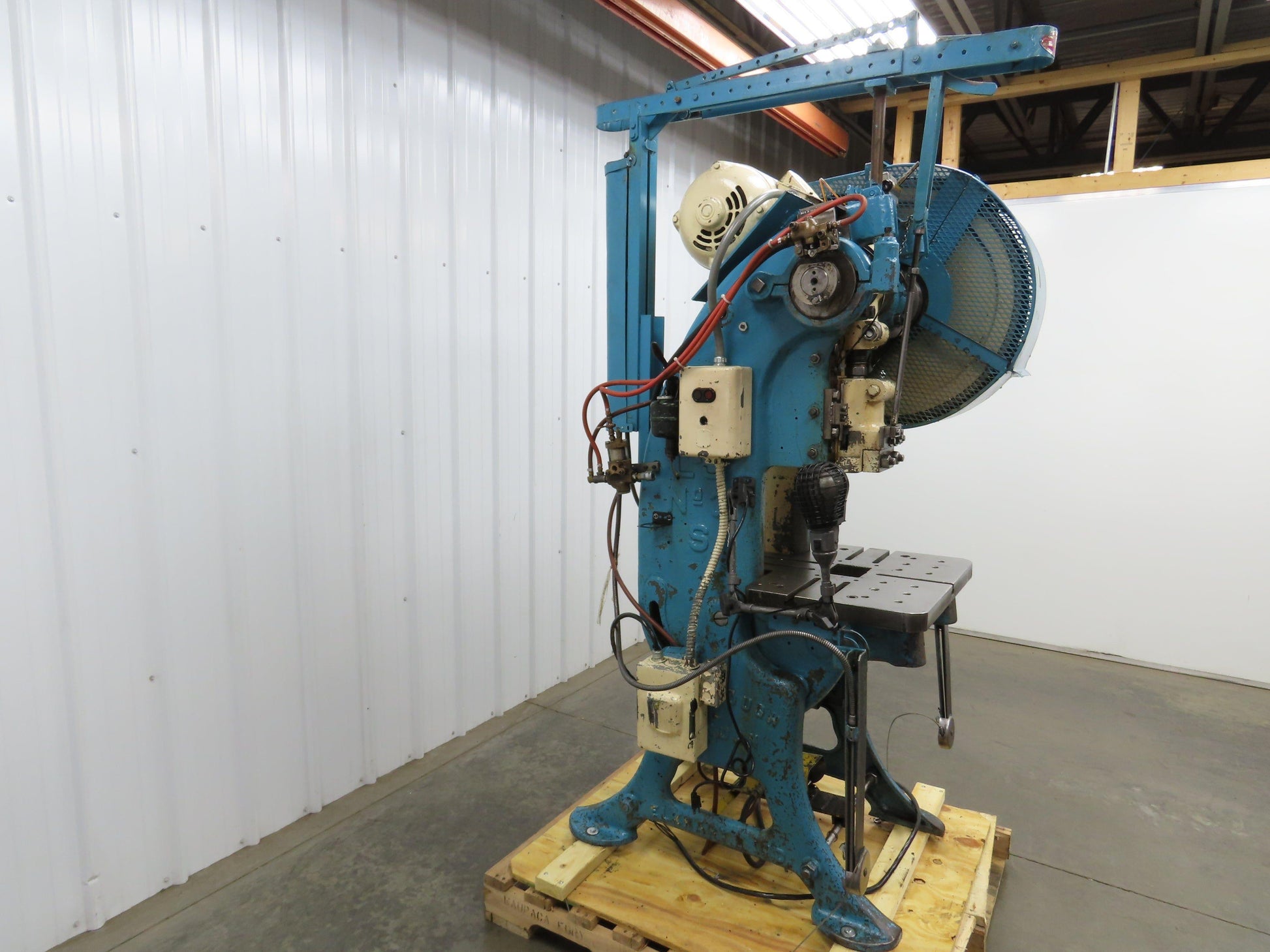

L&J No 3 Mechanical OBI Punch Press 22 Ton 4" Stroke 7" Throat 3Hp 3Ph 220/440V

L&J No 3 Mechanical OBI Punch Press 22 Ton 4" Stroke 7" Throat 3Hp 3Ph 220/440V

SKU #267986

Product Condition: Used

Your Price
$3,261.82
$3,814.99 $3,261.82
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
L&J
Model
No 3
MPN
3
Condition
Used

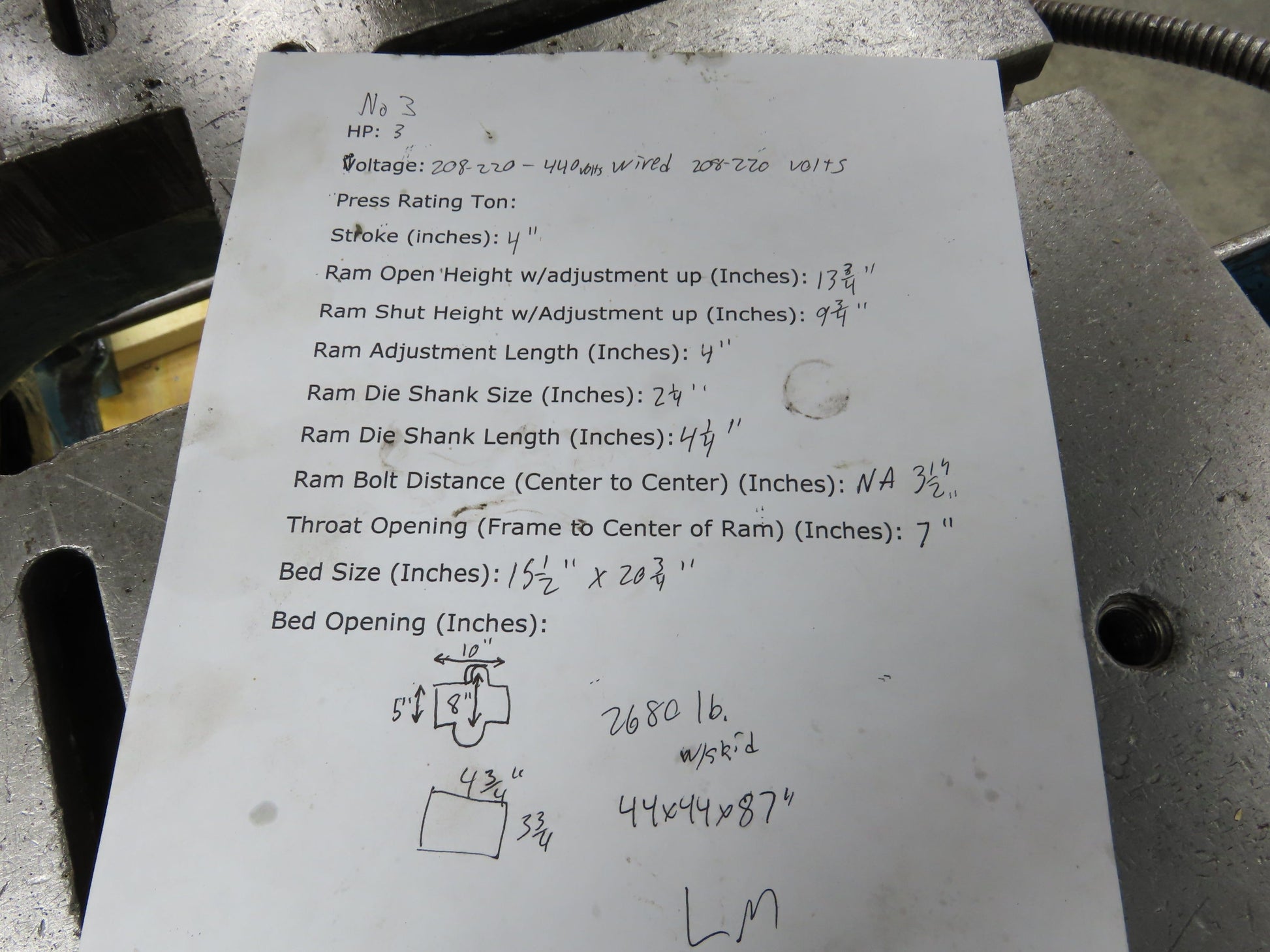

  • HP: 3
  • Voltage: 208-220/440 Wired for 208.
  • Press Rating Ton: 22
  • Stroke (inches): 4

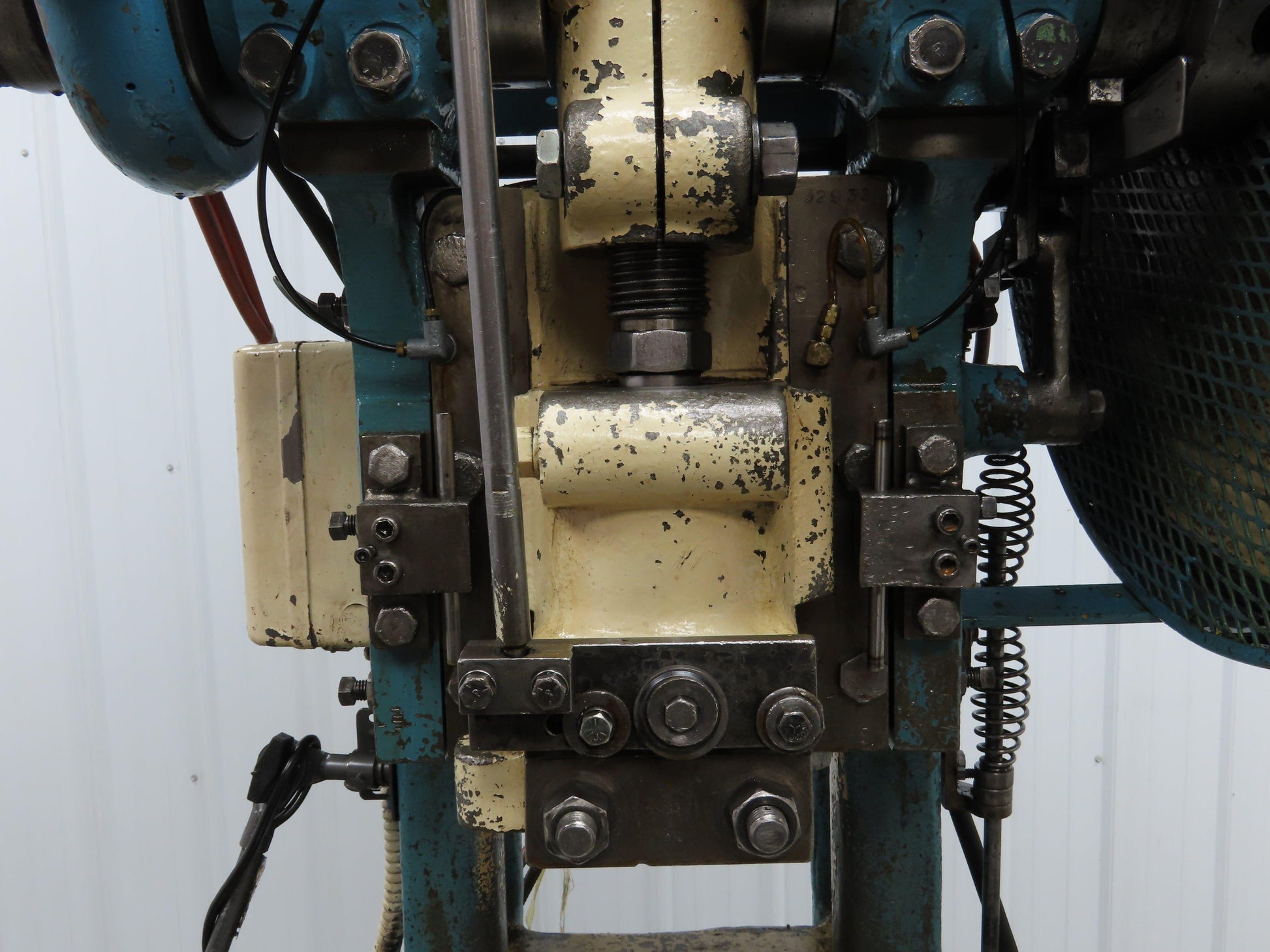

  • Ram Open Height w/adjustment up (Inches): 13-3/4
  • Ram Shut Height w/Adjustment up (Inches): 9-3/4
  • Ram Adjustment Length (Inches): 4
  • Ram Die Shank Size (Inches): 2-1/4
  • Ram Die Shank Length (Inches): 4-1/4
  • Ram Bolt Distance (Center to Center) (Inches): 3-1/2
  • Throat Opening (Frame to Center of Ram) (Inches): 7
  • Bed Size (Inches): 15-1/2x20-3/4
  • Bed Opening (Inches): 8x10
  • Used, in Good Working Condition, Tested OK.
  • Tested in our shop.
  • Wired for 208V 3 phase

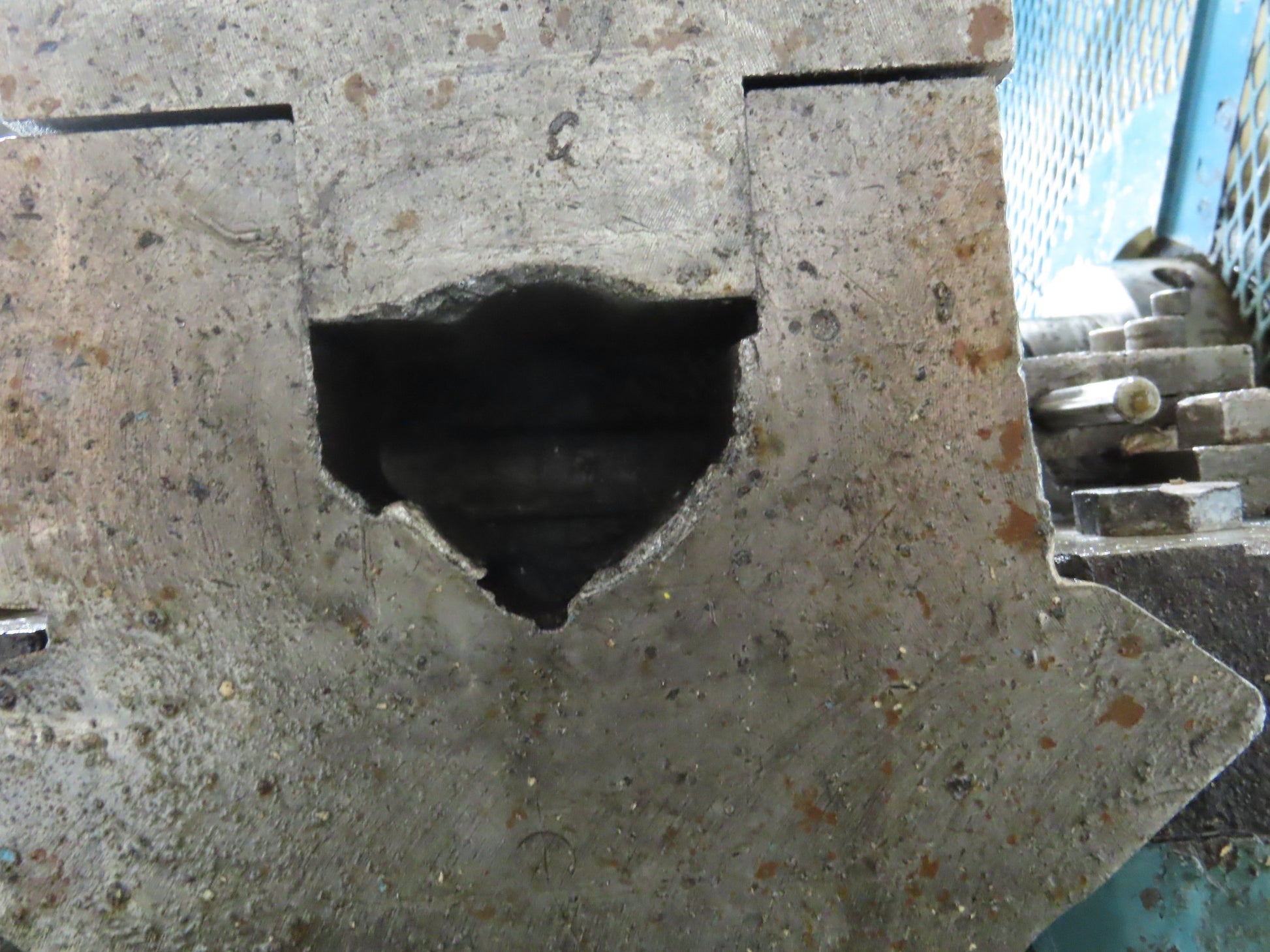

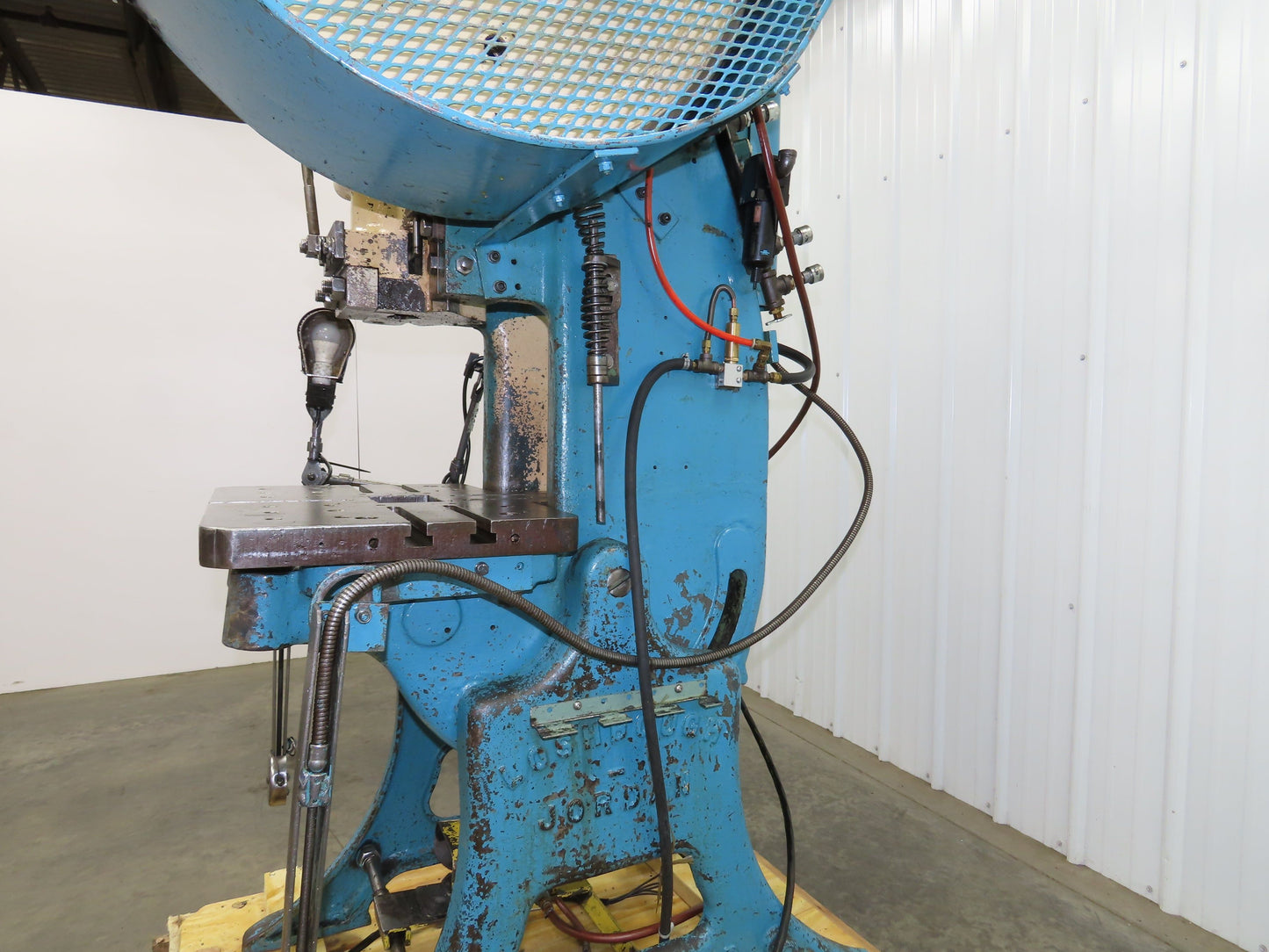

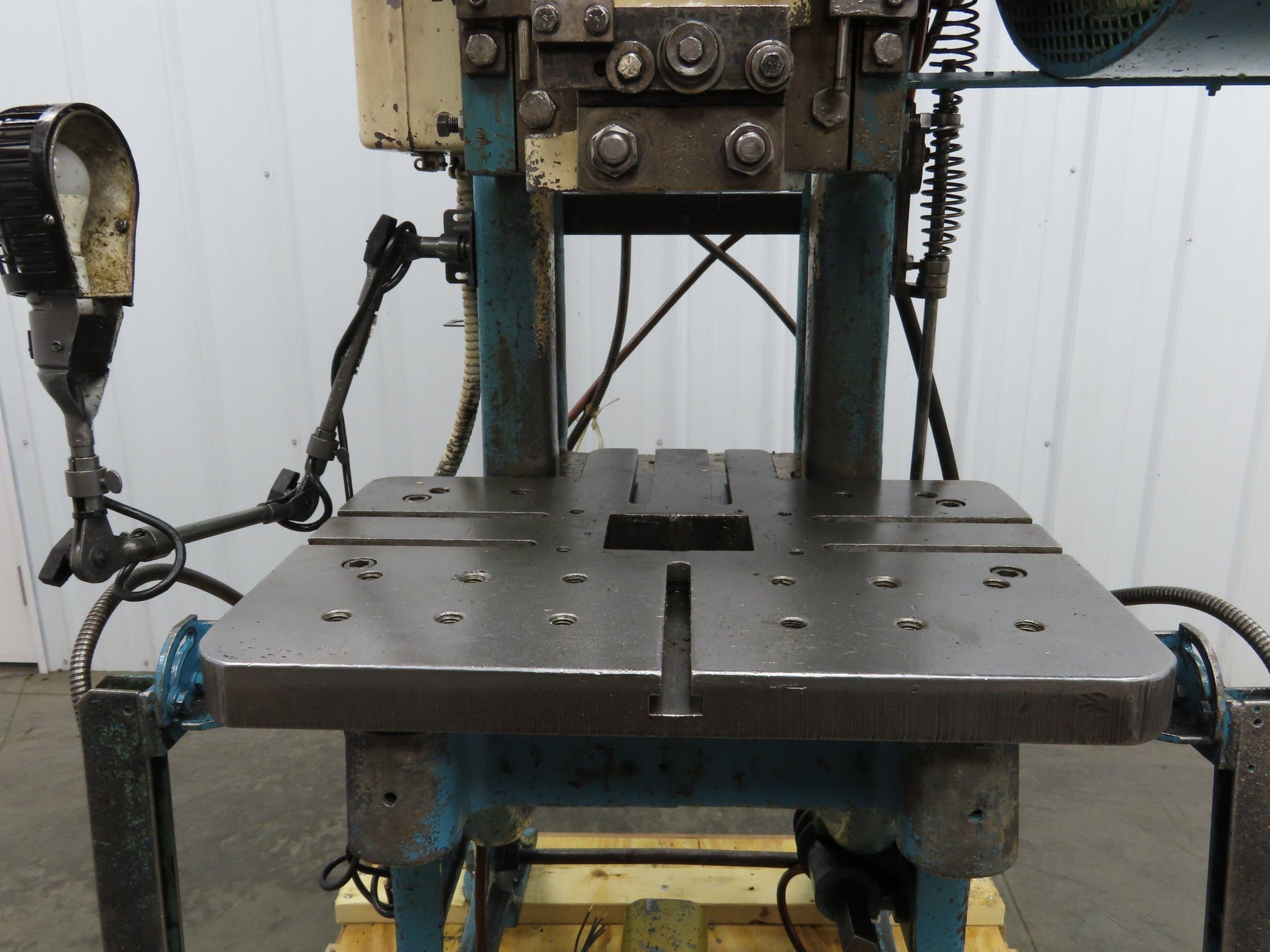

  • Has aftermarket plate 1-5/8" thick with T slot. Center hole is 4-3/4"x3-3/4".

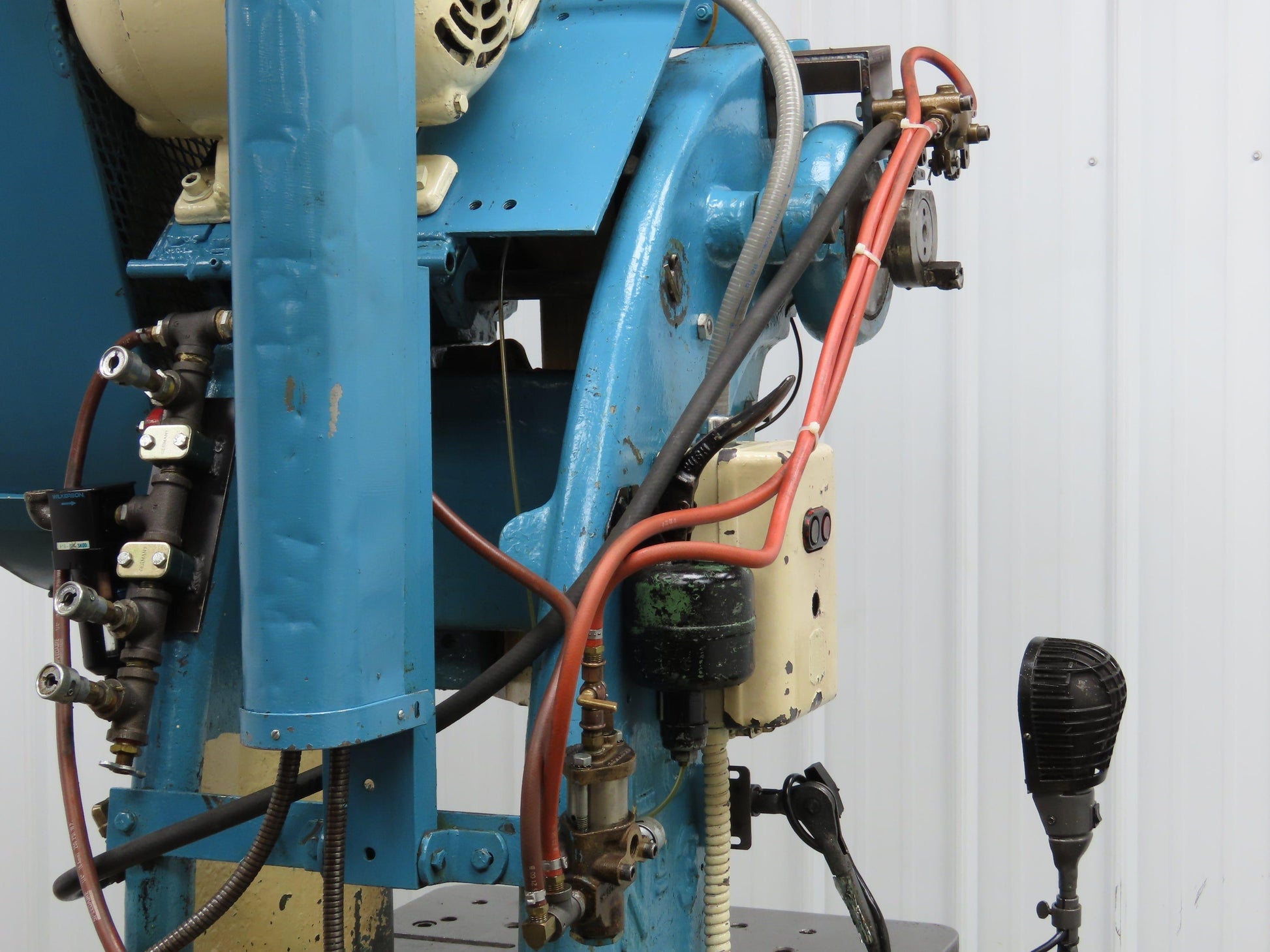

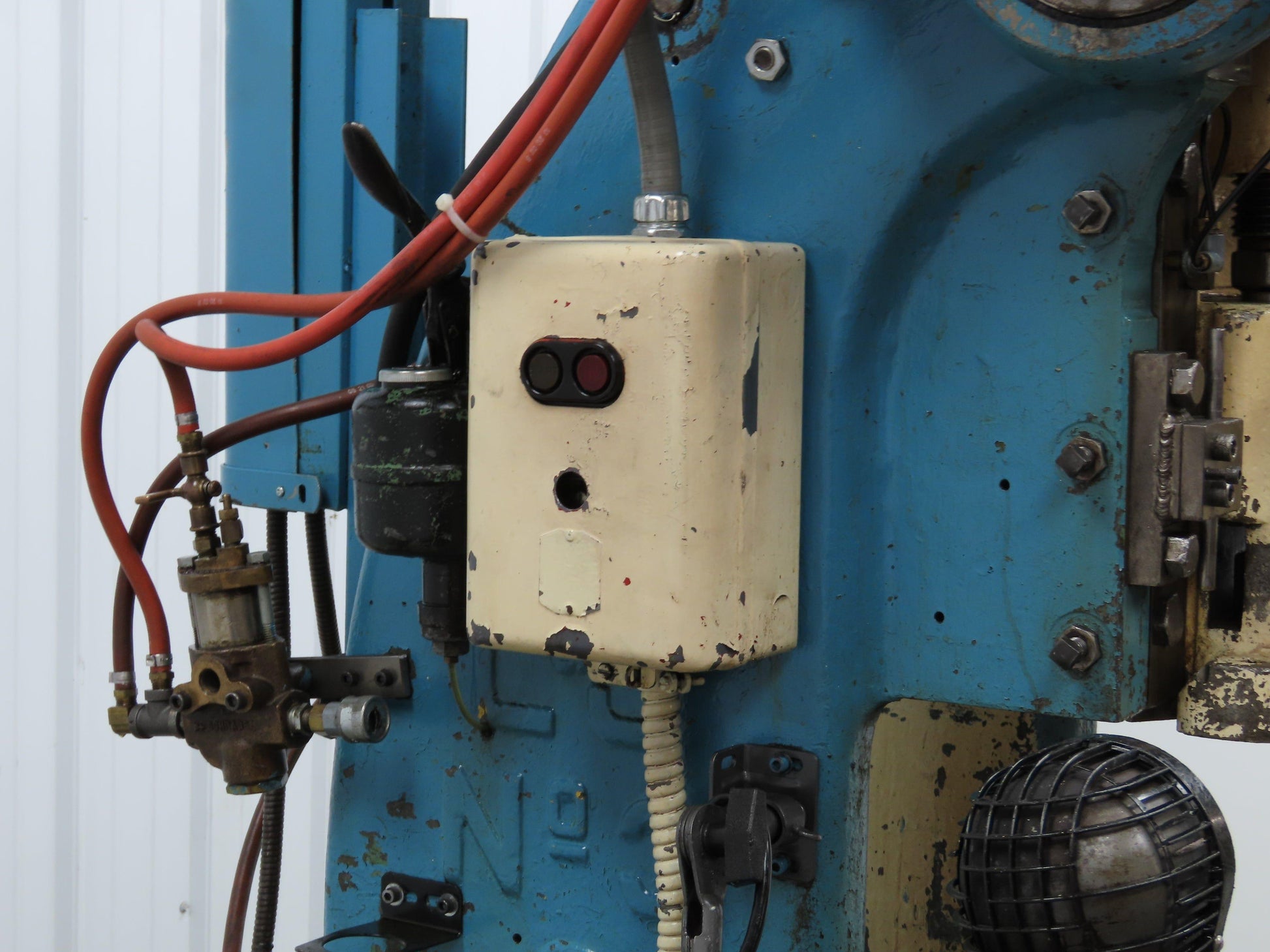

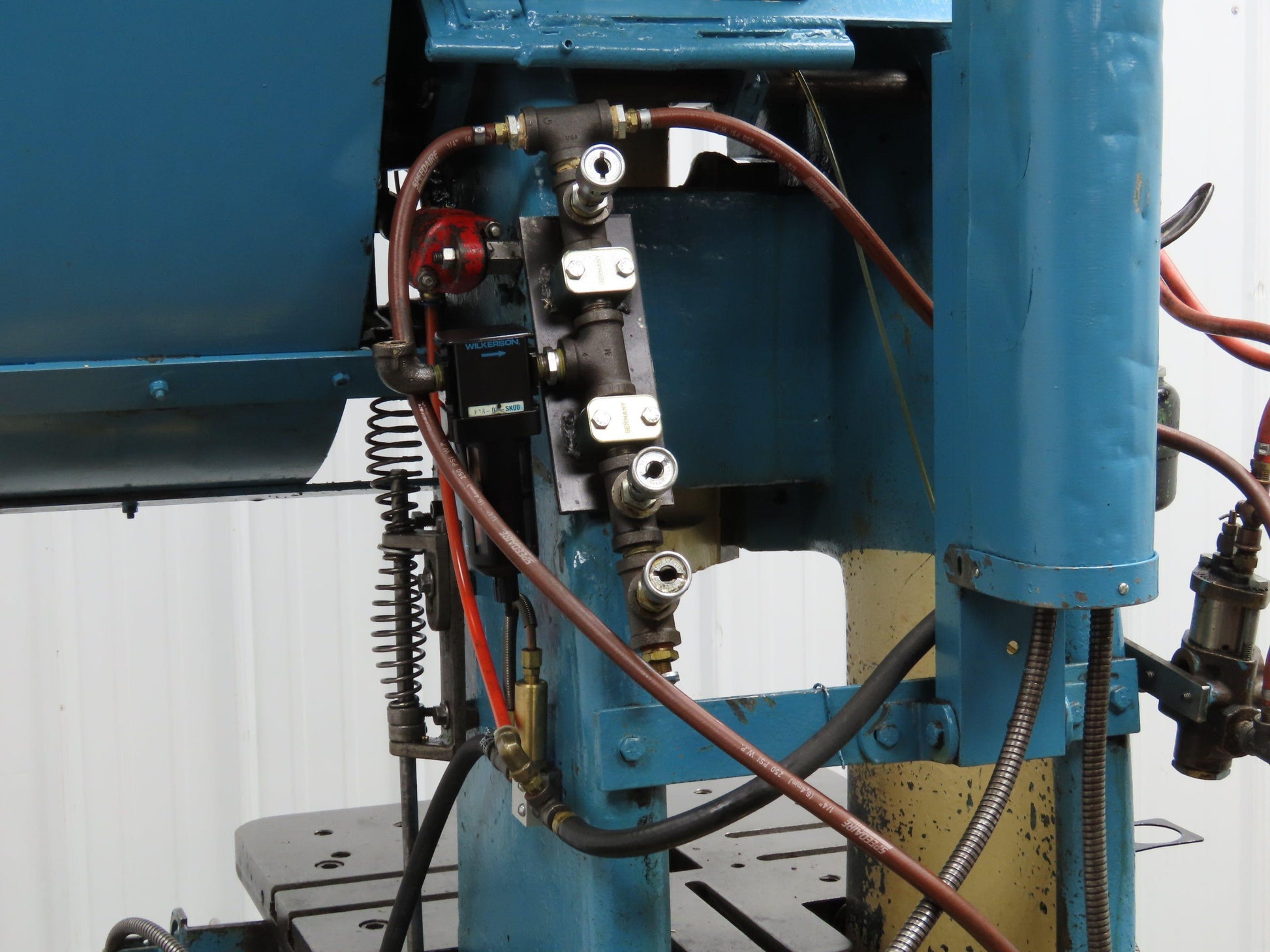

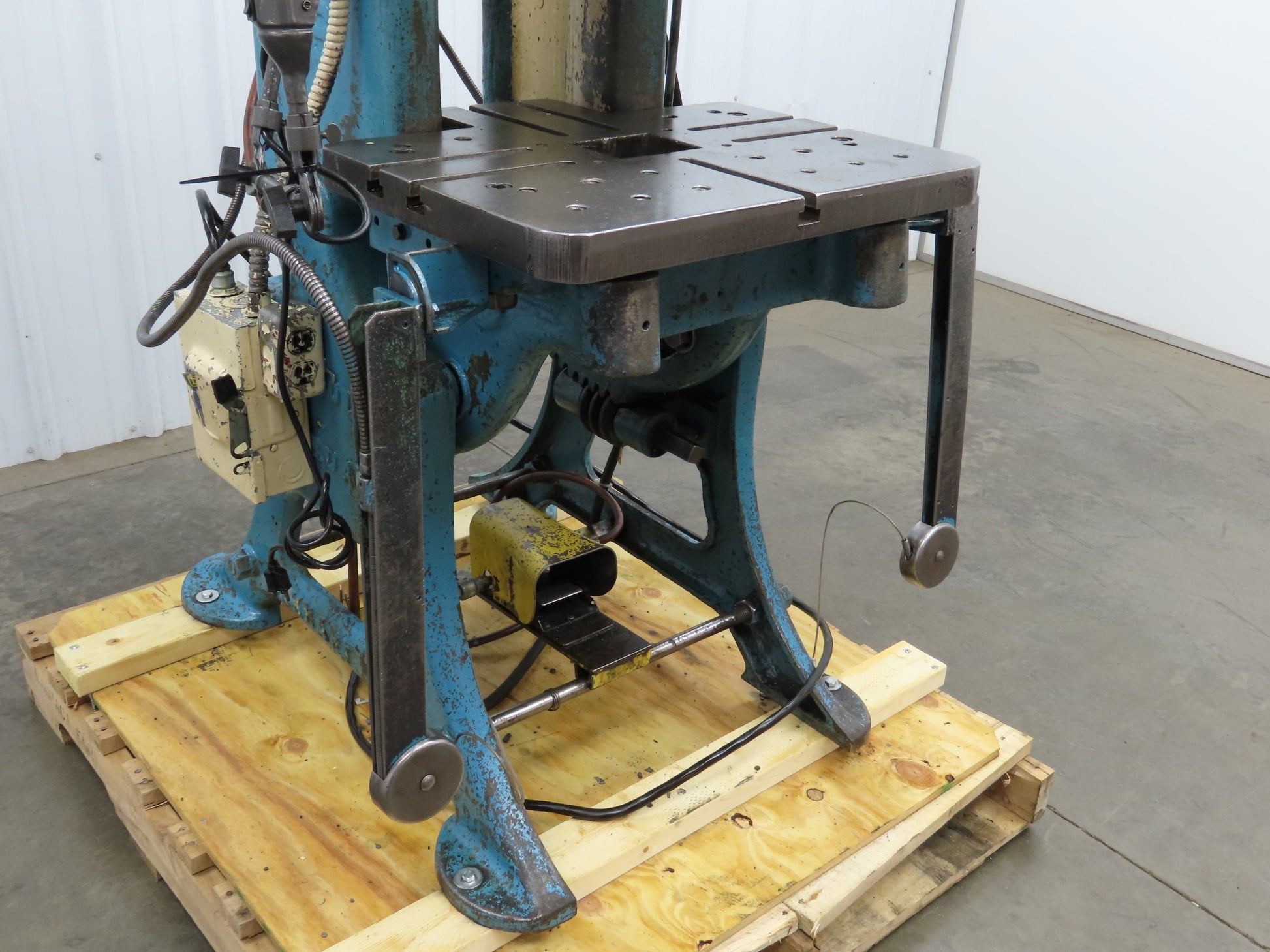

  • Has Safeguard safety controls. Pulls operator's hands out of the way.

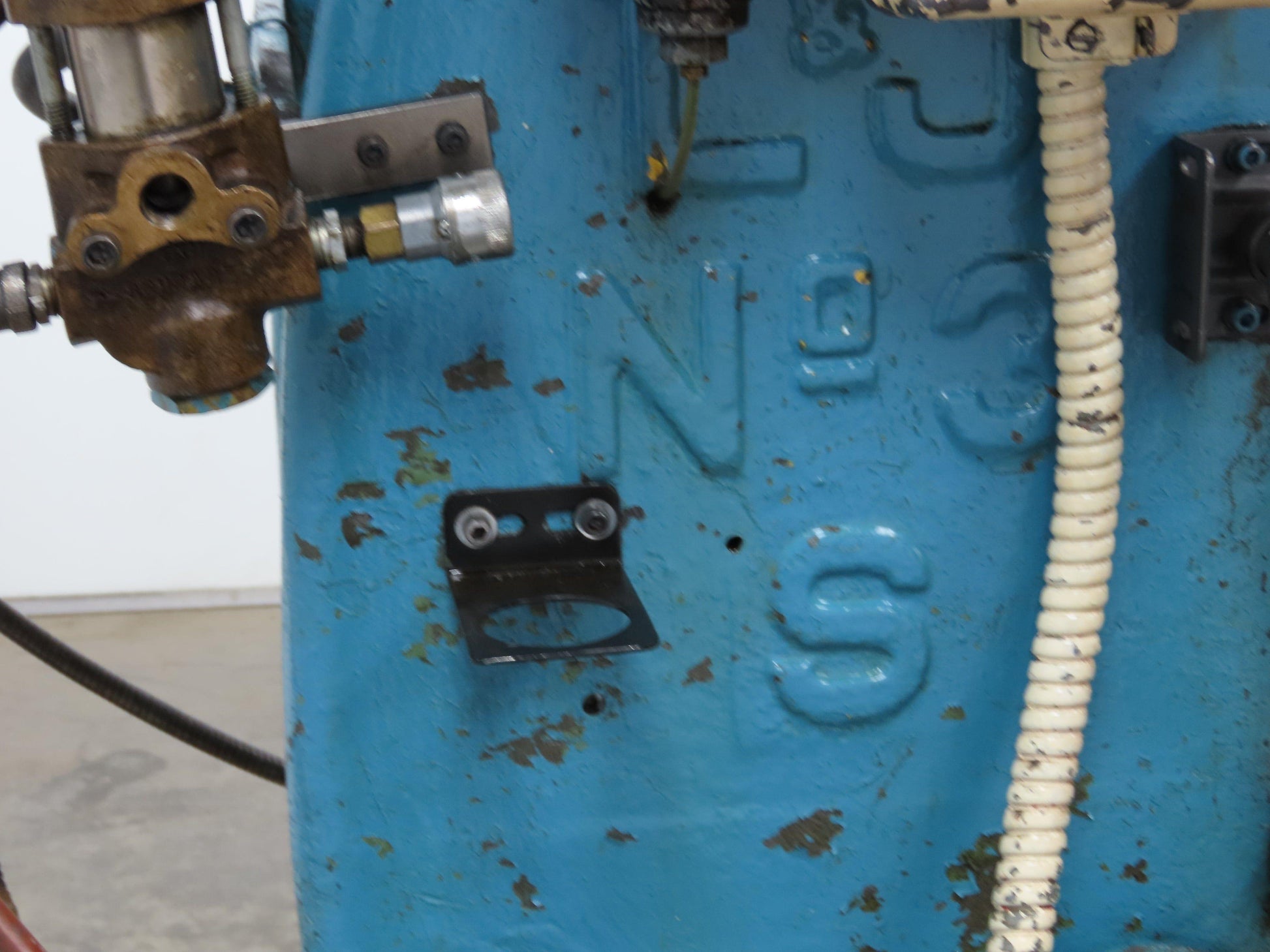

  • Not sure on the tonnage. This is a No 3. But it has a 4" stroke. Not sure if it still would be rated for 22 ton
