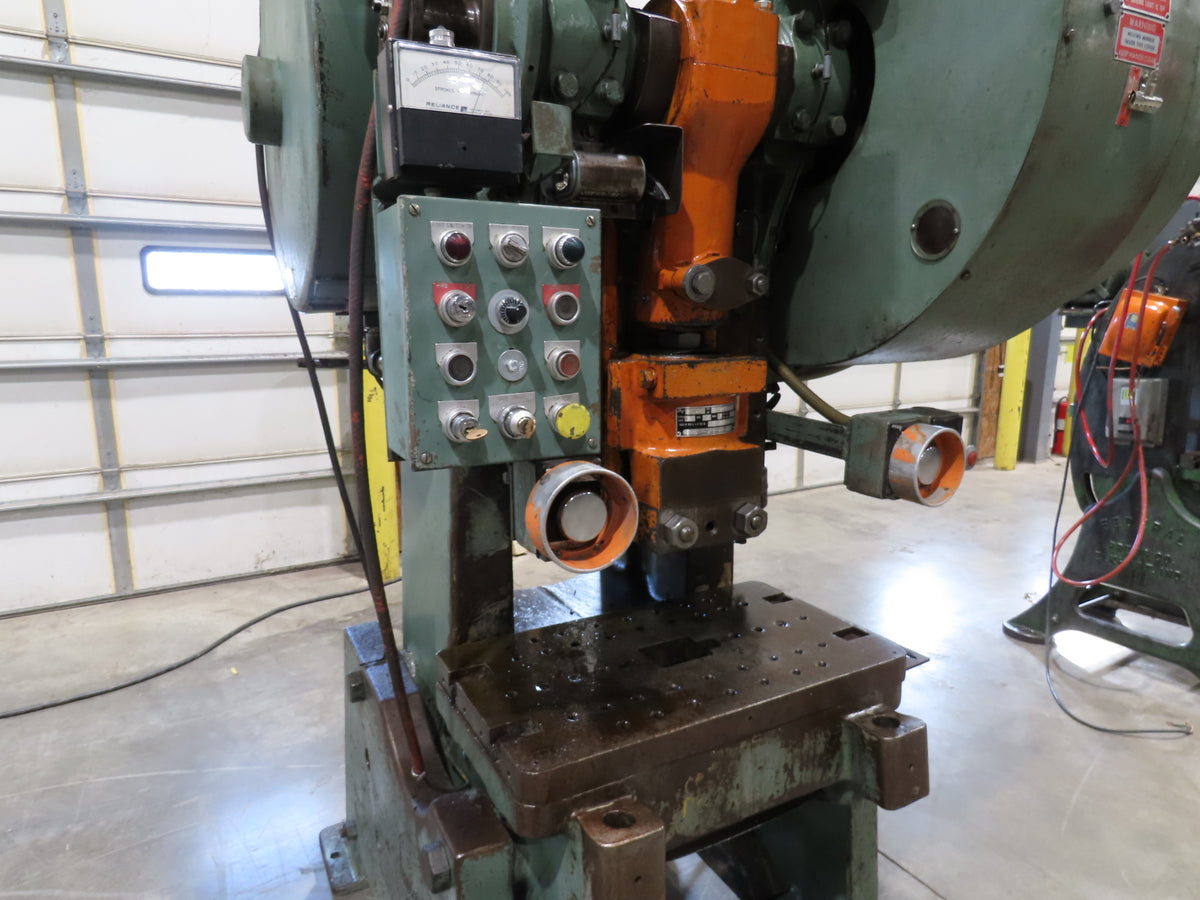

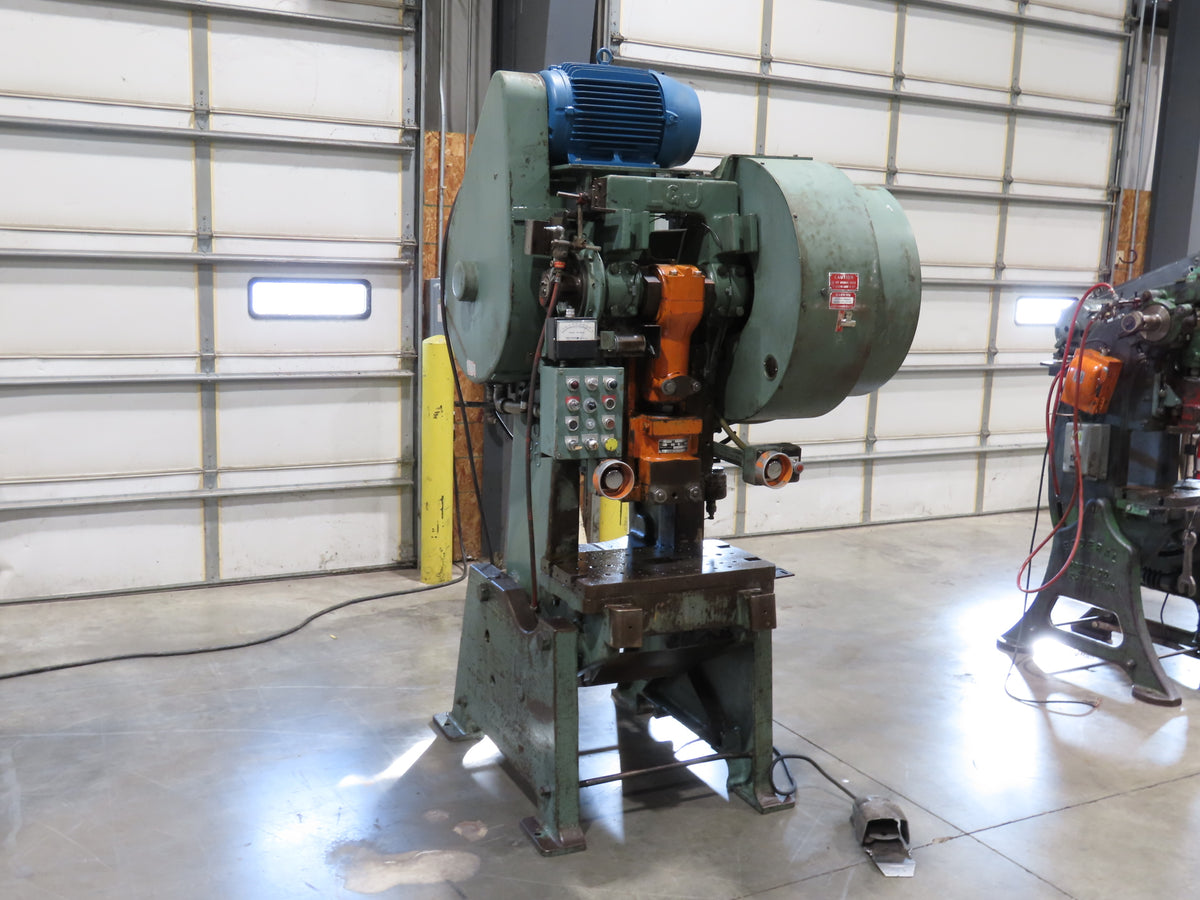

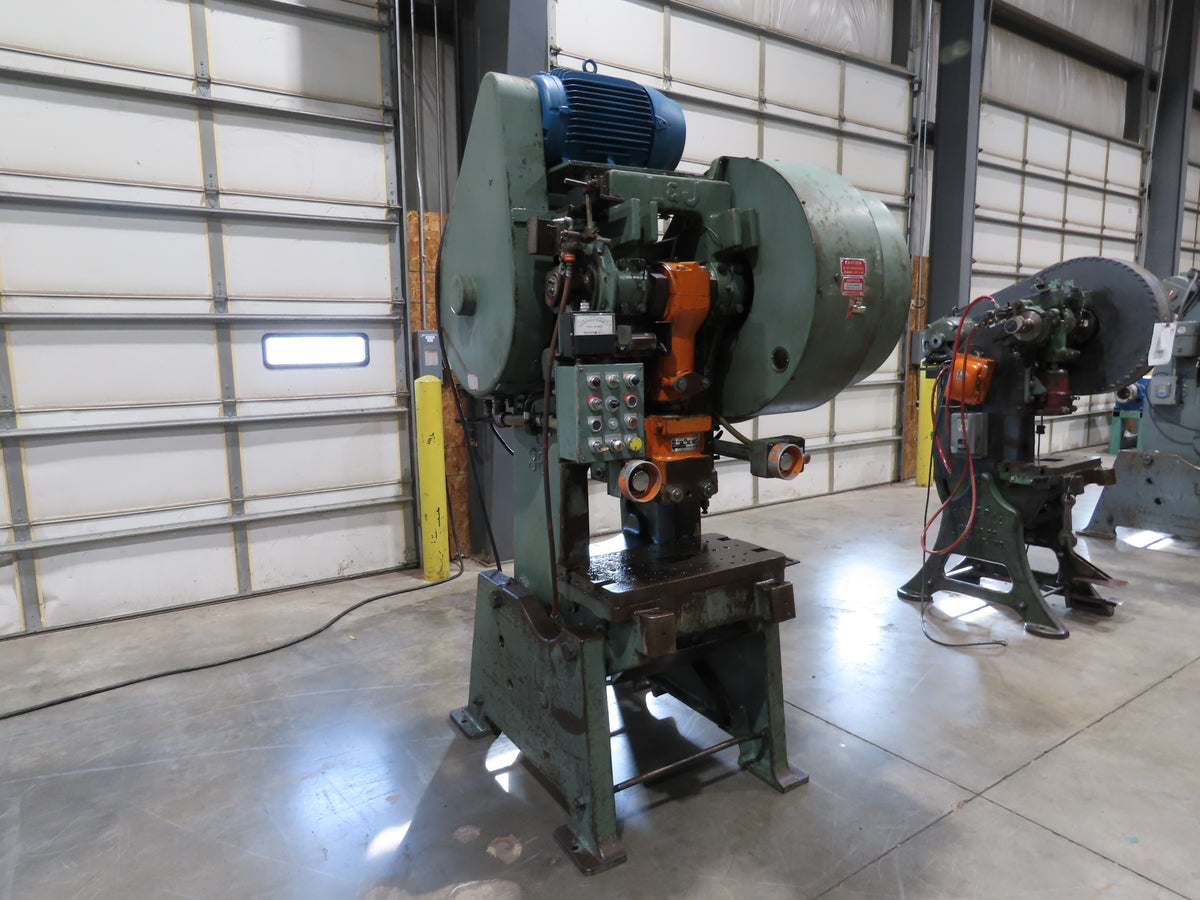

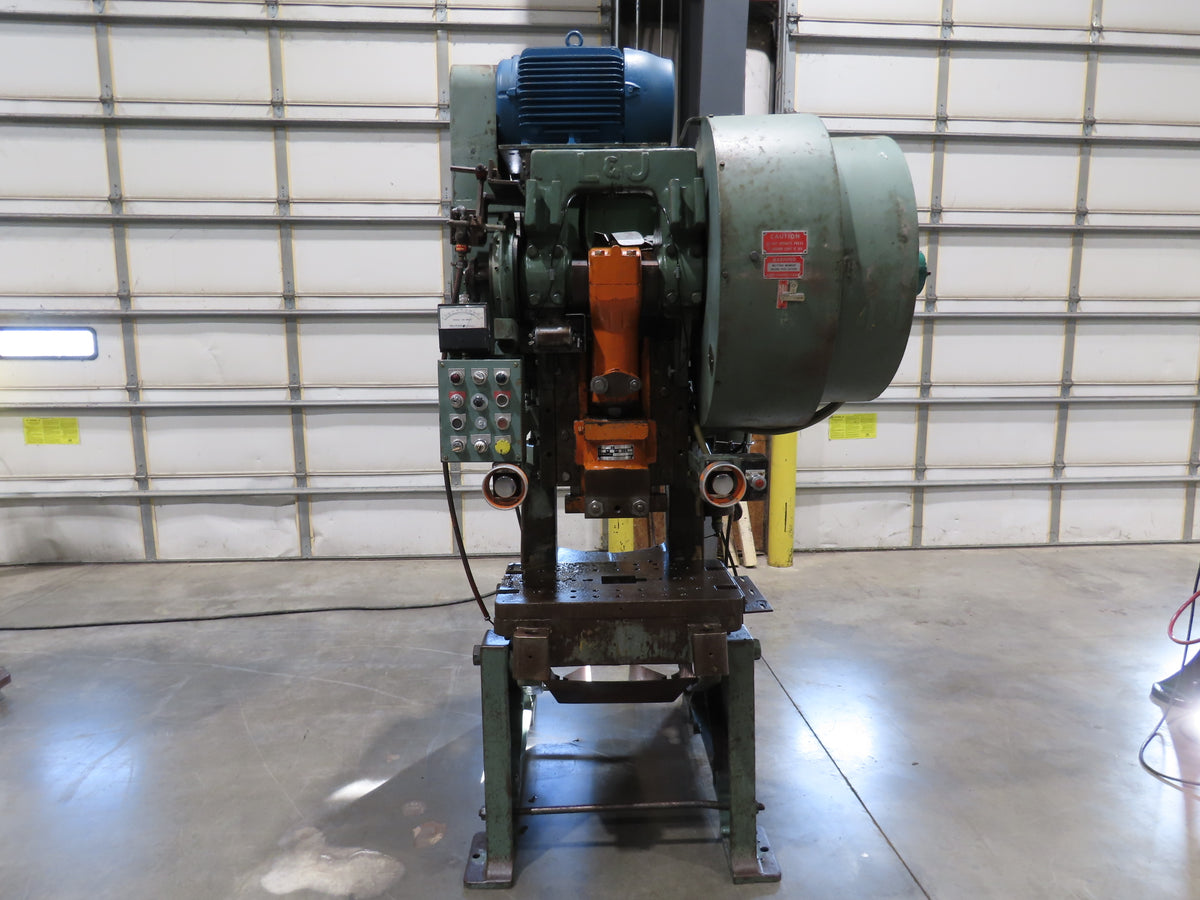

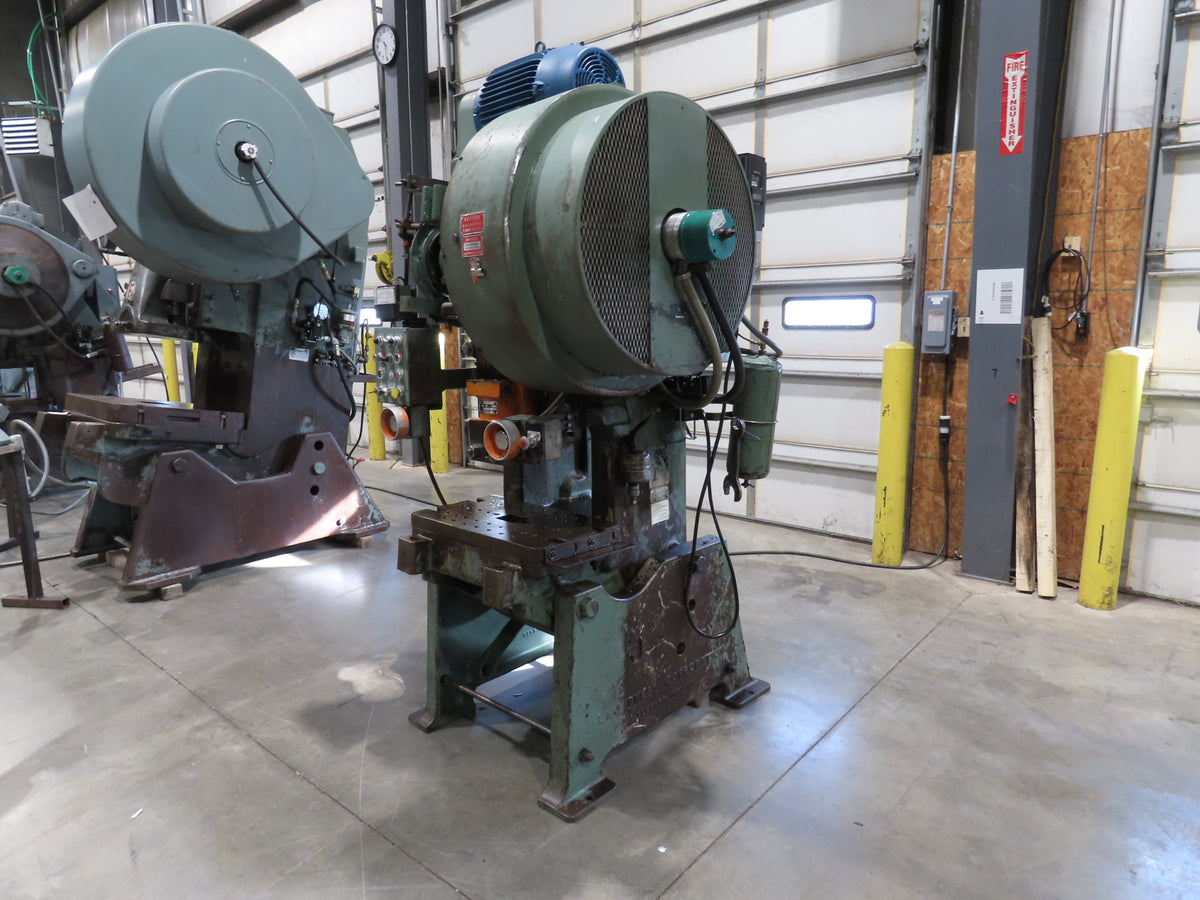

L&J No 36 Mechanical OBI Punch Press 36 Ton 3" Stroke 10Hp VFD Drive

L&J No 36 Mechanical OBI Punch Press 36 Ton 3" Stroke 10Hp VFD Drive

SKU #318766

Product Condition: Used

Your Price
$6,174.99
$6,174.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
L&J
Model
No 36
MPN
No 36
Condition
Used

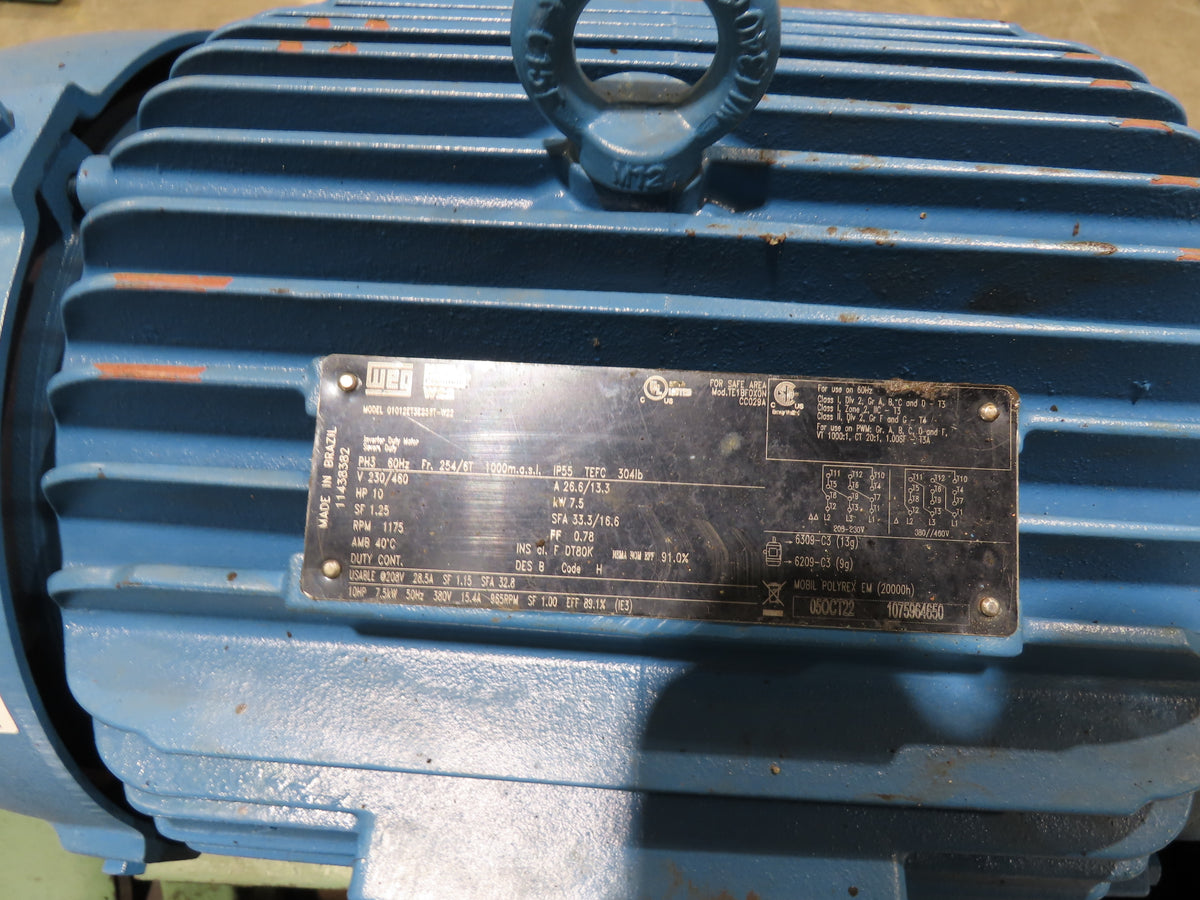

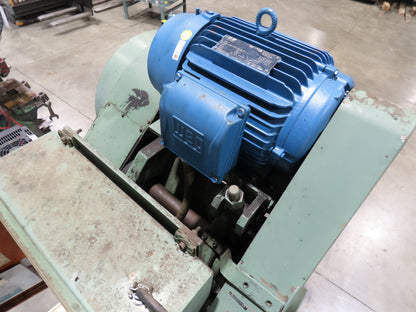

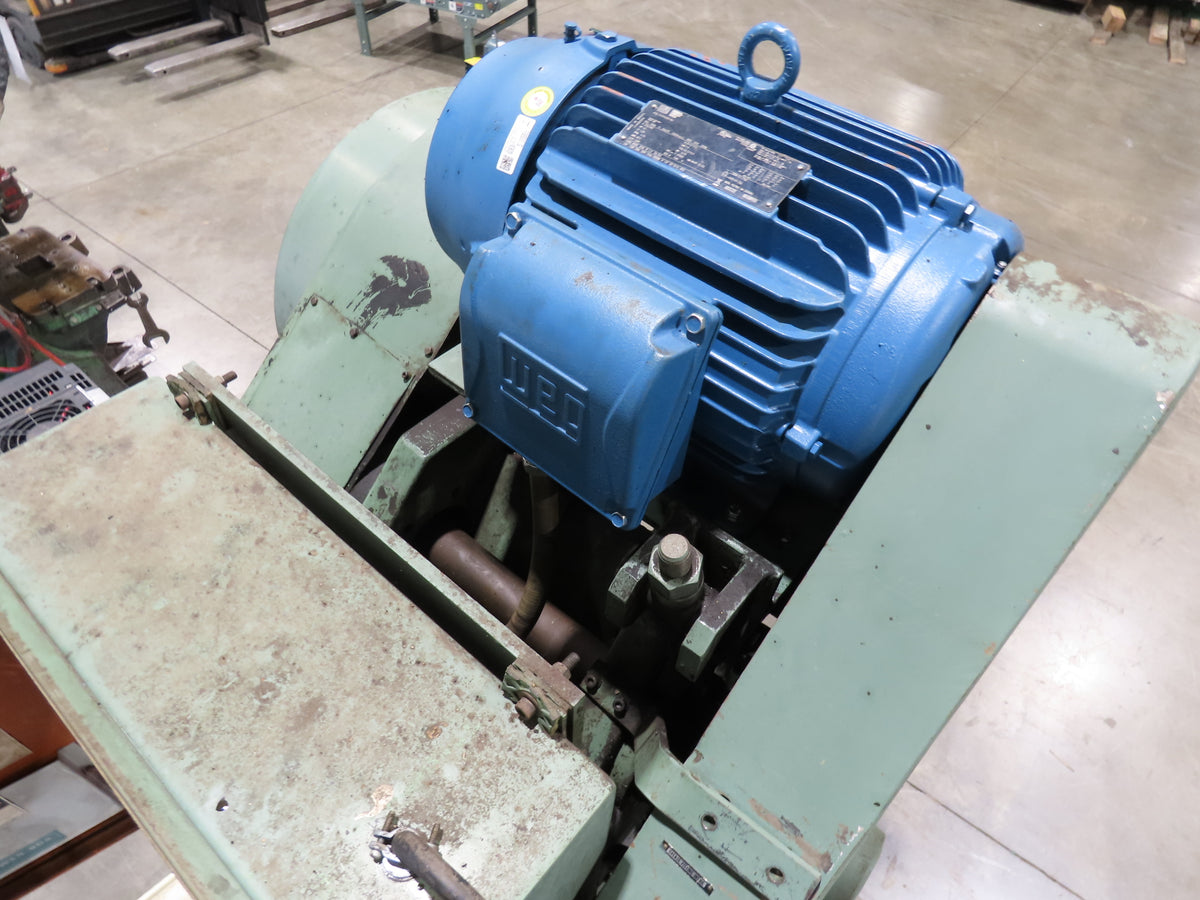

  • HP: 10 this looks like a brand new motor.
  • Voltage: 230V 3 phase VFD makes it 230V only

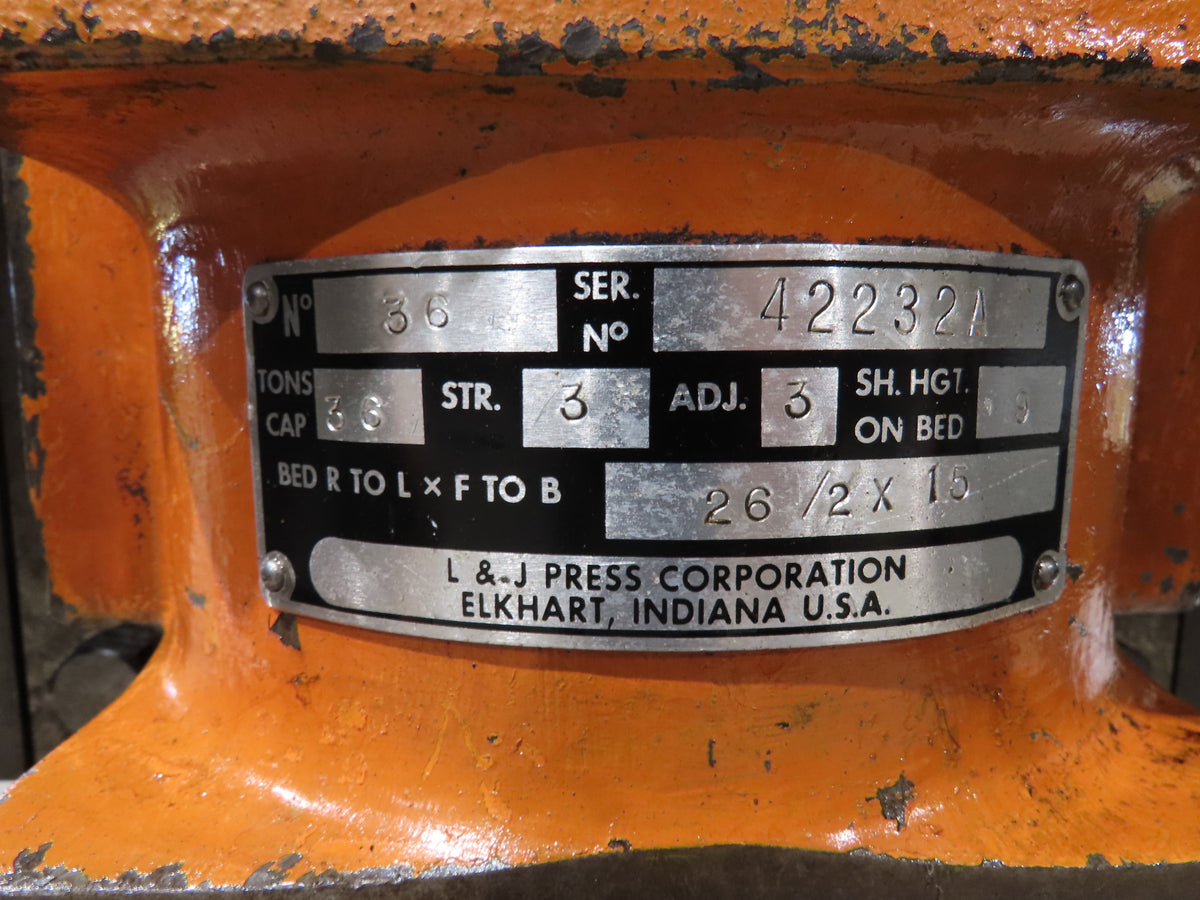

  • Press Rating Ton: 36
  • Stroke (inches): 3
  • Ram Open Height w/adjustment up (Inches): 12
  • Ram Shut Height w/Adjustment up (Inches): 9
  • Ram Adjustment Length (Inches): 3

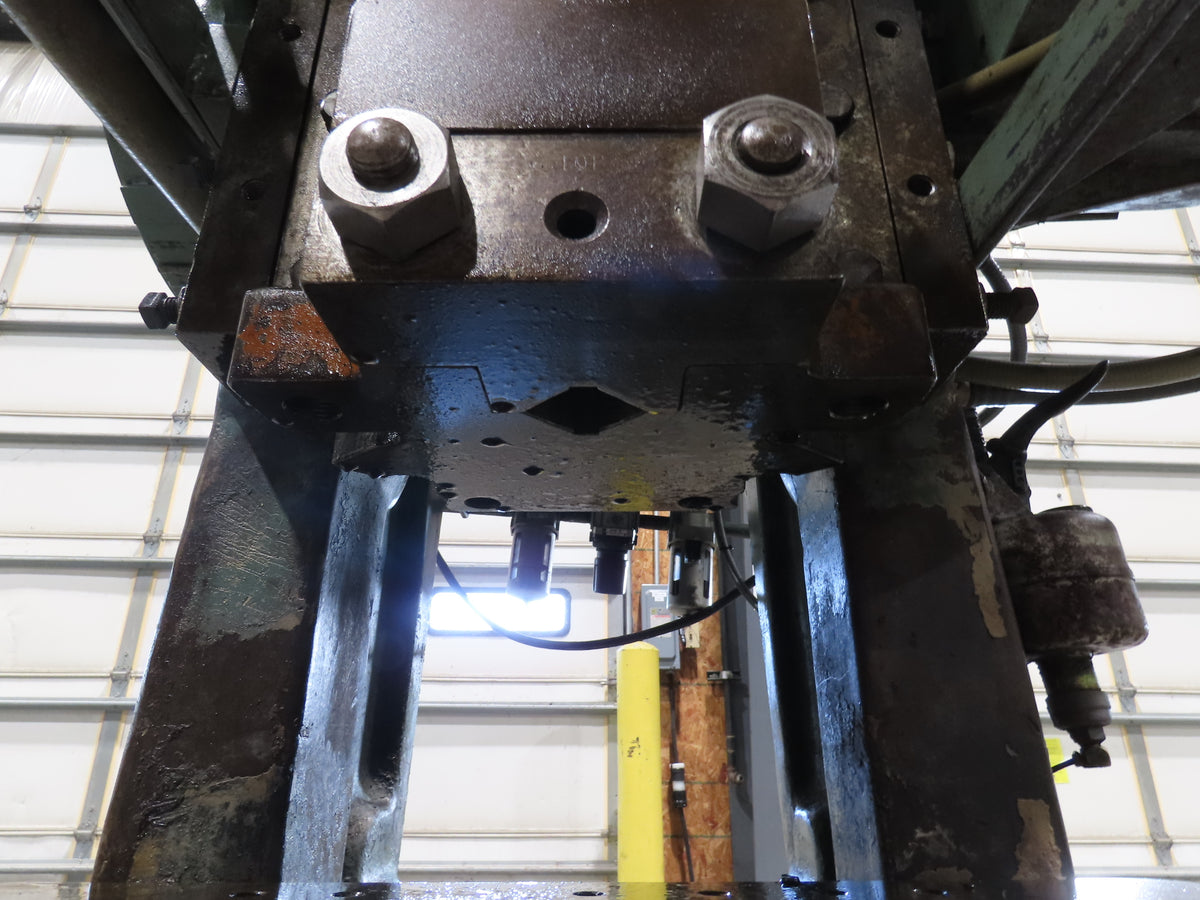

  • Ram Die Shank Size (Inches): 1-5/8 square
  • Ram Die Shank Length (Inches): 4-1/4
  • Ram Bolt Distance (Center to Center) (Inches): 10-1/2
  • Throat Opening (Frame to Center of Ram) (Inches): 7

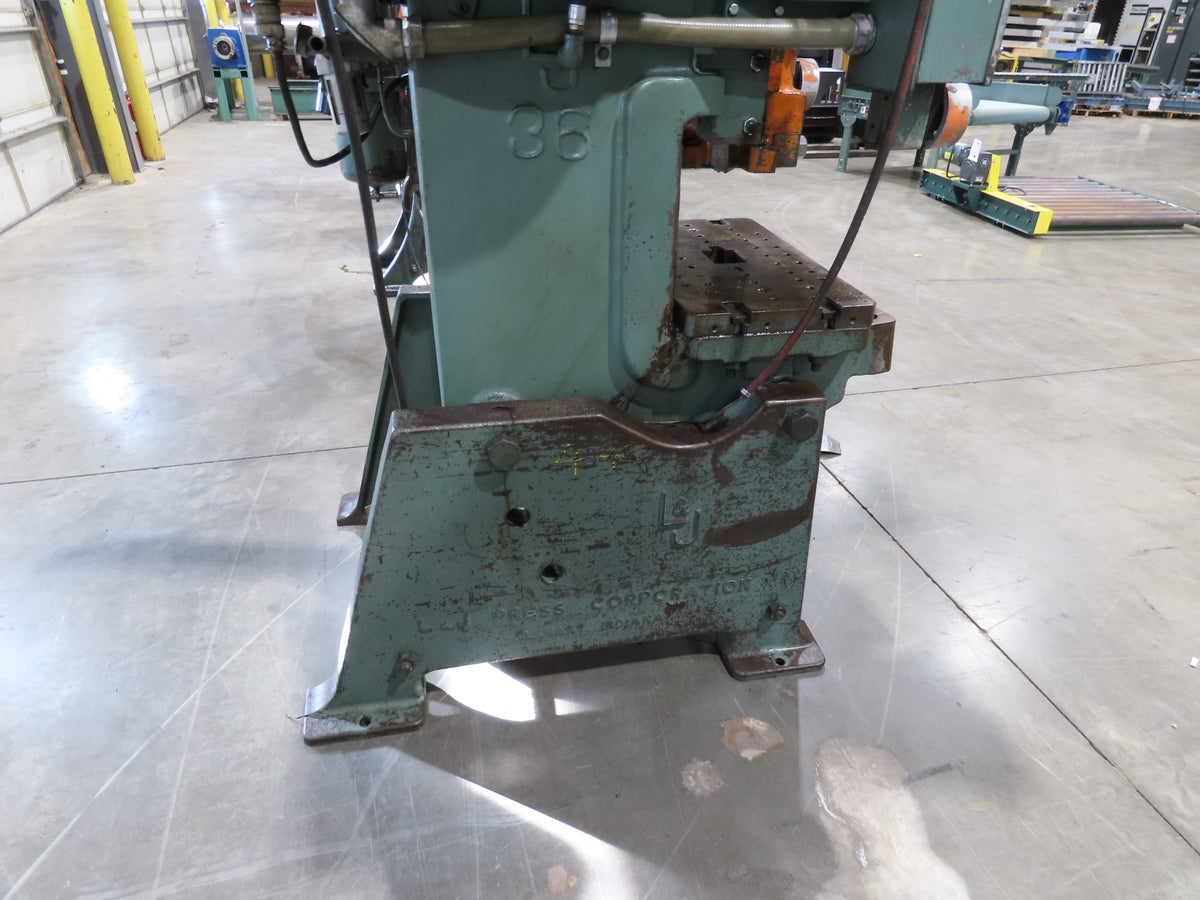

  • Bed Size (Inches): 26.5x15

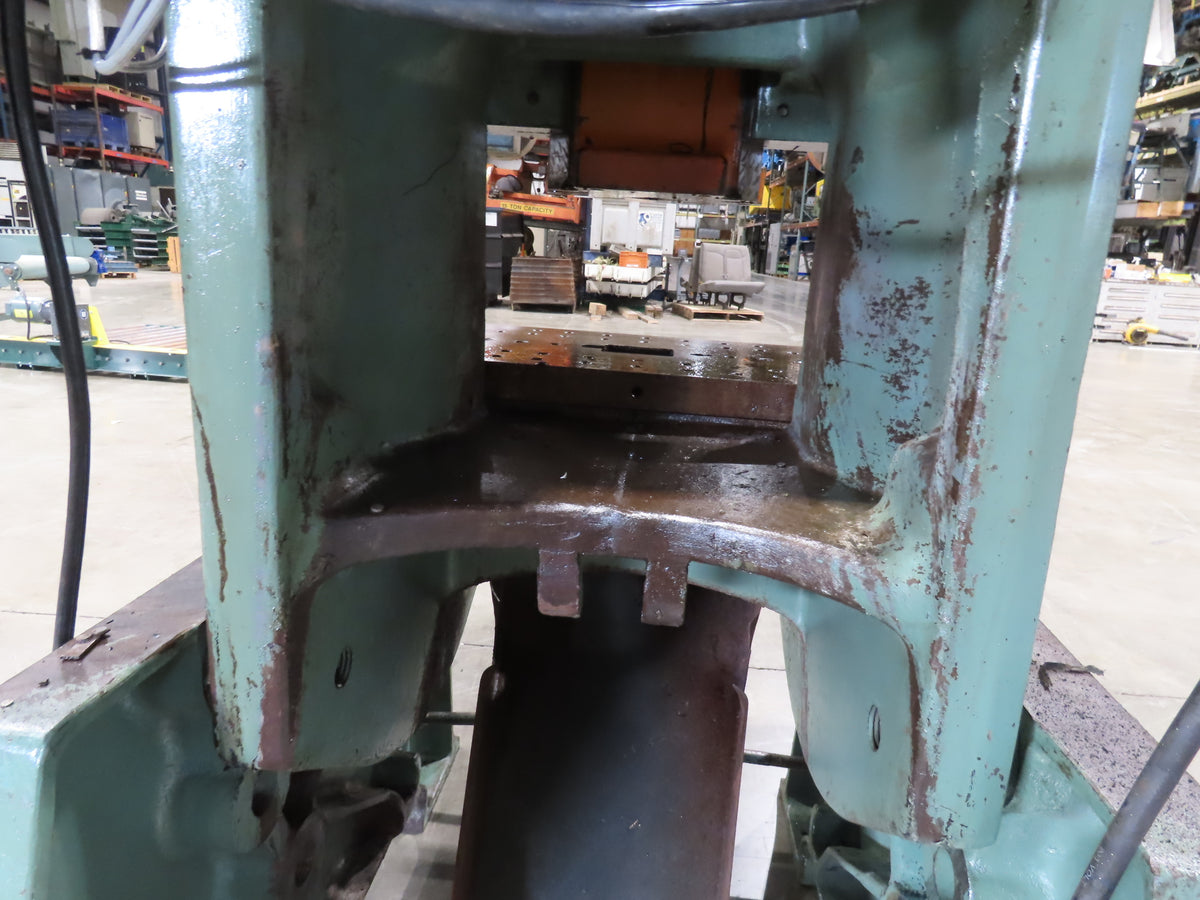

  • Bed Opening (Inches): 13 x 9-1/2"
  • Used, in Good Working Condition.
  • Tested in our shop.
  • Wired for 230V 3 phase

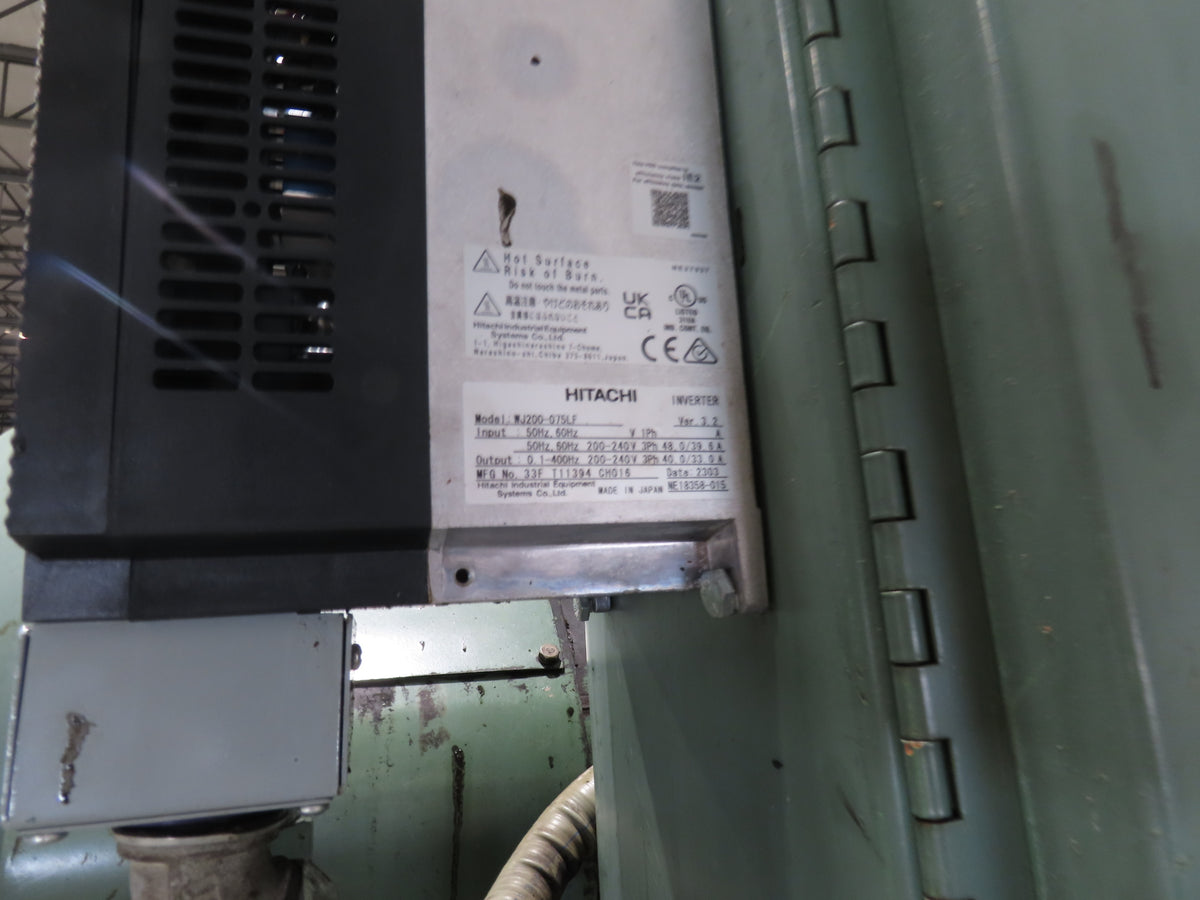

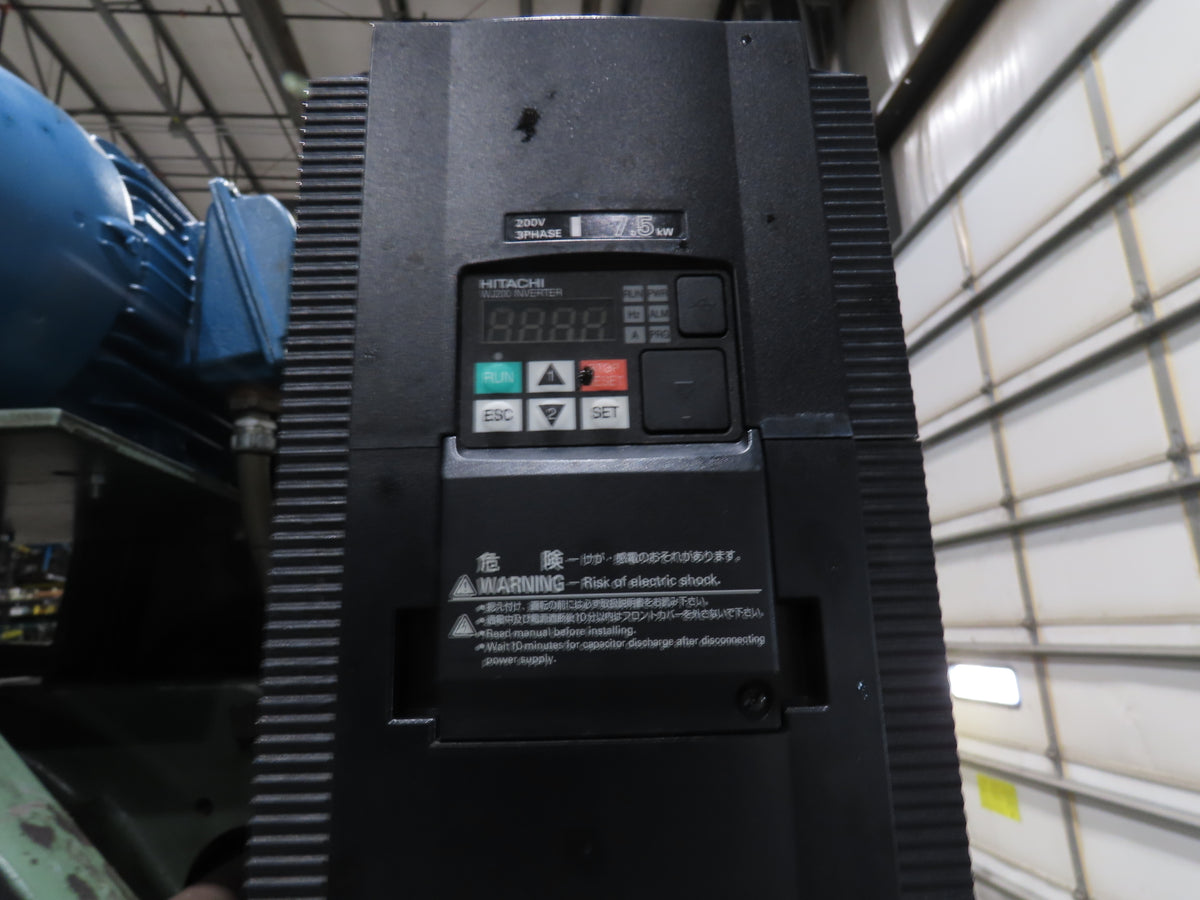

  • VFD driven motor. This changes the punch time. @ 60 hz it looks slow. @ 120 hz it looks like it did originally.

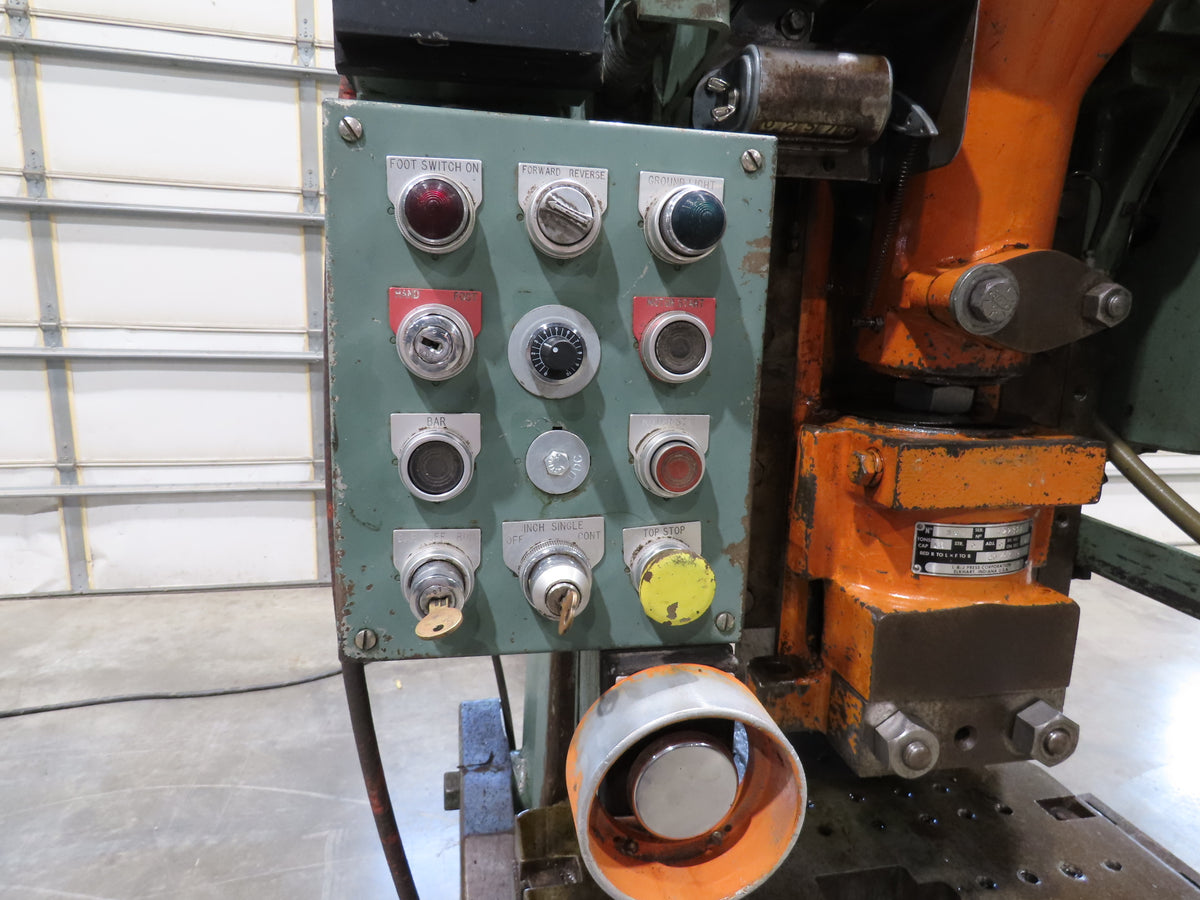

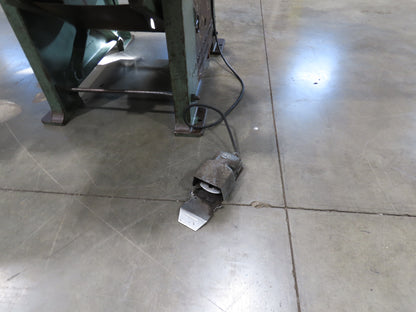

  • Hand control

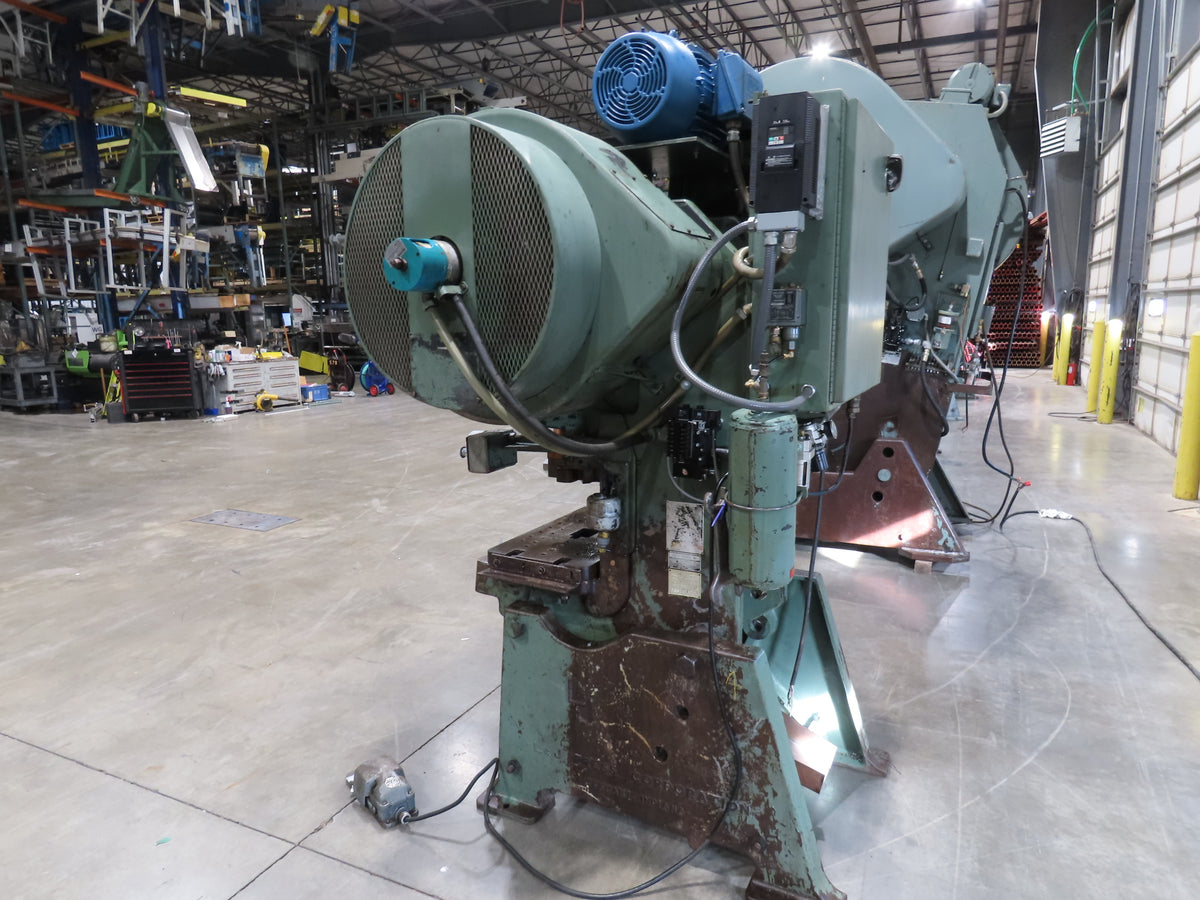

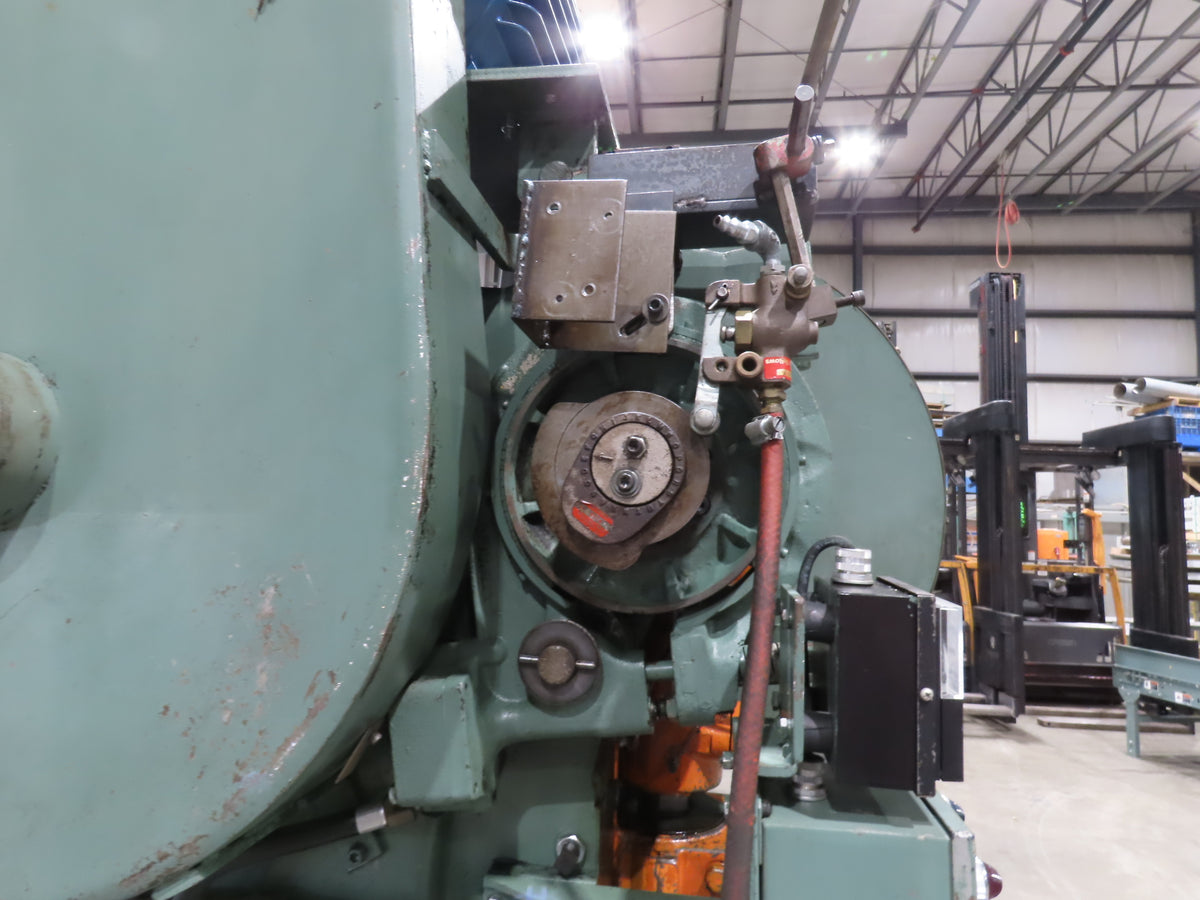

  • This has a smaller flywheel with a large gear wheel on the machine right side.

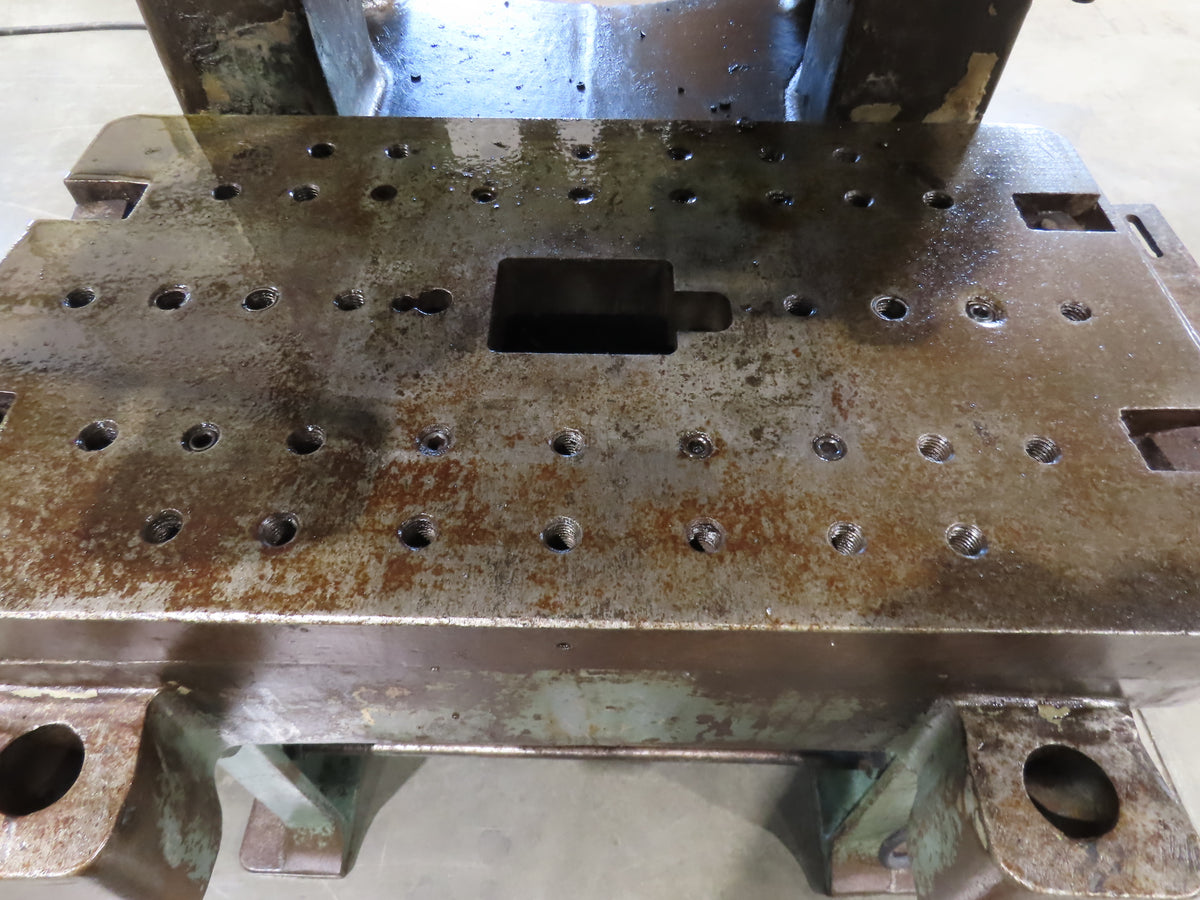

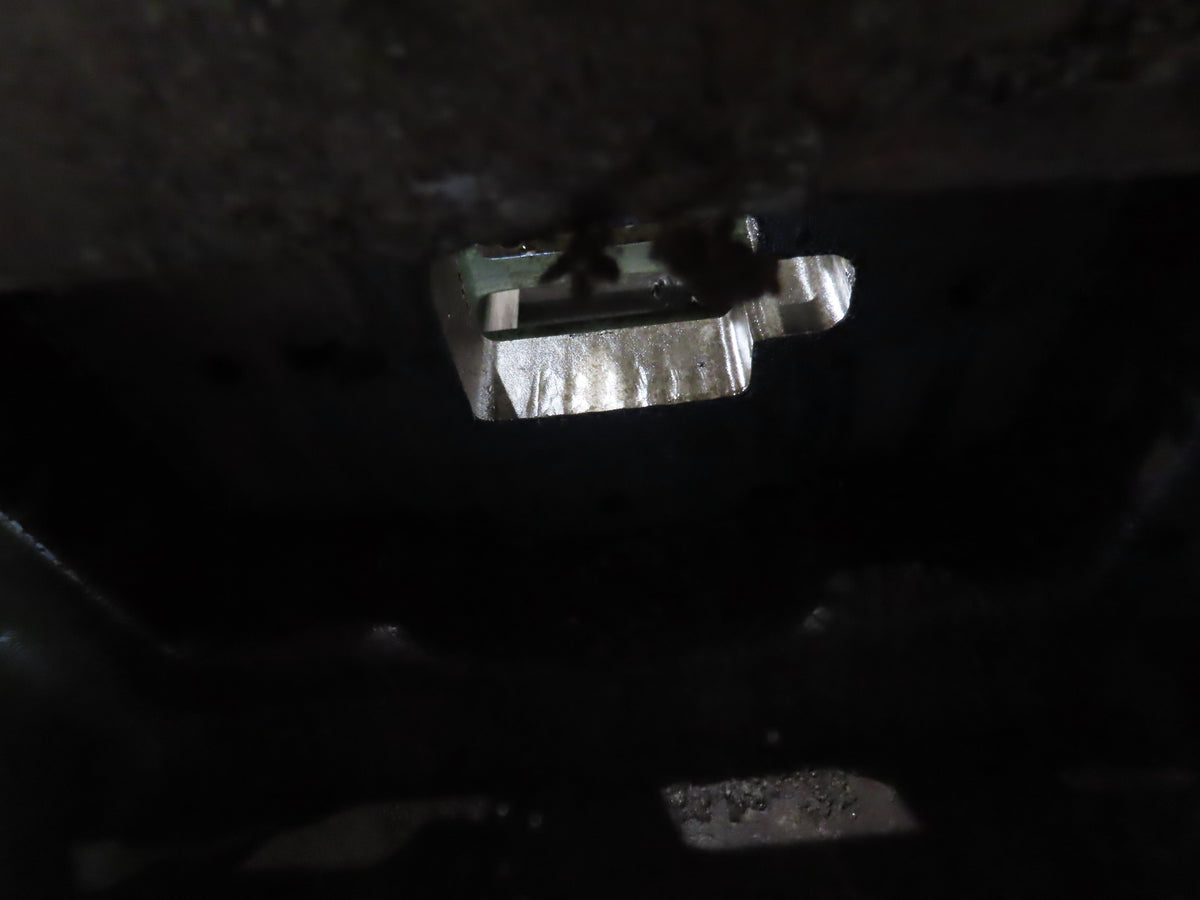

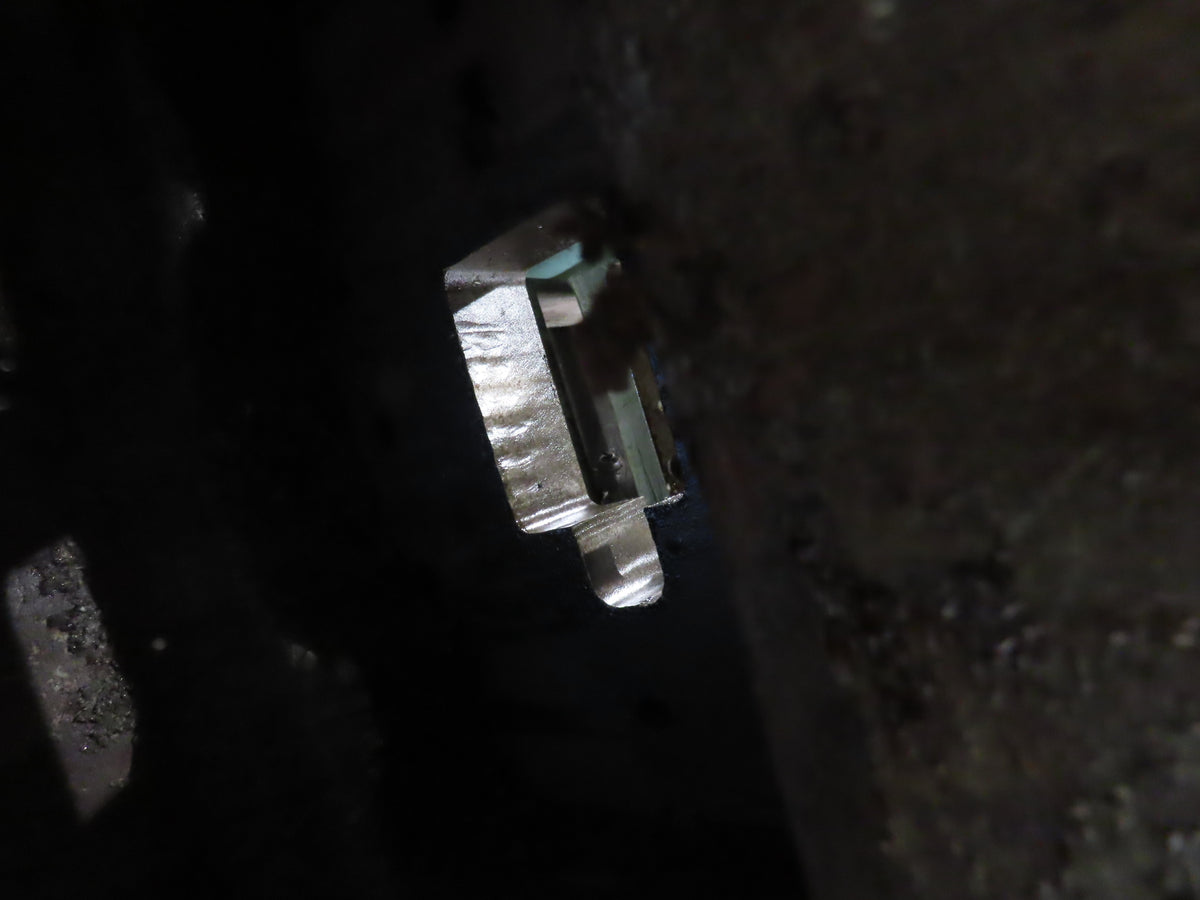

  • 1-3/4" bed plate with a 4x3" opening.
