Nexen

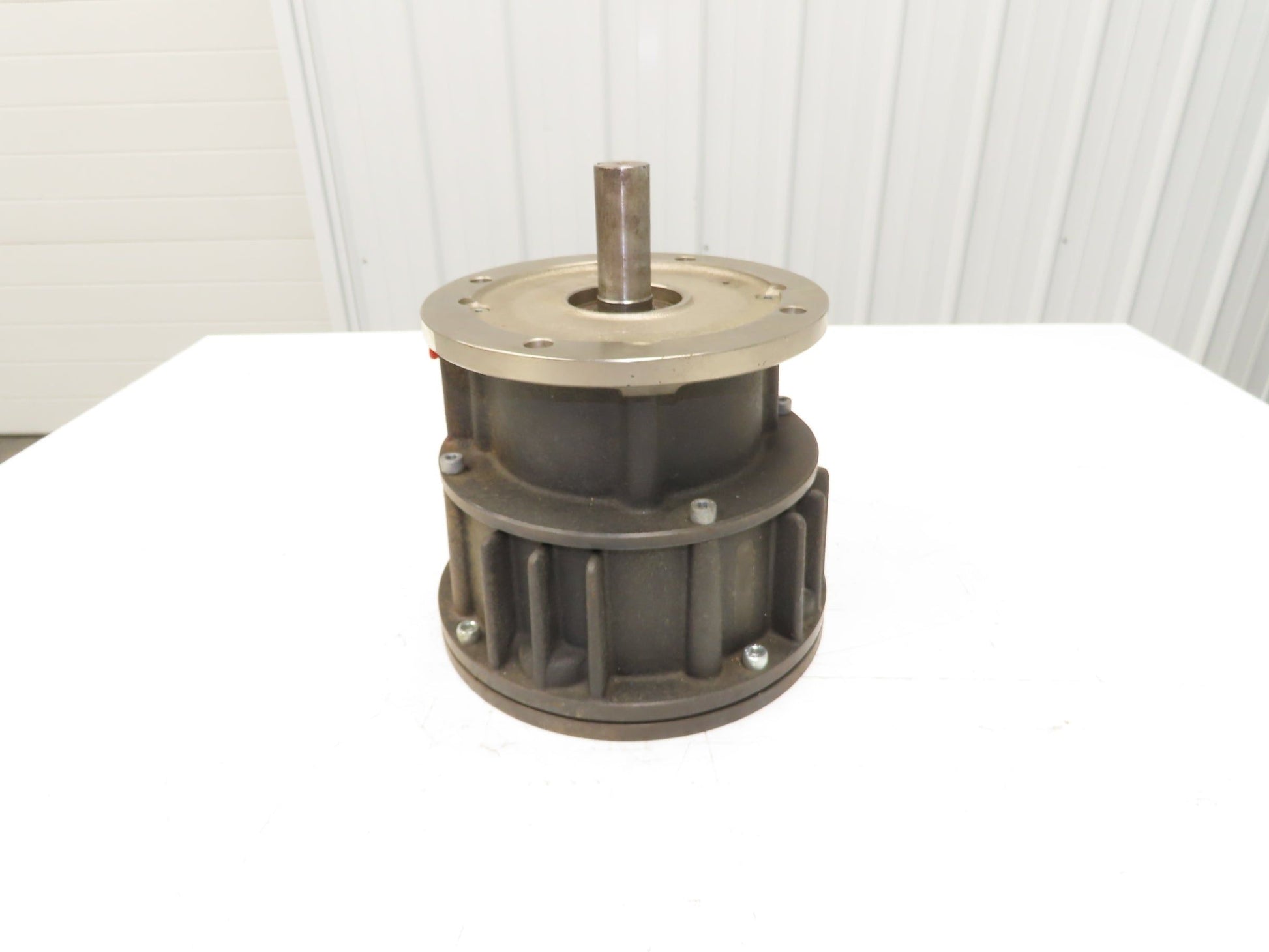

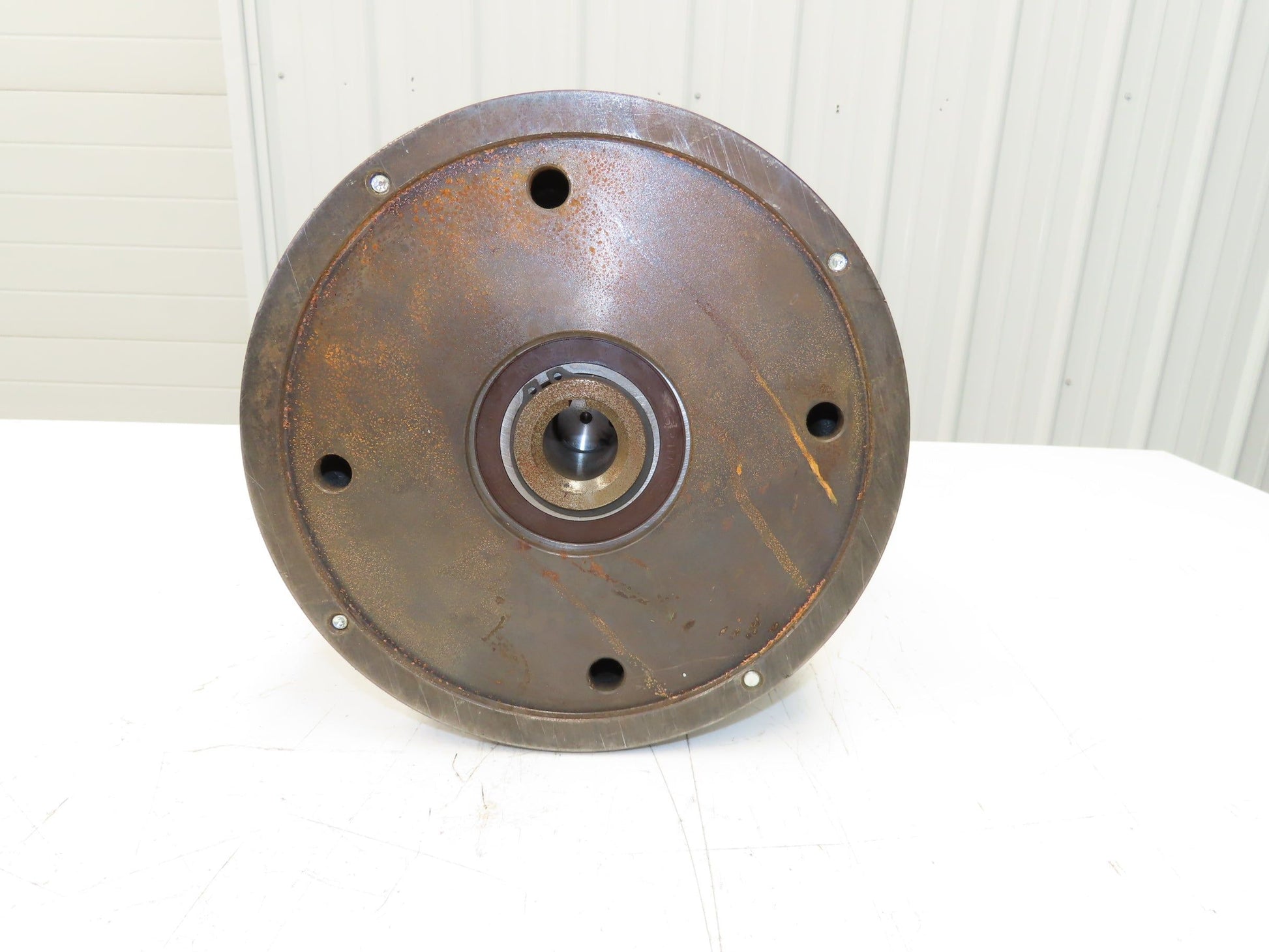

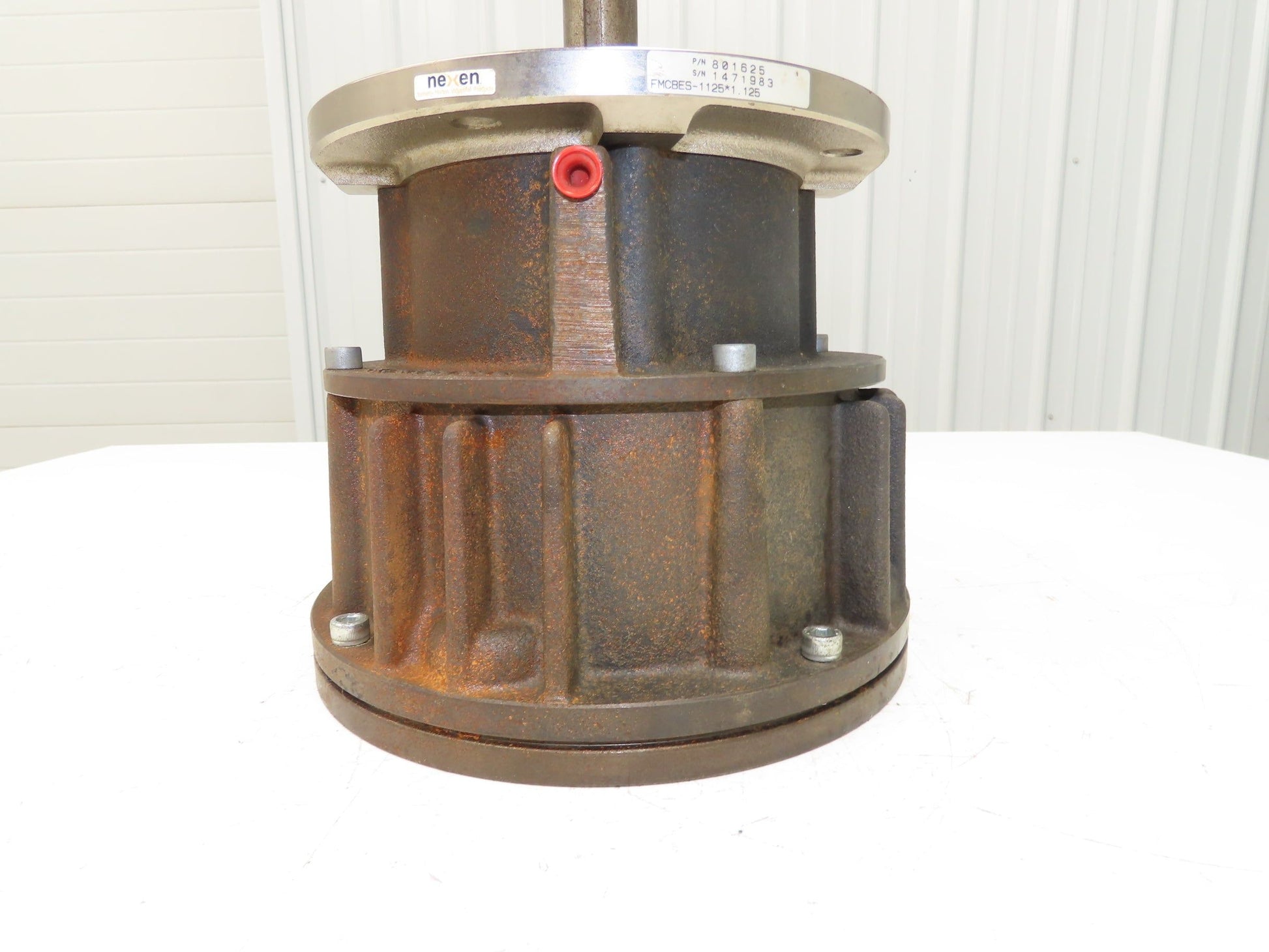

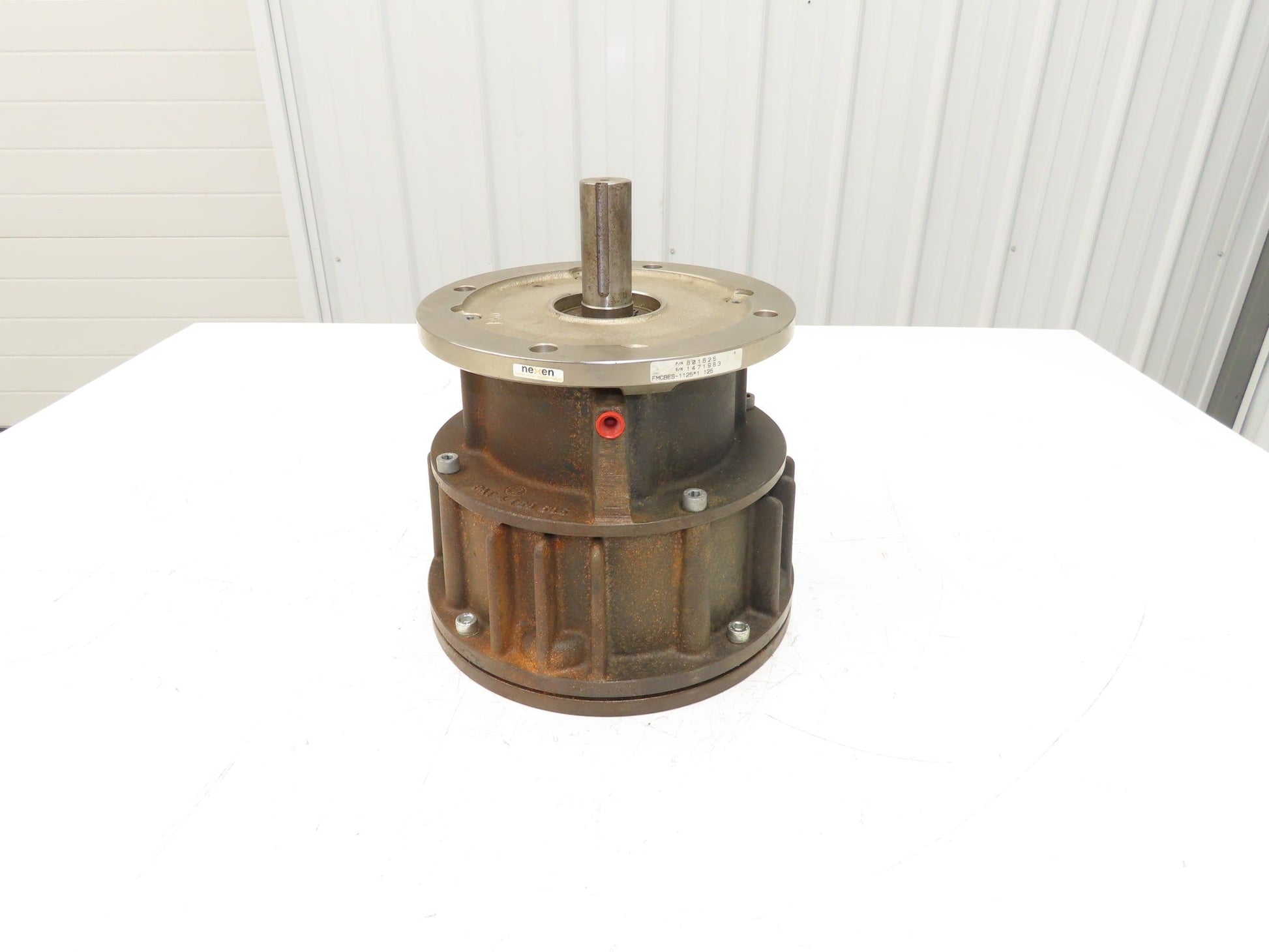

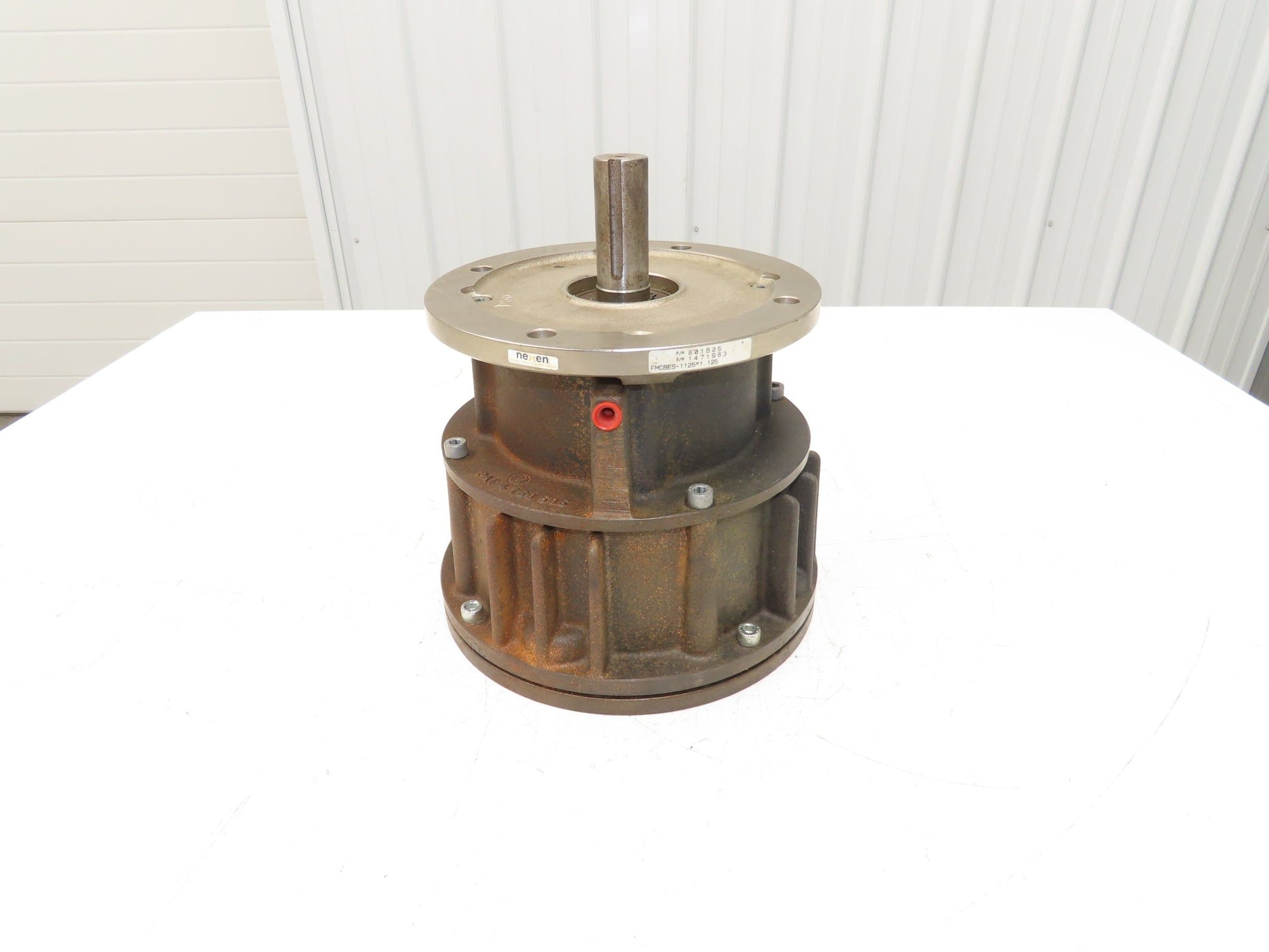

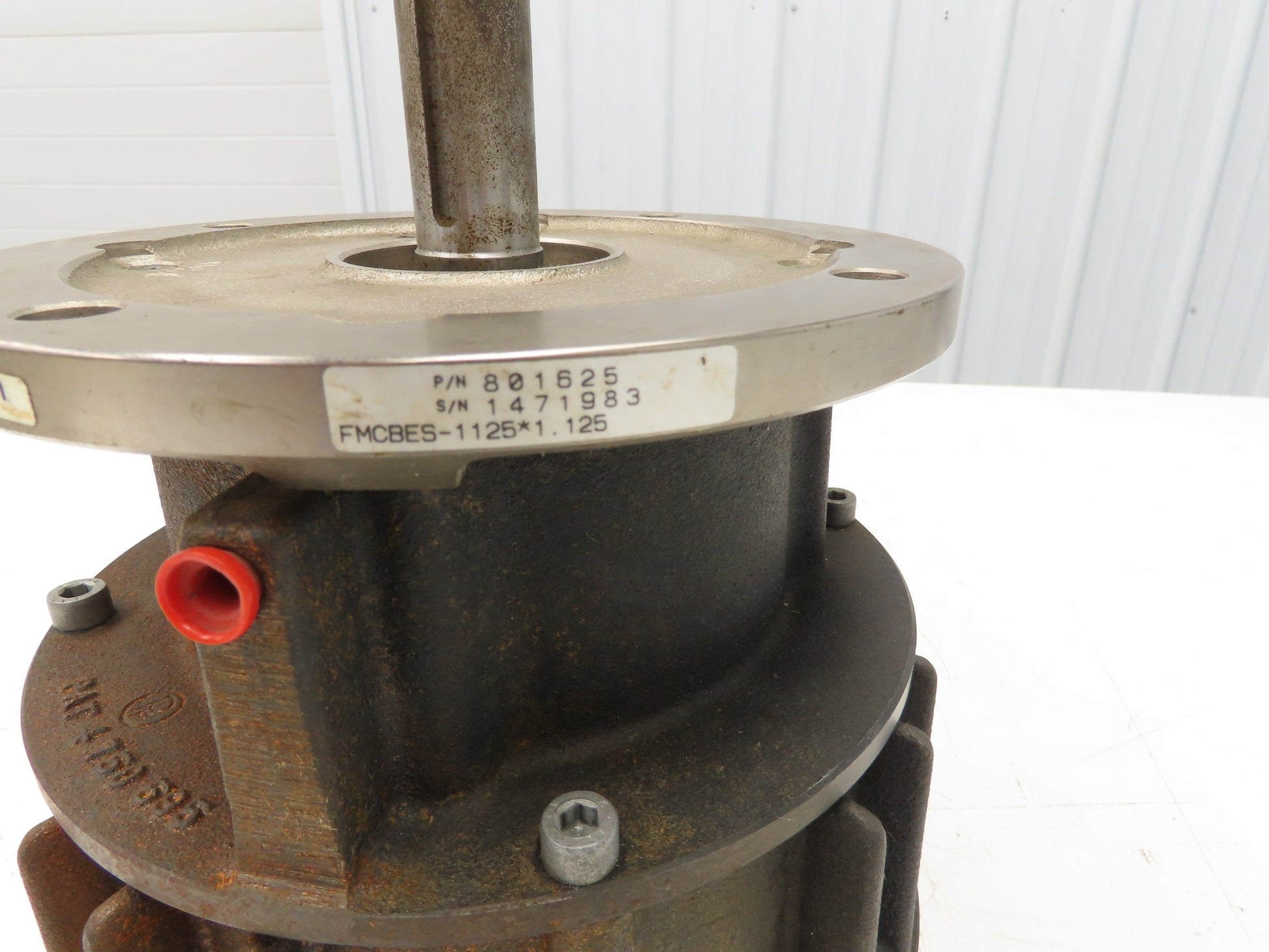

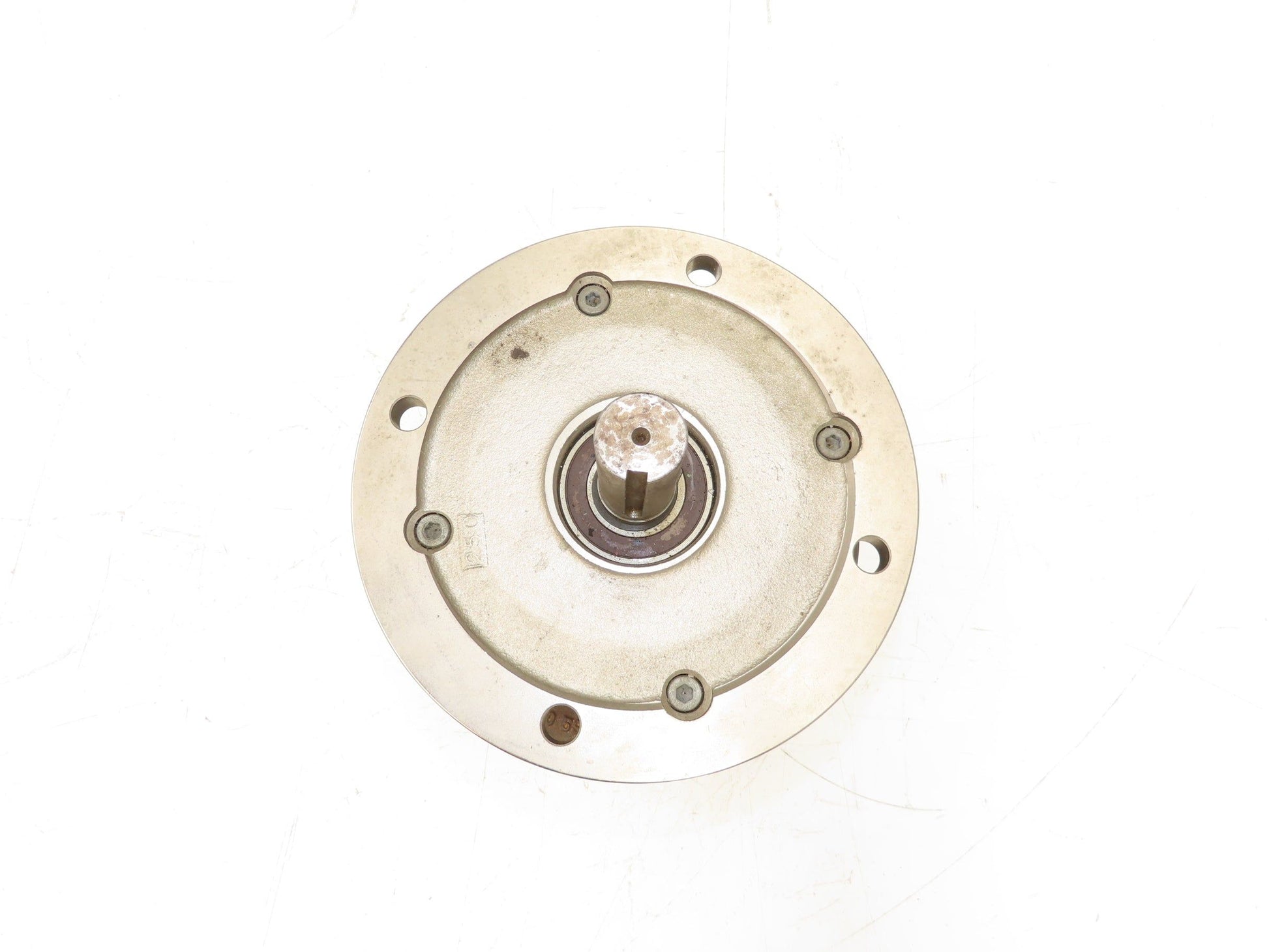

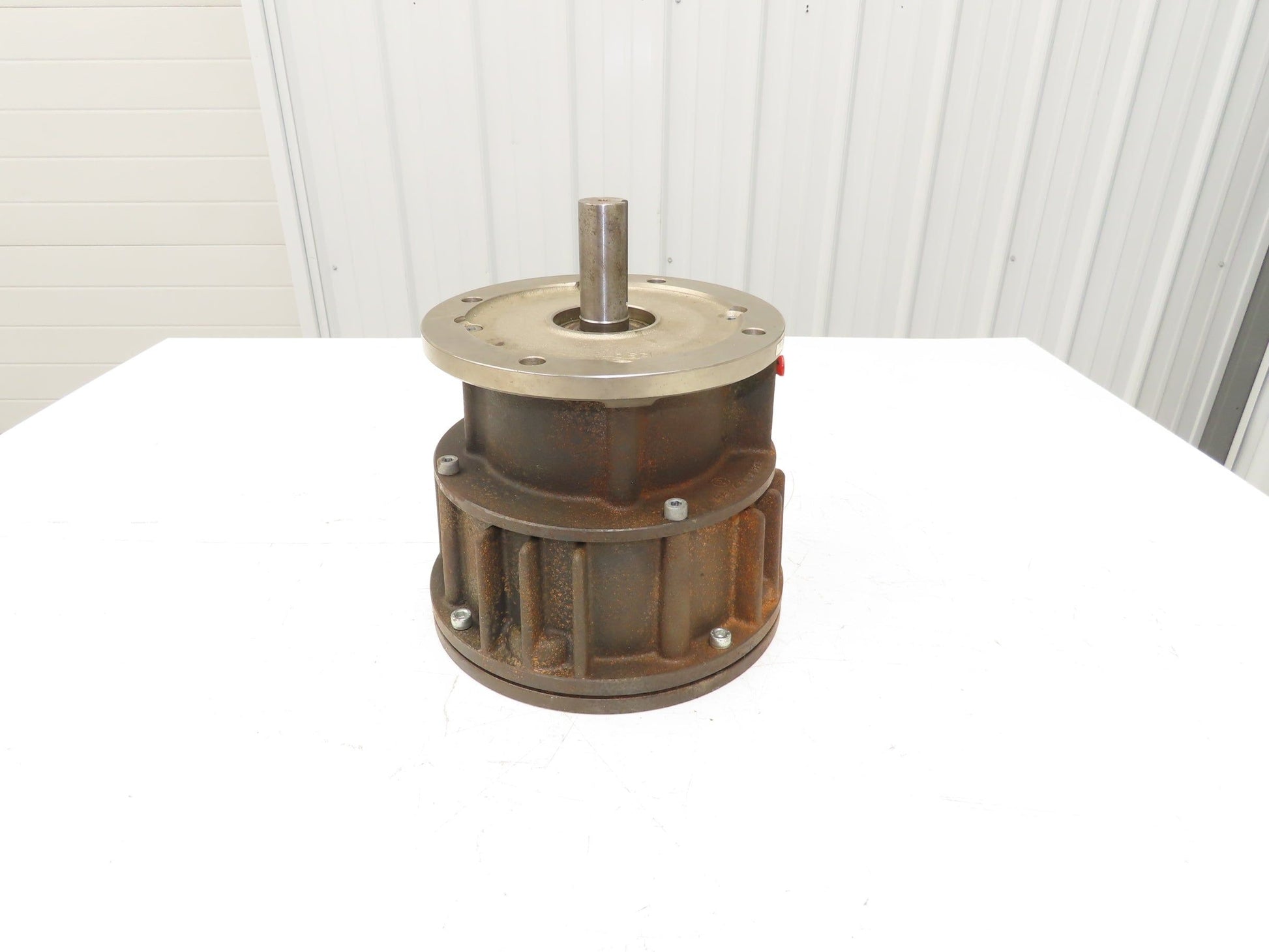

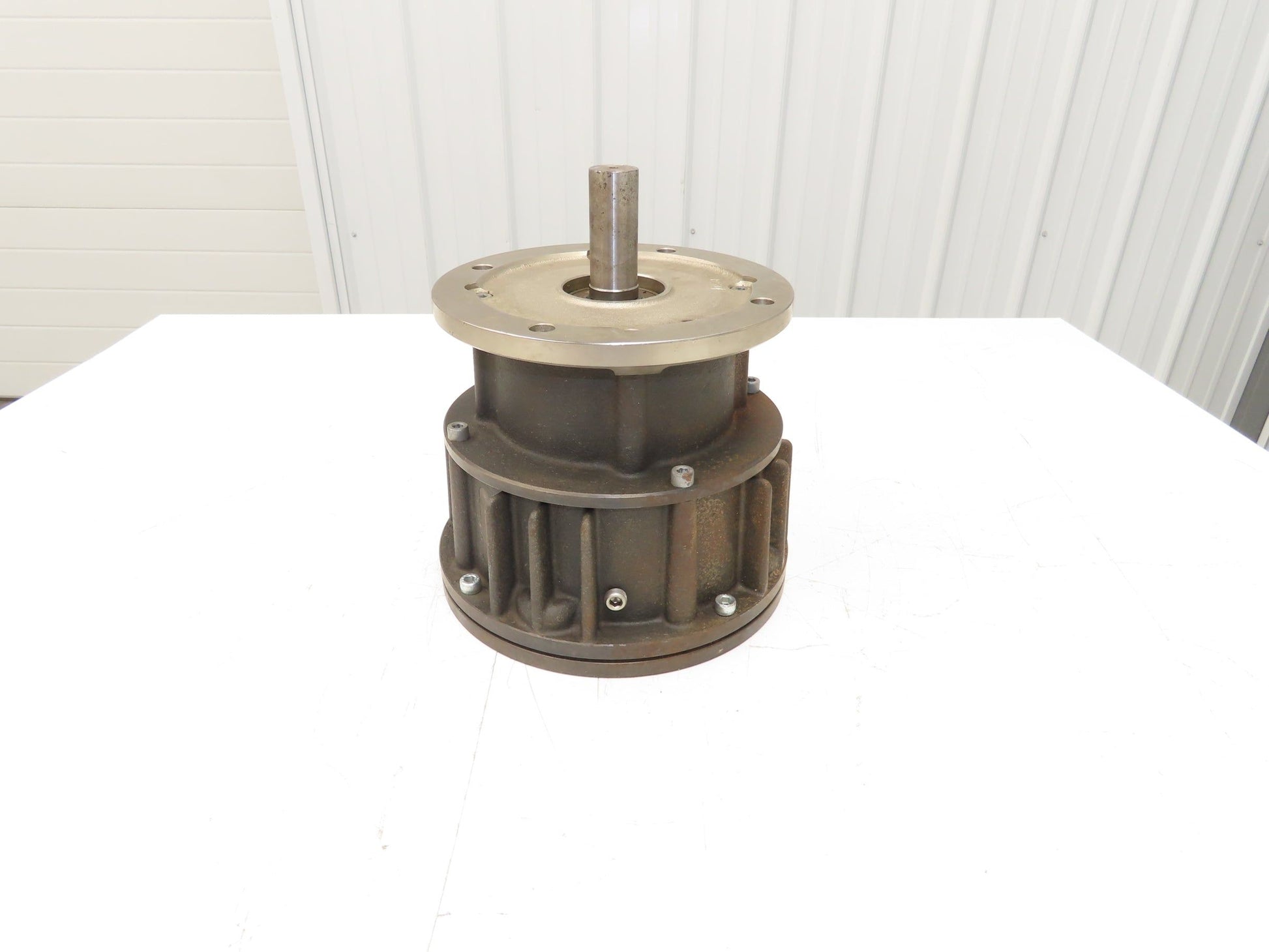

Nexen 801625 Pneumatic Motor/Foot Clutch Brake 1.125" Bore 1.125 Shaft *Read*

Nexen 801625 Pneumatic Motor/Foot Clutch Brake 1.125" Bore 1.125 Shaft *Read*

SKU #286231

Product Condition: New Other

Your Price
$949.99
$999.99 $949.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

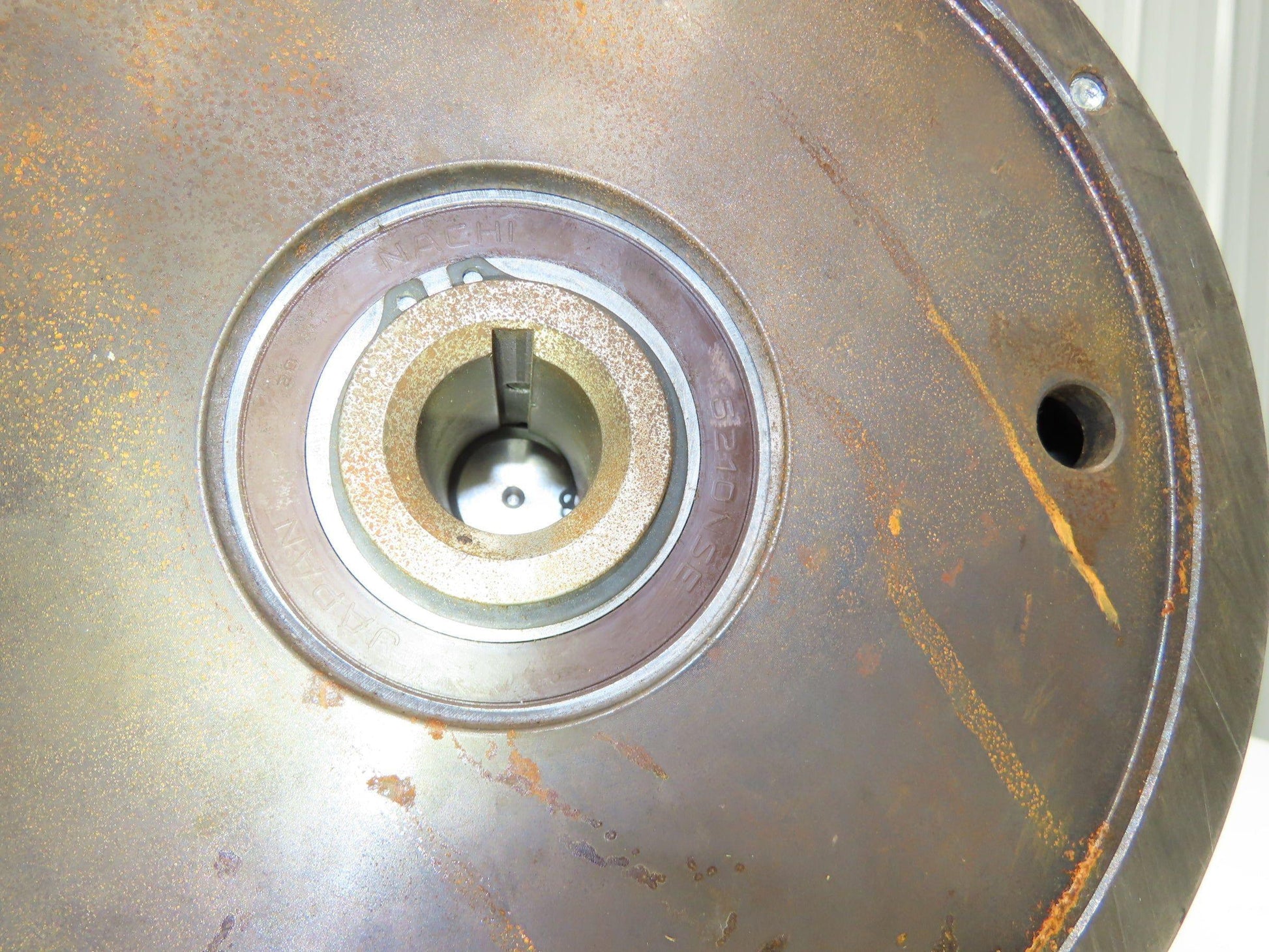

  • New old stock surplus item from spare parts storage.  Has some shelf wear including surface rust.
  • Mounting Style: Foot, Motor or Reducer
  • Anti Rotation Style: Flange, Optional Feet
  • Max Speed: 1800 RPM
  • Overhung Load Capacity: 240 lbs, At 1800 RPM/360 lbs At 1200 RPM, 1.3 in From Pilot Face, For 10,000 Hrs Bearing Life
  • Drive Inertia: 24.2 lbin²
  • Shaft Inertia: 30.3 lbin²
  • Open Or Enclosed Design: Enclosed
  • Primary Finish: Black Oxide
  • Min Ambient Temperature: 32 °F
  • Max Ambient Temperature: 150 °F
  • CE Certified: CE
  • RoHS Compliant: RoHS
  • Input Frame Size: NEMA 182T/TC, 184T/TC
  • Output Frame Size: NEMA 182T/TC, 184T/TC
  • Bore Details: Straight Bore/Shaft
  • Max Static Clutch Torque: 390 inlb
  • Max Static Brake Torque: 355 inlb
  • Brake Torque: 355 inlb
  • Clutch Facing Type: Standard Coefficient
  • Clutch Facing Edge Color Code: Red
  • Approximate Clutch Facing Life: 929 hphr
  • Clutch Facing Effective Area: 23.45 in²
  • Brake Facing Type: Standard Coefficient
  • Brake Facing Edge Color Code: Red
  • Approximate Brake Facing Life: 929 hphr
  • Brake Facing Effective Area: 23.5 in²
  • Combined Continuous Thermal Dissipation: 0.33 hp
  • Clutch Peak Thermal Input Rate: 21.00 hp
  • Brake Peak Thermal Input Rate: 21.00 hp
  • Max Allowable Pressure: 8.3 bar
  • Max Operating Pressure: 80 psi
  • Min Engagement Pressure: 50 psi
  • Min Release Pressure: 29 psi
  • Inlet Size: 0.125 NPT
  • Bore Style: Machined Bore with Keyway
  • Clutch Air Chamber Volume When New: 3.128 in³
  • Clutch Air Chamber Volume When Worn Out: 4.950 in³
  • Materials Of Construction: Black Oxide

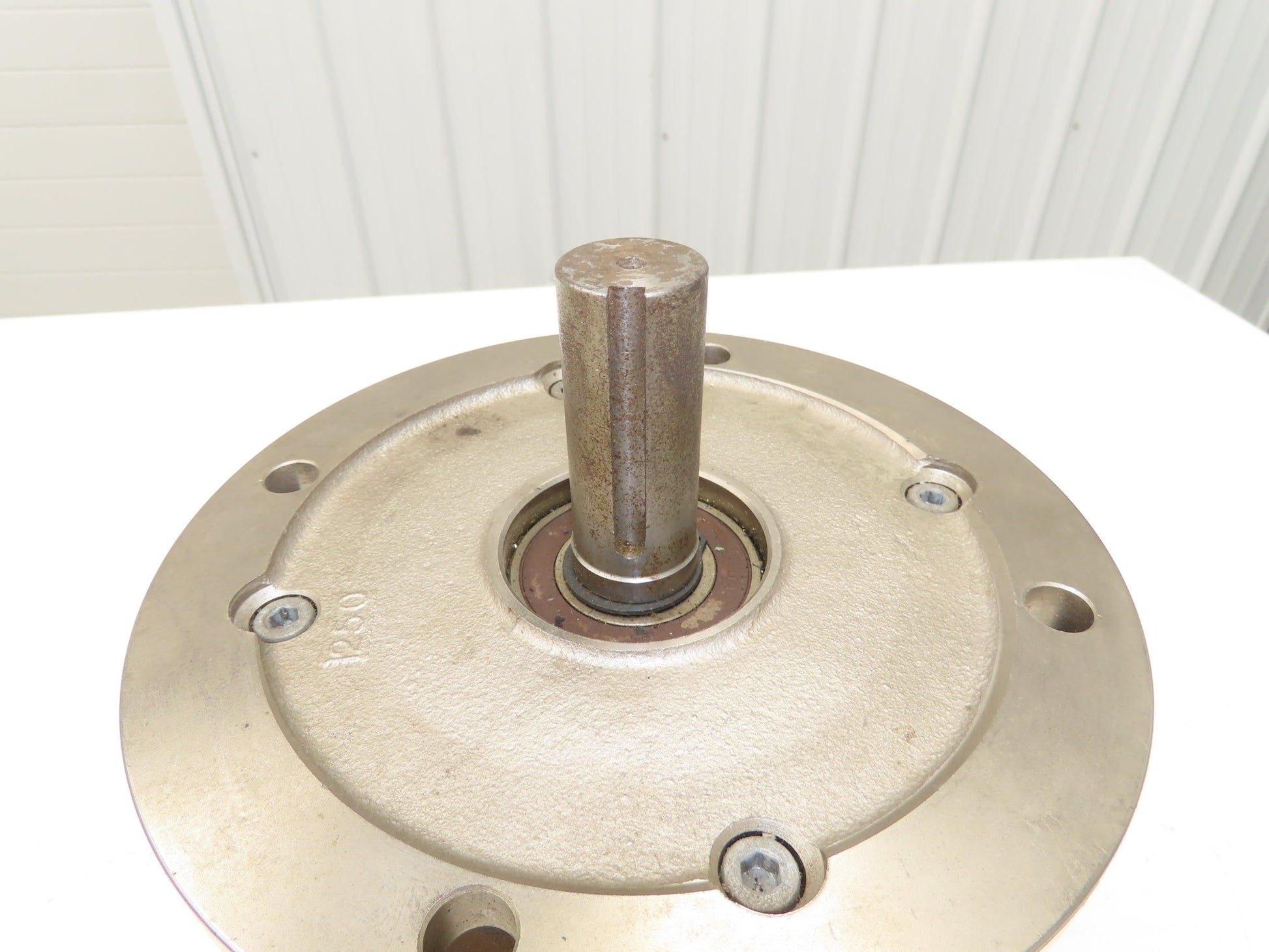

  • Output Shaft Style: Shaft with Keyway
  • Clutch Side Engagement Method: Air
  • Brake Side Engagement Method: Spring
  • Bore Size: Machined Bore with Keyway
  • Input Bore Diameter: 1.125 in
  • Output Shaft Diameter: 1.125 in
  • Output Bore Diameter: 1.125 in

Condition: New Other
