NKE 6"x 22" Double Belt Conveyor Small Parts Slow Feed Chute 220V 1FPM

NKE 6"x 22" Double Belt Conveyor Small Parts Slow Feed Chute 220V 1FPM

SKU #272071

Product Condition: Used

Your Price
$721.99
$799.99 $721.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
NKE
Model

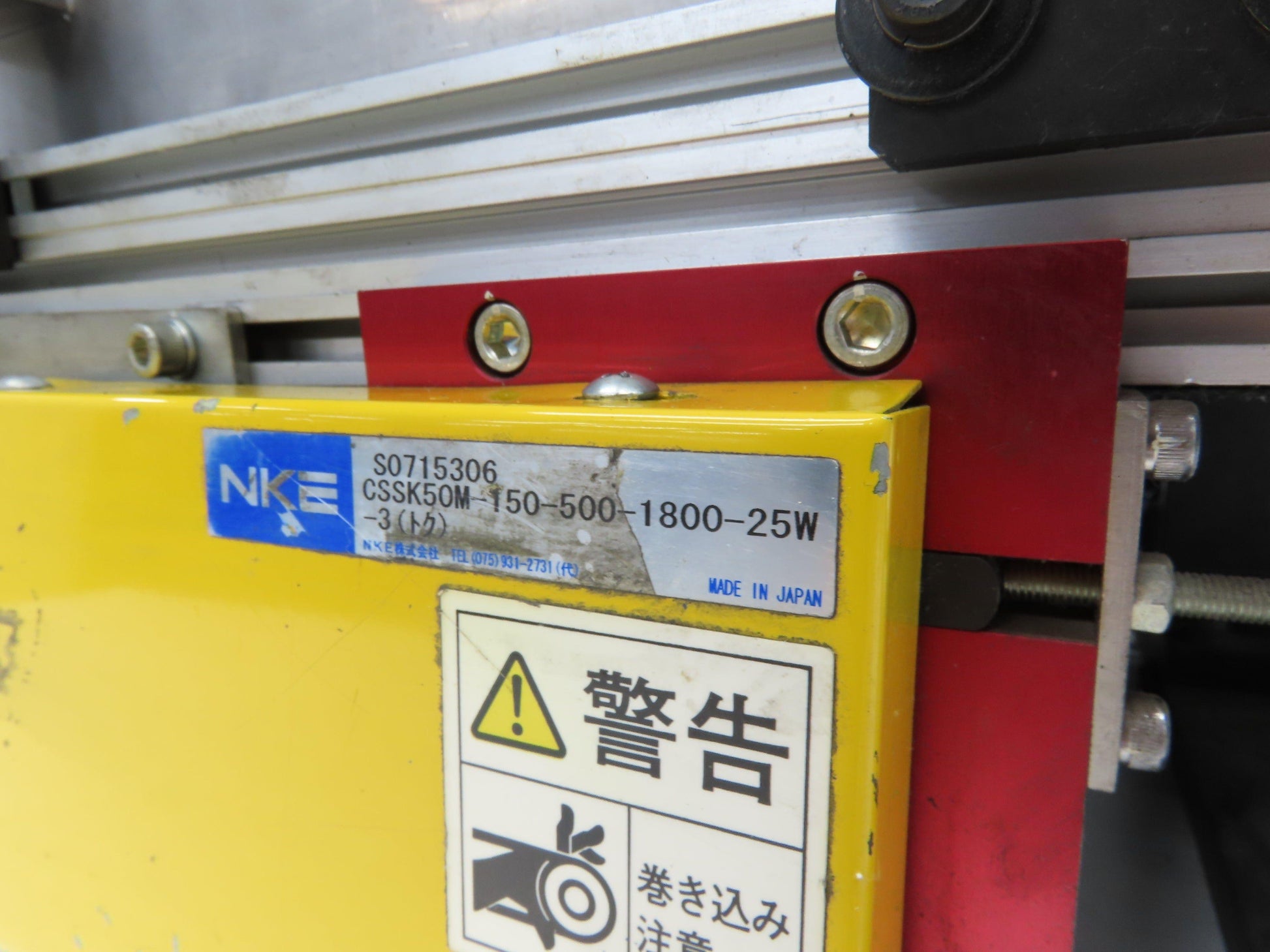

CSSK50M-150-500-1800-25W-3
MPN
41K25GN-SW2T
Condition
Used
  • In Good Used Condition.  Removed from a Working Environment.  Tested @220V 3PH.
  • Conveyor was used as a parts feeder for vibratory sorter unit.

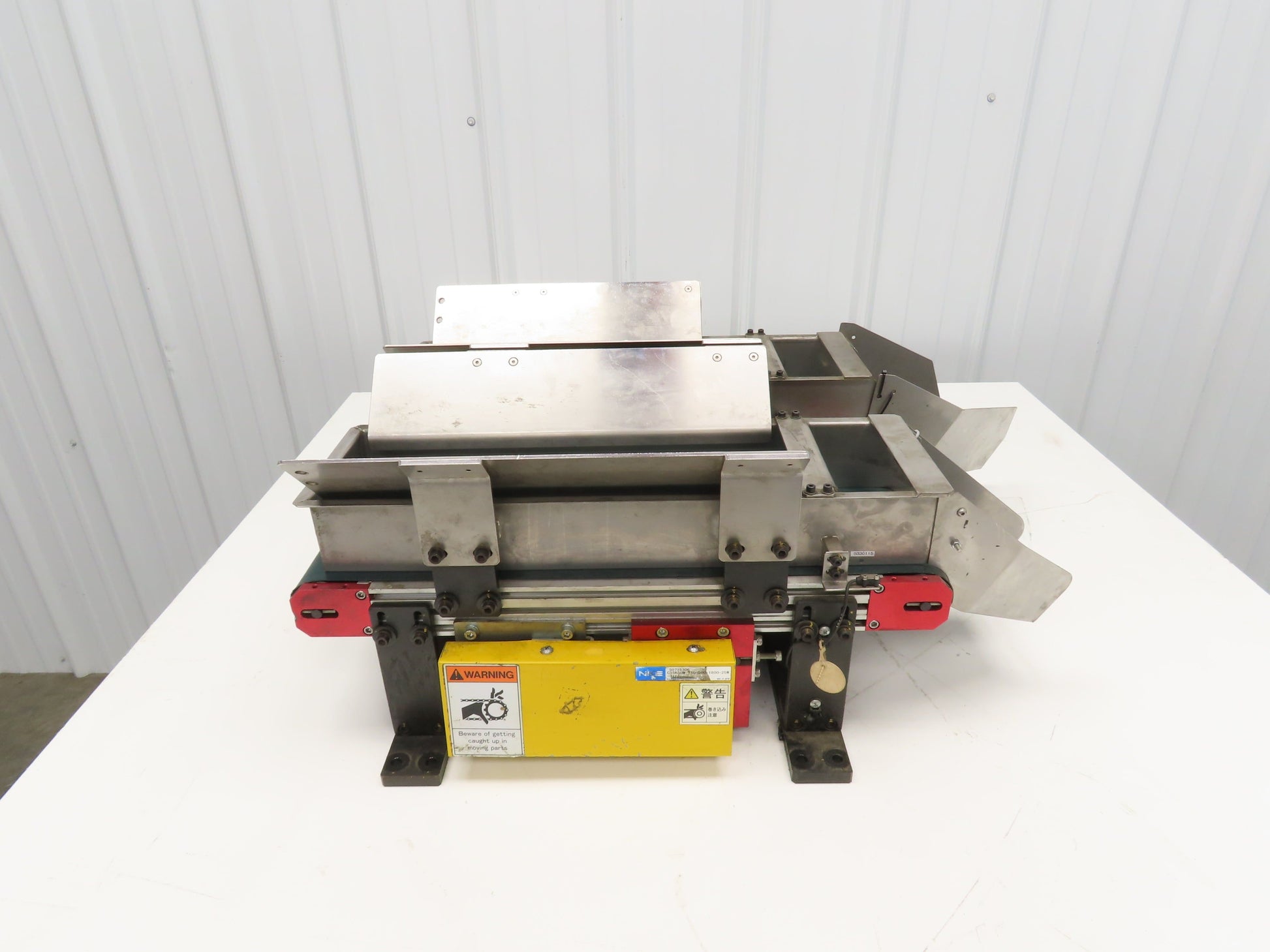

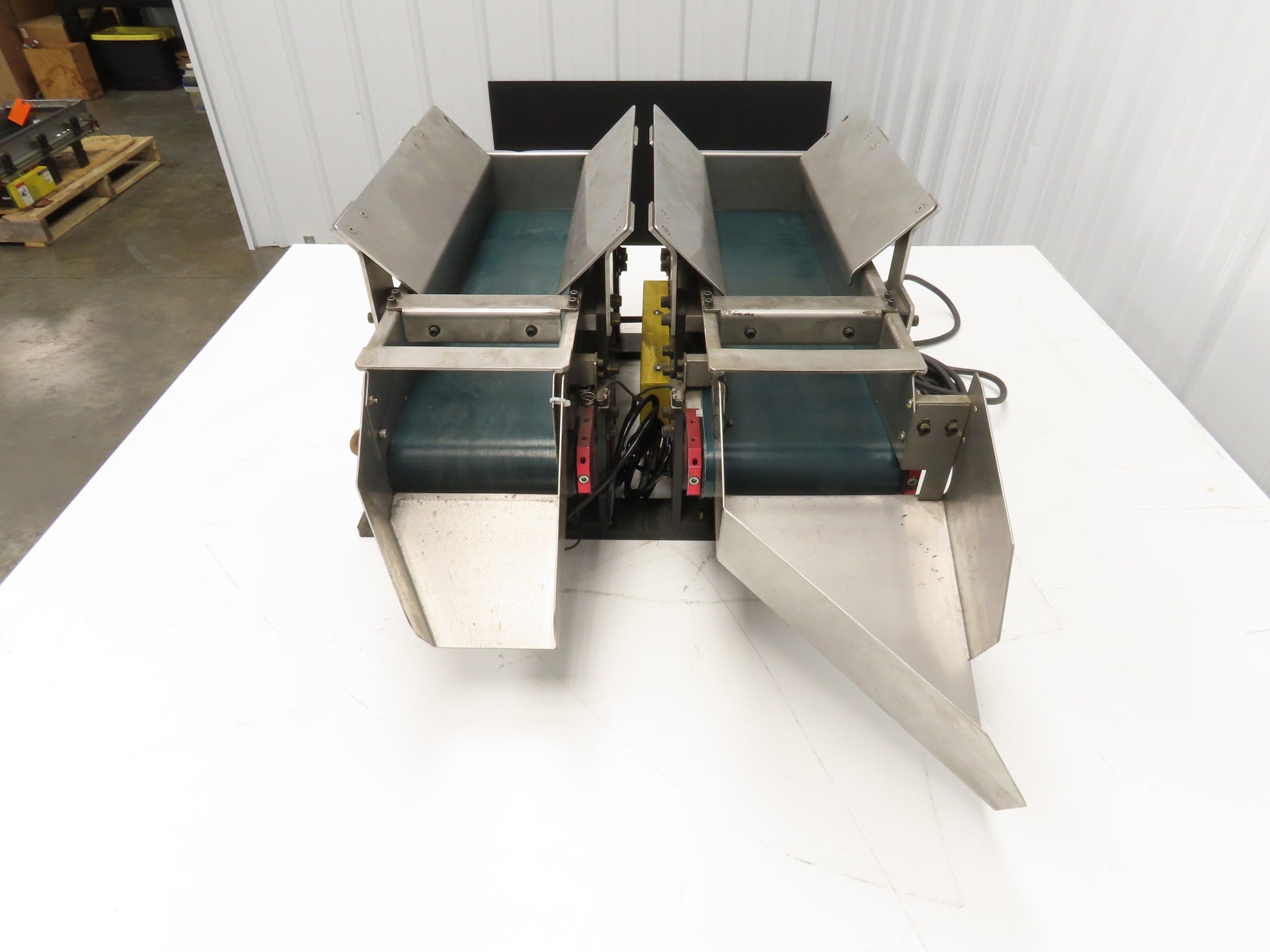

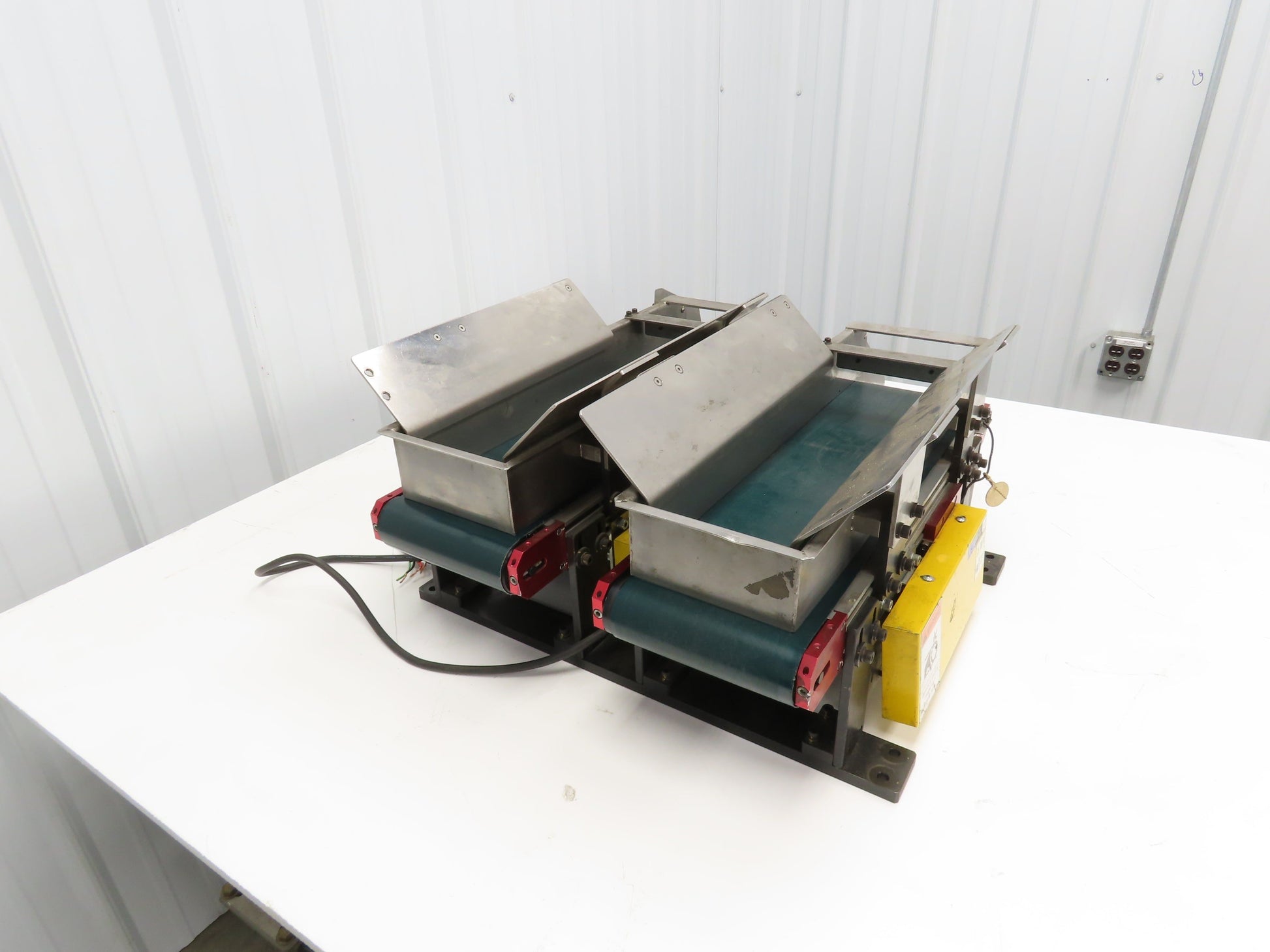

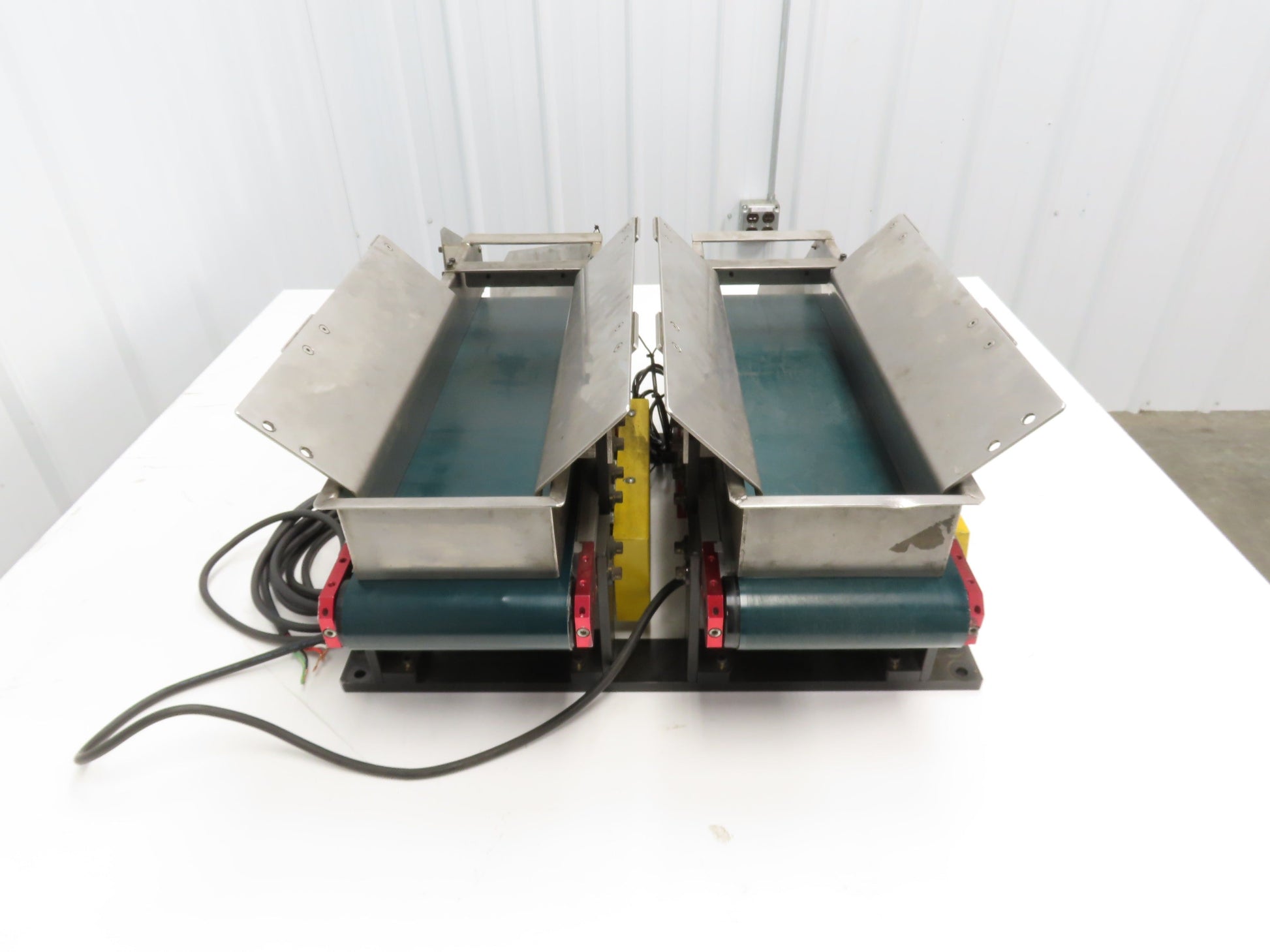

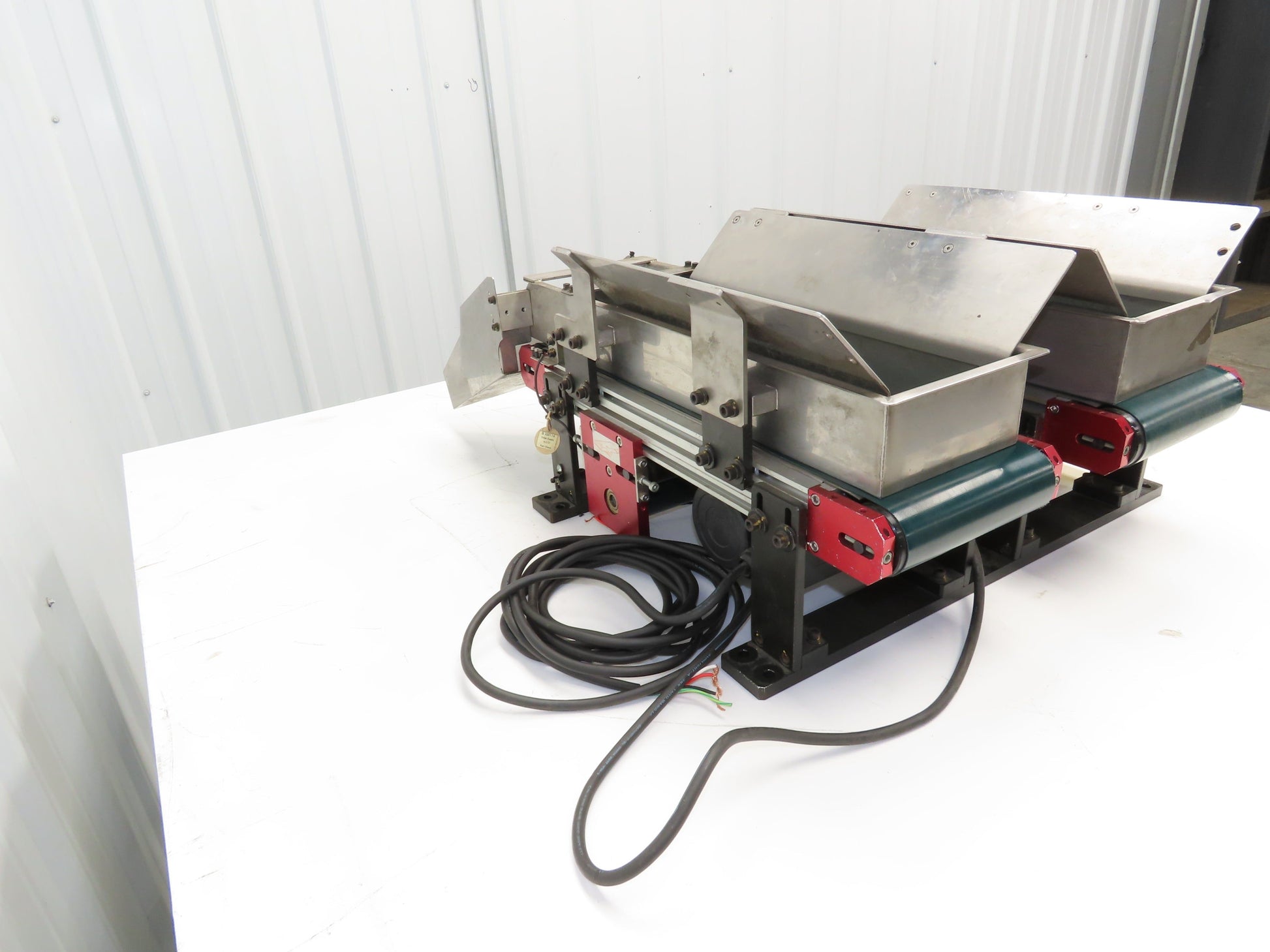

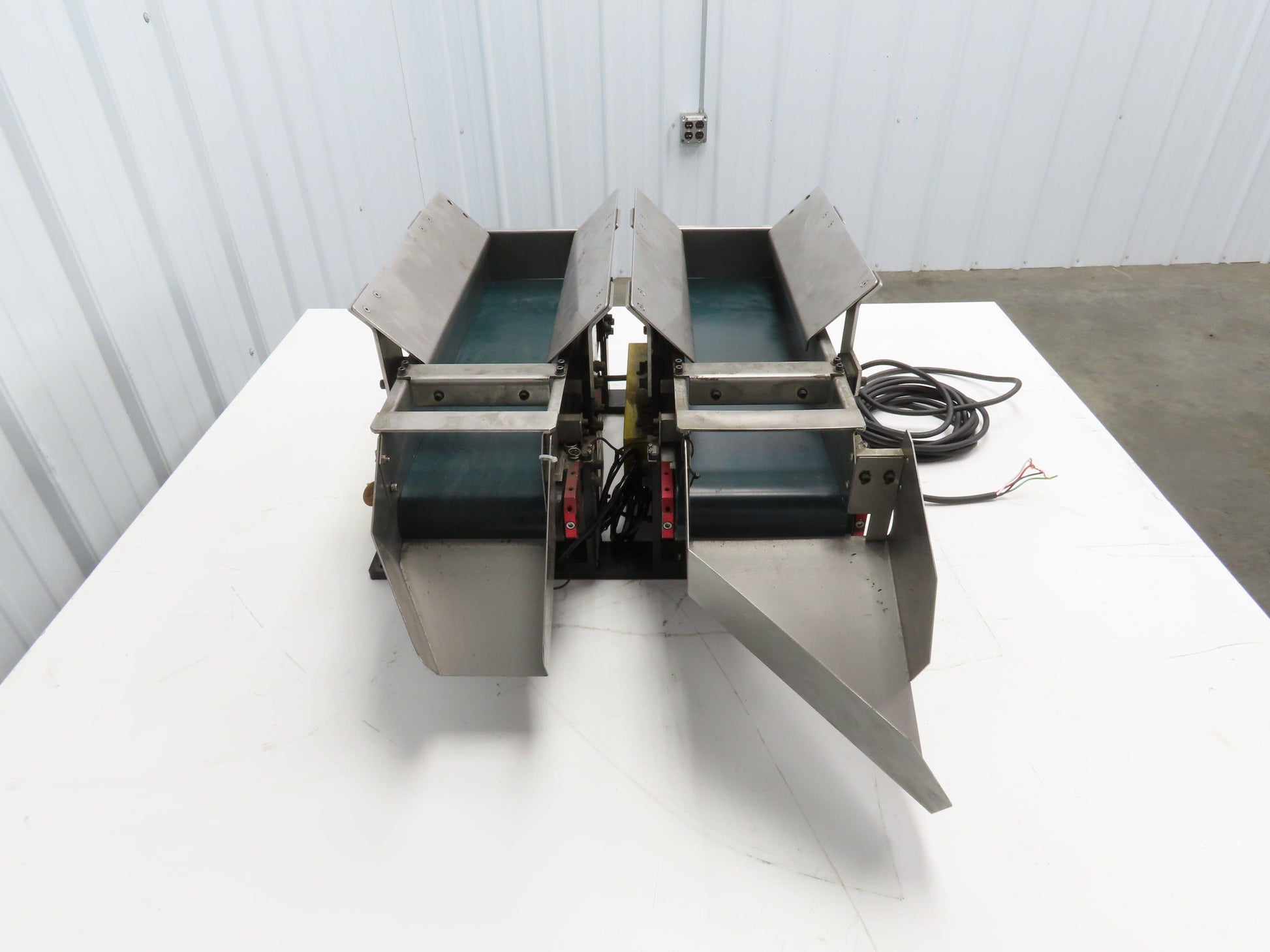

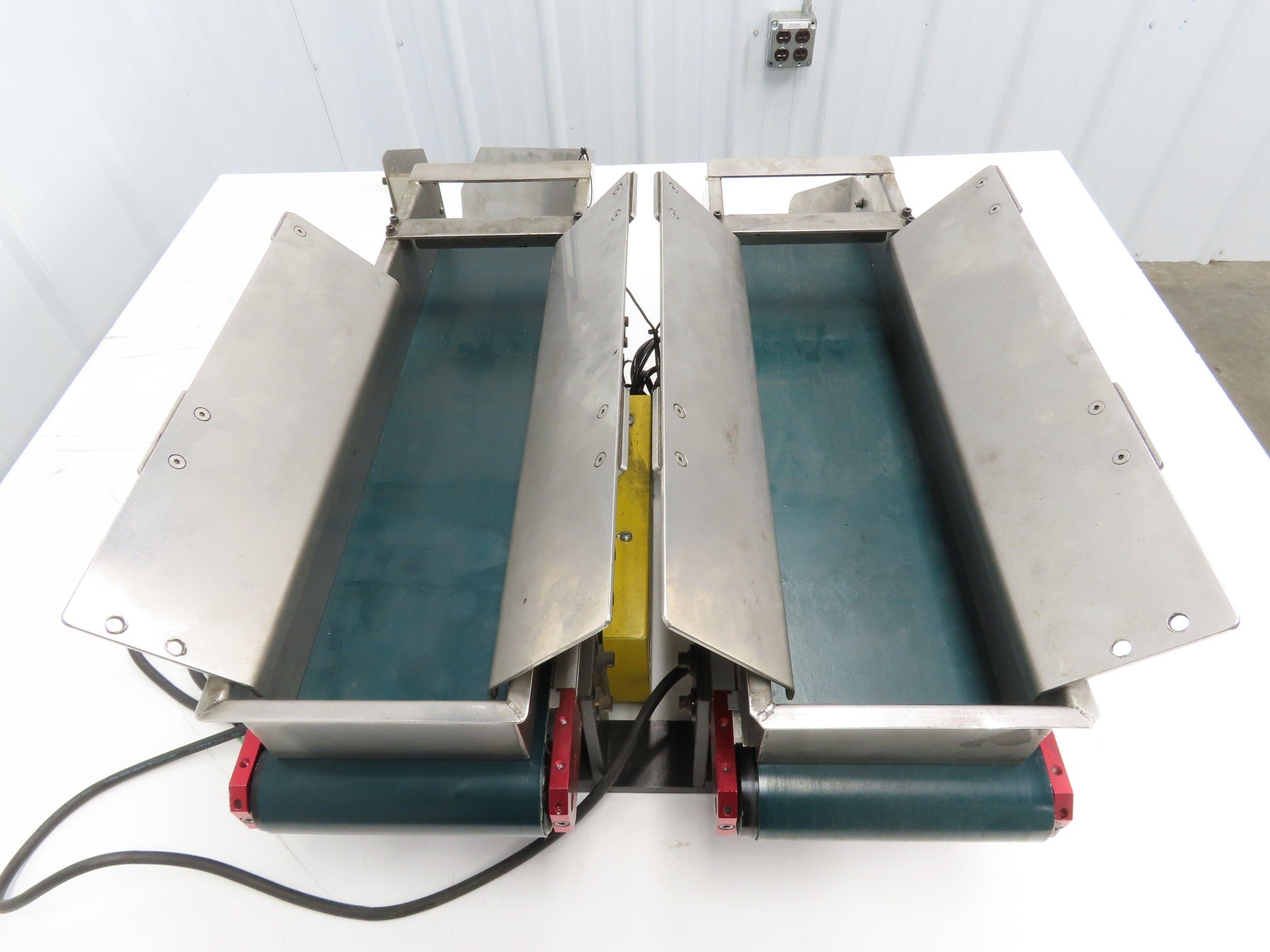

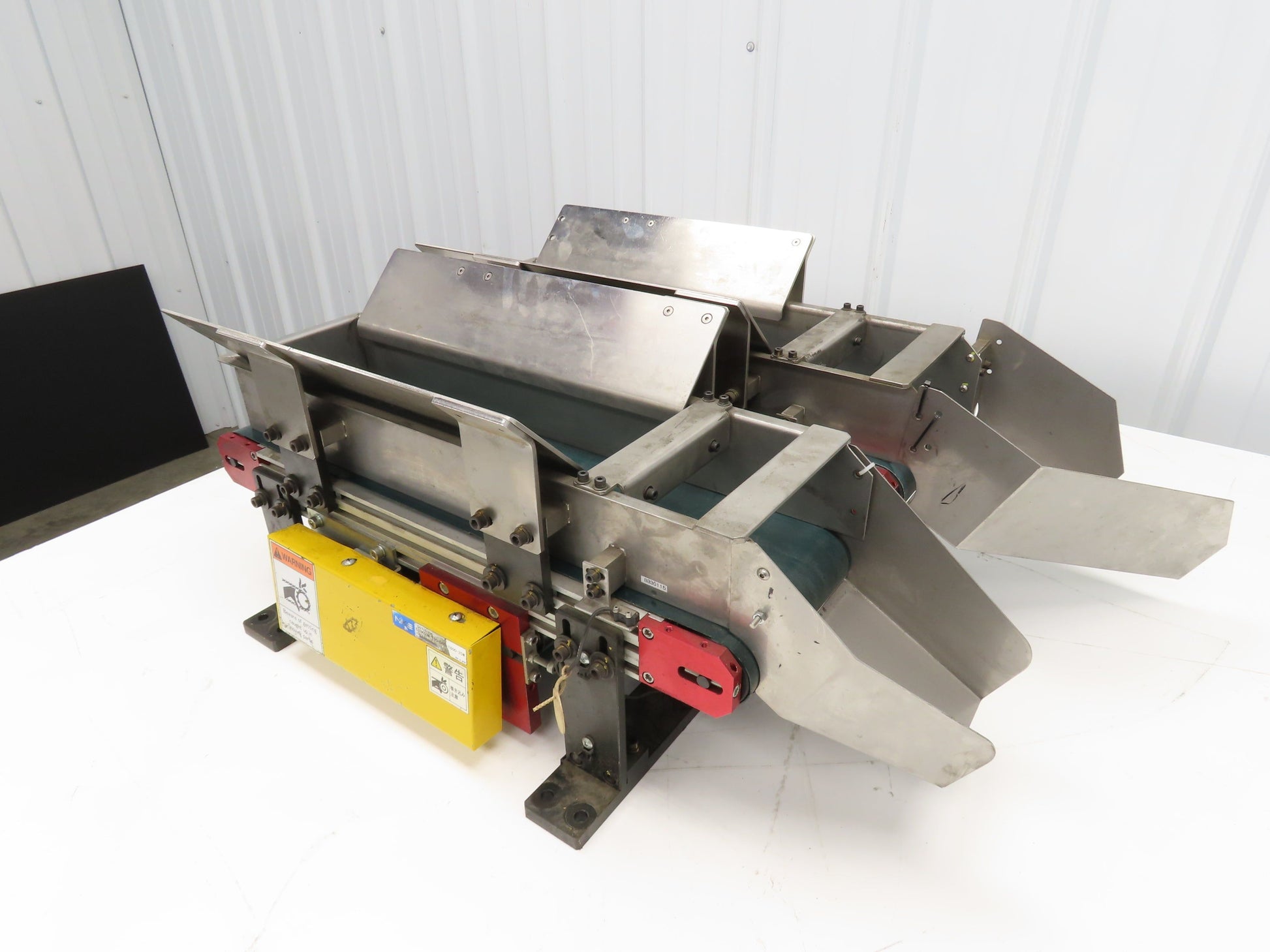

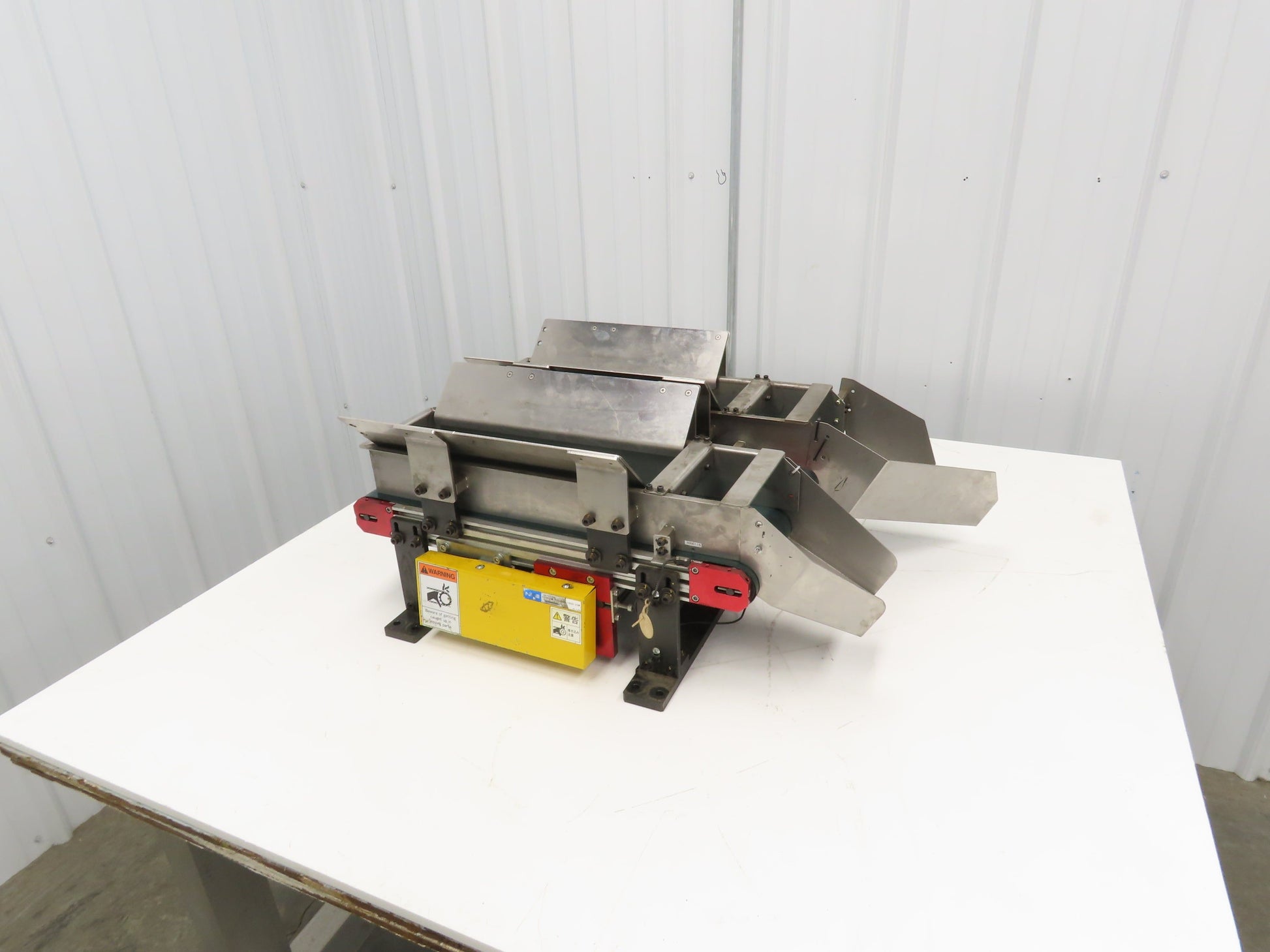

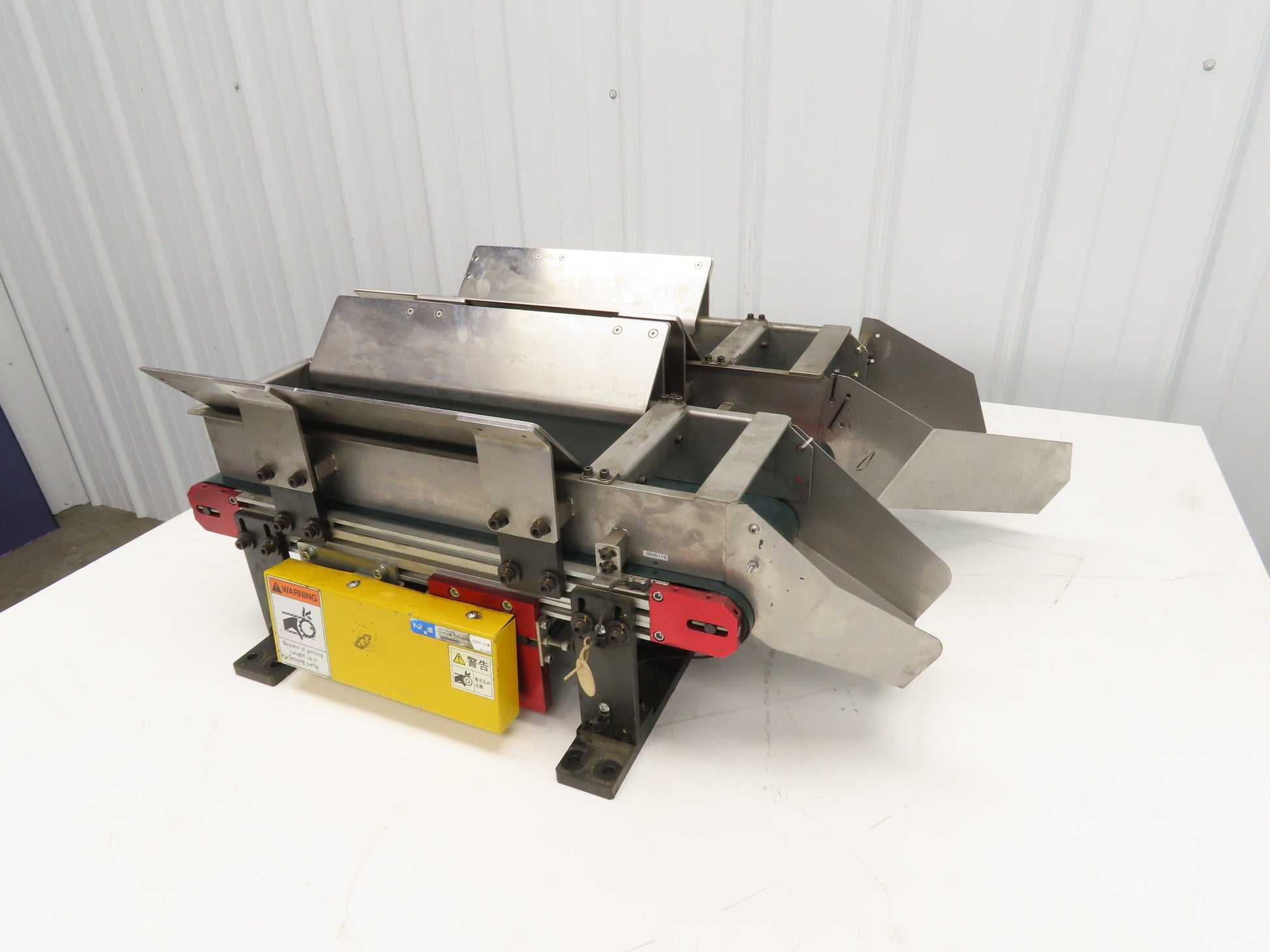

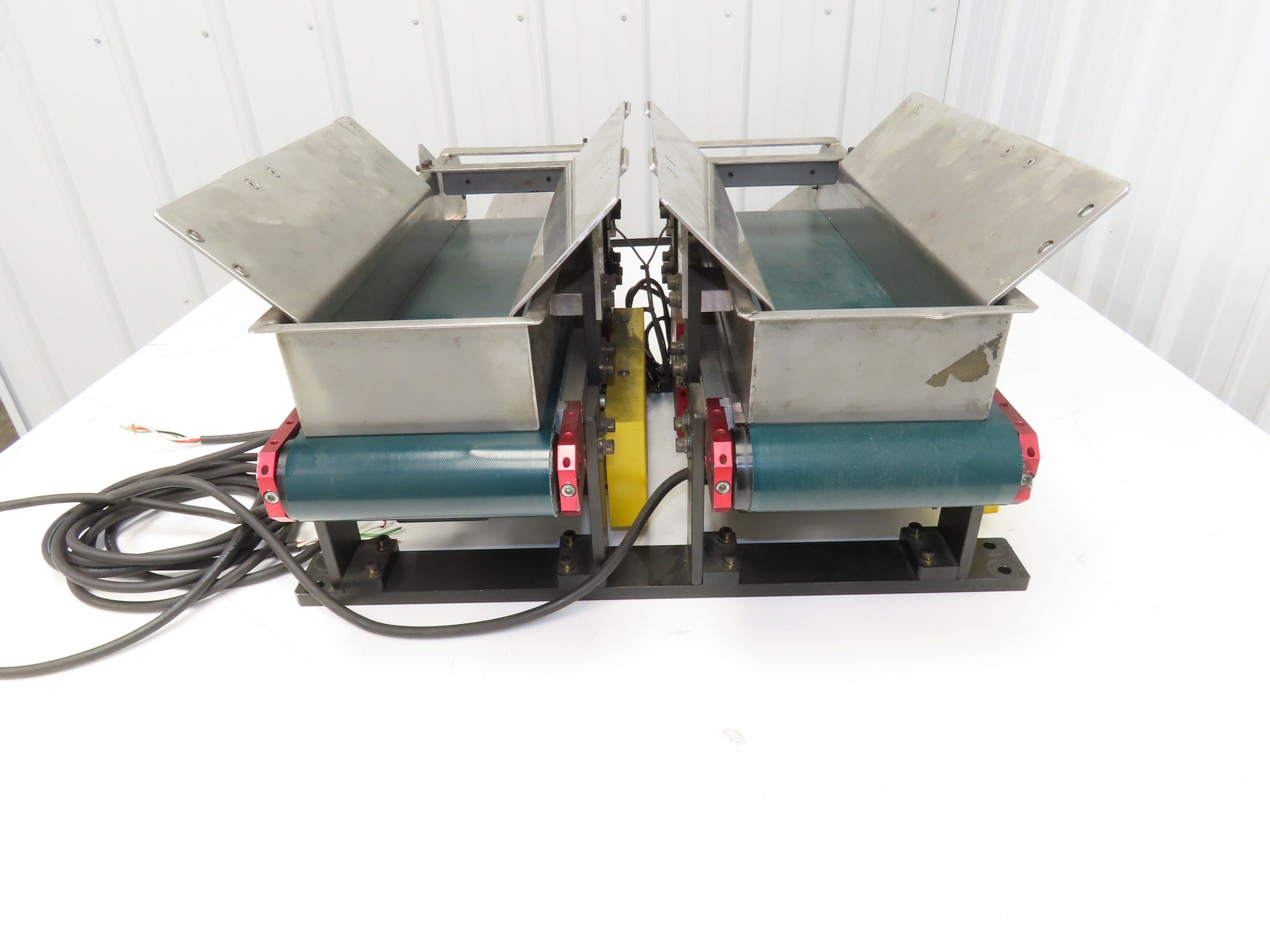

  • This is a double unit, 2 conveyors mounted on steel frame. Conveyors are identical in size and specs except for the discharge chutes.

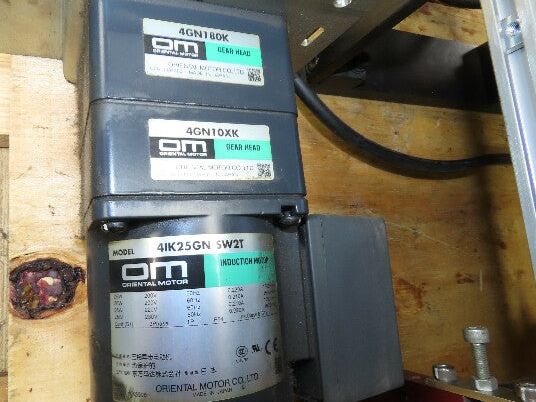

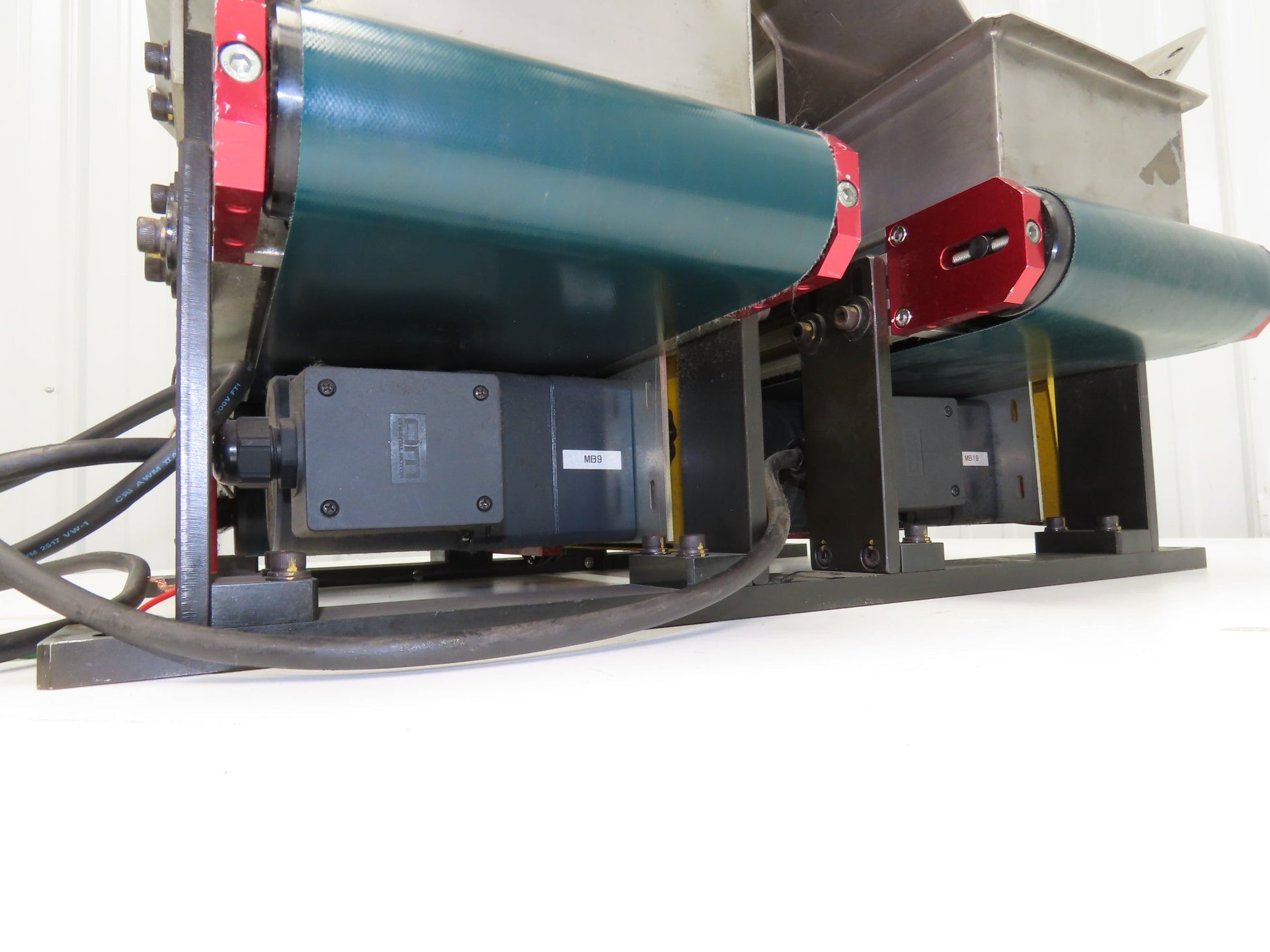

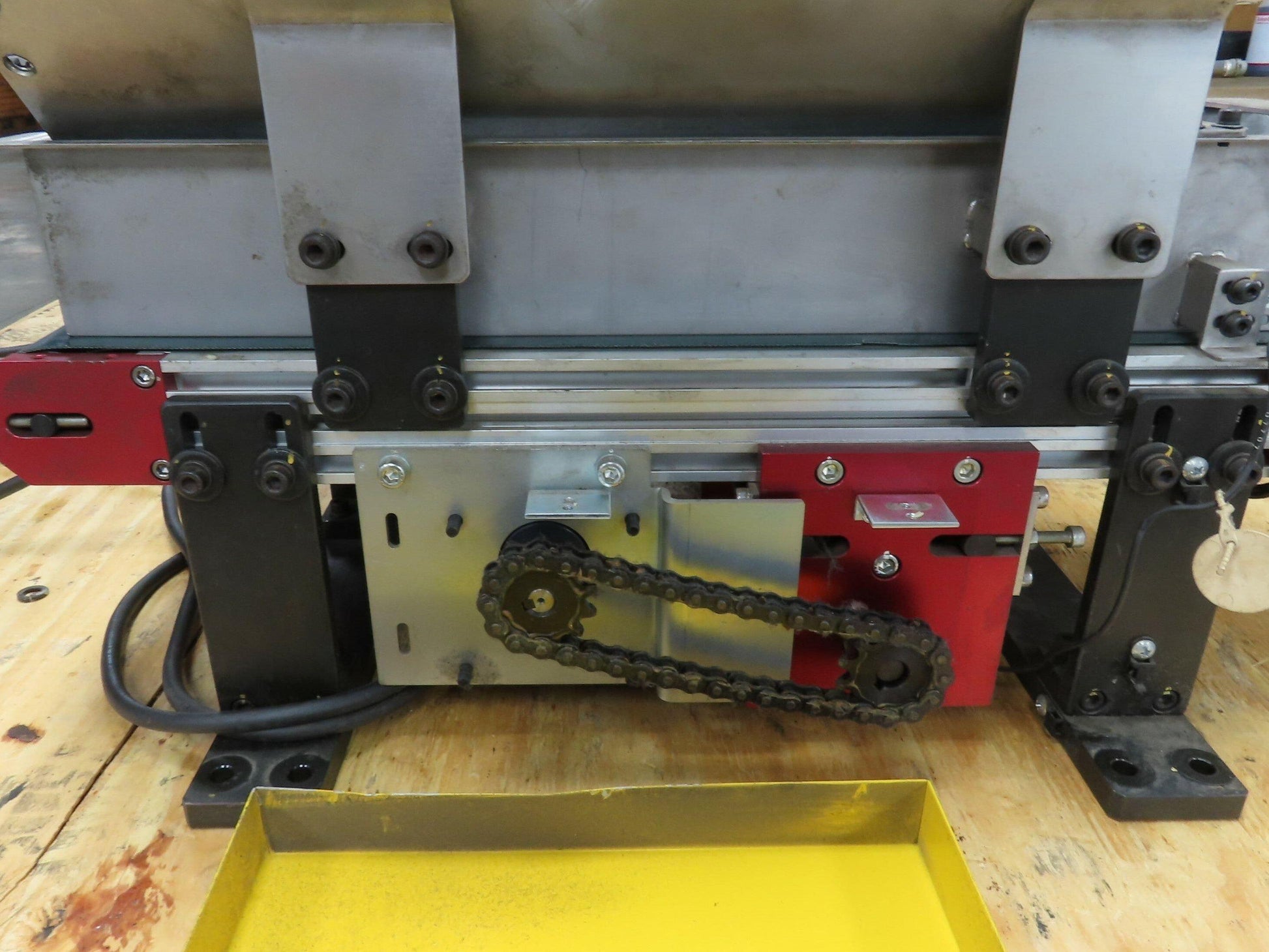

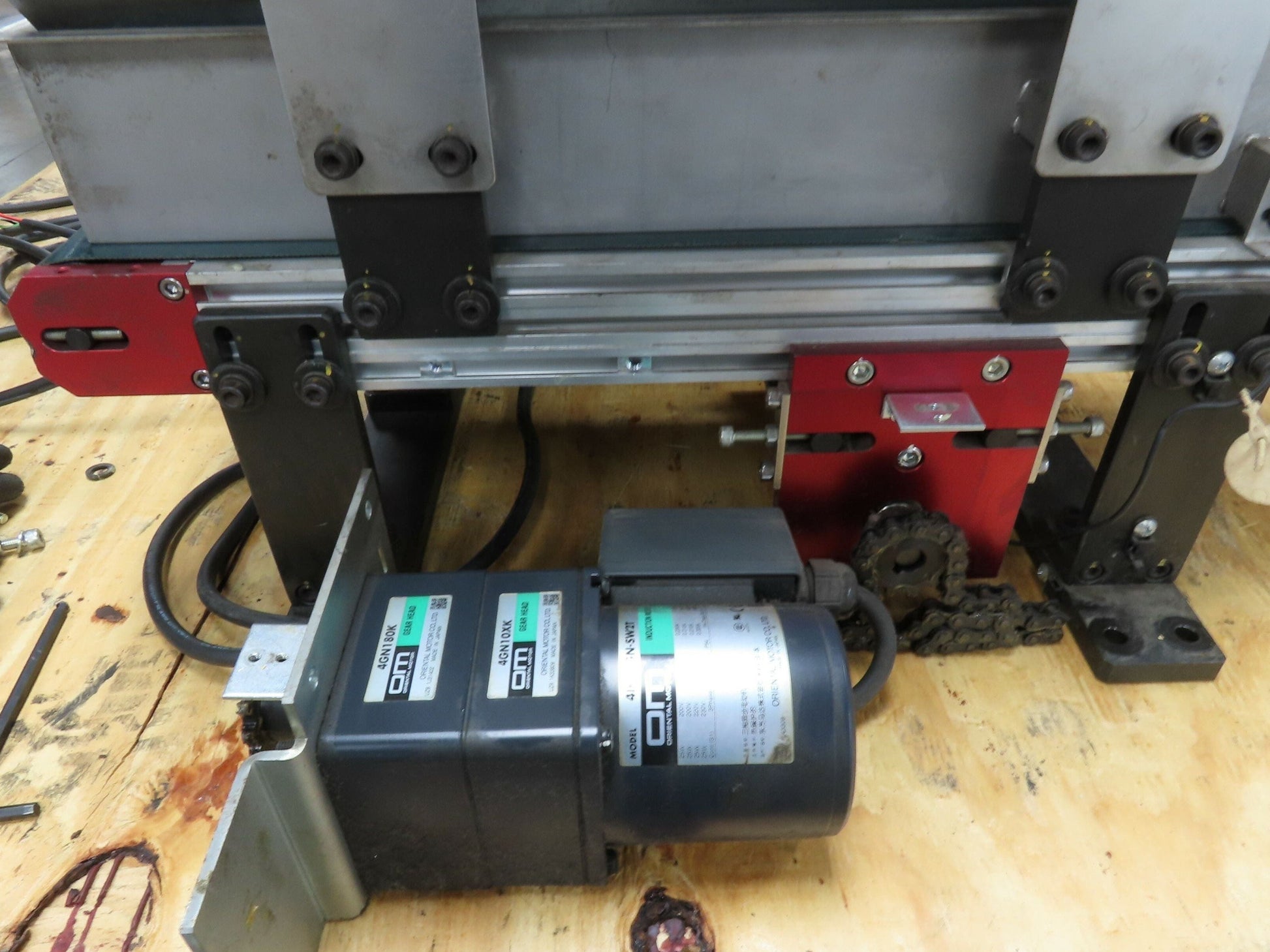

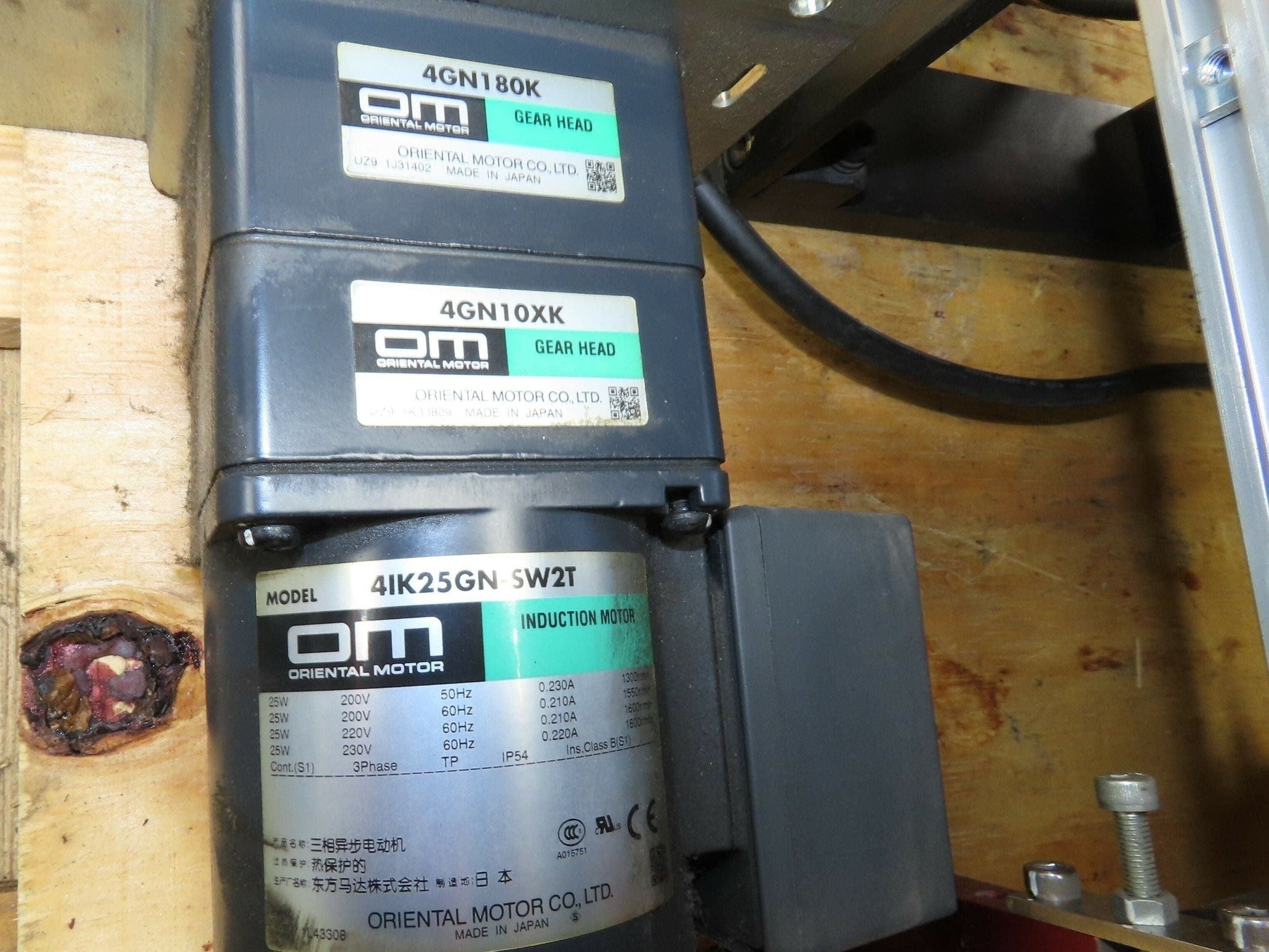

  • 220V 3PH Oriental gearmotor chain drive double reduction. 10:1 and 180:1 reducers.
  • Aluminum frame, feed chute and sides.
  • Frame width: 7-1/4"
  • Belt speed:  1 FPM (Very slow, crawl speed)
  • Belt width:  5-7/8"  (150mm)
  • Conveyor bed length:  21-1/2"
  • Conveyor bed height:  6-1/2"

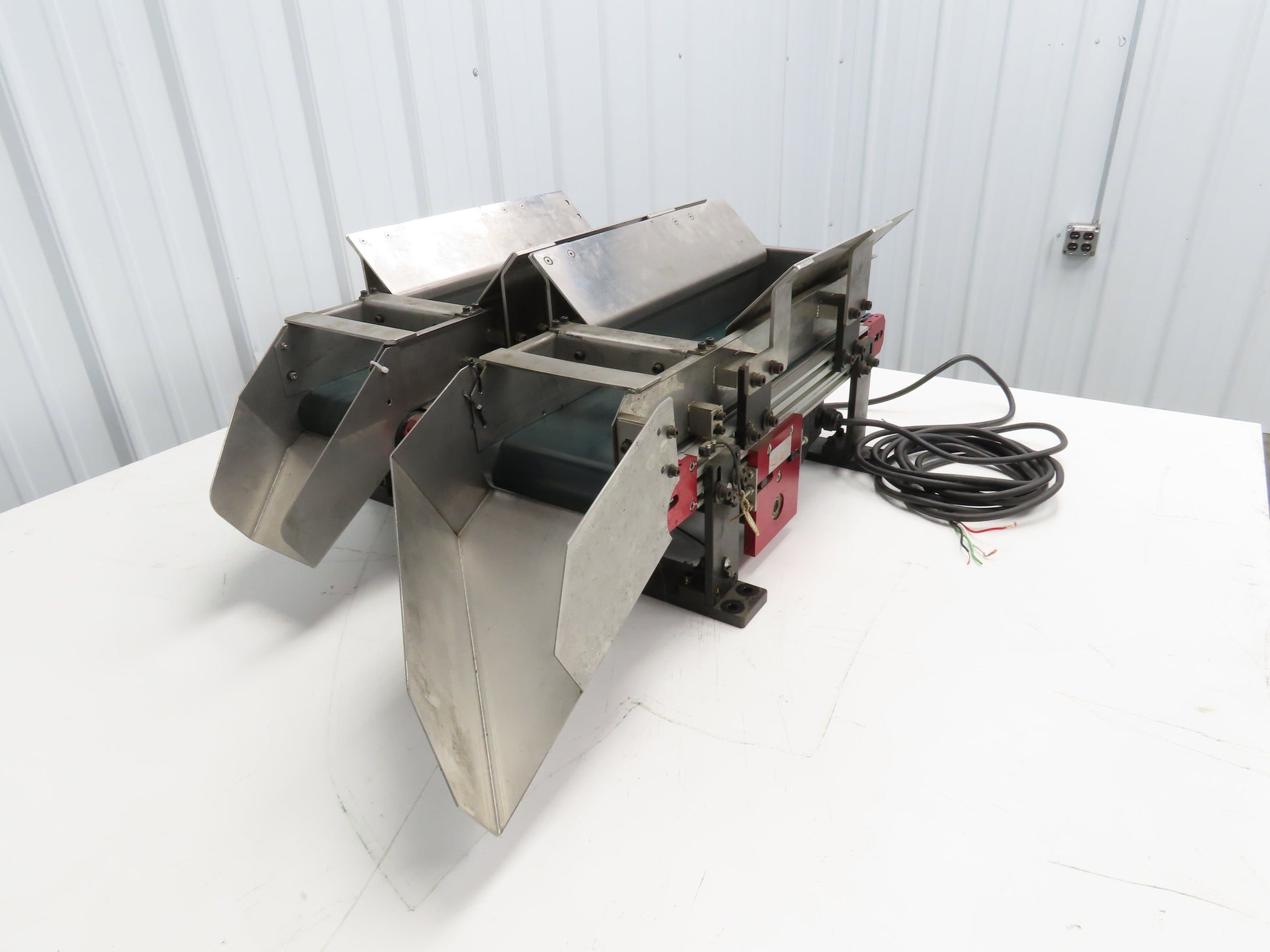

  • Feed chute:  2-3/4"H x 5-1/4" inside width (on top of conveyor)
  • Overall height:  11-1/2"
  • Overall length: 29"

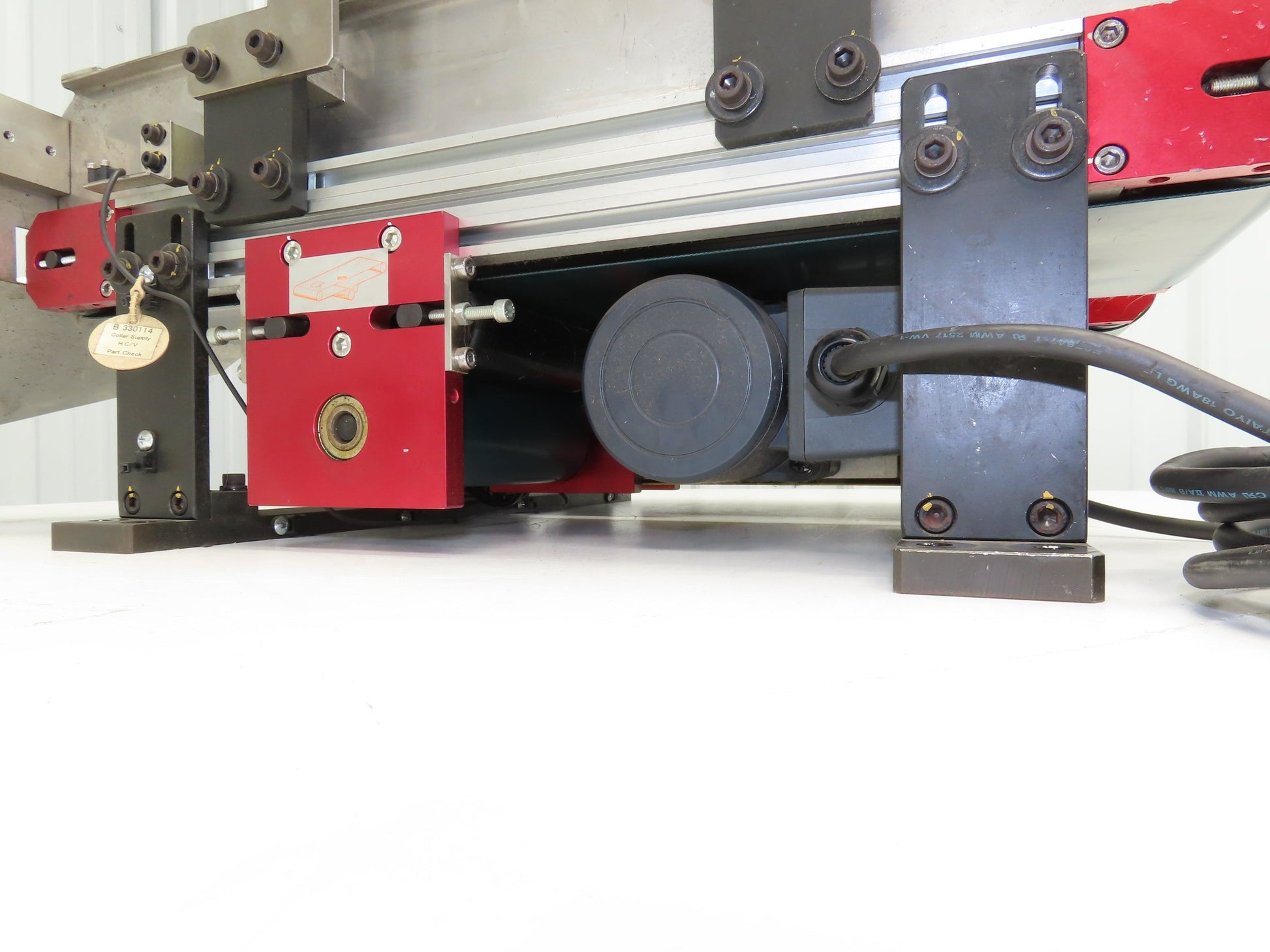

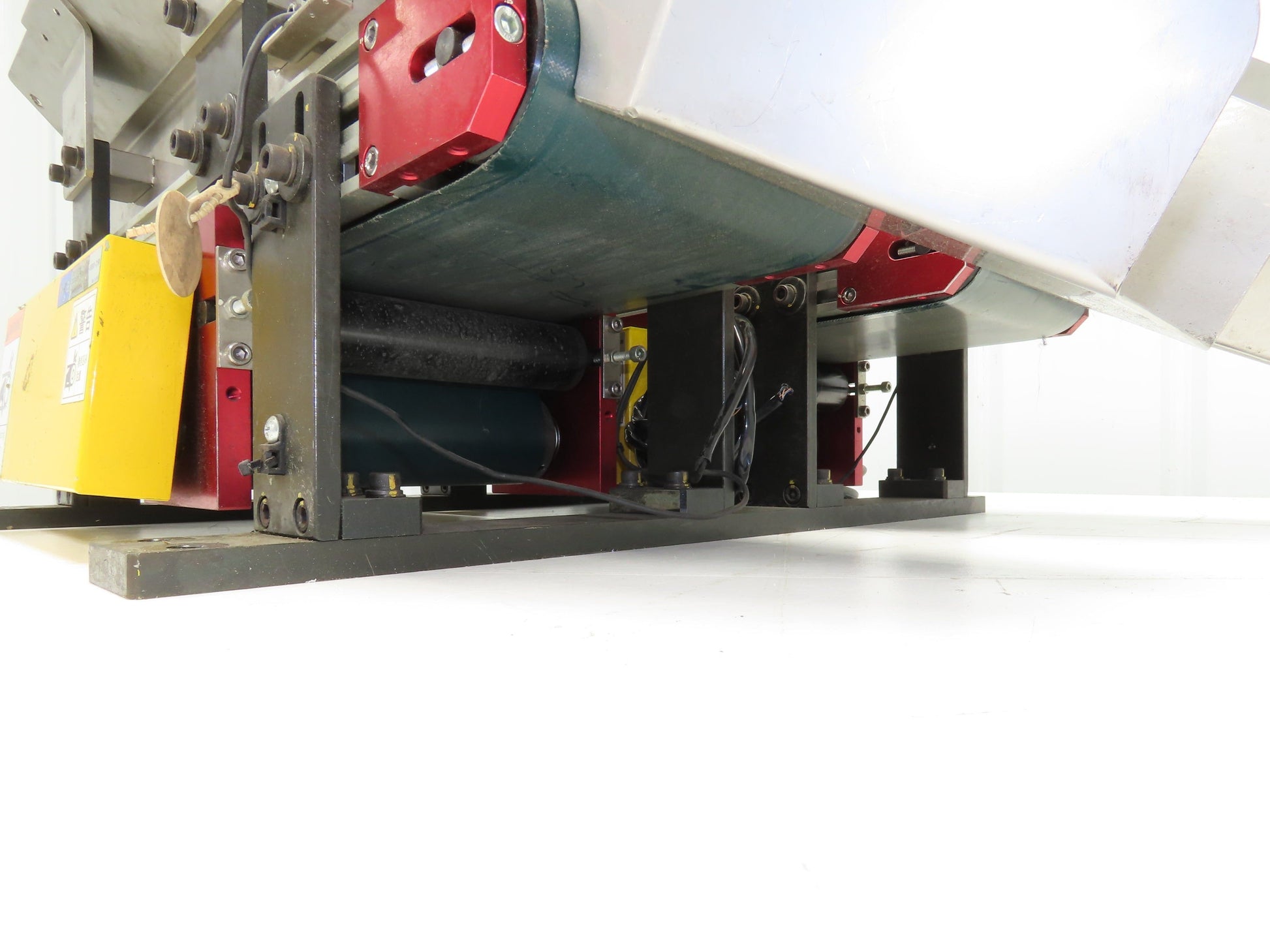

  • Tensioner type:  Underside pulley take-up.
  • Also has photoeye sensors installed.
