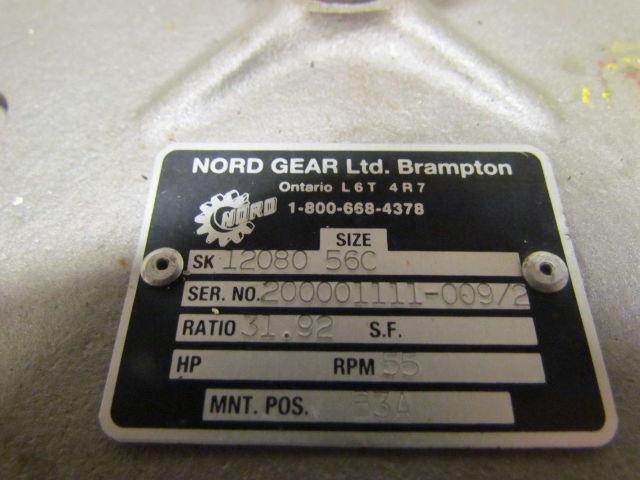

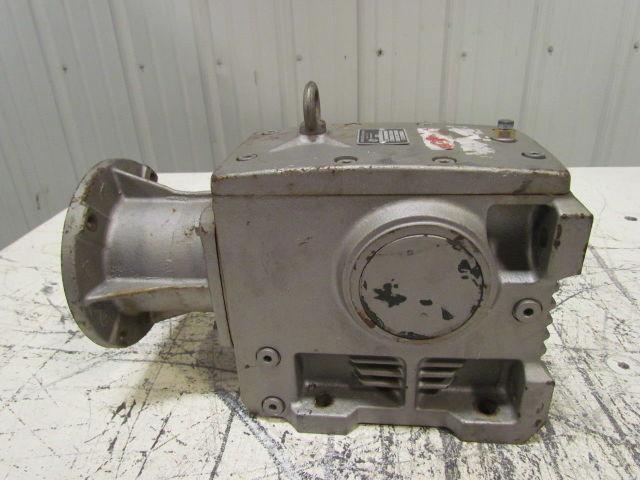

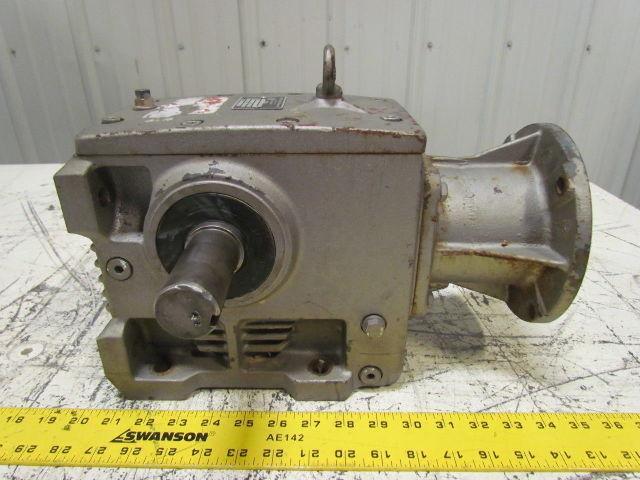

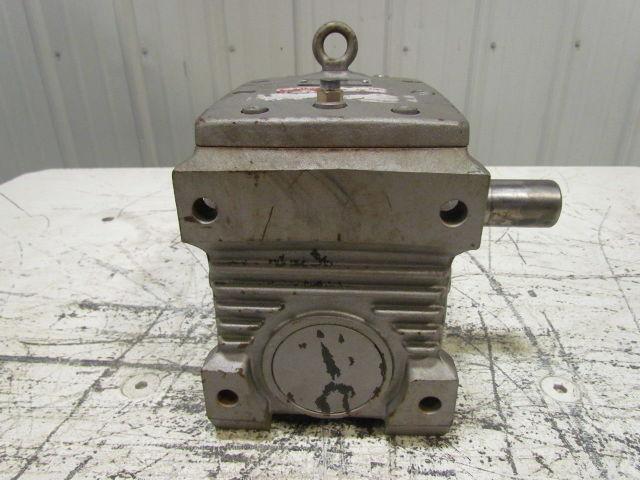

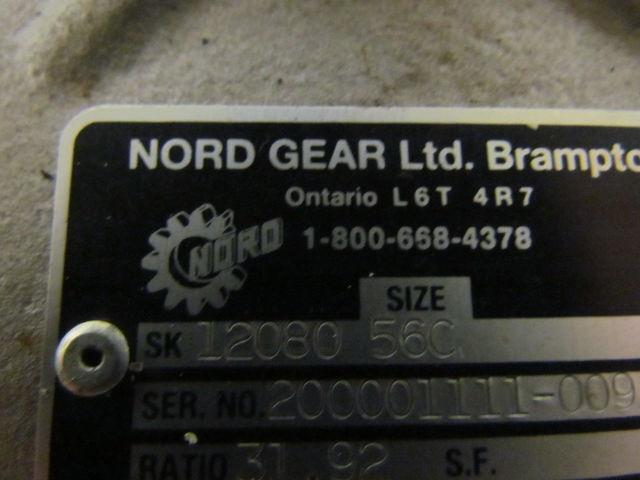

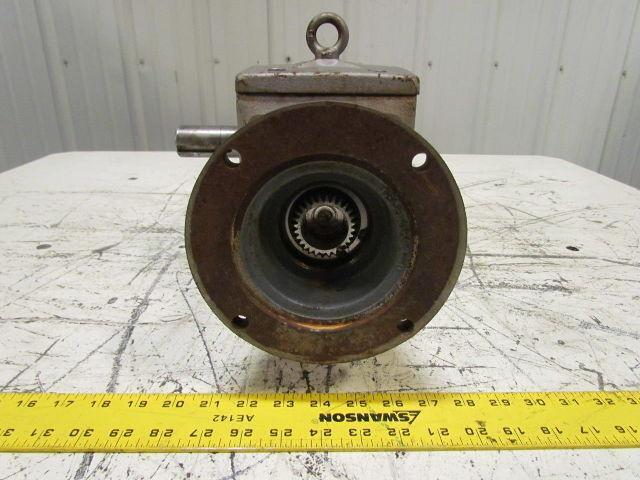

Nord 12080 Speed Reducer Helical Worm Gearbox 31.92:1 Ratio 56C 55RPM

Nord 12080 Speed Reducer Helical Worm Gearbox 31.92:1 Ratio 56C 55RPM

SKU #62055

Product Condition: Used

Your Price
$156.74
$299.99 $156.74
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Nord
Model
12080
MPN
N/A_
Condition
Used
  • Nema frame size: 56C
  • Ratio: 31.92:1
  • Input RPM: 1750
  • Output RPM: 55

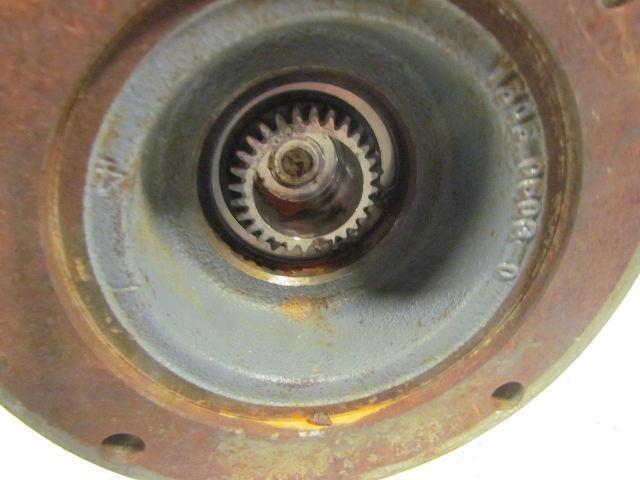

  • Input shaft diameter: 1-3/4" Spline drive

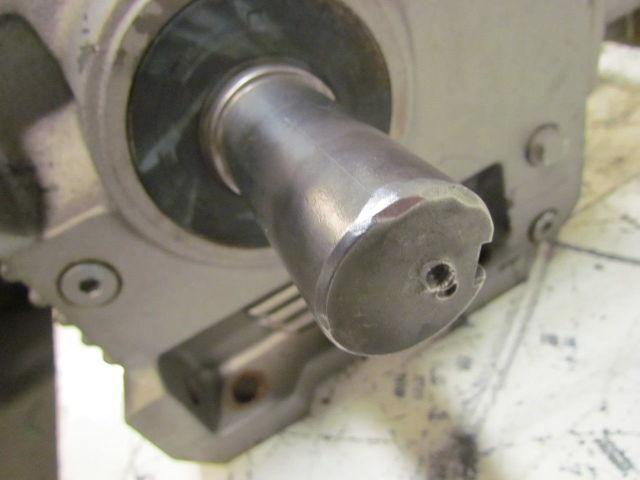

  • Output shaft diameter: 1-3/8"
  • Vent included
  • Output Torque: 6284 (in/lbs)
  • Approximate dimensions of main body not including bell shaped motor adaptor (If Included) Length: 10" Width: 6.5" Height: 9"
  • All gear reducers must have a breather vent. This allows for expansion and contraction of the air within the casing as a result of temperature changes. If a gearbox is used without a breather, oil leakage and seal failure may result. Gear boxes may or may not have oil or breather. Buyer is responsible to ensure gear box is properly vented and has proper oil and oil level prior to use.
. R3A Mounting position.
