Parker

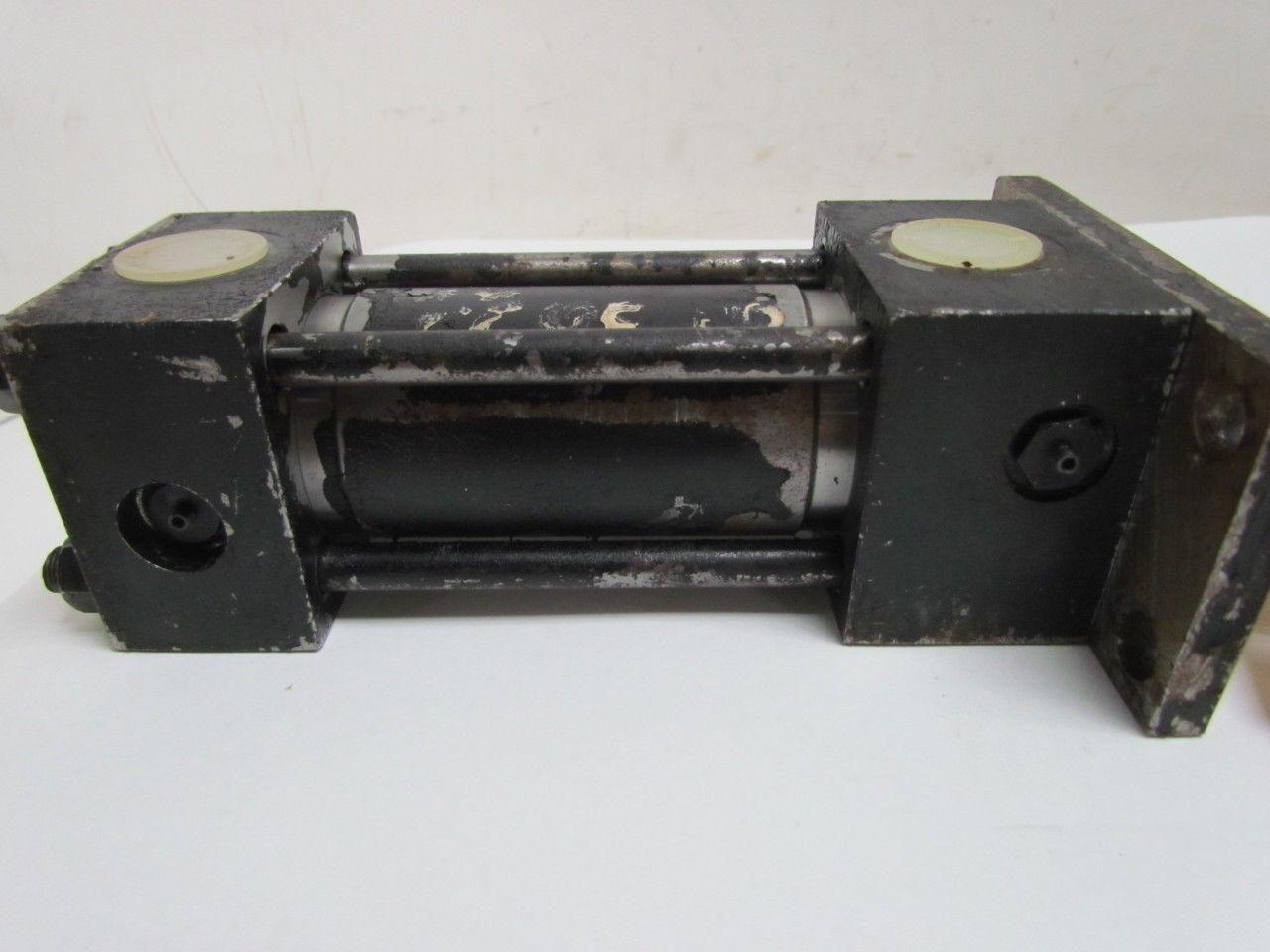

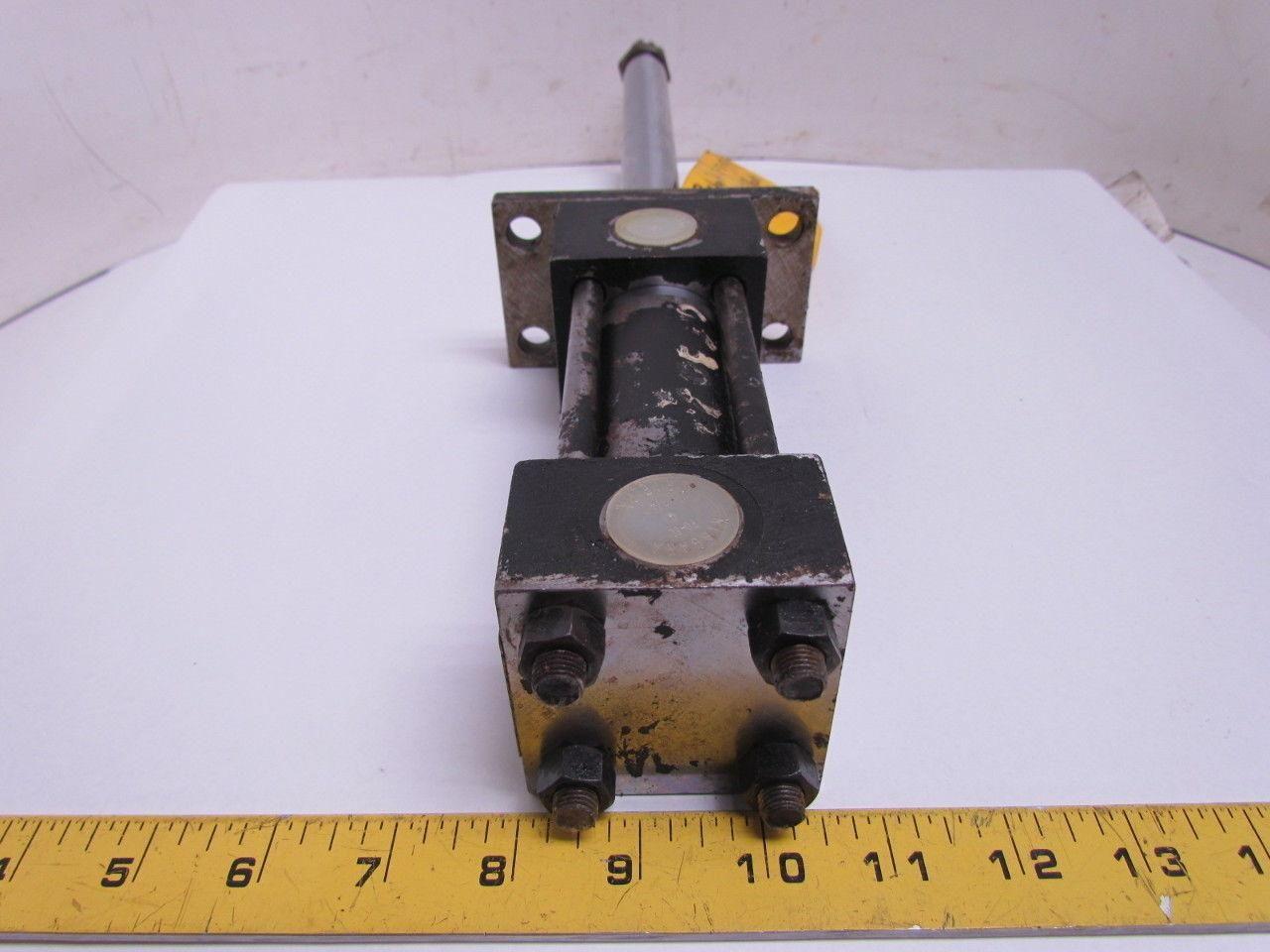

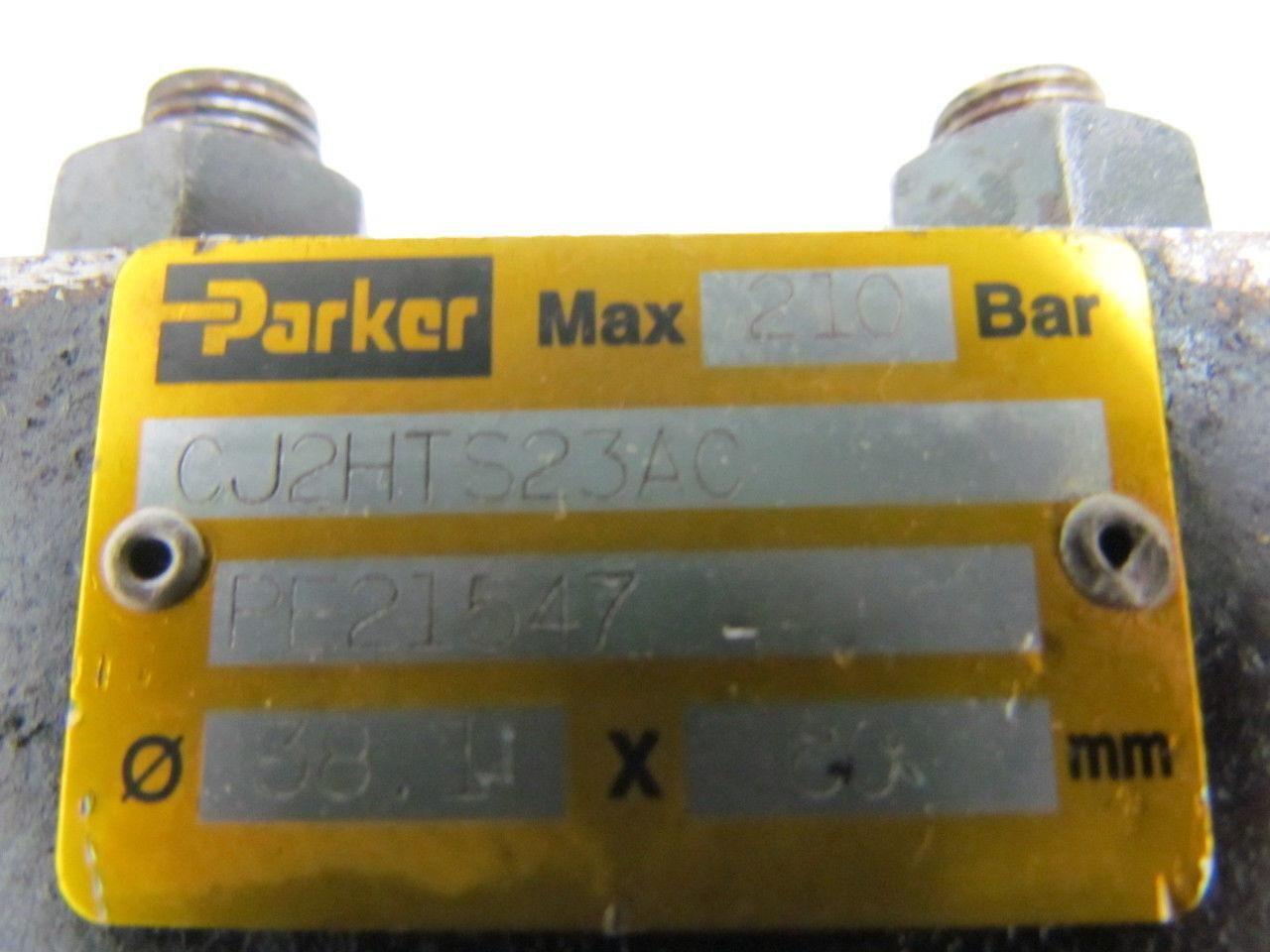

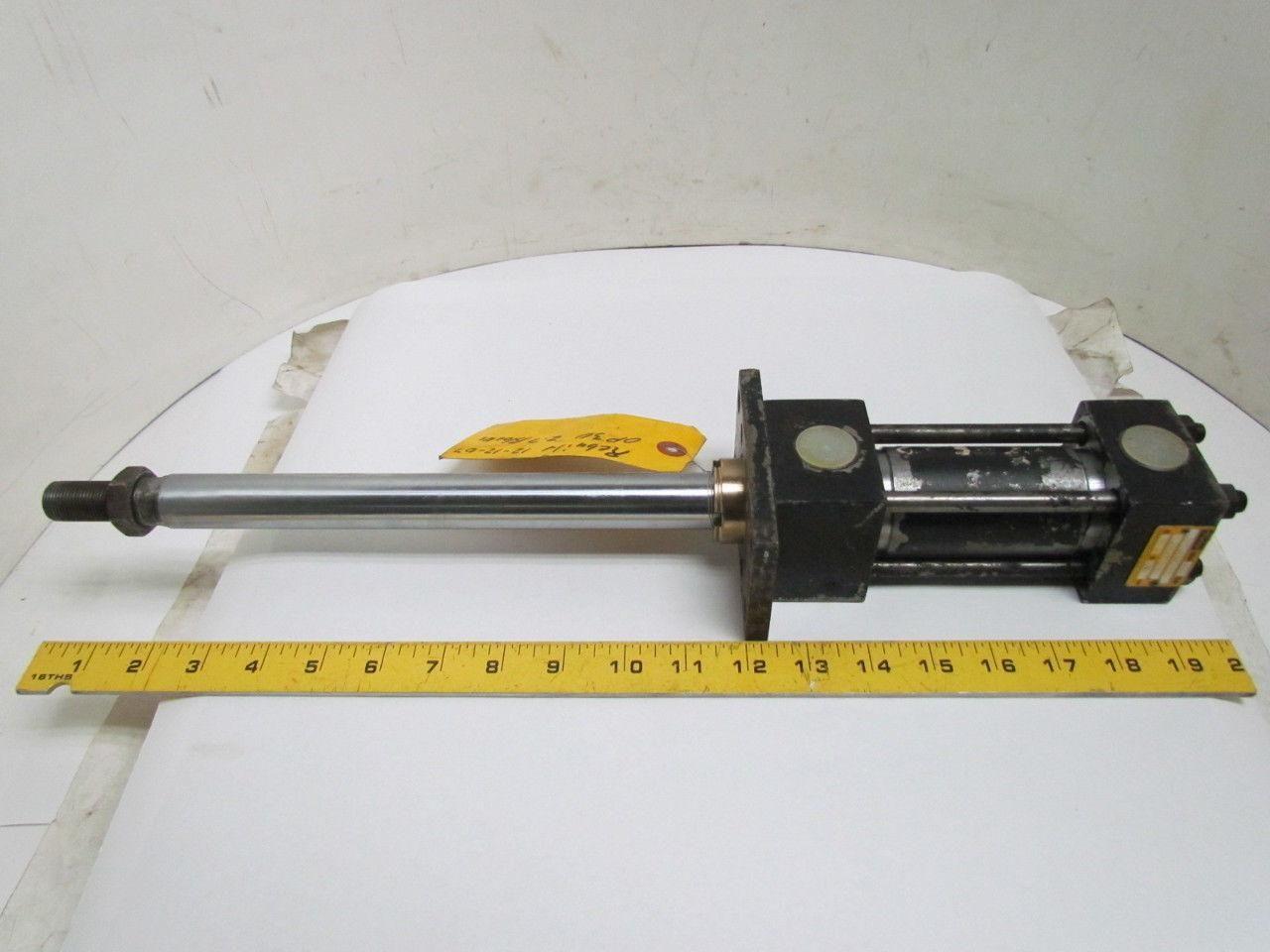

Parker CJ2HTS23AC Hydraulic Cylinder 1-1/2" Bore 2-3/8" Stroke Extended Rod

Parker CJ2HTS23AC Hydraulic Cylinder 1-1/2" Bore 2-3/8" Stroke Extended Rod

SKU #51190

Your Price
Regular price $25.86
Regular price $49.49 Sale price $25.86
Sale Sold out
Shipping calculated at checkout.

1 in stock

  • Bore: 1.5" (38.1mm)
  • Stroke: 2.36" (60mm)
  • Rod Dia: 1" (25.5mm)
  • Ports:SAE-10
  • Envelope Pressure: 210 bar, 3000 PSI
  • Action: double
  • Mounting Style: head rec. flange
  • Rod End Type: male 3/4-16
  • Cushion: head&cap
  • Cylinder Head & Cap Material: steel
  • Cylinder Sleeve Material: steel

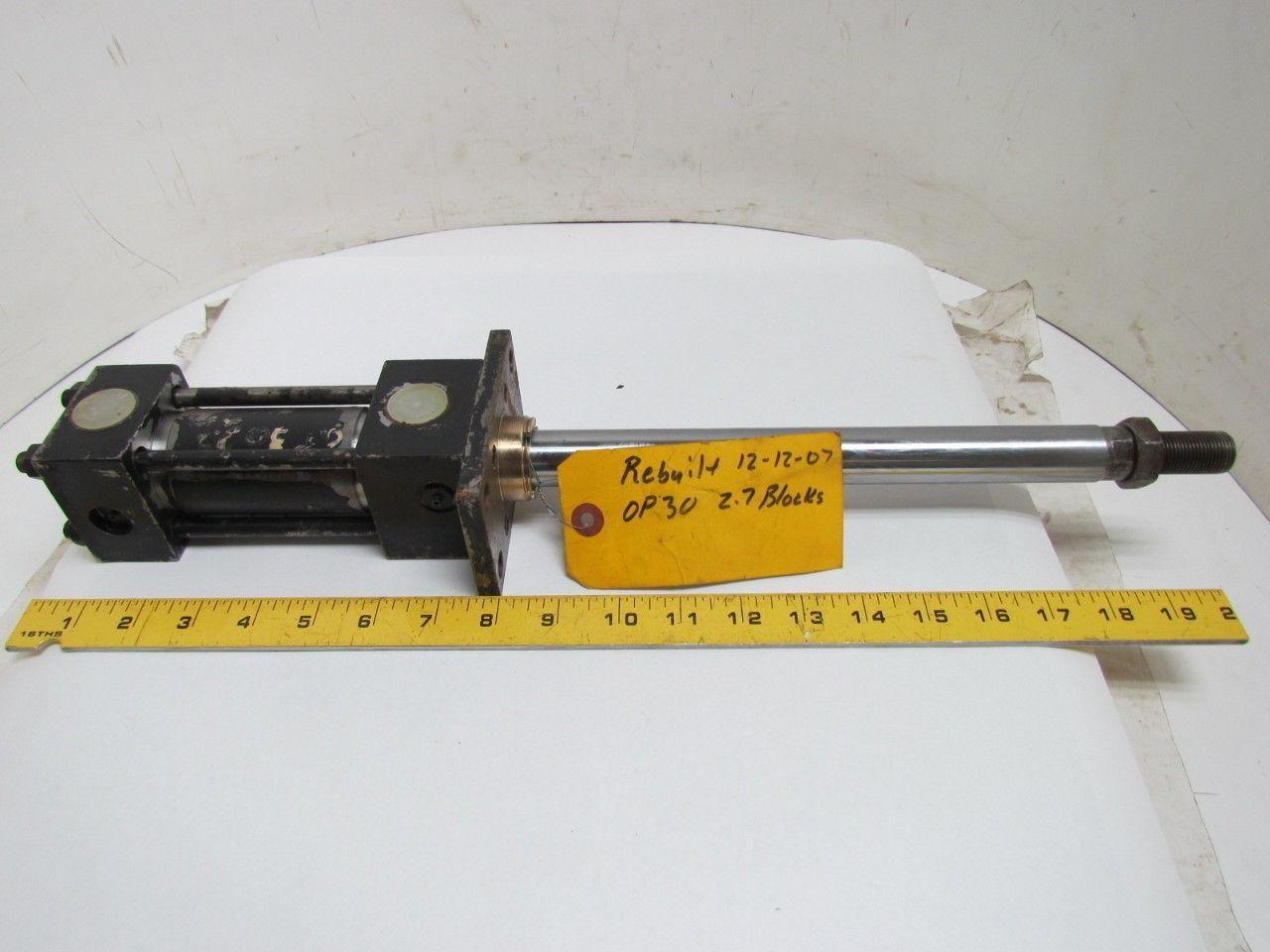

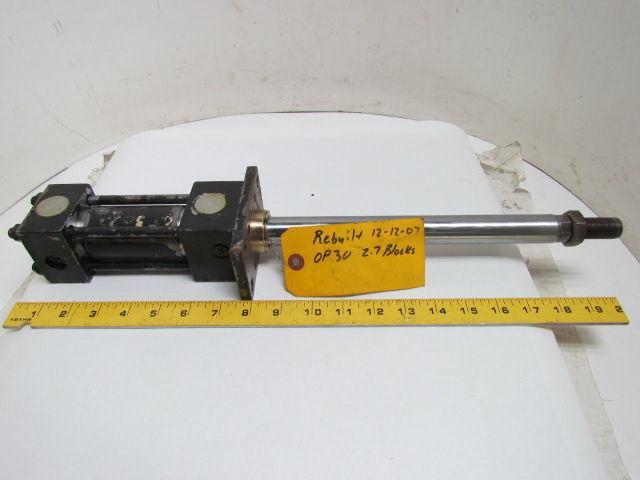

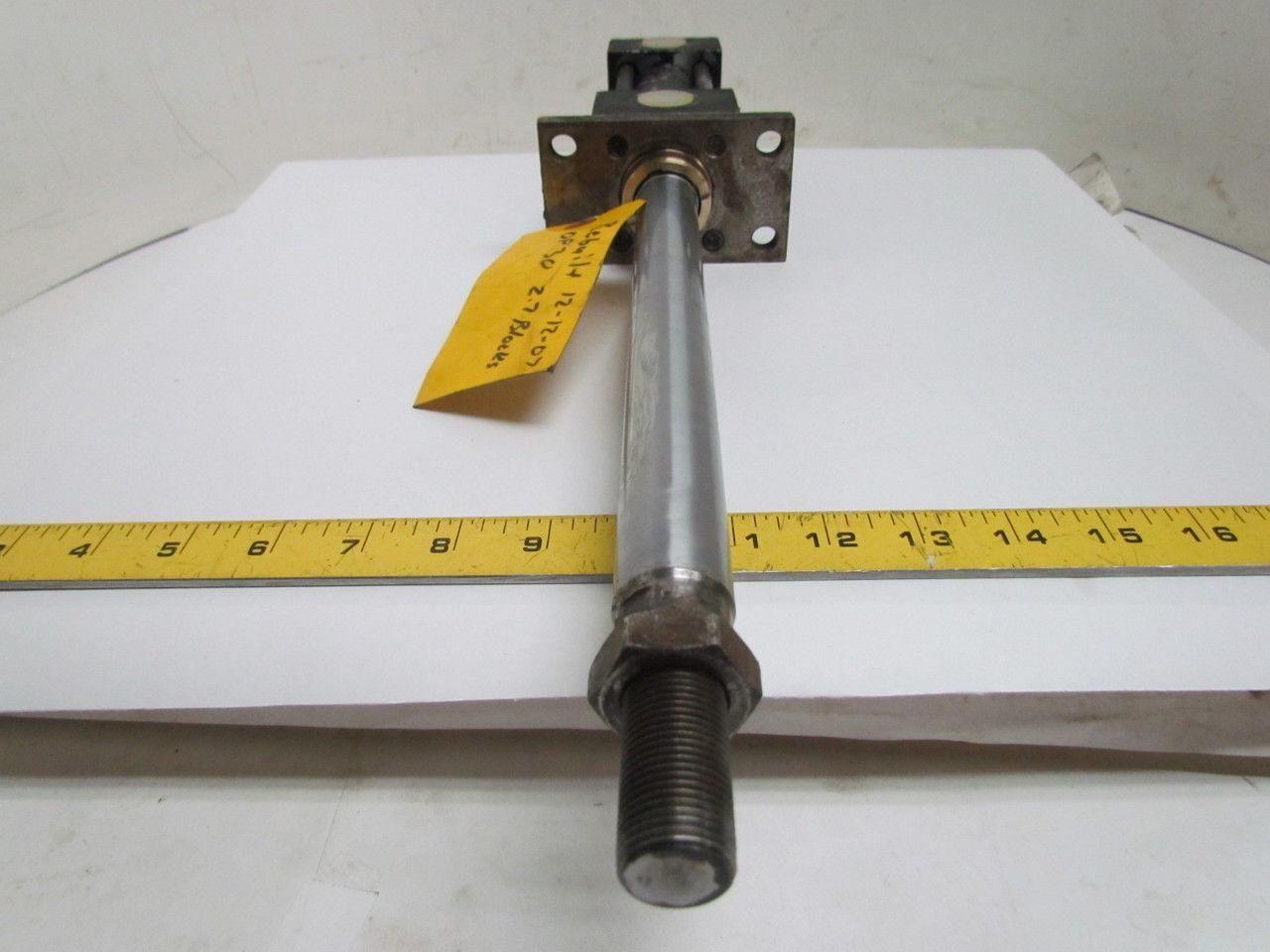

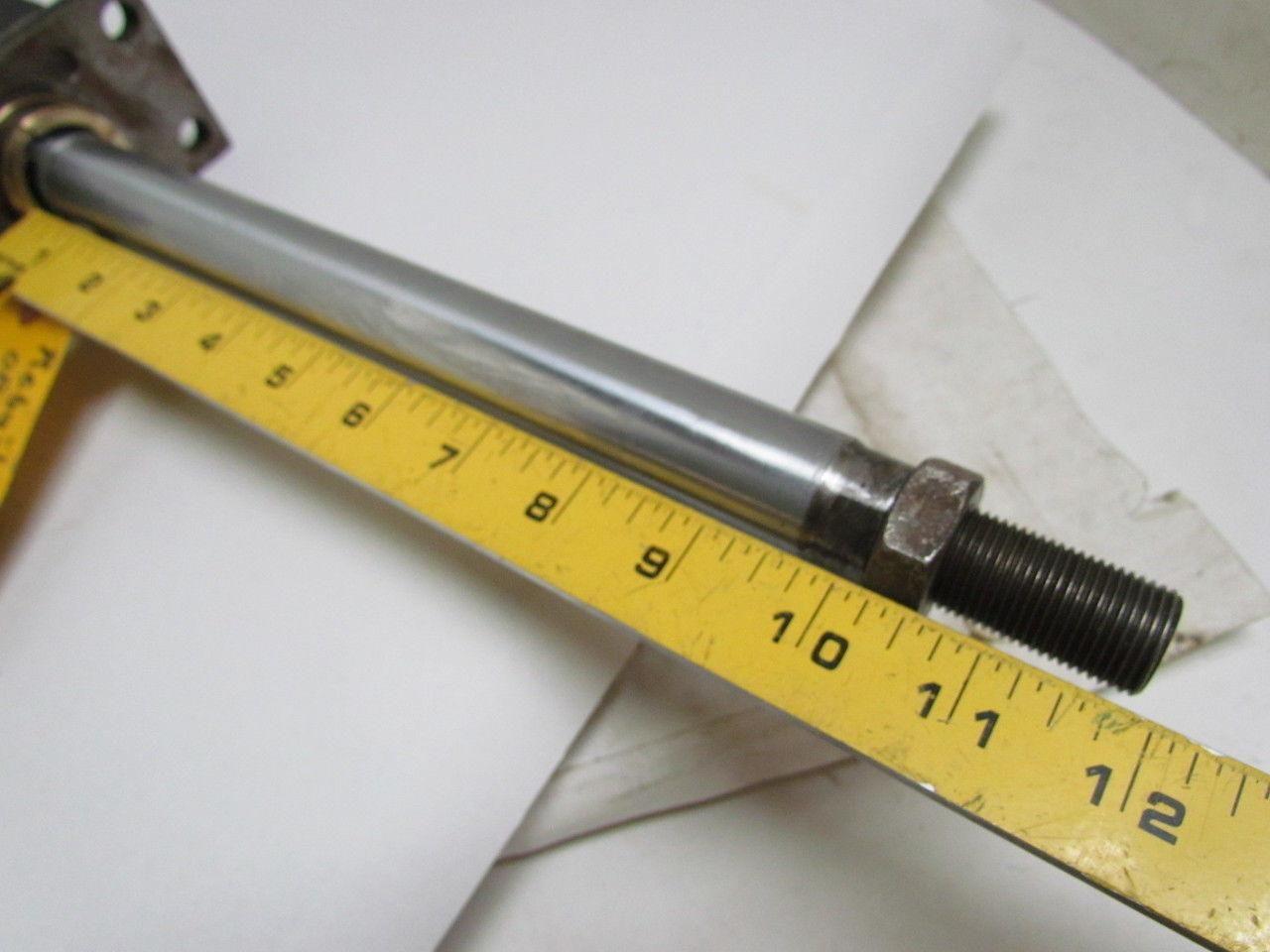

. Cylinder has been rebuilt and is in working condition. Rod extends 11-7/8" when fully retracted.Click here for Manufacturer's Specifications
