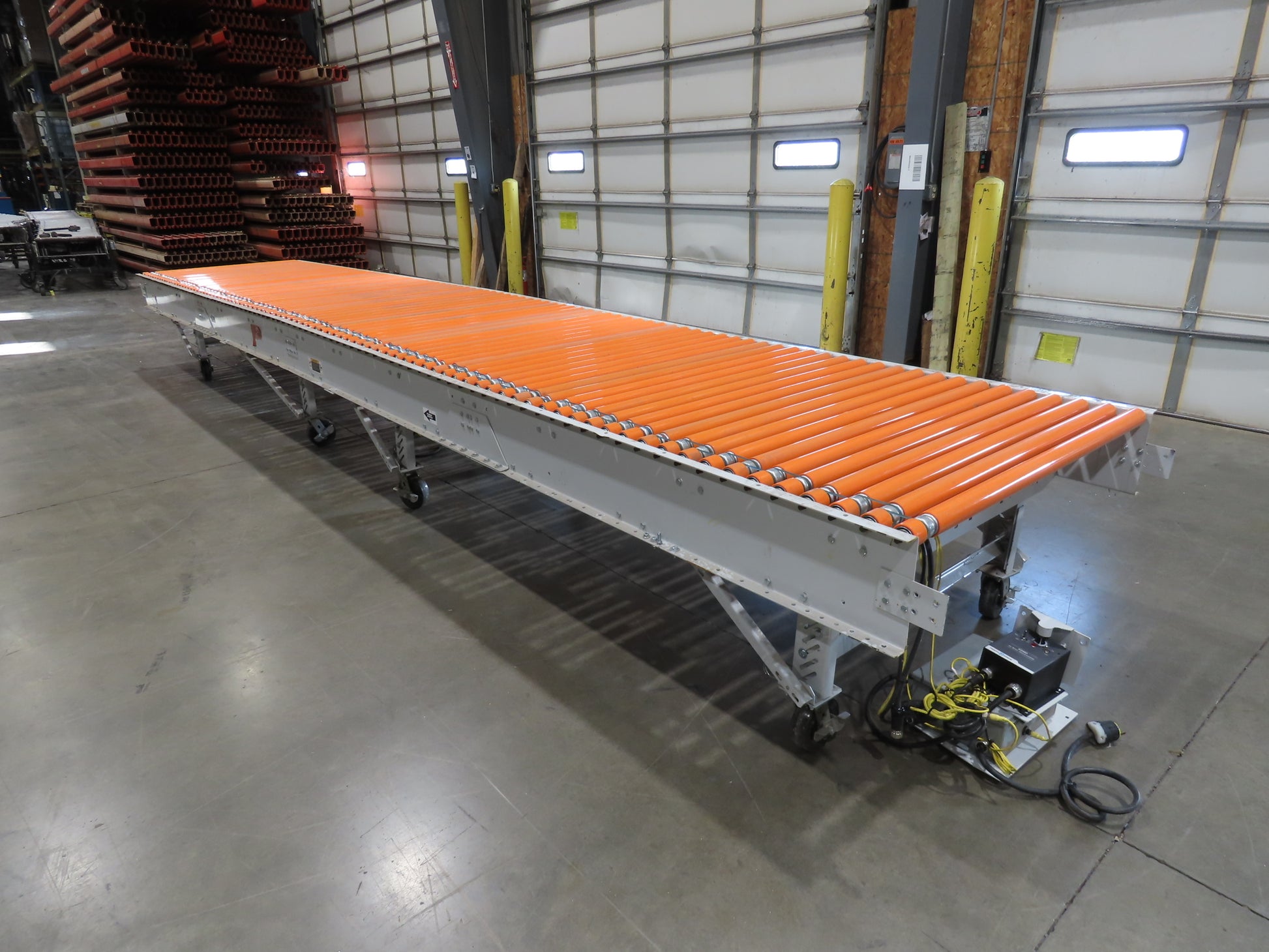

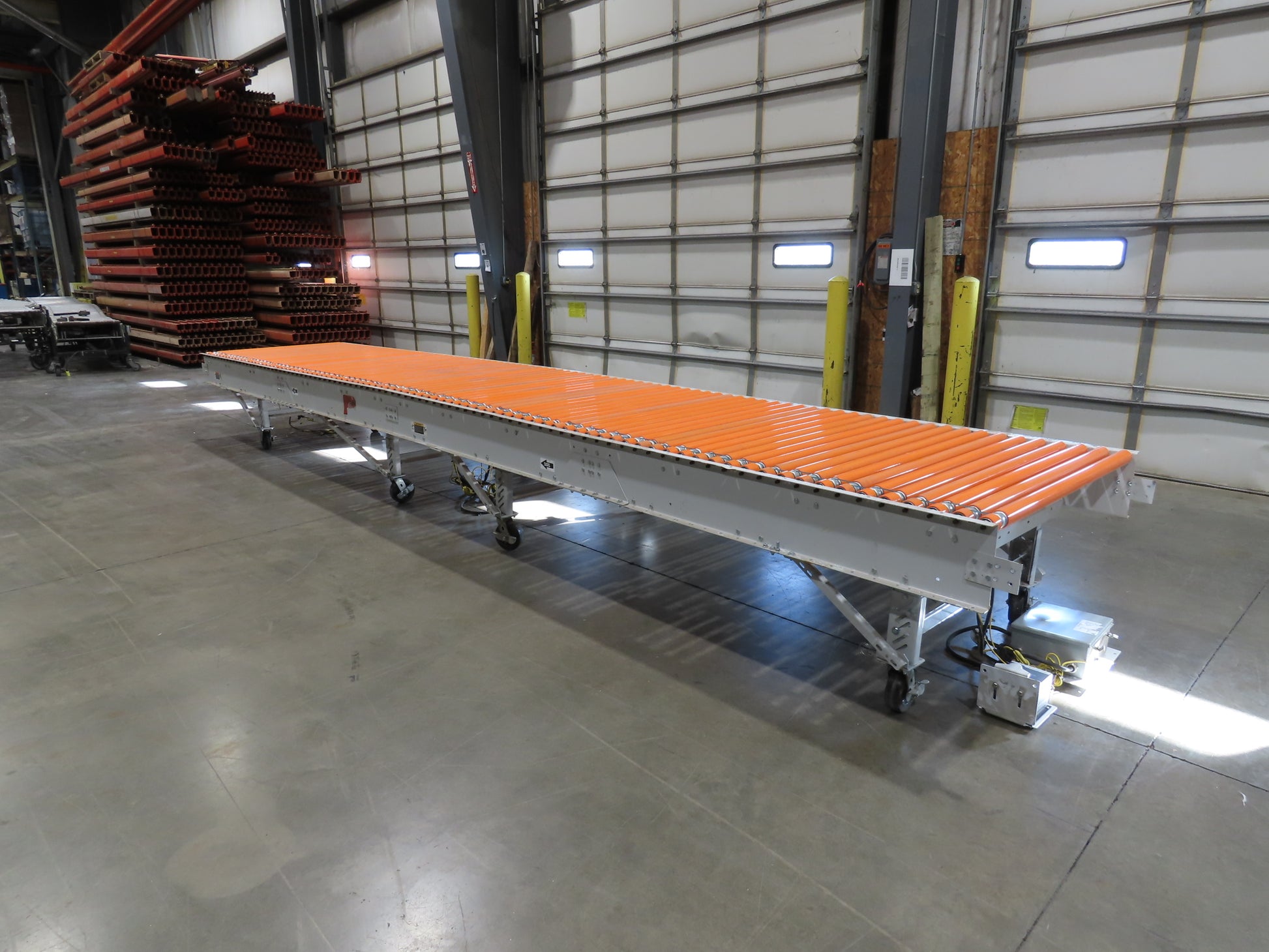

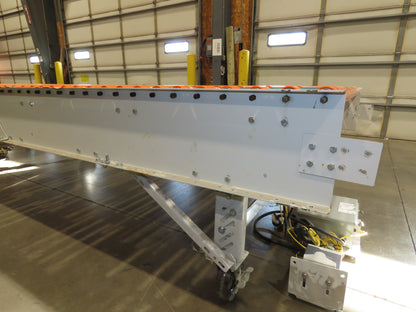

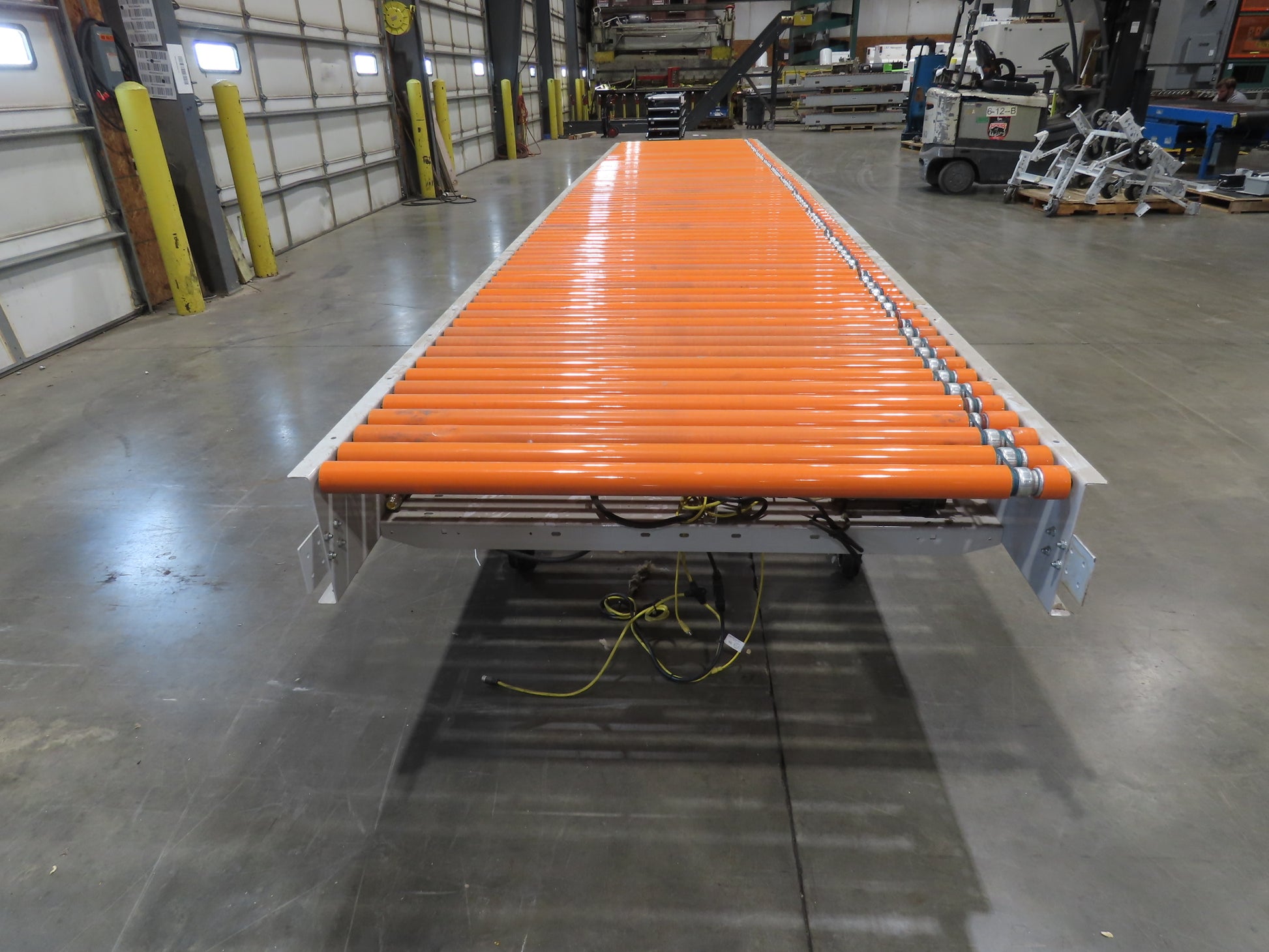

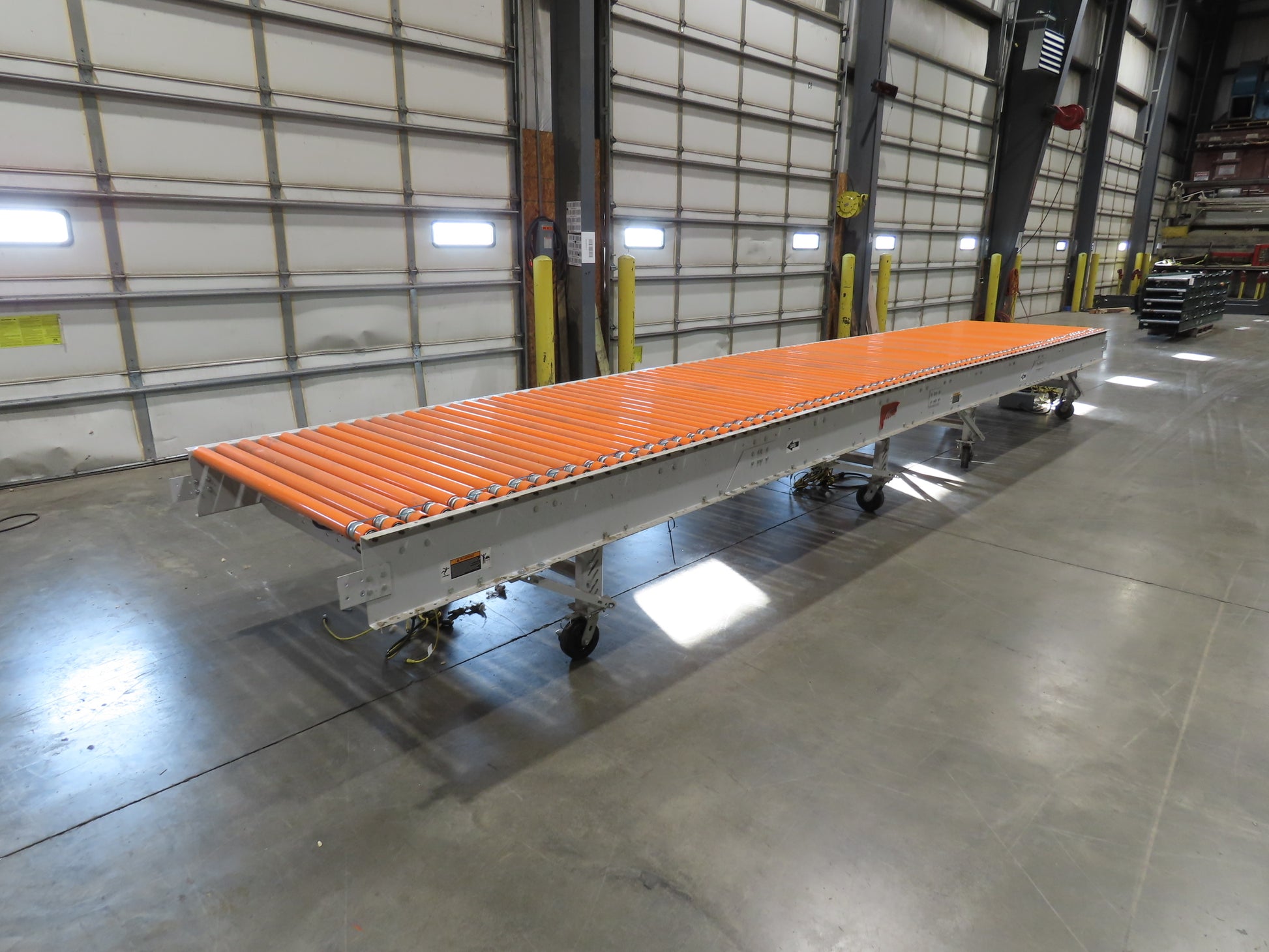

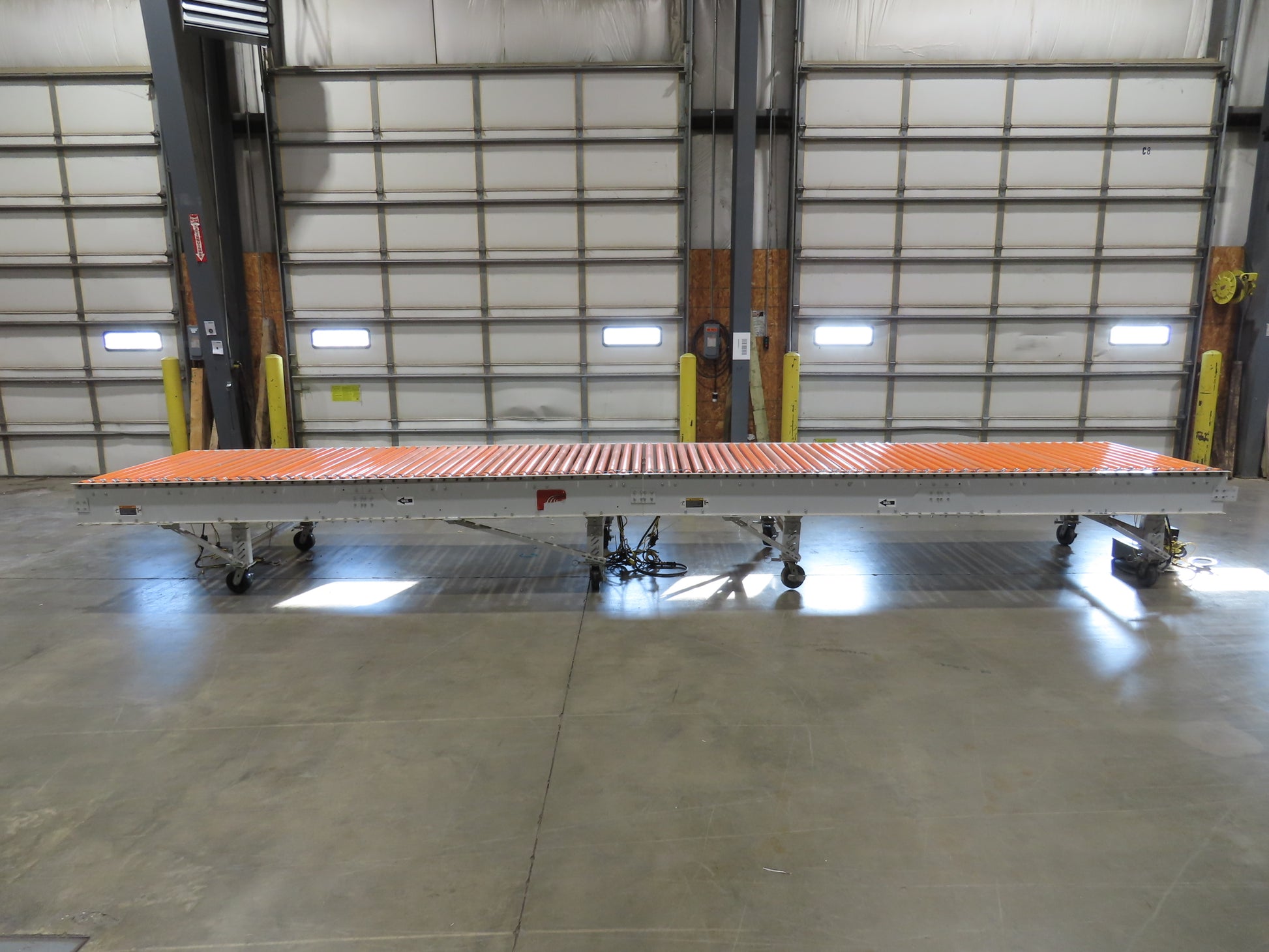

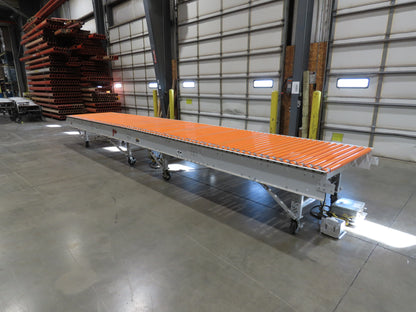

Roach 48"x 22' 6" Portable Roller Conveyor 115V Adj Speed O-Ring Belt Drive 30"H

Roach 48"x 22' 6" Portable Roller Conveyor 115V Adj Speed O-Ring Belt Drive 30"H

SKU #297425

Your Price
$6,174.99
$6,174.99
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Condition: New Surplus. Conveyor is new but has some scratches and dings on the frame from handling and transporting.

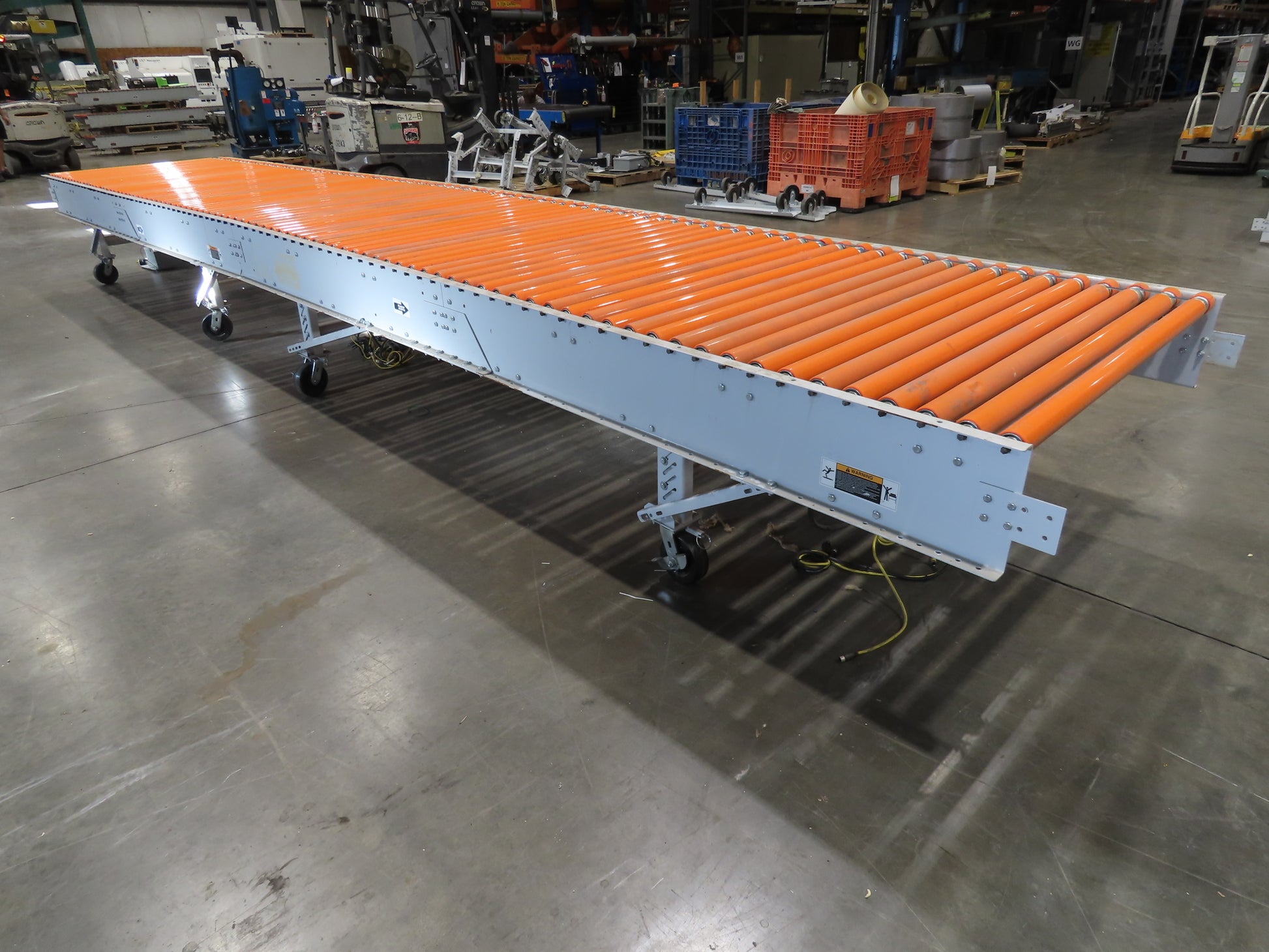

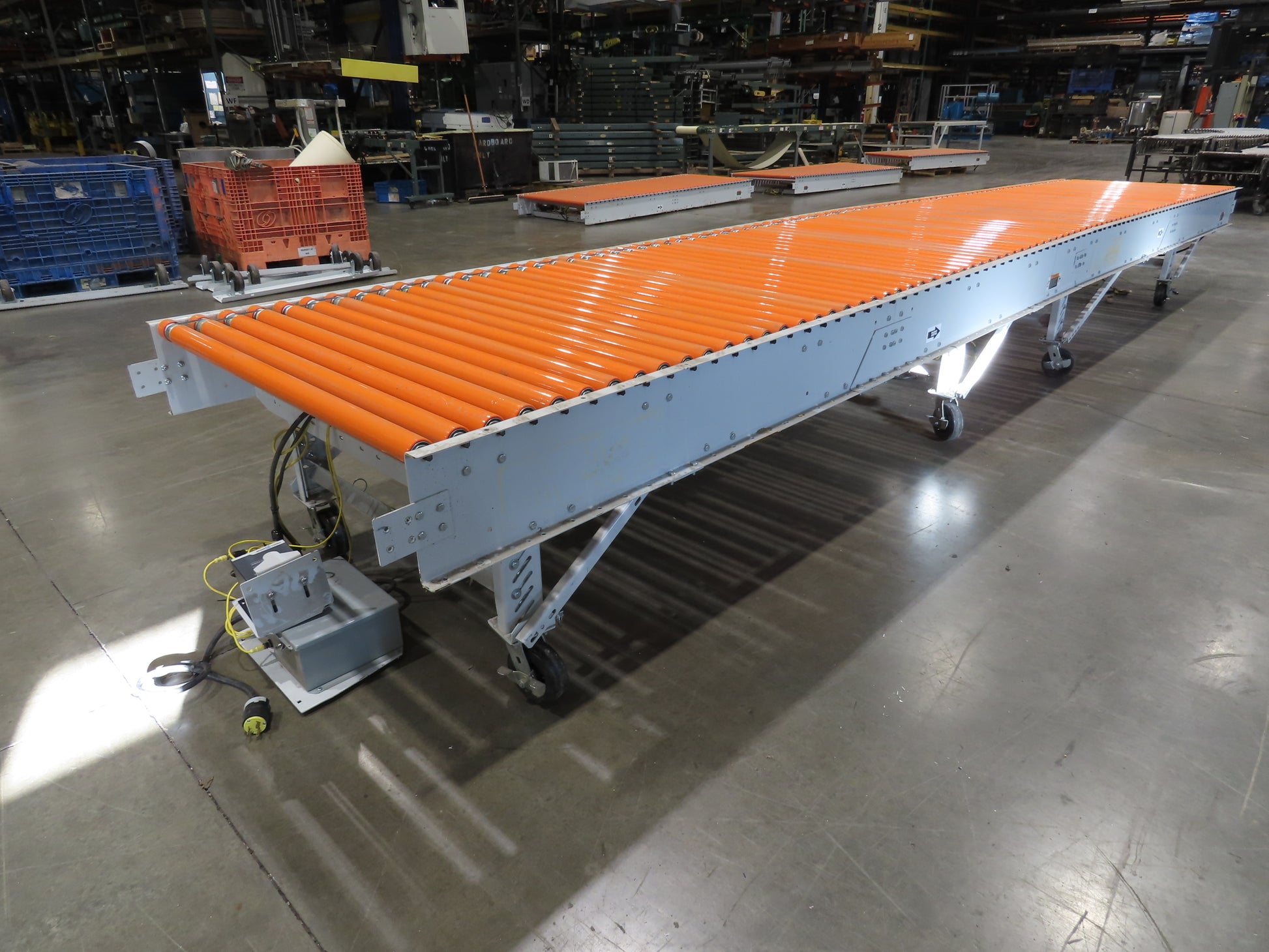

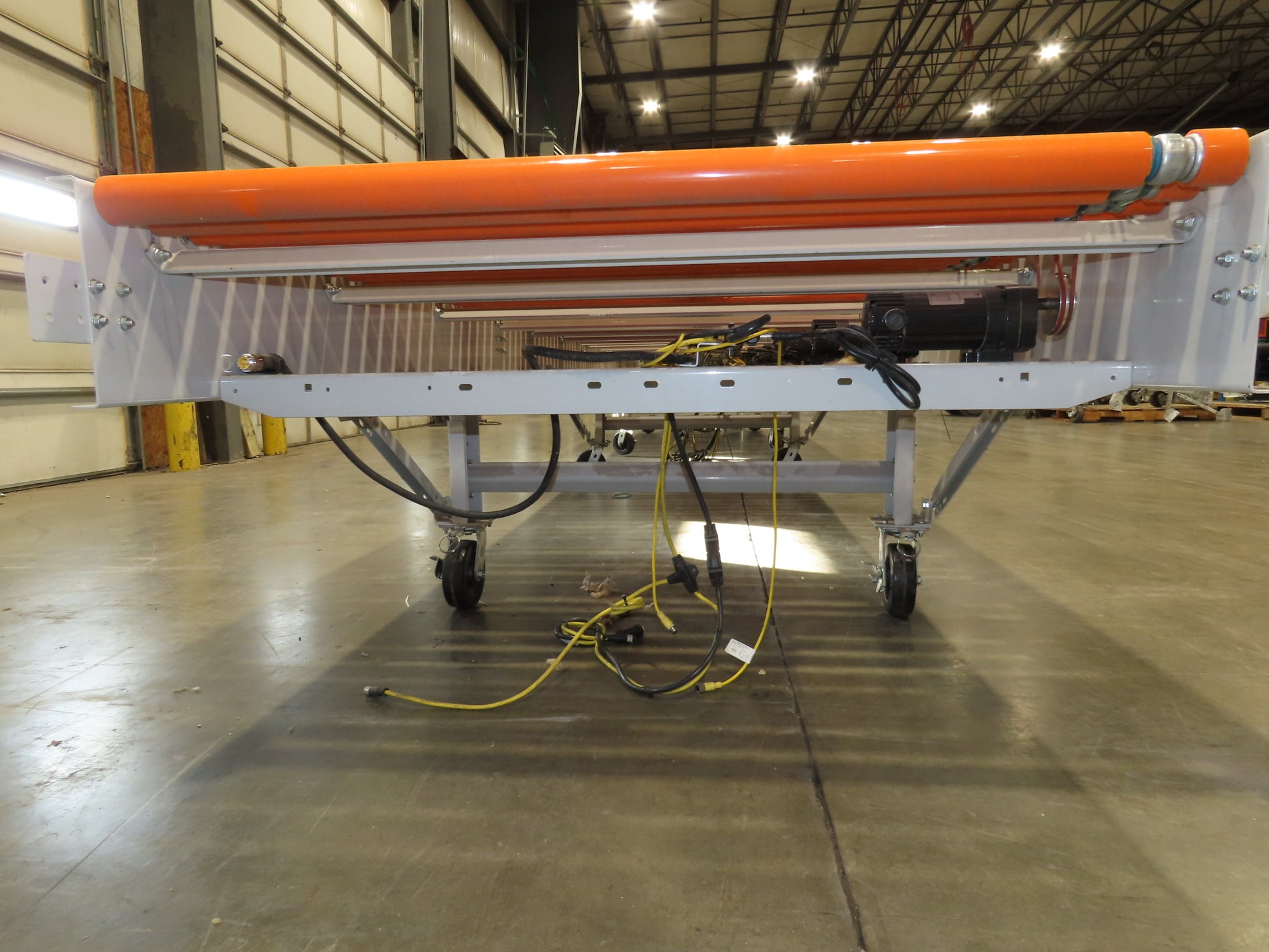

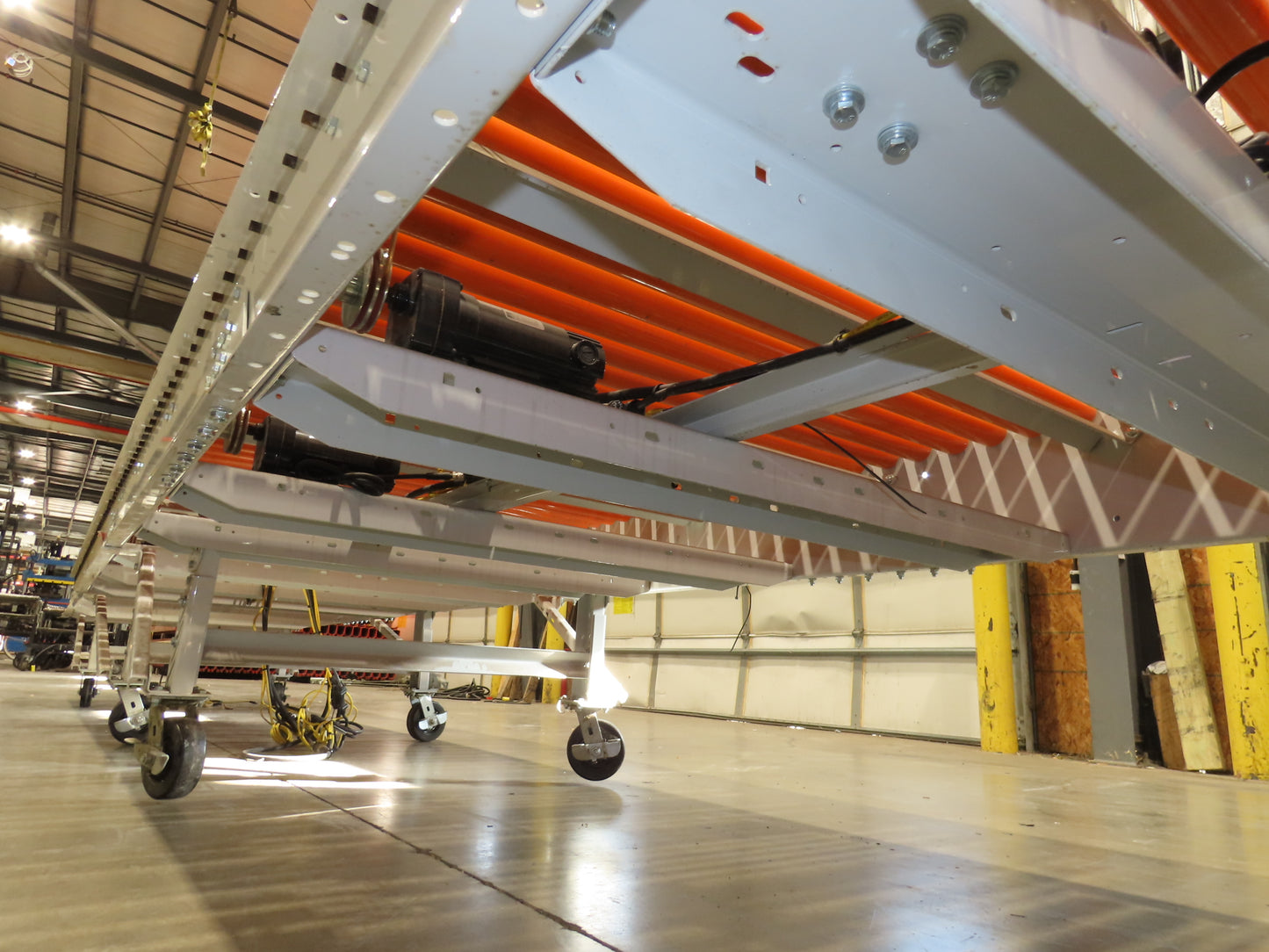

  • Set-up Configuration: On adjustable height legs with locking casters.
  • Sections: 5' 6" and 5' 9" sections, 22' 6" Overall length.

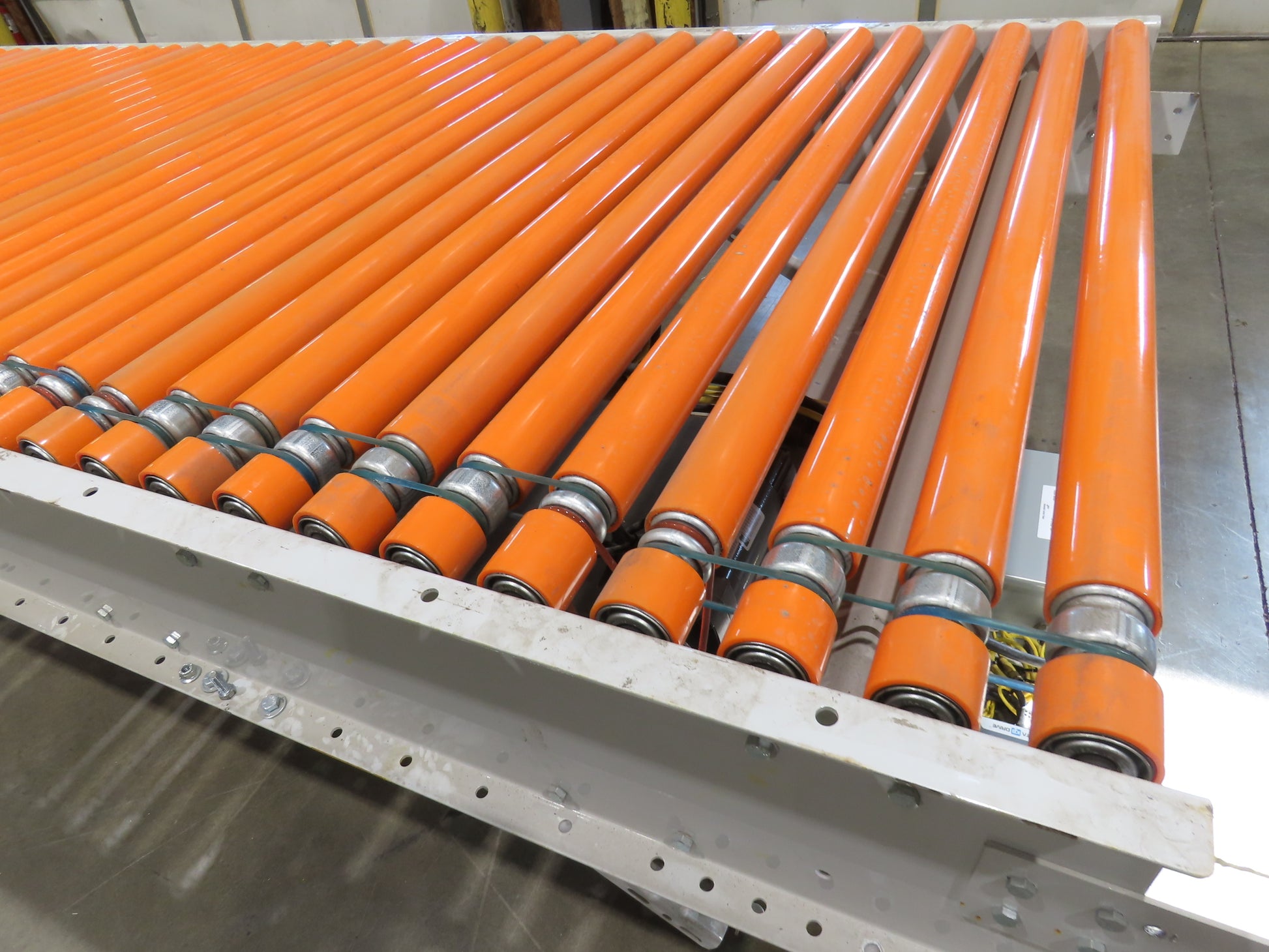

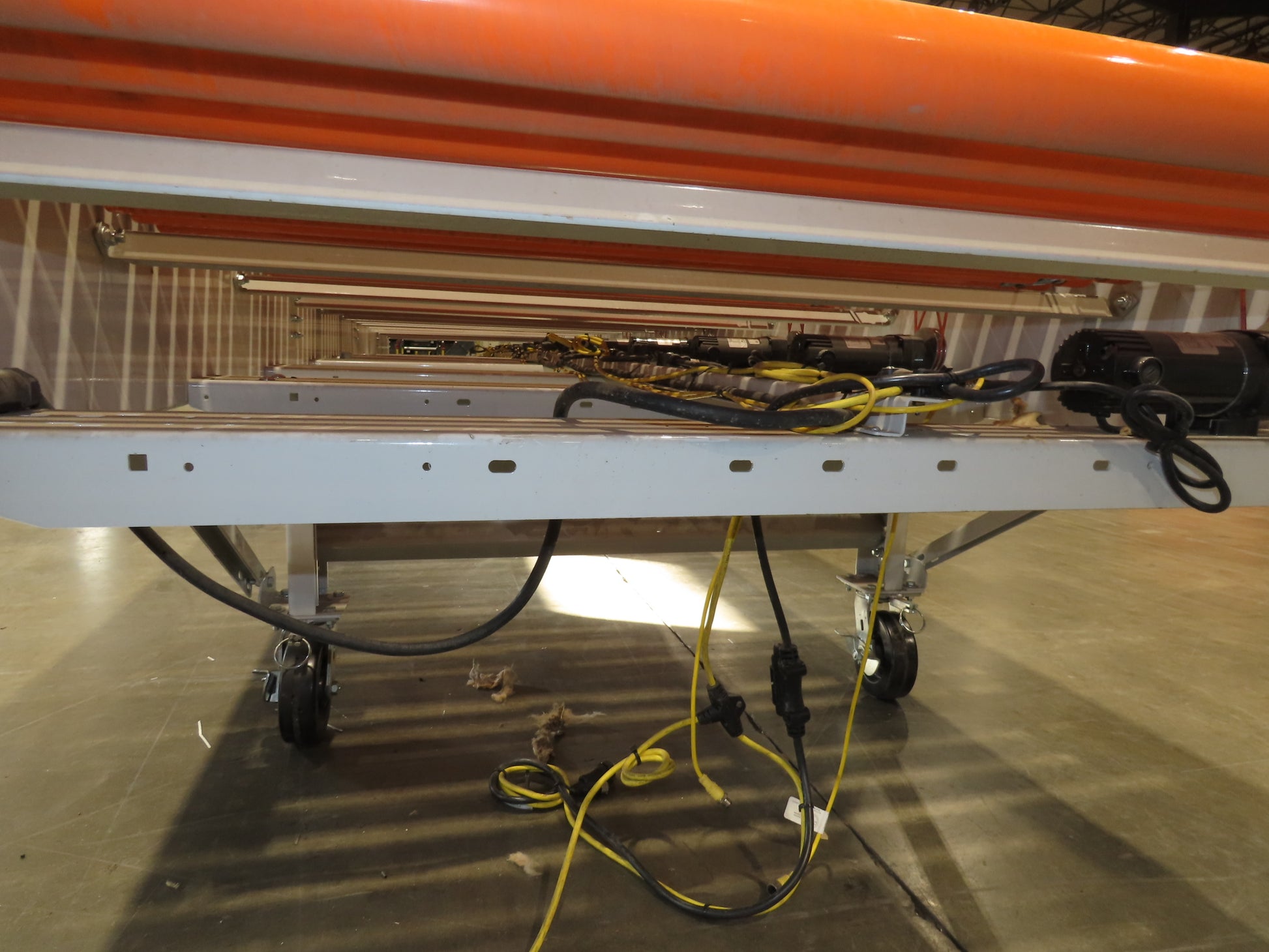

  • Drive Type: O-ring belt drive.

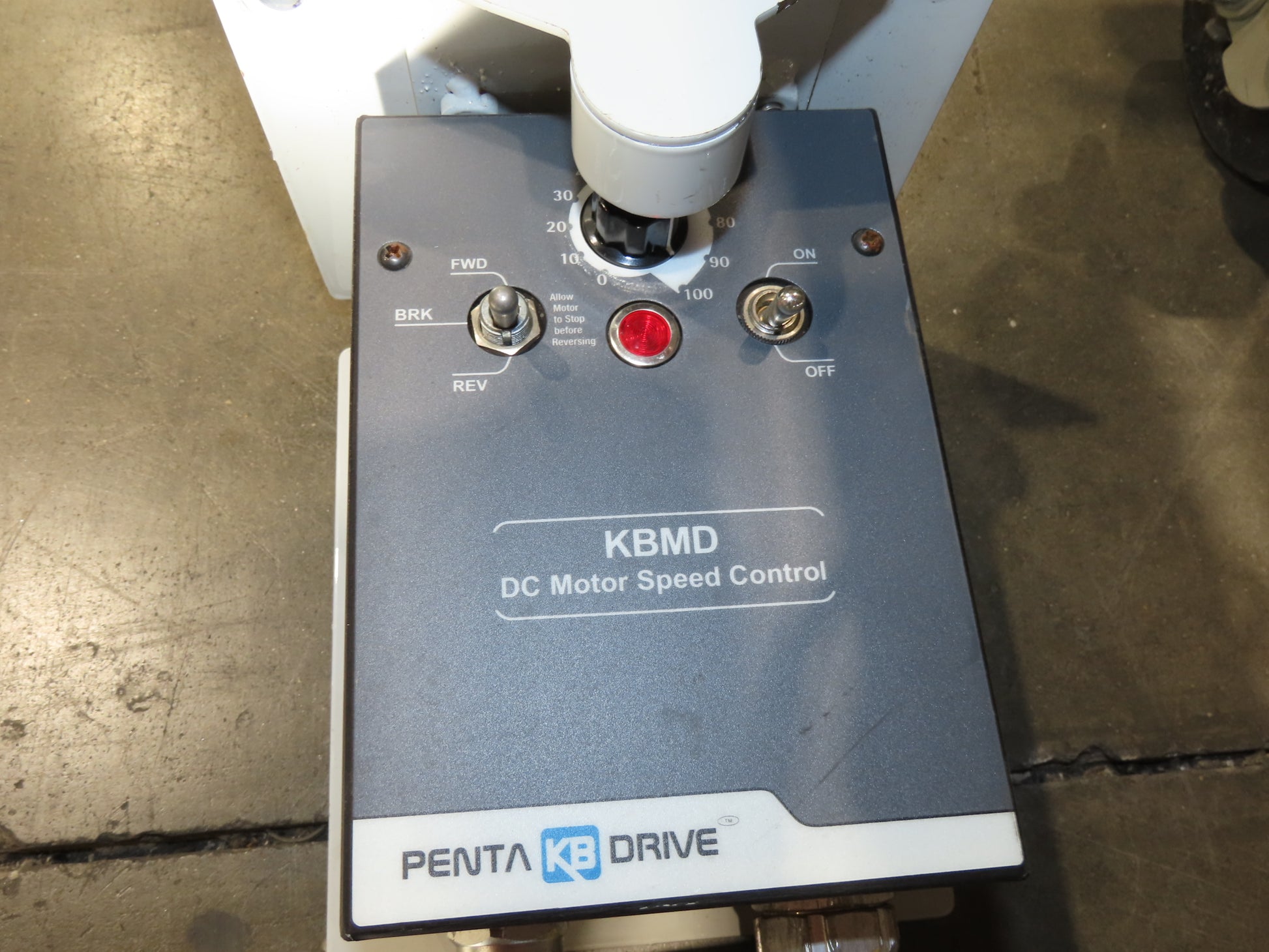

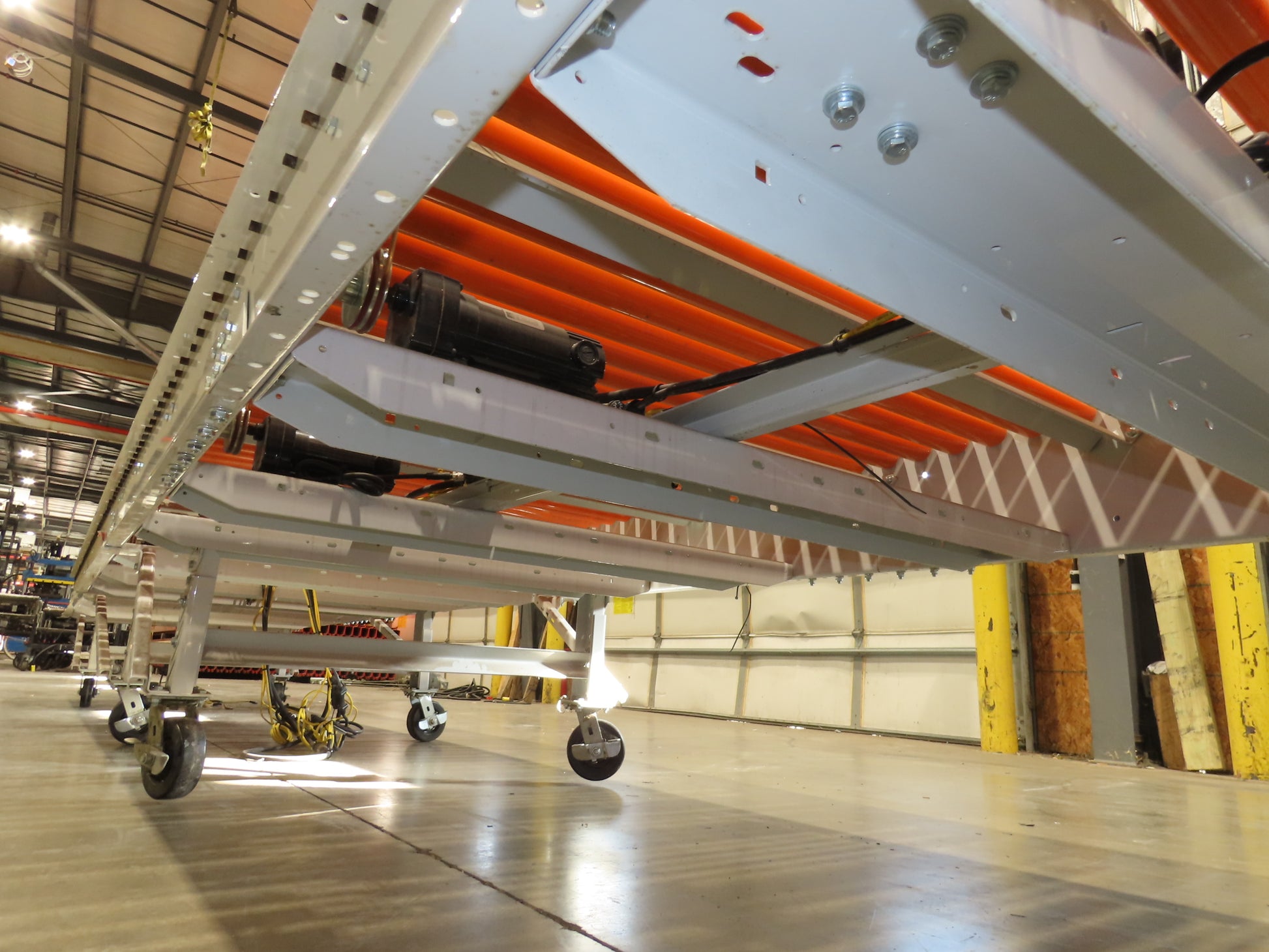

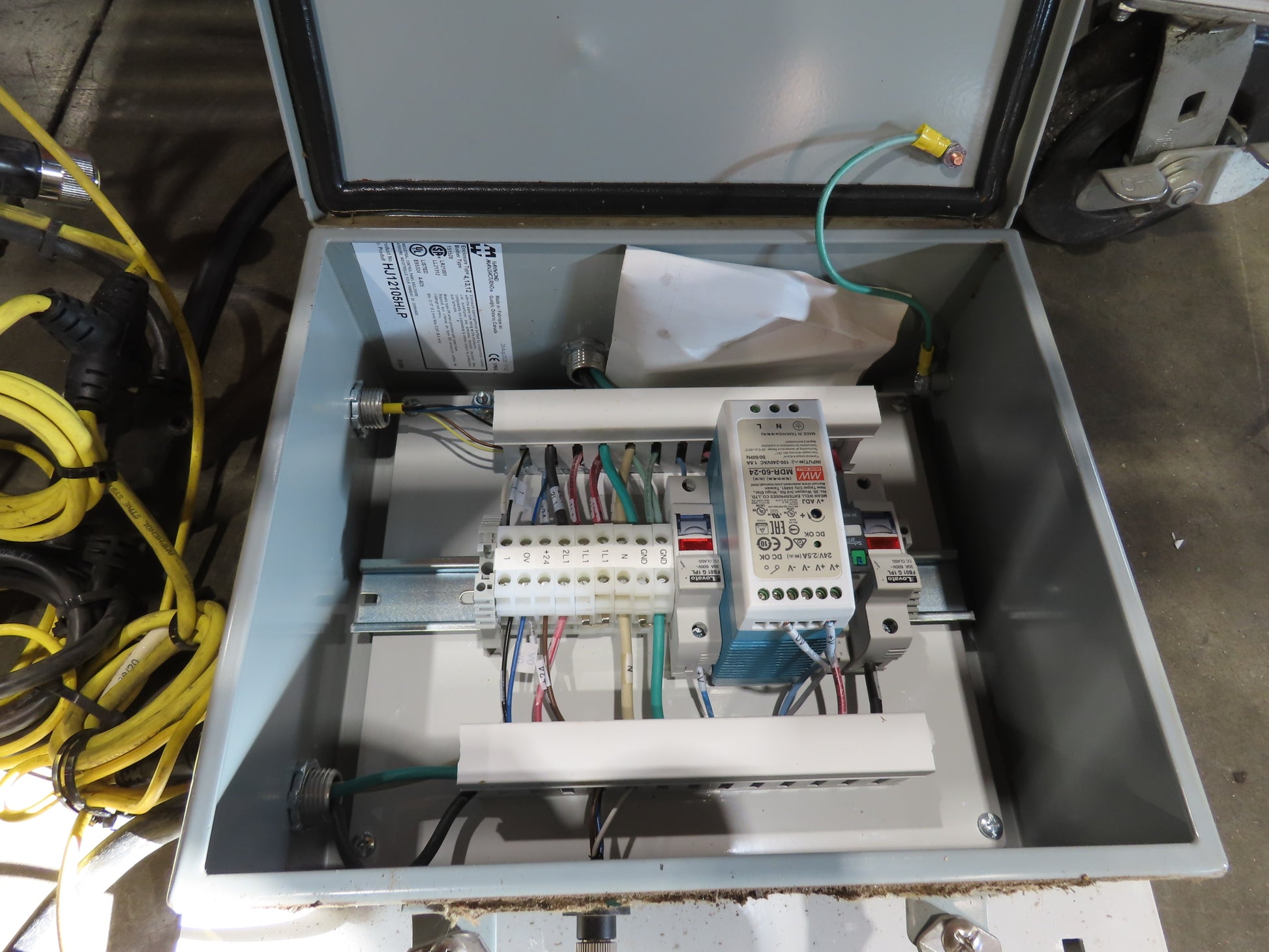

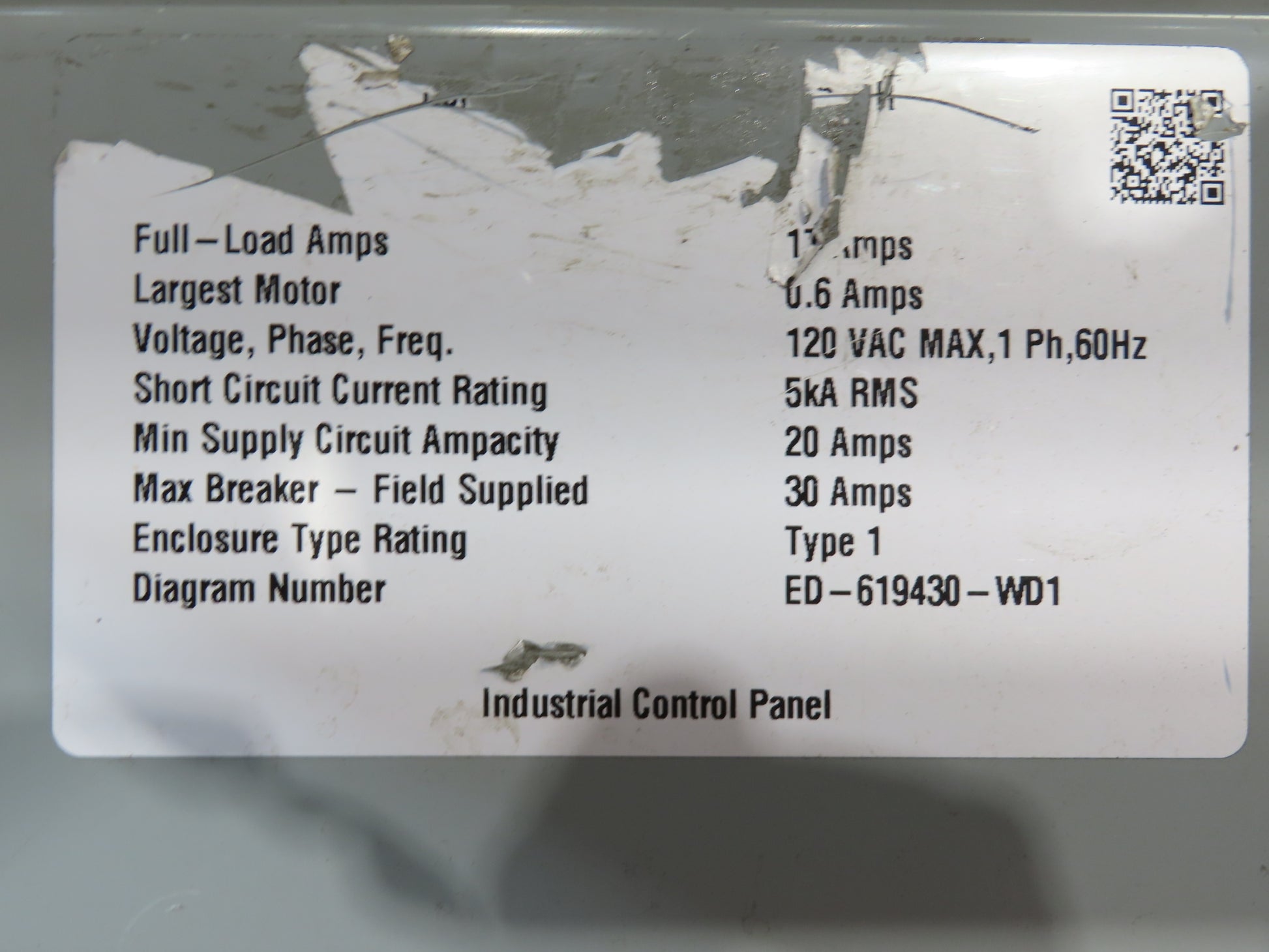

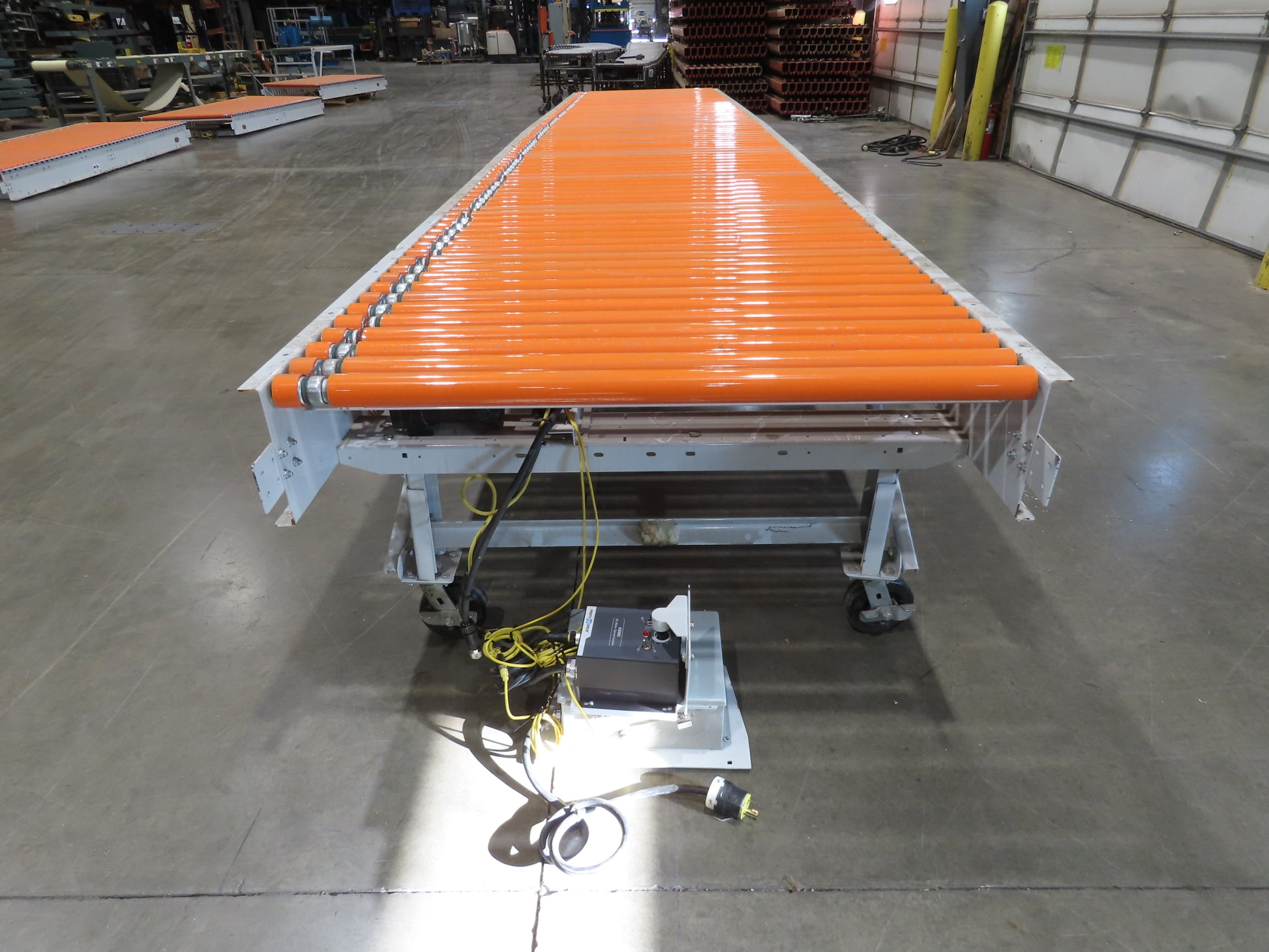

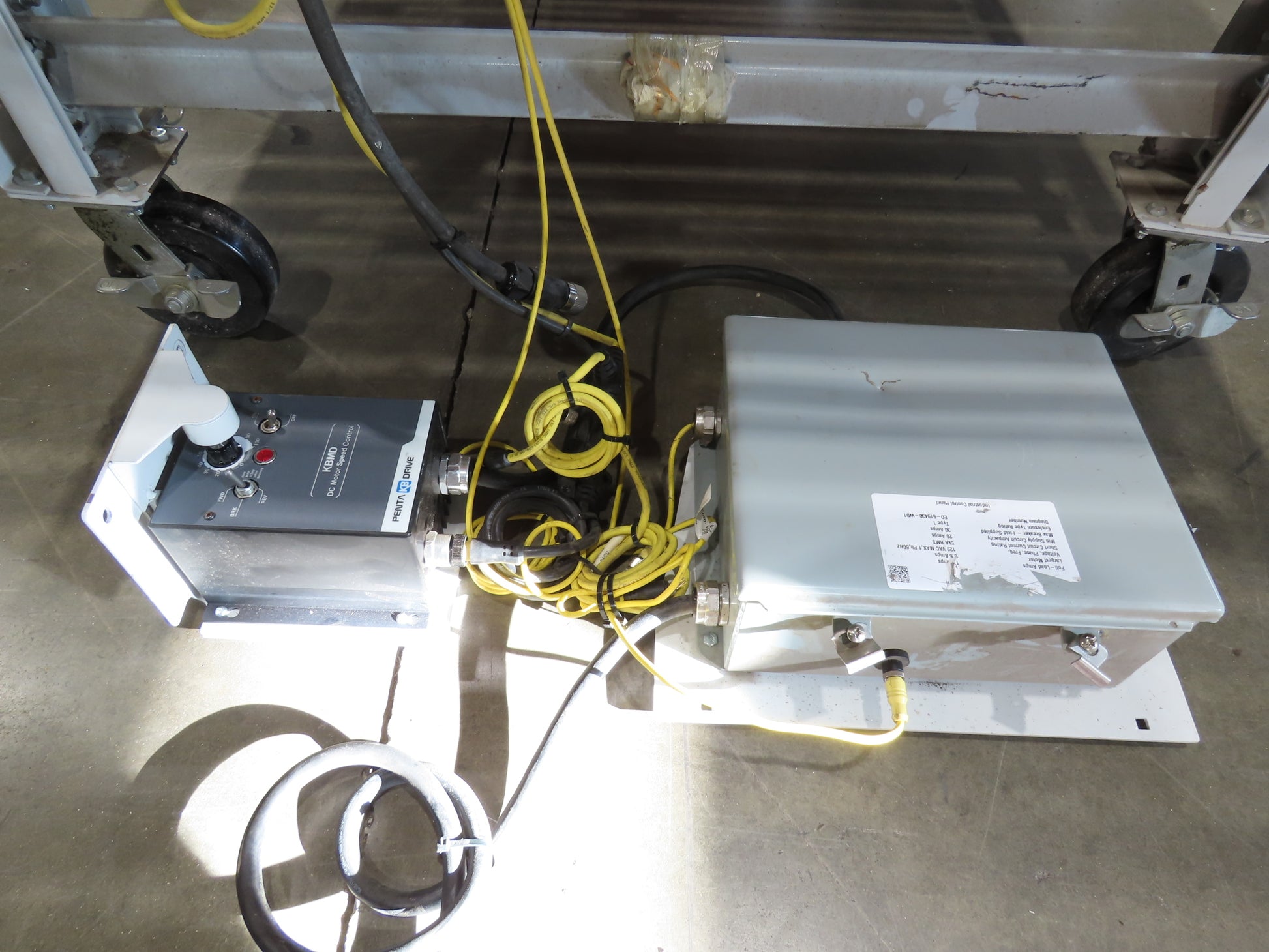

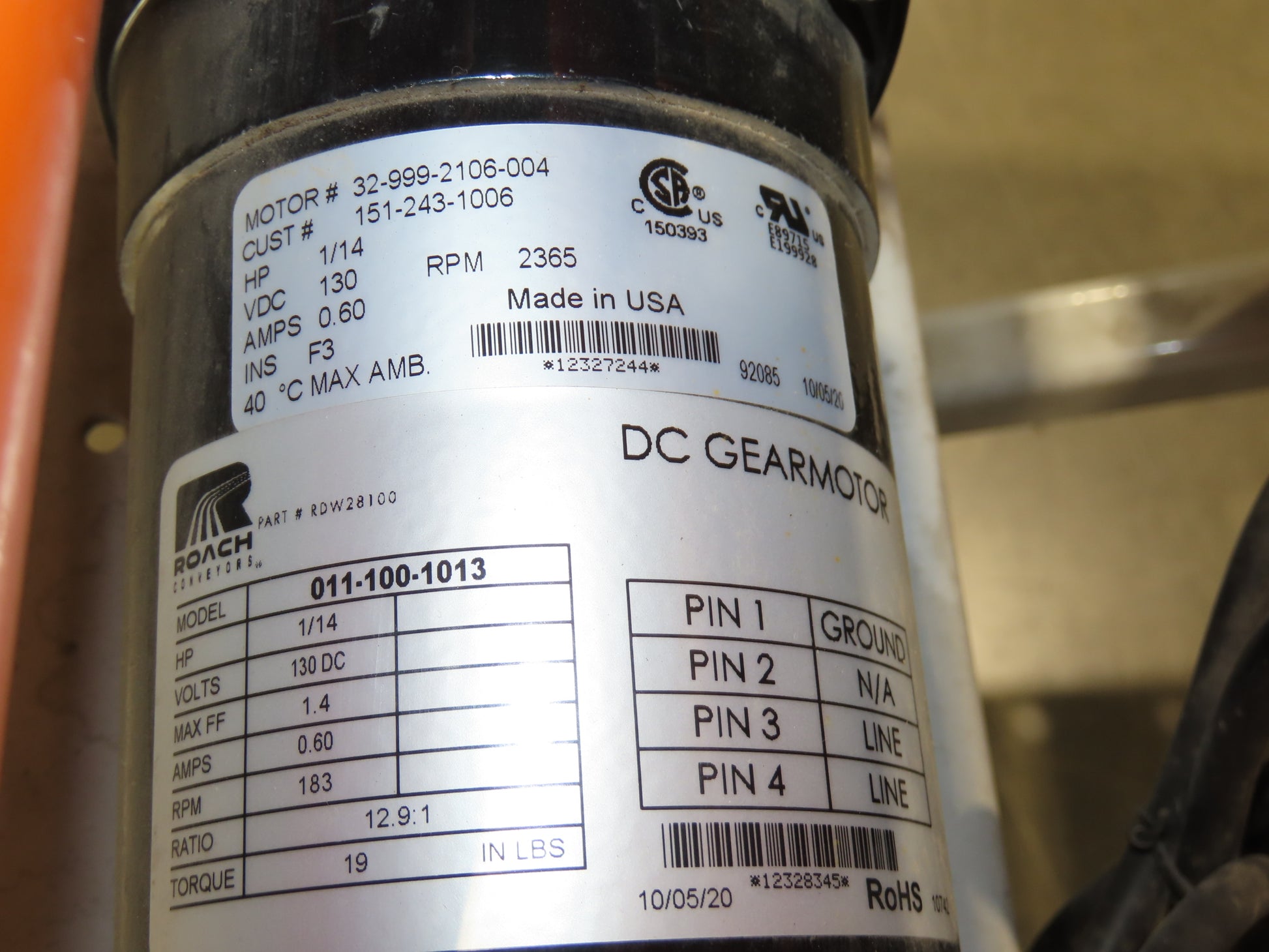

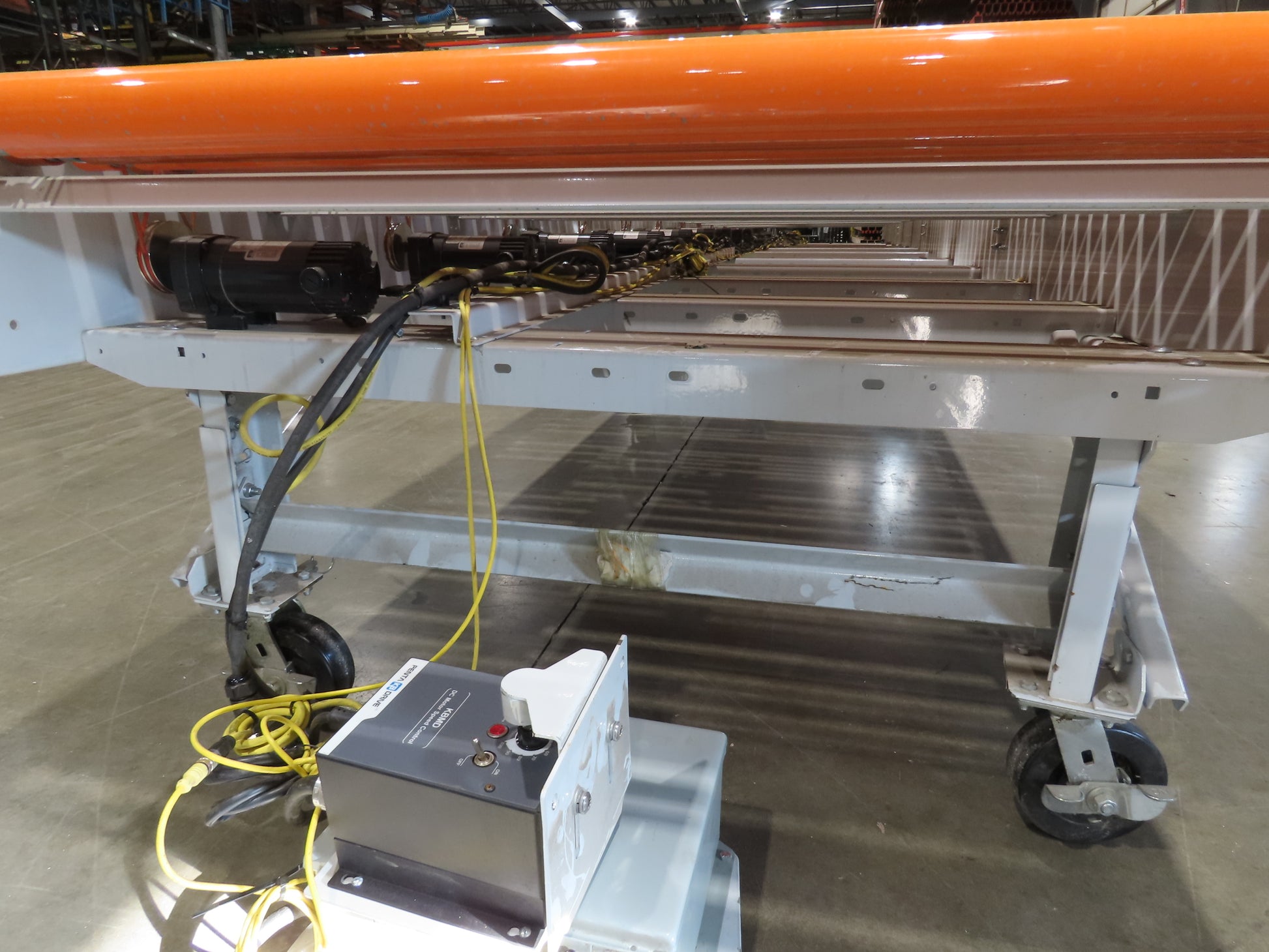

  • Motor & Gearbox: Has a total of (12) 130VDC motors spaces 20" to 24" apart. Wired with a DC variable speed drive with power supply and control panel.
  • Frame Width: 51"
  • Between Frame Width: 48"

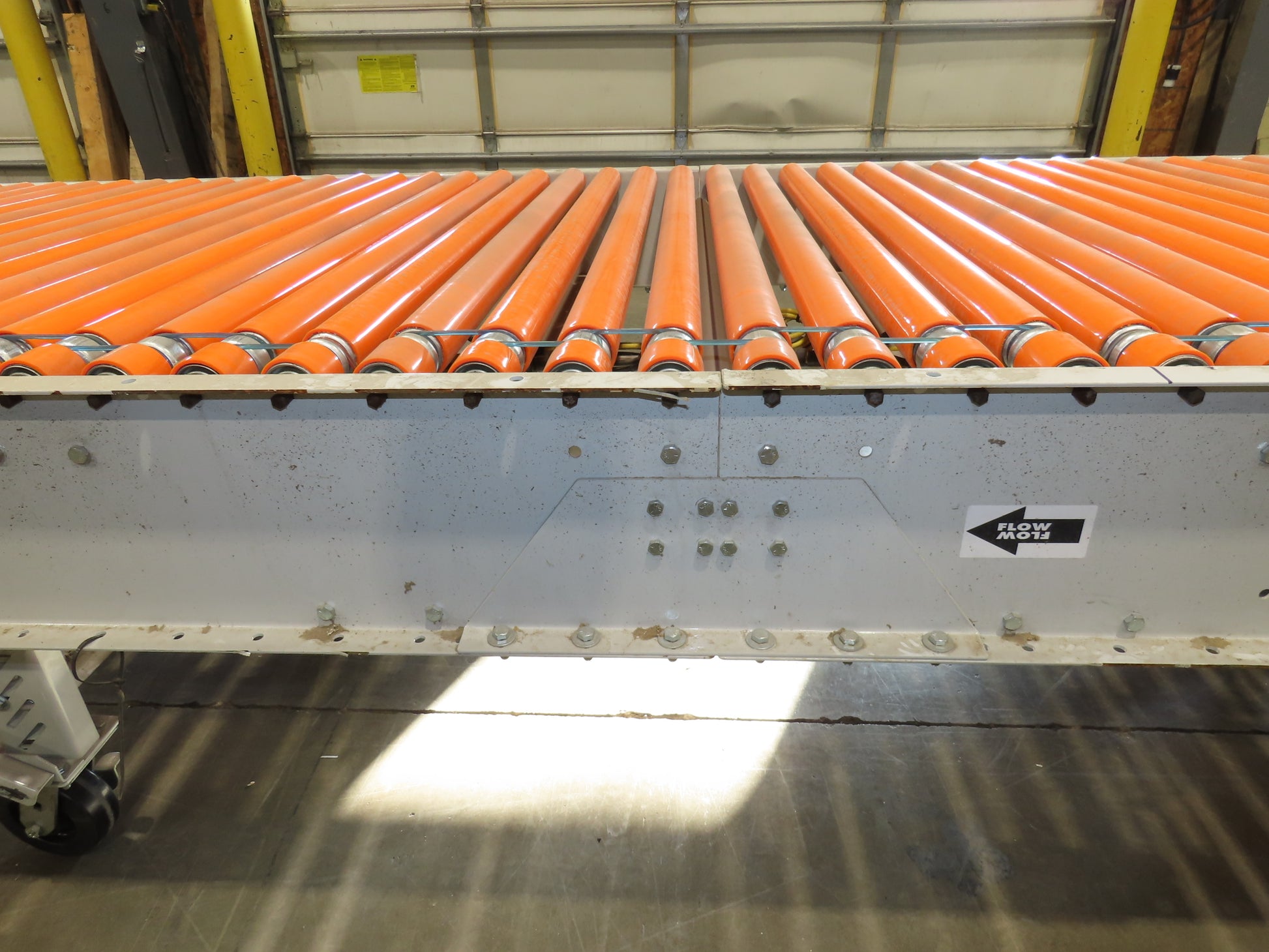

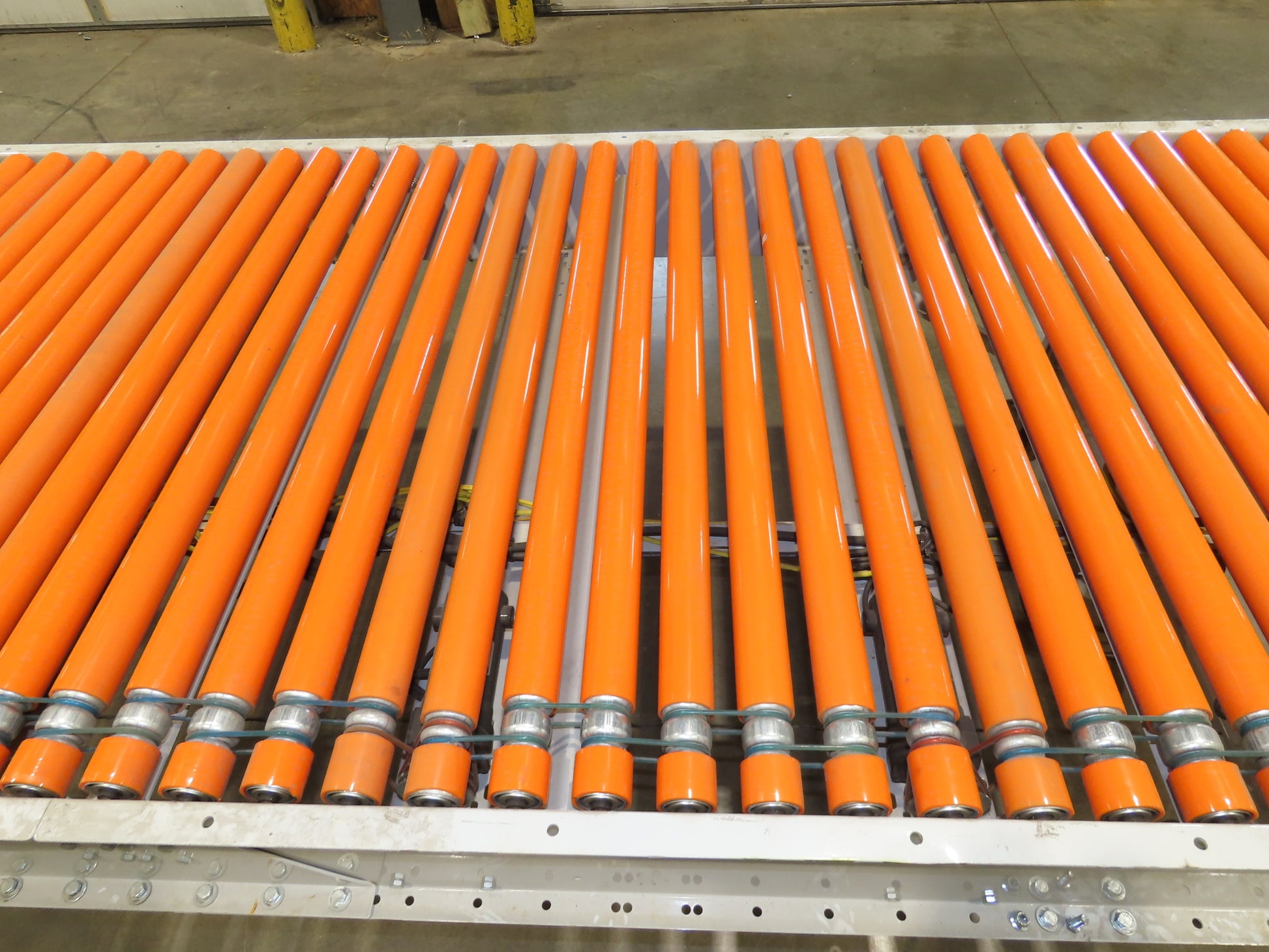

  • Roller Diameter and Spacing (Centers): 1.9" Steel roller with orange poly sleeve. 2.15" Overall Dia. 3" Centers.
  • Roller Axle Size: 7/16"
  • Rollers set high on frame or below frame?: High
  • Roller Speed (Feet per Minute): 0-130 FPM Rollers can be run forward or reverse from drive control.
  • Bed Height (Roller Height from Floor): 30" Minimum to 34-1/2" Max.

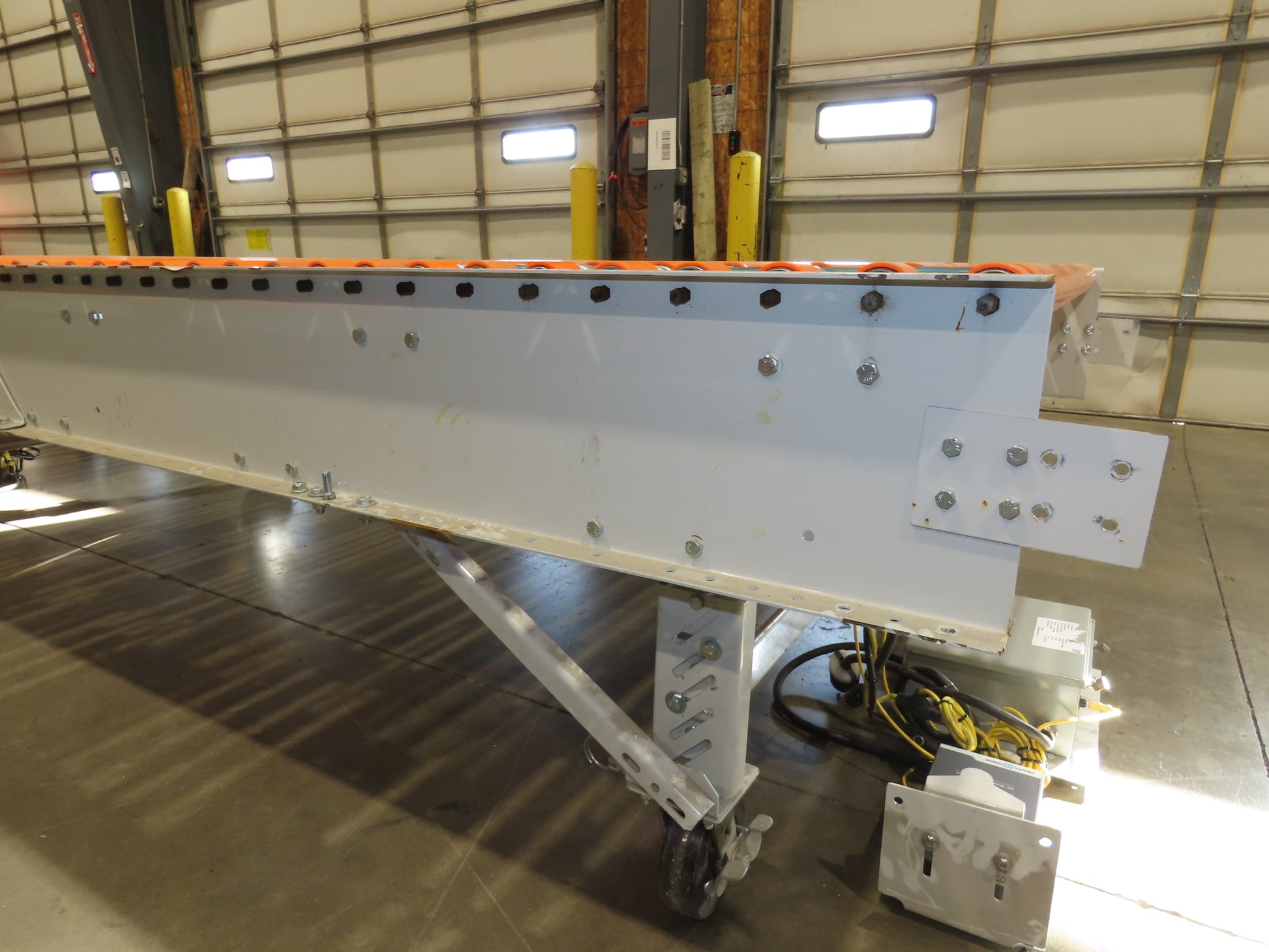

  • Frame Height (Sides): 10"
  • Overall Length: 22' 6"
