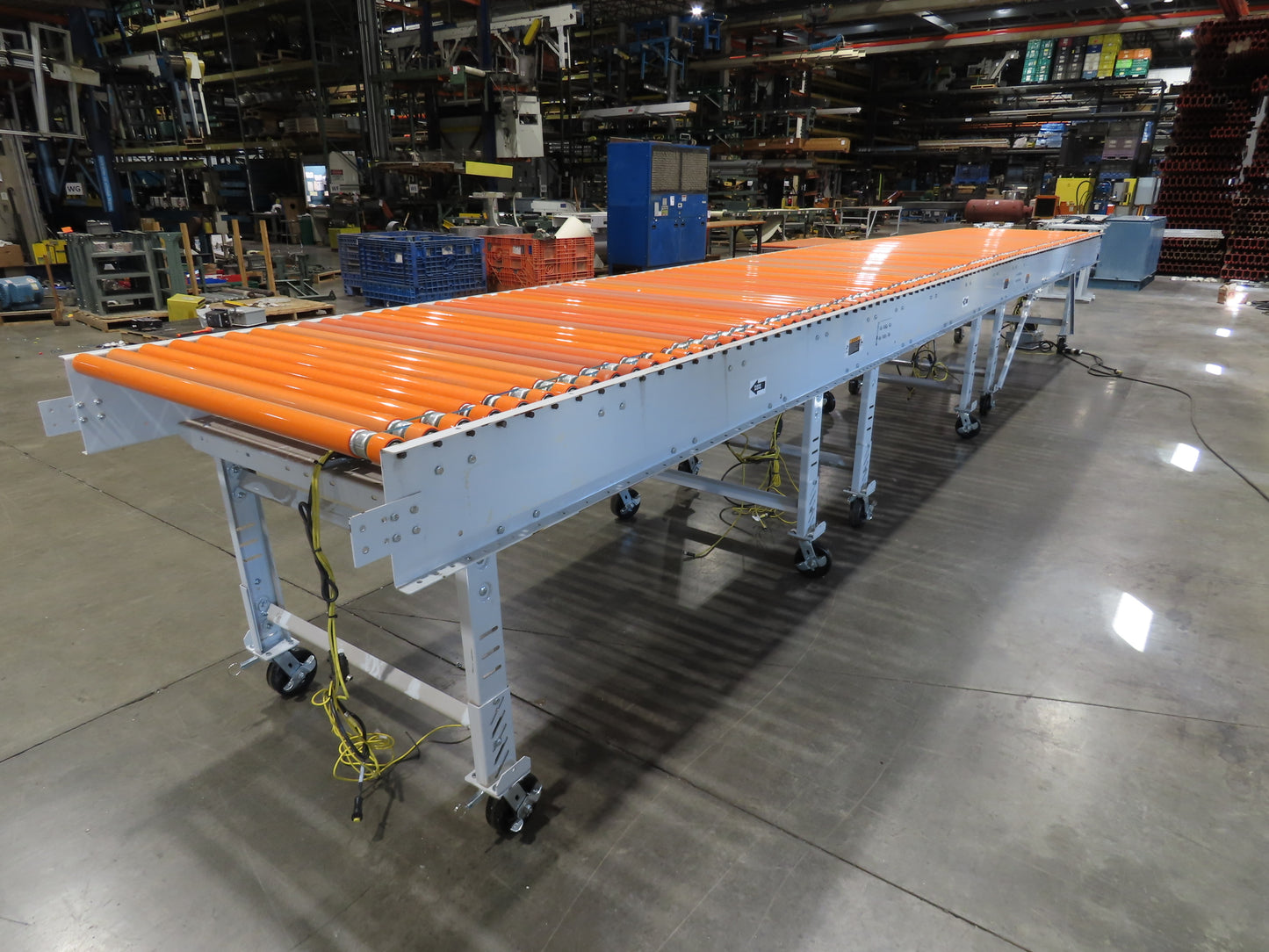

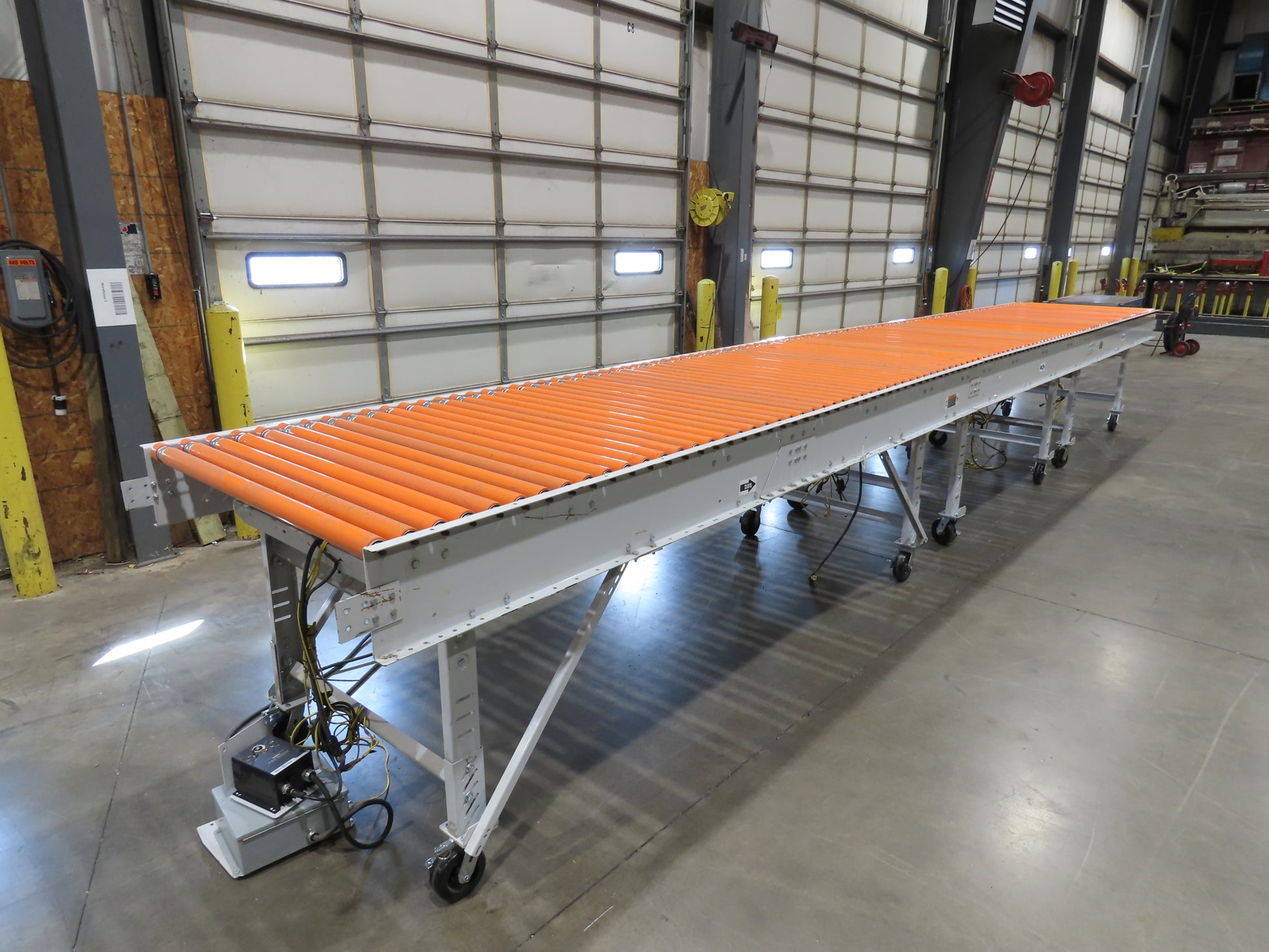

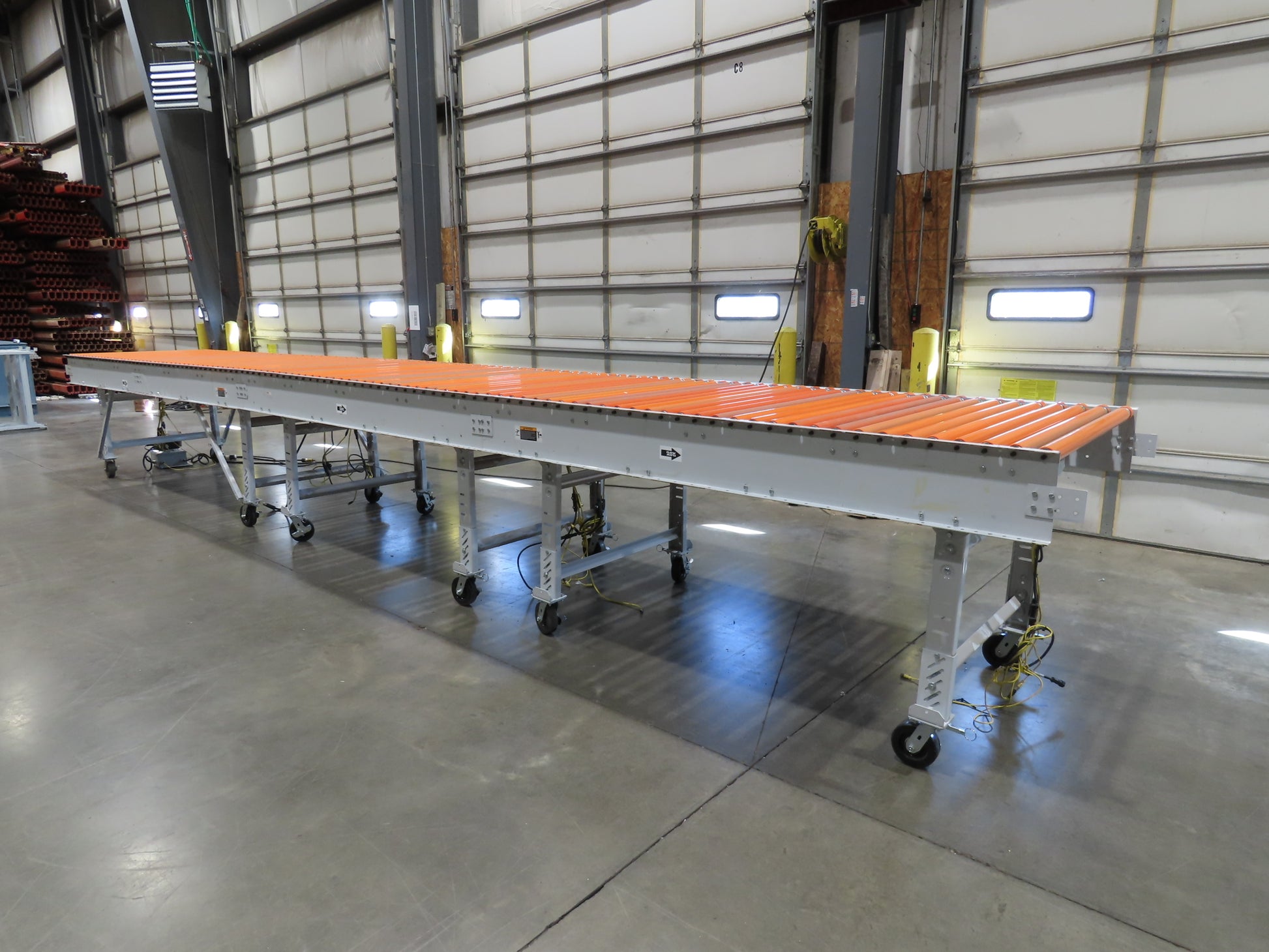

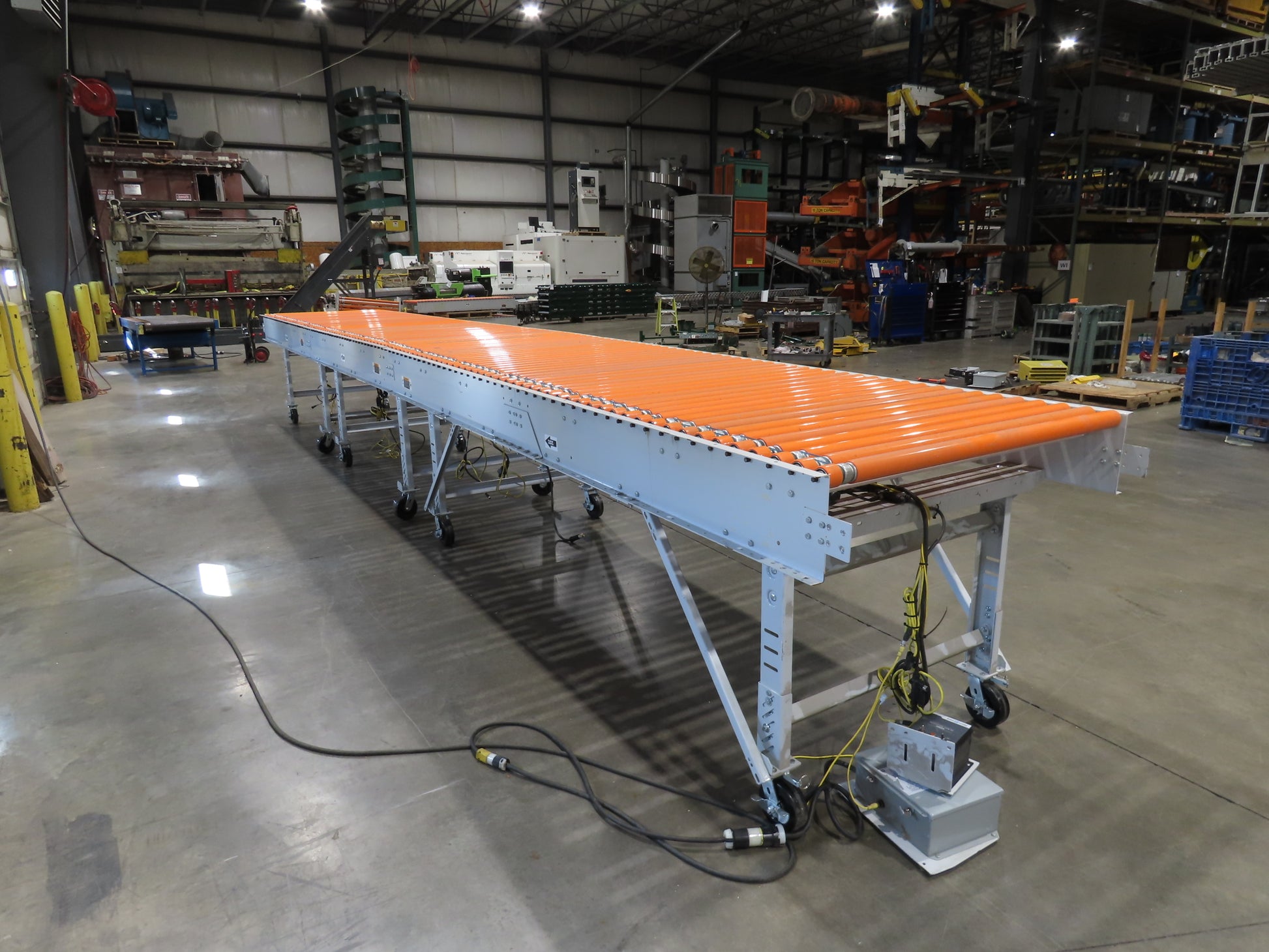

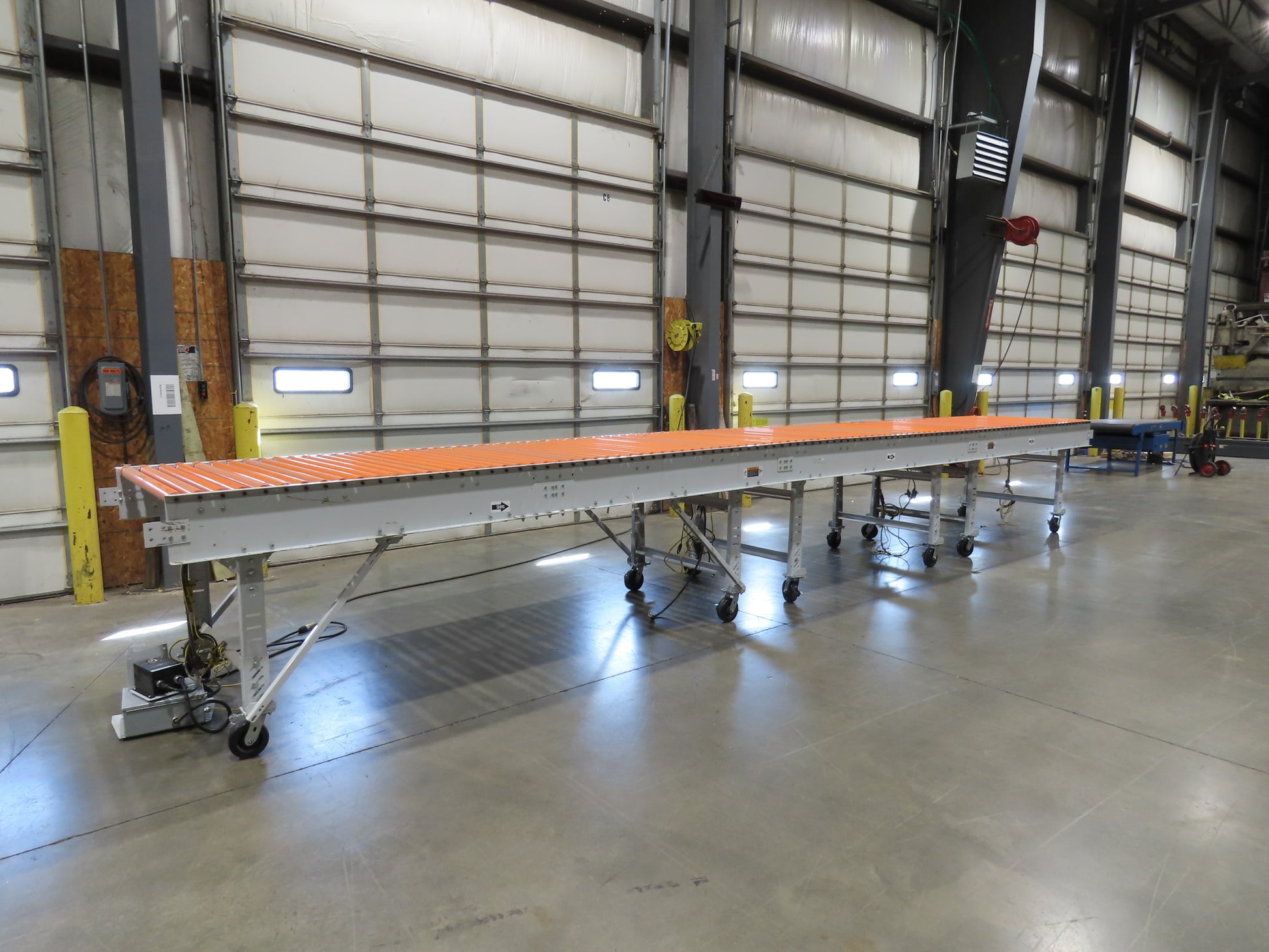

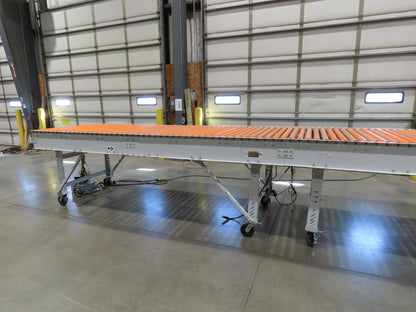

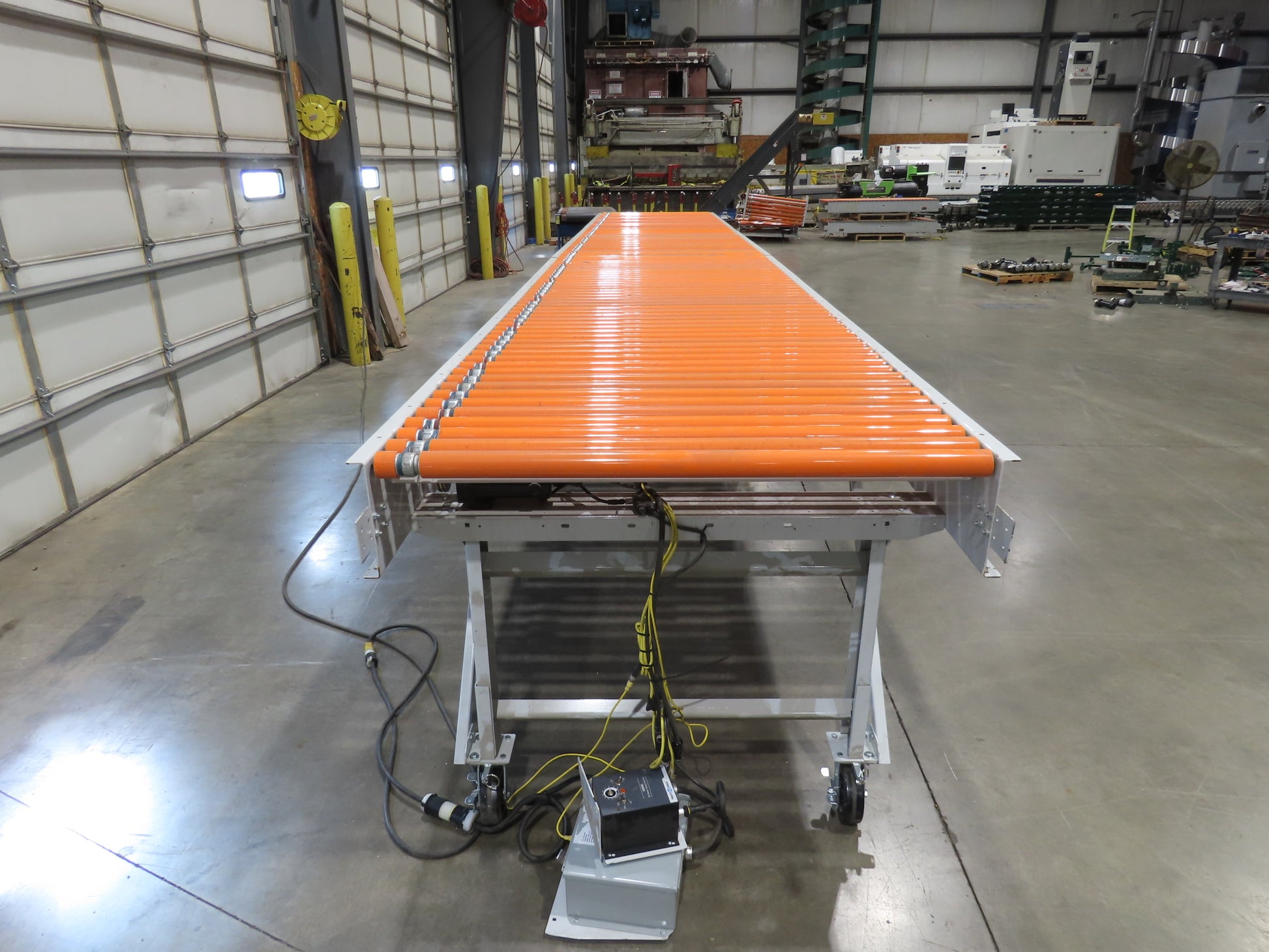

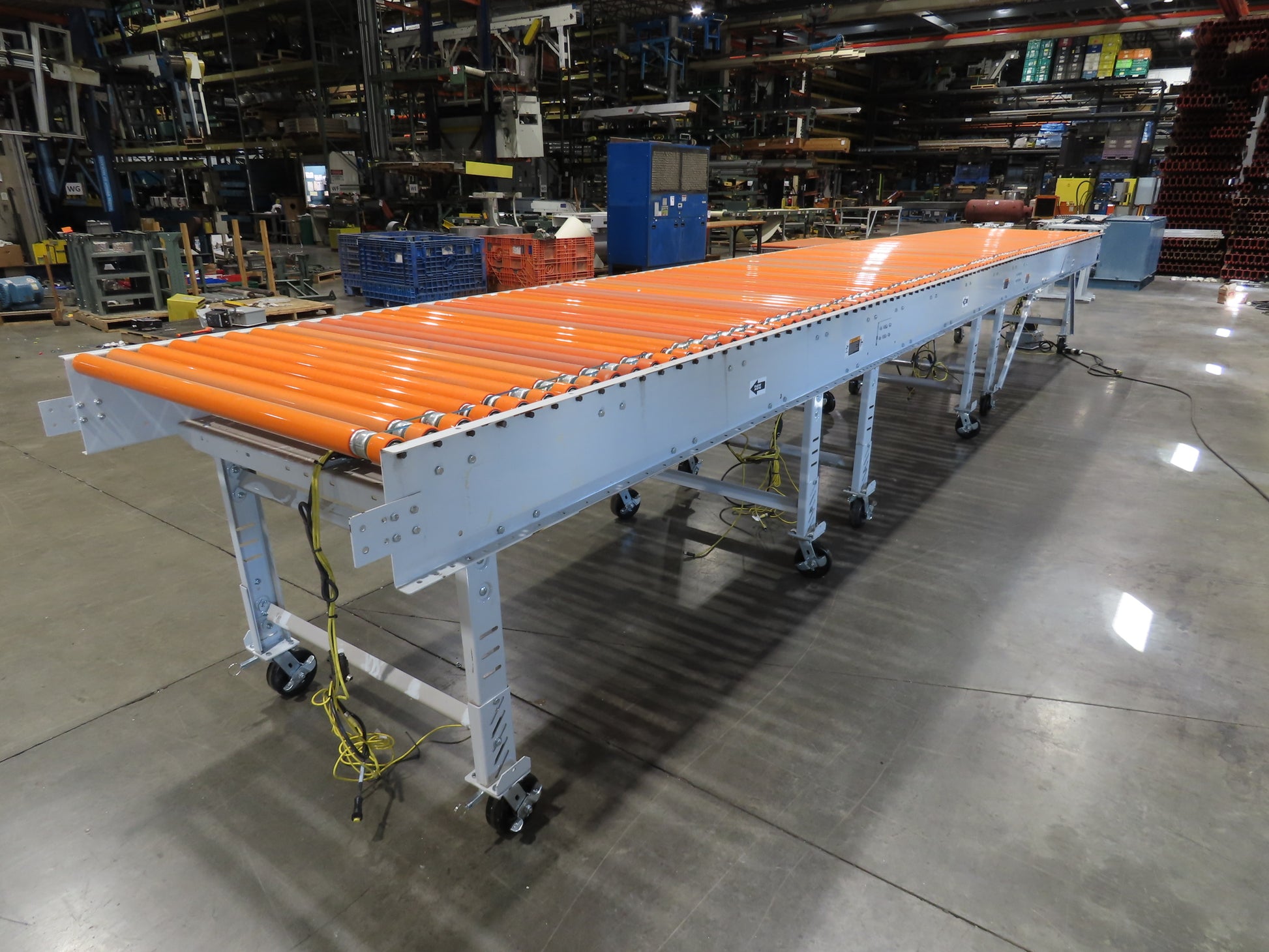

Roach 48"x 26' 9" Portable Roller Conveyor 115V Adj Speed O-Ring Belt Drive 44"H

Roach 48"x 26' 9" Portable Roller Conveyor 115V Adj Speed O-Ring Belt Drive 44"H

SKU #297586

Your Price
$7,124.99
$7,124.99
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Condition: New Surplus. Conveyor is new but has some scratches and dings on the frame from handling and transporting.

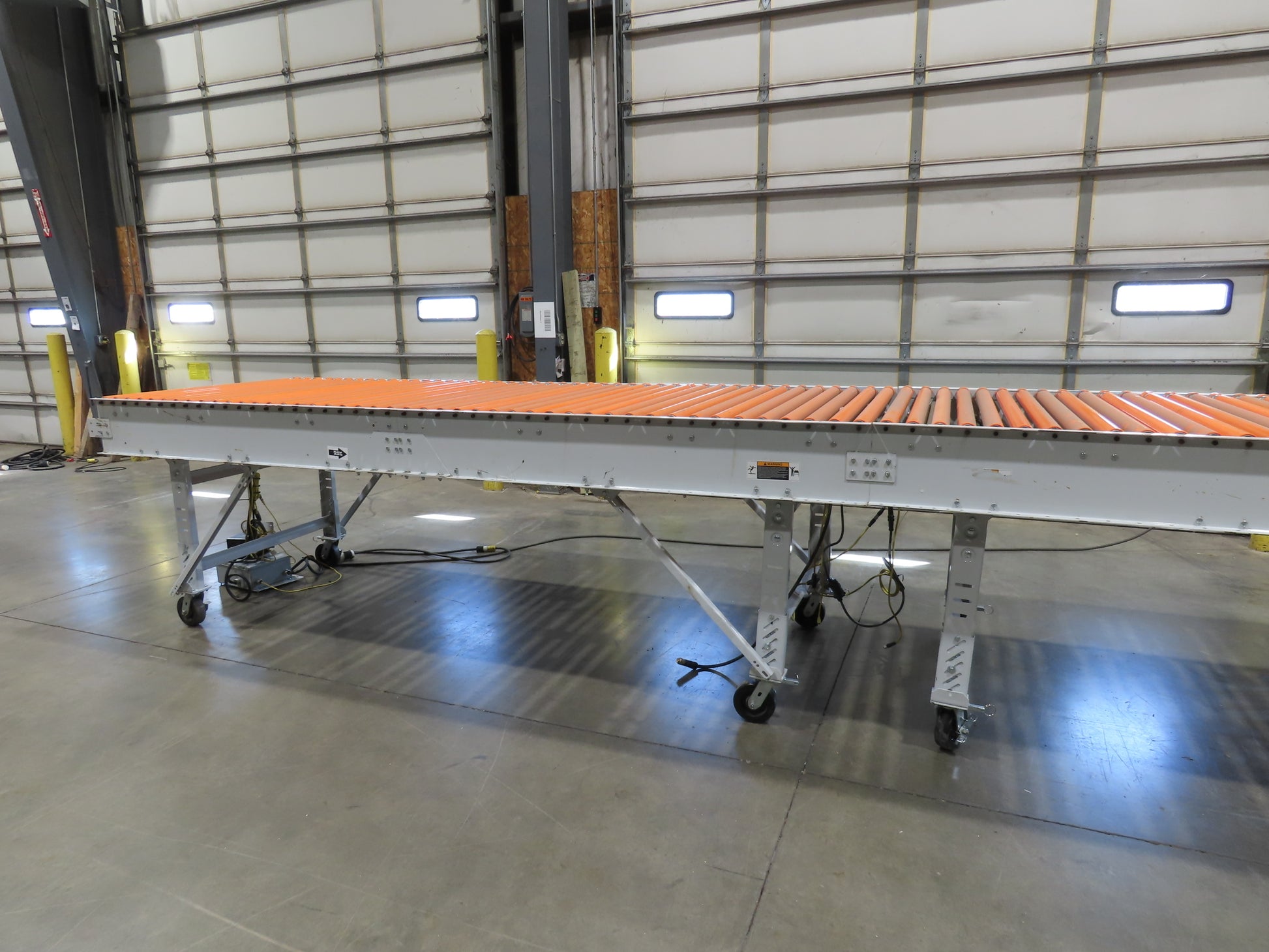

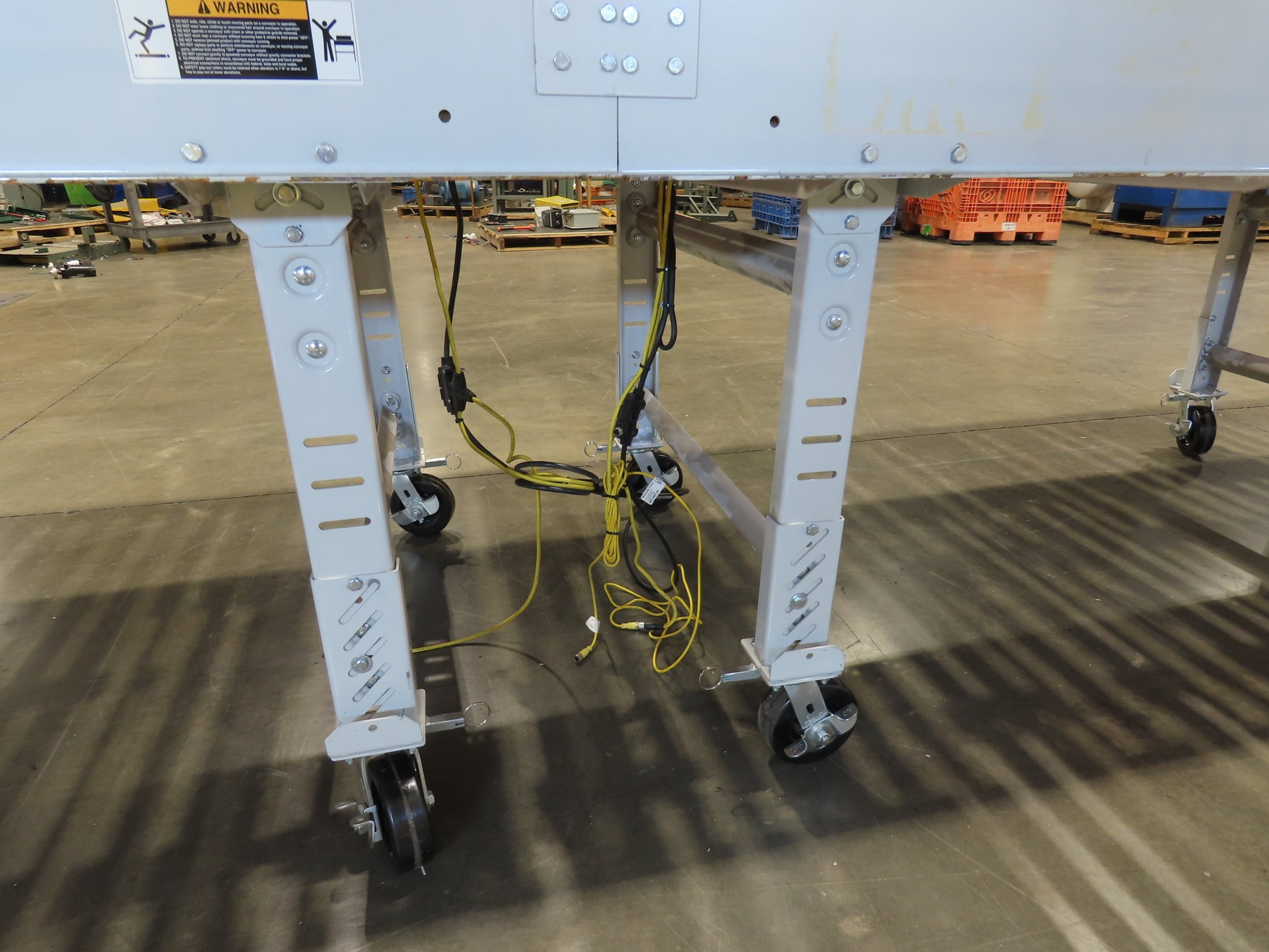

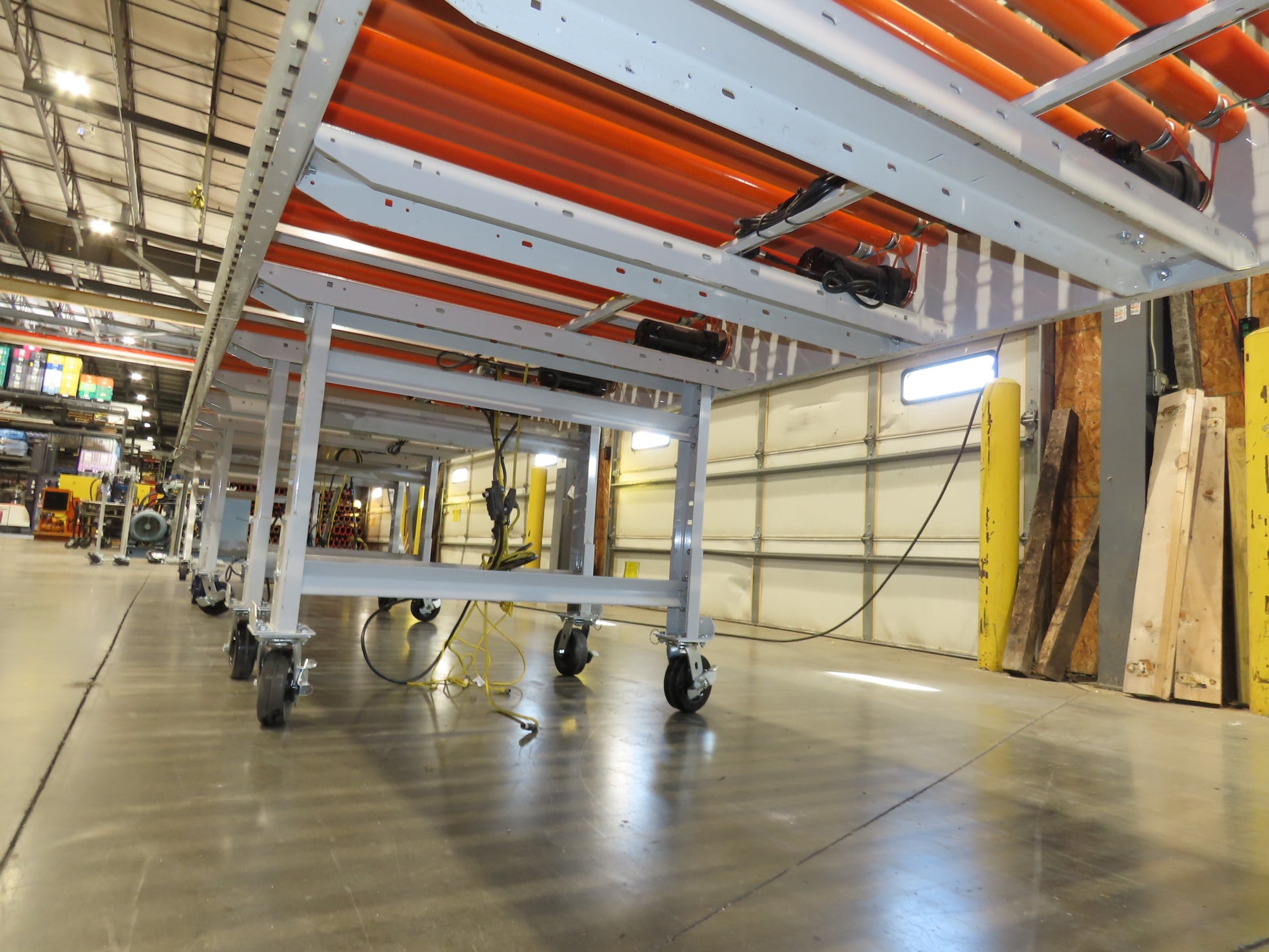

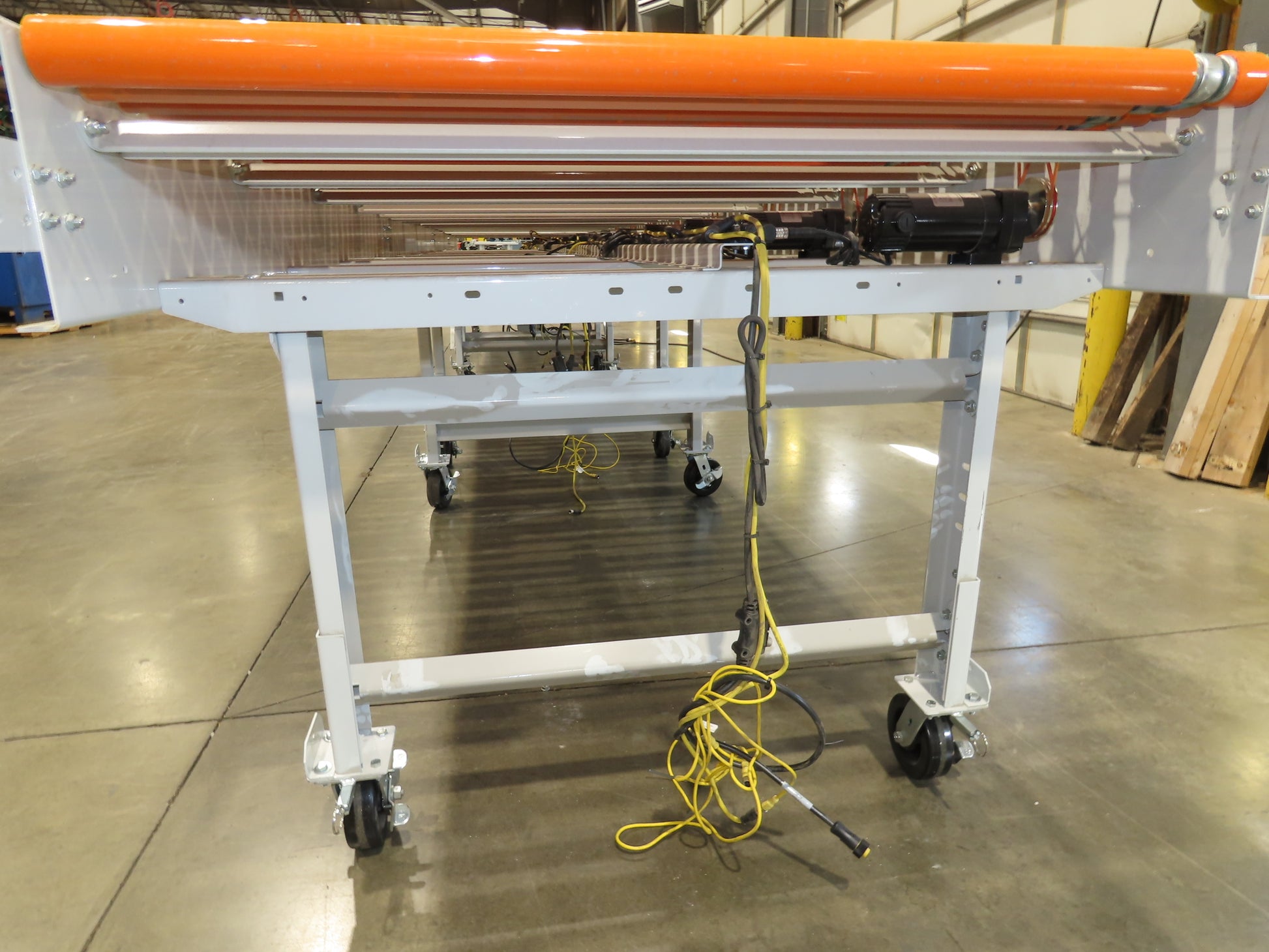

  • Set-up Configuration: On adjustable height legs with locking casters. Legs have 4-1/2" of adjustment.

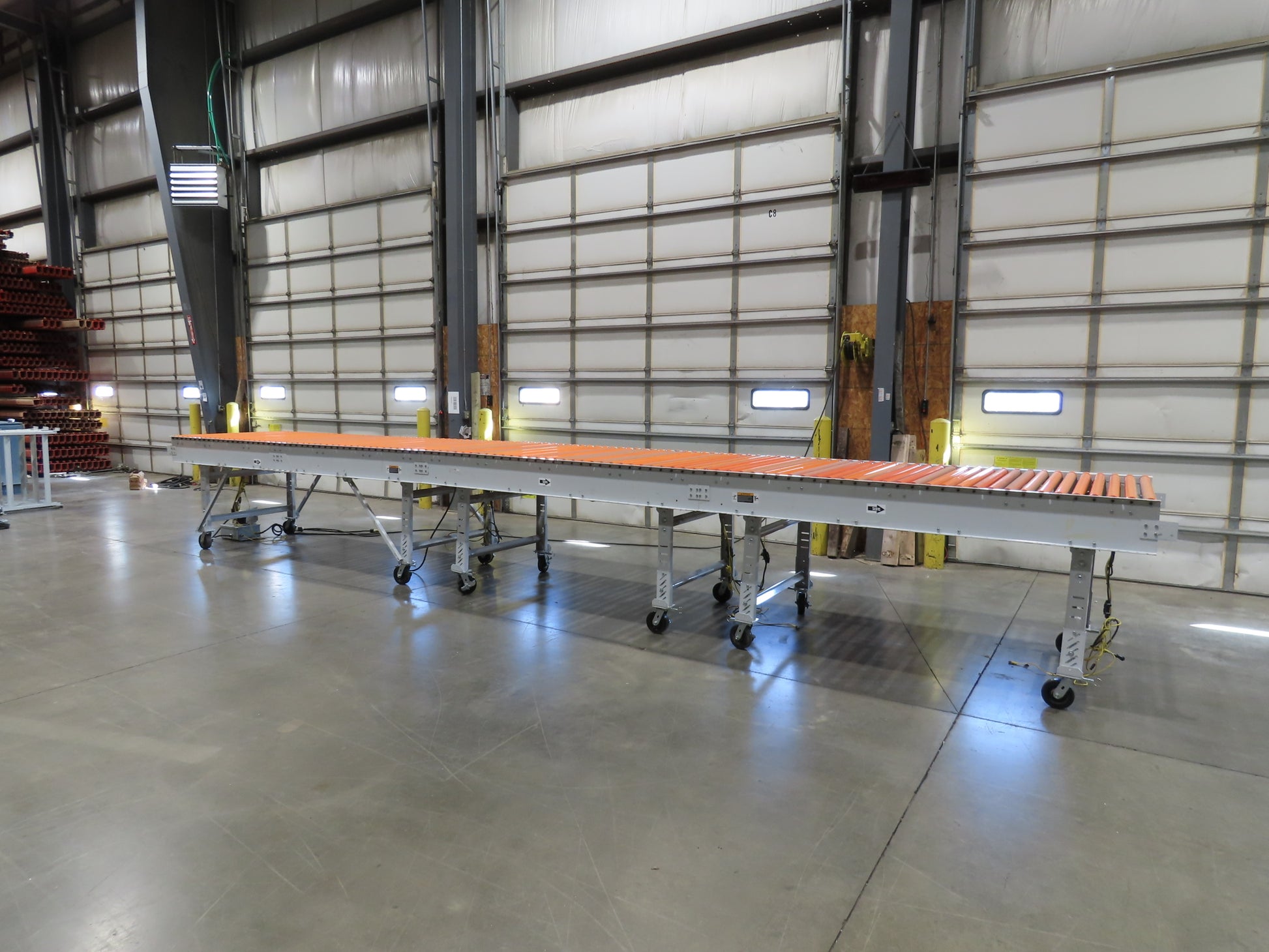

  • Sections: 5' 6" , 5' 9" and two 7' 9" sections, 26' 9" Overall length.

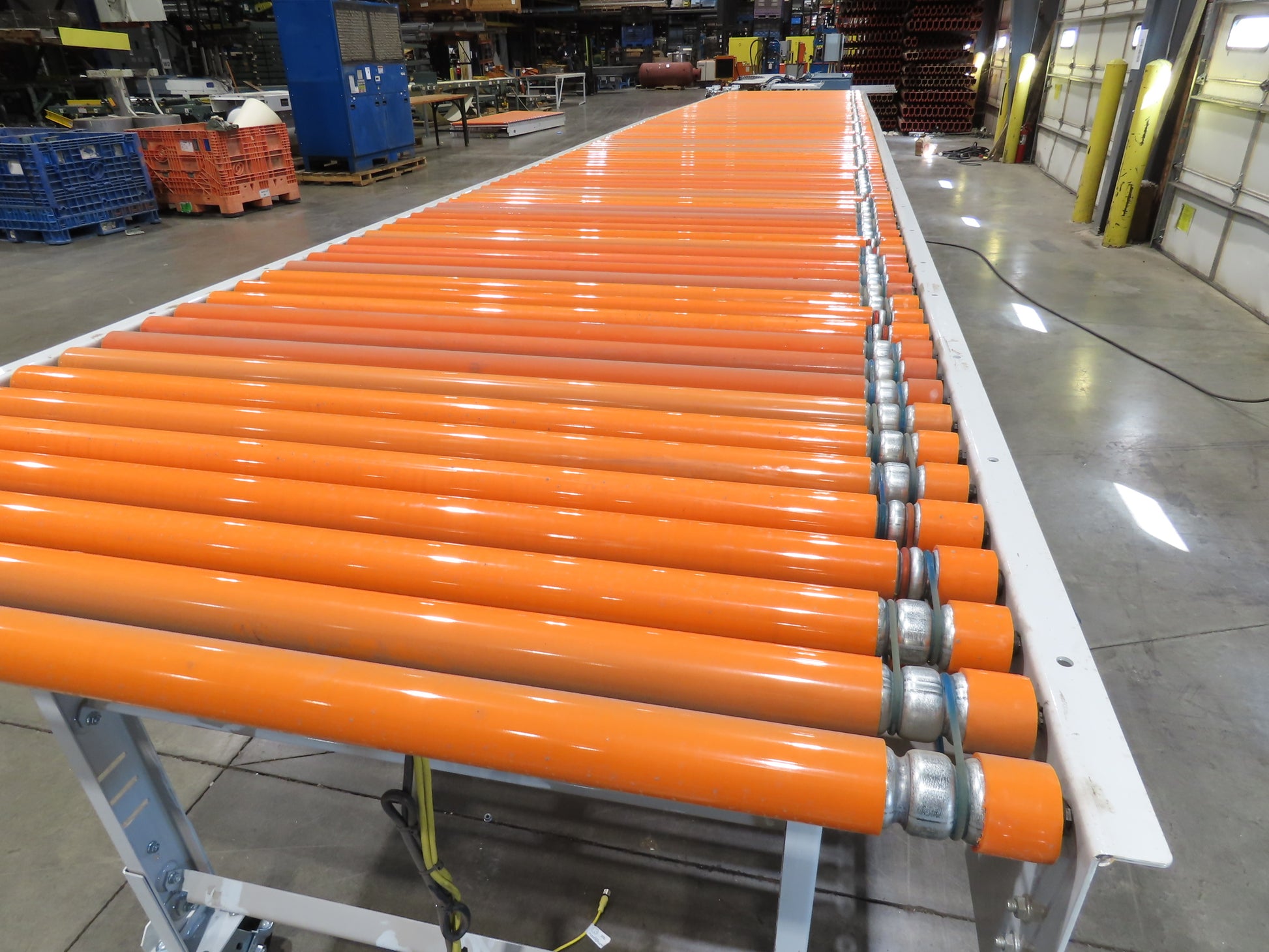

  • Drive Type: O-ring belt drive.

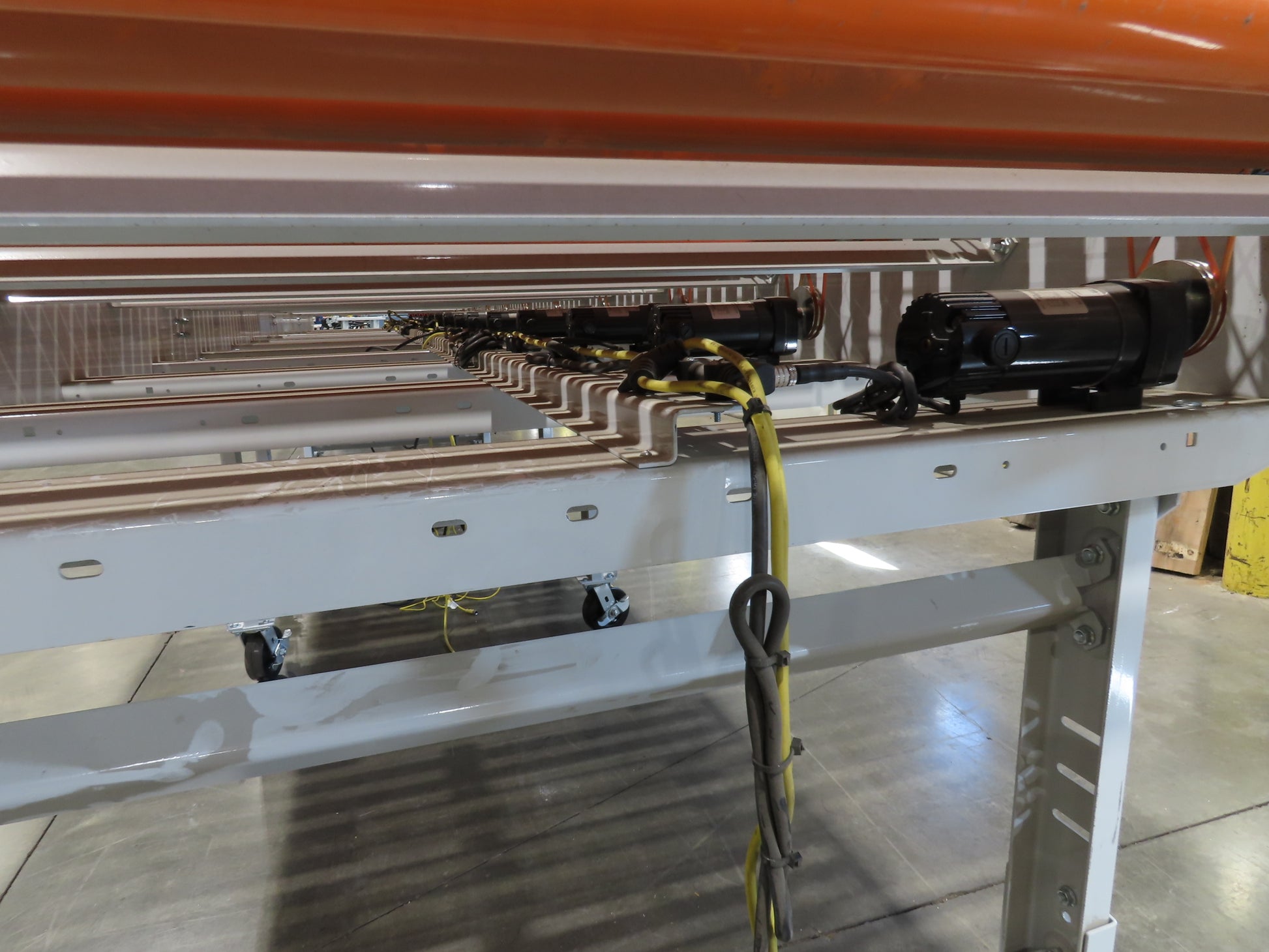

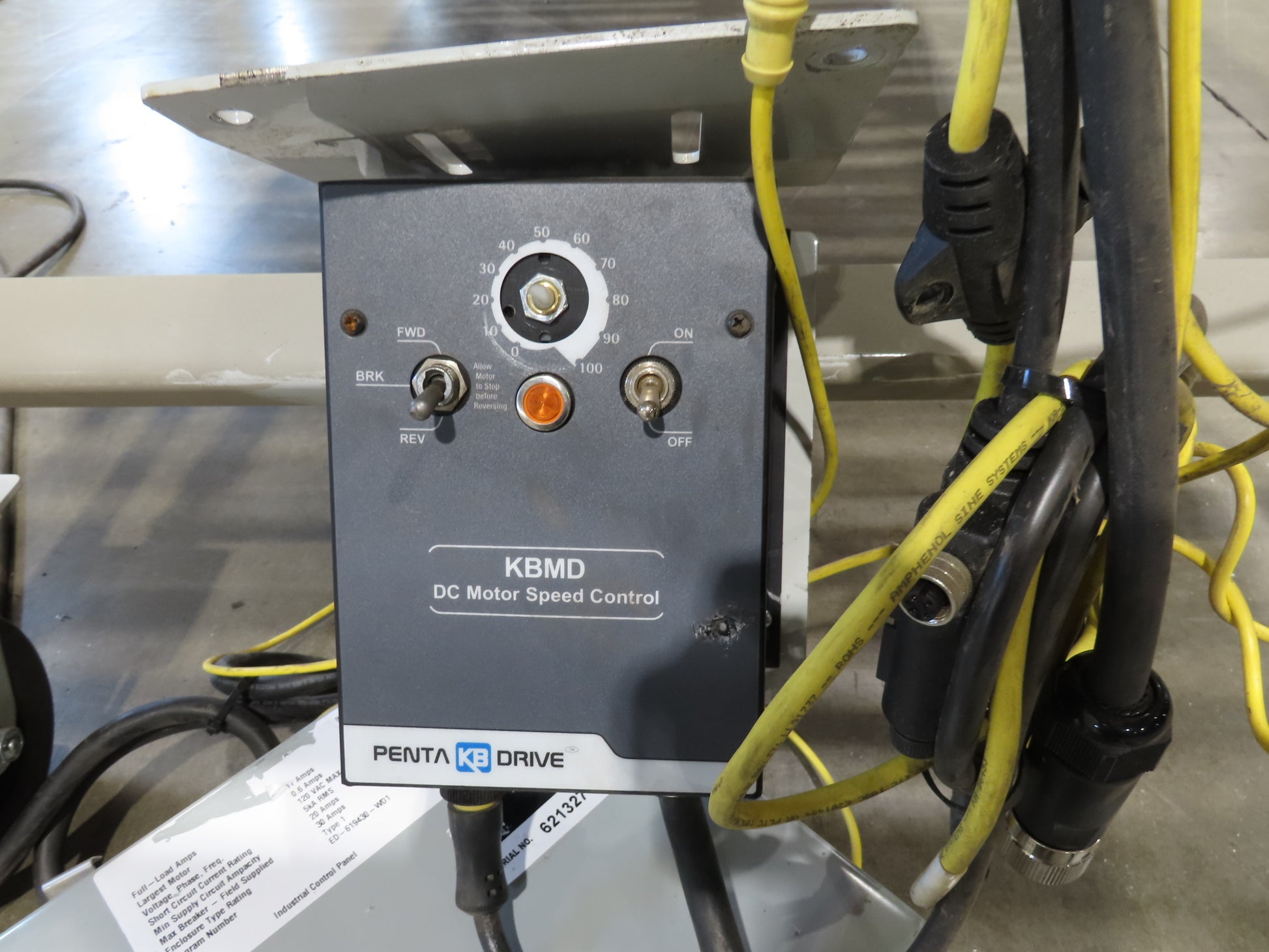

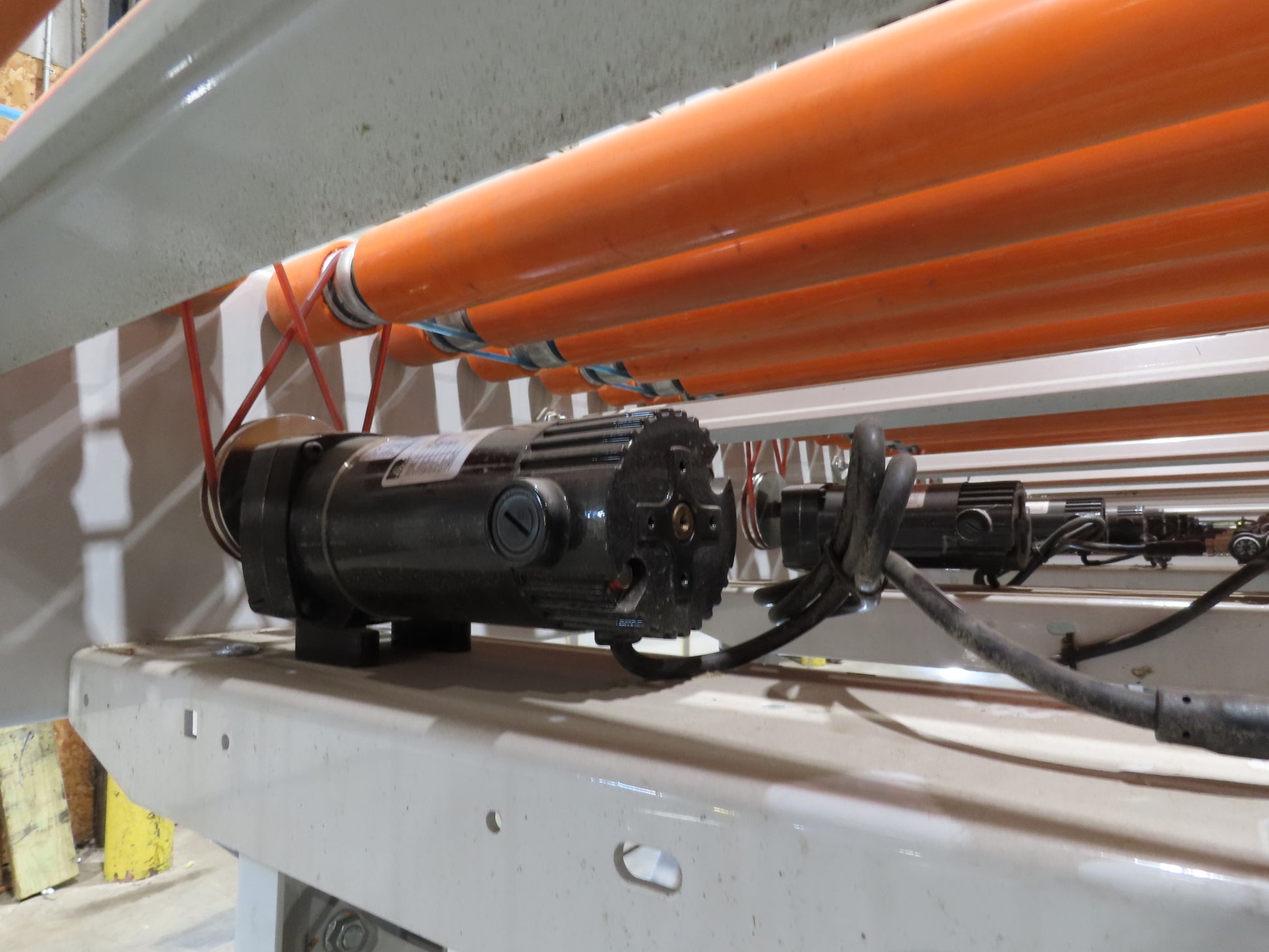

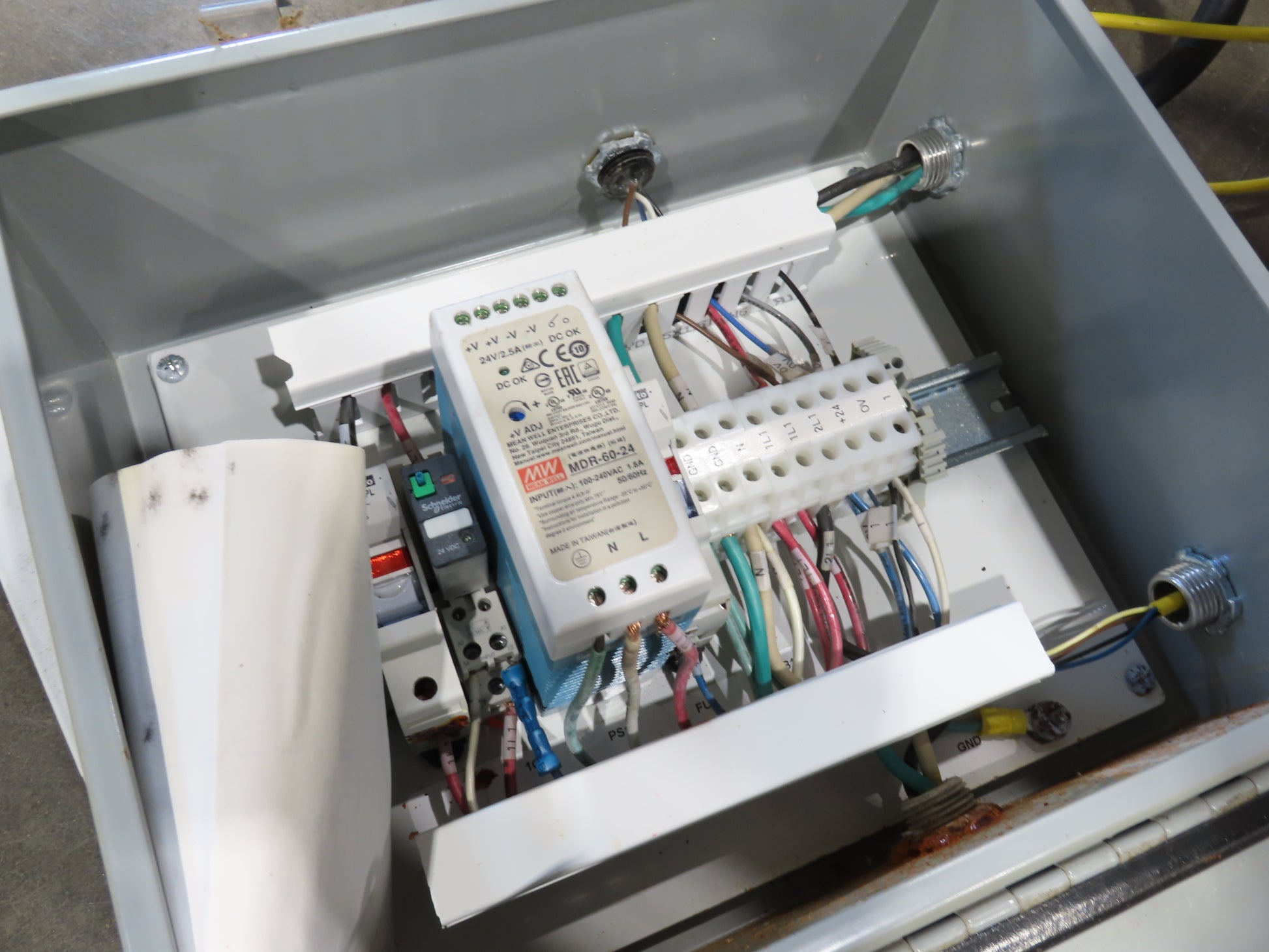

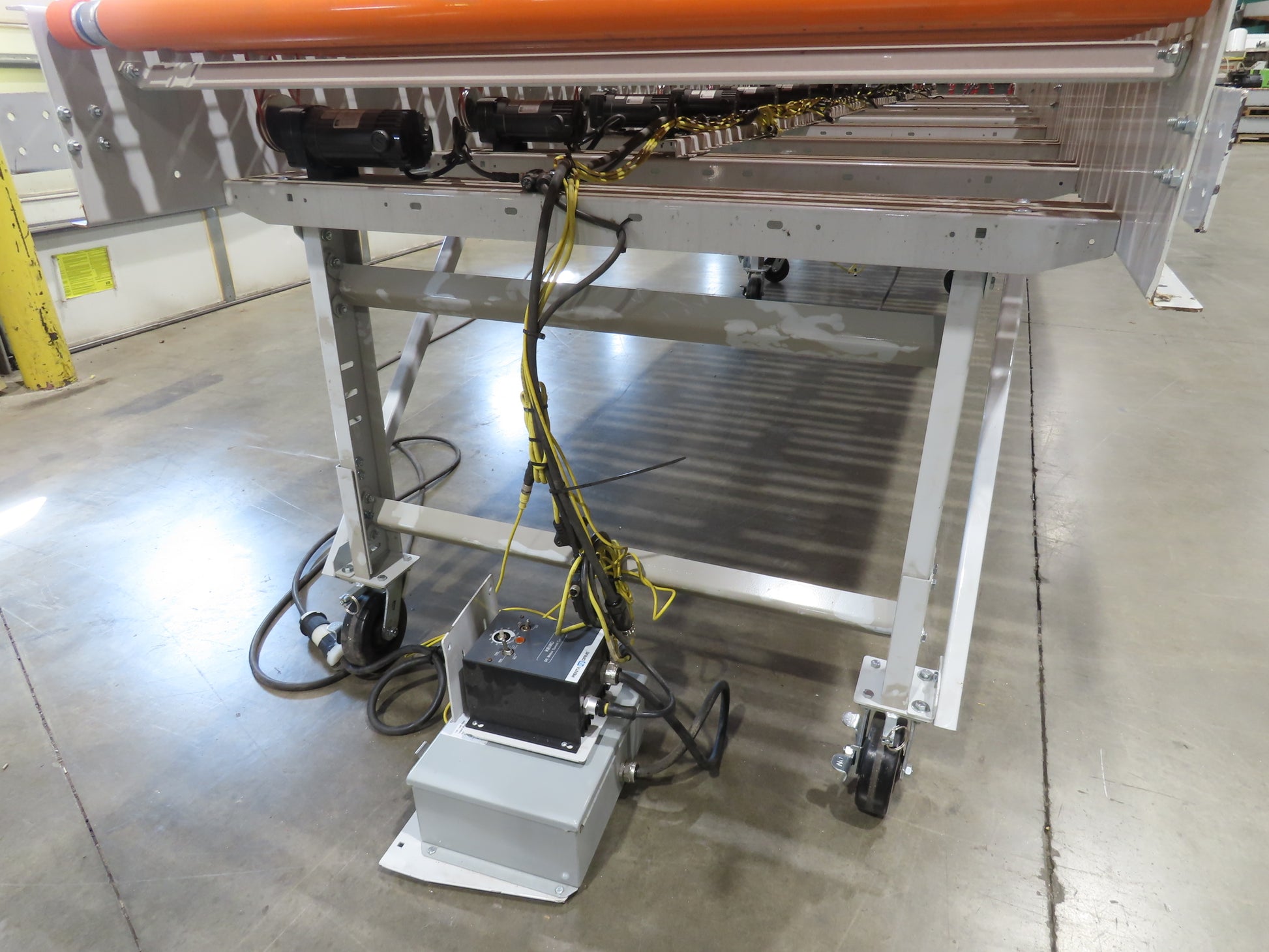

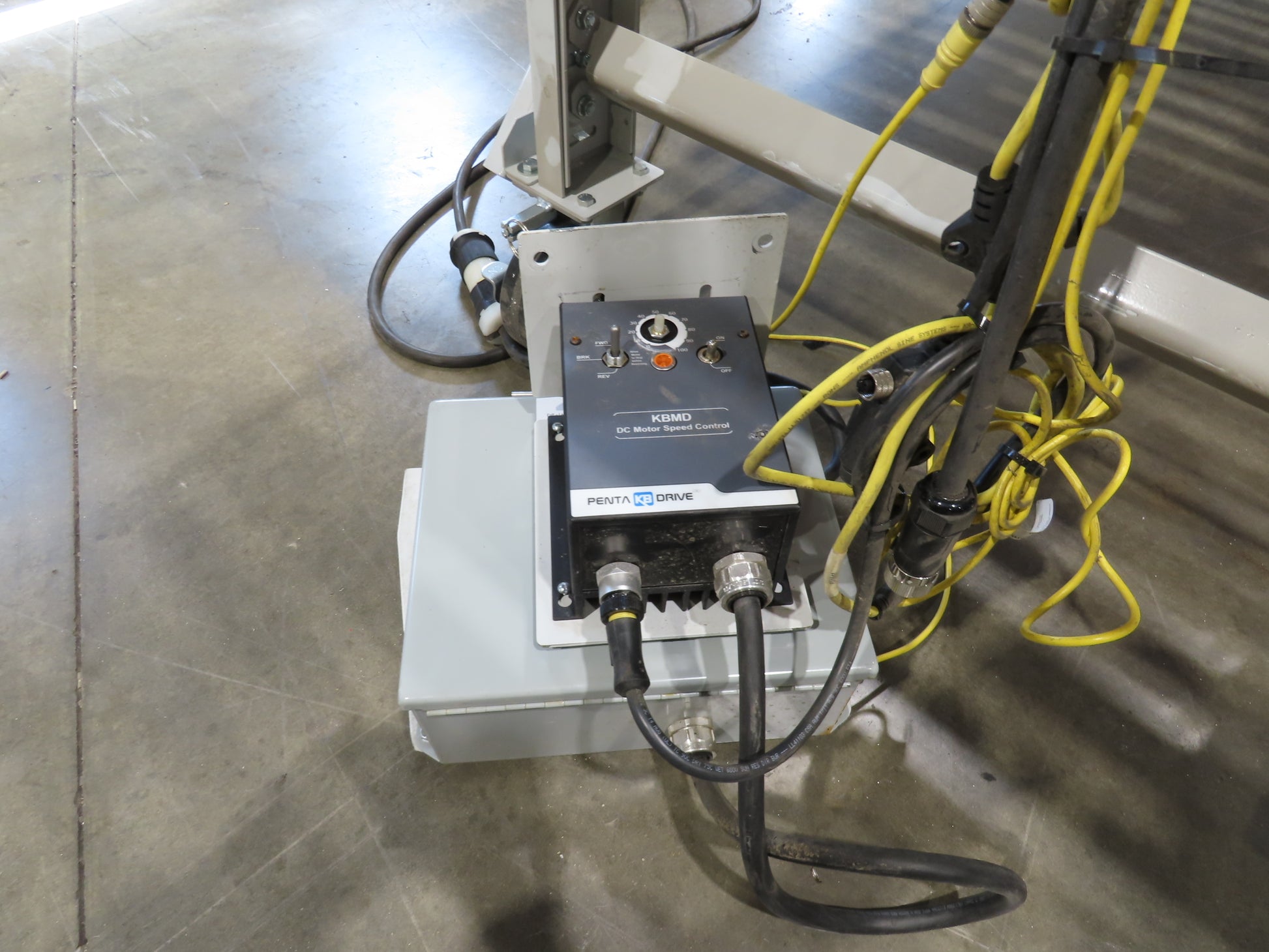

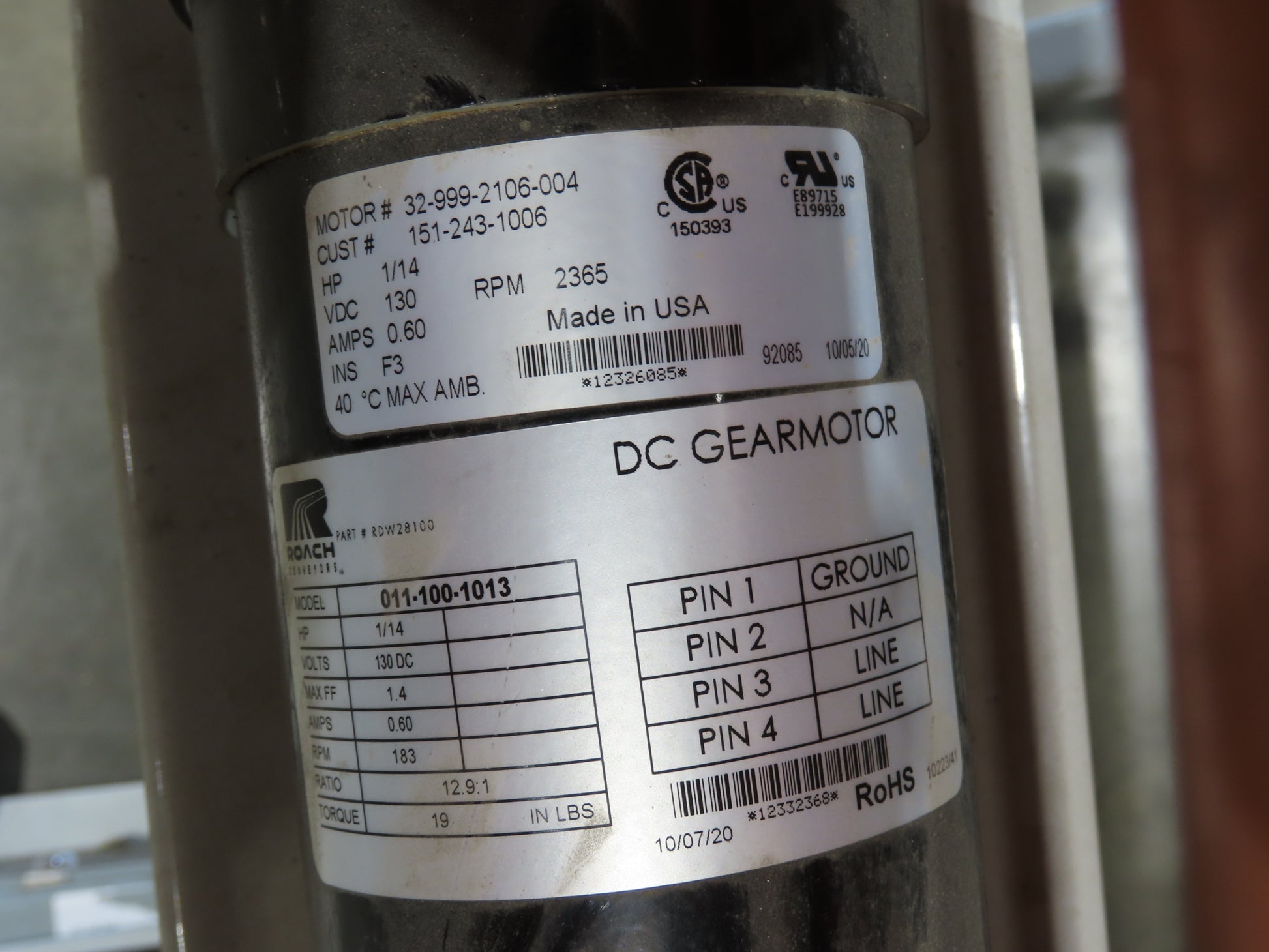

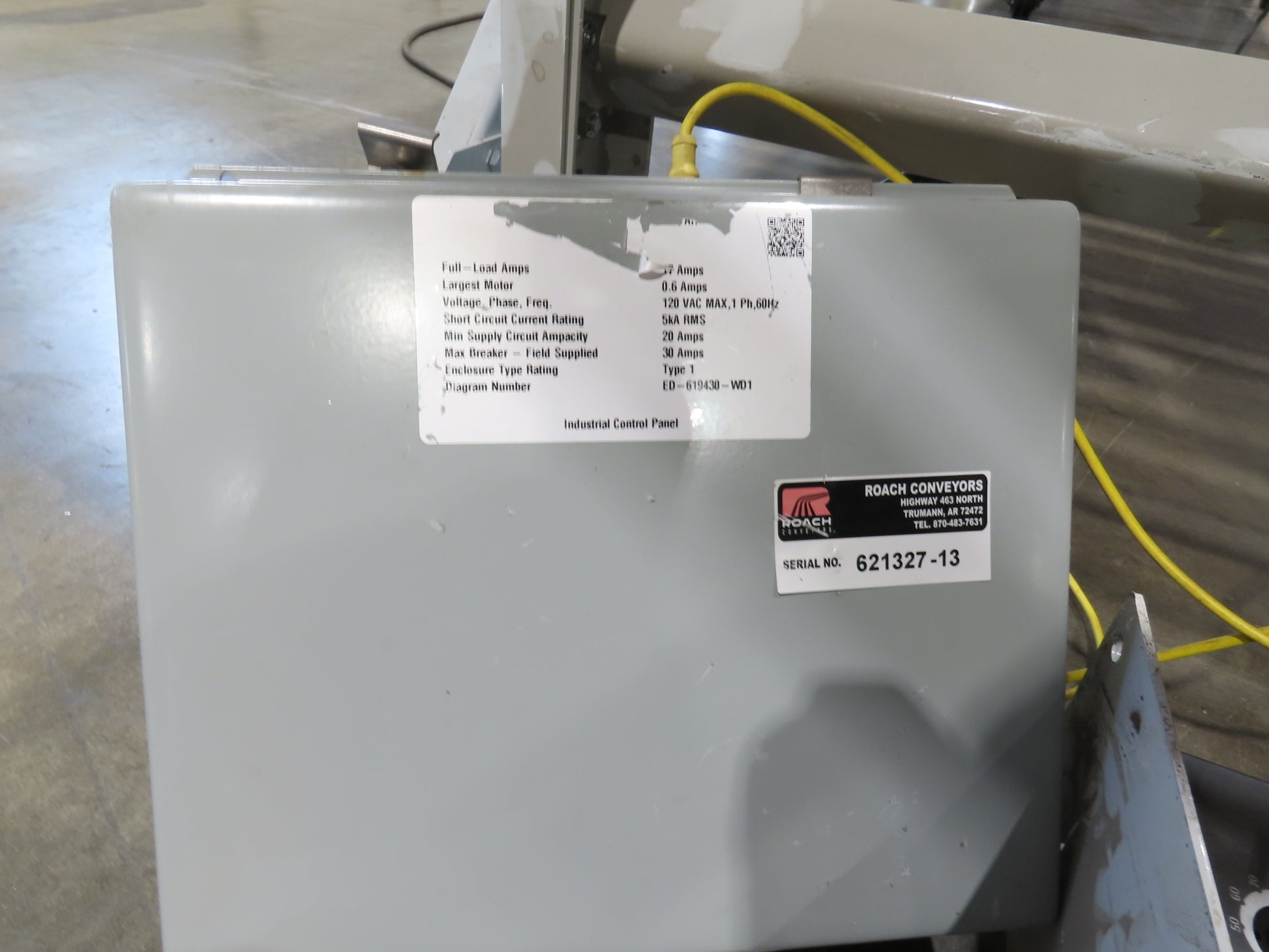

  • Motor & Gearbox: Has a total of (12) 130VDC motors spaces 20" to 24" apart. Wired with a DC variable speed drive with power supply and control panel.
  • Frame Width: 51"
  • Between Frame Width: 48"

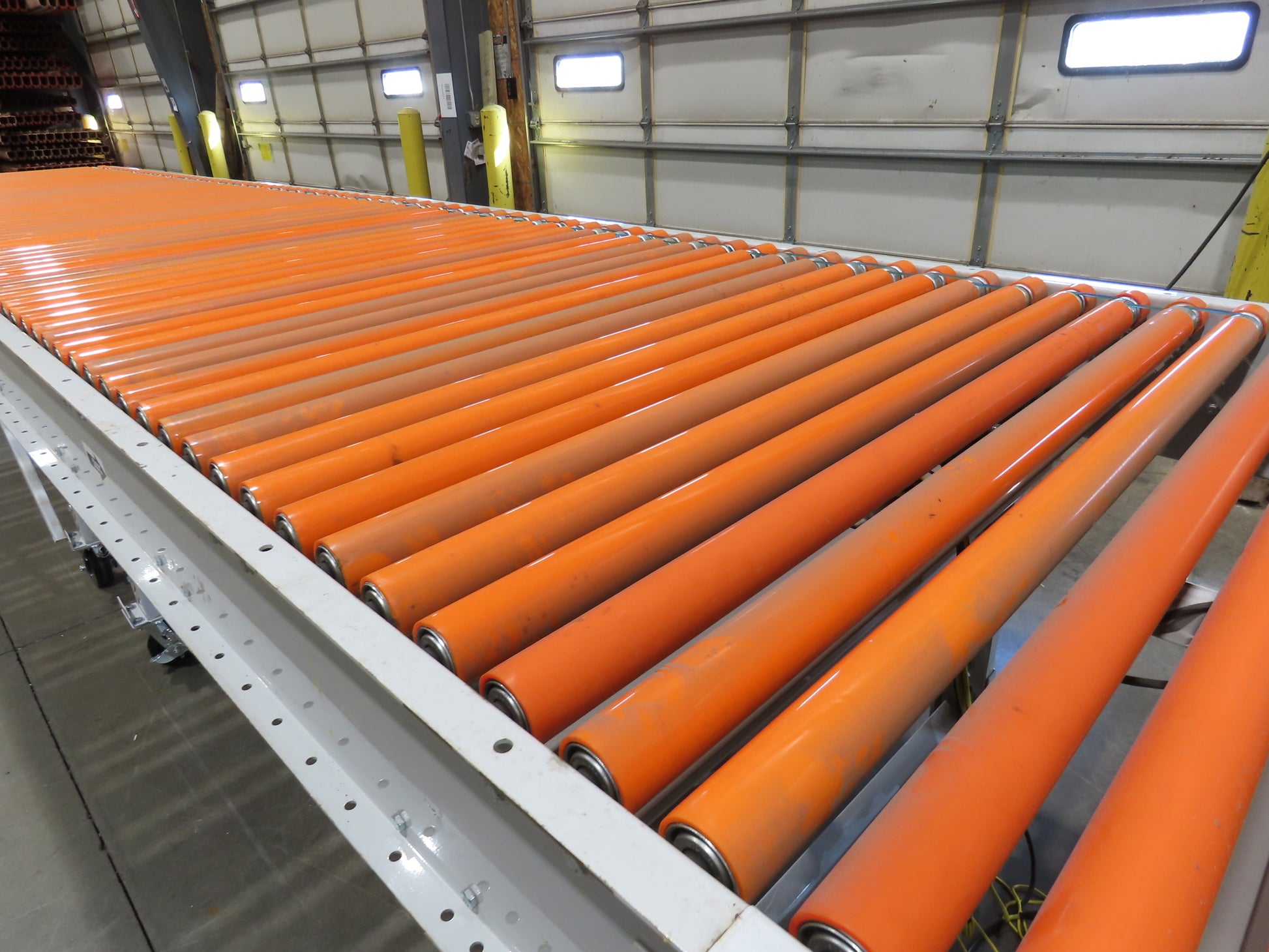

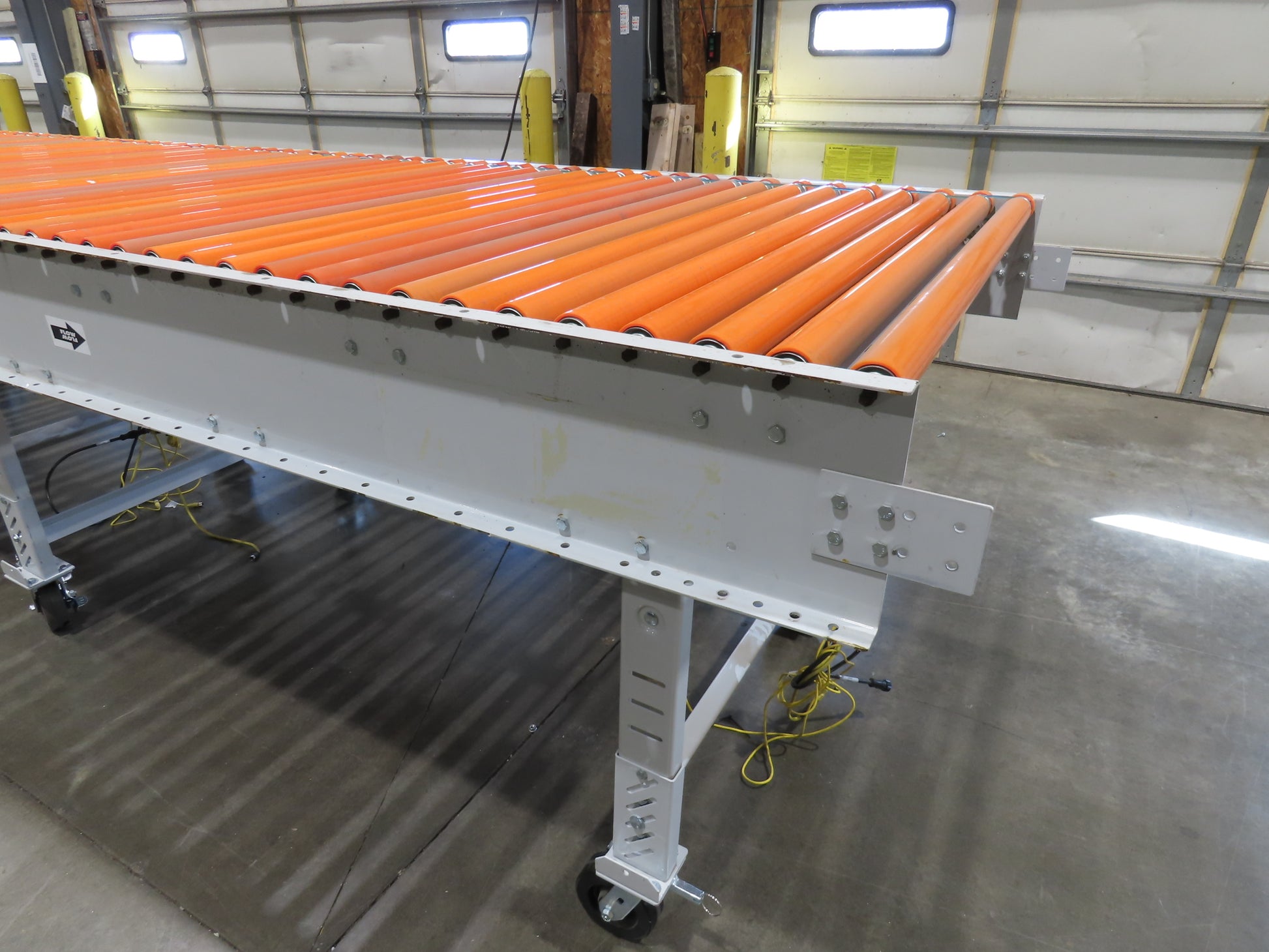

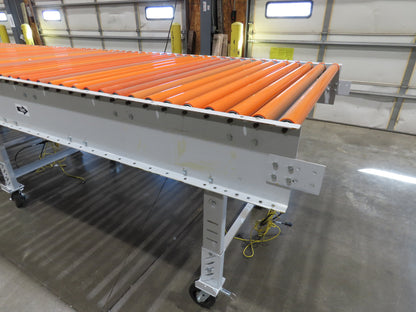

  • Roller Diameter and Spacing (Centers): 1.9" Steel roller with orange poly sleeve. 2.15" Overall Dia. 3" Centers.
  • Roller Axle Size: 7/16"
  • Rollers set high on frame or below frame?: High
  • Roller Speed (Feet per Minute): 0-128 FPM
  • Bed Height (Roller Height from Floor): 44" Minimum to 48-1/2" Max. The caster wheels are 7-1/2"H and easily removeable if you need a lower height.

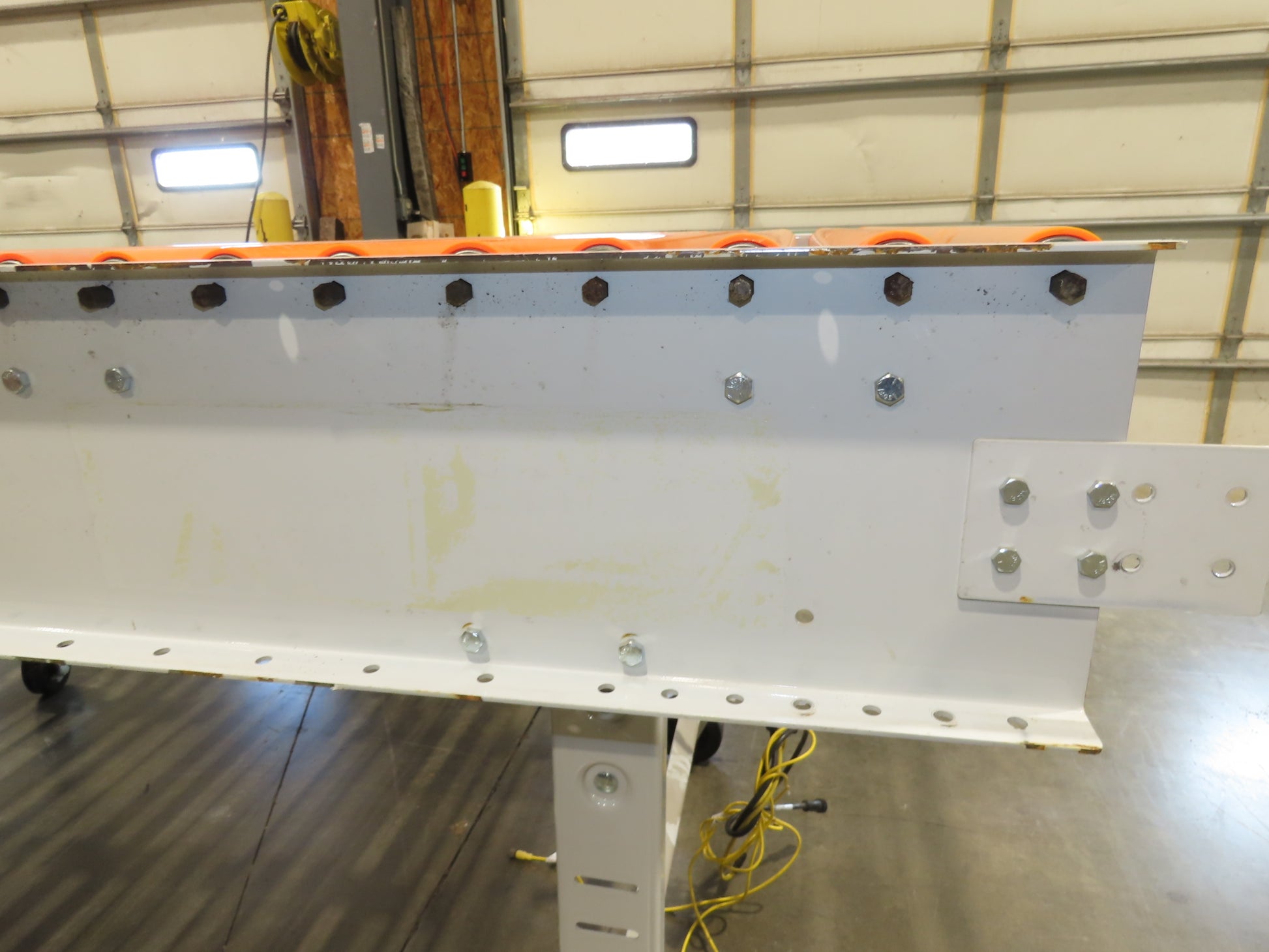

  • Frame Height (Sides): 10"
  • Overall Length: 26' 9"
