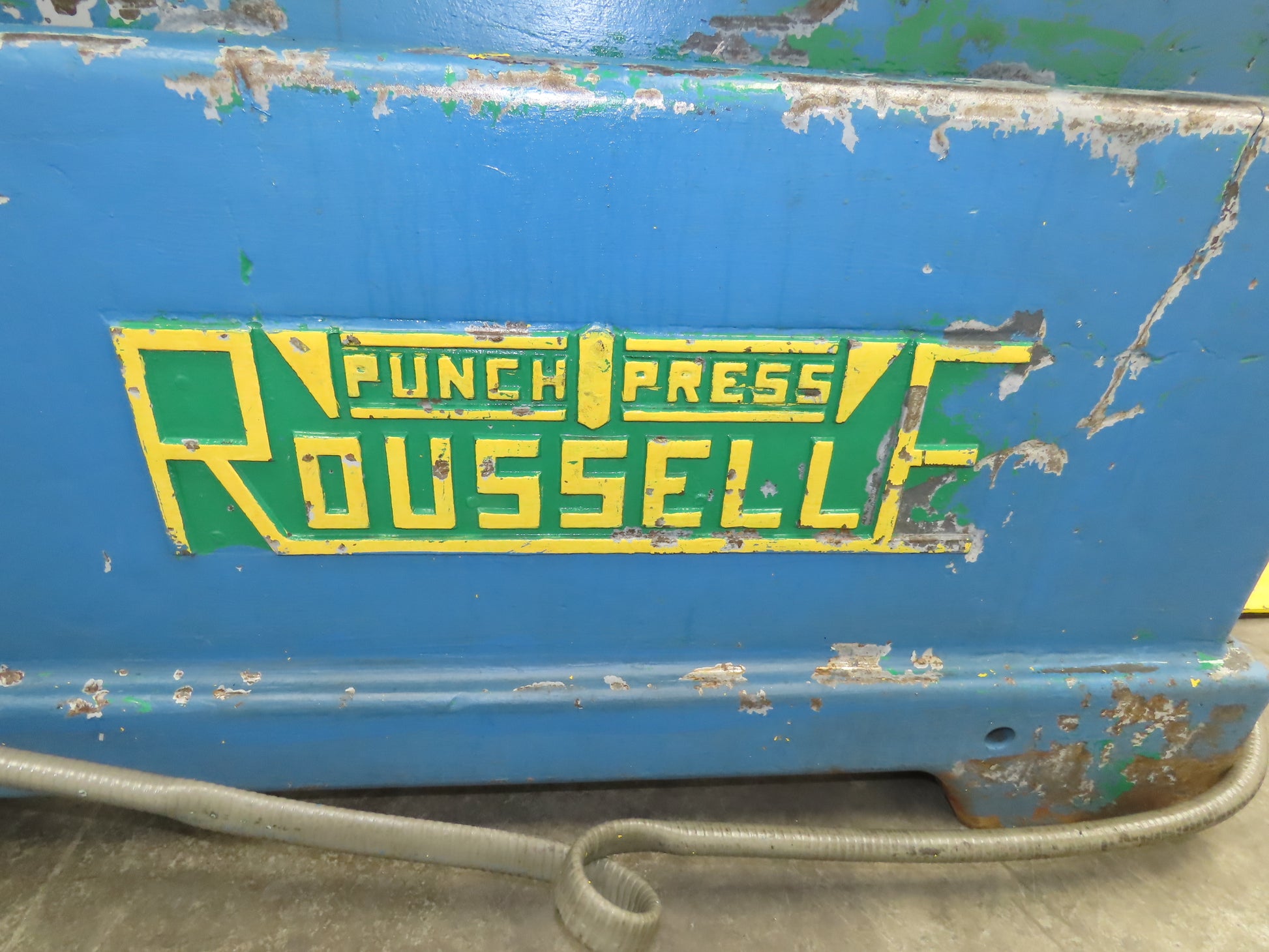

Rousselle

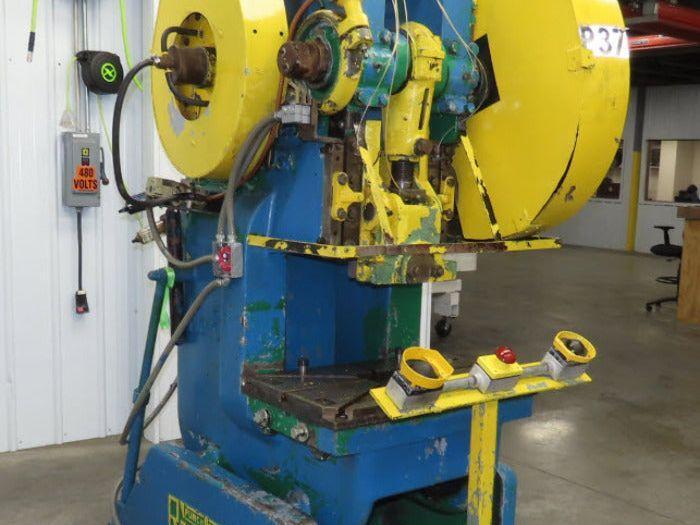

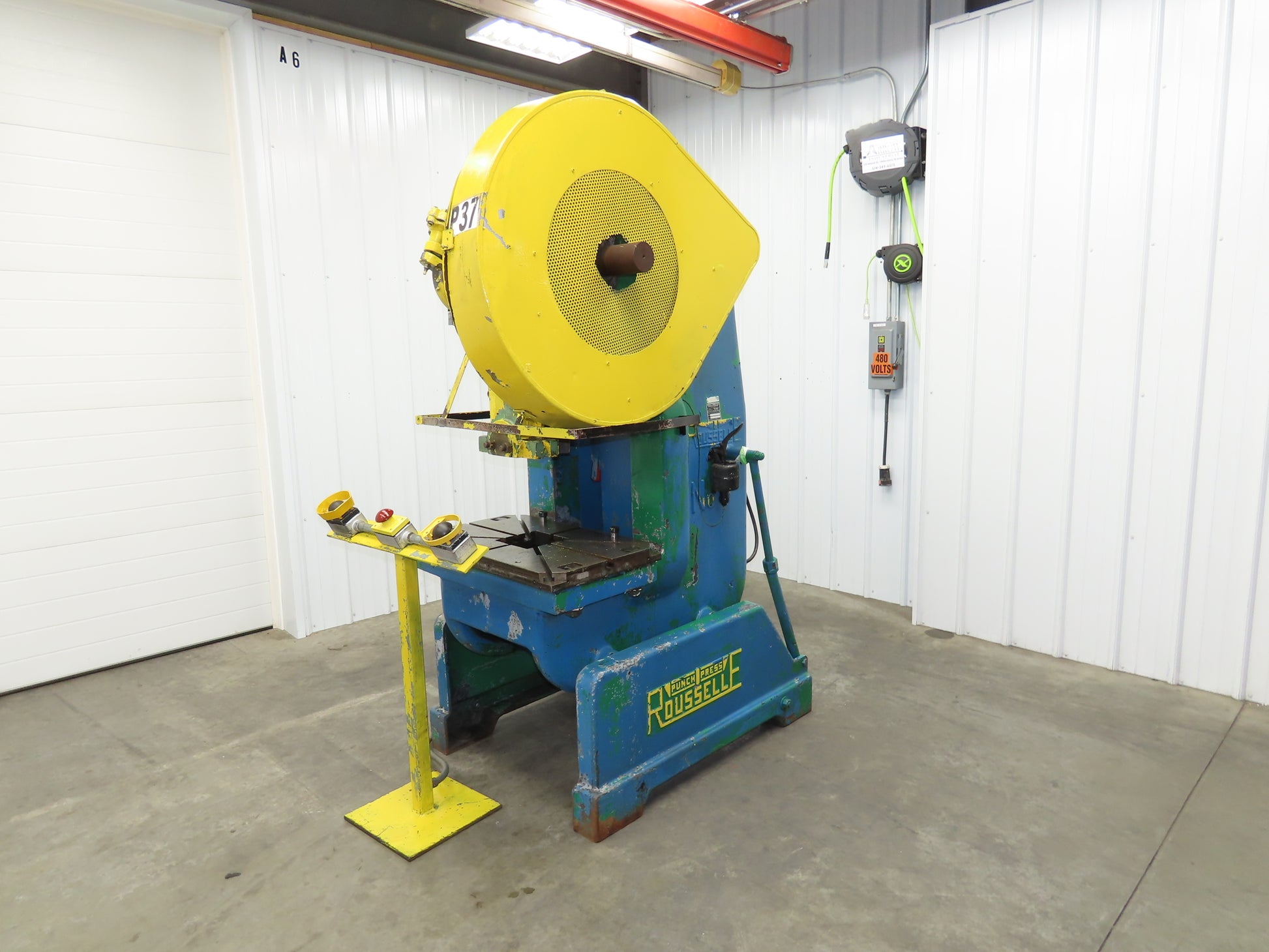

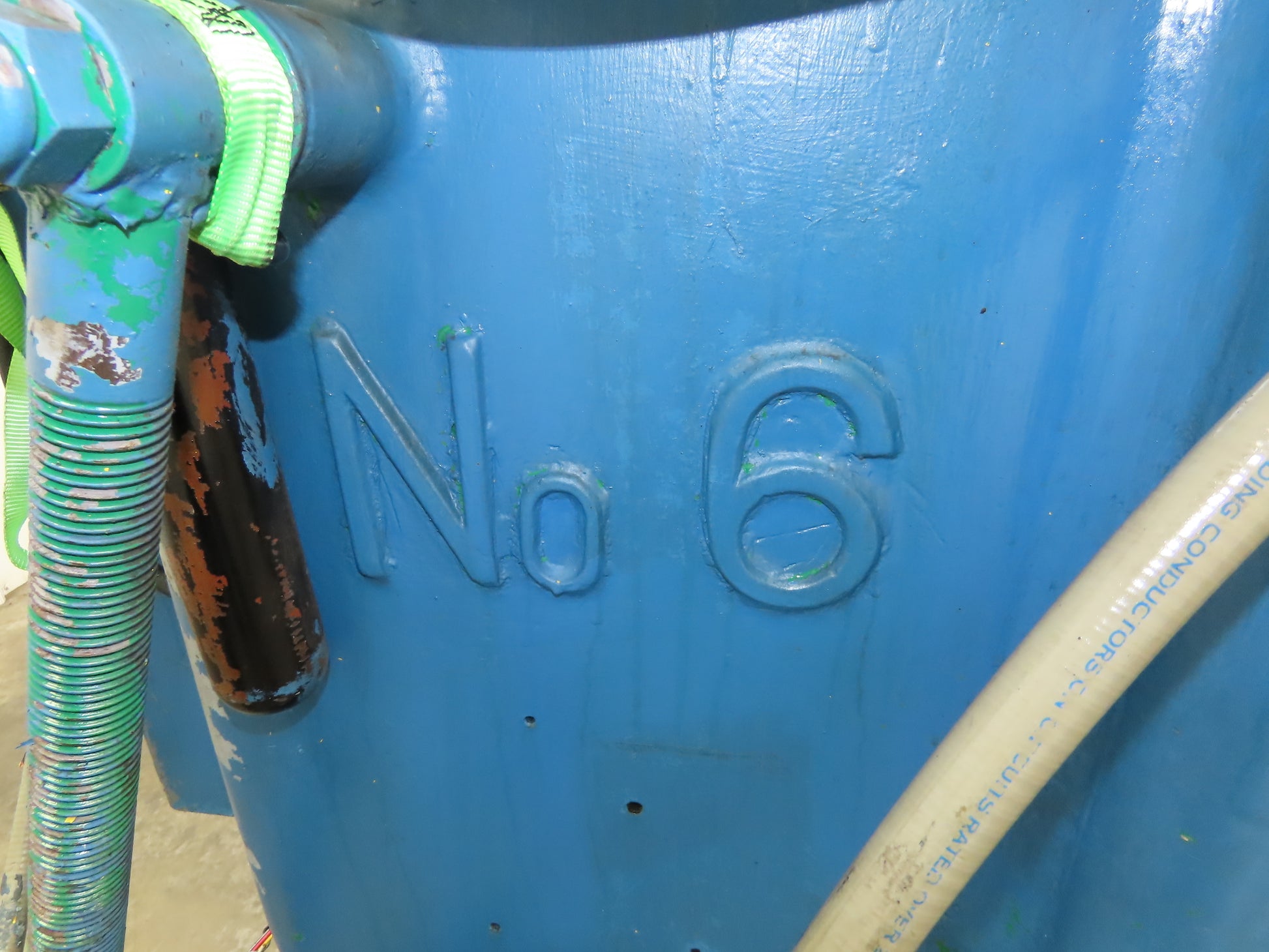

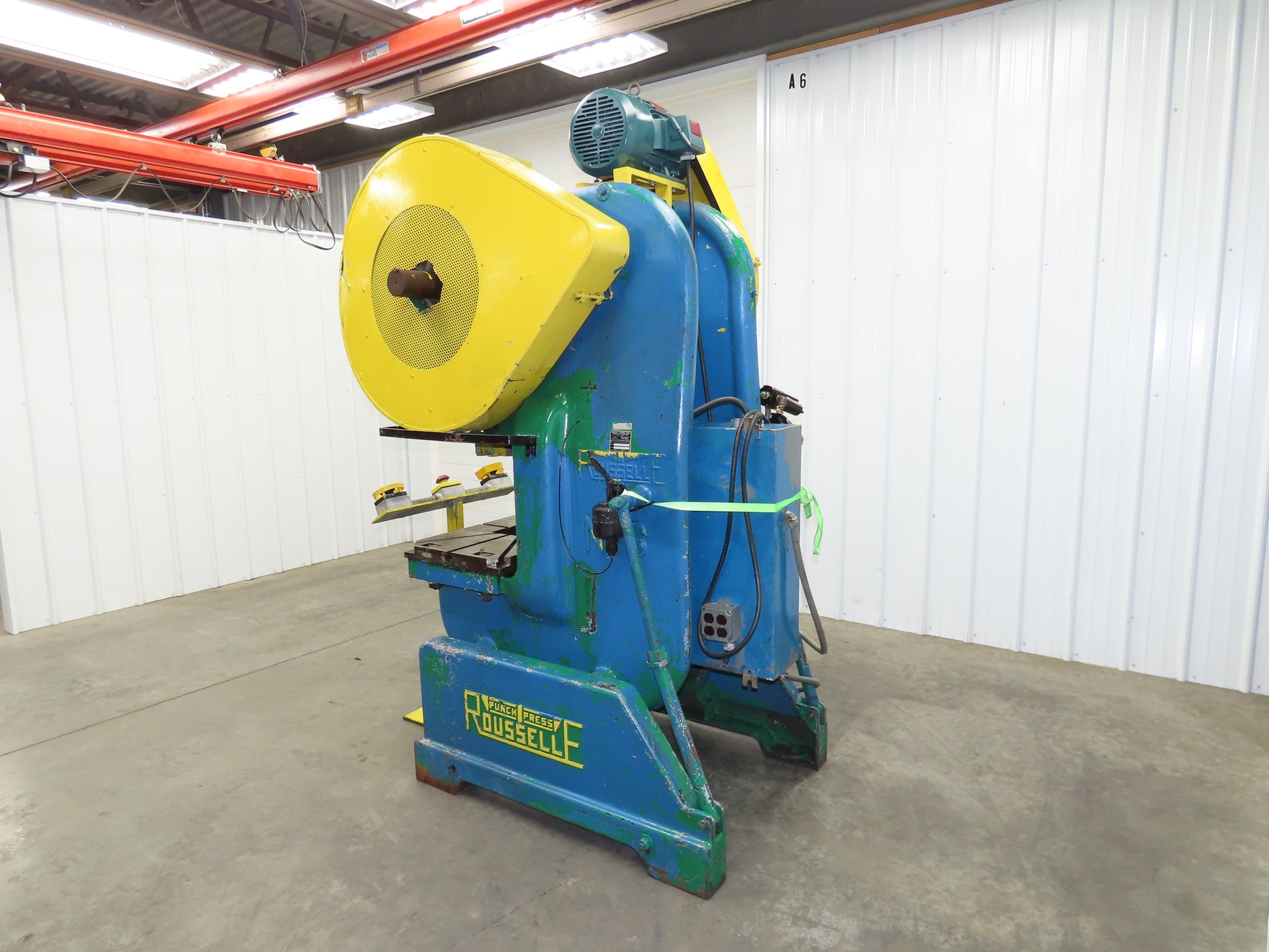

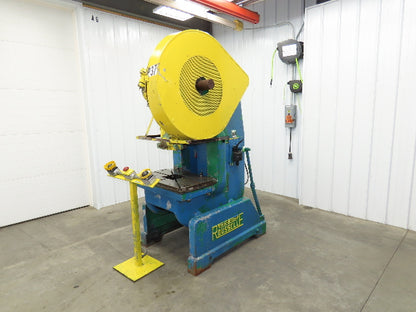

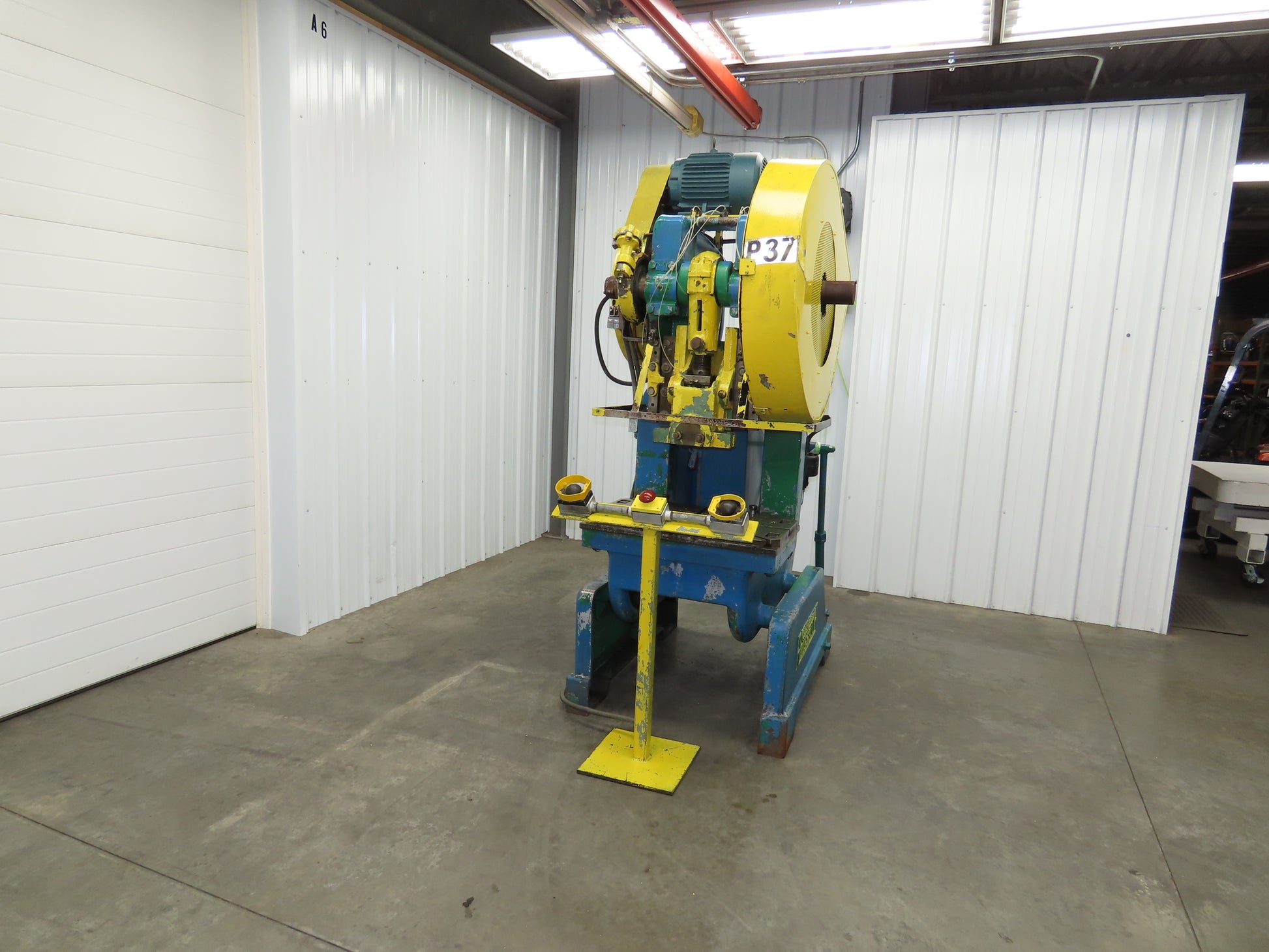

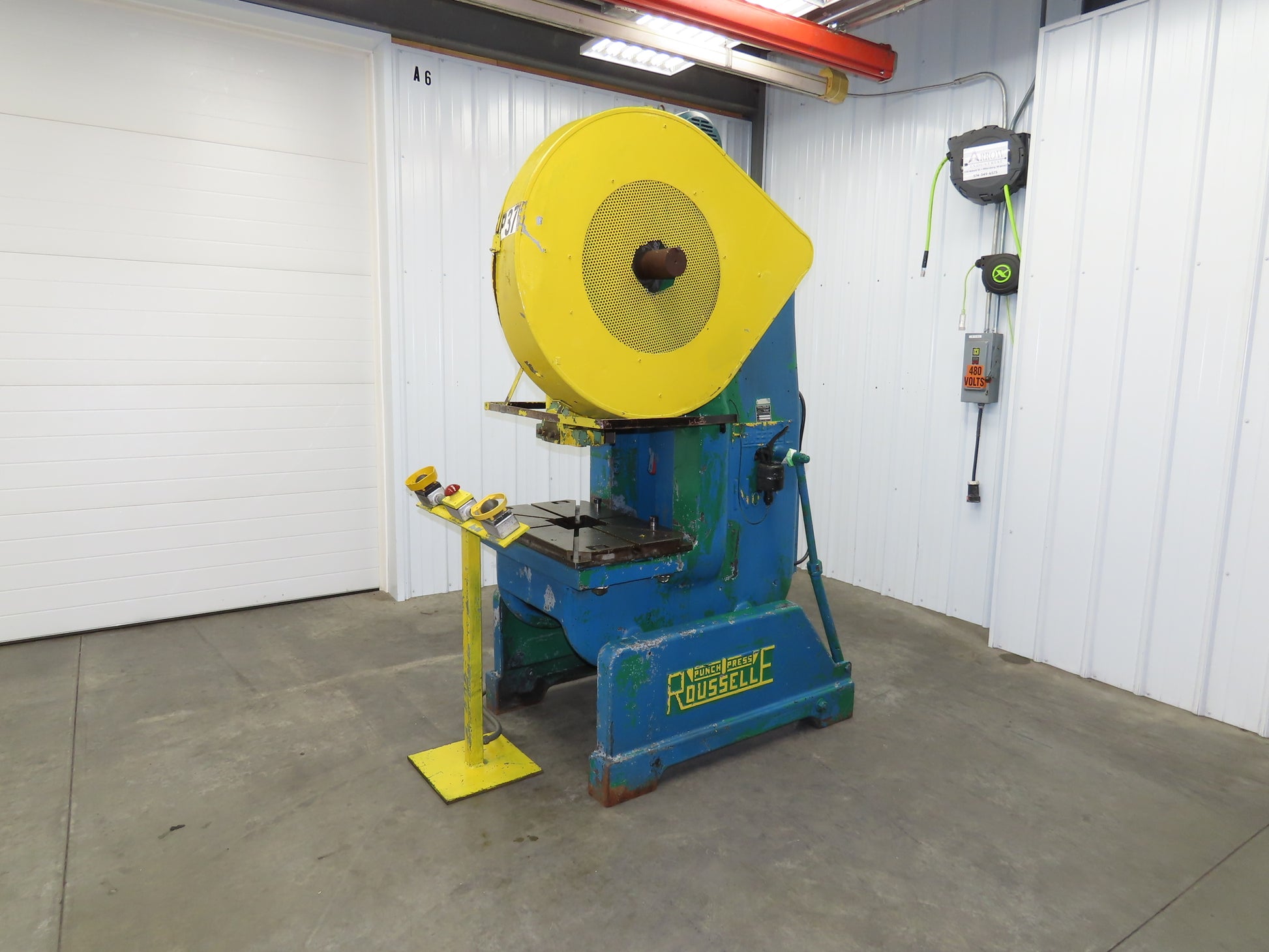

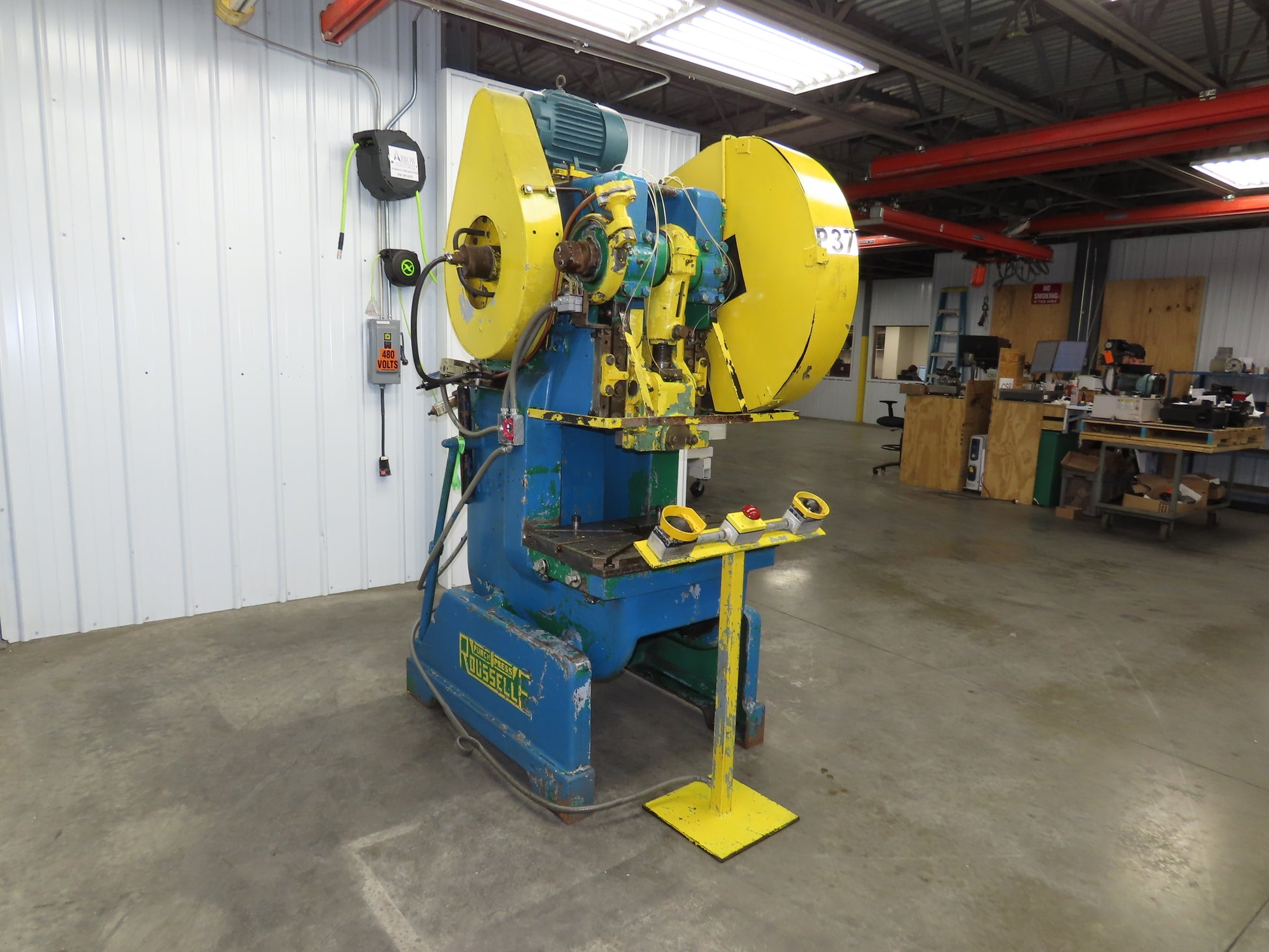

Rousselle 6 Mechanical OBI Punch Press 60 Ton 18"x 30" Bed 3" Stroke 12" Throat

Rousselle 6 Mechanical OBI Punch Press 60 Ton 18"x 30" Bed 3" Stroke 12" Throat

SKU #292471

Your Price
$4,274.99
$4,499.99 $4,274.99
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • HP: 3
  • Voltage: 230/460
  • Press Rating Ton: 60
  • Stroke (inches): 3

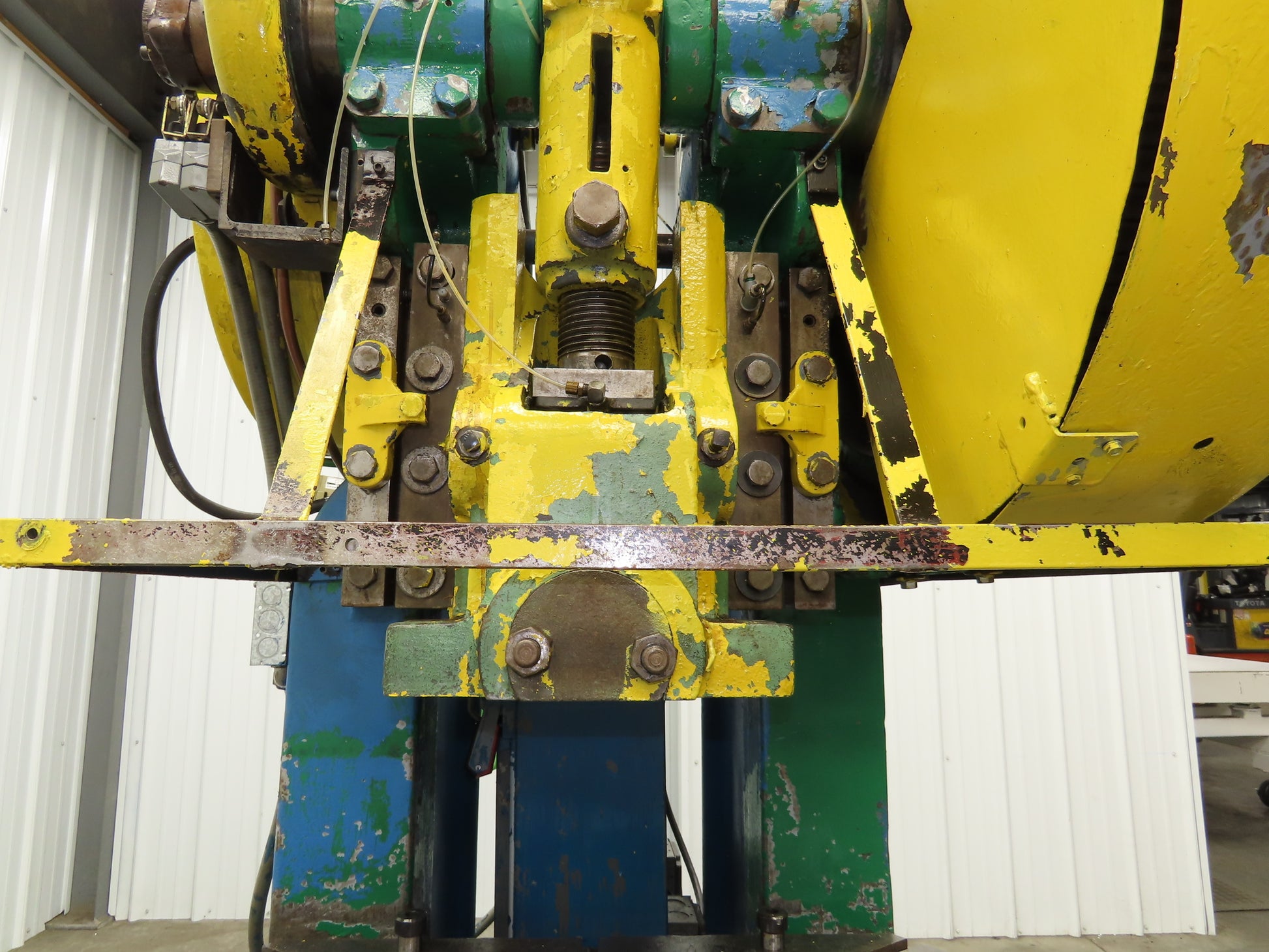

  • Ram Open Height w/adjustment up (Inches): 15-1/2
  • Ram Shut Height w/Adjustment up (Inches): 12-1/2
  • Ram Adjustment Length (Inches): 4

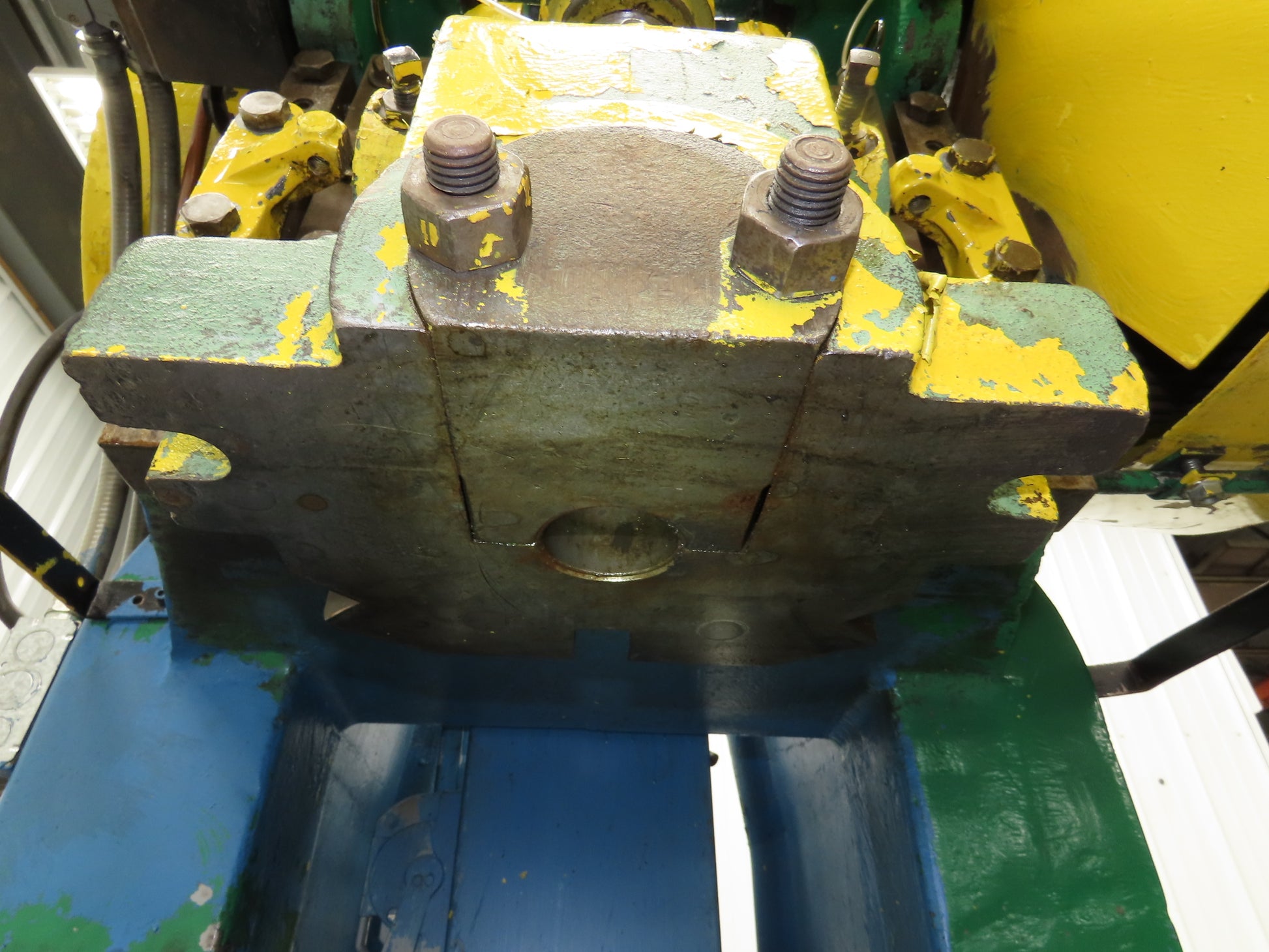

  • Ram Die Shank Size (Inches): 1-7/8
  • Ram Die Shank Length (Inches): 6-1/4
  • Ram Bolt Distance (Center to Center) (Inches): 11
  • Throat Opening (Frame to Center of Ram) (Inches): 12
  • Bed Size (Inches): 18 x 30
  • Bed Opening (Inches): 13 x 16
  • Unit is mechanically Tested. In good used condition.
  • This unit will need new controls. Older dated wiring that we were not able to get to work.

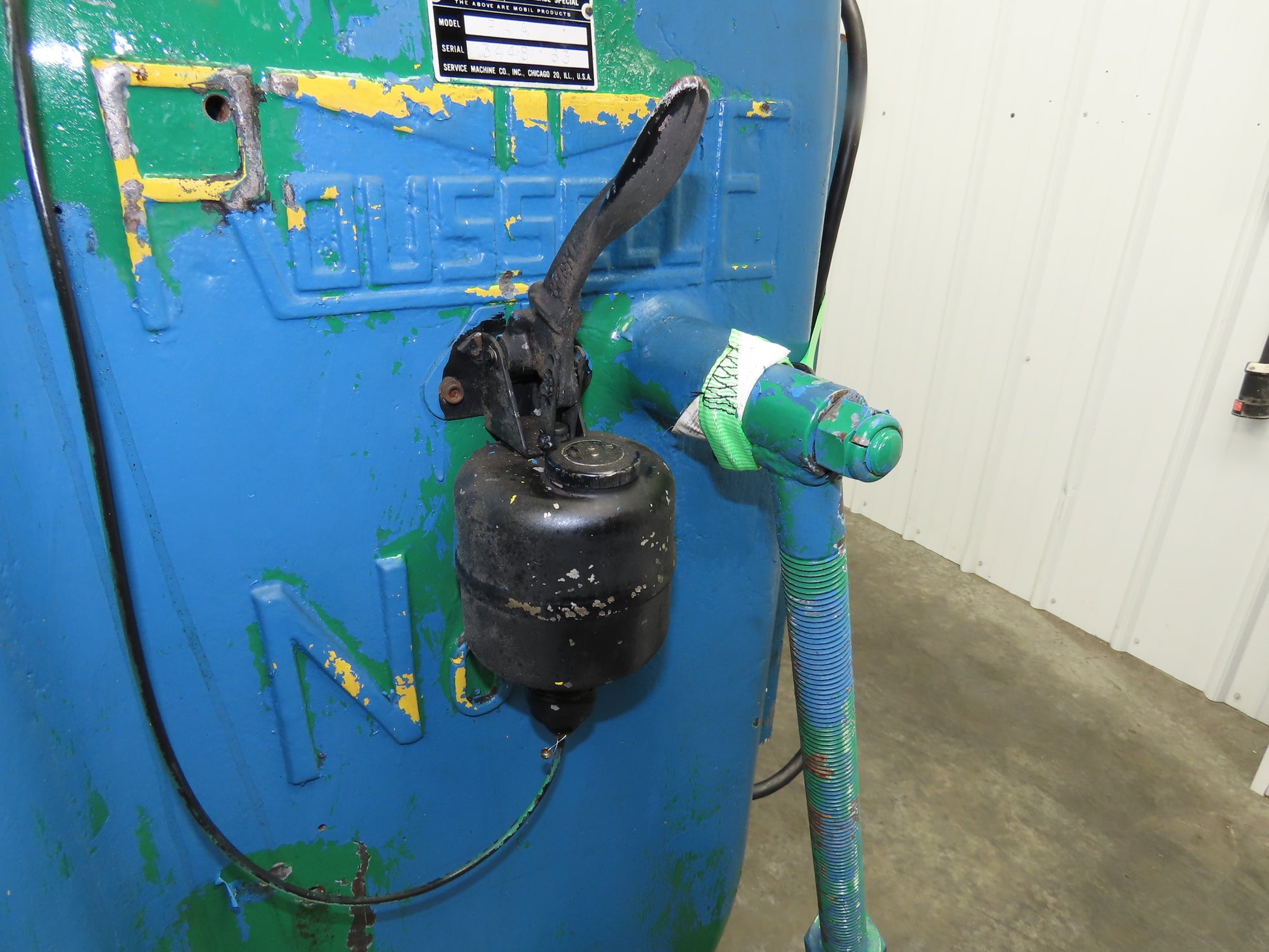

  • Central oiler lines need work. Not complete.

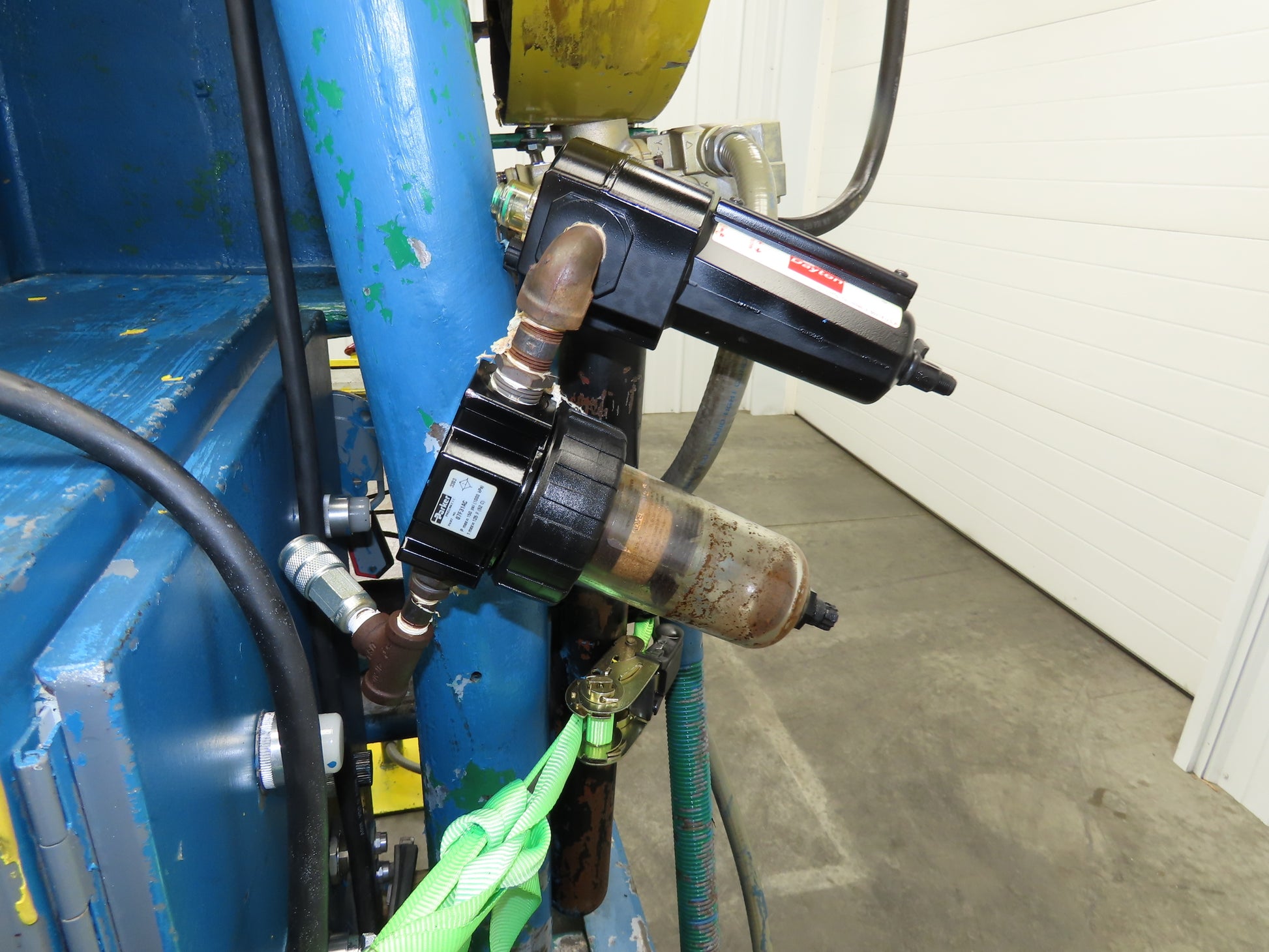

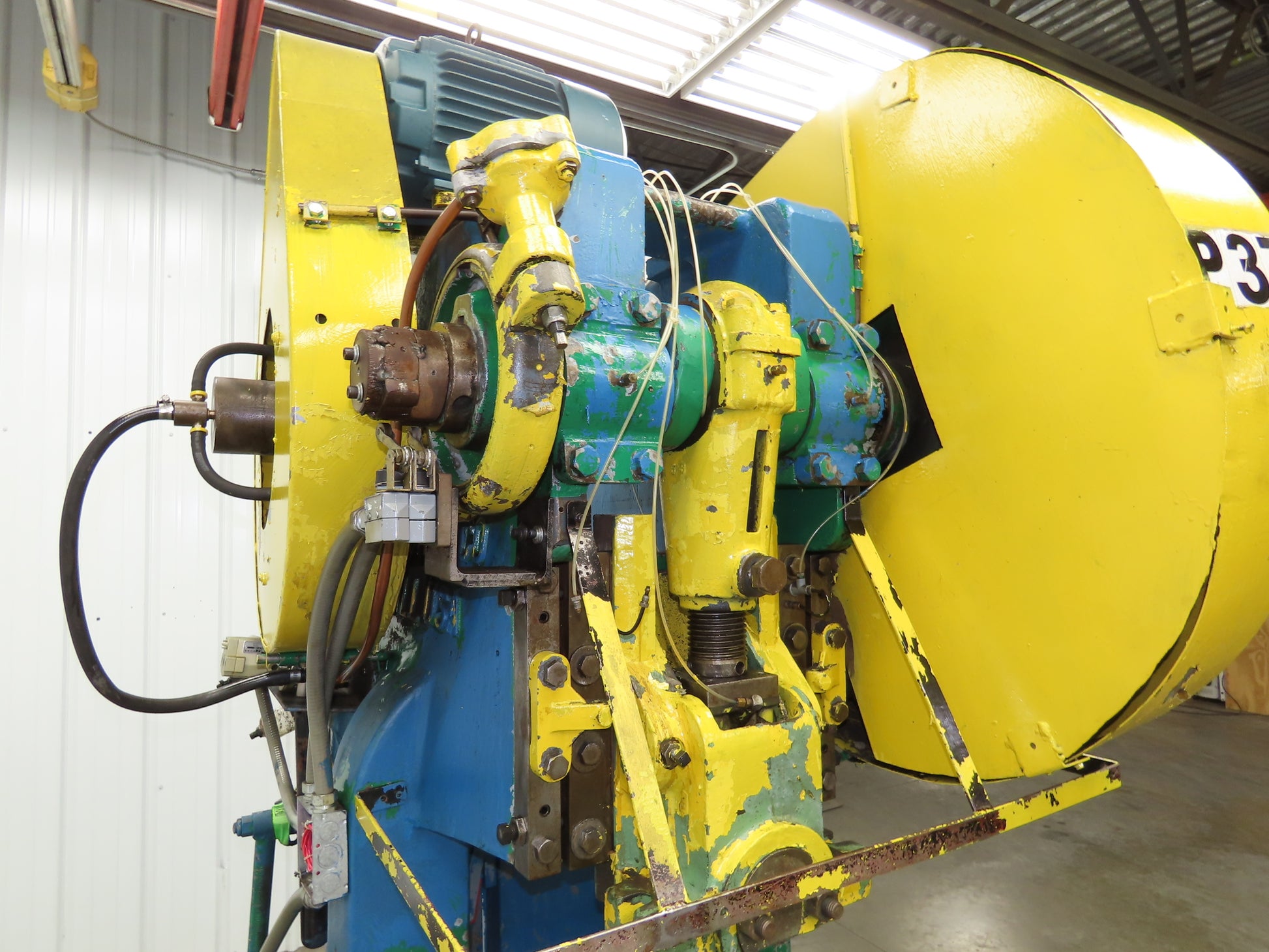

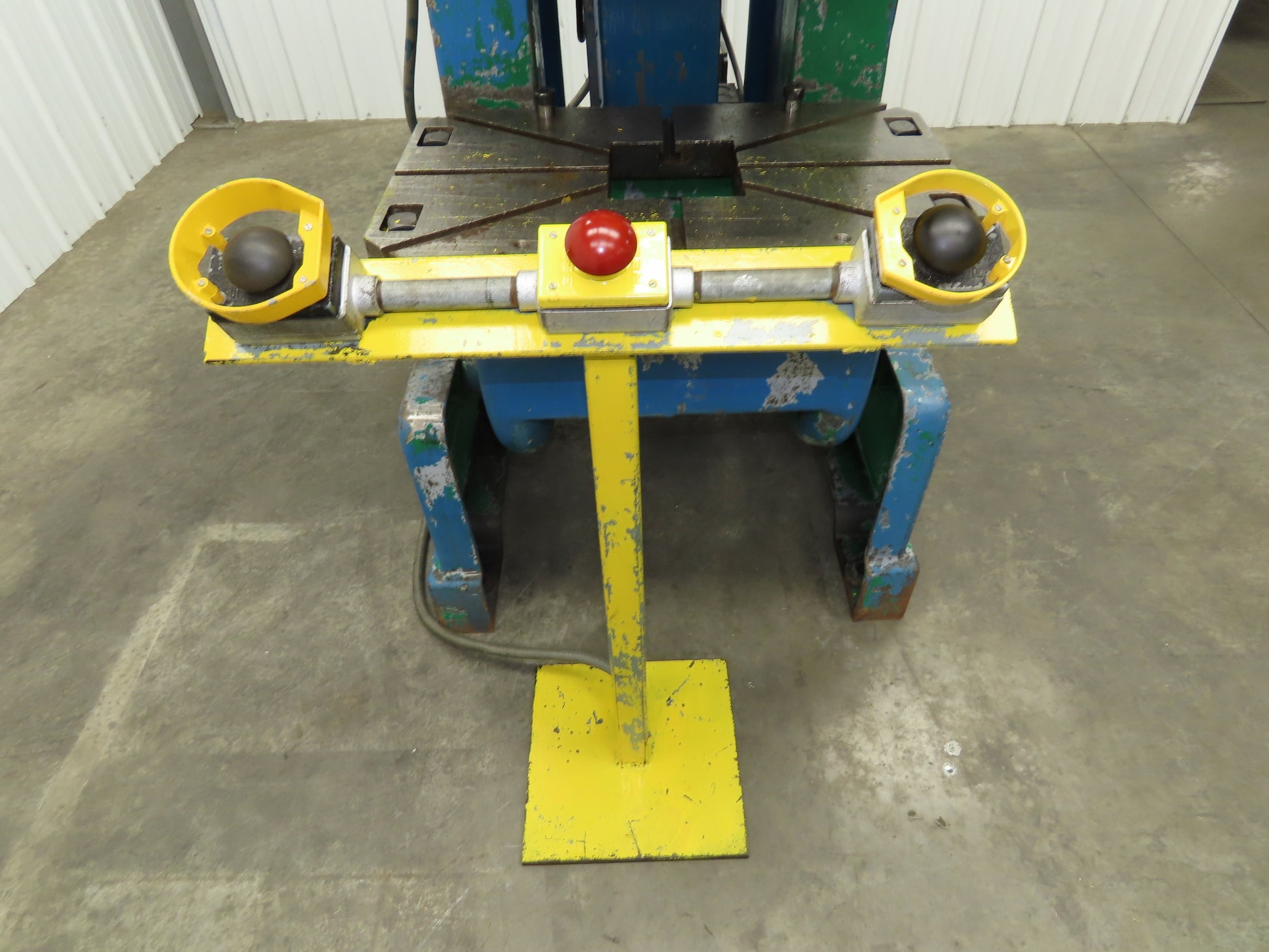

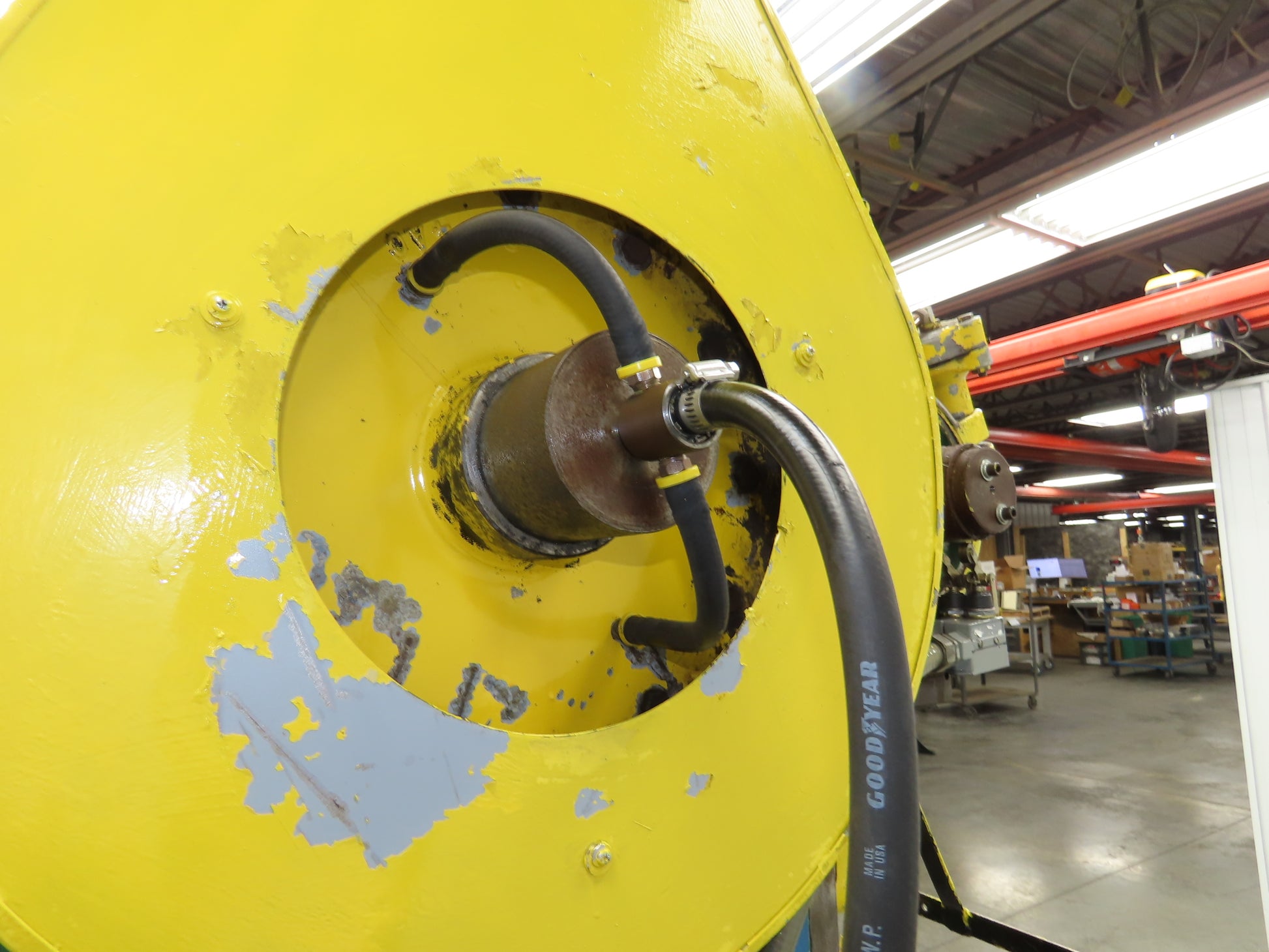

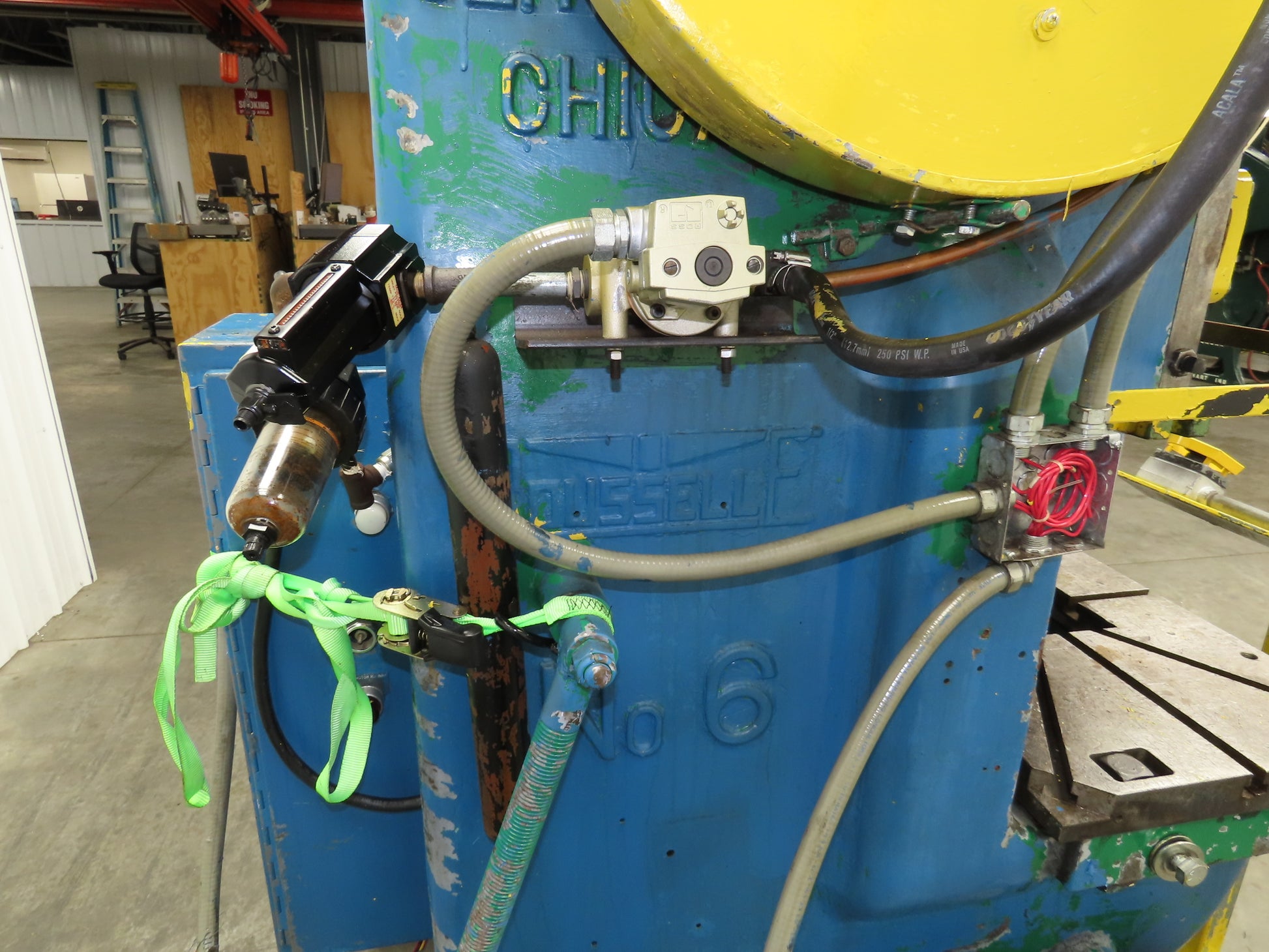

  • Pneumatic air clutch. This can stop in any position. Currently this is just manually operated.

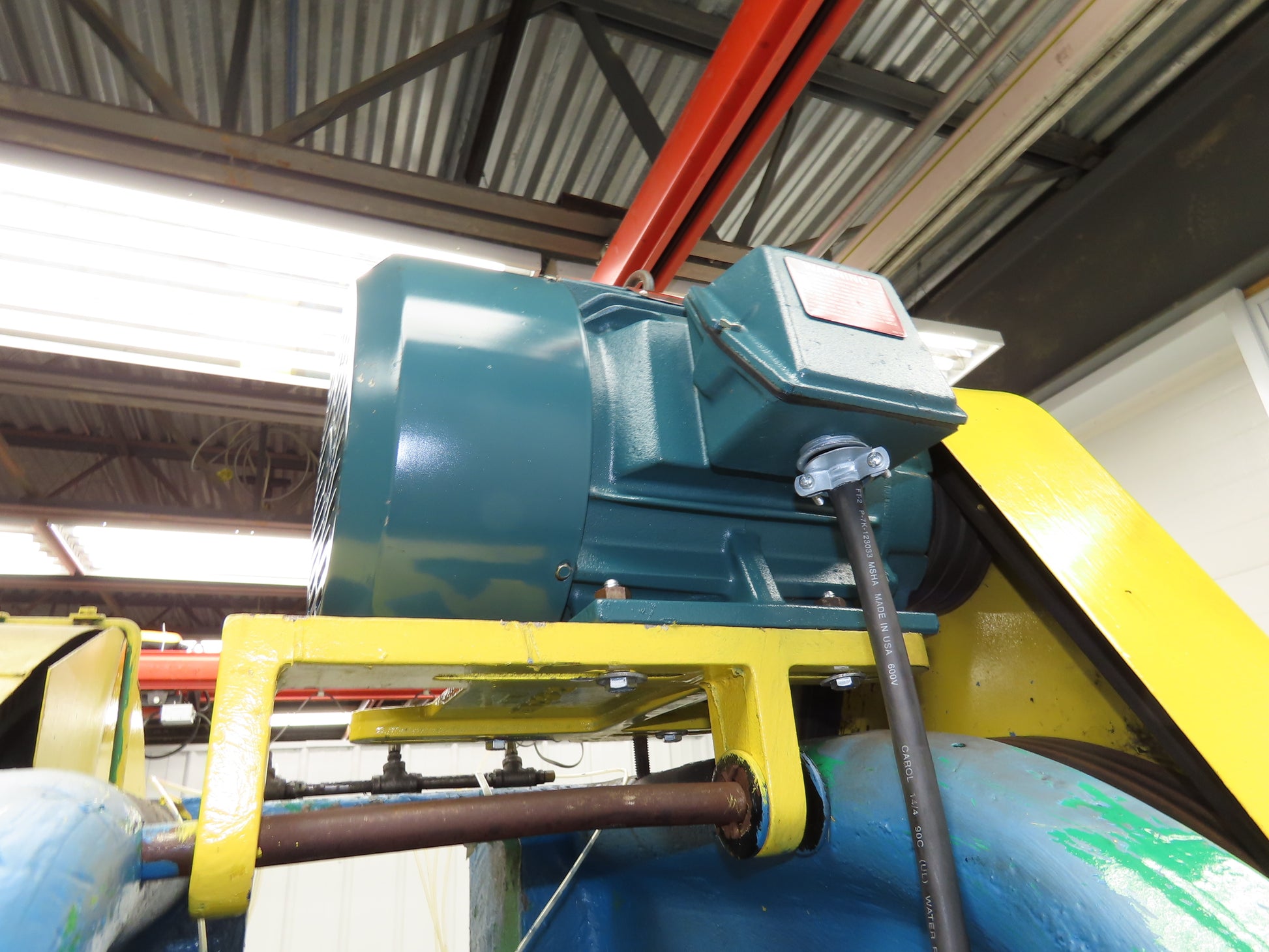

  • 3 hp motor
  • 230/460 volt three phase Wired for 460V

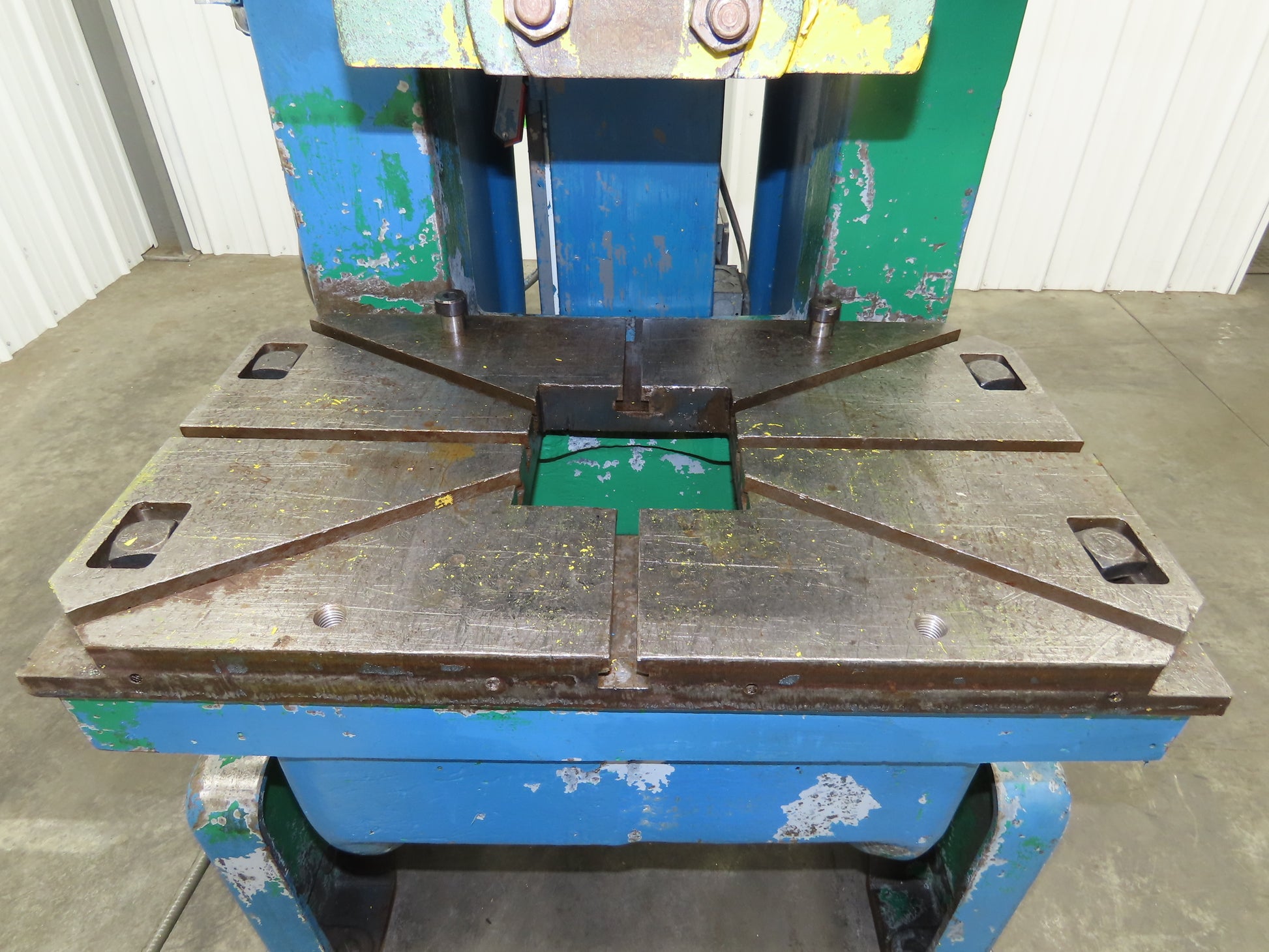

  • The bed has a 2" plate with T slots.
