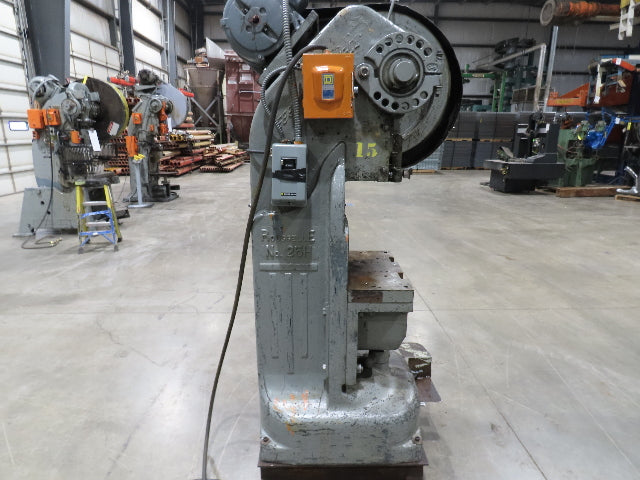

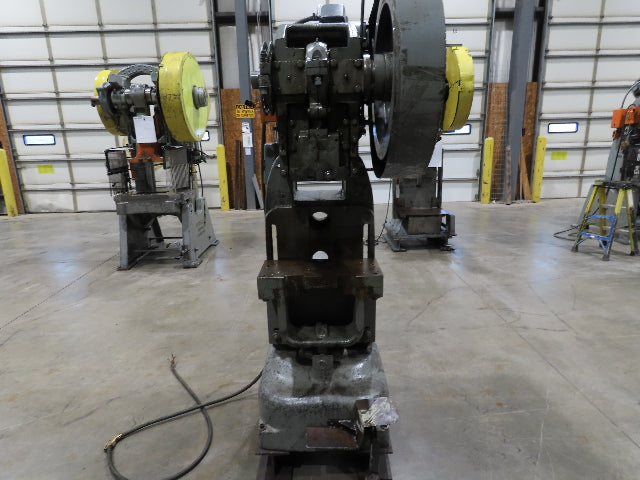

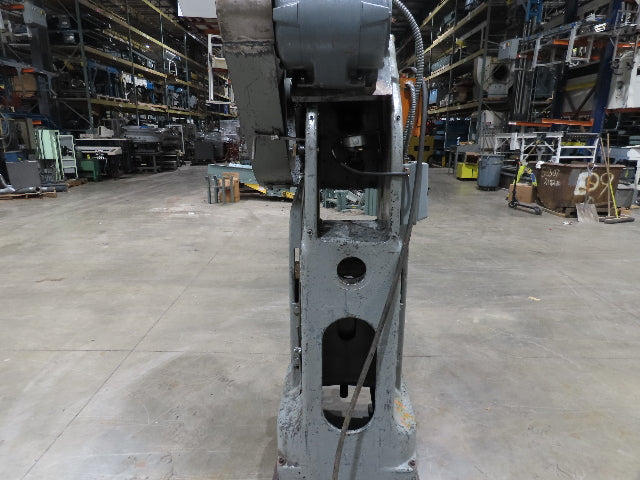

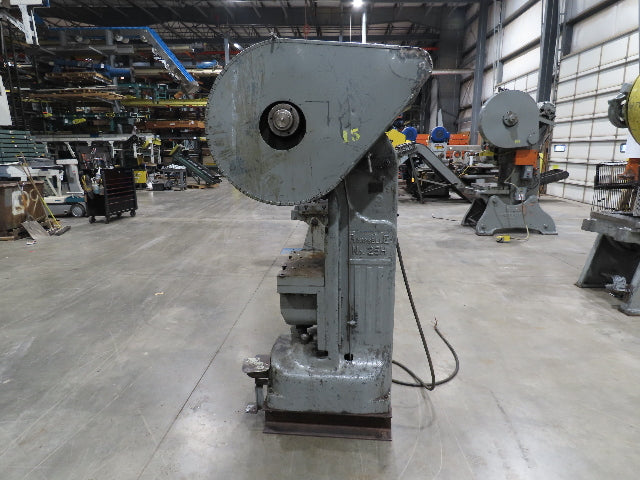

Rousselle No 25H Ton Mechanical Horn Punch Press 2" Stroke 6.5" Throat 3 Hp 3Ph

Rousselle No 25H Ton Mechanical Horn Punch Press 2" Stroke 6.5" Throat 3 Hp 3Ph

SKU #256511

Product Condition: Used

Your Price
$4,691.57
$5,809.99 $4,691.57
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

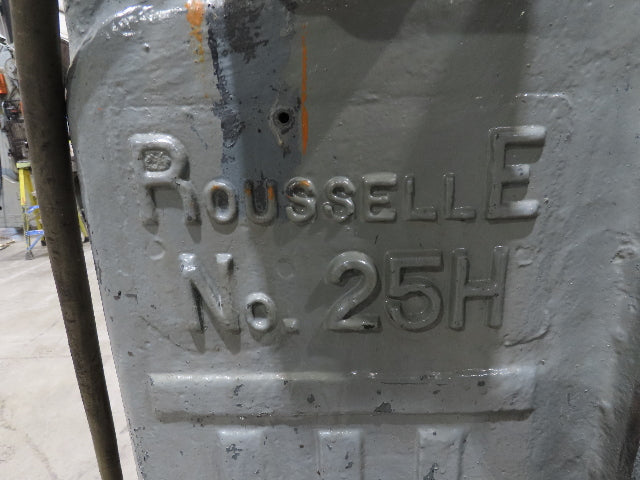

Brand
Rousselle
Model
No 25H
MPN
N/A
Condition
Used

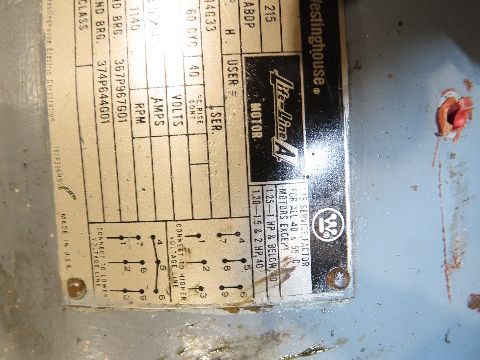

  • HP: 3
  • Voltage: 220/440 Wired for 220
  • Press Rating Ton: 25
  • Stroke (inches): 2
  • Ram Open Height w/adjustment up (Inches): 17
  • Ram Shut Height w/Adjustment up (Inches): 15
  • Ram Adjustment Length (Inches): 2
  • Ram Die Shank Size (Inches): 1-1/2
  • Ram Die Shank Length (Inches): 3-1/4
  • Ram Bolt Distance (Center to Center) (Inches): 7-1/2
  • Throat Opening (Frame to Center of Ram) (Inches): 6-1/2"

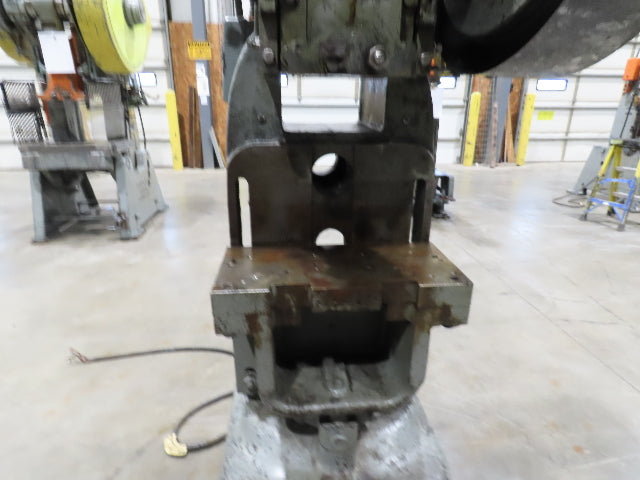

  • Bed Size (Inches): 9-3/4x20-1/4 Has a 2" Plate

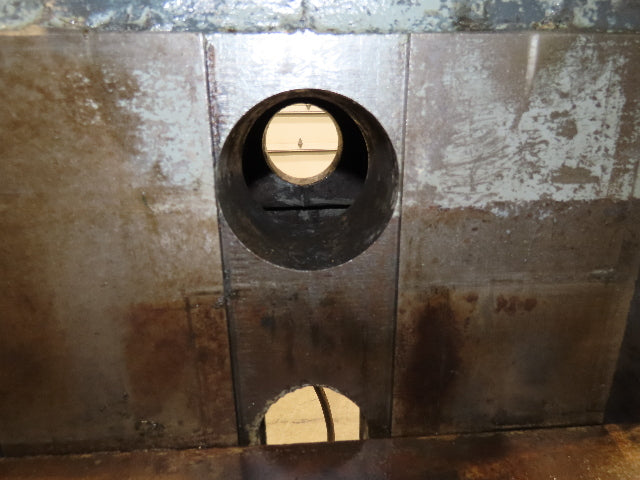

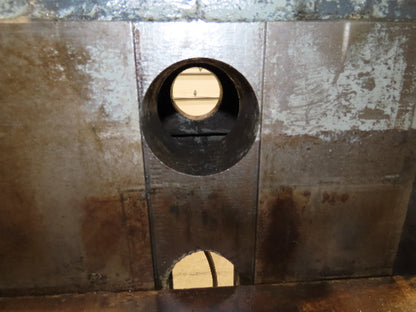

  • Bed Opening (Inches): 8x7"
  • Used, in Good Working Condition, Tested OK.

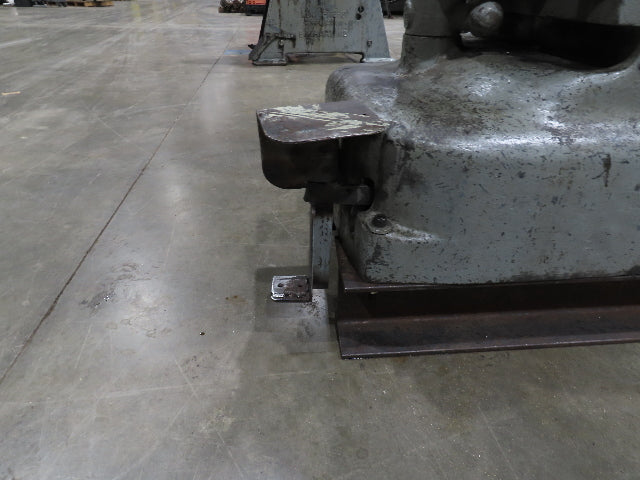

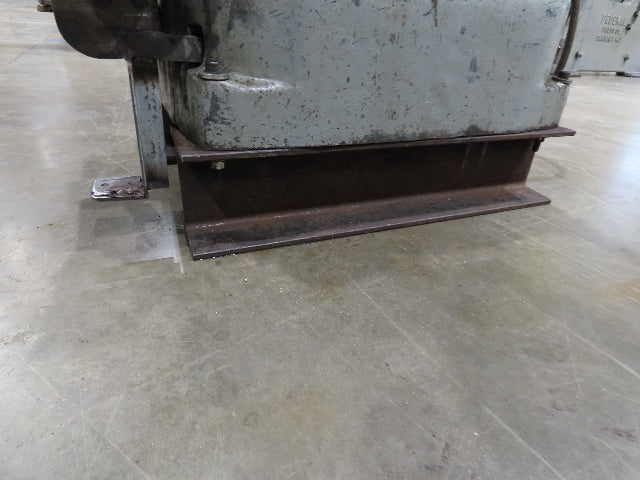

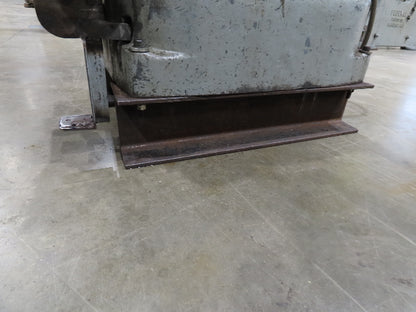

  • This unit has 6" I beam under the base. The foot pedal has been modified to match.

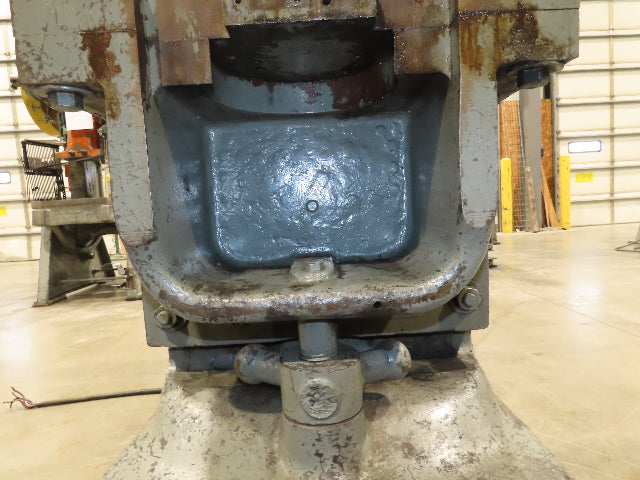

  • Bed height can be adjusted up another 10".

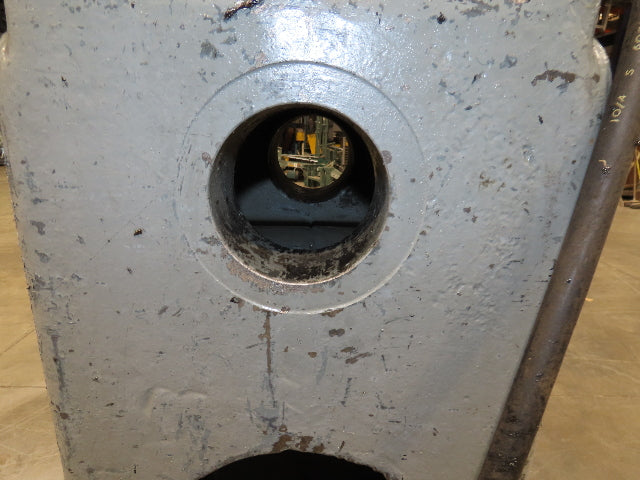

  • This unit has a 4" bore for a shank.
  • Floor space: 28x38" with 81" height.
