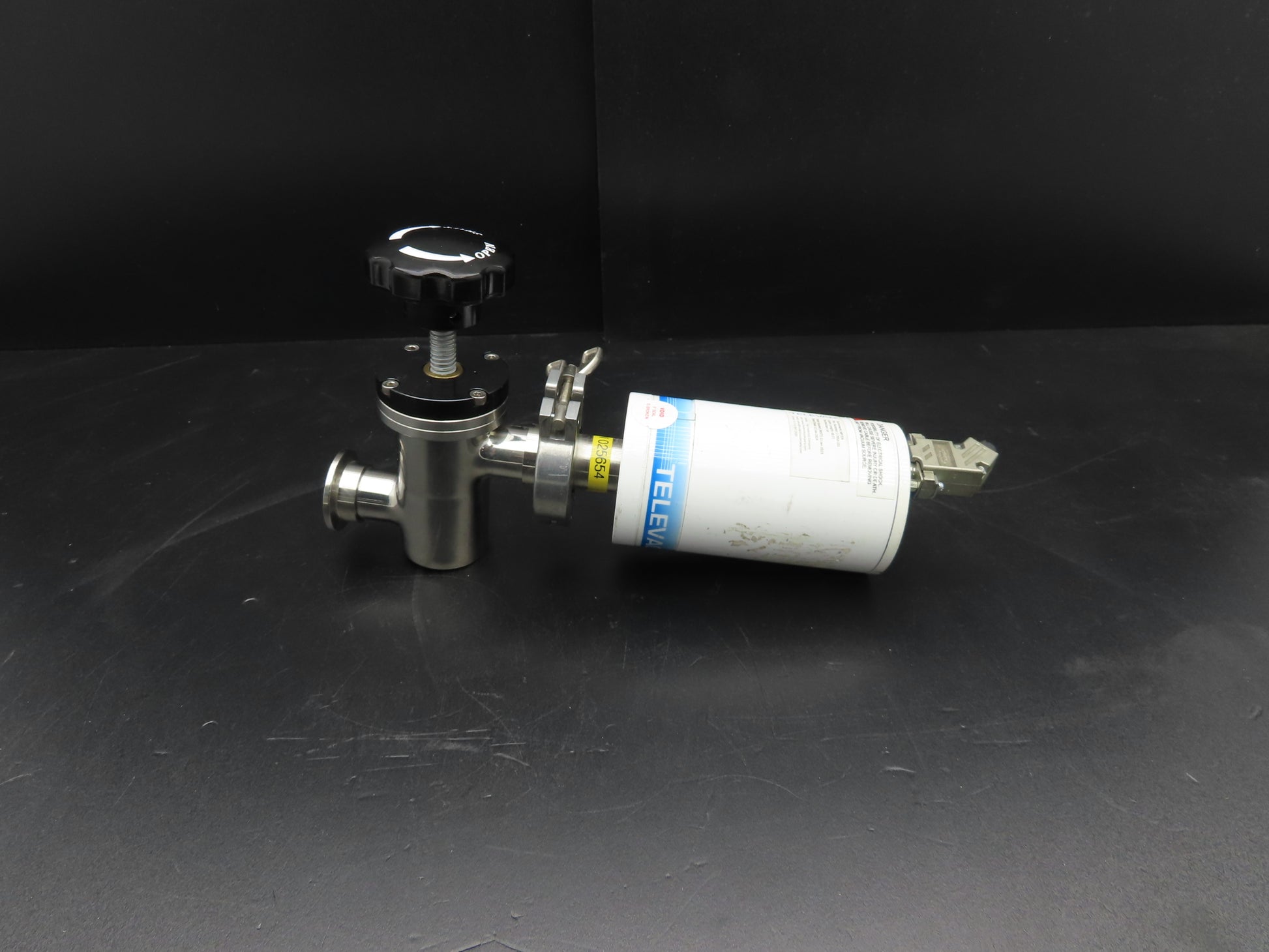

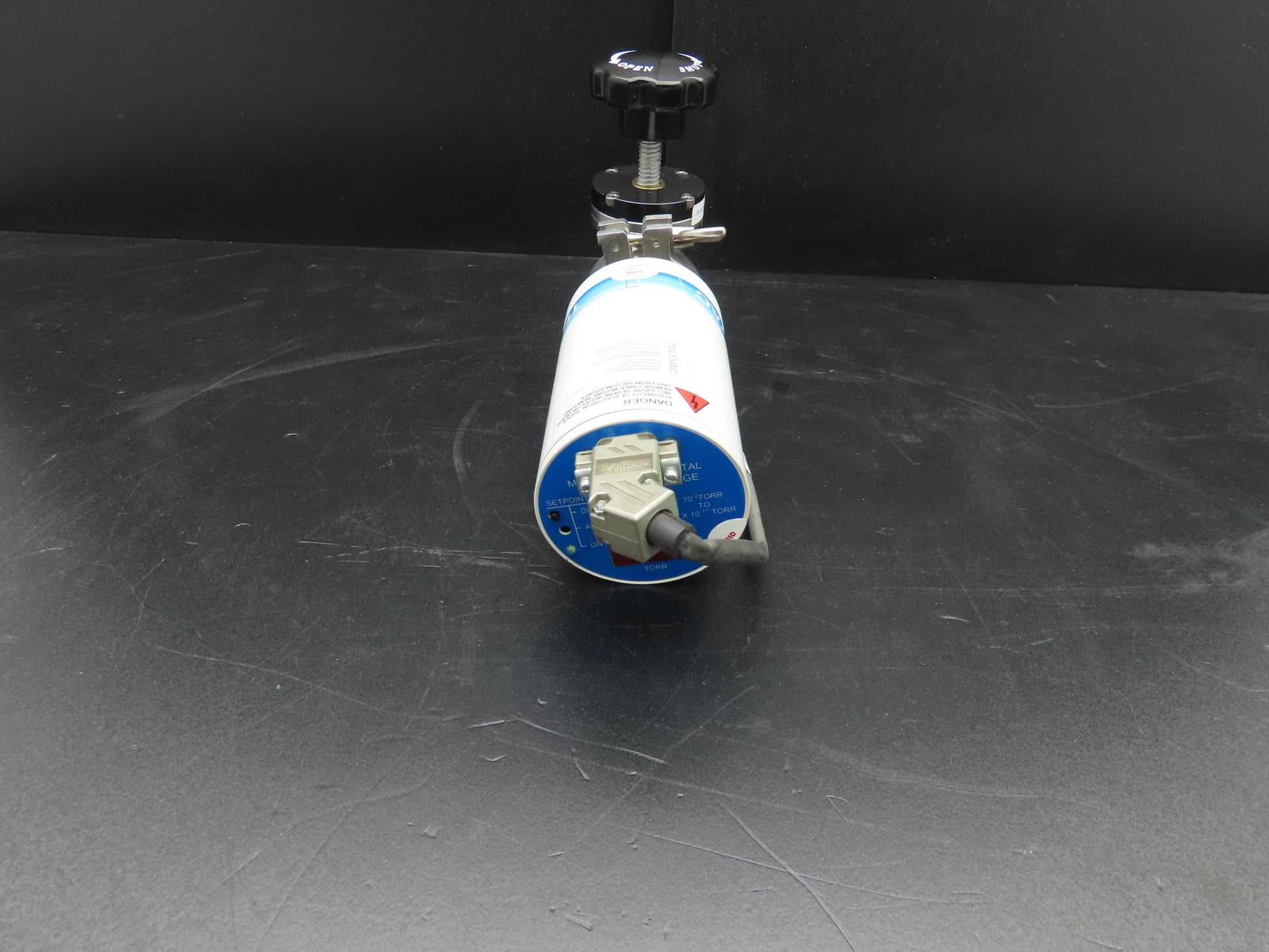

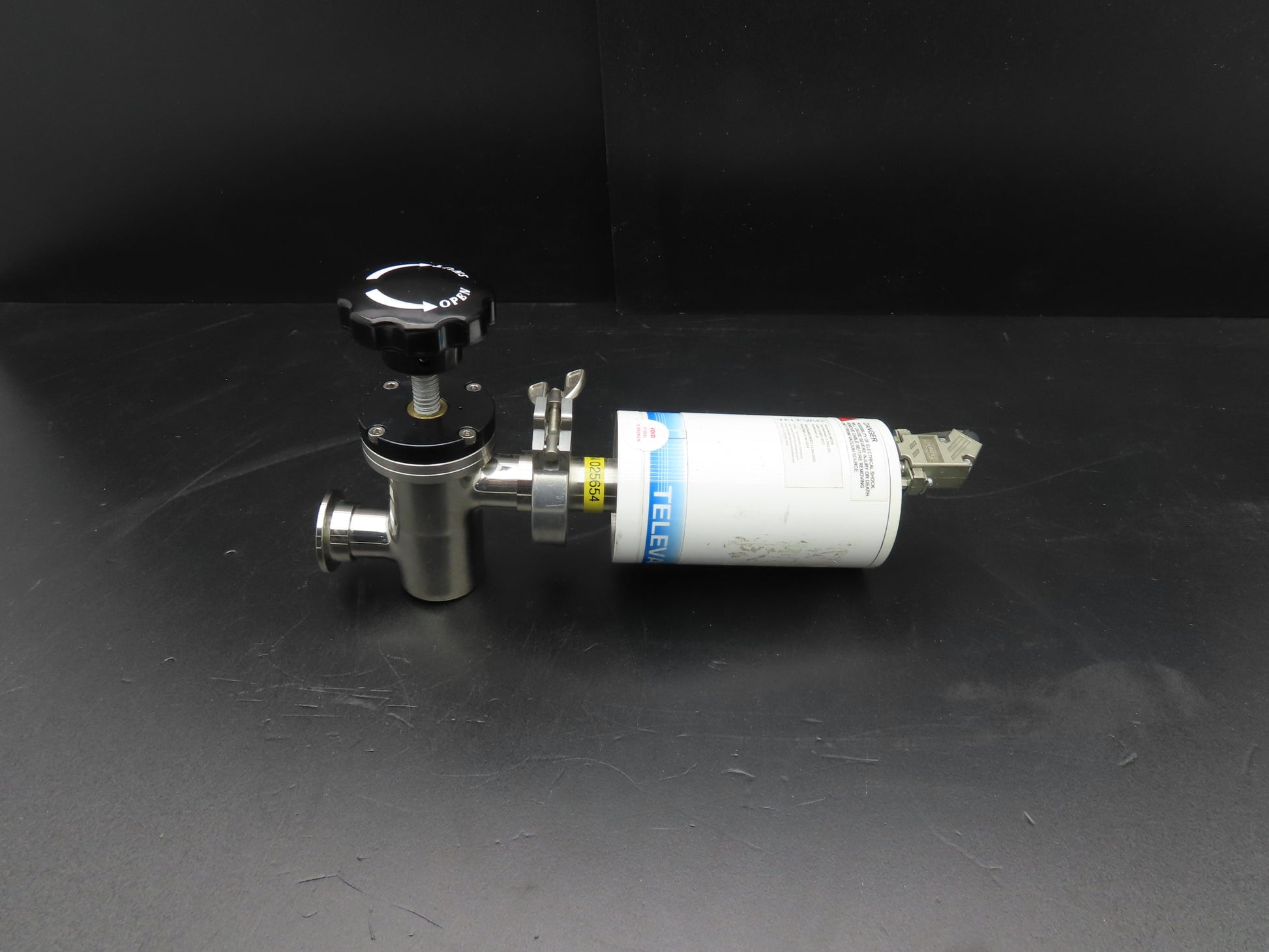

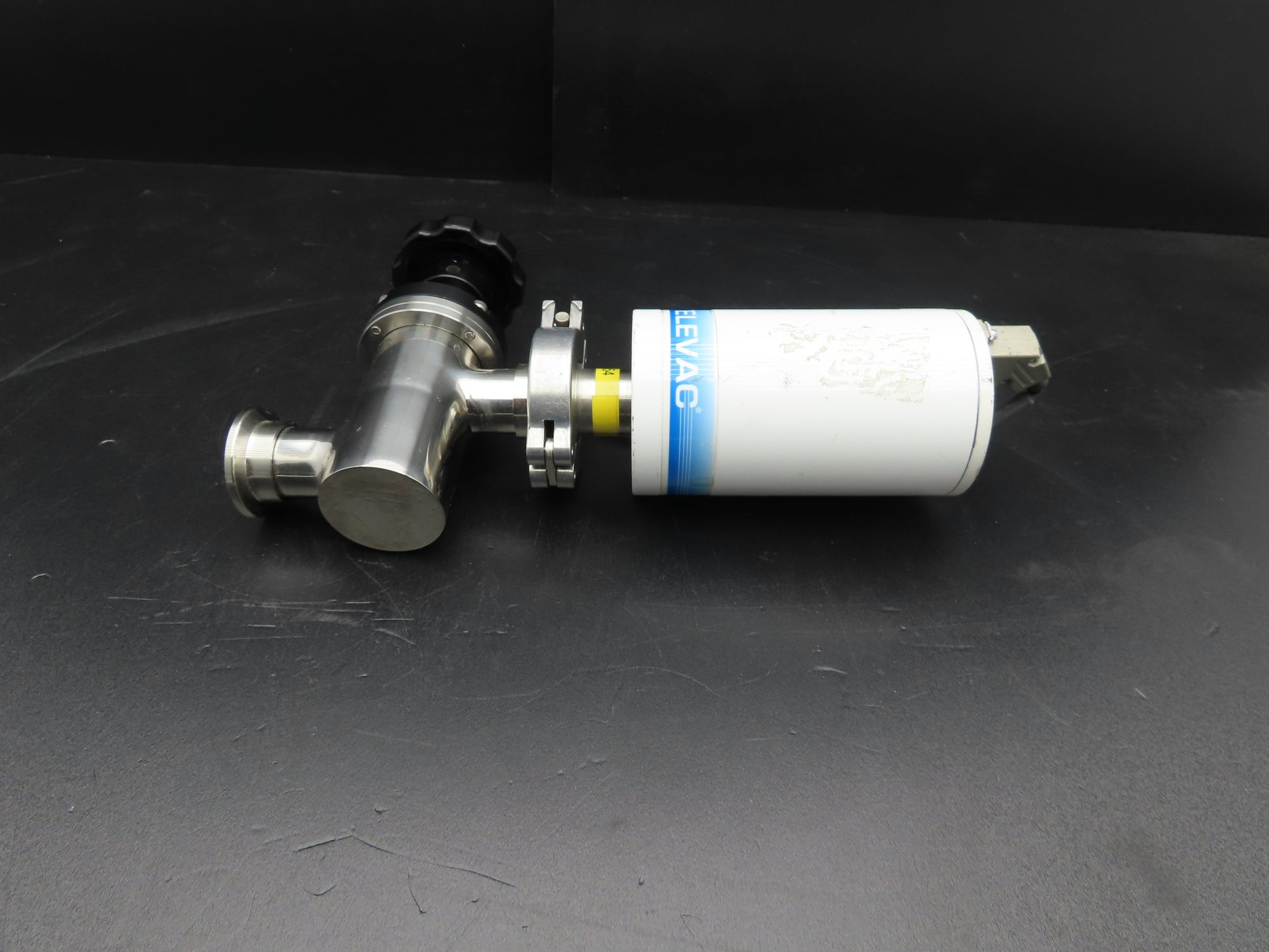

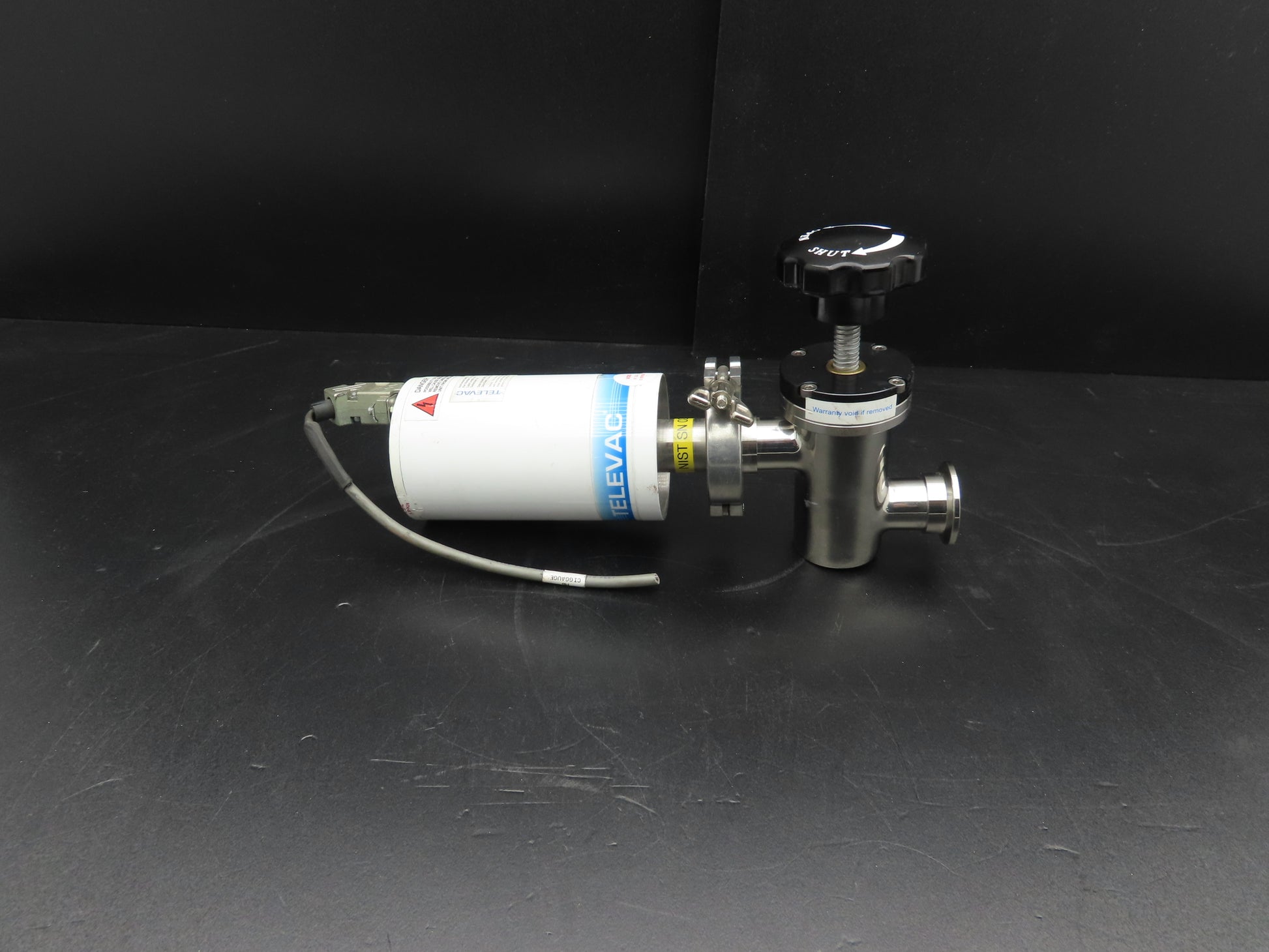

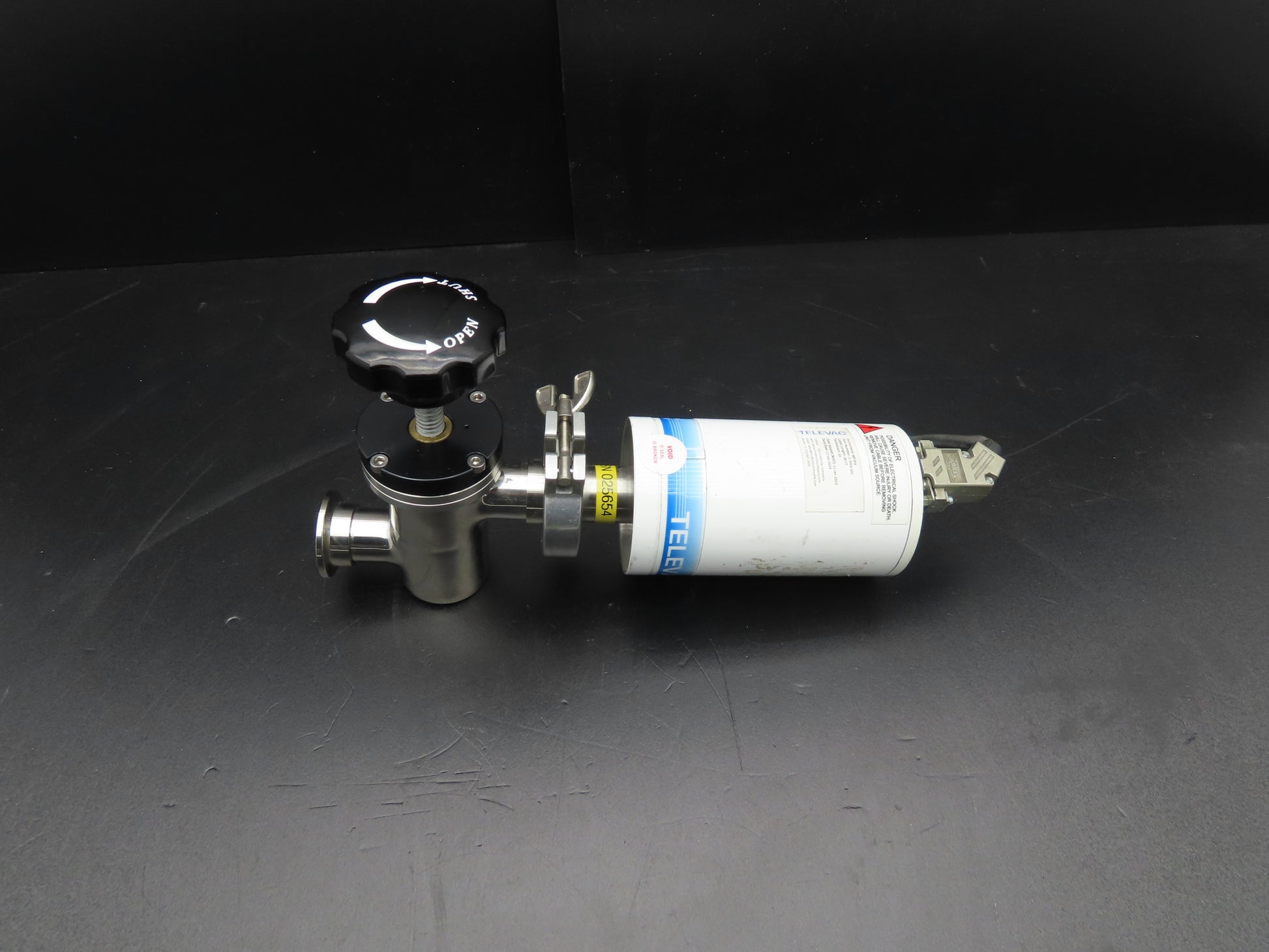

Televac MP7FR Digital Vacuum Sensor Double Inverted Magnetron Cold Cathode

Televac MP7FR Digital Vacuum Sensor Double Inverted Magnetron Cold Cathode

SKU #299150

Product Condition: Used

Your Price
$807.49
$849.99 $807.49
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Televac
Model
MP7FR
MPN

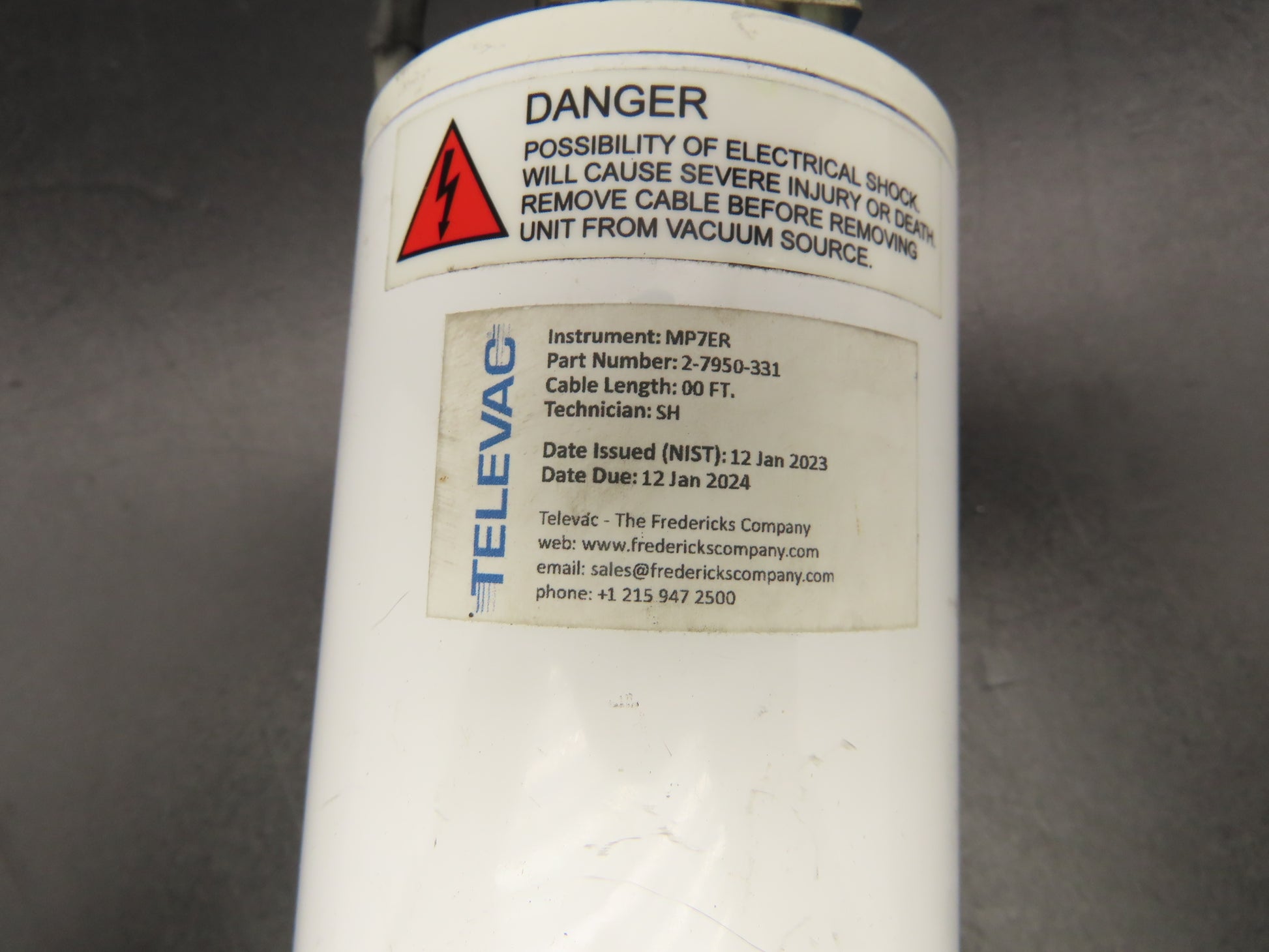

MP7ER/2-7950-331
Condition
Used

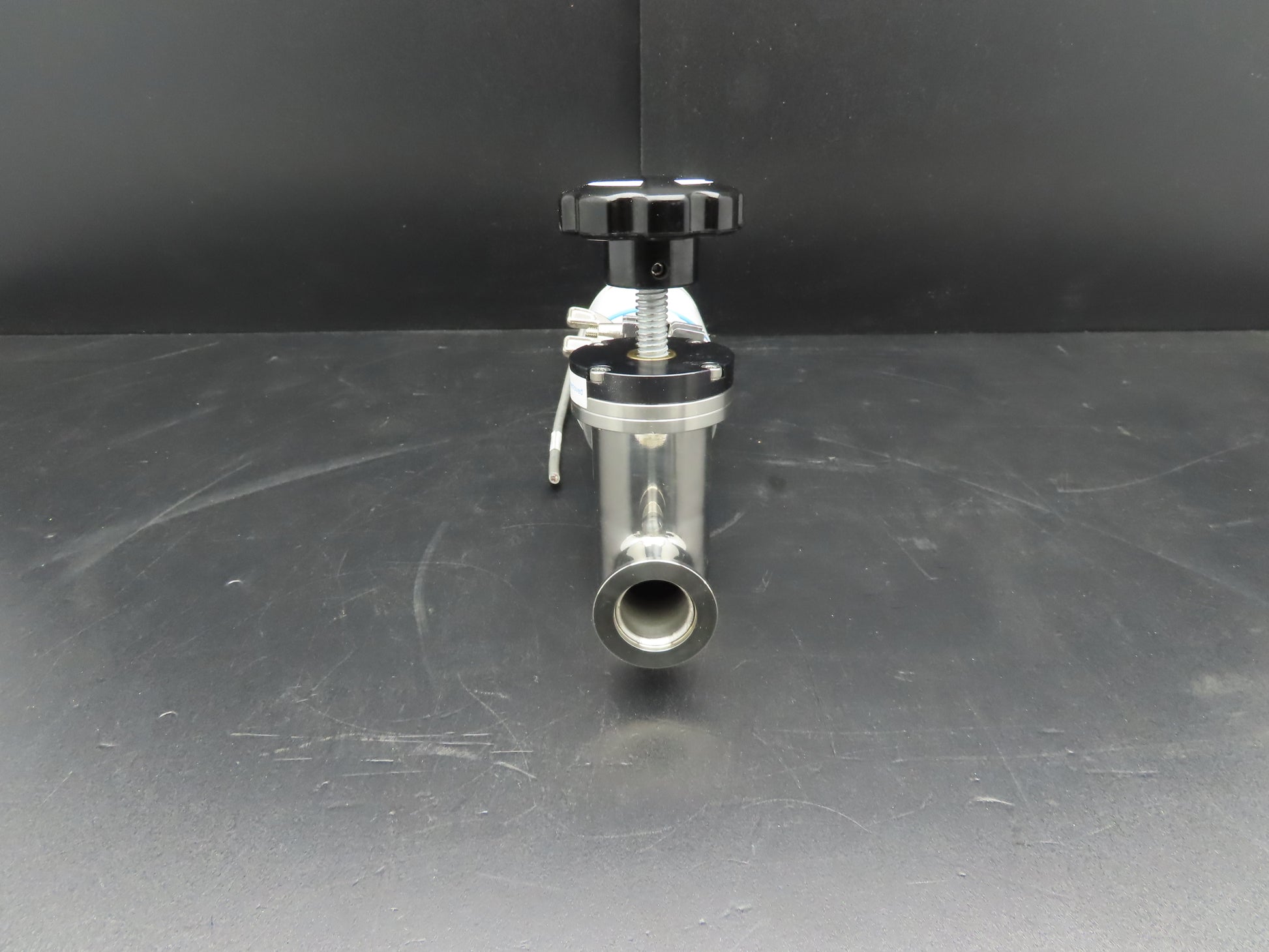

  • Used, in Good Working Condition. Valve included.
  • Replaced by Televac MX7B and MX7M Active Gauge.
  • Operating Range: 1*10-11 Torr to 1*10-2 Torr
  • Analog Output: 0 V to 10 V DC
  • Programmable Set Points: 1
  • Set Point Type: Relay
  • Supply Voltage: 24 V DC
  • Maximum Power: 6 W
  • Calibration Medium: Dry air or nitrogen
  • Overpressure: 150 psi
  • Digital Output Resolution: 2 significant digits with exponent
  • Operating Temperature: 0 °C to 50 °C
  • Storage Temperature: -20 °C to 60 °C
  • Bakeout Temperature: 150 °C (electronics removed) 400 °C (electronics and magnets removed)
  • Display Readable Distance: 3 m (10 ft)
  • Accuracy: 1*10-7 Torr to 1*10-2 Torr ±0.2 decade
  • Analog Output: ±5 mV
