TRD Bimba

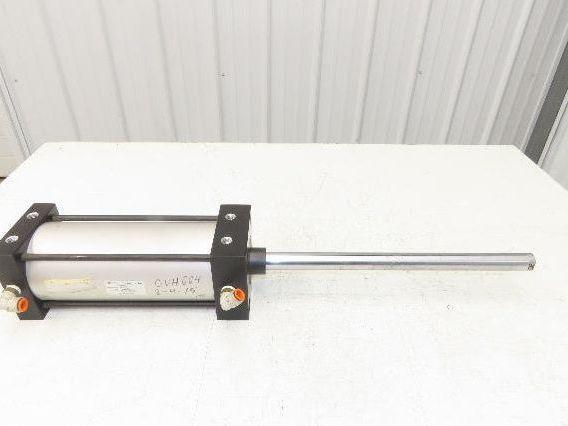

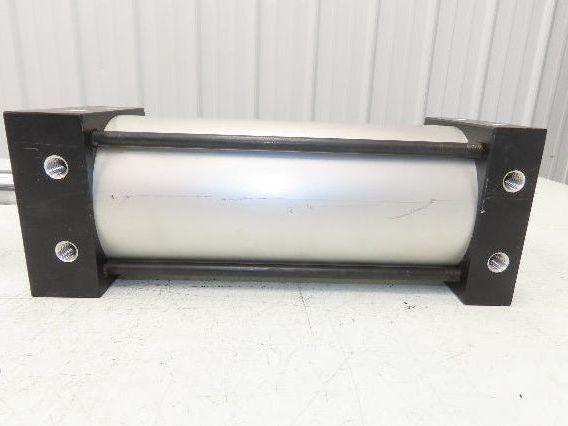

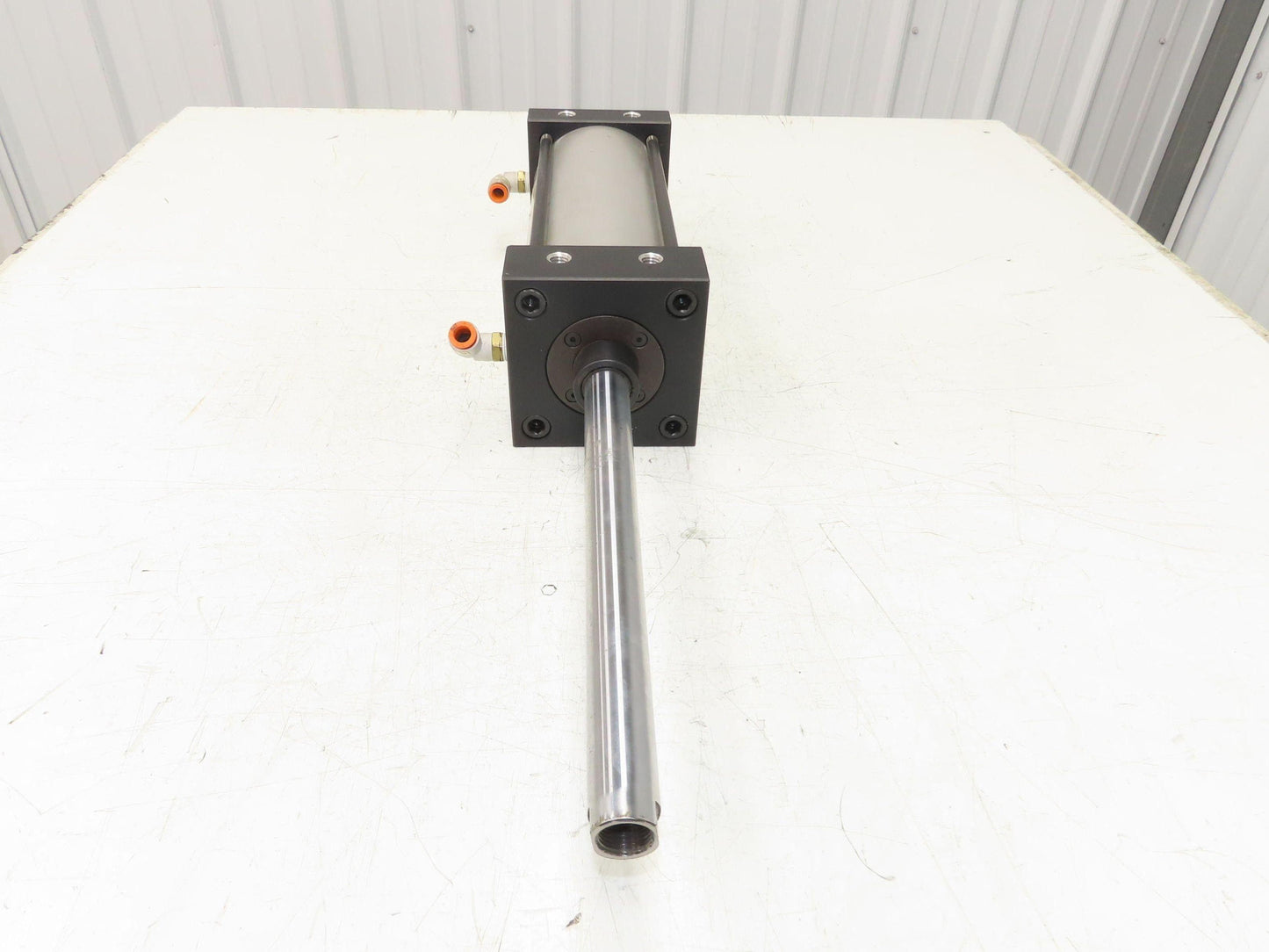

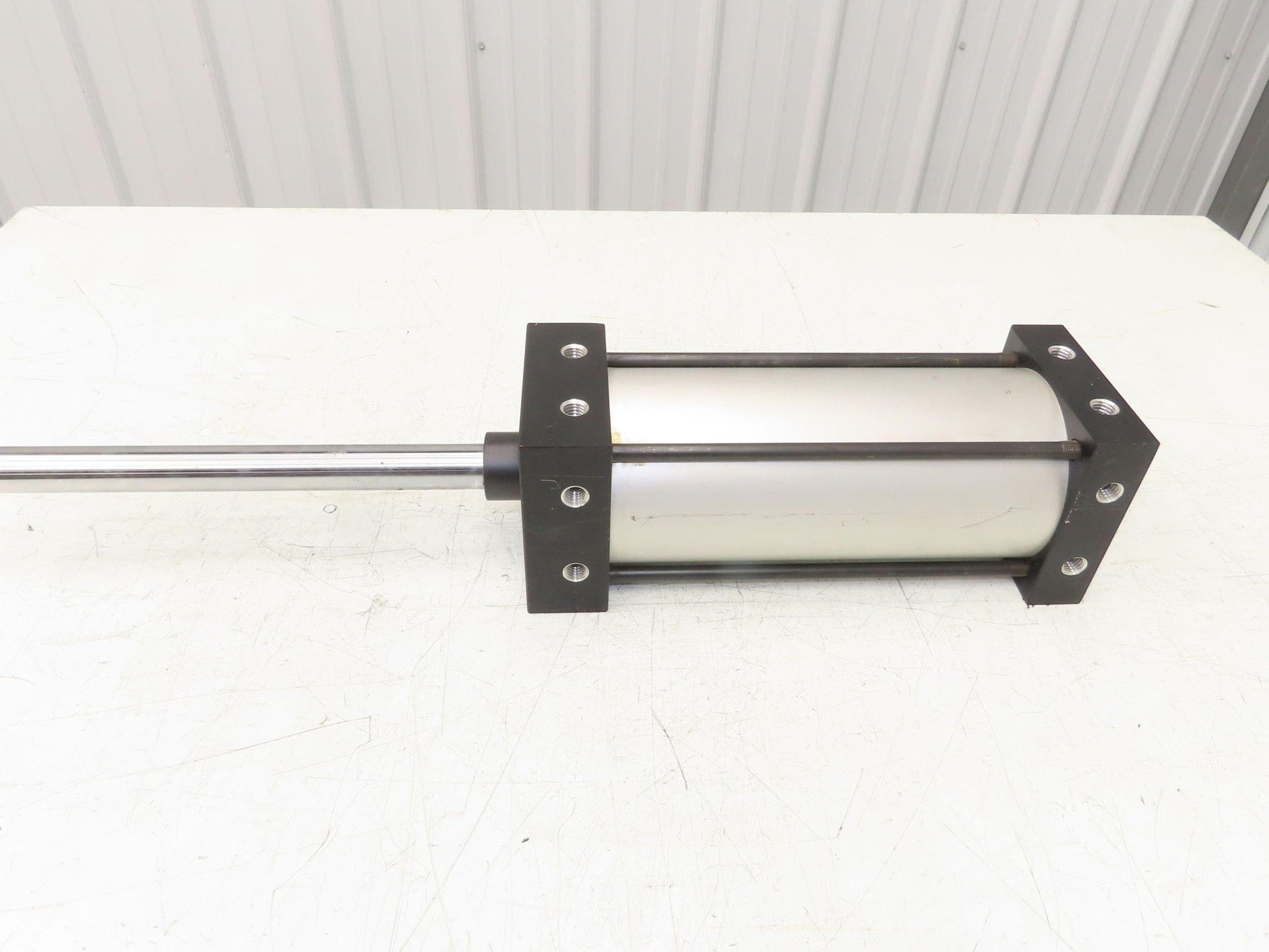

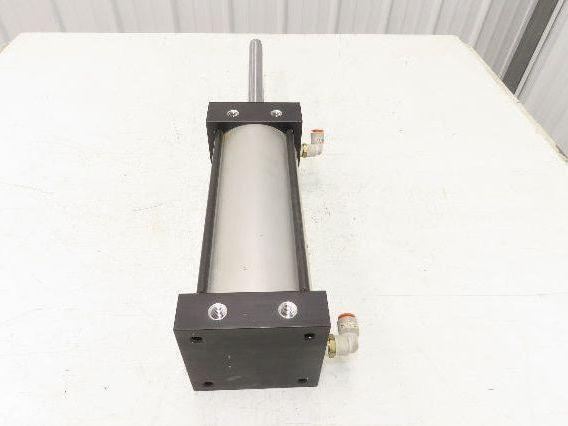

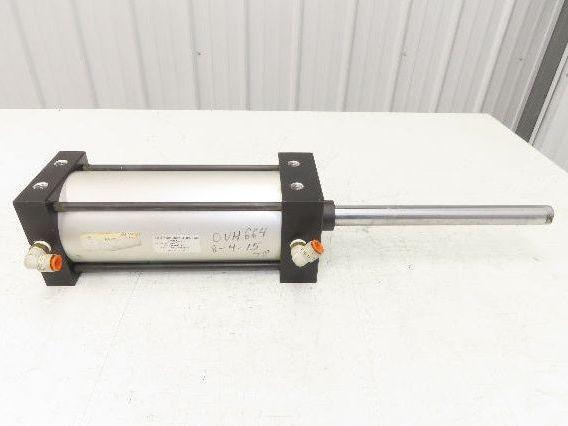

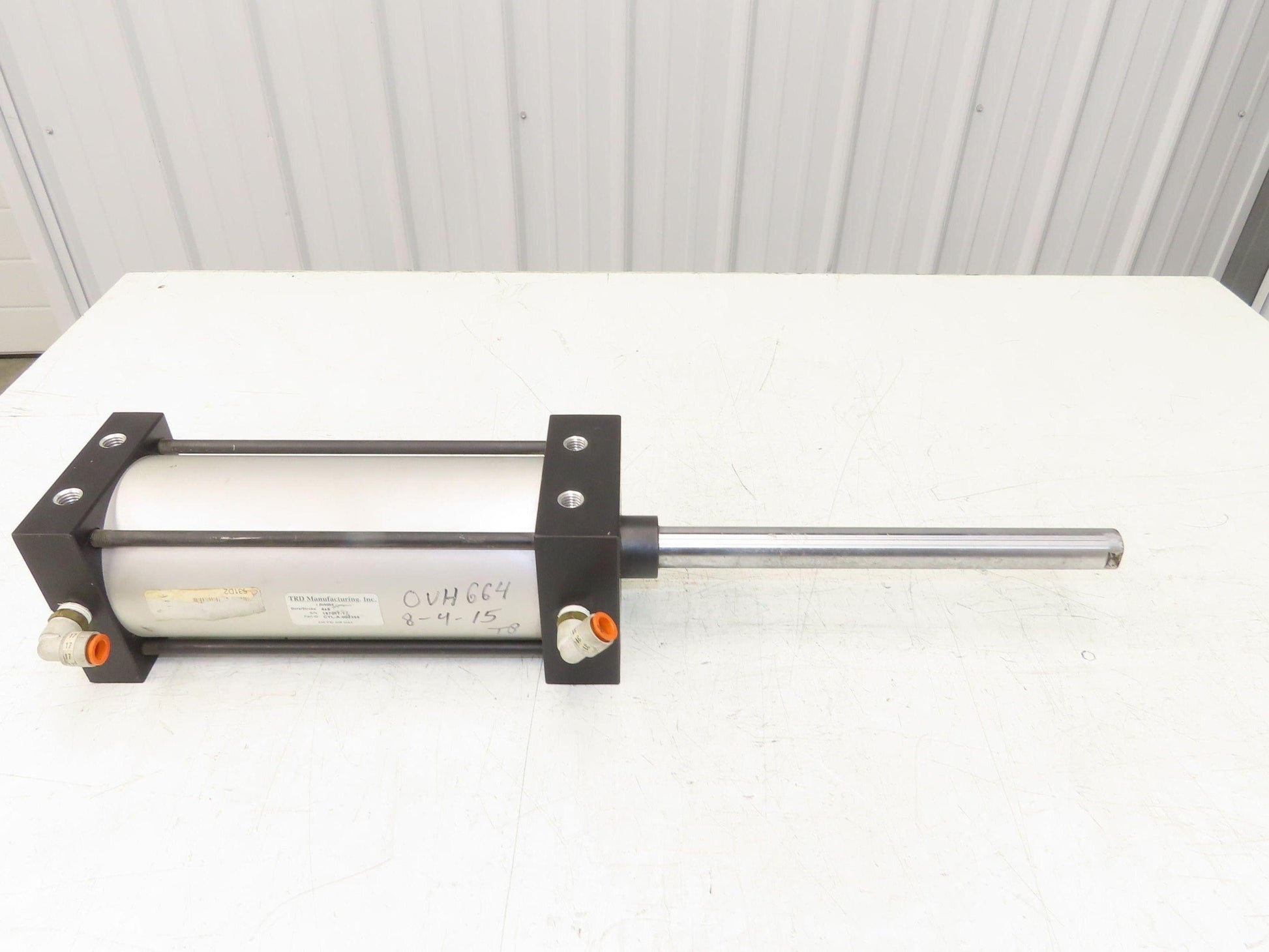

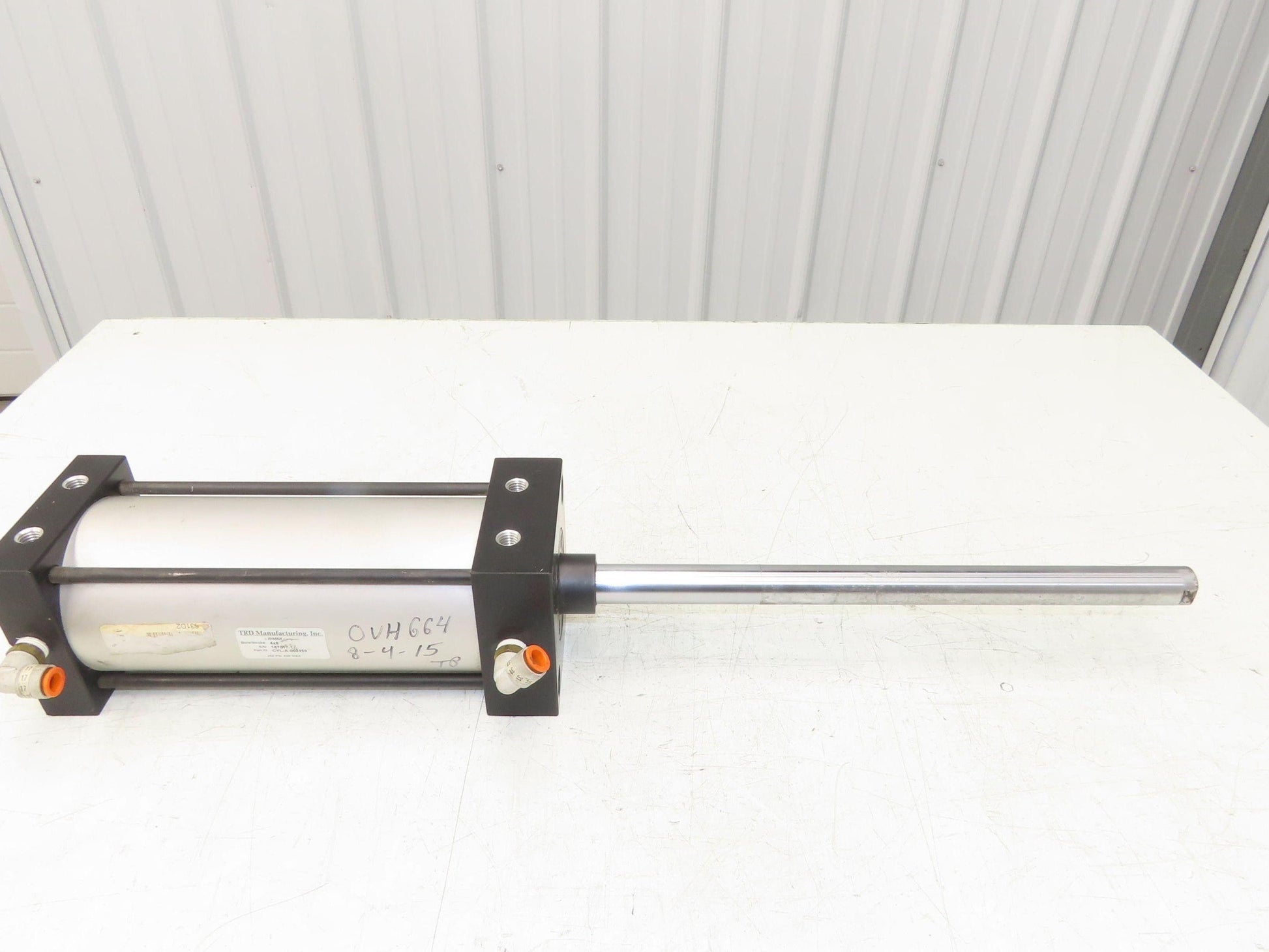

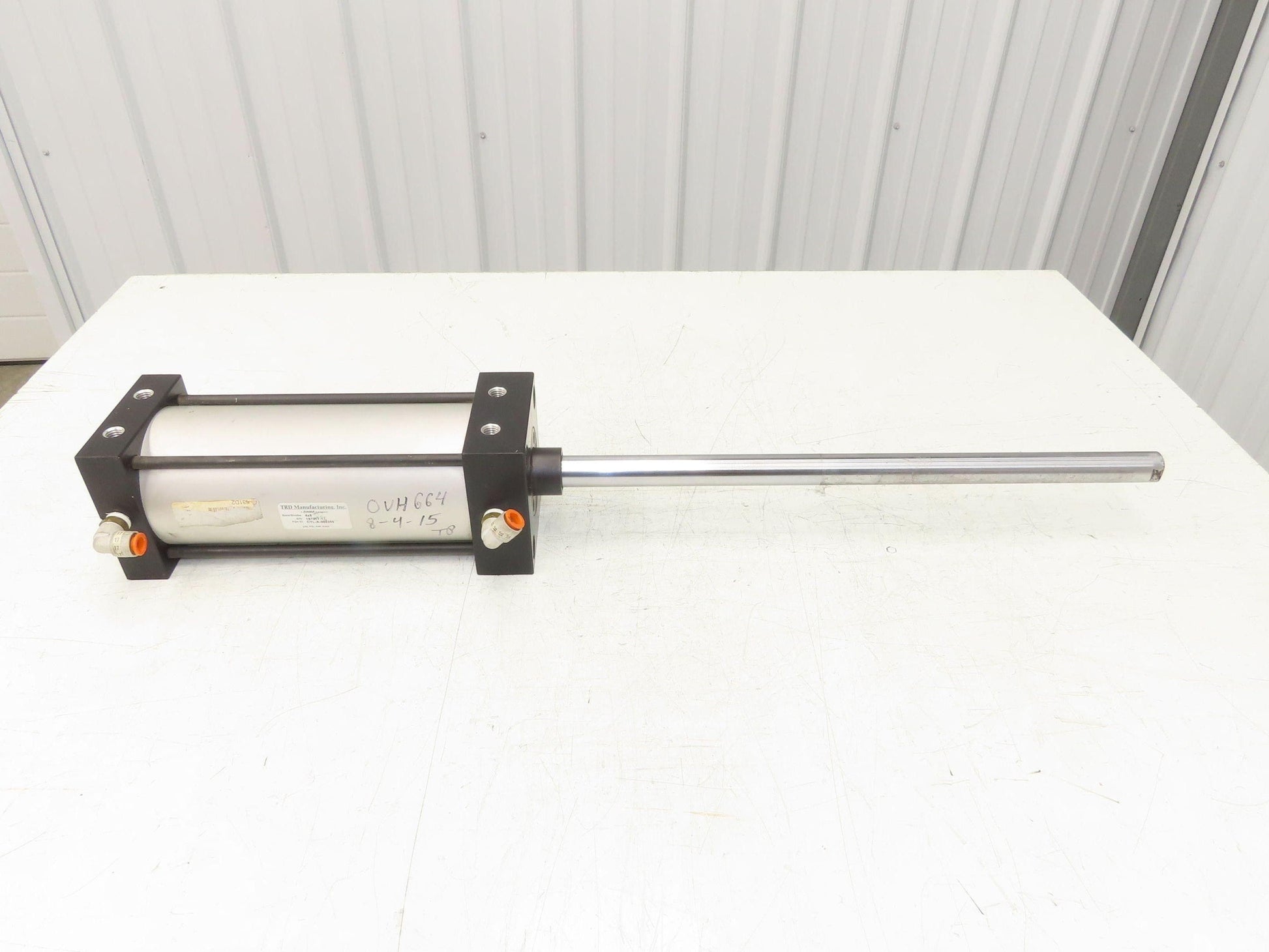

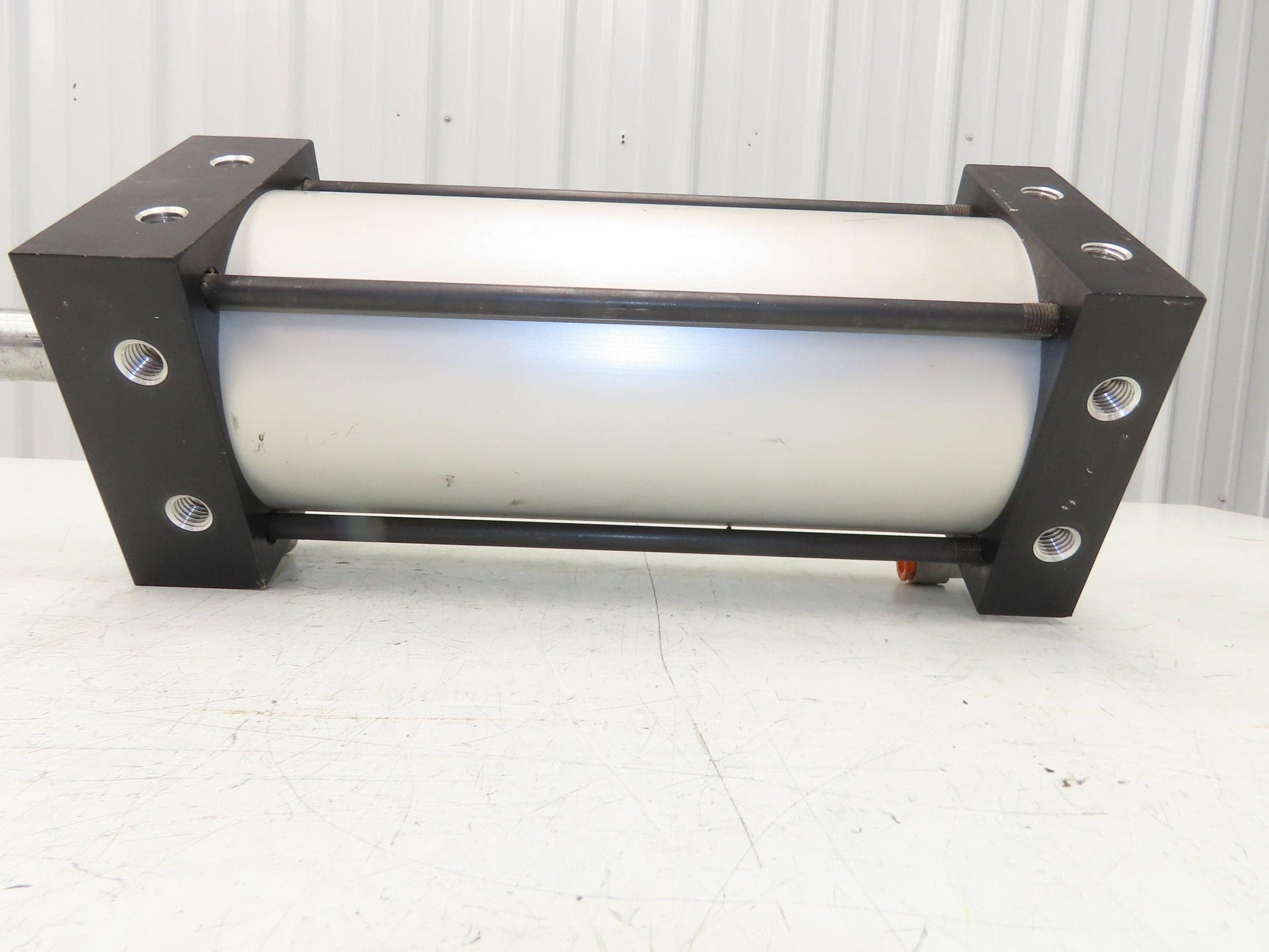

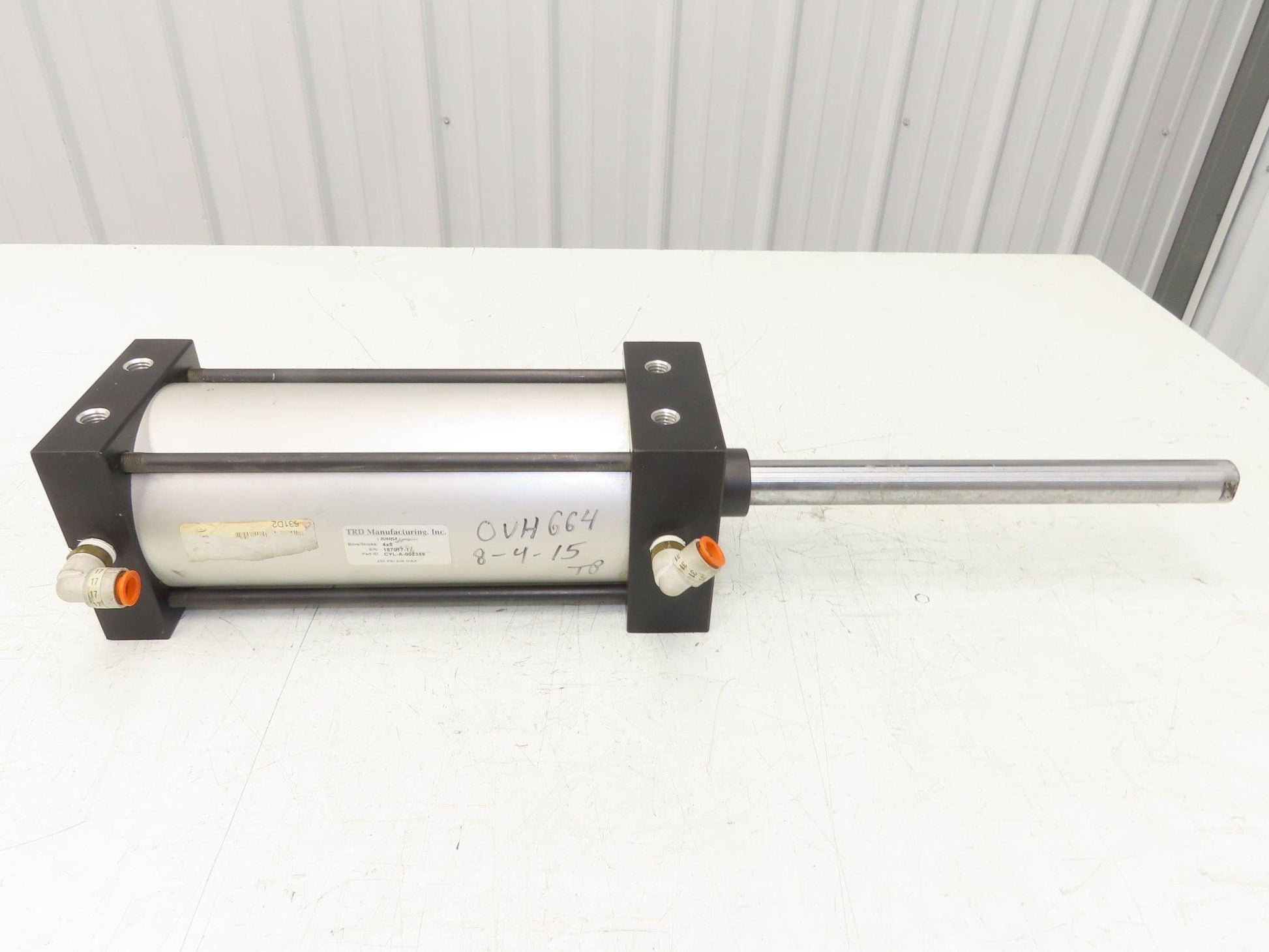

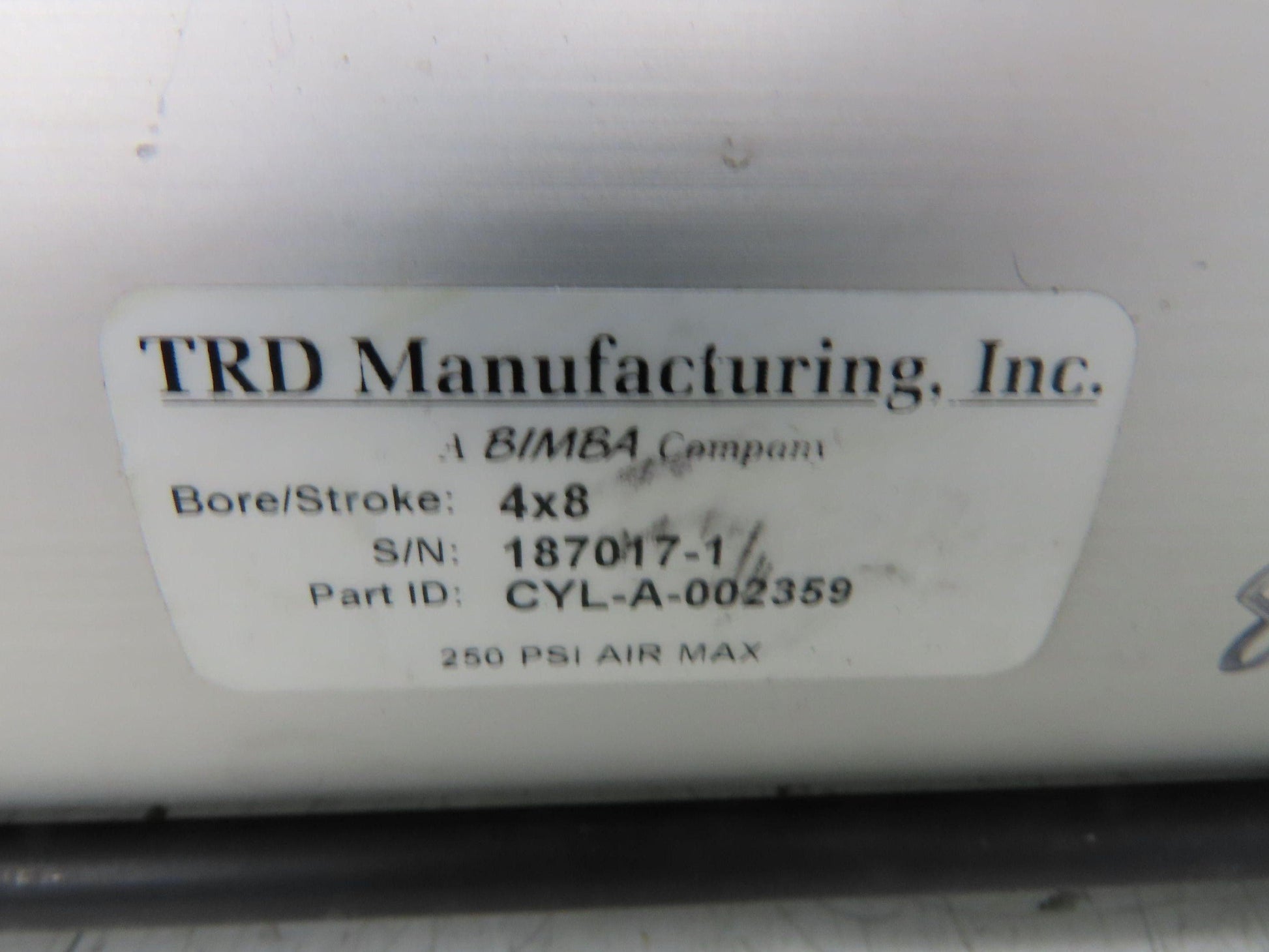

TRD Bimba Pneumatic Air Cylinder 4" Bore 8" Stroke 250 PSI 10.25" Extended Rod

TRD Bimba Pneumatic Air Cylinder 4" Bore 8" Stroke 250 PSI 10.25" Extended Rod

SKU #274844

Your Price
$85.73
$85.73
Sale Sold out
Shipping calculated at checkout.

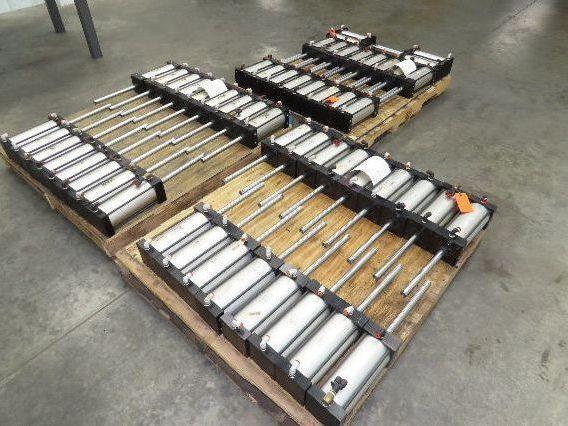

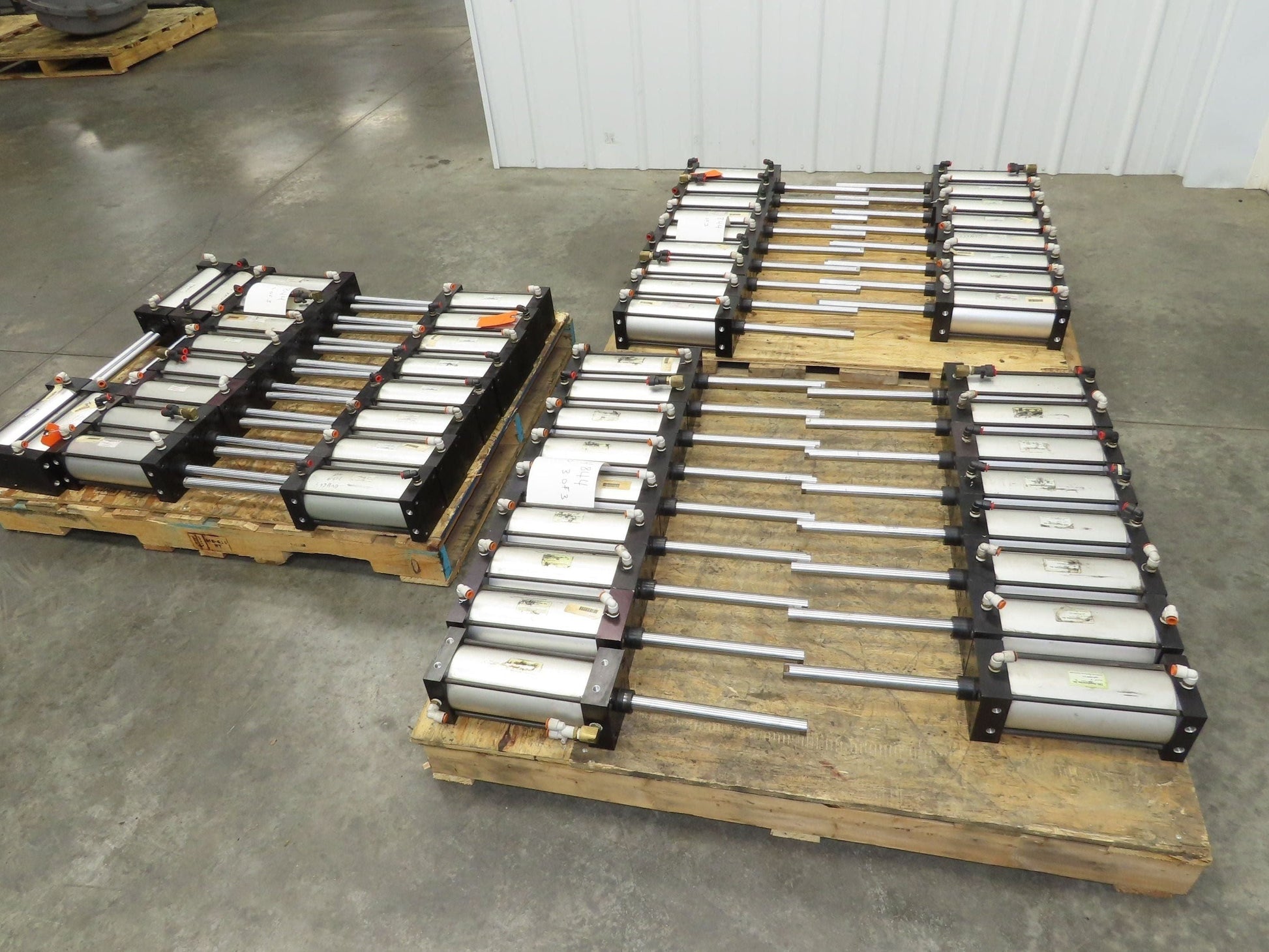

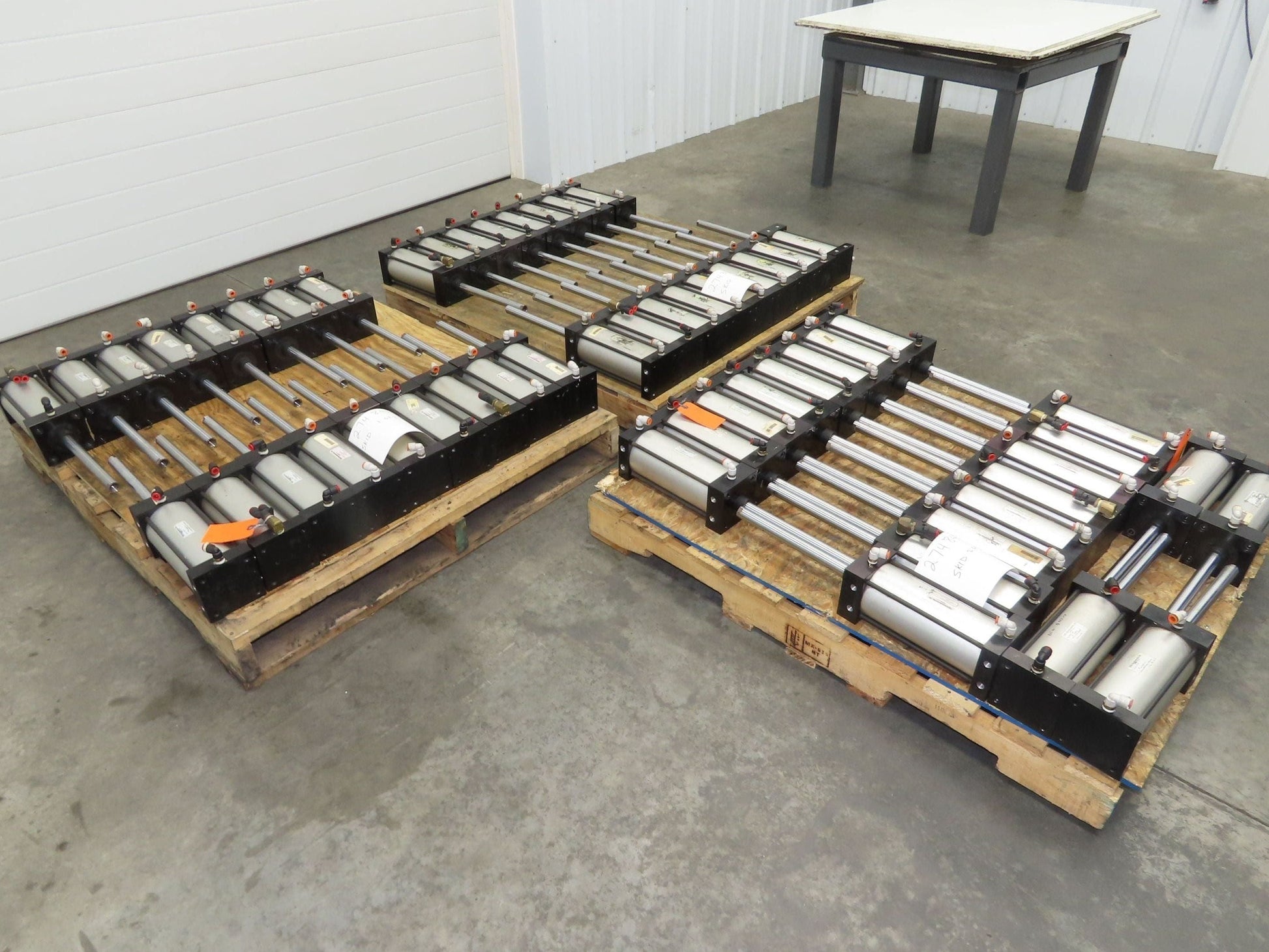

54 in stock
  • Bore: 4"
  • Stroke: 8"
  • Rod Diameter: 1"

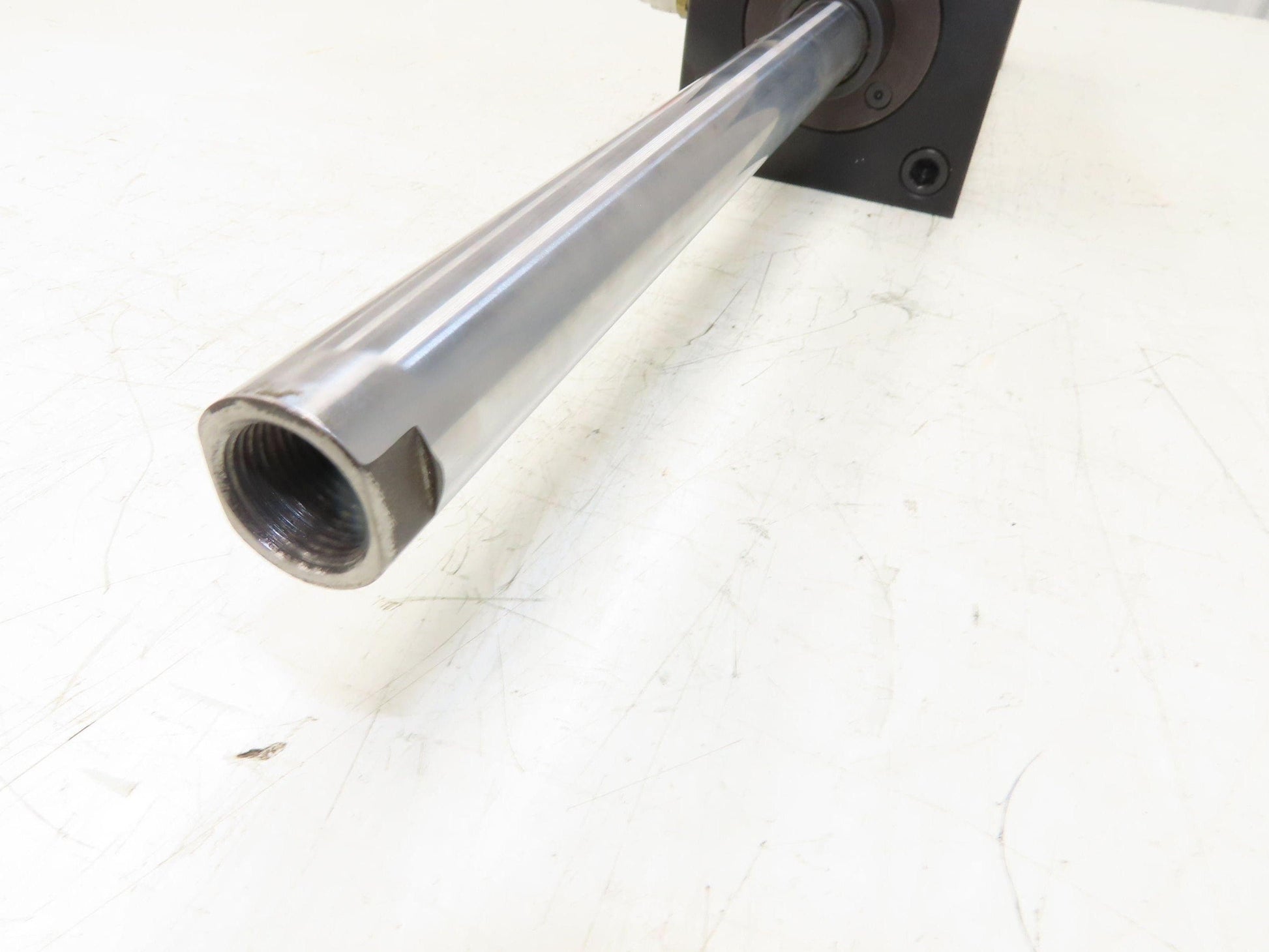

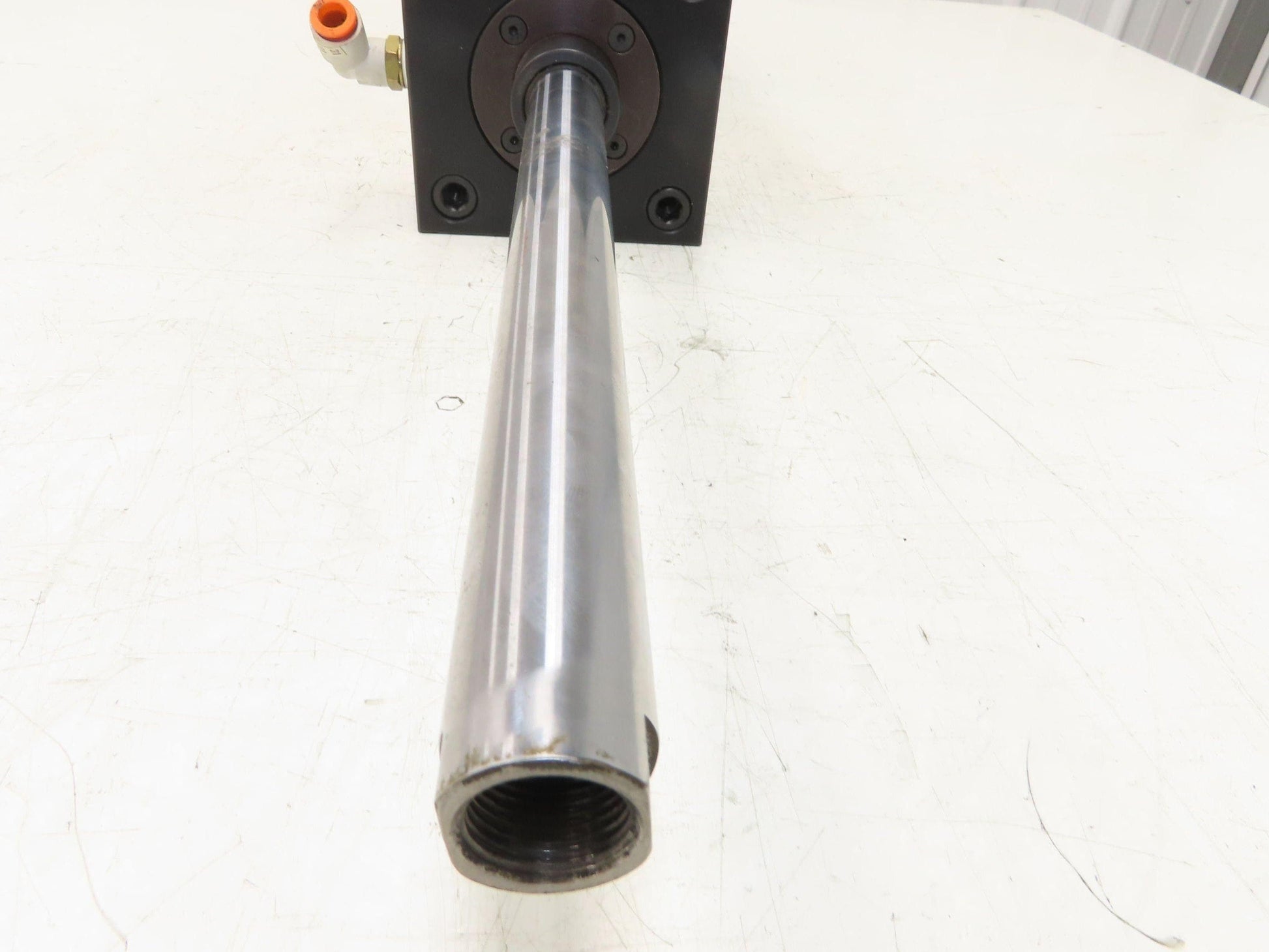

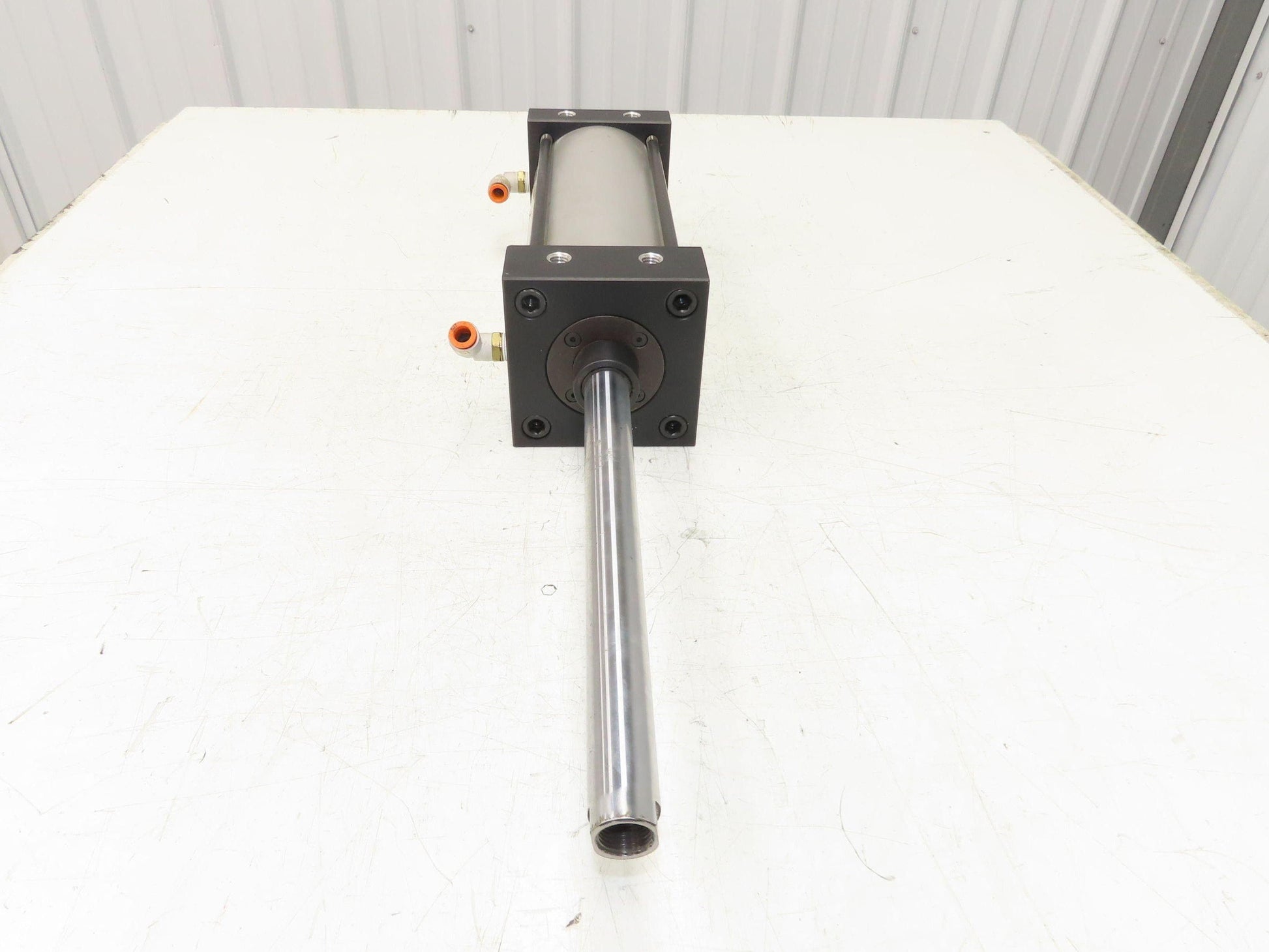

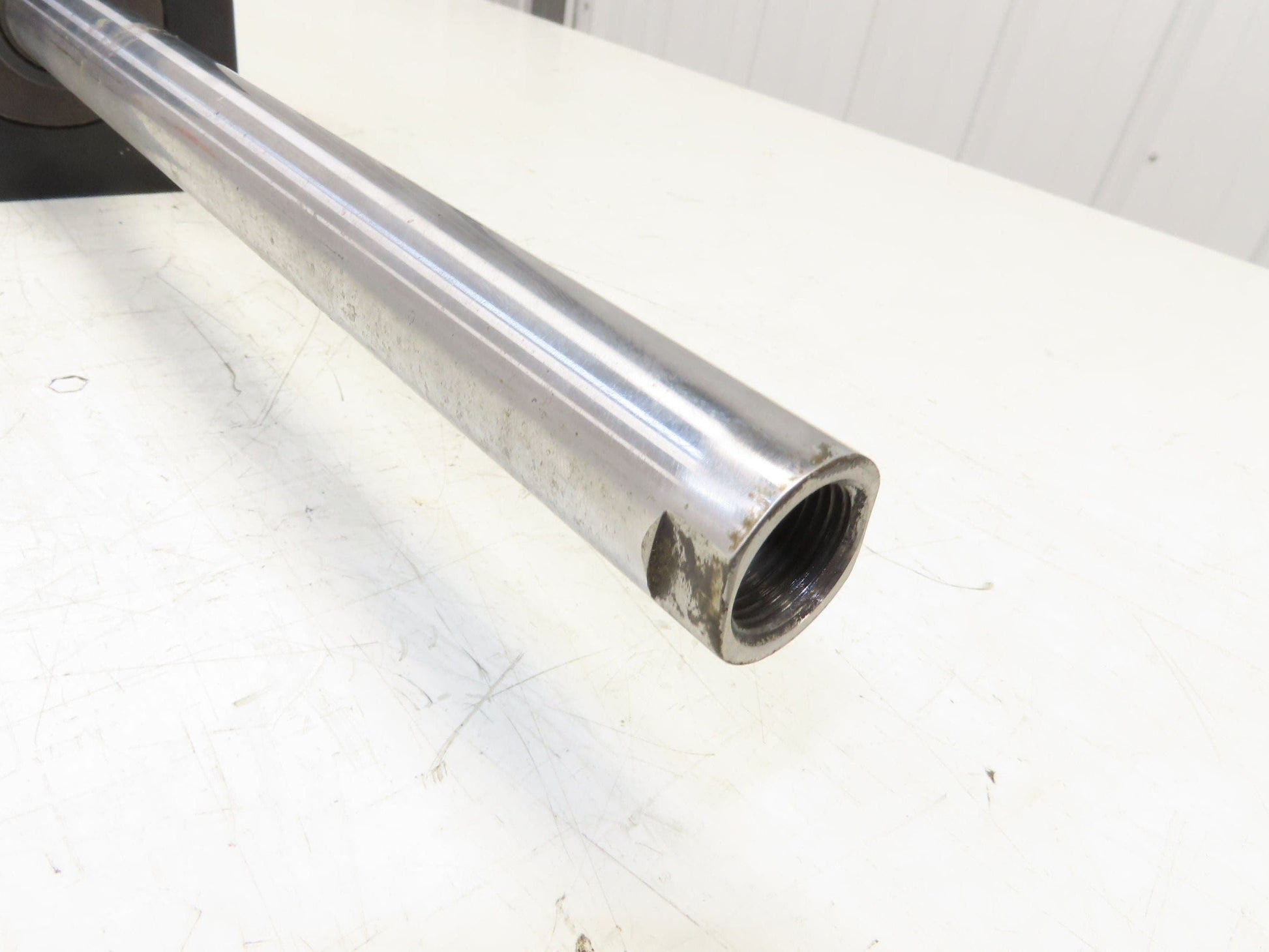

  • Rod End Type: Female 3/4"-16
  • Ports: 3/8" NPT Thread

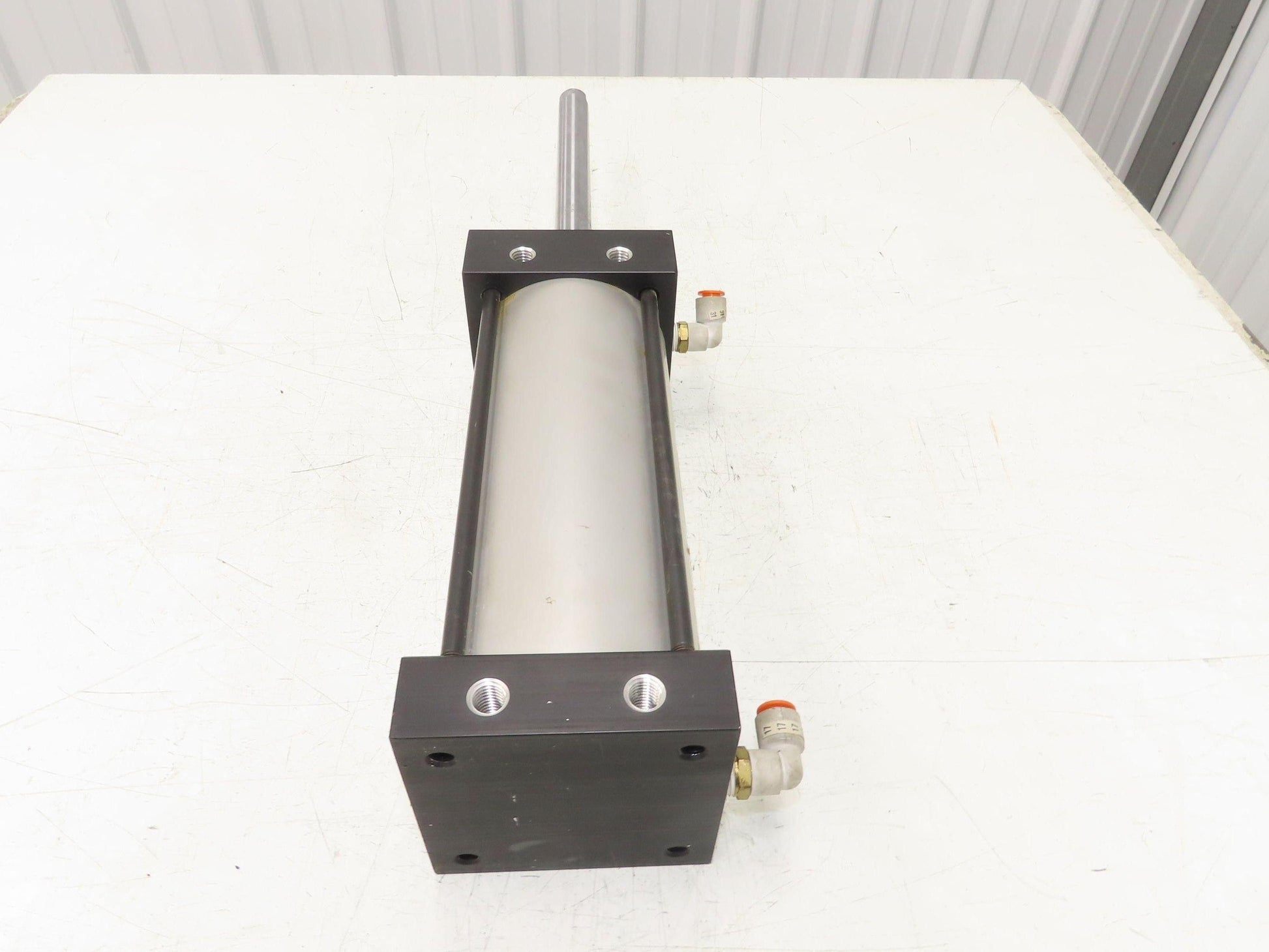

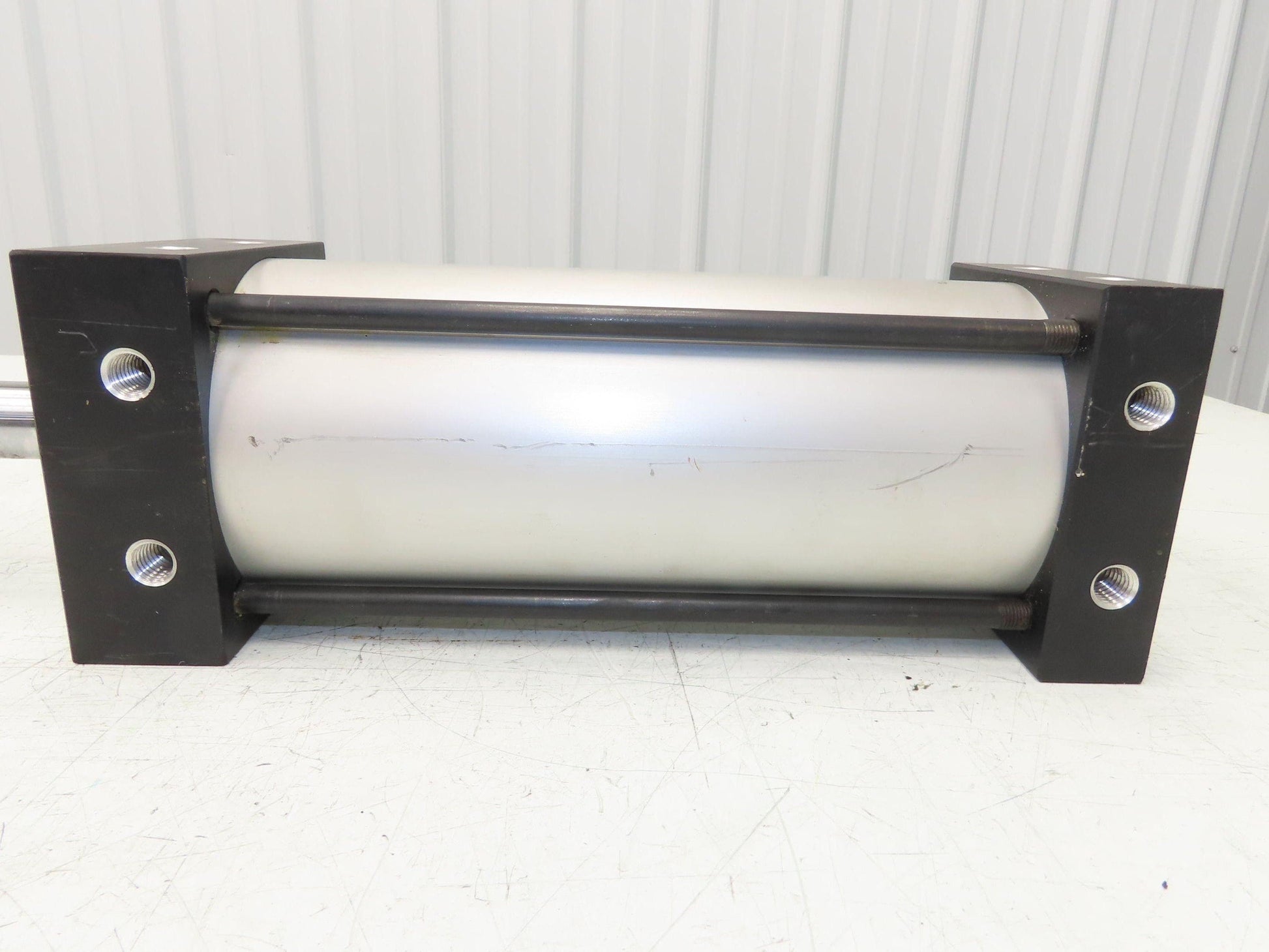

  • Mounting Style: Tapped Holes 1/2"-13
  • Action: Double
  • Max Pressure: 250 PSI
  • Cushion: N/A
  • Cylinder Head and Cap Material: AL
  • Cylinder Sleeve Material: AL
  • Used, in Good Working Condition. Removed From a Working Environment.

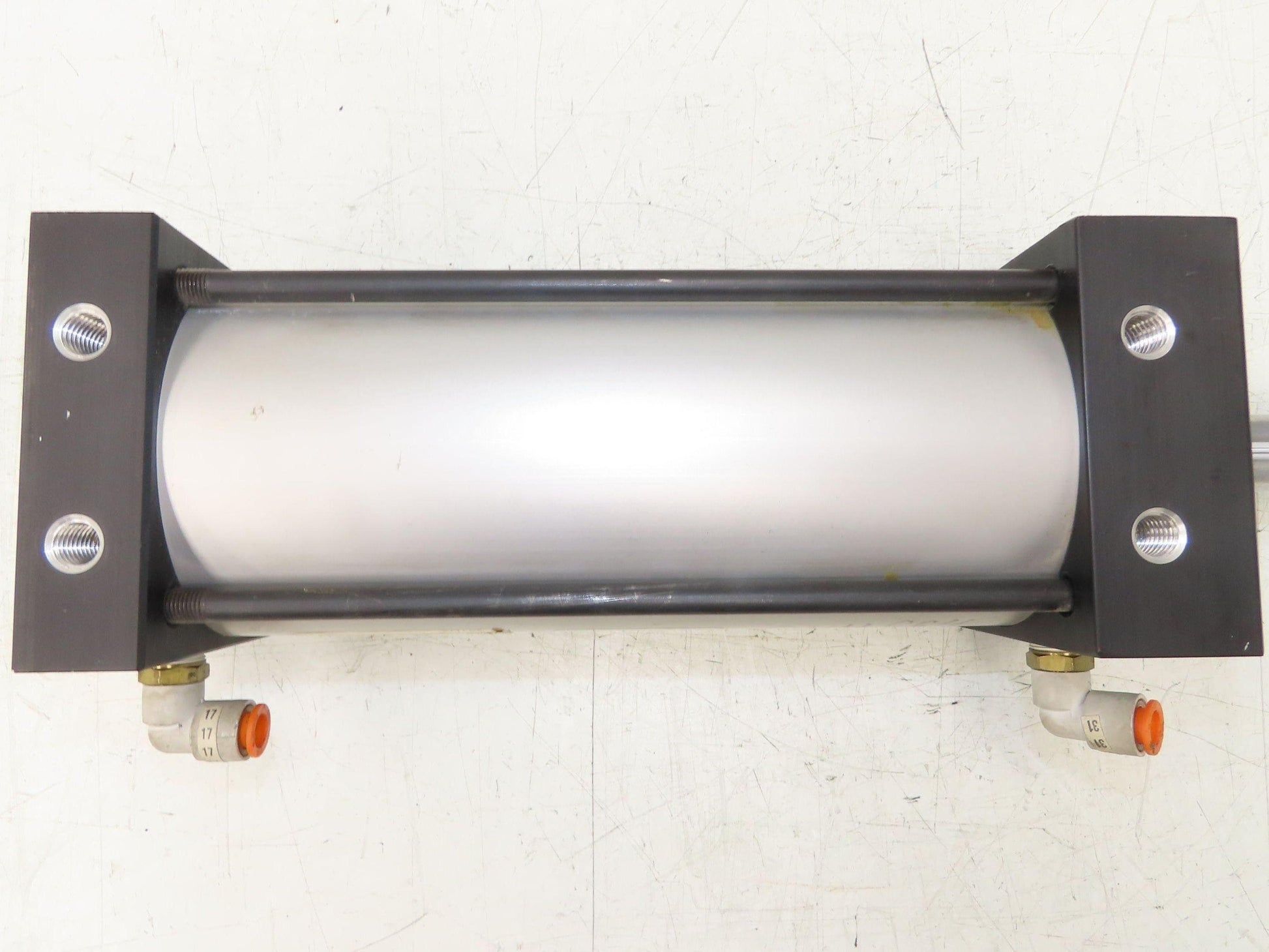

  • Ported 3/8" NPT

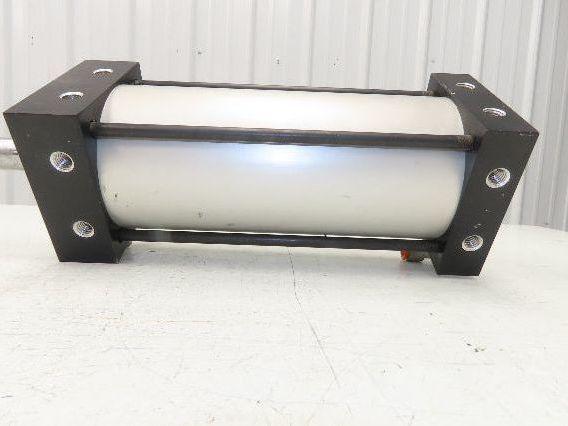

  • Tapped Mounting Holes measure 10.625"L x 2.063"W Center to Center

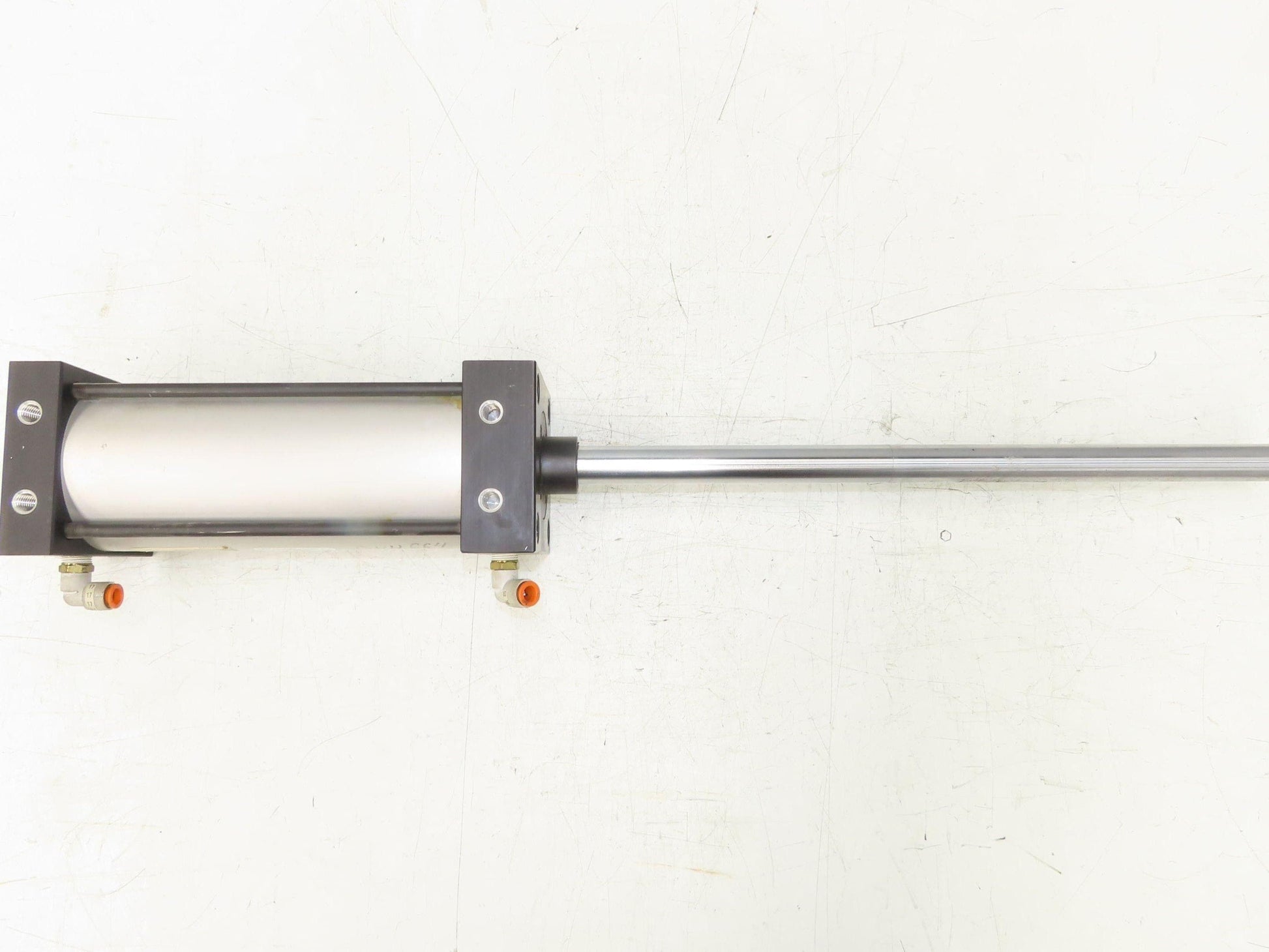

  • Rod measures 10.25" when fully retracted and 18.25" when fully extended.
