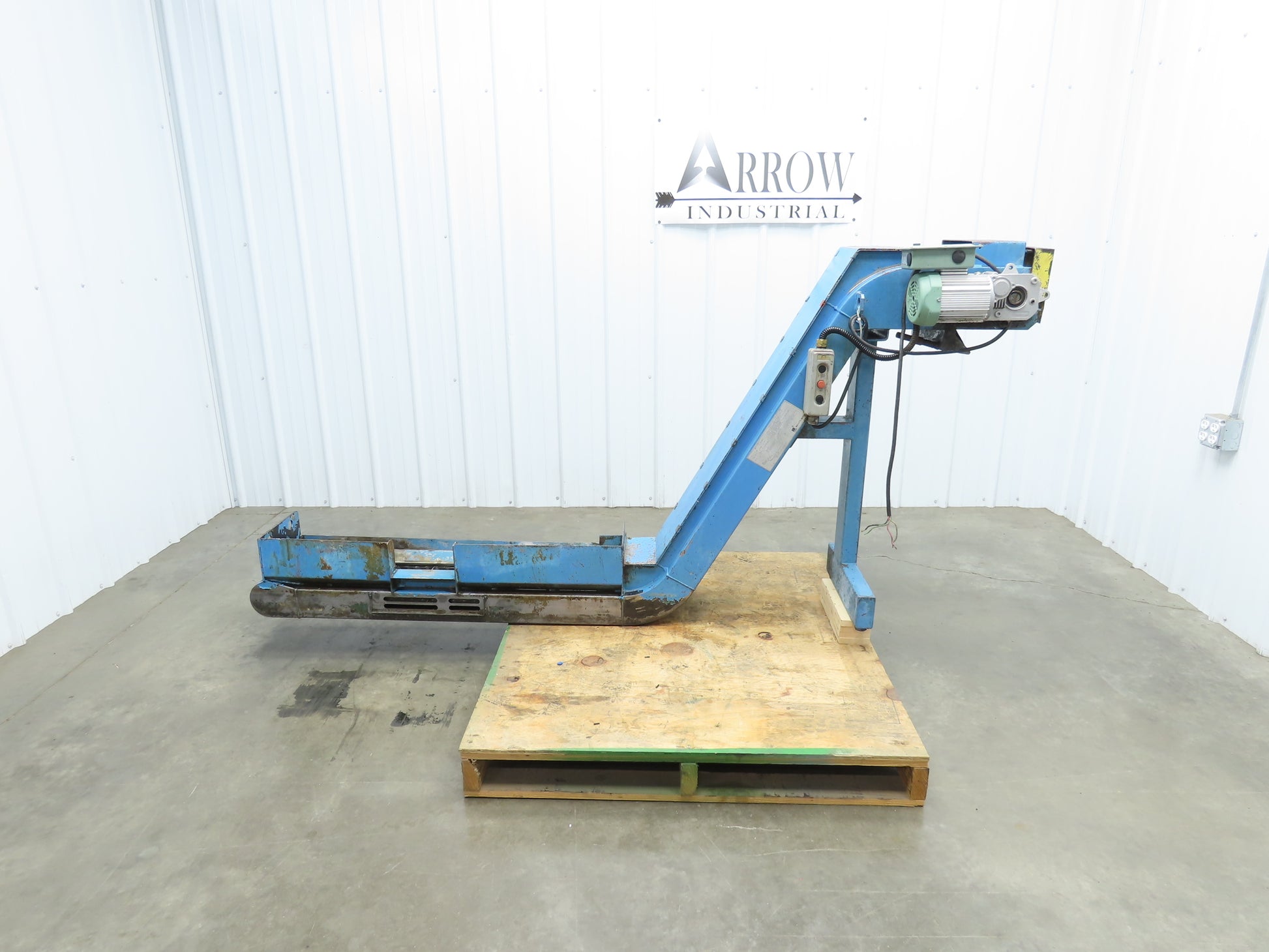

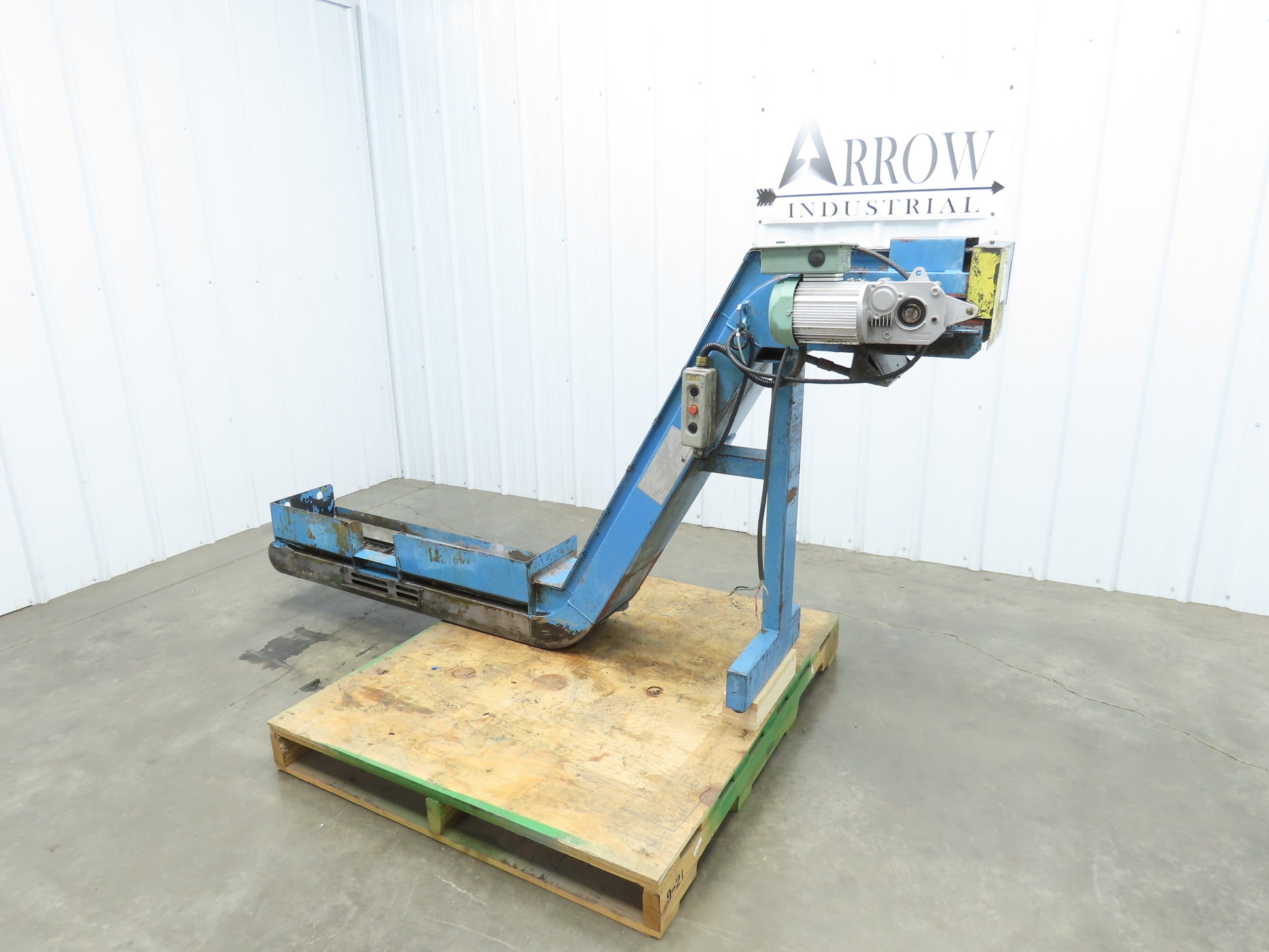

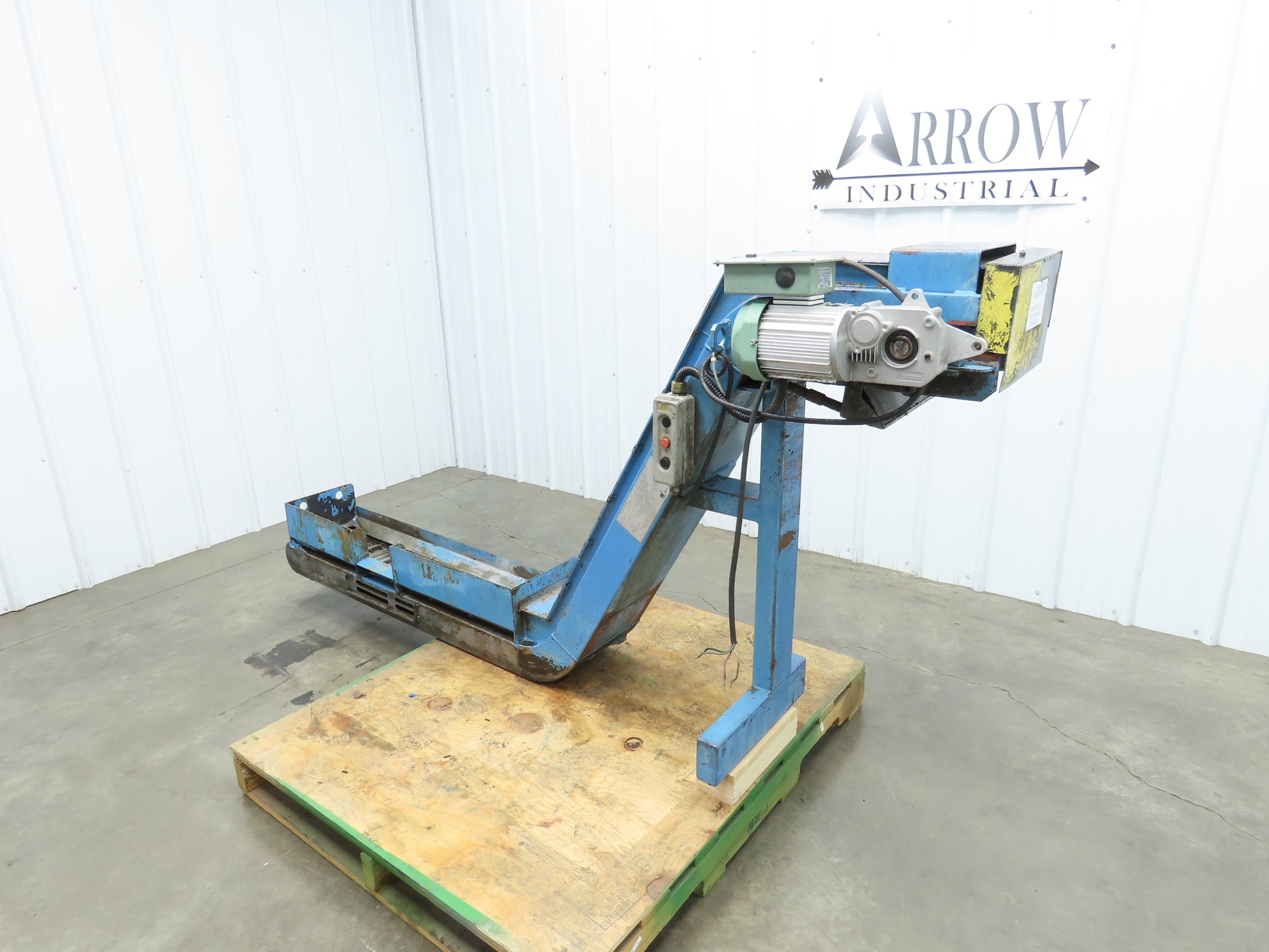

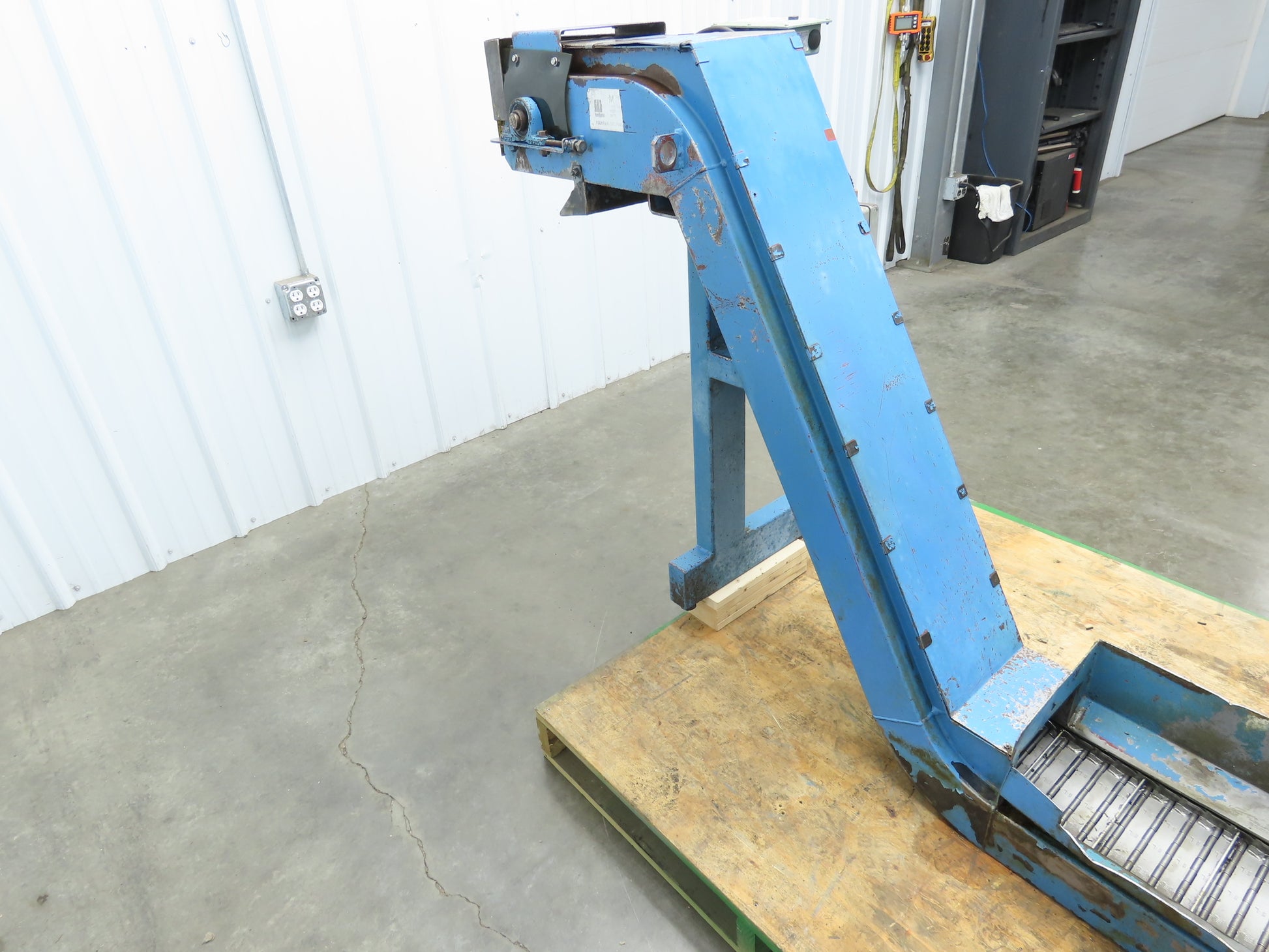

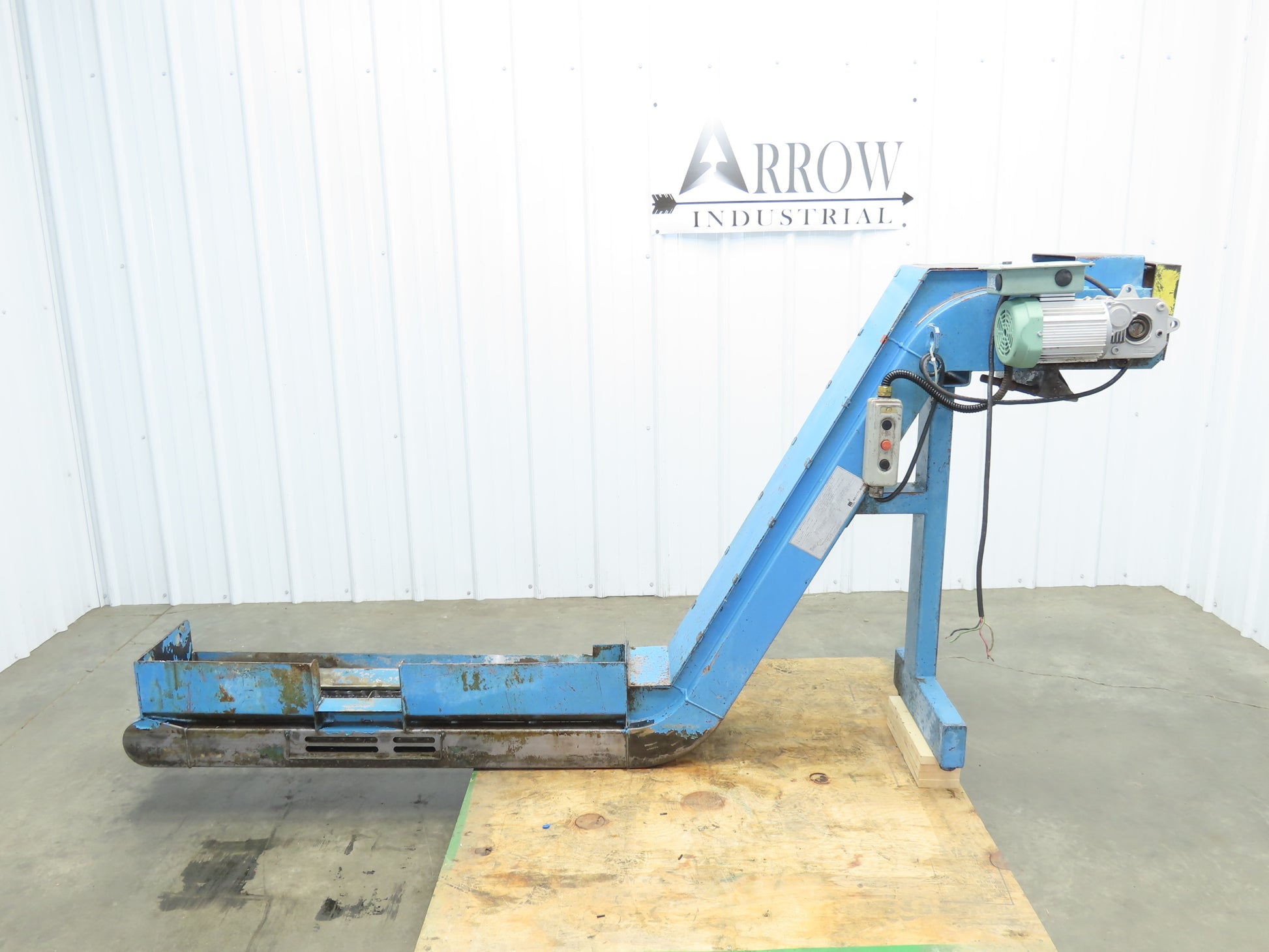

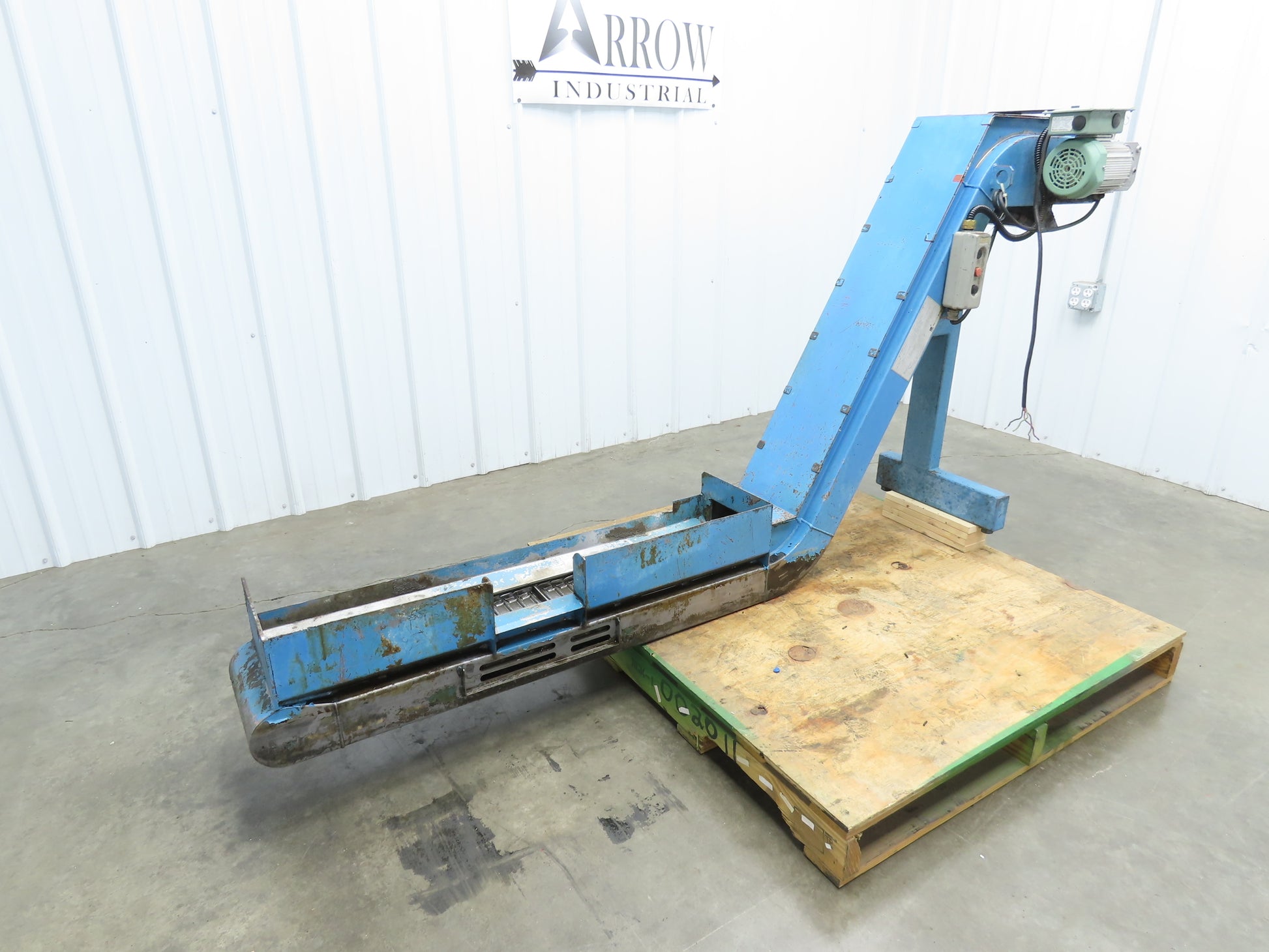

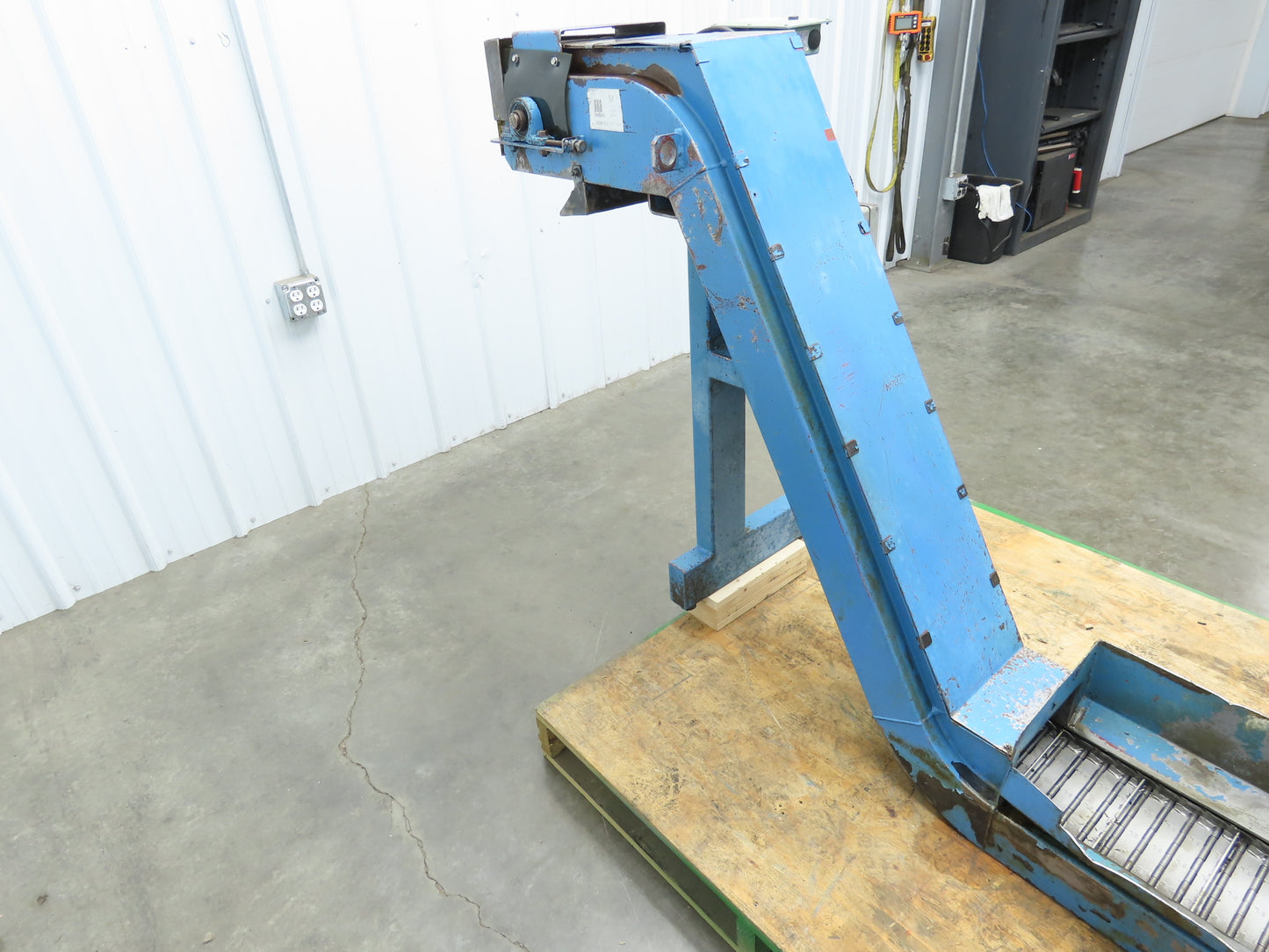

Tsubaki 10"W x 90"L Chip Conveyor 7.5"Belt 45" Infeed 38"H Discharge 220V 3PH

Tsubaki 10"W x 90"L Chip Conveyor 7.5"Belt 45" Infeed 38"H Discharge 220V 3PH

SKU #307221

Product Condition: Used

Your Price
$1,614.99
$1,699.99 $1,614.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Tsubaki
Model
N/A
MPN
N/A
Condition
Used
  • Condition: Used in good working condition, cleaned and tested.

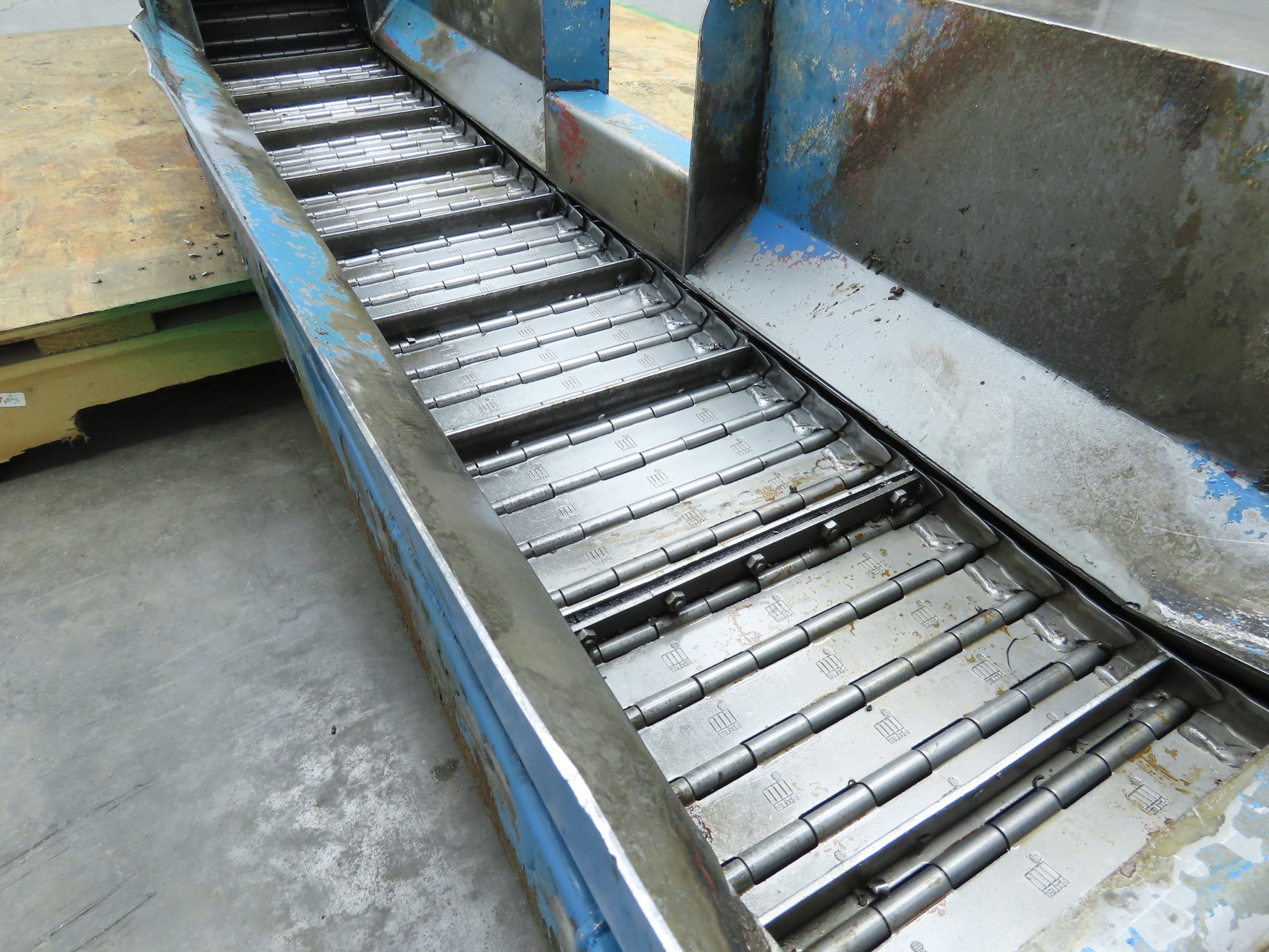

  • Conveyor Type: Hinge belt chip conveyor.

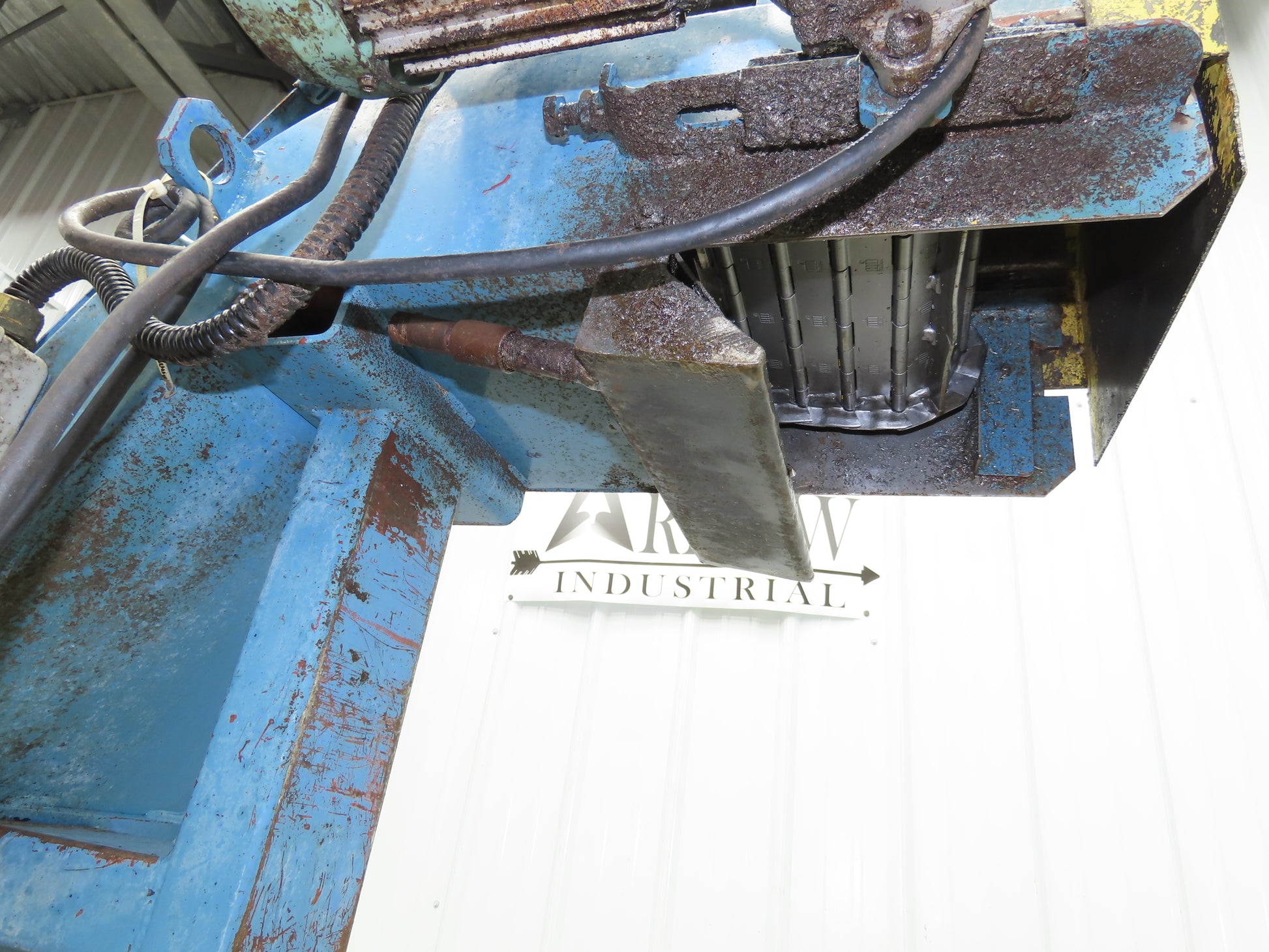

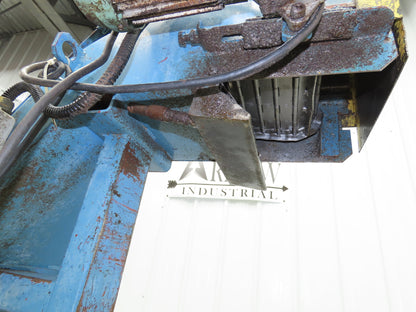

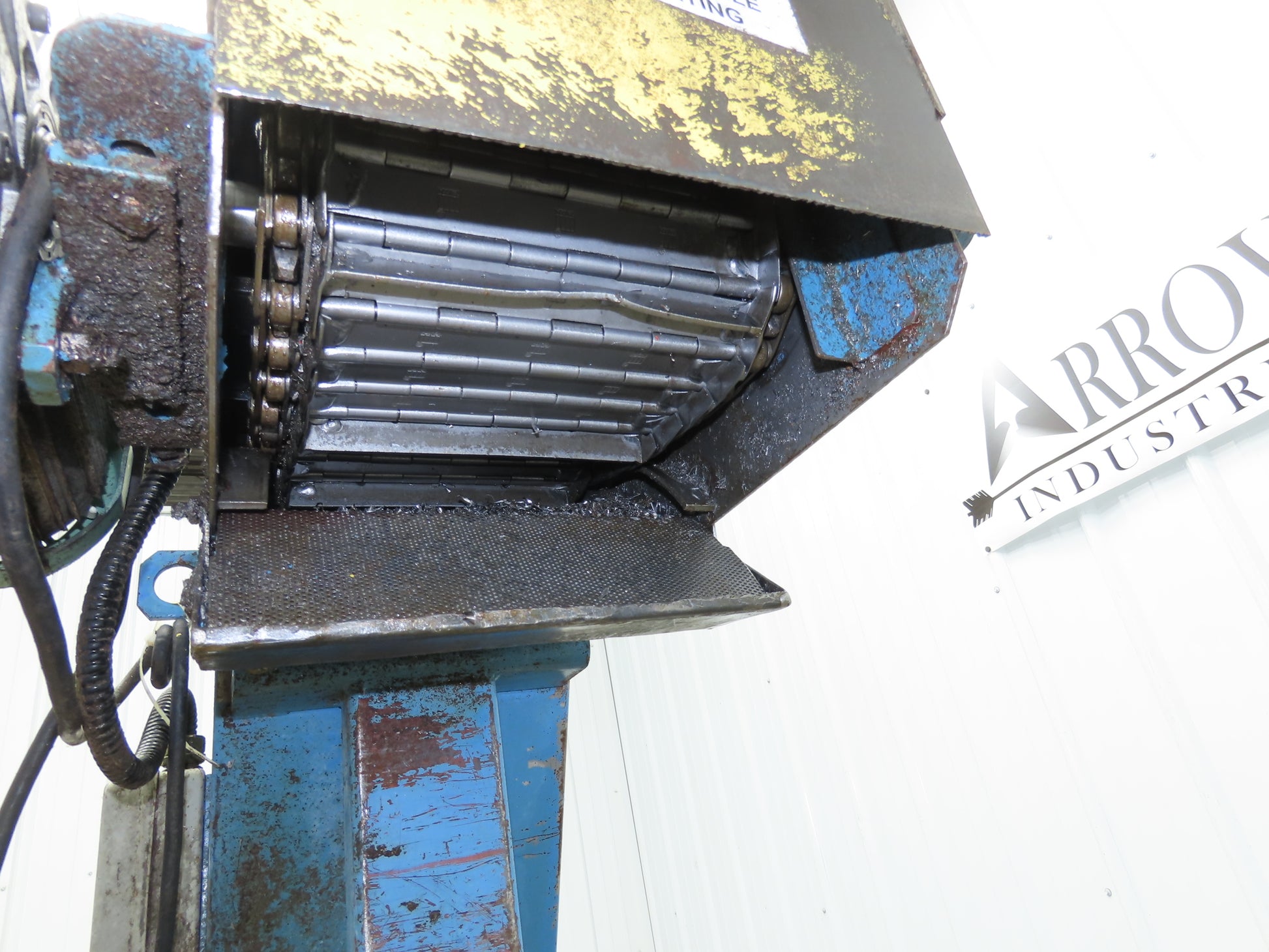

  • Discharge Height: 38" (To bottom of discharge flap)

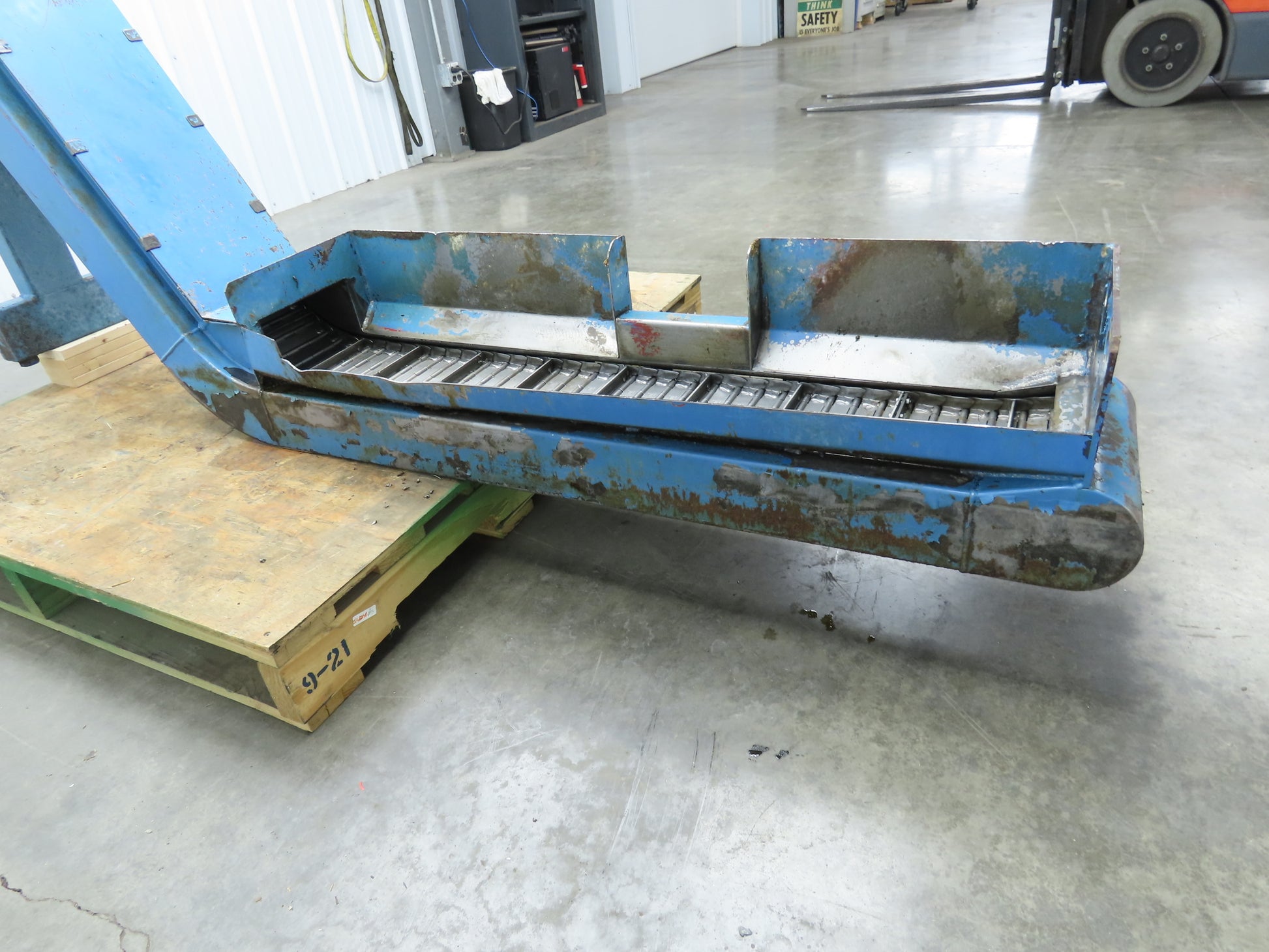

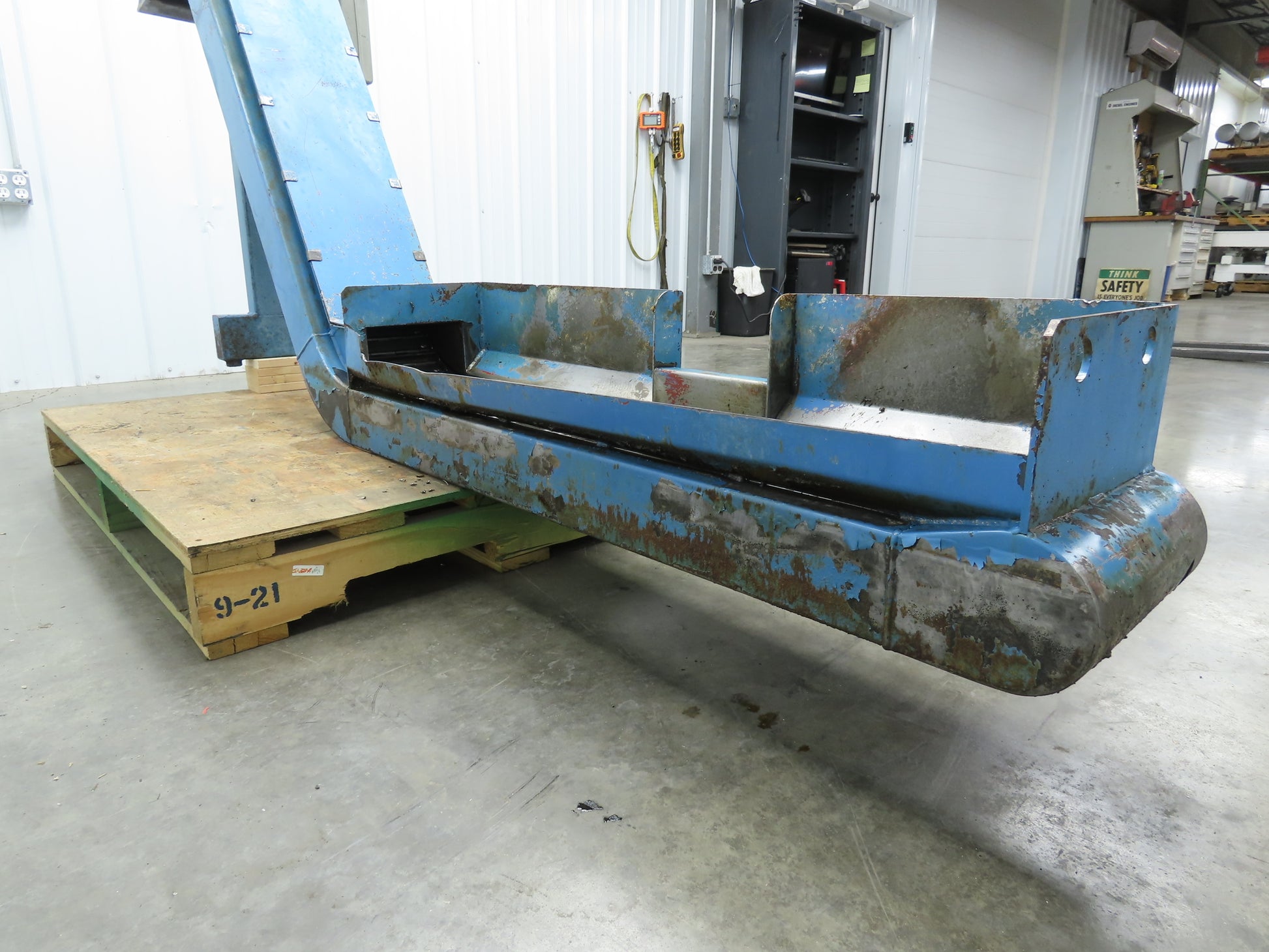

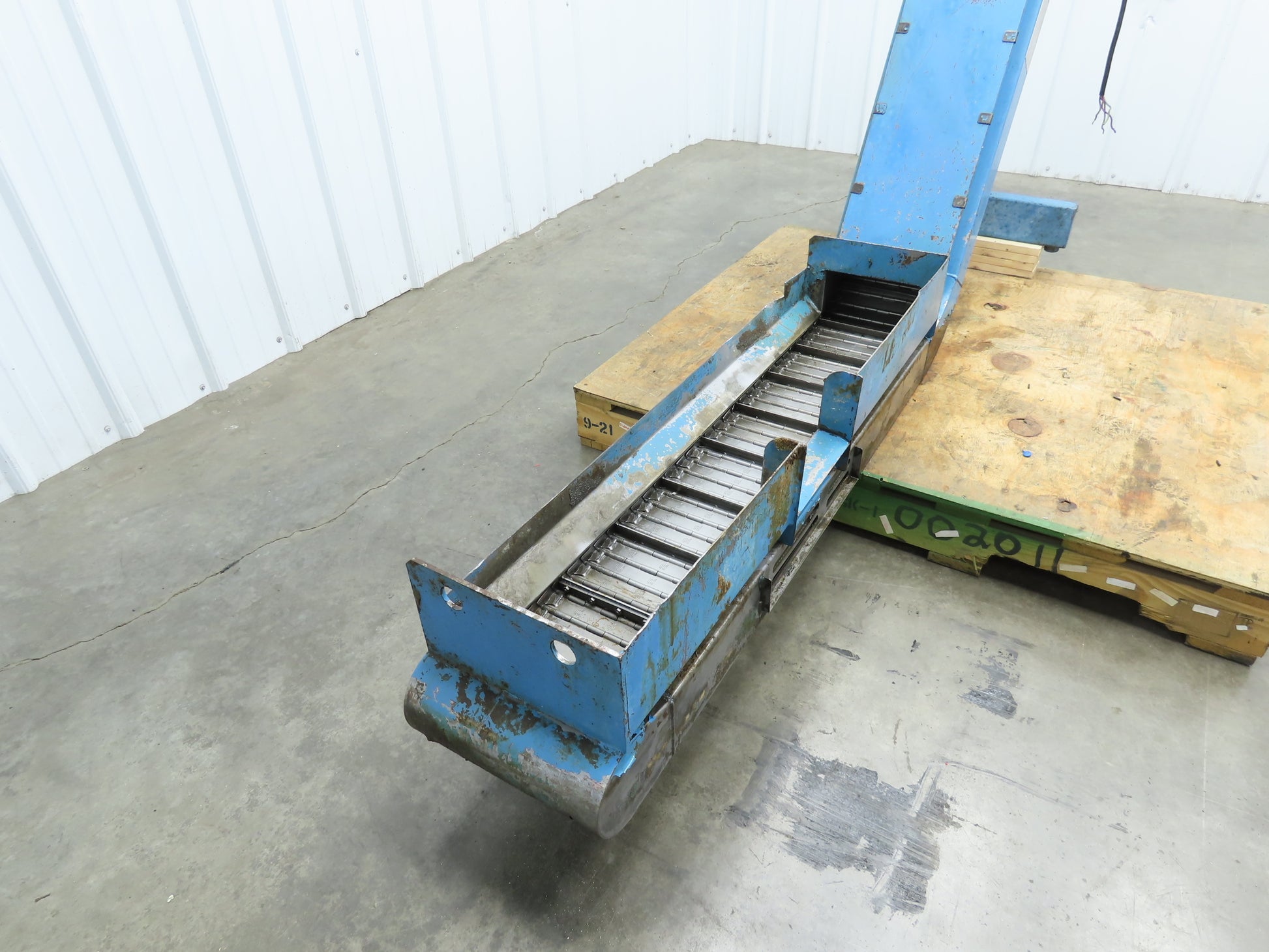

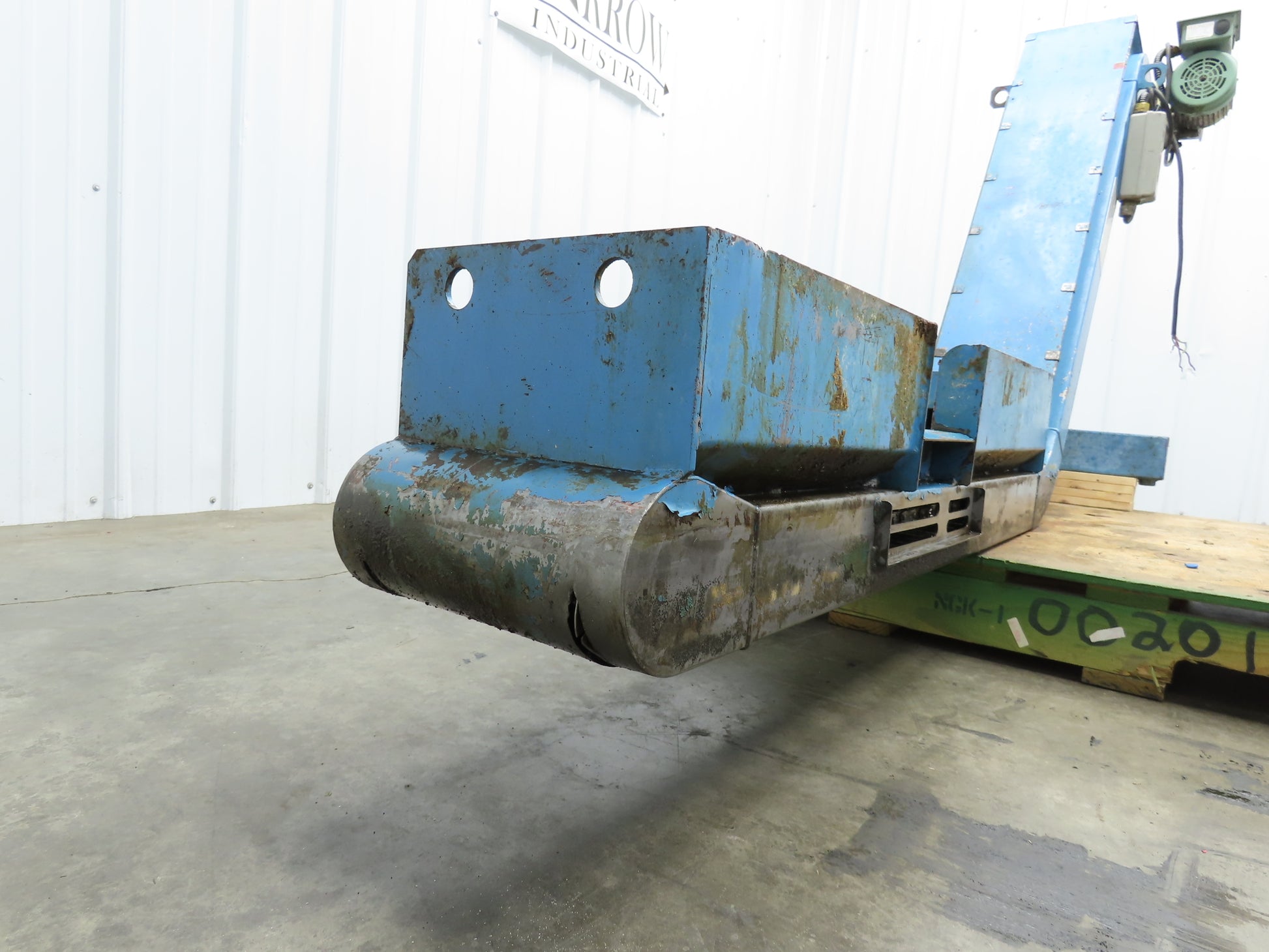

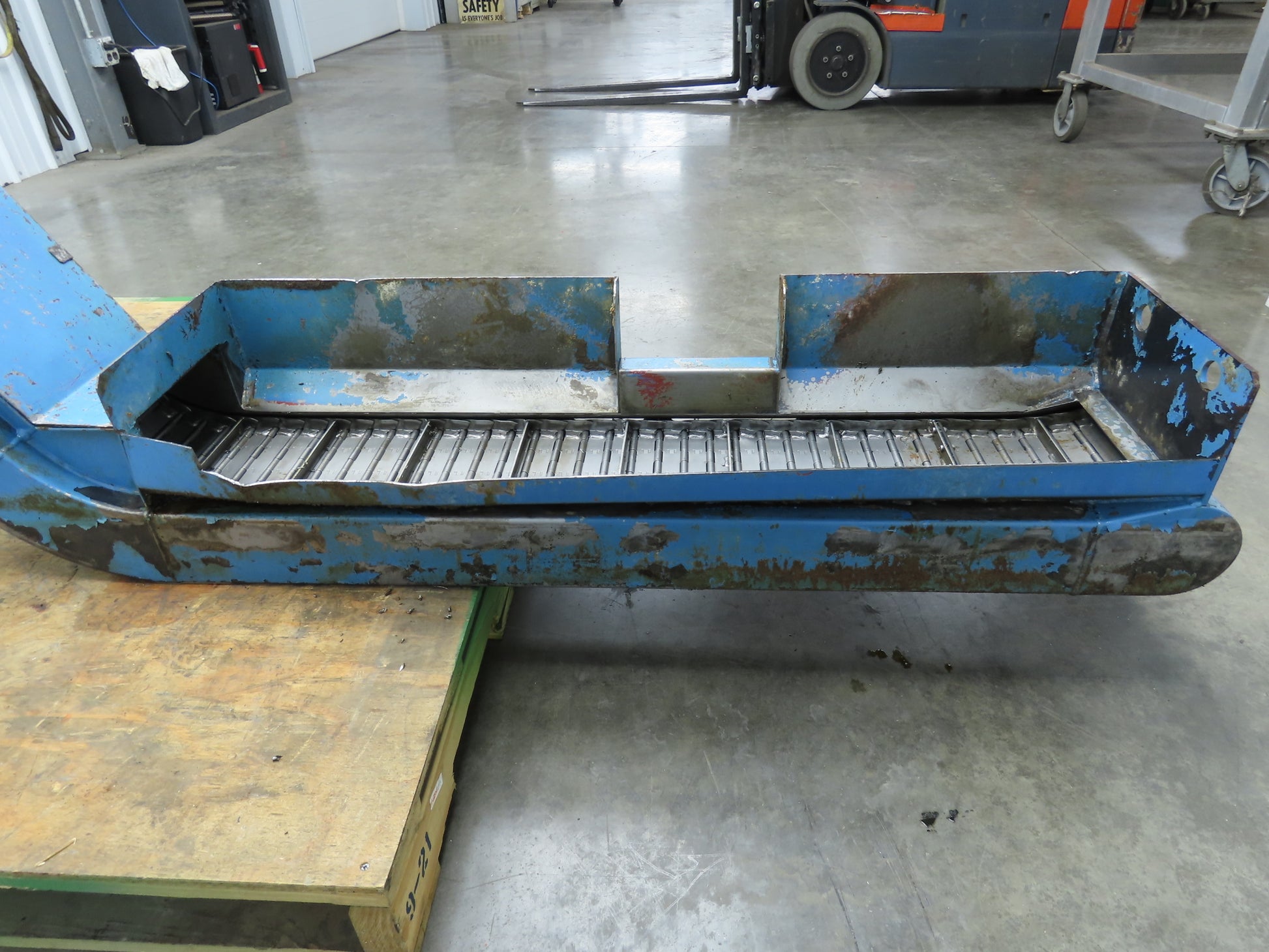

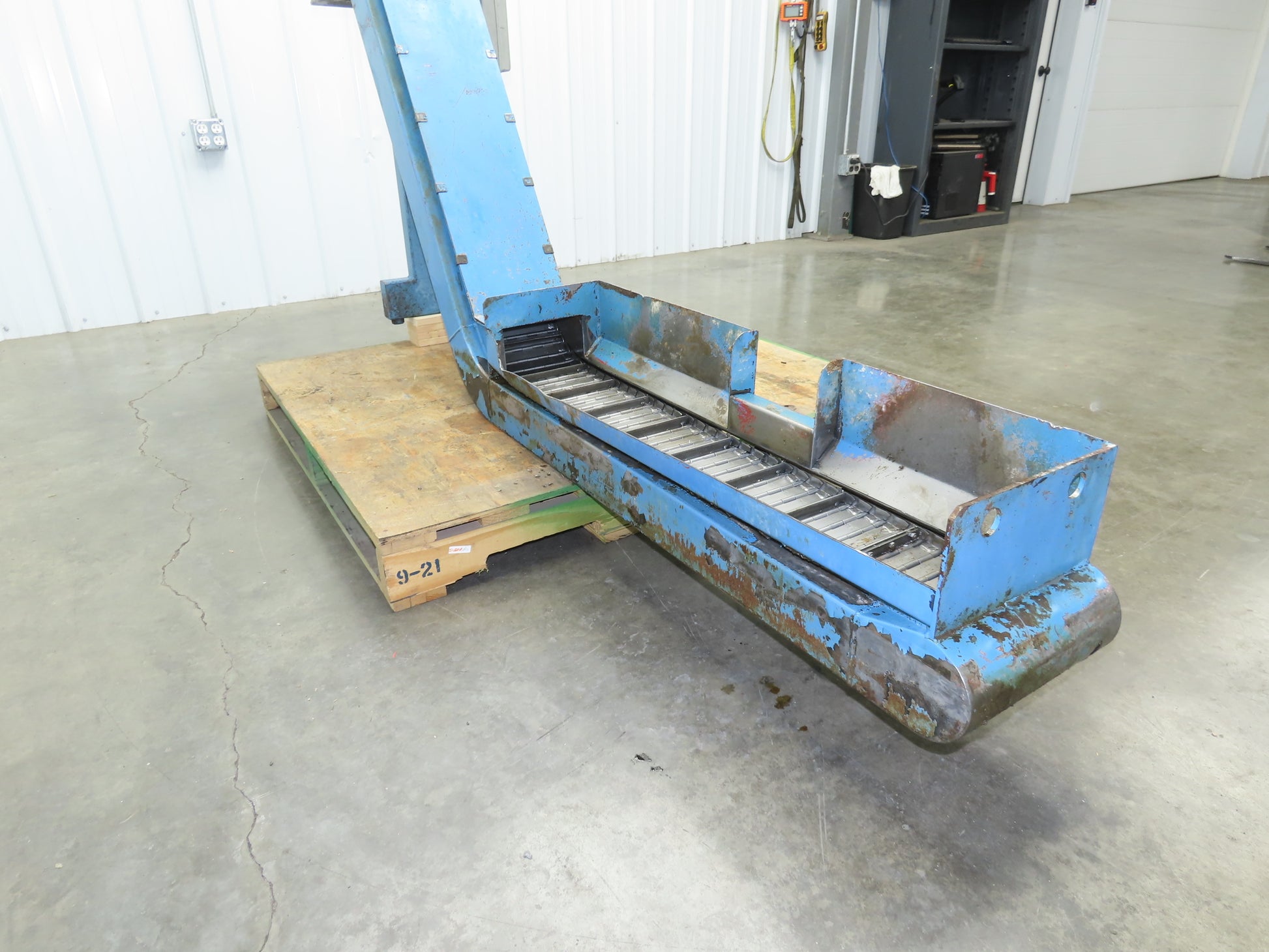

  • Infeed Length (To start of incline): 45"
  • Length from Infeed to front of Leg: 73"
  • Bed Width: 7-1/2"
  • Frame Width: 10-1/4"

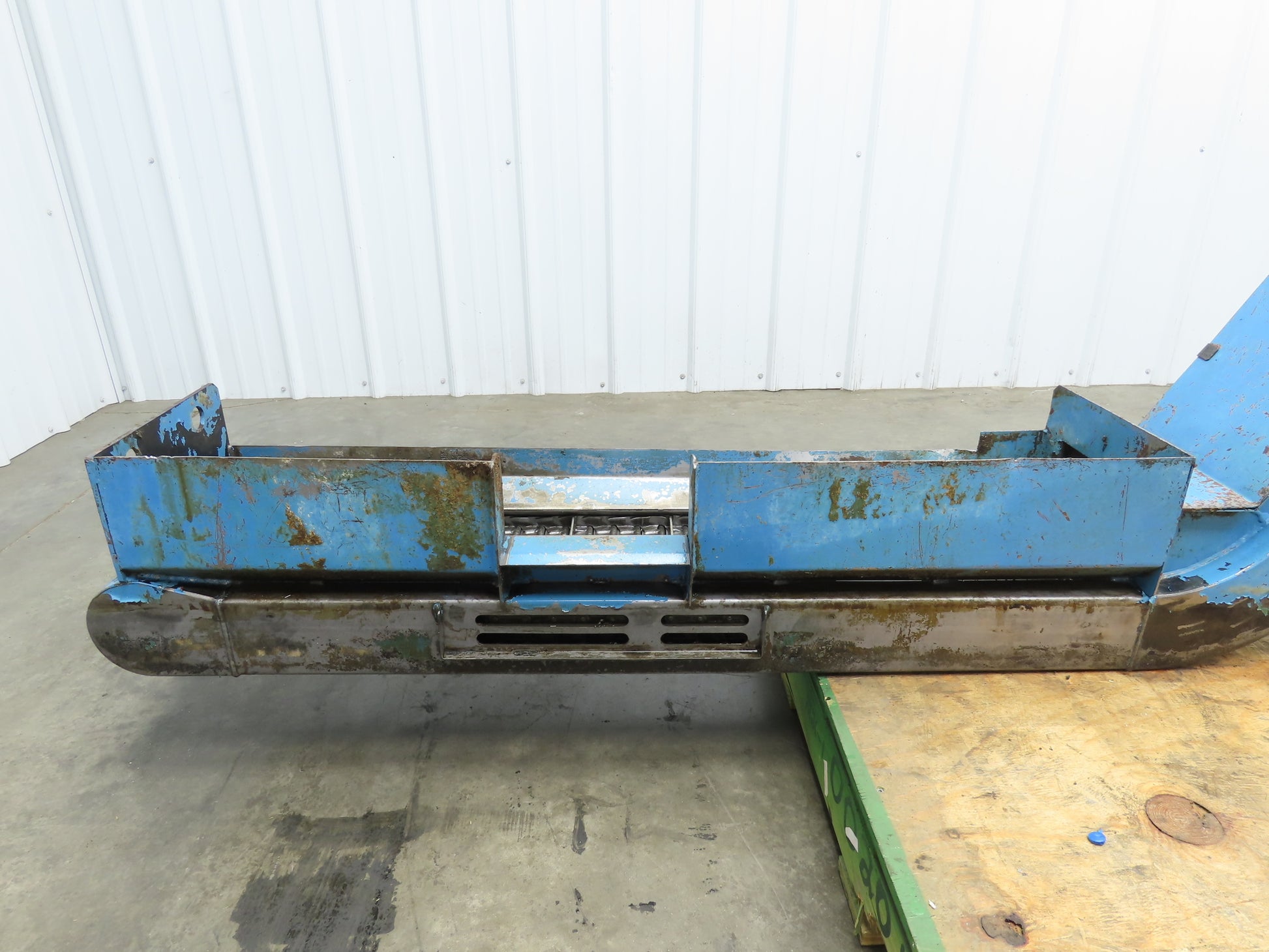

  • Infeed Height (Clearance): 10-1/2" on right side, 6-3/4" on left side with infeed set at level. The space on the right side above the drain vent is 7-5/8" wide.
  • Belt Speed: 4 FPM

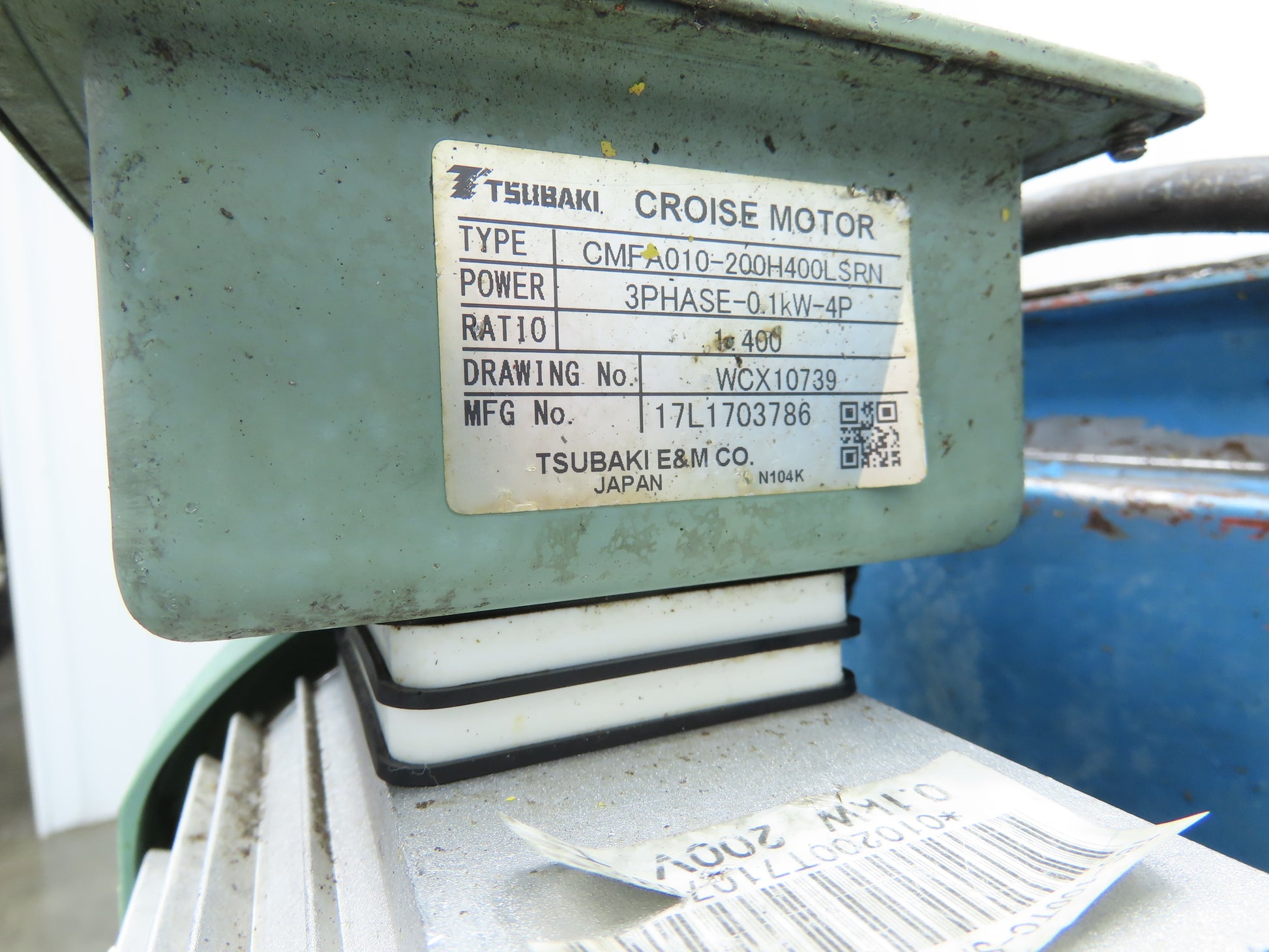

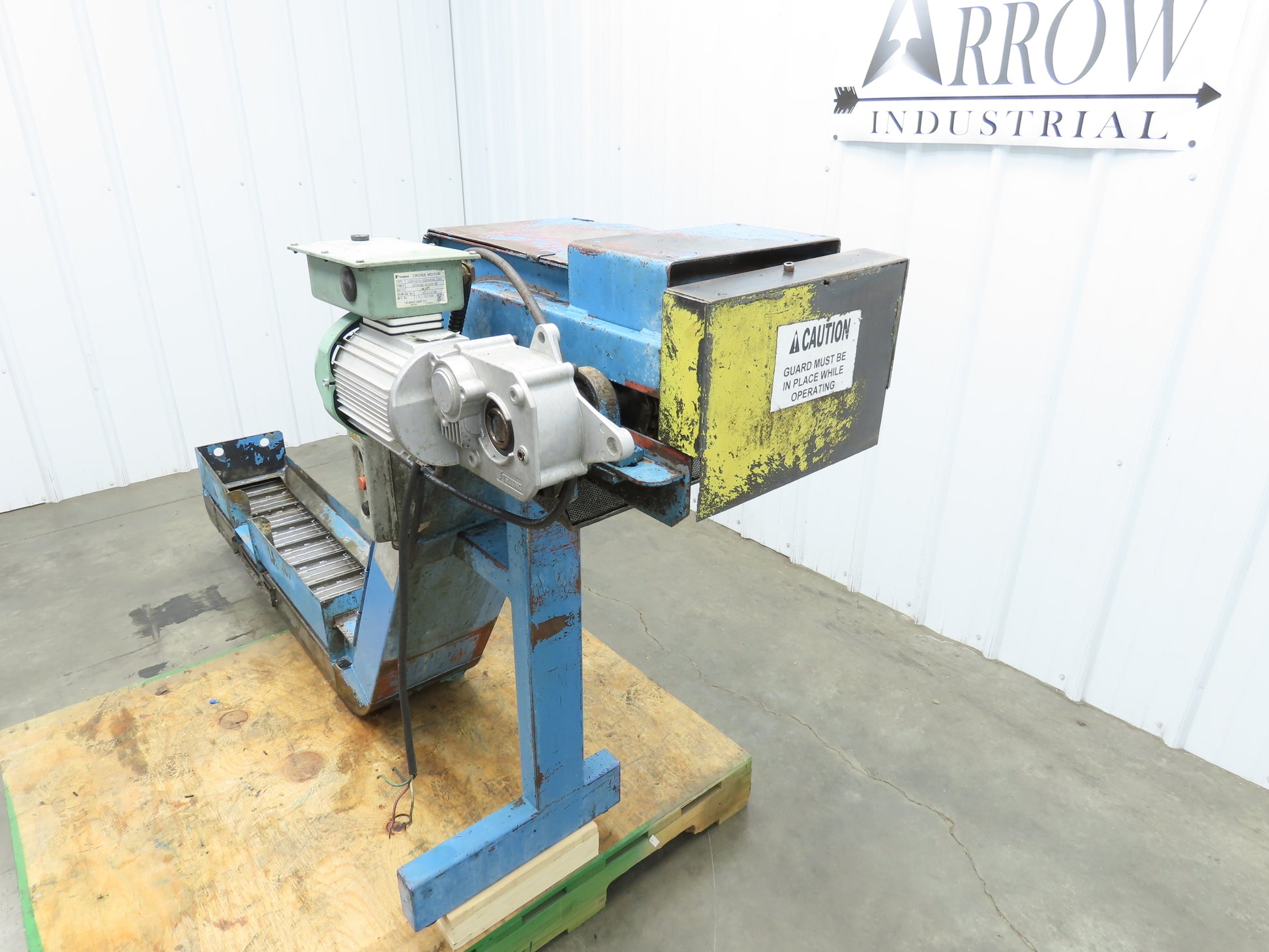

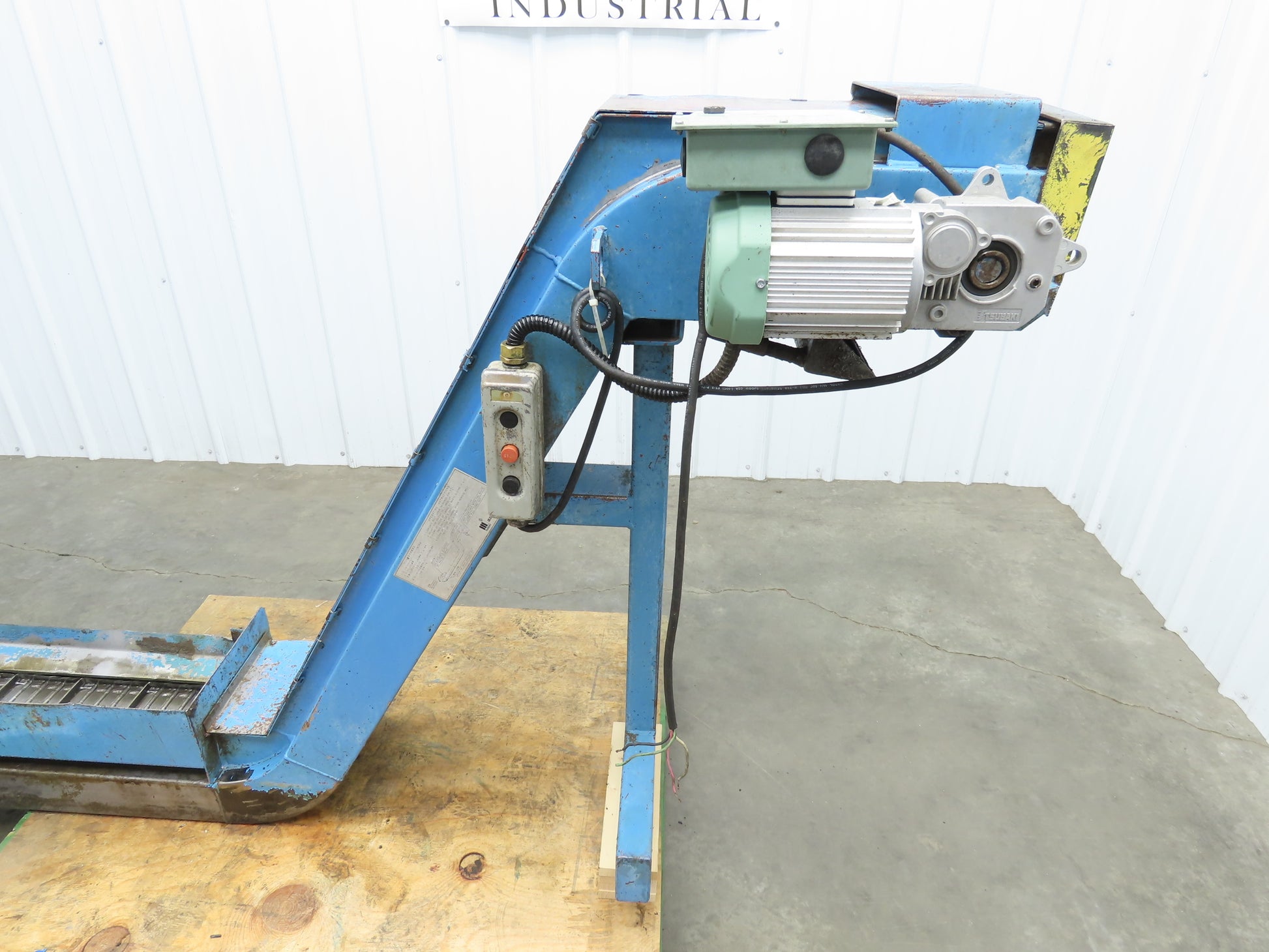

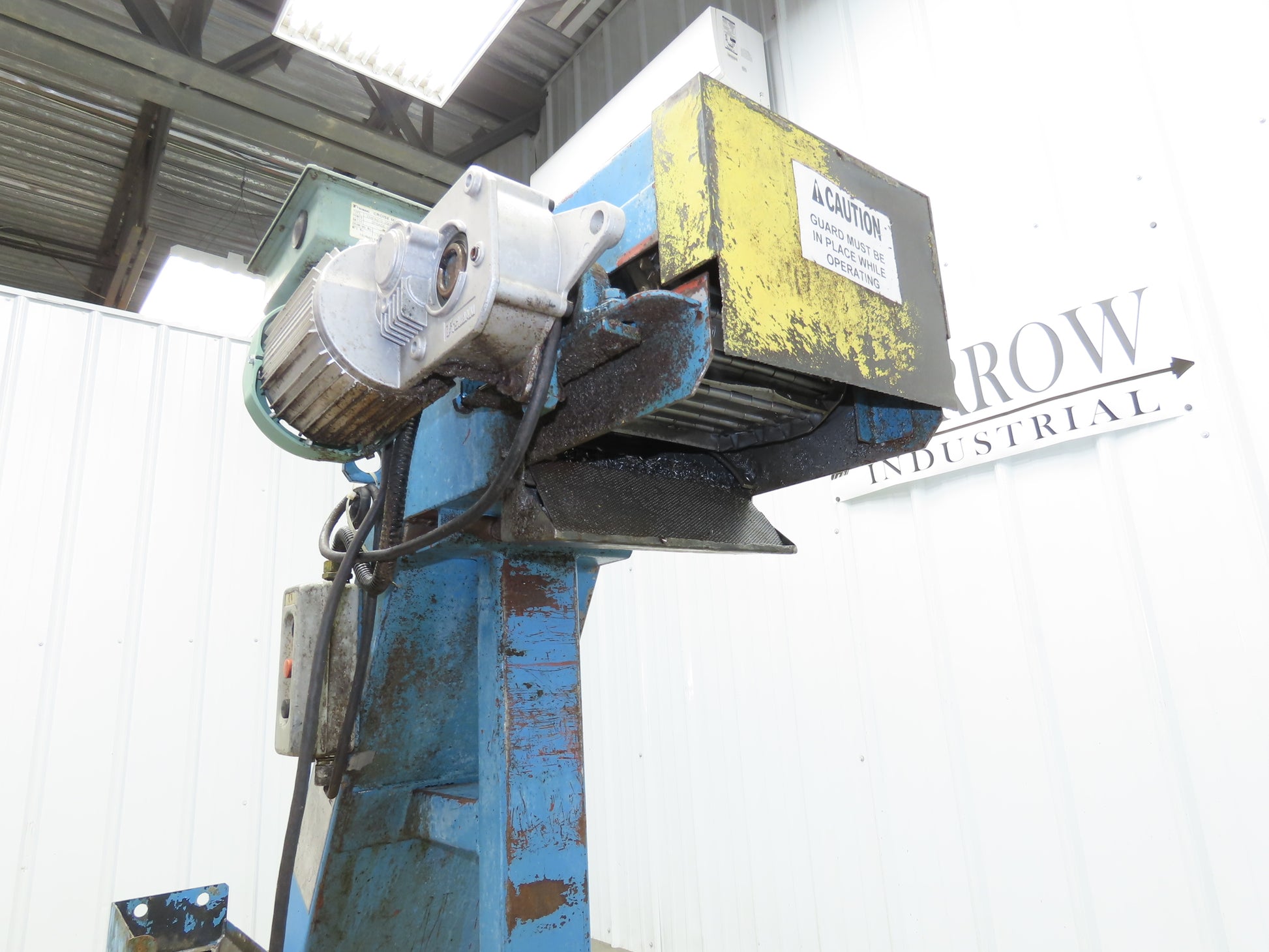

  • Drive type, motor specs: Direct Drive 0.1kw 220V 3PH Croise Motor CMFA010-200H400LSRN
  • Voltage tested at and wired for:: 230V
  • Overall Length: 90"

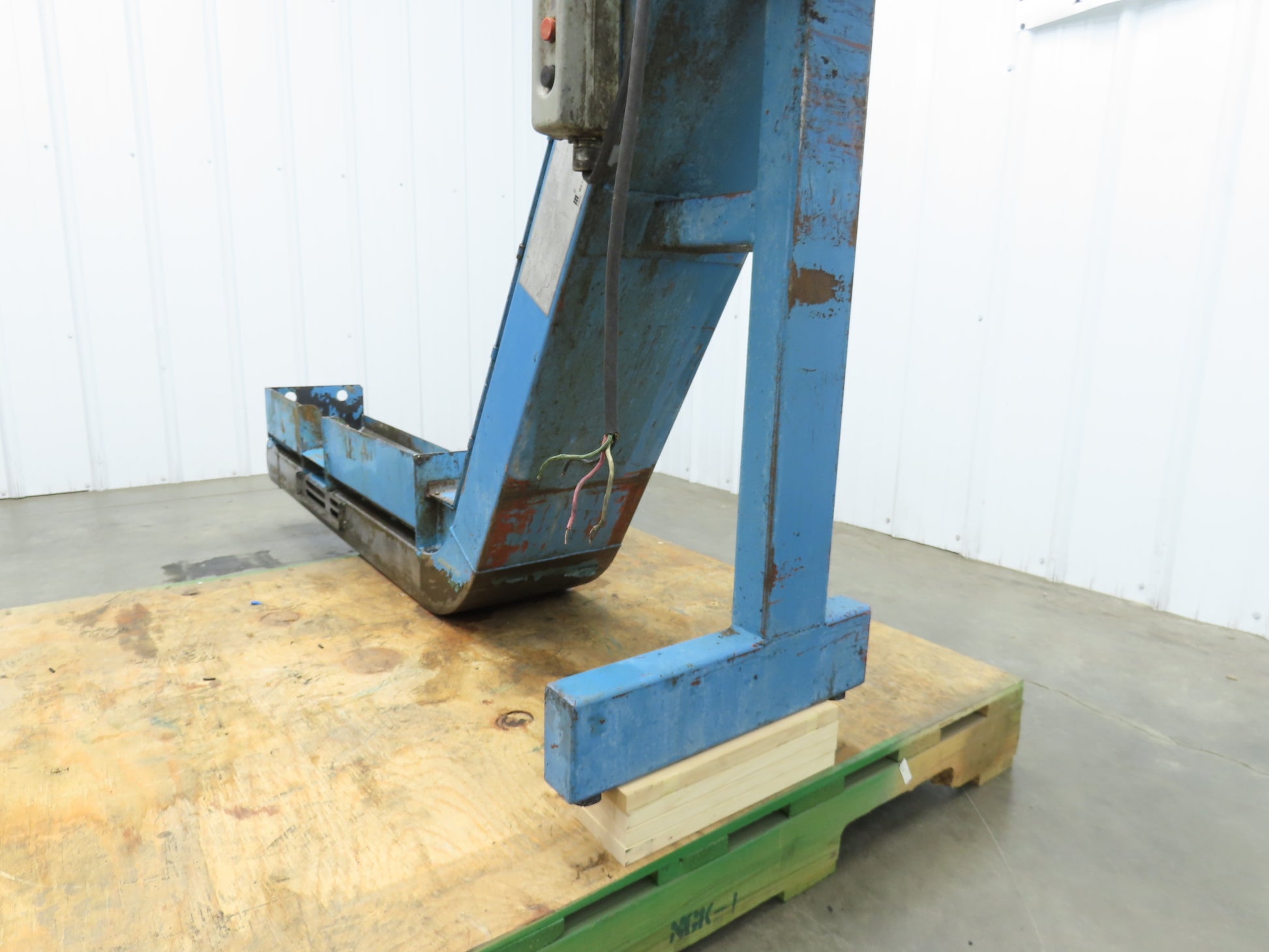

  • NOTE: Conveyor leg needs screw levelers or blocks to set up level.
