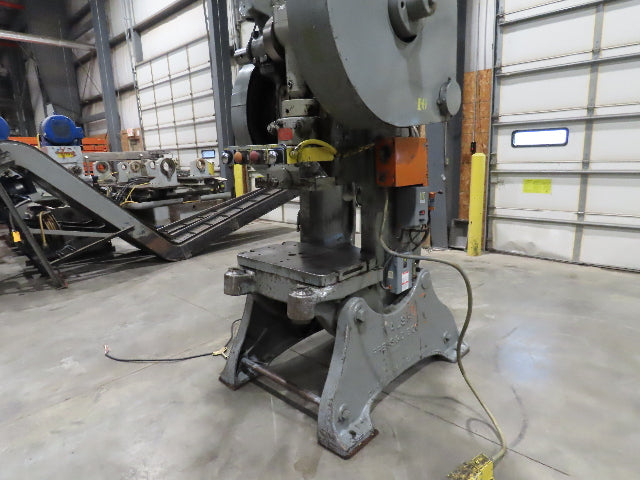

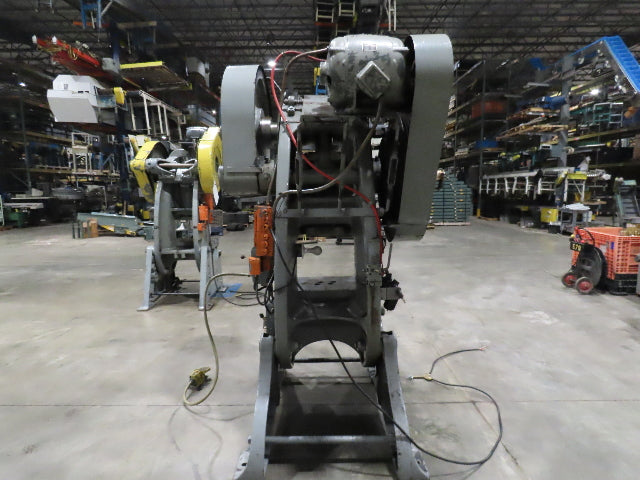

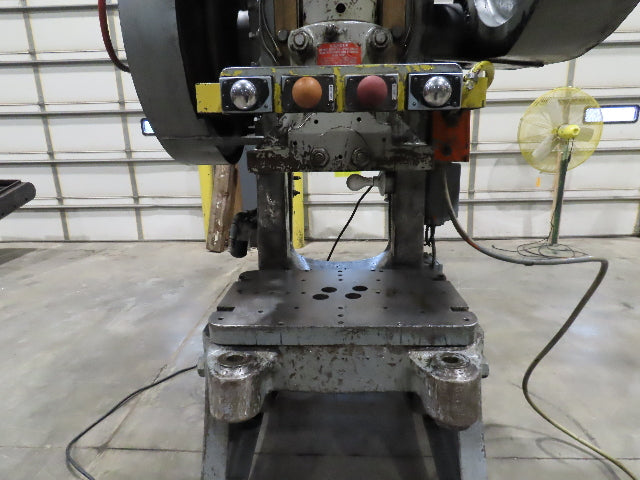

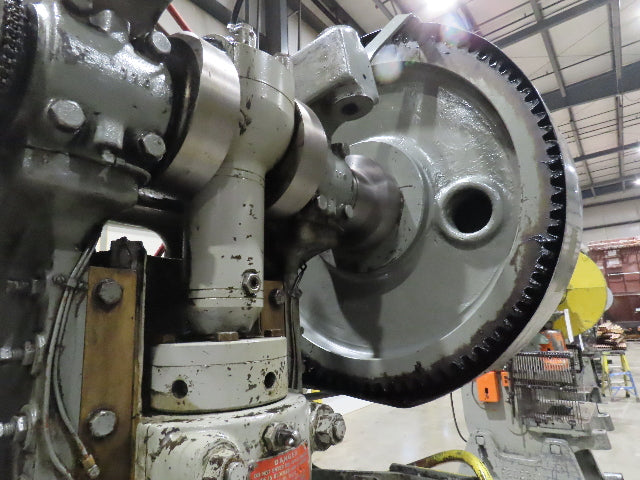

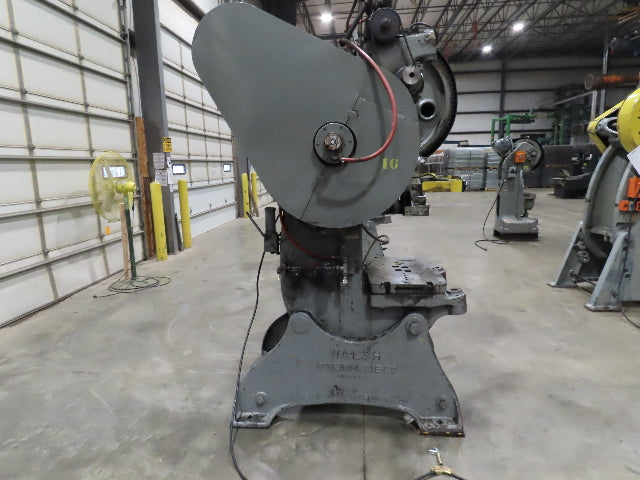

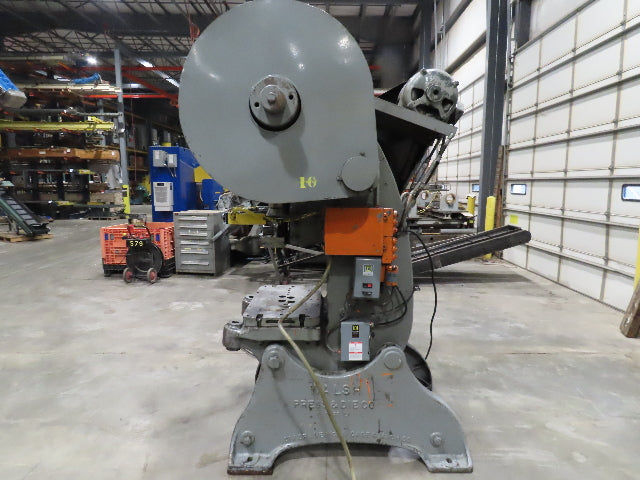

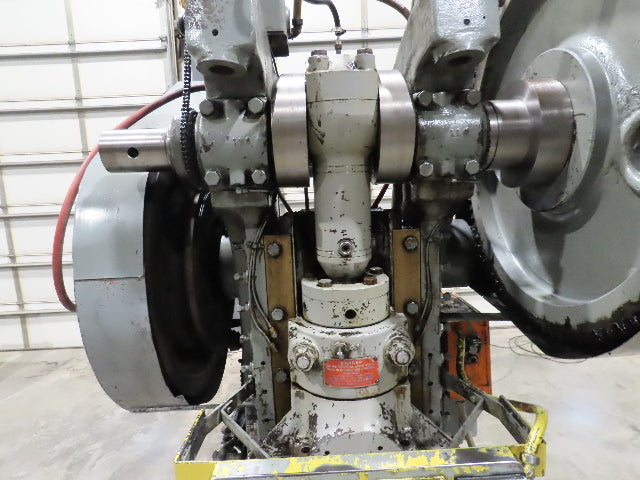

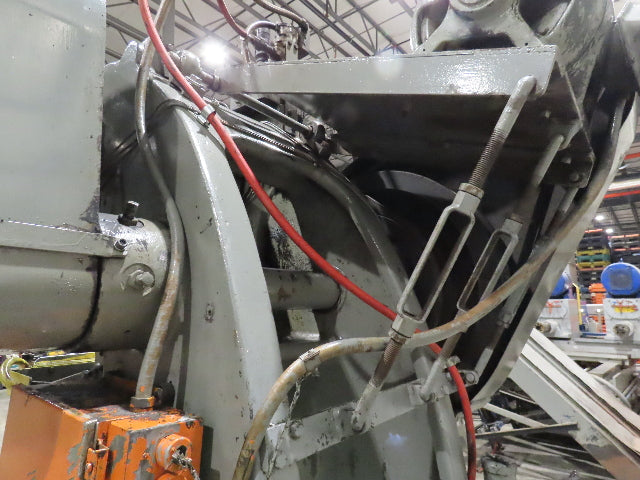

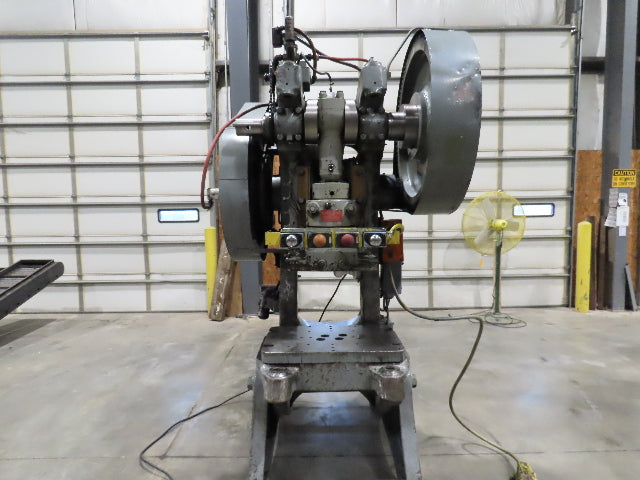

Walsh No 65 Ton Geared Mechanical Punch Press 6" Stroke 10" Throat 7.5Hp 3Ph

Walsh No 65 Ton Geared Mechanical Punch Press 6" Stroke 10" Throat 7.5Hp 3Ph

SKU #256499

Your Price
$6,151.24
$6,151.24
Sale Sold out
Shipping calculated at checkout.
  • HP: 7.5

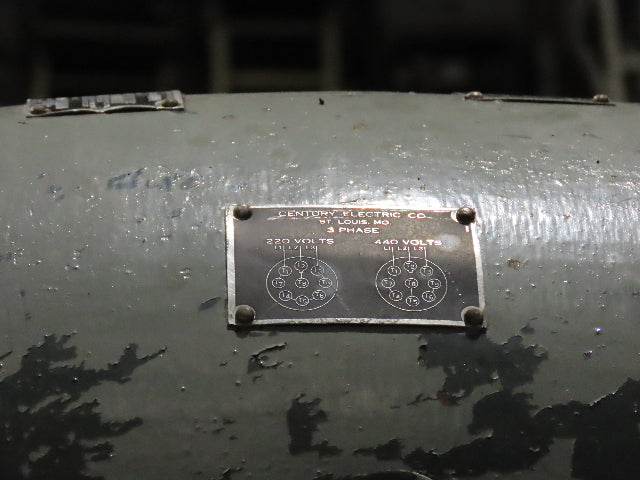

  • Voltage: 220/440V Wired for 220
  • Press Rating Ton: 65
  • Stroke (inches): 6

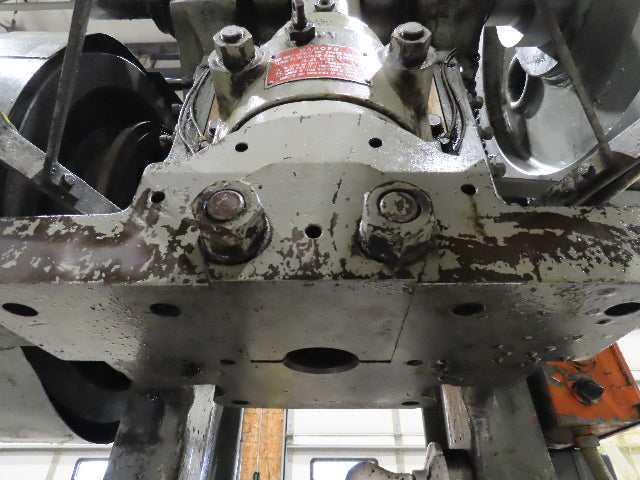

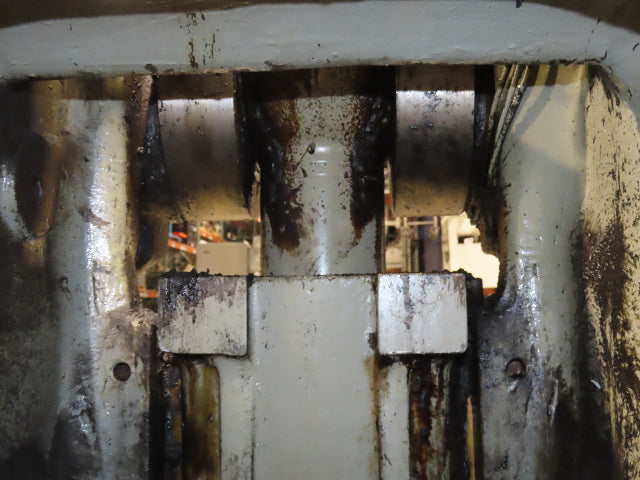

  • Ram Open Height w/adjustment up (Inches): 18
  • Ram Shut Height w/Adjustment up (Inches): 12
  • Ram Adjustment Length (Inches): 3

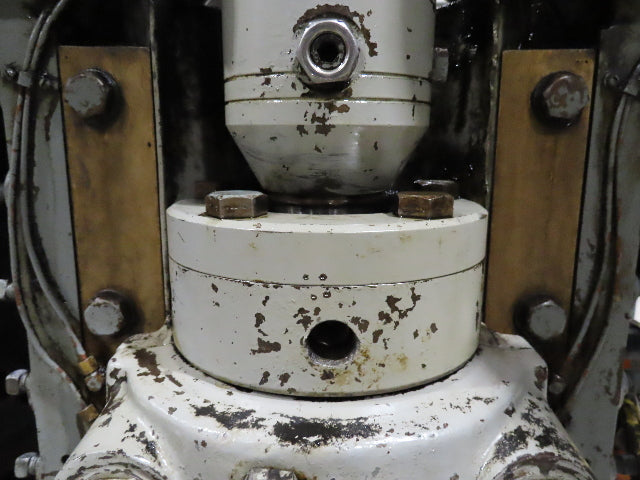

  • Ram Die Shank Size (Inches): 2-1/2
  • Ram Die Shank Length (Inches): 6
  • Ram Bolt Distance (Center to Center) (Inches): 10-3/4" and 8-1/2"
  • Throat Opening (Frame to Center of Ram) (Inches): 10

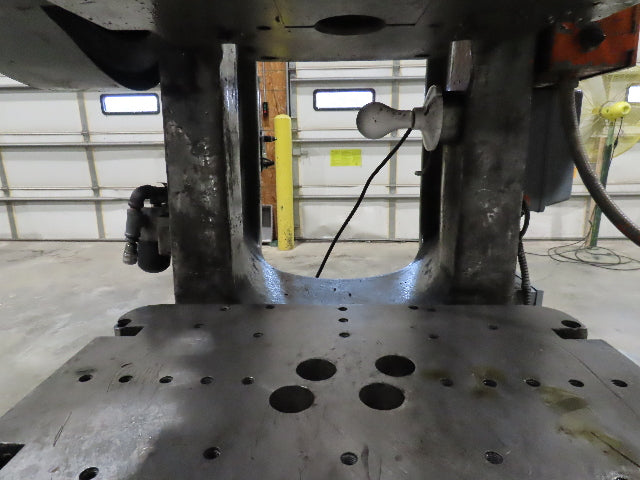

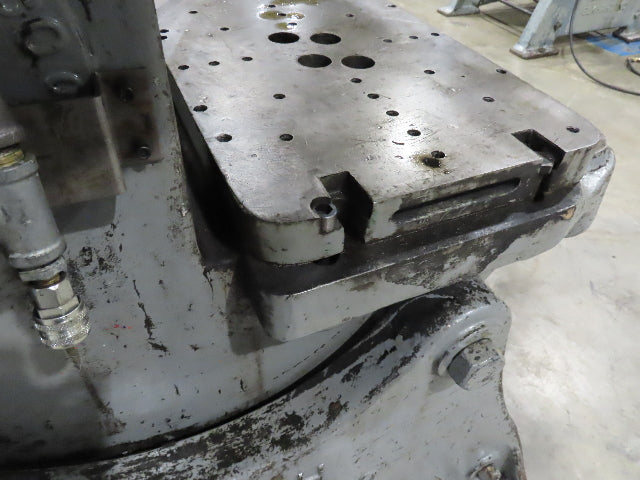

  • Bed Size (Inches): 18x32" Has a 2-1/4"plate 29x18-1/2

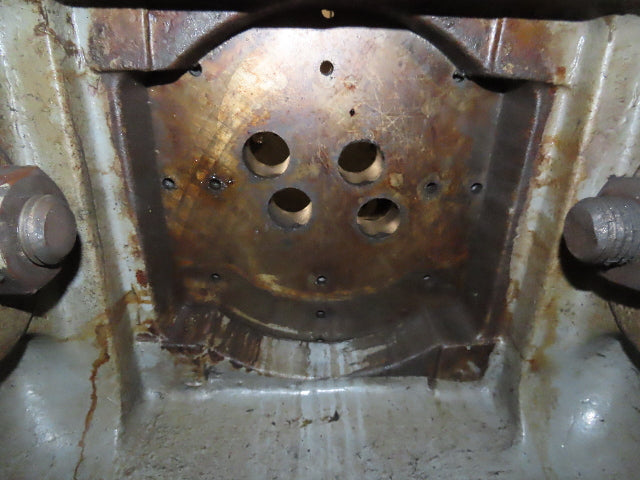

  • Bed Opening (Inches): 14-1/8 x15"
  • Used, in Good Working Condition, Tested OK.

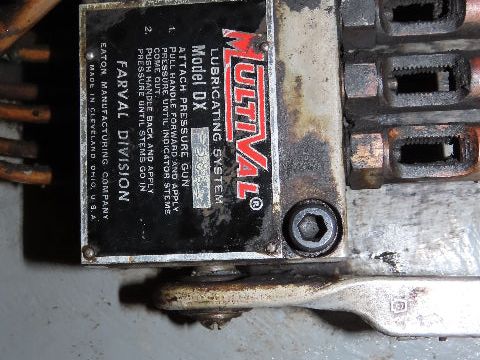

  • Central oiler.

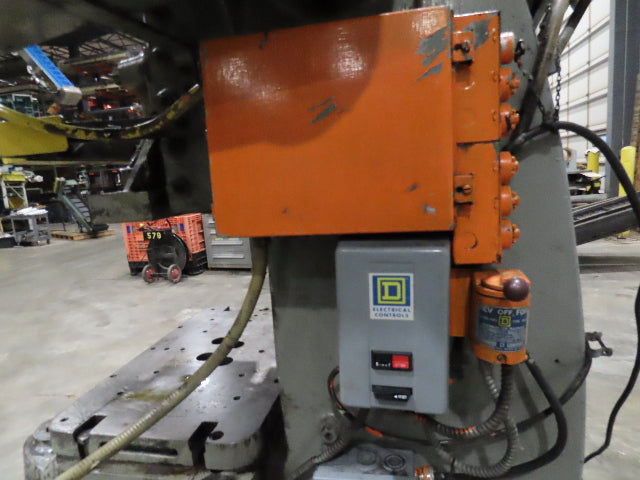

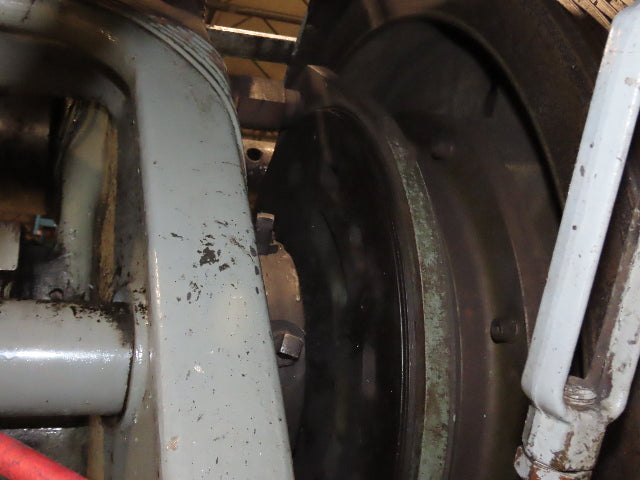

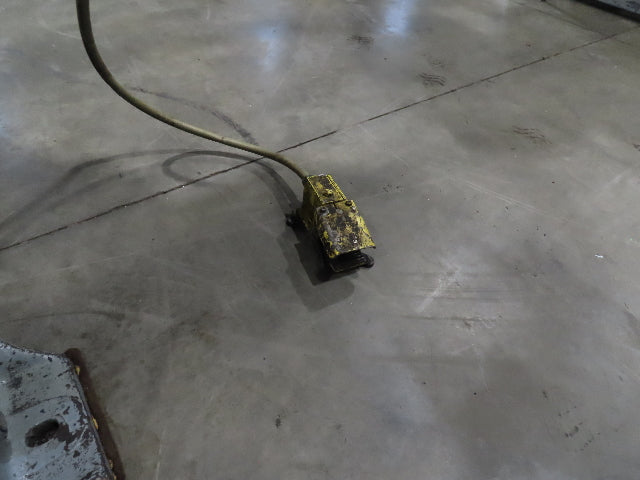

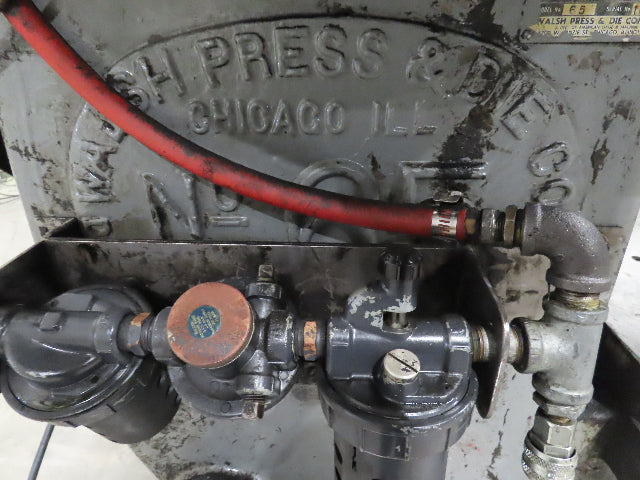

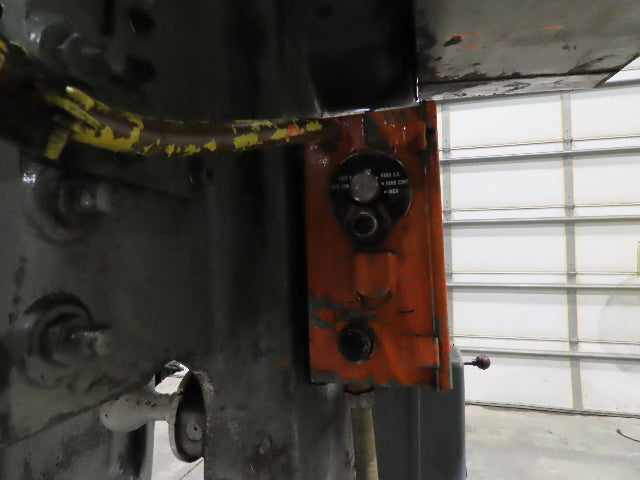

  • Air clutch. Controls can be hand or foot. Motor can be reversed.
  • We got it to inch. We did not mess with the control much.
  • Unit would not have to make a full cycle. Could be inched and then reversed.
  • Wired for 220V 3Ph.
